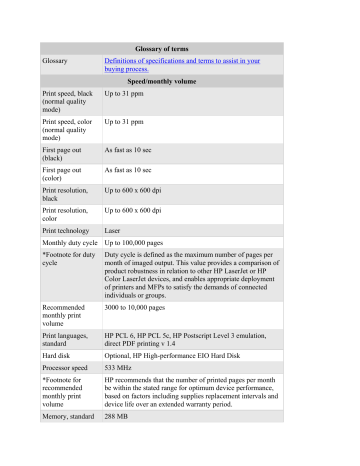

Glossary of terms
Glossary
Definitions of specifications and terms to assist in your
buying process.
Speed/monthly volume
Print speed, black
(normal quality
mode)
Up to 31 ppm
Print speed, color
(normal quality
mode)
Up to 31 ppm
First page out
(black)
As fast as 10 sec
First page out
(color)
As fast as 10 sec
Print resolution,
black
Up to 600 x 600 dpi
Print resolution,
color
Up to 600 x 600 dpi
Print technology
Laser
Monthly duty cycle Up to 100,000 pages
*Footnote for duty
cycle
Duty cycle is defined as the maximum number of pages per
month of imaged output. This value provides a comparison of
product robustness in relation to other HP LaserJet or HP
Color LaserJet devices, and enables appropriate deployment
of printers and MFPs to satisfy the demands of connected
individuals or groups.
Recommended
monthly print
volume
3000 to 10,000 pages
Print languages,
standard
HP PCL 6, HP PCL 5c, HP Postscript Level 3 emulation,
direct PDF printing v 1.4
Hard disk
Optional, HP High-performance EIO Hard Disk
Processor speed
533 MHz
*Footnote for
recommended
monthly print
volume
HP recommends that the number of printed pages per month
be within the stated range for optimum device performance,
based on factors including supplies replacement intervals and
device life over an extended warranty period.
Memory, standard
288 MB
Memory, maximum 544 MB (512 MB DDR SDRAM, 32 MB Flash memory on
the formatter)
Paper handling
Paper tray(s),
standard
2
Paper tray(s),
maximum
Up to 6
Paper handling
standard,input
100-sheet multipurpose tray, 500-sheet tray, duplexer
Paper handling
optional,input
Up to four optional 500-sheet paper trays, optional stand
Paper handling
standard,output
500-sheet face-down output bin
Paper handling
optional,output
Optional 750-sheet stapler/stacker
Duplex printing
(printing on both
sides of paper)
Automatic (standard)
Media sizes,
standard
Letter, legal, statement, executive, envelopes (No. 10,
Monarch)
Media sizes, custom Multipurpose tray: 3 x 5 to 8.5 x 14 in; 500-sheet input trays:
5.8 x 8.3 to 8.5 x 14 in
Media types
Multipurpose tray: paper (plain, glossy, colored, preprinted,
letterhead, recycled, HP tough and high-gloss laser),
envelopes, transparencies, labels, cardstock; 500-sheet input
trays: paper (plain, glossy, colored, preprinted, letterhead,
recycled, HP tough and high-gloss laser), transparencies,
labels
Document finishing Sheetfed
Connectivity
Connectivity,
standard
IEEE 1284C-compliant bidirectional parallel port, USB 2.0
Hi-Speed port (compatible with USB 2.0 specifications), 2
open EIO slots, foreign interface port, accessory port for
third-party solutions
Connectivity,
optional
HP Jetdirect internal and external print servers, HP wireless
print servers, Bluetooth wireless printer adapter
Dimensions and weight
Media weight
Multipurpose tray: 16 to 58 lb bond; 500-sheet input trays: 16
to 32 lb bond
Product dimensions 20.5 x 23.5 x 24.7 in
(W x D x H)
Dimensions,
max.
(W x D
x H)
20.5 x 37.4 x 22.9 in (with paper tray extended)
Product weight
107.8 lb
Power and operating requirements
Minimum system
requirements
PC: Microsoft® Windows® 7 ready. For more information
go to http://www.hp.com/go/windows7. Some features may
not be available. Windows Vista®: 1 GHz processor, 512 MB
RAM (check User’s Guide for minimum hard drive space);
Windows XP: 233 MHz processor, 64 MB RAM; Windows
Server 2003 (standard edition): 550 MHz processor, 128 MB
RAM; Windows 2000: 133 MHz processor, 64 MB RAM;
220 MB of available hard disk space (for all systems), CDROM drive or Internet connection, IEEE 1284-compliant
bidirectional parallel port, USB 1.1 or USB 2.0 port
Macintosh: Mac OS X v 10.2.8, 10.3, 10.4, 10.5, 10.6; 160
MB available hard disk space; CD-ROM drive; USB port
Compatible
operating systems
Microsoft® Windows® 7 ready. For more information go to
http://www.hp.com/go/windows7. Some features may not be
available. Windows Vista®, Windows XP Home, Windows
XP Professional, Windows XP Professional x64, Windows
Server 2003, Windows 2000, Mac OS X v 10.2.8, 10.3, 10.4,
10.5, 10.6, Linux (see http://www.hplip.net)
Macintosh
compatible
Yes
Power consumption, 567 watts
active
Power
Consumption,
Powersave
17 watts
Power
Consumption,
Standby
55 watts
Power
Consumption, Off
0.3 watts
Power consumption *Values subject to change. See
note
http://www.hp.com/support/lj4700 for current information.
Power reported is the highest value measured using all
standard voltages. Maximum heat dissipation for all models in
Ready mode is 225 BTU/hour. Default time from Ready mode
to Sleep mode is 45 minutes. Recovery time from Sleep mode
to start of printing is less than 15 seconds.
Operating
temperature
50 to 86° F
ENERGY STAR®
Qualified
Yes
What's included
Warranty
One-year, next-day, onsite warranty
Cable included?
No, please purchase USB cable separately
What's in the box
HP Color LaserJet 4700dn Printer, 100-sheet multipurpose
tray, power cable, software drivers and documentation on CDROM, in-box documentation (Getting Started Guide), fullcapacity 11,000-page black and 10,000-page cyan, magenta
and yellow HP color LaserJet print cartridges with HP
ColorSphere Toner, HP Jetdirect Fast Ethernet embedded
print server, automatic two-sided printing, 500-sheet input
tray
Network ready
Standard
