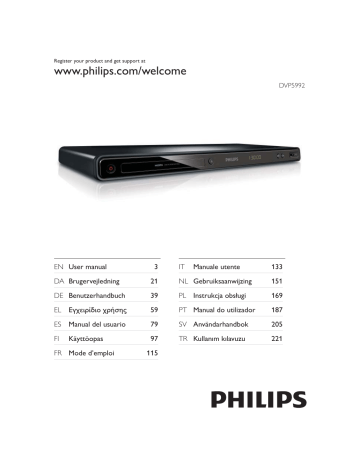

User manual

Register your product and get support at

www.philips.com/welcome

DVP5992

EN User manual 3 IT Manuale utente 133

DE Benutzerhandbuch 39 Instrukcja obs

ãugi 169

EL

ƆƣƷƥƩƱƟƤƩƯ ƷƱƞƳƧƲ 59

PT Manual do utilizador 187

ES Manual del usuario 79 SV Användarhandbok 205

FI Käyttöopas 97

FR Mode d’emploi 115

221

LASER

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR

PERFORMANCE OF PROCEDURES OTHER

THAN THOSE SPECIFIED HEREIN MAY RESULT

IN HAZARDOUS RADIATION EXPOSURE.

CAUTION:

VISIBLE AND INVISIBLE LASER RADIATION

WHEN OPEN AND INTERLOCK DEFEATED.

DO NOT STARE INTO BEAM.

LOCATION:

INSIDE, NEAR THE DECK MECHANISM.

Italia

DICHIARAZIONE DI CONFORMITA’

Si dichiara che l’apparecchio DVP5992, Philips risponde alle prescrizioni dell’art. 2 comma 1 del

D.M. 28 Agosto 1995 n.548.

Fatto a Eindhoven

Philips Consumer Lifestyles

Philips, Glaslaan 25616 JB Eindhoven,

The Netherlands

This product is in compliance with the EEE directive.

EEE yönergesine uygundur.

Norge

Typeskilt fi nnes på apparatens underside.

Observer: Nettbryteren er sekundert innkoplet.

Den innebygde netdelen er derfor ikke frakoplet nettet så lenge apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal apparatet ikke utsettes for regn eller fuktighet.

DK

Advarsel: Usynlig laserstråling ved åbning når sikkerhedsafbrydere er ude af funktion. Undgå utsættelse for stråling.

Bemærk: Netafbryderen er sekundært indkoblet og ofbryder ikke strømmen fra nettet. Den indbyggede netdel er derfor tilsluttet til lysnettet så længe netstikket sidder i stikkontakten.

S

Klass 1 laseraparat

Varning! Om apparaten används på annat sätt

än i denna bruksanvisning specifi cerats, kan användaren utsättas för osynlig laserstrålning, som

överskrider gränsen för laserklass 1.

Observera! Stömbrytaren är sekundärt kopplad och bryter inte strömmen från nätet. Den inbyggda nätdelen är därför ansluten till elnätet så länge stickproppen sitter i vägguttaget.

SF

Luokan 1 laserlaite

Varoitus! Laitteen käyttäminen muulla kuin tässä käyttöohjeessa mainitulla tavalla saattaa altistaa käyttäjän turvallisuusluokan 1 ylittävälle näkymättömälle lasersäteilylle.

Oikeus muutoksiin varataan. Laite ei saa olla alttiina tippu-ja roiskevedelle. Huom.

Toiminnanvalitsin on kytketty toisiopuolelle, eikä se kytke laitetta irti sähköverkosta.

Sisäänrakennettu verkko-osa on kytkettynä sähköverkkoon aina silloin, kun pistoke on pistorasiassa.

Producent zastrzega mo ůliwoőĂ wprowadzania zmian technicznych.

2 EN

Trademark notice

Manufactured under license from Dolby

Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft

Corporation in the United States and/or other countries.

ABOUT DIVX VIDEO: DivX

®

is a digital video format created by DivX, Inc. This is an offi cial DivX

Certifi ed device that plays DivX video. Visit www.

divx.com for more information and software tools to convert your fi les into DivX video.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX

Certifi ed

®

device must be registered in order to play DivX Video-on-Demand (VOD) content.

To generate the registration code, locate the

DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX

VOD.

DivX

®

, DivX Certifi ed

®

and associated logos are registered trademarks of DivX, Inc. and are used under license.

The USB-IF Logos are trademarks of Universal

Serial Bus Implementers Forum, Inc.

HDMI, and HDMI logo and High-Defi nition

Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Contents

1 Important

Safety and important notice

2 Your DVD player

Playable media

Product overview

3 Connect

Connect video cables

Connect audio cables

Route audio to other devices

Connect USB fl ash drive

Connect power

Prepare the remote control

Find the correct viewing channel

Select menu display language

Turn on progressive scan

Use Philips EasyLink

5 Play

Play a disc

Play video

Play music

Play photo

Play musical slideshow

Play from a USB fl ash drive

Media copy

Create MP3 fi les

General setup

Audio setup

Video setup

13

13

14

15

Preferences 16

12

12

13

Update software

18

18

Care 18

Specifi cations 18

9 Troubleshooting 19

8

8

8

8

8

9

7

7

6

6

7

8

11

12

12

9

11

9

9

5

5

5

4

4

EN 3

1 Important

Safety and important notice

Warning

Risk of overheating! Never install the product in a confi ned space. Always leave a space of at least 4 inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Never place the product, remote control or batteries near naked fl ames or other heat sources, including direct sunlight.

Avoid high temperature, moisture, water and dust.

This unit must not be exposed to dripping or splashing.

Never place any object or items that can damage this unit (e.g., liquid fi lled objects, lighted candles).

Never place this product on other electrical equipment.

Keep away from this product during lightning storms.

Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

Visible and invisible laser radiation when open. Avoid exposure to beam.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/

EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

This product complies with the radio interference requirements of the European Community.

About Progressive Scan

Consumers should note that not all high defi nition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of 525 or 625 progressive scan picture problems, it is recommended that the user switch the connection to the ‘standard defi nition’ output. If there are questions regarding our TV set compatibility with this model 525p and 625p DVD player, please contact our customer service center.

Disposal of your old product and batteries

Your product contains batteries covered by the

European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Copyright notice

This item incorporates copy protection technology that is protected by U.S. patents and other intellectual property rights of Rovi Corporation.

Reverse engineering and disassembly are prohibited.

CLASS 1

LASER PRODUCT

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

4 EN

2 Your DVD player

Congratulations on your purchase, and welcome to

Philips! To fully benefi t from the support that Philips offers, register your product at www.philips.com/welcome.

Playable media

This product can play:

• DVD, DVD-Video, DVD+R/+RW,

DVD-R/-RW, DVD+R/-R DL (Dual Layer)

Video CD/SVCD

Audio CD, CD-R/CD-RW, MP3-CD,

WMA-CD, WMV-CD

DivX (Ultra)-CD, Picture CD

USB fl ash drive

Region codes

You can play discs with the following region codes.

DVD region code Countries

Europe

Remote control

Product overview

Main Unit

1 2 3 4

5 6 7 8 a

( Standby-On )

• Turn on the DVD player or switch to standby mode. b Disc compartment c

( Open/Close )

• Open or close the disc compartment.

d Display panel e iR sensor

• Remote sensor.

f

( Play/Pause )

Start, pause or resume disc play. g

• Stop play.

h

( USB ) jack

Connect a USB fl ash drive.

a

• Turn on the unit or switch to standby.

b

• Open or close the disc compartment. c DISC MENU

• Access or exit the disc menu.

• Switch to the disc mode.

• During the play of a photo slideshow, switch between the Fun Mode and

Simple Mode.

• For VCD and SVCD, turn on or off PBC

(playback control).

d

Navigate the menus.

Search fast-forward ( backward ( ).

Search slow-forward ( backward ( ).

) or fast-

) or slow-

EN 5

e

• f

/

BACK

Return to the previous display menu.

Skip to the previous or next title, chapter, or track.

g

• Switch to the USB mode.

h Numeric buttons

• Select an item to play.

i SUBTITLE

• Select a subtitle language on a disc.

• Access the menu of copying/deleting USB audio fi les.

j

ZOOM

Fit the picture display to the TV screen.

Zoom the picture in or out.

k REPEAT

• Select various repeat play modes.

l REPEAT A-B

• Repeat play for a specifi c section.

m AUDIO/CREATE MP3

• Select an audio language or channel on

• a disc.

Access the menu of creating MP3 fi les.

n

• Stop play.

o

• Start, pause or resume disc play.

p

INFO

• For discs, access the play options or display the current disc status.

• For slideshows, display a thumbnail view of photo fi les.

q OK

• Confi rm an entry or selection.

r SETUP

• Access or exit the setup menu.

3 Connect

All audio/video cables are sold separately.

Make the following connections to use this product.

Basic connections:

Video

Audio

Optional connections:

• Route audio to other devices:

• Digital amplifi er/receiver

• Analog stereo system

USB fl ash drive

Note

Refer to the type plate at the back or bottom of the product for identifi cation and supply ratings.

Before you make or change any connections, ensure that all the devices are disconnected from the power outlet.

Connect video cables

Connect this product to TV to view disc play. Select the best video connection that TV can support.

Option 1: Connect to the HDMI jack (for a HDMI,

DVI or HDCP-compliant TV).

Option 2: Connect to the component video jacks

(for a standard TV or Progressive Scan TV).

Option 3: Connect to the scart jack (for a standard

TV)).

Option 4: Connect to the video (CVBS) jack (for a standard TV).

Note

You must connect this product directly to a TV.

Option 1: Connect to the HDMI jack

HDMI OUT

HDMI IN

1

Connect an HDMI cable to:

• the HDMI OUT jack on this product.

• the HDMI input jack on the TV.

Note

If the device supports HDMI CEC, you can control compliant devices with a single remote control (see “Get started” > “Use Philips EasyLink”).

6 EN

Option 2: Connect to the component video jack

Pb

Y Pr

COMPONENT VIDEO OUT

Pr Pb

COMPONENT

VIDEO IN

Y

1

Connect the component video cables to:

• the Y Pb Pr jacks on this product.

• the COMPONENT VIDEO input jacks on the TV.

Option 3: Connect to the scart jack

1

Connect the audio cables to:

• the AUDIO OUT L/R jacks on this product.

the audio input jacks on the TV.

Route audio to other devices

Route the audio from this product to other devices to enhance audio play.

Connect to digital amplifi er/receiver

DIGITAL AUDIO

INPUT

COAXIAL

COAXIAL

1

Connect a coaxial cable to:

• the COAXIAL jack on this product.

the COAXIAL/DIGITAL input jack on the device.

Connect analogue stereo system

AUDIO IN

1

Connect a scart cable to:

• the TV OUT jack on this product.

• the scart input jack on the TV.

Option 4: Connect to the video (CVBS) jack

1

Connect a composite video cable to:

• the VIDEO OUT jack on this product.

• the video input jack on the TV.

VIDEO IN

1

Connect the audio cables to:

• the AUDIO OUT L/R jacks on this

• product.

the audio input jacks on the device.

Connect USB fl ash drive

Connect audio cables

Connect the audio from this product to the TV to allow sound output through the TV.

AUDIO IN

1

Connect a USB fl ash drive to the jack on this product.

Note

This product can only play/view MP3, WMA, WMV, DivX

(Ultra) or JPEG fi les that are stored on a USB fl ash drive.

Press the the fi les.

button to access the content and play

EN 7

Connect power

Caution

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back of the product.

Before connecting the AC power cord, ensure you have completed all other connections.

Note

The type plate is located on the back of the product.

1

Connect the AC power cable to the wall socket.

»

The product is ready to be set up for use.

Prepare the remote control

1

Open the battery compartment.

2

Insert AAA batteries with correct polarity

(+/-) as indicated.

3

Close the battery compartment.

Caution

Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

Do not mix batteries (old and new or carbon and alkaline, etc.).

Batteries contain chemical substances, so they should be disposed of properly.

Find the correct viewing channel

1

Press to turn on this product.

2

Turn on the TV and switch to the correct video-in channel. (Refer to the TV user manual on how to select the correct channel.)

Select menu display language

Note

If this product is connected to a HDMI CEC compliant

TV, skip this setting. It switches automatically to the same OSD menu language as per your TV setting (if the language set on TV is supported by this product).

1

Press

» [General Setup] menu is displayed.

2

Select

3

Press press OK.

Turn on progressive scan

Note

To use the progressive scan feature, you must connect a progressive scan TV with the component video jacks

(see “Connect” > “Connect video cables” > “Option 2:

Connect to the component video jacks” for details).

1

Turn on the TV to the correct viewing channel for this product.

2

Press

3

Press

4

Select and then press OK.

5

Select

OK.

»

A warning message is displayed.

6

To proceed, select [Ok] and then press OK.

»

The progressive setup is complete.

8 EN

Note

If a blank/distorted screen is displayed, wait for 15 seconds for the auto recovery.

If no picture is displayed, turn off the progressive scan mode as follows:

1) Press to open the disc compartment.

2) Press the Numeric button ‘1’.

7

Press

8

You can now turn on the progressive scan mode on the TV (see the TV user manual).

Note

During play, when the progressive scan mode is on for both this product and the TV, distorted picture may display. In this case, turn off the progressive scan feature on both this product and the TV.

Use Philips EasyLink

This product supports Philips EasyLink which uses the

HDMI CEC (Consumer Electronics Control) protocol.

You can use one single remote control to control

EasyLink-compliant devices that are connected through HDMI connectors.

Note

To enable the EasyLink feature, you must turn on the

HDMI CEC operations on the TV and on other devices connected to TV. Refer to the TVs/devices manual for details.

One-touch play

1

Press to turn on this product.

»

The TV (if supports one-touch play) automatically turns on and switches to the correct video-in channel.

»

If a disc is loaded in this product, disc play automatically starts.

One-touch standby

1

Press and hold on the remote control for more than 3 seconds.

»

All the connected devices (if the device supports one-touch standby) automatically switch to standby.

Note

Philips does not guarantee 100% interoperability with all

HDMI CEC devices.

5 Play

Play a disc

Caution

Do not place any objects other than discs into the disc compartment.

Do not touch the disc optical lens inside the disc compartment.

1

Press

2

Insert a disc with its label facing up.

3

Press start disc play.

To view disc play, turn on the TV to the correct viewing channel for this product.

To stop disc play, press .

Note

Check the types of discs supported (see “Your DVD player” > “Playable media”).

If the password entry menu is displayed, enter the password before you can play the locked or restricted disc (see “Adjust settings” > “Preferences” > [Parental

Control]).

If you pause or stop a disc, the screen saver appears after

5 minutes of inactivity. To deactivate the screen saver, press DISC MENU.

After you pause or stop a disc and no button is pressed within 15 minutes, this product automatically switches to standby.

Play video

Note

Some operations may not work with some discs. See the information accompanying the disc for details.

Control video play

1

Play a title.

2

Use the remote control to control the play.

Button

,

,

Action

Start, pause or resume disc play.

Stop disc play.

Skip to a previous/next title or chapter.

Search fast-backward or fastforward. Press repeatedly to change the search speed.

EN 9

Button

,

Action

Search slow-forward or slowbackward. Press repeatedly to change the search speed.

For VCD/SVCD, slow-backward search is not available.

Select an audio language or channel available on a disc.

AUDIO/

CREATE

MP3

SUBTITLE Select a subtitle language available on a disc.

REPEAT Select or turn off repeat mode.

Repeat options may vary from disc type.

REPEAT

A-B

Repeat a specifi c section within a track/disc.

ZOOM Fit the picture format to the TV screen.

Press repeatedly until the image is scaled to fi t to the TV screen.

ZOOM

Toggle between screen aspect ratio and different zoom factor.

To pan through the zoomed image, press the Navigation buttons.

INFO

Access the play options and display the current disc status.

Access DVD menu

1

Press menu.

2

Select a play option, then press OK.

• In some menus, press the Numeric buttons to input your selection.

Access VCD menu

The PBC (playback control) feature is available for

VCD/SVCD, which can display the contents menu for you to select a play option. The PBC is on by default in the factory.

Note

See “Adjust settings” > “Preferences” > to turn PBC on or off.

[PBC] on how

1

Display the contents menu via one of the following ways:

• If PBC is on, load in a VCD/SVCD.

• During play with PBC on, press

BACK.

2

Press the Numeric buttons to select a play option, and then press OK to start play.

10 EN

• If PBC is turned off, it skips the menu display and starts play from the fi rst track.

Preview disc contents

1

During play, press INFO.

»

The disc status menu is displayed.

2

Select

3

Select a preview option, then press OK.

»

A thumbnails preview screen is displayed.

To go to the next/previous prview screen, select [Prev] or [Next], then press OK.

To start play, press OK at the selected thumbnail picture.

Skip play to a specifi c time

1

During play, press INFO.

»

The disc status menu is displayed.

2

Select an option for the current elapsed playing time, and then press .

• [TT Time] (title time)

• [CH Time] (chapter time)

• [Disc Time]

• [Track Time]

3

Press the Numeric buttons to enter the time to skip to, then press OK.

Display play time

1

During play, press INFO.

»

The disc status menu is displayed.

2

Select

»

The display options vary from disc type.

3

Select an option, and then press OK.

View DVD play from different angles

1

During play, press INFO.

»

The disc status menu is displayed.

2

Select

3

Press the Numeric buttons to change the angle.

»

Play changes to the selected angle.

Note

Applicable only to discs contain multi-angle scenes.

Repeat play a specifi c section

1

During play, press REPEAT A-B at the start point.

2

Press

»

Repeat play starts.

3

To cancel repeat play, press REPEAT A-B again.

Note

The marked section for repeat play is only possible within a track/title.

Play DivX ® video

DivX video is a digital media format that retains high quality despite a high rate of compression. You can enjoy DivX video on this DivX certifi ed product.

1

Insert a disc or USB that contains the DivX videos.

»

For USB, press .

A contents menu is displayed.

2

Select a title to play, then press OK.

• You may select subtitle/audio language.

Note

You can only play DivX video that is rented or purchased with the DivX registration code of this product (see “Adjust

Settings” > “General Setup” > [DivX(R) VOD Code]).

Play music

Control a track

1

Play a track.

2

Use the remote control to control the play.

Button

,

Action

Start, pause or resume disc play.

Stop disc play.

Skip to a previous/next track.

Select an item to play.

,

REPEAT

Searches fast-backward or fast-forward. Press repeatedly to change the search speed.

Select or turn off repeat mode.

Repeat options may vary from disc type.

Quick skip play

1

During play, press INFO repeatedly to select an option.

Display Action

[Disc Go To] Skip play to a specifi c time within the disc.

[Track Go To] Skip play to a specifi c time within a track.

[Select Track] Skip play to a specifi c track number.

2

Press the numeric buttons to change the time/ number to skip to.

Play MP3/WMA music

MP3/WMA is a type of highly compressed audio fi le

(fi les with .mp3, .wma extensions).

1

Insert a disc or USB that contains the MP3/

WMA music.

»

For USB, press .

A contents menu is displayed.

2

If play does not automatically start, select a track to play.

• To select another track/folder, press then press OK.

,

Note

For disc recorded in multiple sessions, only the fi rst session is played.

For a WMA fi le that is protected by Digital Rights

Management (DRM), it cannot be played on this product.

This product does not support MP3PRO audio format.

For any special character that is present in the MP3 track name (ID3) or album name, it might not be displayed correctly on the screen because these characters are not supported.

Folders/fi les that exceed the supported limit of this product cannot be displayed or played.

Play photo

Play photo as slideshow

You can play JPEG photos (fi les with .jpeg or .jpg extensions).

1

Insert a disc or USB that contains the JPEG photos.

»

For USB, press .

Slideshow begins (for Kodak disc), or a contents menu (for JPEG disc) is displayed.

2

Select a photo, then press OK to start slideshow.

»

For a photo recorded with the “exif” format, the display orientation is automatically optimized.

EN 11

To display photos in color (Fun Mode) or in black and white (Simple Mode), press DISC MENU.

To preview the photos in thumbnail, press

INFO.

• To select a photo, press the Navigation buttons.

To enlarge the selected photo and start slideshow, press OK.

To return to the menu, press BACK.

Note

It may require longer time to display the disc content on the TV due to the large number of songs/photos compiled onto one disc/USB fl ash drive.

If the JPEG photo is not recorded with an ‘exif ’ type fi le, the actual thumbnail picture cannot be shown on the screen. It is replaced by a ‘blue mountain’ thumbnail picture.

This product can only display digital camera pictures according to the JPEG-EXIF format, typically used by almost all digital cameras. It cannot display Motion JPEG, or pictures in formats other than JPEG, or sound clips associated with pictures.

Folders/fi les that exceed the supported limit of this product cannot be displayed or played.

Control photo play

1

Play a photo slideshow.

2

Use the remote control to control the play.

Button Action

/

Rotate a photo anti-clockwise/ clockwise.

Rotate a photo horizontally/vertically.

/

ZOOM

Zoom in or out of a photo.

Play pauses in zoom mode.

Stop a play.

Play musical slideshow

Create a musical slideshow to play MP3/WMA music fi les and JPEG photo fi les simultaneously.

Note

To create a musical slideshow, you must store the MP3/

WMA and JPEG fi les on the same disc/USB fl ash drive.

1

Play MP3/WMA music.

2

Press

3

Navigate to the photo folder/album and press

OK to start slideshow play.

»

Slideshow begins and continues till the end of the photo folder or album.

12 EN

»

Audio continues to play until the end of the disc.

To stop slideshow play, press

To stop music play, press

.

again.

Play from a USB fl ash drive

Note

This product plays/views MP3, WMA, WMV, DivX

(Ultra) or JPEG fi les that are stored on a USB fl ash drive.

1

Connect a USB fl ash drive to the jack on this product.

2

Press the button.

»

A contents menu is displayed.

3

If play does not start automatically, select a fi le to play.

• For more information, see the chapters

“Play music”, “Play photo” and “Play video” for details.

4

To stop play, press .

• To switch to the disc mode, press the

button.

Media copy

You can copy fi les (such as MP3, WMA or JPEG) from disc to a USB fl ash drive.

1

Insert a disc that contains the MP3/WMA/

JPEG fi les.

2

In the stop mode, connect the USB fl ash drive to the jack on this product.

3

Select a fi le to copy, then press SUBTITLE.

4

Select

»

Once complete, a new folder is created automatically in the USB fl ash drive to store all the new fi les.

5

To stop copy progress, press , then press

OK.

Note

When you copy, never press any button.

Copy-protected media cannot be copied.

Create MP3 fi les

With this product, you can convert audio CDs into

MP3 audio fi les. The created MP3 audio fi les are saved in the USB fl ash drive.

1

Insert an audio CD.

2

Connect a USB fl ash drive to the jack on this product.

3

During disc play, press AUDIO/CREATE MP3.

»

The MP3 creation menu is displayed.

4

Select

7

Select an audio track, and then press OK.

To select another track, repeat step 7.

To select all tracks, select [Select all] in

• the menu, and press OK.

To deselect all tracks, select [Deselect all] in the menu, and press OK.

8

Select to start to convert.

»

Once complete, a new folder is created automatically in the USB fl ash drive to store all the new MP3 fi les.

• To exit the menu, select [Exit], and then press OK.

Note

When you convert, never press any button.

DTS CDs and copy-protected CDs cannot be converted.

Writer-protected or password-protected USB fl ash drives cannot be used to store MP3 fi les.

Note

If the setup option is grayed out, it means the setting cannot be changed at the current state.

General setup

5

Select a conversion option in the [OPTIONS] panel, and then press OK repeatedly to select an item.

Option

[Speed]

Description

Select a copying speed.

[Bitrate] Select a quality level.

Higher bitrate for better sound quality and bigger fi le size.

[CRT ID3] Copy track information into the

MP3 fi le.

[Device] The created fi les can only be saved in a USB fl ash drive.

6

Press

1

Press

» [General Setup] menu is displayed.

2

Press

3

Select an option, and then press OK.

4

Select a setting, and then press OK.

To return to the previous menu, press

To exit the menu, press SETUP.

[Disc Lock]

Set the play restriction for a disc which is loaded in the disc compartment (maximum 20 discs can be locked).

.

EN 13

• [Lock] - Restrict the access to the current disc. At the next time when you want to play this disc or unlock it, you need to enter the password.

• [Unlock] - Play all discs.

[OSD Language]

Select a language for on-screen menu.

[Sleep Timer]

Switch automatically to standby at the preset time.

• [Off] - Disable sleep mode.

• [15 Mins], [30 Mins], [45 Mins], [60 Mins] -

Select the countdown time for this product to switch to standby.

[Auto Standby]

Turn on/off the auto standby mode.

• [On] - Switch to standby after 15 minutes of inactivity (for example, in pause or stop mode).

• [Off] - Disable the auto standby mode.

[DivX(R) VOD Code]

Display the DivX

®

registration code and deregistration code.

[Registration] - Obtain a registration code to register this product on website.

[Deregistration] - Obtain a deregistration code to cancel the registration of this product on website.

Note

Use this product’s DivX registration code when you rent or purchase video from www.divx.com/vod. The DivX videos rented or purchased through the DivX

®

VOD

(Video On Demand) service can be played only on the device to which it is registered.

Audio setup

Audio Setup

Analogue Output

Digital Audio

HDMI Audio

Audio Sync

Volume

Sound Mode

CD Upsampling

Night Mode

1

Press

» [General Setup] menu is displayed.

2

Press press .

3

Select an option, and then press OK.

4

Select a setting, and then press OK.

• To return to the previous menu, press .

14 EN

• To exit the menu, press SETUP.

[Analogue Output]

Select an analogue setting based on the audio device that is connected through the analogue audio jack.

• [LT/RT] - For the surround sound output through two speakers.

• [Stereo] - For the stereo output.

[Digital Audio]

Select a digital setting based on the digital amplifi er/ receiver that is connected through the digital jack

(coaxial/digital).

• [Digital Output] - Select a type of digital output.

• [All] - Support multi-channel audio formats.

• [Off] - Disable digital output.

• [PCM Only] - Downmix to two-channel audio format.

• [LPCM Output] - Select the LPCM (Linear

Pulse Code Modulation) output sampling rate.

• [48kHZ] - For discs recorded at sampling rate of 48 kHz.

• [96kHZ] - For discs recorded at sampling rate of 96 kHz.

Note

[LPCM Output] setting is only available if the [Digital

Output] is set to [PCM Only].

The higher the sampling rate, the better the sound quality.

[HDMI Audio]

Select the HDMI audio setting when you connect this product and the TV with an HDMI cable.

• [On] - Allow audio output through the TV and the speaker system. If the audio format on the disc is not supported, it will be downmixed to two-channel sound (linear-PCM).

• [Off] - Disable the audio output from HDMI devices connected to this player.

[Audio Sync]

Set the delay time for audio output when you play a video disc.

1. Press OK.

2. Press to set the delay time.

3. Press OK to confi rm and exit.

[Volume]

Set the default volume level when you play a disc.

1. Press OK.

2. Press to set the volume.

3. Press OK to confi rm and exit.

[Sound Mode]

Select a preset sound effect to enhance the audio output.

• [3D] - Select a virtual surround sound effect that is produced from the left and right audio channels.

• [Movie Mode] - Select a sound effect for movies.

• [Music Mode] - Select a sound effect for music.

[CD Upsampling]

For better sound quality in stereo mode, convert the music CD to a higher sampling rate.

• [Off] - Turn off CD-upsampling.

• [88.2kHz] - Convert to twice the original sampling rate.

• [176.4kHz] - Convert to four times the original sampling rate.

[Night Mode]

Make loud sound level softer and soft sound level louder so that you can watch the DVD movies at a low volume, without disturbing others.

• [On] - Enjoy quiet viewing at night.

• [Off] - Enjoy surround sound with a full dynamic range.

Note

Applicable only to Dolby Digital encoded DVDs.

Video setup

Video Setup

TV System

TV Display

Progressive

Picture Setting

Wall paper Setting

Component Video

HD JPEG

HDMI Setup

1

Press

» [General Setup] menu is displayed.

2

Press press .

3

Select an option, and then press OK.

4

Select a setting, and then press OK.

• To return to the previous menu, press

• To exit the menu, press SETUP.

.

[TV System]

Change this setting if the video does not appear correctly. By default, this setting matches the most common setting for TVs in your country.

• [PAL] - For a PAL-system TV.

• [Multi] - For TV that is compatible with both

PAL and NTSC.

• [NTSC] - For an NTSC-system TV.

[TV Display]

Select a display format:

• [4:3 Pan Scan] - For a 4:3 screen TV: full-height display with the trimmed sides.

• [4:3 Letter Box] - For a 4:3 screen TV: widescreen display with black bars on the top and bottom of the screen.

• [16:9] - For a wide-screen TV: display ratio

16:9.

[Progressive]

If a progressive scan TV is connected to this product, turn on the progressive scan mode.

• [On] - Turn on progressive scan.

• [Off] - Turn off progressive scan mode.

Note

For more detailed description, see “Get started” >

“Turn on progressive scan”.

[Picture Setting]

Select a predefi ned set of picture color settings or customize the personal setting.

• [Standard] - Original color setting.

• [Bright] - Vibrant color setting.

• [Soft] - Warm color setting.

• [Personal] - Customize the color setting. Set the level of brightness, contrast, tint and color saturation, then press OK.

[My Wallpaper]

Select a picture as the wallpaper.

• [Default picture] - The default wallpaper preset as the Philips logo.

• [Saved picture] - A captured video image or

JPEG photo.

• [Current picture] - Capture a video image or

JPEG photo and save it on the product.

EN 15

1. Play a video or photo slideshow.

2. Select a video image or photo: press to pause, and then press SETUP.

3. Navigate to the option ( [Video Setup] >

[My Wallpaper] > [Current picture]).

4. Press OK to confi rm.

»

One video image or JPEG photo is saved as wallpaper.

»

A newly saved image or photo replaces the earlier one.

[Component Video]

Select the video output that matches the video connection between this product and the TV.

• [Interlaced] - Component video ( Y Pb Pr) connection.

• [RGB] - Scart ( TV OUT) connection.

[HD JPEG]

Enjoy untouched and uncompressed JPEG pictures at its original resolution when you connect this product and the TV with an HDMI cable.

• [On] - Display high defi nition picture.

• [Off] - Display standard picture.

[HDMI Setup]

When you connect this proudct and the TV with an

HDMI cable, select the best HDMI setup that the

TV can support.

• [Resolution] - Select a video resolution that is compatible with the TV display capability.

• [Auto] - Detect and select the best supported video resolution automatically.

• [480i],[480p], [576i], [576p],[720p],

[1080i], [1080p] - Select a video resolution that is best supported by the

TV. See the TV manual for details.

• [Wide Screen Format] - Defi ne the wide screen format for disc play.

• [Super Wide] - Center position of the screen is stretched less than the side

(applicable only when the video resolution is set to 720p, 1080i or 1080p).

• [4:3 Pillar Box] - No stretching of picture. Black bars are displayed on both sides of the screen (applicable only when the video resolution is set to 720p, 1080i or 1080p).

• [Off] - Picture is displayed according to the disc format.

• [EasyLink Setup] - If this product is connected to HDMI CEC compliant TV/devices, all connected devices can respond to the following commands simultaneously.

• [EasyLink] - Turn on/off all EasyLink features.

• [One Touch Play] - Turn on or off the feature of one-touch play.

16 EN

When EasyLink is enabled, press .

»

This product turns on.

»

The TV (if the TV supports one-touch play) automatically turns on and switches to the video-in channel.

»

Disc play starts if there is a disc in this product.

• [One Touch Standby] - Turn on or off the feature of one-touch standby.

When EasyLink is enabled, press and hold for at least three seconds.

»

All connected HDMI CEC compliant devices switch to standby mode.

Note

You must turn on the HDMI CEC operations on the TV/ devices before you can enjoy the EasyLink controls. See the TV/devices manual for details.

Philips does not guarantee 100% interoperability with all

HDMI CEC compliant devices.

Preferences

Note

Stop disc play before you can access to [Preferences].

Preferences

Audio

Subtitle

Disc Menu

Parental Control

PBC

Mp3/Jpeg Nav

Password

DivX Subtitle

1

Press

» [General Setup] menu is displayed.

2

Press press .

3

Select an option, and then press OK.

4

Select a setting, and then press OK.

• To return to the previous menu, press

• To exit the menu, press SETUP.

[Audio]

Select an audio language for disc play.

[Subtitle]

Select a subtitle language for disc play.

.

[Disc Menu]

Select a disc menu language.

Note

If the language you have set is not available on the disc, the disc uses its own default language.

For some DVDs, the subtitle/audio language can only change from the disc menu.

To select the languages that are not listed in the menu, select [Others]. Then check the Language Code list at the back of this user manual and enter the respective language code.

[Parental Control]

Restrict access to discs that are unsuitable for children. These types of discs must be recorded with ratings.

1. Press OK.

2. Select a rating level, then press OK.

3. Press the numeric buttons to enter the password.

Note

Rated DVDs above the level you set in [Parental Control] require a password to be played.

The ratings are country-dependent. To allow all discs to play, select ‘ 8’.

Some discs have ratings printed on them but are not recorded with ratings. This function has no effect on such discs.

[PBC]

Turn on or off the content menu of VCDs/SVCDs with PBC (playback control) feature.

• [On] - Display the index menu when you load a disc for play.

• [Off] - Skip the menu and start play from the fi rst title.

[Mp3/Jpeg Nav]

Select to display the folders or display all the fi les.

• [View Files] - Display all the fi les.

• [View Folders] - Display the folders of MP3/

WMA fi les.

[Password]

Set or change the password for locked discs and play restricted DVDs.

1. Press the Numeric buttons to enter ‘136900’ or the last set password at [Old Password] fi eld.

2. Enter the new password at [New Password] fi eld.

3. Enter the new password again at [Confi rm

PWD] fi eld.

4. Press OK to exit the menu.

Note

If you forget the password, enter ‘136900’ before you set a new password.

[DivX Subtitle]

Select a character set that supports the DivX subtitle.

• [Standard] - English, Irish, Danish, Estonian,

Finnish, French, German, Italian, Portuguese,

Luxembourgish, Norwegian (Bokmål and

Nynorsk), Spanish, Swedish, Turkish

• [Central Europe] - Polish, Czech, Slovak,

Albanian, Hungarian, Slovene, Croatian,

Serbian (Latin script), Romanian

• [Cyrillic] - Belarusian, Bulgarian, Ukrainian,

Macedonian, Russian, Serbian

• [Greek] - Greek

Note

Ensure that the subtitle fi le has the exact same fi le name as the movie fi le. If for example the fi le name of the movie is ‘Movie.avi’, then you need to name the text fi le

‘Movie.sub’ or ‘Movie.srt’.

[Version Info]

Display the software version of this product.

Note

This information is required when you want to fi nd out if a newest software version is available at the Philips website that you may download and install on this product.

EN 17

[Default]

Reset all the settings of this product to factory default, except for [Disc Lock], [Parental Control] and [Password] settings.

Update software

For software updates, check the current software version of this product to compare with the latest software (if available) at the Philips website.

Caution

Power supply must not be interrupted during software upgrade.

1

Press

2

Select then press OK.

3

Write down the fi le name, and then press

SETUP to exit the menu.

4

Visit www.philips.com/support to check for the latest software version, using the fi le name for this product.

5

Refer to the upgrade instructions on the website for more information.

Note

Disconnect the power cord for a few seconds and connect again to turn on the product.

Care

Caution

Never use solvents such as benzene, thinner, cleaners available commercially, or anti-static sprays intended for discs.

Clean discs

Wipe the disc with a micro fi bre cleaning cloth from the centre to the edge in a straight line movement.

Specifi cations

Note

Specifi cation and design are subject to change without notice

USB

Video

Compatibility: Hi-Speed USB (2.0)

Class support: UMS (USB Mass Storage Class)

Signal system: PAL / NTSC

Composite video output: 1 Vpp ~ 75 ohm

Component video output: 0.7 Vpp ~ 75 ohm •

• HDMI output: 480i, 480p, 576i, 576p, 720p,

1080i, 1080p

Scart: Euroconnector •

Audio

• Analog stereo output

• Signal to noise ratio (1 kHz): > 100 dB

(A-weighted)

Dynamic Range (1 kHz): > 90 dB (A-weighted)

Crosstalk (1 kHz): > 100 dB

Distortion/noise: (1 kHz): > 85 dB

MPEG MP3: MPEG Audio L3

Scart output

Digital output

Main unit

Coaxial

HDMI output

Dimensions (w x h x d): 435 x 38 x 209 (mm)

Net Weight: approximately 1.63 kg

Power

• Power supply rating: 230 V; 50 Hz

Power consumption: < 10 W

Power consumption in standby mode: < 0.1 W

Accessories supplied

Remote control and batteries

User Manual

Quick Start Guide

Laser specifi cation

• Type: Semiconductor laser InGaAIP (DVD),

AIGaAs (CD)

Wave length: 658 nm (DVD), 790 nm (CD)

Output Power: 7.0 mW (DVD), 10.0 mW

(VCD/CD)

Beam divergence: 60 degrees

18 EN

9 Troubleshooting

Warning

Risk of electric shock. Never remove the casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back of your product. Write the numbers here:

Model No. __________________________

Serial No. ___________________________

Main unit

The buttons on this unit do not work.

• Disconnect this product from the power outlet for a few minutes, then connect again.

No reaction to the remote control.

Connect this product to the power outlet.

Point the remote control at the IR sensor located on the front panel of this product.

Insert the batteries correctly.

Insert new batteries in the remote control.


No picture.

• See the TVs user manual on how to select the correct input on the TV. Change the TV

• channel until you see the Philips screen.

If you have turned on the progressive scan setting or change the TV system setting, switch back to default mode: 1) Press to open the disc compartment. 2) Press the

Numeric button ‘1’ (for progressive scan) or the Numeric button’3’ (for TV system).

No picture on HDMI connection.

• If this product is connected to an unauthorized display device with an HDMI cable, the audio/

• video signal may not be output.

Check if the HDMI cable is faulty. Replace a new HDMI cable.

If this happens when you change the HDMI video resolution, you have to switch to its default mode: 1) Press to open the disc compartment. 2) Press the numeric button “1”.

Sound

No audio output from the TV.

• Ensure that the audio cables are connected to the audio input of the TV.

• Assign the audio input of the TV to the corresponding video input. See the TV user manual for details.

No audio output from the loudspeakers of the audio device (stereo system/amplifi er/receiver).

• Ensure that the audio cables are connected to

• input source.

No sound on HDMI connection.

• the audio input of the audio device.

Turn on the audio device to its correct audio

You may not hear any sound from the HDMI output if the connected device is non-HDCP compliant or only DVI-compatible.

• Ensure that the [HDMI Audio] setting is turned on.

No sound during DivX video playback.

• The audio codec may not be supported by this product.

Play

The disc cannot be played.

• The disc is badly scratched, deformed, or dirty.

Replace or clean the disc.

• Use the correct disc format or fi le format.

DivX video fi les cannot be played.

• Ensure that the DivX video fi le is complete.

Ensure that the fi le name extension is correct.

Due to Digital Rights issue, the DRMprotected video fi les cannot be played through an analog video connection (e.g. composite, component and scart). Use an HDMI connection to play these fi les.

The aspect ratio of the screen is not aligned with the TV display setting.

• The aspect ratio is fi xed on the disc.

DivX subtitles are not displayed correctly.

• Ensure that the subtitle fi le name is the same

• as the movie fi le name.

Select the correct character set.

Press SETUP.

Select [Preferences] > [DivX Subtitle] in the menu.

• Select the character set that supports the subtitle.

EN 19

© 2010 Koninklijke Philips Electronics N.V.

All rights reserved.

DVP5992_12_UM_V3.1_1022

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
