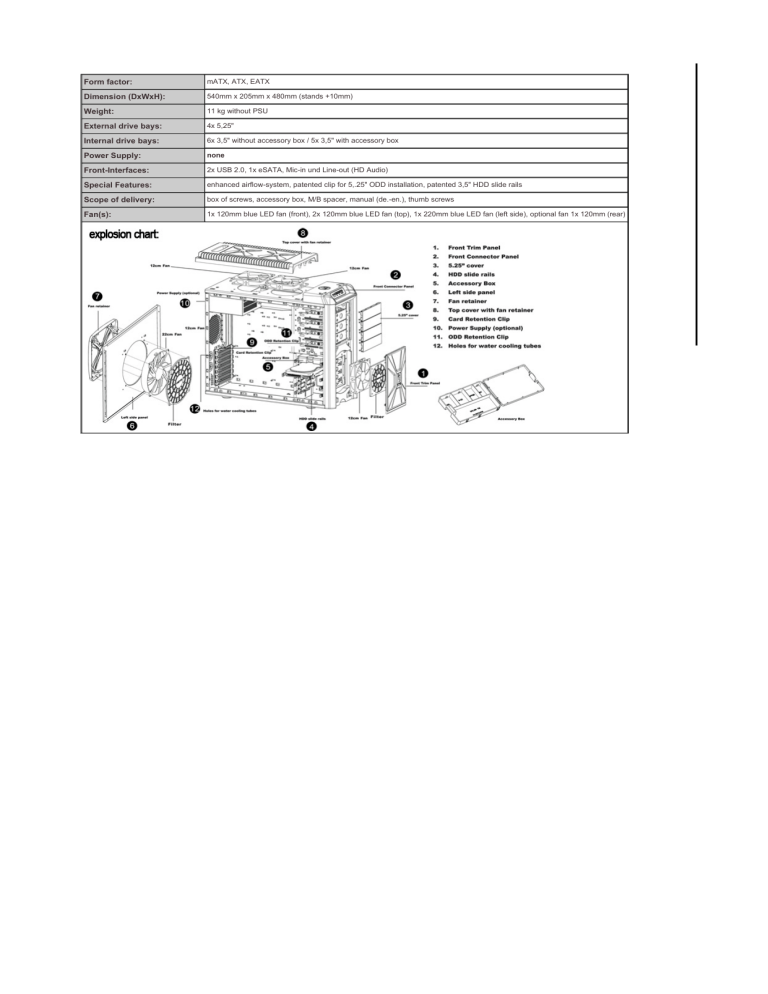

Form factor:
mATX, ATX, EATX
Dimension (DxWxH):
540mm x 205mm x 480mm (stands +10mm)
Weight:
11 kg without PSU
External drive bays:
4x 5,25"
Internal drive bays:
6x 3,5" without accessory box / 5x 3,5" with accessory box
Power Supply:
none
Front-Interfaces:
2x USB 2.0, 1x eSATA, Mic-in und Line-out (HD Audio)
Special Features:
enhanced airflow-system, patented clip for 5,.25" ODD installation, patented 3,5" HDD slide rails
Scope of delivery:
box of screws, accessory box, M/B spacer, manual (de.-en.), thumb screws
Fan(s):
1x 120mm blue LED fan (front), 2x 120mm blue LED fan (top), 1x 220mm blue LED fan (left side), optional fan 1x 120mm (rear)
