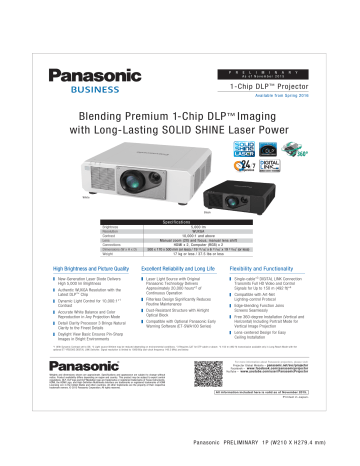

PT-RZ570
P
R
E
L
I
M
I
N
A
R
Y
As of November 2015
1-Chip DLP ™ Projector
Available from Spring 2016
Blending Premium 1-Chip DLP ™ Imaging
with Long-Lasting SOLID SHINE Laser Power
White
Black
Specifications
Brightness
Resolution
Contrast
Lens
Connections
Dimensions (W x H x D)
Weight
High Brightness and Picture Quality
New-Generation Laser Diode Delivers
High 5,000 lm Brightness
Authentic WUXGA Resolution with the
Latest DLP™ Chip
Dynamic Light Control for
Contrast
10,000:1*1
5,000 lm
WUXGA
10,000:1 and above
Manual zoom (2X) and focus, manual lens shift
HDMI x 2, Computer (RGB) x 2
500 x 170 x 500 mm (or less) / 19 11/16˝ x 6 11/16˝ x 19 11/16˝ (or less)
17 kg or less / 37.5 lbs or less
Excellent Reliability and Long Life
Laser Light Source with Original
Panasonic Technology Delivers
Approximately 20,000 hours*2 of
Continuous Operation
Filterless Design Significantly Reduces
Routine Maintenance
Accurate White Balance and Color
Reproduction in Any Projection Mode
Dust-Resistant Structure with Airtight
Optical Block
Detail Clarity Processor 3 Brings Natural
Clarity to the Finest Details
Compatible with Optional Panasonic Early
Warning Software (ET-SWA100 Series)
Daylight View Basic Ensures Pin-Sharp
Images in Bright Environments
Flexibility and Functionality
Single-cable*3 DIGITAL LINK Connection
Transmits Full HD Video and Control
Signals for Up to 150 m (492 ft)*4
Compatible with Art-Net
Lighting-control Protocol
Edge-blending Function Joins
Screens Seamlessly
Free 360-degree Installation (Vertical and
Horizontal) Including Portrait Mode for
Vertical Image Projection
Lens-centered Design for Easy
Ceiling Installation
*1 With Dynamic Contrast set to ON. *2 Light source lifetime may be reduced depending on environmental conditions. *3 Requires CAT 5e STP cable or above. *4 150 m (492 ft) transmission available only in Long Reach Mode with the
optional ET-YFB200G DIGITAL LINK Switcher. Signal resolution is limited to 1080/60p (dot-clock frequency 148.5 MHz) and below.
For more information about Panasonic projectors, please visit:
Projector Global Website – panasonic.net/avc/projector
Facebook – www.facebook.com/panasonicprojector
YouTube – www.youtube.com/user/PanasonicProjector
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without
notice. Product availability differs depending on region and country. This product may be subject to export control
regulations. DLP, DLP logo and DLP Medallion logo are trademarks or registered trademarks of Texas Instruments.
HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries. All other trademarks are the property of their respective
trademark owners. © 2015 Panasonic Corporation. All rights reserved.
All information included here is valid as of November 2015.
Printed in Japan.
Panasonic PRELIMINARY 1P (W210 X H279.4 mm)
