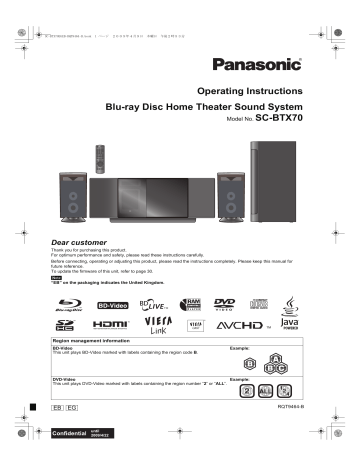

Operating Instructions
Blu-ray Disc Home Theater Sound System
Model No. SC-BTX70
Dear customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions carefully.
Before connecting, operating or adjusting this product, please read the instructions completely. Please keep this manual for
future reference.
To update the firmware of this unit, refer to page 30.
]Note]
“EB” on the packaging indicates the United Kingdom.
Region management information
BD-Video
This unit plays BD-Video marked with labels containing the region code B.
Example:
DVD-Video
Example:
This unit plays DVD-Video marked with labels containing the region number “2” or “ALL”.
2
EB
ALL
1
2
4
RQT9464-B
EG
2009/4/22
Getting started
SC-BTX70EGEB-RQT9464-B.book
2 ページ
2009年4月9日 木曜日 午後2時53分
≥Please note that the actual controls and components,
menu items, etc. of your Blu-ray Disc Home Theater
Sound System may look somewhat different from those
shown in the illustrations in these Operating
Instructions.
≥Operations in these instructions are described mainly
with the remote control, but you can perform the
operations on the main unit if the controls are the
same.
Accessories
Please check and identify the supplied
accessories. Use numbers indicated in
parentheses when asking for replacement parts.
(Product numbers correct as of March 2009. These may be
subject to change.)
∏ 1 Remote control ∏ 1 Antenna plug ∏ 2 Speaker cables
adaptor
(N2QAKB000073)
(Front) (3 m)
For the United
(REEX0859-L)
Kingdom and
(REEX0867A-L)
Republic of Ireland
(K1YZ02000013)
∏ 2 Remote control
batteries
∏ 1 Video cable
(K2KA2BA00001)
∏ 1 FM indoor
antenna
(RSAX0002)
∏ 1 AC mains lead
For the United
Kingdom and
Republic of Ireland
(K2CZ3YY00005)
∏ 1 AC mains lead
For Continental
Europe
(K2CQ2CA00007)
≥For use with this unit only. Do not use it
with other equipment. Also, do not use
cords from other equipment with this
unit.
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
CAUTION!
≥DO NOT INSTALL OR PLACE THIS UNIT IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
≥DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
≥DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
≥DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY
FRIENDLY MANNER.
RQT9464
2
System
Main unit
Front speakers
Subwoofer
SC-BTX70
SA-BTX70
SB-HFX70
SB-HW560
[For[the[United[Kingdom[and[Republic[of[Ireland[
∫ Sales and Support Information
Customer Care Centre
≥For customers within the UK: 0844 844 3852
≥For customers within the Republic of Ireland:
01 289 8333
≥Visit our website for product information
≥E-mail: [email protected]
Direct Sales at Panasonic UK
≥For customers: 0844 844 3856
≥Order accessory and consumable items for your product with
ease and confidence by phoning our Customer Care Centre
Monday-Thursday 9:00 am-5:30 pm, Friday 9:30am-5:30pm
(Excluding public holidays).
≥Or go on line through our Internet Accessory ordering
application at www.panasonic.co.uk.
≥Most major credit and debit cards accepted.
≥All enquiries transactions and distribution facilities are
provided directly by Panasonic UK Ltd.
≥It couldn’t be simpler!
≥Also available through our Internet is direct shopping for a
wide range of finished products, take a browse on our
website for further details.
Interested in purchasing an extended guarantee?
Please call 0870 240 6284 or visit our website
www.panasonic.co.uk/guarantee.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR
PRODUCT DAMAGE,
≥DO NOT EXPOSE THIS APPARATUS TO RAIN,
MOISTURE, DRIPPING OR SPLASHING AND THAT NO
OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHALL BE PLACED ON THE APPARATUS.
≥USE ONLY THE RECOMMENDED ACCESSORIES.
≥DO NOT REMOVE THE COVER (OR BACK); THERE
ARE NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
THIS UNIT IS INTENDED FOR USE IN MODERATE
CLIMATES.
This product may receive radio interference caused by
mobile telephones during use. If such interference is
apparent, please increase separation between the product
and the mobile telephone.
The socket outlet shall be installed near the equipment and
easily accessible.
The mains plug of the power supply cord shall remain
readily operable.
To completely disconnect this apparatus from the AC
Mains, disconnect the power supply cord plug from AC
receptacle.
3 ページ
2009年4月9日 木曜日 午後2時53分
Caution for AC Mains Lead
(For the United Kingdom and Republic of Ireland)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug for
your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved
by ASTA or BSI to BS1362.
Check for the ASTA mark Ï or the BSI mark Ì on the body of the fuse.
If the plug contains a removable fuse cover you must ensure that it is
refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a replacement
cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET
OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED
AND THE PLUG CUT OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT
OFF PLUG IS INSERTED INTO ANY 13-AMPERE SOCKET.
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wire which is coloured Blue must be connected to the terminal
which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH
TERMINAL WHICH IS MARKED WITH THE LETTER E, BY THE
EARTH SYMBOL Ó OR COLOURED GREEN OR GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains plug (figures
A and B). Confirm the AC mains plug fitted and follow the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
Figure A
Disc and card handling
Clean discs
DO NOT
DO
Wipe with a damp cloth and then wipe
dry.
Disc and card handling precautions
≥Handle discs by the edges to avoid inadvertent scratches or
fingerprints on the disc.
≥Do not attach labels or stickers to discs (This may cause disc
warping, rendering it unusable).
≥Do not write on the label side with a ball-point pen or other
writing instrument.
≥Do not use record cleaning sprays, benzine, thinner, static
electricity prevention liquids or any other solvent.
≥Do not use scratch-proof protectors or covers.
≥Clean any dust, water, or foreign matter from the terminals on
the rear side of the card.
≥Do not use the following discs:
– Discs with exposed adhesive from removed stickers or labels
(rented discs etc).
– Discs that are badly warped or cracked.
– Irregularly shaped discs, such as heart shapes.
Maintenance
Clean this unit with a soft, dry cloth
≥Never use alcohol, paint thinner or benzine to clean this unit.
≥Before using chemically treated cloth, carefully read the
instructions that came with the cloth.
Observe the following points to ensure continued
listening and viewing pleasure.
Dust and dirt may adhere to the unit’s lens over time, making it
impossible to play discs.
Use the lens cleaner (not included) about once every year,
depending on frequency of use and the operating environment.
Carefully read the lens cleaner’s instructions before use.
Maintenance of the lens
≥Remove dust carefully with an air blower for camera lenses
(optional).
≥Recommended product:
Lens cleaner kit (SZZP1038C) (Available from Panasonic
dealers.)
≥You cannot use a CD type lens cleaner.
≥Be careful not to touch the lens with your fingers.
To dispose or transfer this unit
This unit may record information of your operating procedures. If you
discard this unit either by disposal or transfer, then follow the procedures
Figure B
Fuse cover
2. Replace the fuse and close or attach the fuse cover.
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
Unit and media care
Getting started
SC-BTX70EGEB-RQT9464-B.book
Figure A
Figure B
Fuse
(5 ampere)
Fuse
(5 ampere)
to return all the settings to the factory presets to delete the recorded
information. (> 46, “To return to the factory preset”)
≥When BD-Video is played back, the operation history may be recorded
in the memory of this unit. The recorded contents differ depending on
the disc.
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high
temperatures, high humidity, and excessive vibration. These
conditions can damage the cabinet and other components,
thereby shortening the unit’s service life. Do not place heavy items
on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit
and cause a fire. Do not use a DC power source. Check the
source carefully when setting the unit up on a ship or other place
where DC is used.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not
damaged. Poor connection and lead damage can cause fire or
electric shock. Do not pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC
mains lead can cause electric shock. Do not handle the plug with
wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric
shock or malfunction.
Do not let liquids get into the unit. This can cause electric shock or
malfunction. If this occurs, immediately disconnect the unit from
the power supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain
flammable gases which can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is
interrupted, indicators fail to light, smoke appears, or any other
problem that is not covered in these instructions occurs,
disconnect the AC mains lead and contact your dealer or an
authorized service centre. Electric shock or damage to the unit
can occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the power
source if it is not to be used for a long time.
RQT9464
3
Playback
Getting started
SC-BTX70EGEB-RQT9464-B.book
4 ページ
2009年4月9日 木曜日 午後2時53分
Table of contents
Getting started
TV
Accessories ........................................................2
Caution for AC Mains Lead ...............................3
Unit and media care ...........................................3
Safety precautions .............................................3
Using the remote control ..................................5
Enjoying TV, etc. with this unit’s speakers ... 25
Batteries ................................................................. 5
Use ......................................................................... 5
Control reference guide (remote control) ........5
Control reference guide (main unit) .................6
Radio
Front and top panel ................................................ 6
Side and rear panel terminals................................. 6
Positioning ......................................................7
Speaker connections......................................8
TV connections ...............................................9
Connections to a Set Top Box, etc..............10
Radio antenna connections .........................10
Network connection......................................11
AC mains lead connection ...........................11
Operating the sliding door ...........................12
EASY SETUP .................................................12
TV
Basic settings for the system...................................12
Showing START menu.....................................13
Selecting the playback source .......................14
Selecting the source from the START menu ........ 14
Selecting the source by the remote control .......... 14
Reference
Optional speaker
settings
Advanced operations
Other devices
Enjoying sound from all speakers and
various sound effects ....................................15
RQT9464
4
Changing the sound modes.................................. 15
Enjoying surround sound effects .......................... 15
Playback
Basic operation ................................................16
Other operations during play ................................ 17
Adjusting speaker level during play ...................... 18
Playing video recorded on a Video Camera or
Video Recorder .................................................. 18
Enjoying BD-LIVE or BONUSVIEW in BD-Video.......19
Playing secondary video (picture-in-picture) and
secondary audio ................................................. 19
Enjoying BD-Live discs with Internet .................... 19
Playing DivX® videos .......................................20
Regarding DivX VOD content ............................... 20
Displaying subtitles text ........................................ 20
Playing still pictures ........................................21
Useful functions during still picture play ............... 22
Playing music ...................................................23
Radio
Listening to the Radio .....................................24
Setting up the radio .............................................. 24
Listening/confirming the preset channels ............. 24
RDS broadcasting ................................................ 24
Enjoying TV and other devices sound from this unit’s
speakers.............................................................. 25
Adjusting the sound .............................................. 25
Making settings for digital audio input .................. 25
Linked operations with the TV (VIERA Link
“HDAVI ControlTM”) ........................................ 26
What is VIERA Link “HDAVI Control”? ................. 26
What you can do with “HDAVI Control” ................ 26
Easy control only with VIERA remote control ....... 27
Other devices
Using the iPod ................................................. 28
iPod Connection ................................................... 28
iPod Playback ....................................................... 29
Advanced operations
Enjoying VIERA CASTTM.................................. 30
Firmware updating........................................... 30
Network settings.............................................. 31
Changing settings with the on-screen menu ....... 33
On-screen menu operations ................................. 33
What you can change with the on-screen menu ...... 33
Changing the unit’s settings .......................... 35
Setup menu operations ........................................ 35
Summary of settings ............................................. 35
Speaker settings ................................................... 39
Optional speaker settings
Wireless connections (optional) .................... 40
Connecting the surround, surround back
speakers (SB-HSX70) and the optional wireless
system (SH-FX70).............................................. 40
Speaker installation option............................. 41
Reference
Media (Disc, card and USB device)
information..................................................... 42
Packaged discs .................................................... 42
Recorded discs ..................................................... 42
SD cards ............................................................... 43
USB device........................................................... 43
Regarding 24p output ........................................... 43
Discs that cannot be played ................................. 43
About MP3/JPEG/DivX files ............................ 44
Licenses ........................................................... 45
Troubleshooting guide .................................... 46
Messages ......................................................... 50
Frequently asked questions ........................... 51
Language code list .......................................... 52
Glossary ........................................................... 52
Specifications .................................................. 54
Index ..................................................Back cover
5 ページ
2009年4月9日 木曜日 午後2時53分
Using the remote control
Batteries
I
Insert so the poles ( and ) match those in the remote control.
≥Do not take apart or short circuit.
≥Do not attempt to recharge alkaline or manganese batteries.
≥Do not use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which
can damage items the fluid contacts and may cause a fire.
Remove batteries if the remote control is not going to be used
for a long period of time. Store in a cool, dark place.
Getting started
SC-BTX70EGEB-RQT9464-B.book
Use
Press in and lift up.
R6/LR6, AA
Replace the lid.
When closing the lid, insert it from the  (minus) side.
CAUTION
Aim at the remote control signal sensor (> 6), avoiding
obstacles, at a maximum range of 7 m directly in front of the
unit.
≥If you cannot operate the unit or other equipment using the
remote control after changing the batteries, please re-enter
the codes (> 49).
Remote control signal sensor
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
≥Use alkaline or manganese batteries.
≥Do not mix old and new batteries.
≥Do not use different types at the same time.
≥Do not heat or expose to flame.
≥Do not leave the battery(ies) in an automobile exposed to
direct sunlight for a long period of time with doors and
windows closed.
30˚
20˚
20˚
30˚
7 m directly in front of the unit
Control reference guide (remote control)
13
TV
1
VOL
2
AV
2abc 3def
1
3
VOL
4ghi 5jkl 6mno
7pqrs 8tuv 9wxyz
CANCEL
0
4
15
MUTE
PIP
BD/SD
RADIO
EXT-IN
iPod
SEARCH
14
PLAY
SEARCH
PAUSE
SKIP
16
17
18
SLOW
5
SKIP
STOP
SURROUND
6
U
-UP
EN
20
P
OP
M E NU
DIRECT
NA
V
TOP M IGAT
19
START
R
O
7
SOUND
OK
21
8
RETURN
OPTION
9
10
11
12
22
R
G
SETUP
STATUS
-CH SELECT
Y
B
DISPLAY
AUDIO
-SLEEP
23
24
1 Turn the unit on and off (> 12)
2 Display Home screen of VIERA CAST (> 30)
3 Select title numbers, etc./Enter numbers or characters (> 17,
32)
(The character buttons may be used when operating VIERA
CAST contents. B 30)
[CANCEL] :
Cancel
4 Basic playback control buttons (> 16, 17)
5 Select preset radio stations (> 24)
6 Select surround sound effects (> 15)
7 Show Top menu/Direct Navigator (> 16)
8 [3, 4, 2, 1]:
Menu selection
[OK]:
Selection
[2, 1]:
Select preset radio station (> 24)
[2] (2;), [1] (;1):Frame-by-frame (> 17)
9 Show OPTION menu (> 17)
: [R], [G], [Y], [B]
These buttons are used when;
≥Operating a BD-Video disc that includes JavaTM
applications (BD-J). For more information about operating
this kind of disc, please read the instructions that came
with the disc.
≥Displaying “Title View” and “Album View” screens. (Only
the [R] and [G] buttons, B 21)
≥Operating contents of VIERA CAST. (> 30)
; Show Setup menu (> 35)/Select speaker channel (> 18)
< Show status messages (> 18)
= TV operation buttons
You can operate the TV through the unit’s remote control.
[Í] :
Turn the television on and off
[AV] :
Switch the input select
[i j VOL]:
Adjust the TV volume
> Adjust the volume of the main unit (> 17)
? Mute the sound (> 17)
@ Switch on/off Secondary Video (Picture-in-picture) (> 19)
A Select the source
[BD/SD]:
Select disc drive or SD card drive
(> 14)
[iPod]:
Select iPod as the source (> 14, 28)
[RADIO/EXT-IN]:
Select FM tuner, USB or external
audio as the source (> 14, 24, 25)
B Select radio stations manually (> 24)
C Set the sound mode (> 15)
D Show START menu (> 13)
E Show Pop-up menu (> 16)
F Return to previous screen
G Select audio (> 17)
H Show on-screen menu (> 33)/Set the sleep timer (> 18)
RQT9464
5
Getting started
SC-BTX70EGEB-RQT9464-B.book
6 ページ
2009年4月9日 木曜日 午後2時53分
Control reference guide (main unit)
Front and top panel
3
1
2
12
13 14
5
9
7
4
6
8
15
11
18
19 20
10
16
1 Standby/on switch (Í/I) (> 12)
Press to switch the unit from on to standby mode or vice
versa. In standby mode, the unit is still consuming a small
amount of power.
2 Status indicator
This indicator lights up when the unit is turned on and goes
out in standby mode.
3 Open or close the iPod side sliding door (> 12)
4 Skip or slow-search play (> 17)/Select the radio stations
(> 24)
5 Select the source (> 14)
[BD/SD]: BD/DVD )SD
[iPod]: IPOD
“SD” on the unit’s display is not displayed when the SD card is
not in the SD card slot.
6 Stop (> 17)
7 Pause (> 17)
17
8 Start play (> 16)
9 Adjust the volume of the main unit (> 17)
: Open or close the disc side sliding door (> 12)
; Select the source (> 14)
[RADIO/EXT-IN]: FM )USB )AUX )D-IN 1 )D-IN 2
“USB” on the unit’s display is not displayed when a USB
device is not inserted into the USB port.
< Display
= Remote control signal sensor
> iPod Docking switch lever (> 28)
? Connect iPod (> 28)
@ Disc tray (> 12)
A Sliding door
B Digital transmitter dock (> 40)
C USB port (> 16)
D SD card slot (> 16)
Side and rear panel terminals
75 Ω
FM ANT
FM
75 Ω ANT
4
2
3
1
5
6
8
9
10
7
1 SPEAKERS terminal (> 8)
2 FM Radio antenna terminal (> 10)
3 Cooling fan
4 OPTICAL DIGITAL IN terminals
Terminal 1(TV) is designated for connection with the TV. (> 9)
Terminal 2(STB) can be used for connection with devices
other than the STB. (> 10)
RQT9464
6
5 Connect headphones (not included) (> 16)
6 AUX terminal (> 9)
This terminal can also be used for equipment other than the TV.
7 AC IN terminal (> 11)
8 VIDEO OUT terminal (> 9)
9 HDMI AV OUT terminal (> 9)
: LAN port (> 11)
7 ページ
2009年4月9日 木曜日 午後2時53分
Positioning
This unit comes equipped with a Dolby Virtual Speaker circuit installed. Using just the supplied speakers and the subwoofer, and
by reproducing acoustic effects very similar to 5.1ch/7.1ch surround, you can enjoy a true “home theatre” experience even within
a limited space.
How you set up your speakers can affect the bass and the sound field.
≥Place speakers on flat secure bases.
NOTE ≥Placing speakers too close to floors, walls, and corners can result in excessive bass. Cover walls and windows with
thick curtains.
≥For optional wall mount, refer to page 41.
Keep your speakers at least 10 mm away from the system for proper ventilation.
Getting started
SC-BTX70EGEB-RQT9464-B.book
Setup example
Place the front speakers at approximately the same distance from the seating position.
The angles in the diagram are approximate.
Main unit
Subwoofer
Front speakers
60º
Place to the right or
left of the TV, on the
floor or a sturdy shelf
so that it will not
cause vibration.
Leave about 30 cm
from the TV.
To allow for proper ventilation
and to maintain good airflow
around the main unit, position
it with at least 5 cm of
space on all sides.
Enjoying 4.1ch/6.1ch surround sound
Optional Panasonic wireless accessory
SH-FX70/Optional Panasonic speaker
system SB-HSX70
You can enjoy 4.1ch or 6.1ch surround
sound when you use the optional
Panasonic wireless system SH-FX70 and
speaker system SB-HSX70. (> 40)
For details, please refer to the operating
instructions for the optional Panasonic
wireless accessory and speaker system.
NOTE
≥Use only supplied speakers
Using other speakers can damage the
unit, and sound quality will be negatively
affected.
≥These speakers do not have magnetic
shielding. Do not place them near
televisions, personal computers or other
devices easily influenced by magnetism.
≥You can damage your speakers and
shorten their useful life if you play sound
at high levels over extended periods.
≥Reduce the volume in the following cases
to avoid damage:
–When playing distorted sound.
–When the speakers are reverberating
due to a record player, noise from FM
broadcasts, or continuous signals from
an oscillator, test disc, or electronic
instrument.
–When adjusting the sound quality.
–When turning the unit on or off.
Caution
≥The main unit and supplied speakers are to be used
only as indicated in this setup. Failure to do so may
lead to damage to the amplifier and/or the speakers,
and may result in the risk of fire. Consult a qualified
service person if damage has occurred or if you
experience a sudden change in performance.
≥Do not attempt to attach these speakers to walls using
methods other than those described in this manual.
Caution
The front speakers have a speaker vent near the top for the
speaker.
≥Be sure not to put or drop any items inside the vent.
–Doing so may cause irregular sounds and damage to the
speaker.
Do not touch the front netted area of the speakers. Hold by the
sides.
≥Be sure not to hold the speaker from the vent.
–Doing so may damage the speakers and cause injuries.
≥Be cautious when children are near.
e.g.
DO
NOT
DO
RQT9464
7
Getting started
SC-BTX70EGEB-RQT9464-B.book
8 ページ
2009年4月9日 木曜日 午後2時53分
Speaker connections
Turn off all equipment before connection and read the appropriate operating instructions.
Do not connect the AC mains lead until all other connections are complete.
Main unit
FM
75 Ω ANT
Setup example
1 Speaker cable for front
speaker (L) (White)
2 Speaker cable for front
speaker (R) (Red)
PURPLE WHITE
SUBWOOFER
FRONT
(Lch)
1
RED
Insert the wire fully,
taking care not to
insert beyond the
wire insulation.
: White
: Blue line
FRONT
(Rch)
2
Push!
Be careful not to
cross (short-circuit)
or reverse the
polarity of the
speaker wires as
doing so may
damage the speakers.
Main unit
Do not
Front speaker (R )
Connect to the terminals of the same colour.
Use of the speaker cable stickers is convenient when making cable connections.
NOTE
RQT9464
8
SC-BTX70EGEB-RQT9464-B.book
9 ページ
2009年4月9日 木曜日 午後2時53分
Getting started
TV connections
1 Video cable
OPTICAL
OUT
Optical digital audio cable* 1, 2
(not included)
TV
Video cable (included)
VIDEO IN
OPTICAL 1(TV)
HDMI cable (not included)
AV IN
VIDEO OUT
1
AUDIO OUT
L
R
Audio cable*1
(not included)
AUX
HDMI AV OUT
Main unit
≥To output the TV audio, connect the audio cable or the optical digital audio cable.
When the optical digital audio cable is connected, this unit can decode Dolby Digital audio from the TV.
≥When connecting with the video cable, set “High Clarity Sound” in the on-screen menu to “Off” (> 34).
(Otherwise, the video will not be output.)
NOTE
Optional connections
≥For those who want to enjoy higher picture quality and have a TV equipped with an HDMI terminal.
–Do not disconnect the video cable even if the HDMI cable is connected. Some features may not be
displayed.
≥For those who have a Set Top Box (Satellite receiver, Cable box, etc.) or video cassette recorder (> 10)
When connecting with an HDMI cable
TIPS
≥If there is more than one HDMI terminal, refer to the operating instructions for the TV to determine terminal to connect
to.
≥Non-HDMI-compliant cables cannot be utilized.
≥Please use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended
that you use Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m), RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m), RP-CDHG50 (5.0 m), etc.
≥This unit incorporates HDMITM (v.1.3a with Deep Colour, x.v.ColourTM, High Bit rate Audio) technology. (> 52, 53)
≥When outputting 1080p signal (> 37, “HDMI Video Format”), please use HDMI cables 5.0 meters or less.
NECESSARY SETTINGS for HDMI connections
“HDMI Audio Output” : “Off” (> 37)
–With this connection, you can use VIERA Link “HDAVI Control” (> 26).
To enjoy TV audio from this home theatre system’s speakers
*1 You can enjoy the audio from your TV through this home theatre system’s speakers by connecting to the “AUX”
terminal or “OPTICAL 1(TV)” terminal. (> 25)
*2 This is the preferred connection for optimum sound and surround sound.
This unit can decode the surround signals received from your TV. Refer to the operating instructions for the TV for the
settings necessary to output its audio from the digital audio output to your home theatre system. Only Dolby Digital and
PCM can be played with this connection.
–After making this connection, make settings to suit the type of audio from your digital equipment (> 25).
RQT9464
9
Getting started
SC-BTX70EGEB-RQT9464-B.book
10 ページ 2009年4月9日 木曜日 午後2時53分
Connections to a Set Top Box, etc.
Use the following connections when you want to output the original surround audio from your Set Top Box, cable TV, VCR, DVD recorder,
etc. through this unit’s speakers.
≥Do not connect through the video cassette recorder.
Due to copy guard protection, the picture may not be displayed properly.
≥Turn off all equipment before connection.
STB, VCR,
DVD recorder, etc.
OPTICAL
OUT
TV
≥This unit can decode the surround signal from the
Set Top Box (Satellite receiver, Cable box, etc).
Press [EXT-IN] several times to select “D-IN 2”
(DIGITAL IN 2*).
* “(CABLE/SAT)” is displayed next to DIGITAL IN 2
when set for CABLE/SAT AUDIO input. (> 26,
Setting the TV audio for VIERA Link “HDAVI
Control”)
≥For connections between this unit and the TV, refer
to “TV connections” (> 9).
TIPS
Refer to the operating
instructions of the respective
devices for the optimal connections.
≥If you have various sound sources and this unit’s
terminals are not sufficient, connect them to the
available inputs on the TV and the TV output
should then be connected to the “AUX” or
“OPTICAL 1(TV)” terminal of the main unit.
Refer to the operating instructions of the TV, video
cassette recorder, DVD recorder or Set Top Box for
settings to output its audio via AUDIO OUT or
OPTICAL OUT terminal of the TV.
–In some cases the audio signal will only be out as
2ch audio from the TV. In this case, connect the
Set Top Box (Satellite receiver, Cable box, etc.)
that will be used most commonly with
multi-channel audio to this unit’s “OPTICAL
2(STB)” terminal.
OPTICAL 2(STB)
Optical digital
audio cable
(not included)
Main unit
Radio antenna connections
Main unit
FM
75 Ω ANT
1 FM Indoor antenna
Using an indoor antenna
Using an outdoor antenna
Use outdoor antenna if FM radio reception is poor.
≥Disconnect the antenna when the unit is not in use.
≥Do not use the outdoor antenna during an electrical storm.
Adhesive tape
Main unit
1
FM indoor antenna
(included)
Affix this end of the antenna
where reception is best.
Main unit
75 Ω
75 Ω
FM
ANT
FM
ANT
FM outdoor antenna
[Using a TV antenna
(not included)]
The antenna should be
installed by a competent
technician.
75  coaxial cable
(not included)
[For[the[United[Kingdom[and[Republic[of[Ireland[
Use the antenna plug adaptor (included).
RQT9464
10
SC-BTX70EGEB-RQT9464-B.book
11 ページ 2009年4月9日 木曜日 午後2時53分
Getting started
Network connection
The following services can be used when this unit is connected to the internet via a broadband.
≥Firmware can be updated (> 30)
≥You can enjoy the BD-Live (> 19)
≥You can enjoy the VIERA CAST (> 30)
Internet
Shielded LAN cable
(not included)
LAN
Hub or broadband router
Main unit
Telecommunications equipment
(modem, etc.)
≥When your communication equipment (modem), etc. has no broadband router functions: Connect a broadband router.
When your communication equipment (modem), etc. has broadband router functions but there are no vacant ports: Connect a hub.
≥Use shielded LAN cables when connecting to peripheral devices.
NOTE
≥Use a router that supports 10BASE-T/100BASE-TX.
≥When operating the VIERA CAST, use high-speed internet service no less than 1.5 Mbps for SD (Standard Definition) and 6 Mbps
for HD (High Definition) picture quality by your local broadband company.
– If using slow Internet connection, the video may not be displayed correctly.
≥After connecting to the Internet, perform necessary settings. (> 31)
≥Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.
AC mains lead connection
1 AC mains lead
1 AC mains lead
For the United Kingdom and Republic of Ireland
Main unit
For Continental Europe
[For[the[United[Kingdom[and[
[Republic[of[Ireland[
BE SURE TO READ THE CAUTION
FOR THE AC MAINS LEAD ON
PAGE 3 BEFORE CONNECTION.
1
AC mains lead (included)
To a household mains socket
Connect only after all other connections are complete.
NOTE
TIPS
Conserving power
This unit consumes a small amount of power even when it is turned off (approx. 0.3 W). To save power when the unit is not to
be used for a long time, unplug it from the household mains socket.
You will need to reset some memory items after plugging in the main unit.
RQT9464
11
Getting started
SC-BTX70EGEB-RQT9464-B.book
12 ページ 2009年4月9日 木曜日 午後2時53分
Operating the sliding door
Press [DISC < OPEN/CLOSE] to open the sliding door to
insert a disc.
Press [iPod < OPEN/CLOSE] to open the sliding door to
connect an iPod.
[DISC  OPEN/CLOSE]
[iPod  OPEN/CLOSE]
RADIO/EXIT-IN
Press [DISC < OPEN/CLOSE] again to close the sliding door.
≥Be sure that the iPod docking switch lever is returned to it’s
original position.
≥Refer to page 16 for inserting the disc.
RADIO/EXIT-IN
Press [iPod < OPEN/CLOSE] again to close the sliding door.
≥Refer to page 28 for connecting the iPod.
≥Do not open or close the sliding door by hand.
≥Keep your hands away for the sliding door while it is opening or closing. Your hand or clothing’s, etc. might get caught inside the door.
≥Keep your fingers away from the sliding door when it is closing to avoid possible minor injuries.
NOTE ≥Do not leave the disc side of the sliding door open. Dirt may mount on the lens.
≥Do not touch the lens or other parts of the laser pickup.
≥During disc playback the sliding door will not open when [iPod < OPEN/CLOSE] is pressed. (> 28)
–If [iPod < OPEN/CLOSE] is pressed twice, disc playback will stop and the sliding door will open.
TIPS
≥The sliding door will not close and “DOCK UNLOCKED” is displayed if the iPod is not correctly connected. (> 28)
≥If the sliding door is opened to the left with [DISC < OPEN/CLOSE], you cannot close the sliding door with [iPod < OPEN/
CLOSE]. If the sliding door is opened to the right with [iPod < OPEN/CLOSE], you cannot close the sliding door with
[DISC < OPEN/CLOSE].
≥The sliding door for the iPod will not close automatically when the unit is turned off.
EASY SETUP
The EASY SETUP screen assists you to make necessary
settings.
When the system is switched on for the first time, the EASY
SETUP screen for the basic settings is displayed
automatically. Follow the on-screen prompts to make basic
settings for the system.
Basic settings for the system
Preparation
Turn on your TV and select the appropriate video input mode (e.g.
VIDEO 1, AV 1, HDMI, etc.) to suit the connections to this unit.
≥To change your TV’s video input mode, refer to its operating instructions.
≥This remote control can perform some basic TV operations (> 5).
1 Press [Í].
≥When the EASY SETUP screen appears automatically, skip
step 2 to 5.
BD/SD
2
3
4
5
BD/SD
Press [BD/SD] to select “BD/DVD”.
Press [SETUP].
Press [3, 4] to select “General” and press [OK].
Press [3, 4] to select “EASY SETUP” and press [OK].
≥The EASY SETUP screen appears.
6 Follow the on-screen instructions and make the
settings with [3, 4, 2, 1] and [OK].
OK
OK
RETURN
RETURN
SETUP
SETUP
≥Language (> below)
Select the language used on menu screen.
≥TV Aspect (> below)
Select the aspect to suit your TV and preference.
≥Wireless System (Displayed only when connecting the
optional Panasonic wireless system (SH-FX70))
If an optional digital transmitter is inserted, it is required to
specify the current settings.
≥Speaker check
Check if the connection to each speaker is valid.
≥Speaker Output (Displayed only when connecting the
optional Panasonic wireless system (SH-FX70))
Make surround sound settings for speaker output.
≥TV Audio
Select the audio input connection from your TV.
For AUX connection (> 9): Select “AUX”.
For OPTICAL DIGITAL IN connection (> 9): Select “DIGITAL IN 1”.
This will be the TV Audio setting for VIERA Link “HDAVI
Control”. (> 26)
To return to the previous screen, press [RETURN].
7 Press [OK] to finish the EASY SETUP.
RQT9464
12
≥If this unit is connected to a “HDAVI Control 3 (or later)” compatible TV via HDMI cable, the menu language and TV aspect
information will be retrieved via VIERA Link.
≥If this unit is connected to a “HDAVI Control 2” compatible TV via HDMI cable, the menu language information will be
NOTE
retrieved via VIERA Link.
≥Even if this unit is connected to a “HDAVI Control 2 (or later)” compatible TV via HDMI cable, the menu screen language will
not be automatically retrieved if this unit does not support the language. In this case, set the language manually.
≥Settings in the EASY SETUP can also be changed in the Setup menu [e.g. language, TV aspect, speaker level and TV audio (> 35)].
13 ページ 2009年4月9日 木曜日 午後2時53分
Showing START menu
Some functions of this unit can be operated from the START menu.
1 Press [Í] to turn on the unit.
2 Press [START].
e.g., [BD-V]
≥Items displayed vary according to the chosen selector and
media.
START
Home Cinema
BD-Video
3 Press [3, 4] to select the item and press [OK].
Playback Disc
Getting started
SC-BTX70EGEB-RQT9464-B.book
Top Menu
Menu
Network
Input Selection
Sound(Equalizer)
To Others
OK
RETURN
START
OK
START
Items
Functions
Playback Disc
Playback
Top Menu
Menu
Starts playing disc/USB device/SD card.
Network
Input Selection
OK
Shows a disc top menu.
Shows a media menu.
To play AVCHD (> 18)
To play MPEG2 (> 18)
To play MP3, CD (> 23)
To play JPEG (> 21)
To play DivX (> 20)
Shows the iPod menu. (> 29)
To play “Music”
To play “Videos”
To play “Use iPod display (All)”
For “Play Mode”
Displays Home screen of VIERA CAST (> 30)
Select the source.
e.g., [BD-V]
START
Home Cinema
BD/DVD/CD:
Input Selection
To play BD-Video, DVD-Video, AVCHD
BD-Video
(> 16 - 19)
BD/DVD/CD
To play JPEG (> 21)
SD card
To play DivX (> 20)
iPod
To play MP3, CD (> 23)
FM
SD card:
USB device
To play AVCHD (> 18)
AUX
To play MPEG2 (> 18)
DIGITAL IN 1 (TV)
To play JPEG (> 21)
DIGITAL IN 2
iPod:
To play iPod contents (> 29)
FM:
To enjoy the FM radio (> 24)
USB device:
To play MP3 (> 23)
To play JPEG (> 21)
To play DivX (> 20)
AUX (TV)*1:
To enjoy TV broadcasts with this unit’s speakers (> 25)
DIGITAL IN 1 (TV)*1:
To enjoy TV broadcasts with this unit’s speakers (> 25)
DIGITAL IN 2 (CABLE/SAT)*2:
To enjoy audio from other devices with this unit’s speakers (> 25)
*1 “(TV)” is displayed next to items set for TV AUDIO input.
(B 26, Setting the TV audio for VIERA Link “HDAVI Control”)
*2 “(CABLE/SAT)” is displayed next to DIGITAL IN 2 when set
for CABLE/SAT AUDIO input. (> 26, Setting the TV audio
for VIERA Link “HDAVI Control”)
Flat:
Cancel (no effect is added).
Heavy: Adds punch to rock.
Clear: Clarifies higher sounds.
Soft:
For background music.
Setup:
You can change the unit’s settings using Setup menu (> 35).
Card Management:
Formatting SD cards/Deleting data (> 19)
Playlists:
You can play playlists created on DVD-VR.
Press [3, 4, 2, 1] to select the playlist and press [OK].
SD
OK
RETURN
Sound(Equalizer)
To Others
RQT9464
13
Getting started
SC-BTX70EGEB-RQT9464-B.book
14 ページ 2009年4月9日 木曜日 午後2時53分
Selecting the playback source
Selecting the source from the START menu
You can select sound modes, desired source, or access playback/menus
by using the START menu.
1 Press [Í] to turn on the unit.
2 Press [START] to show the START menu.
3 Press [3, 4] to select the item and then
press [OK].
≥To exit, press [START].
START
Home Cinema
No Disc
4 Press [3, 4] to make the setting.
When “Input Selection” is selected
Network
You can select a desired source from the menu.
Input Selection
≥BD/DVD/CD, SD card, iPod, FM, USB device, AUX*1,
Sound(Equalizer)
1
2
DIGITAL IN 1* , DIGITAL IN 2* (> 13)
To Others
*1 “(TV)” is displayed next to items set for TV AUDIO
input. (> 26, Setting the TV audio for VIERA Link
“HDAVI Control”)
*2 “(CABLE/SAT)” is displayed next to DIGITAL IN 2 when set for CABLE/
SAT AUDIO input. (> 26, Setting the TV audio for VIERA Link “HDAVI
Control”)
OK
RETURN
BD/SD
iPod
BD/SD
iPod
RADIO
EXT-IN
When a disc is loaded, an USB device is connected or a SD card is
inserted, you can also access playback or menus from the START menu.
e.g. [BD-V]
RADIO/EXT-IN
START
Home Cinema
BD-Video
Playback/menu access
Playback Disc
Top Menu
Menu
START
START
Network
OK
Input Selection
OK
Sound(Equalizer)
To Others
OK
RETURN
Selecting the source by the remote control
Press
To select
BD/SD
iPod
RADIO
EXT-IN
BD/DVD/CD or SD (> 16)
IPOD (iPod) (> 28)
Each time you press the button:
FM (> 24)
USB (> 16)
AUX*1: For audio input through the AUX terminal. (> 25)
D-IN1 (DIGITAL IN 1*1): (> 25)
D-IN2 (DIGITAL IN 2*2): (> 25)
*1 “(TV)” is displayed next to items set for TV AUDIO
input. (> 26, Setting the TV audio for VIERA Link
“HDAVI Control”)
*2 “(CABLE/SAT)” is displayed next to DIGITAL IN 2 when
set for CABLE/SAT AUDIO input. (> 26, Setting the TV
audio for VIERA Link “HDAVI Control”)
Press [BD/SD], [iPod], [RADIO/EXT-IN] on the main unit to select source
from the main unit.
NOTE
RQT9464
14
≥Confirm the audio connection to the AUX or OPTICAL DIGITAL
IN terminals on the main unit when you select the corresponding
sources (> 9 to 10).
≥Reduce the volume on the TV to its minimum, and then adjust
the volume of the main unit.
15 ページ 2009年4月9日 木曜日 午後2時53分
Enjoying sound from all speakers and various
sound effects
≥The following sound effects/modes may not be available or have no effect with some sources, or when headphones are used (> 16).
≥You may experience a reduction in sound quality when these sound effects/modes are used with some sources. If this occurs, turn the
sound effects/modes off.
Enjoying surround sound effects
Getting started
SC-BTX70EGEB-RQT9464-B.book
∫ When only the supplied speakers are connected.
≥Underlined items are the factory presets.
Available surround sound effects for 2.1 ch settings
Effect
Setting
7.1CH VS*1, 2, 4: You can enjoy 5.1/7.1-channel surround-like
effect using 2.1-channel speakers.
This function is effective only when playing
4.1 ch sources or above.
2CH STEREO: You can play any source in stereo without the
surround sound effect.
SURROUND
SOUND
SOUND
SURROUND
DOLBY
VIRTUAL
SPEAKER*3, 4
OK
-CH SELECT
-CH SELECT
Changing the sound modes
Available sound modes
Mode
EQ:
(Equalizer)
SUB W:
(Subwoofer
level)
Setting
You can select sound quality settings.
– FLAT(Flat):
Cancel (no effect is added).
– HEAVY(Heavy):Adds punch to rock.
– CLEAR(Clear): Clarifies higher sounds.
– SOFT(Soft):
For background music.
This unit will change the settings for the
amount of bass depending on the source.
However you can also adjust the amount of
bass for the source being played.
–1 (Weakest effect)
–2
–3
–4 (Strongest effect)
≥The setting you make is retained, and
recalled every time you play the same type of
source.
You can enhance the surround effect for low
W.S.:
(Whisper-mode volume sound.
Surround)
(Convenient for late night viewing.)
– ON
– OFF
1 Press [SOUND] several times to select the mode.
≥You can also press [SOUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
2 While the selected mode is displayed
Press [2, 1] and select the desired setting.
You can enjoy a surround sound effect similar to
5.1 ch (Dolby Digital or DTS) with any audio
source, using the included front speakers and the
subwoofer. You can also enjoy a surround sound
effect with stereo sources such as CDs.
REFERENCE
Standard mode
WIDE
≥This mode widens the acoustic field of the
front speakers. This has a good effect when
there is little space between the speakers.
Press [SURROUND] several times to select the effect.
≥You can also press [SURROUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
When selecting the MANUAL effects below.
While “MANUAL” is displayed
Press [2, 1] and select the desired effect.
∫ When the optional surround, surround back speakers
(SB-HSX70) are connected with the optional Panasonic
wireless system SH-FX70.
When 1 or 2 optional Panasonic wireless system(s) SH-FX70 are
connected and the appropriate settings have been made in the
“EASY SETUP” the following sound effects will be available.
≥Underlined items are the factory presets.
Available surround sound effects for 4.1 ch or 6.1 ch
settings
Effect
STANDARD:
Setting
MULTI-CH:
Sound is output as it was recorded/encoded.
Speaker output varies depending on the source.
You can enjoy sound from the front speakers,
as well as the surround speakers even when
playing a 2-channel sound or non-surround
sound.
MANUAL:
– DOLBY PL II MOVIE* 4:
Suitable for movie software, or the one recorded
in Dolby Surround. (except [DivX])
– DOLBY PL II MUSIC* 4:
Adds 5.1-channel effects to stereo sources.
(except [DivX])
– S.SURROUND:
You can enjoy sound from all speakers with
stereo sources.
– 2CH STEREO:
You can play any source in stereo. Sound will be
output to the front speakers and the subwoofer
only and without the surround sound effect.
*1 7.1CH VS is not available when the audio source currently playing is 2.1 ch, 3.1 ch.
*2 The 7.1-channel surround-like effect will only function when playing 6 or more channel sources.
NOTE *3 Dolby Virtual Speaker is not available and “NOT CONDITIONAL” is displayed when the audio source currently playing is
3.1 ch, 3 ch, 1.1 ch or 1 ch.
*4 The effects do not work when audio is output from the HDMI AV OUT terminal.
≥“NOT CONDITIONAL” is displayed on the main unit if the setting is not active.
When the unit has been set for 4.1 ch or 6.1 ch output, it is not possible to select the sound effects for 2.1 ch or vice versa.
RQT9464
TIPS
15
SC-BTX70EGEB-RQT9464-B.book
16 ページ 2009年4月9日 木曜日 午後2時53分
Basic operation
Instructions for operations are generally described using the remote control in these operating instructions.
Preparation
Playback
Turn on the television and select the appropriate video input on the television.
Inserting or removing a USB device
Inserting or removing an SD card
1) Push $ to open the SD card/USB door.
2) Insert the USB device into the USB port.
1) Push $ to open the SD card/USB
door.
2) Insert the SD card into the SD card
slot.
To remove the USB device, complete all USB device-related
operations and pull the USB device straight out.
Insert the card with
the cut-off corner on
the left.
≥Press on the
centre of the
card until it clicks
into place.
≥Before inserting any USB device to this unit, ensure that the data stored therein has
been backed up.
≥Check the orientation of the USB connector and insert it straight in.
≥Some USB devices inserted into this unit may cause this unit to stop operating. Such
USB devices cannot be used on this unit.
About the use of USB device
Since the physical size of USB device can vary, please consider its width when
connecting any USB device to this unit.
≥If the USB device does not fit, we recommend using a USB extension cable (not included)
≥When connecting a USB device using a USB extention cable make sure not to tangle
the cable round the SD card/USB door.
The SD card/USB door may get damaged.
BD/SD, iPod
Stop
To remove the card, press on the centre
of the card and pull it straight out.
Pause
Play
RADIO/EXT IN
Skip/Search/Slow-motion
,VOLUME
Inserting or removing a disc
RADIO/EXT-IN
1) Press [DISC < OPEN/CLOSE] to open the sliding door.
2) Place the disc onto the spindle in the centre and then push the
disc down until it clicks into place.
≥When inserting or removing a disc, tilt the disc so as not to
touch the sliding door.
Label facing up
≥Press [DISC < OPEN/CLOSE] again to close the sliding door.
≥To remove the disc, while pressing down on the spindle, grasp the edge of the
disc and gently lift it out.
≥DVD-RAM: Remove discs from their cartridges before use.
≥Insert double-sided discs so the label for the side you want to play is facing up.
Headphones (not included)
Headphone plug type: ‰3.5 mm stereo
mini plug
≥Reduce the volume before connecting.
≥Audio is automatically switched to 2ch
stereo.
≥To prevent hearing damage, avoid
listening for prolonged periods of time.
Excessive sound pressure from
earphones and headphones can cause
hearing loss.
1 Press [Í] to turn on the unit.
2 Insert the media (D above).
≥If the media with data in different file formats is inserted, the file
selection menu is displayed. Press [3, 4] to select the desired
file format and press [OK].
Play starts.
≥If the menu is displayed, press [3, 4, 2, 1] to select the item
≥If play does not start, press [1PLAY].
and press [OK].
≥When [1PLAY] is pressed with the sliding door open to either
≥If the screen prompting you to use the colour buttons appears,
side, the sliding door will close. If a disc is inserted, playback will continue to operate with the colour buttons on the remote control.
start.
≥Disc playback will stop and the sliding door will open if [iPod < OPEN/CLOSE] is pressed twice during disc playback.
– The resume play function may operate with some discs.
≥Be sure to press [DISC < OPEN/CLOSE] to open and close the sliding door. Forcing the sliding door open or close, will
NOTE
damage the unit.
≥Keep your fingers away from the sliding door when it is moving to avoid minor injuries.
≥Signal from PAL discs is output as PAL. Signal from NTSC discs is output as “NTSC” or “PAL60”. You can select “NTSC” or
“PAL60” in “NTSC Contents Output” for NTSC discs. (> 35)
≥DISCS CONTINUE TO ROTATE WHILE MENUS ARE DISPLAYED. Press [∫STOP] when you finish to preserve the unit’s
motor and your television screen.
≥If a media is inserted while the unit is stopped, the drive switches automatically depending on the inserted media.
≥The producers of the disc can control how discs are played. So you may not always be able to control play as described in
these operating instructions. Read the disc’s instructions carefully.
≥When playing a set of two or more BD-Video discs, the menu screen may continue to display even if the disc has been ejected.
To display menus
[BD-V] [AVCHD] [DVD-VR] [DVD-V] [DivX]
TIPS
Press [TOP MENU/DIRECT NAVIGATOR].
To show Pop-up menu [BD-V]
The Pop-up menu is a special feature available with some BD-Video discs. This menu may vary with discs. For the operating
method, refer to the instructions for the disc.
1) Press [POP-UP MENU].
2) Press [3, 4, 2, 1] to select the item and press [OK].
RQT9464
16
≥Pop-up menu also appears by pressing [OPTION] and selecting “Pop-up Menu”.
≥Press [POP-UP MENU] to exit the screen.
≥It may take time to read BD-Video discs that include BD-J (> 52).
17 ページ 2009年4月9日 木曜日 午後2時53分
∫ To mute the sound.
∫ To adjust the volume.
Press to mute the sound
MUTE
Press to adjust the volume
VOL
It is also possible to adjust the volume with [s r VOLUME] on
the main unit.
e.g., Display
“MUTE” flashes on the unit’s
display.
≥To cancel, press [MUTE] again
or adjust the volume.
≥Muting is cancelled if the unit is
turned off.
Playback
SC-BTX70EGEB-RQT9464-B.book
Other operations during play (These functions may not work depending on the media.)
Stop
STOP
The stopped position is memorized.
Resume play function
Press [1PLAY] to restart from this position.
≥The position is cleared if the sliding door is opened or you
press [∫STOP] several times to display “STOP” on unit’s
display.
≥[BD-V]: On BD-Video discs including BD-J (> 52), the
resume play function does not work.
≥[CD] [MP3] [DivX] [MPEG2]: The position is cleared if the unit is
turned off.
Frame-by-frame
OK
While paused, press [2] (2;) or [1] (;1).
Each press shows the next frame.
≥Press and hold to change in succession forward or
backward.
≥Press [1PLAY] to revert to normal playback speed.
≥[BD-V] [AVCHD]: Forward direction [1] (;1) only.
Changing audio during play
AUDIO
Pause
PAUSE
Press [;PAUSE] again or [1PLAY] to restart play.
[BD-V] [AVCHD] [DVD-V]
e.g. [DVD-V]
Soundtrack
SEARCH
SEARCH
Search/Slow-motion
SLOW
The speed increases up to 5 steps.
≥Press [1PLAY] to revert to normal playback speed.
≥For some discs, the speed may not change.
Search
While playing, press [SEARCH6] or [SEARCH5].
≥[BD-V] [AVCHD] [DVD-VR] [DVD-V]:
Audio is heard during first level of forward search.
≥[DivX] [MPEG2]: Audio is not heard during all levels of search.
≥[CD] [MP3]: The speed is fixed to a single step.
Slow-motion
While paused, press [SEARCH6] or [SEARCH5].
≥[BD-V] [AVCHD]: Forward direction [SEARCH5] only.
≥[DVD-VR]: If continued for approx. 5 minutes, slow-motion play
pauses automatically.
1 ENG
Digital 3/2.1ch
English is selected.
You can change the audio channel number each time you
press the button. This allows you to change the soundtrack
language (> 33, Soundtrack), etc.
≥[BD-V] When “BD-Video Secondary Audio” (> 36) is set to
“On”, Dolby TrueHD, Dolby Digital Plus, DTS-HD Master
Audio and DTS-HD High Resolution Audio are output as
Dolby Digital or DTS Digital Surround regardless of this
setting.
[DVD-VR] [DivX] [MPEG2]
AudioLR>AudioL>Audio R
DVD-RAM(VR)
^----------------------------------------------------}
PLAY
“AudioLR”
is selected
AudioLR
Chapter playback
SKIP
SKIP
[DVD-VR]
Skip
Skip to the title, chapter or track you want to play.
≥Each press increases the number of skips.
≥[DivX]: Backward direction [SKIP:] only.
2abc 3def
1
4ghi 5jkl 6mno
7
p
qrs
8tuv 9
w
xyz
Chapter View
To display the title properties
(recording date, etc.)
To select the chapter
To Picture
Playing still pictures (> 21)
Properties
Direct Play
0
During playback, you can access specific recordings or
scenes through direct entry of the numbered buttons.
Play starts from the selected title or chapter.
[BD-V] [AVCHD]
1 Insert a disc (> 16).
2 While “Title View” screen is displayed
Press [3, 4] to select the title and press
[OPTION].
e.g., 5: [0] B [0] B [5]
15: [0] B [1] B [5]
3 Press [3, 4] to select “Chapter View” and
press [OK].
4 Press [2, 1] to select the chapter and press [OK].
[DVD-V]
e.g., 5: [0] B [5]
15: [1] B [5]
≥While stopped (the image on the right is
displayed on the screen), the title is
designated. While playing, the chapter is
designated.
RQT9464
17
SC-BTX70EGEB-RQT9464-B.book
18 ページ 2009年4月9日 木曜日 午後2時53分
Basic operation
STATUS
Adjusting speaker level during play
Status messages
The status messages give you information about what is
currently being played. Each time you press [STATUS], the
information displayed will change.
Type of disc
Play status
e.g. [BD-V]
BD-Video
Playback
L R: Front speaker (left and right)
RS: Surround speaker (right)
RB: Surround back speaker (right)
LB: Surround back speaker (left)
LS: Surround speaker (left)
SW:Subwoofer
≥“RS”, “RB”, “LB” and “LS” will only be displayed if the
optional Surround, Surround back speakers are connected.
–The channels not included in the playing audio will not be
displayed (subwoofer is displayed even if it is not included).
Items change
depending on the
disc played.
T: Title
C: Chapter
PL: Playlist
Elapsed time in the title
 T1
C1
Adjusting the balance of the front speakers
0:05.14
(When “L R” selected)
0:20.52
Current position
3 Press [2, 1] to adjust the balance of the front
speakers.
Total time
Depending on the kind of disc or the playback status, this
display may not appear.
Adjusting the speaker level of the subwoofer
optional Surround, Surround back speakers
When “SW“ or the optional surround, surround back speakers
are connected and selected in step 2.
Screen Aspect
When black bars are shown at the top, bottom, left, and right
sides of the screen, you can enlarge the image to fill the
screen.
1 Press [OPTION].
2 Press [3, 4] to select “Screen Aspect” and press [OK].
3 Press [2, 1] to select “Side cut” or “Zoom” and press
[OK].
Normal: Normal output
Side cut: The black bars on the right and left sides of the 16:9
image disappear and the image is enlarged. Please
note that the right and left sides of the image are
cut off when the black bar is not displayed.
Zoom:
The black bars on the top and bottom sides of the
4:3 image disappear and the image is enlarged.
Please note that the top and bottom sides of the
image are cut off when the black bar is not
displayed.
≥[BD-V] [DVD-V]: “Side cut” does not have any effect.
≥When “TV Aspect” (> 37) is set to “4:3” or “4:3 Letterbox”,
the “Zoom” effect is disabled.
-SLEEP
Each time you press the button:
L R—) RS_)RB_) LB_) LS_) SW
^""""""""""""""""""""""""""b
PLAY
No display
1 Press and hold [–CH SELECT] for 3 seconds to
activate the speaker setting mode.
2 Press [–CH SELECT] several times to select the
speaker.
Setting the sleep timer
4 Press [3] (increase) or [4] (decrease) to adjust
the speaker level for each speaker.
s6 dB to r6 dB
Playing video recorded on a Video
Camera or Video Recorder
[AVCHD] [MPEG2]
It is possible to playback the High Definition (AVCHD format)
video recorded on a Panasonic High definition Video Camera
on a DVD-RAM/R/RW/R DL/+R/+RW/+R DL, or SD card and
Standard Definition (MPEG2 format) Video recorded on the
Panasonic SD Video Camera on a SD card.
1 Insert a disc or SD card. (> 16)
≥“Title View” or “Video (MPEG-2)” screen is displayed.
≥If a media containing data in different file formats is
inserted, the file selection menu may be displayed.
Press [3, 4] to select “Play Video (AVCHD)” or “Play
Video (MPEG-2)” and press [OK].
SD CARD
e.g. [SD]
Play Pictures (JPEG)
Play Video (AVCHD)
1 Press and hold [–SLEEP] for 3 seconds.
2 While “SLEEP ££” is displayed,
Press [–SLEEP] several times to select the time (in
minutes).
SLEEP 30 ) SLEEP 60 ) SLEEP 90 )SLEEP 120 )OFF
^"""""""""""""""""""""""""""""""""""b
Play Video (MPEG-2)
Select an action or press RETURN.
OK
OPTION
2 Press [3, 4, 2, 1] to select the title and press [OK].
e.g., Display
SLP
To confirm the remaining time
Press and hold [–SLEEP] for 3 seconds.
≥The sleep timer cannot be set while the Setup menu is
displayed.
≥The sleep timer will be cancelled in the following cases.
–When the sleep timer is set to “OFF”.
–When this unit is turned off from the remote control, main
unit or via the VIERA Link.
RQT9464
18
RETURN
NOTE
TIPS
≥It may pause for a few seconds between images
when editing such as partial deletion is performed.
≥High definition video (transfer rate of 18 Mbps or
faster) cannot be played back correctly if it was
recorded on a DVD compatible to double speed
or slower.
To return to the previous screen
Press [RETURN].
To exit the screen
Press [TOP MENU/DIRECT NAVIGATOR].
To switch from other menus to AVCHD or
MPEG2 menu
(If the media contains data in different file formats)
1) Press [START].
2) Press [3, 4] to select “Menu” and press [OK].
3) Press [3, 4] to select “Play Video (AVCHD)” or
“Play Video (MPEG-2)” and press [OK].
SC-BTX70EGEB-RQT9464-B.book
19 ページ 2009年4月9日 木曜日 午後2時53分
Enjoying BD-LIVE or BONUSVIEW in
BD-Video
What is BONUSVIEW?
BONUSVIEW allows you to enjoy functions such as picture-in-picture or secondary audio etc., with BD-Video supporting
BD-ROM Profile 1 version 1.1/ Final Standard Profile.
What is BD-Live?
In addition to the BONUSVIEW function, BD-Video supporting BD-ROM Profile 2 that has a network extension function allows
you to enjoy more functions such as subtitles, exclusive images and online games by connecting this unit to the Internet. In order
to use the Internet feature, you must have this unit connected to a broadband network (> 11).
≥These discs may not be on sale in certain regions.
≥The usable functions and the operating method may vary with each disc, please refer to the instructions on the disc and/or visit
their website.
Playback
[BD-V]
Playing secondary video (picture-in-picture) and secondary audio
Secondary video can be played from a disc compatible with the
picture-in-picture function.
For the playback method, refer to the instructions for the disc.
≥Discs may not always be played back
according to the settings on this unit,
NOTE as certain playback formats are
prioritized on certain discs.
Secondary video
≥Only the primary video is played during
search/slow-motion or frame-by-frame.
≥When “BD-Video Secondary Audio” in
“Digital Audio Output” is set to “Off”,
secondary audio will not be played.
Please check that “BD-Video
Secondary Audio” is set to “On”
(> 36).
≥When the secondary video is turned
off, the secondary audio will not be
played.
Primary video
To turn on/off secondary video
Press [PIP].
Secondary video is played.
≥Press the button to turn it ON and OFF.
To turn on/off secondary audio
Set “Soundtrack” in “Secondary Video” to
“On” or “Off”. (> 33, “Signal Type”)
Enjoying BD-Live discs with Internet
Many BD-Live compatible discs require content to be downloaded onto
≥While using this feature, do not remove
an SD card (> 53, Local storage) in order to access the available BD-Live
the SD card. Doing so will cause
features.
NOTE playback to stop.
≥An SD card with 1 GB or more of free space (SD Speed Class Rating 2 or
≥A message may be displayed when
higher) needs to be inserted prior to inserting the BD-Live compatible disc.
SD card doesn't have enough storage
capacity for BD-Live content.
Some BD-Live content available on the Blu-ray discs may require an
Please make space available on the
Internet account to be created in order to access the BD-Live content.
current SD card, or insert another SD
Follow the screen display or instruction manual of the disc for
card.
information on acquiring an account.
≥For details about usable cards, refer to
“Media (Disc, card and USB device)
Preparation
information” (> 42)
≥Connect to the network. (> 11)
≥The unit must be connected to the
Internet and set up (> 31) to use the
1 Insert an SD card (> 16).
BD-Live functions. “BD-Live Internet
≥If the SD card menu screen is displayed, press [BD/SD] to select “BD/
Access” may need to be changed for
DVD”.
certain discs (> 35).
2 Insert the disc (> 16).
≥When discs supporting BD-Live are
≥For operation method, refer to the instructions on the disc.
played back, the player or disc IDs
may be sent to the content provider via
the Internet. You can restrict Internet
access (@ 35, “BD-Live Internet
To use the above functions, it is recommended that you format the card on this
Access”).
unit.
≥The unit is connected to the Internet
Format the card using the following procedures.
when BD-Live functions are used,
generating communication charges.
Formatting SD cards/Deleting data
≥The playback may be paused
depending on the communication
It is impossible to restore data after formatting the card or erasing the data.
environment.
Once a card is formatted, all data including those recorded on the PC is erased
Some functions may be disabled to
as well, even if the data were protected with other equipment.
prevent skipping to sections that have
Confirm whether the card can be formatted.
not been downloaded, etc.
1) Insert an SD card (> 16).
2) Press [START].
3) Press [3, 4] to select “To Others” and press
[OK].
4) Press [3, 4] to select “Card Management” and
press [OK].
5) Press [3, 4] to select “BD-Video Data Erase”
or “Format SD Card” and press [OK].
6) Press [2, 1] to select “Yes” and press [OK].
7) Press [2, 1] to select “Start” and press [OK].
Card Management
SD CARD
No. of Files 6
Free space 300 MB
BD-Video Data Erase
Format SD Card
OK
Format this SD Card.
RETURN
RQT9464
19
SC-BTX70EGEB-RQT9464-B.book
20 ページ 2009年4月9日 木曜日 午後2時53分
Playing DivX® videos
[DivX]
ABOUT DIVX VIDEO:
DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.
You can play DVD-R/R DL, CD-R/RW discs and USB device which contain DivX video contents that have been recorded on a
personal computer. (About structure of folders D 45, “Structure of folders that can play back on this unit”)
≥Because DivX format can use many different codecs, there is no guarantee that all DivX files will play. (> 44, “About
MP3/JPEG/DivX files”)
e.g., Display
Playback
1 Insert a disc or a USB device. (> 16)
≥If the disc containing data in different
file formats is inserted, the file
selection menu may be displayed.
Press [3, 4] to select “Play Video
(DivX)” and press [OK].
e.g.,
≥The picture sizes set for recording may
prevent the unit from showing pictures
in the proper aspect. You may be able
NOTE
to adjust the aspect through the TV.
≥Successive play is not possible.
CD
Play Video (DivX)
Play Pictures (JPEG)
TIPS
Play Music (MP3)
Select an action or press RETURN.
OK
RETURN
OPTION
2 Press [3, 4] to select the title
and press [OK].
e.g.,
DIRECT NAVIGATOR
CD (DivX)
DivX
Play starts on the selected title.
Name of Title
No.
001
ABC.divx
Play
OPTION
Folders can be selected from OPTION.
Page 01/01
RETURN
Playing a title in another folder
1 While the “DIRECT NAVIGATOR” is displayed
Press [OPTION], press [3, 4] to select “Folder” and press [OK].
e.g.,
DIRECT NAVIGATOR
CD (DivX)
OK
≥You cannot select folders that
contain no compatible files.
NOTE
Folder selection
12_02_2004
≥You can use search and skip
functions. (> 17)
≥Press [SKIP:, SKIP9] to
show other pages.
DVD-R/R DL, CD-R/RW, USB
device
To switch from other menus to
DivX menu
(If the media contains data in
different file formats)
1) Press [START].
2) Press [3, 4] to select “Menu”
and press [OK].
3) Press [3, 4] to select “Play
Video (DivX)” and press [OK].
Selected folder No. /Total folders
If the folder has no title, “– –” is
displayed as folder number.
F 1/21
To return to the previous screen
Press [RETURN].
TIPS
RETURN
Page 01/01
2 Press [3, 4] to select a folder and press [OK].
The “DIRECT NAVIGATOR” for the folder appears.
Regarding DivX VOD content
ABOUT DIVX VIDEO-ON-DEMAND:
This DivX® Certified device must be registered in order to play
DivX Video-on-Demand (VOD) content.
First generate the DivX VOD registration code for your device
and submit it during the registration process. [Important: DivX
VOD content is protected by a DivX DRM (Digital Rights
Management) system that restricts playback to registered DivX
Certified devices. If you try to play DivX VOD content not
authorized for your device, the message “Authorisation Error.”
will be displayed and your content will not play.]
Learn more at www.divx.com/vod.
Display the unit’s registration code.
(> 38, “DivX Registration” in “General”)
DivX Registration
DivX® Video On Demand
Your registration code is : XXXXXXXX
8 alphanumeric
characters
To learn more visit www.divx.com/vod
≥After playing DivX VOD content for the first time, another
registration code is then displayed in “DivX Registration”. Do
not use this registration code to purchase DivX VOD content.
If you use this code to purchase DivX VOD content, and then
play the content on this unit, you will no longer be able to play
any content that you purchased using the previous code.
≥If you purchase DivX VOD content using a registration code different
from this unit’s code, you will not be able to play this content.
(“Authorisation Error.” is displayed.)
Regarding DivX VOD content that can only be played a set
number of times
Some DivX VOD content can only be played a set number of
times. When you play this content, the remaining number of plays
is displayed. You cannot play this content when the number of
remaining plays is zero. (“Rental Expired.” is displayed.)
When playing this content
≥The number of remaining plays is reduced by one if
–you play the content to the end.
–you press [Í].
–you press [∫STOP] and play others.
–you press [∫STOP] twice. (except for content of USB device)
–you press [DISC < OPEN/CLOSE] or remove the USB
device.
Displaying subtitles text
RQT9464
20
You can display subtitles text onto the DivX video disc on this unit.
This function has no relation to the subtitles specified in DivX
standard specifications and has no clear standard. The operation
might be different or it may not operate properly depending on the
way the file was made or the state of this unit (playing, stopped, etc.).
1 While playing, press [DISPLAY].
2 Press [3, 4] to select “Disc” and press [1].
3 Press [3, 4] to select “Subtitle” and press [1].
4 Press [3, 4] to select “On” and press [1].
5 Press [3, 4] to select “Text”.
≥DivX video files that do not display “Text” do not contain
subtitles text.
Subtitles text cannot be displayed.
≥If the subtitles text are not displayed correctly, try changing the
language settings. (> 35)
To exit the screen
Press [DISPLAY].
SC-BTX70EGEB-RQT9464-B.book
21 ページ 2009年4月9日 木曜日 午後2時53分
Playing still pictures
[JPEG]
Connecting a USB device
≥Setup screen may be displayed on
equipment connected with the USB.
NOTE Set it to the mode for connecting to a
PC.
≥Also read the operating instructions of
the connected equipment for details of
connection and setup.
≥Do not disconnect the USB
connection cable while recognizing.
USB connection cable
Specified cable such as
accessory of the USB
equipment
Connect to USB
terminal
Playback
Playback of the BD-RE, DVD-RAM/R/R DL or CD-R/RW with still pictures recorded. This unit can also play still pictures recorded
on the SD card or USB memory. In addition, you can also connect Panasonic digital camera by USB connection.
(About structure of folders D 45, “Structure of folders that can play back on this unit”)
Panasonic digital
camera, etc.
1 Insert a disc, SD card or USB device. (> 16)
BD-RE, DVD-RAM
“Album View” screen is displayed
≥When the “Title View” screen is displayed, press the [G] button to switch
to the “Album View” screen.
≥If the DVD-RAM containing both JPEG and AVCHD format is inserted,
the file selection menu may be displayed.
DVD-R/R DL, CD-R/RW, SD card, USB device
≥If the media containing data in different file
formats is inserted, the file selection menu may be
displayed.
e.g., Display
Press [3, 4] to select “Play Pictures (JPEG)” and
press [OK].
“Picture View” screen is displayed
B Go to step 3
e.g., [SD]
SD CARD
Play Video (AVCHD)
Play Video (MPEG-2)
Select an action or press RETURN.
RETURN
2 Press [3, 4, 2, 1] to select the album and press [OK].
DIRECT NAVIGATOR
Album View
DVD-RAM(VR)
106_DVD
Total 8
Video
≥Press [2, 1] to display the previous
or next still picture.
TIPS ≥Press [SKIP:, SKIP9] to show
other pages.
DVD-RAM/R/R DL, CD-R/RW, SD
card, USB device
To switch from other menus to JPEG
menu
(If the media contains data in different
file formats)
1) Press [START].
2) Press [3, 4] to select “Menu” and
press [OK].
3) Press [3, 4] to select “Play Pictures
(JPEG)” and press [OK].
OK
e.g.
NOTE
To return to the previous screen
Press [RETURN].
To exit the screen
Press [TOP MENU/DIRECT
NAVIGATOR].
Play Pictures (JPEG)
OPTION
≥Small-sized still pictures are displayed
with a frame.
12/9/2006
Total 13
Page 02/02
 Previous
OK
OPTION
RETURN
R Video
G Picture
 Next
 Slide Show
Press OK to go to Picture View
3 Press [3, 4, 2, 1] to select the still picture and press [OK].
RQT9464
21
SC-BTX70EGEB-RQT9464-B.book
22 ページ 2009年4月9日 木曜日 午後2時53分
Playing still pictures
Playback
Useful functions during still picture play
Start Slide Show
Rotate
You can display still pictures one by one at a constant
interval.
1 While playing (except for slideshows)
Press [OPTION].
BD-RE, DVD-RAM
1 While the “Album View” screen is displayed
Press [3, 4, 2, 1] to select the album and press
[OPTION].
2 Press [3, 4] to select “Rotate RIGHT” or “Rotate LEFT”
and press [OK].
2 Press [3, 4] to select “Start Slide Show” and press [OK].
≥You can also start slideshow by pressing [1PLAY] after
selecting the album.
Zoom out
DVD-R/R DL, CD-R/RW, SD card, USB device
1 While the “Picture View” screen is displayed
Press [OPTION].
1 While playing (except for slideshows)
Press [OPTION].
2 Press [3, 4] to select “Start Slide Show” and press [OK].
2 Press [3, 4] to select “Zoom out” and press [OK].
≥To cancel “Zoom out”, press [3, 4] to select “Zoom in” in
step 2 and press [OK].
≥The zoom-out information will not be stored.
Slide Show Settings
To select the still pictures in another folder
After performing step 1 in “Start Slide Show” above,
2 Press [3, 4] to select “Slide Show Settings” and press
[OK].
BD-RE, DVD-RAM
To switch to another higher folder
(Only if there is a multiple number of higher folders
recognizable)
1 While the “Album View” screen is displayed
Press [OPTION].
To set display method
Press [3, 4] to select “Transition Effect” and press [2, 1]
to select “Fade”, “Motion” or “Random”.
“Fade”:
Pictures are changed by fading out and fading
in.
This setting is factory preset.
“Motion”: Pictures are changed by fading out and fading
in, while it is enlarged, reduced, or moved up
or down.
“Random”: In addition to the “Motion”, pictures are
changed by various methods.
To repeat Slide Show
Press [3, 4] to select “Repeat Play” and press [2, 1] to
select “On” or “Off”.
To listen to a Background Music
Music files on an iPod, a USB device or a music CD can be
played back as Background music during the slideshow.
Press [3, 4] to select “Soundtrack” and press [2, 1] to
select “On” or “Off”.
≥You cannot search or skip on a music.
≥When the slideshow stops, the playback of the music
also stops.
≥Playback of the music files will be in the following order:
[CD] : Order of “Music list” display in repeat mode.
iPod: The music files will be played back in repeat
mode.
≥When a music CD, a USB device with MP3 recorded
and an iPod is inserted/connected to this unit, the iPod
has first priority to be played back as Background.
To playback MP3 recorded on a USB device as
Background music, remove the iPod and music CD from
the main unit.
To select a folder
A folder to playback can be selected when a USB device
with MP3 recorded is connected to this unit.
Press [3, 4] to select “Soundtrack Folder” and press
[OK], and press [2, 1] to select folder and press [OK].
4 Press [3, 4, 2, 1] to select “Set” and press [OK].
22
This function is only available for small-sized still pictures.
To stop slideshow
Press [∫STOP].
3 To change the display interval
Press [3, 4] to select “Display interval” and press [2, 1]
to select the interval (“Long”, “Normal” or “Short”).
≥When a still picture with large number of pixels is
played, the display interval may become longer. Even if
the setting is changed, the display interval may not
become shorter.
RQT9464
≥The rotation information will be stored until the unit is
turned off or the media is removed.
2 Press [3, 4] to select “Select Folder” and press [OK].
Select Folder
Change the Album folder to be accessed.
\JPEG\DCIM001
Press [OK] to set.
OK
RETURN
3 Press [2, 1] to select the higher folder and press [OK].
DVD-R/R DL, CD-R/RW
1 While the “Picture View” screen is displayed
Press [OPTION].
2 Press [3, 4] to select “Folder” and press [OK].
3 Press [3, 4] to select a folder and press [OK].
The “Picture View” screen for the folder appears.
e.g.
DIRECT NAVIGATOR
CD(JPEG)
Folder selection
021216_0026
001
002
003
004
005
006
007
008
009
010
F 2/25
103
104
105
OK
RETURN
To show the picture properties
While playing
Press [STATUS] twice.
e.g., JPEG on DVD-RAM
Shooting date
Date
To exit, press [STATUS].
11.12.2009
Total
3/9
SC-BTX70EGEB-RQT9464-B.book
23 ページ 2009年4月9日 木曜日 午後2時53分
Playing music
[CD] [MP3]
e.g., Display
1 Insert a disc or USB device. (> 16)
e.g.
≥If the media containing data in
different file formats is
inserted, the file selection
menu may be displayed.
Press [3, 4] to select “Play
Music (MP3)” and press [OK].
To switch from other menus to MP3
menu
TIPS (If the media contains data in different
file formats)
1) Press [START].
2) Press [3, 4] to select “Menu” and
press [OK].
3) Press [3, 4] to select “Play Music
(MP3)” and press [OK].
CD
Play Video (DivX)
Play Pictures (JPEG)
Play Music (MP3)
Select an action or press RETURN.
OK
RETURN
OPTION
2 Press [3, 4] to select the track and press [OK].
Play starts on the selected track.
e.g., [CD]
“
” indicates
the track currently
playing.
Music list
DIRECT NAVIGATOR
CD
No.
01
02
03
04
05
0.09
4.30
Track1
5 Tracks / Total Play Time 20min54sec
Track Name
Play Time
4min30sec
Track1
3min41sec
Track2
Track3
4min30sec
Track4
3min11sec
Track5
5min 2sec
Playback
You can generally play any available music CD or MP3 files recorded onto a DVD-R/R DL, CD-R/RW and USB device.
(About structure of folders D 45, “Structure of folders that can play back on this unit”)
≥You can use search and skip
functions. (> 17)
≥When the “Screen Saver Function” is
set to “On” (> 36), the screen
switches to Screen Saver mode if
there is no operation for 5 minutes
after starting playback. (Playback
continues.)
Play
RETURN
[MP3] Playing a track in another folder
≥You cannot select folders that contain
no compatible tracks.
Selected folder No. /Total folders
1 While the “Music list” is displayed
Press [OPTION], press [3, 4] to
If the folder has no track, “– –” is NOTE
select “Select Folder” and press [OK].
displayed as folder number.
To return to the previous screen
DIRECT NAVIGATOR Select Folder
2 Press [3, 4] to select a folder and e.g.
CD(MP3)
Press [RETURN].
press [OK].
The “Music list” for the folder
TIPS
appears.
MP3 music
001 My favorite
002 Brazilian pops
003 Chinese pops
004 Czech pops
005 Hungarian pops
006 Liner notes
007 Japanese pops
008 Mexican pops
009 Philippine pops
010 Swedish pops
011 Momoko
012 Standard number
013 Piano solo
014Vocal
F 8/25
OK
RETURN
Playing music continuously even after turning off power to the television
≥Sound may be discontinued for
When the unit is connected to a Panasonic TV (VIERA) that supports HDAVI
several seconds when the power to
Control 2 or later and other device supports VIERA Link, the unit is turned off if NOTE the television is turned off.
the power to the television is turned off, since “Power off link” (> 27) operates.
The following operations make it possible to keep the power of the unit ON and
to play music continuously.
Set “Power Off Link” to “Video” (> 37).
RQT9464
23
SC-BTX70EGEB-RQT9464-B.book
24 ページ 2009年4月9日 木曜日 午後2時53分
Listening to the Radio
Setting up the radio
Listening/confirming the preset channels
1 Press [RADIO] to select “FM”.
2 Press the numbered buttons to select the channel.
1
Numbered
buttons
2abc 3def
4ghi 5jkl 6mno
7pqrs 8 tuv 9wxyz
0
RADIO
EXT-IN
SEARCH
SEARCH
RADIO
SEARCH
SEARCH
,
OK
Radio
OK
STATUS
STATUS
DISPLAY
AUDIO
AUDIO
DISPLAY
Presetting stations automatically
Up to 30 stations can be set.
1 Press [RADIO] to select “FM”.
This unit: Press [RADIO/EXT-IN].
2 Press [STATUS] to select the position to start the
auto preset search.
Each time you press the button:
LOWEST (factory preset):
To begin auto preset with the lowest frequency (FM 87.50).
CURRENT:
To begin auto preset with the current frequency.*
* To change the frequency, refer “Manual tuning” (B right).
3 Press and hold [OK].
Release the button when
“AUTO” is displayed.
The tuner starts to preset all the stations
it can receive into the channels in
ascending order.
≥“SET OK” is displayed when the stations are set, and the radio
tunes to the last preset station.
≥“ERROR” is displayed when automatic presetting is
unsuccessful. Preset the stations manually (B right).
To select a 1-digit number
e.g., 1: [1] > [OK].
To select a 2-digit number
e.g., 12: [1] > [2]
Alternatively, press [W, X] or [2, 1].
When a stereo FM broadcast is being
received, “ST” lights in the display.
≥The FM setting is also shown on the TV display.
ST
∫ If noise is excessive
When FM is selected
Press [AUDIO] to display
MONO
T
“MONO”.
Press the button again to cancel
the mode.
≥The mode is also cancelled when you change the frequency.
≥This setting can be preset for each broadcasting station. When
“MONO” appears follow procedures 1 and 2 in “Presetting
stations manually” (> below).
Manual tuning
1 Press [RADIO] to select “FM”.
2 Press [SEARCH6] or [SEARCH5] to select the
frequency.
≥Main unit: Press [:/6, 5/9] to select the
frequency.
≥When a radio broadcast is
T
MONO
being received, “T” lights in
the display.
≥To start automatic tuning,
press and hold [SEARCH6, SEARCH5] (main unit:
[:/6, 5/9]) until the frequency starts scrolling.
Tuning stops when a station is found.
∫ Presetting stations manually
Up to 30 stations can be set.
1 While listening to the radio broadcast
Press [OK].
2 While “P” is flashing on the display
Press the numbered buttons to select a channel.
To select a 1-digit number
e.g., 1: [1] > [OK].
To select a 2-digit number
e.g., 12: [1] > [2]
A station previously stored is overwritten when another station is
stored in the same channel preset.
RDS broadcasting
The unit can display the text data transmitted by the radio data
system (RDS) available in some areas.
If the station you are listening to is transmitting RDS signals,
“RDS” will light up on the display.
While listening to the radio broadcast
Press [DISPLAY] to display the text data.
Each time you press the button:
PS:
Program service
PTY:
Program type
OFF:
Frequency display
PTY displays
NEWS
VARIED
FINANCE
COUNTRY
AFFAIRS
POP M
CHILDREN
NATIONAL
INFO
ROCK M
SOCIAL A
OLDIES
SPORT
M.O.R. M*
RELIGION
FOLK M
EDUCATE
LIGHT M
PHONE IN
DOCUMENT
DRAMA
CLASSICS
TRAVEL
TEST
CULTURE
OTHER M
LEISURE
ALARM
SCIENCE
WEATHER
JAZZ
* “M.O.R. M”=Middle of the road music
RDS displays may not be available if reception is poor.
RQT9464
24
NOTE
SC-BTX70EGEB-RQT9464-B.book
25 ページ 2009年4月9日 木曜日 午後2時53分
Enjoying TV, etc. with this unit’s speakers
You can enjoy TV broadcasts with this unit’s speakers.
Adjusting the sound
You can adjust the mode depending on the source or situation.
1 Press [SOUND] several times to select the mode.
≥You can also press [SOUND] and then [3, 4] to select the
mode.
≥The selected effect will only be displayed on the main unit.
EXT-IN
EXT-IN
2 While the selected mode is displayed
Press [2, 1] and select the desired setting.
For more detailed information on this operation, please refer to
the “Changing the sound modes” section on page 15.
SURROUND
Making settings for digital audio input
SOUND
SOUND
SURROUND
OK
Select to suit the type of audio from the OPTICAL IN terminals on
the main unit.
≥Underlined items are the factory presets.
Available settings
Mode
STATUS
Preparation
Confirm the audio connection to the OPTICAL IN or AUX terminal
on this unit (> 9 to 10).
Turn on the TV.
1 Press [EXT-IN] several times to select “D-IN 1”
(DIGITAL IN 1)*1, “D-IN 2” (DIGITAL IN 2)*2 or
“AUX”*1.
This unit: Press [RADIO/EXT-IN].
(Only works with Dolby Dual Mono)
– M1
– M2
– M1+M2 (stereo audio)
≥If this is set to “M1” or to “M2”, the PCM FIX
modes will automatically be set to “OFF”.
DRC:
– ON
Adjust for clarity even when the volume is low
(Dynamic
by compressing the range of the lowest sound
Range
Compression) level and the highest sound level. Convenient
for late night viewing. (Only works with Dolby
Digital)
– OFF
The full dynamic range of the signal is
reproduced.
≥D-IN 1 (DIGITAL IN 1)*1:
When connecting using OPTICAL 1(TV) terminal.
≥D-IN 2 (DIGITAL IN 2)*2:
When connecting using OPTICAL 2(STB) terminal.
≥AUX*1:
When connecting using AUX terminal.
*1 For connections with the TV.
*2 For connections with other devices.
PCM FIX:
– ON
Select when receiving only PCM signals.
– OFF
Select when receiving Dolby Digital and PCM
signals.
≥When receiving true 5.1-channel surround
sound, select “OFF”.
≥If this is set to “ON”, the DUAL mode will
automatically be set to “M1+M2”.
≥When the system is connected to an HDAVI Control 2 or
later-compatible TV via an HDMI cable, TV broadcast audio is
output through the system speakers if the TV input is switched to
TV tuner mode. See “Setting the TV audio for VIERA Link
“HDAVI Control”” on page 26 for setting method.
≥Reduce the volume on the TV to its minimum, and then adjust
the volume of this unit.
TV AUDIO*3:
– AUX
Enjoying TV and other devices sound
from this unit’s speakers
You can enhance stereo sources with surround sound effect.
Press [SURROUND] several times to select the mode.
≥You can also press [SURROUND] and then [3, 4] to select
the mode.
≥The selected effect will only be displayed on the main unit.
For more detailed information on this operation, please refer to
the “Enjoying surround sound effects” section on page 15.
Recommended modes to enjoy TV audio:
2.1 ch mode
≥DOLBY VIRTUAL SPEAKER REFERENCE
≥DOLBY VIRTUAL SPEAKER WIDE
4.1 ch/6.1 ch mode (> 40)
≥DOLBY PL II MOVIE
≥DOLBY PL II MUSIC
≥S.SURROUND
CABLE/SAT
AUDIO*4, 5:
TV
STATUS
Setting
DUAL:
Select when receiving analogue sound from
the TV to the AUX terminal.
– D-IN 1
Select when receiving digital sound from the
TV to the OPTICAL 1(TV) terminal.
– SET
Select when setting the main unit to switch to
“D-IN 2” when the input channel of a HDMI
connected STB is selected on the TV (B 26,
Setting the TV audio for VIERA Link “HDAVI
Control”).
– OFF
Select to cancel this setting.
1 Press [EXT-IN] several times to select “D-IN 1”
(DIGITAL IN 1) or “D-IN 2” (DIGITAL IN 2).
Main unit: Press [RADIO/EXT-IN].
2 Press [STATUS] several times to select the mode.
≥You can also press [STATUS] and then [3, 4] to select the
mode.
≥The digital audio input settings are to be set separately to
each source, “D-IN 1” and “D-IN 2”.
≥The selected effect will only be displayed on the main unit.
3 While the selected mode is displayed
Press [2, 1] and select the desired setting.
*3 When “D-IN 1” is selected.
*4 When “D-IN 2” is selected.
*5 The device connected to the OPTICAL 2(STB) terminal must be
connected to the TV via an HDMI cable. If it is not connected via an
HDMI cable, “NOT CONDITIONAL” is displayed on the main unit.
≥Audio that is input through the OPTICAL DIGITAL IN
or AUX terminals are not output from the HDMI
terminal.
NOTE
RQT9464
25
SC-BTX70EGEB-RQT9464-B.book
26 ページ 2009年4月9日 木曜日 午後2時53分
Linked operations with the TV
(VIERA Link “HDAVI ControlTM”)
What is VIERA Link “HDAVI Control”?
VIERA Link “HDAVI Control” is a convenient function that offers linked
operations of this unit, and a Panasonic TV (VIERA) under “HDAVI Control”.
You can use this function by connecting the equipment with an HDMI cable. See
the operating instructions for connected equipment for operational details.
NOTE
Preparation
1 Connect this unit to your TV with an HDMI cable (> 9).
2 Set “VIERA Link” to “On” (> 37).
(The default setting is “On”.)
3 Set the “HDAVI Control” operations on the connected equipment (e.g., TV).
4 Turn on all “HDAVI Control” compatible equipment and select this unit’s input
channel on the connected TV so that the “HDAVI Control” function works properly.
Also when the connection or settings are changed, repeat this procedure.
TV
Setting the TV audio for VIERA Link “HDAVI Control”
You can set the main unit to link audio operations with the TV.
∫ Setting the audio from the TV
Preparation
≥Select between “AUX” and “D-IN 1” (DIGITAL IN 1) to work with the linked
operations for the TV audio.
– Confirm the audio connection to the AUX terminal (for “AUX”) or
OPTICAL 1(TV) terminal (for “D-IN 1”) (> 9).
With the remote control of the main unit;
1 Press [EXT-IN] to select “AUX” or “D-IN 1” (DIGITAL IN 1).
2 Press [STATUS].
3 Press [3, 4] to select “TV AUDIO”.
4 Press [2, 1] to switch “AUX” or “D-IN 1” (DIGITAL IN 1) and press [OK].
Whenever the connection or settings are changed, reconfirm the points
above.
∫ Setting the audio from the STB
This unit can be set to link operations with the TV so as to output audio from
the connected STB, etc. when the TV input is set to the input channel
designated for the STB, etc.
Preparation
≥Select the STB input channel on the TV.
≥Confirm the audio connection to the OPTICAL 2(STB) terminal (for “D-IN
2”) (> 10).
With the remote control of the main unit;
1 Press [EXT-IN] to select “D-IN 2” (DIGITAL IN 2).
2 Press [STATUS].
3 Press [3, 4] to select “CABLE/SAT AUDIO”.
4 Press [2, 1] to select “SET” and press [OK].
≥If the input channel of the STB on the TV is changed or if you want to
change the device allocated for the linked operations, select “OFF” in step
4 above and then repeat steps 1 to 4.
NOTE
TIPS
≥VIERA Link “HDAVI Control”, based on the
control functions provided by HDMI which is
an industry standard known as HDMI CEC
(Consumer Electronics Control), is a unique
function that we have developed and added.
As such, its operation with other
manufacturers’ equipment that supports
HDMI CEC cannot be guaranteed.
≥This unit supports “HDAVI Control 4”
function.
“HDAVI Control 4” is the newest standard
(current as of December, 2008) for
Panasonic’s HDAVI Control compatible
equipment. This standard is compatible with
Panasonic’s conventional HDAVI
equipment.
≥Please refer to individual manuals for other
manufacturers’ equipment supporting
VIERA Link function.
≥It is recommended that you use
Panasonic’s HDMI cable.
Recommended part number:
RP-CDHG10 (1.0 m), RP-CDHG15 (1.5 m),
RP-CDHG20 (2.0 m), RP-CDHG30 (3.0 m),
RP-CDHG50 (5.0 m), etc.
≥Non-HDMI-compliant cables cannot be
utilized.
≥The connected STB must also be
connected to the TV via an HDMI cable.
Refer to the operating instructions of the
respective device for details.
≥It is also possible to connect an HDMI and
optical output compatible Panasonic DVD,
Blu-ray recorder in the place of the STB.
What you can do with “HDAVI Control”
Speaker selection
You can select whether audio is output from the unit’s speakers or the TV speakers by using the TV menu settings. For details, refer to
the operating instructions of your TV.
Home Cinema
This unit’s speakers are active.
≥When this unit is in standby mode, changing the TV speakers to this unit’s speakers in the TV menu will automatically turn the unit on
and select “AUX”*1, “D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2 as the source.
≥The TV speakers are automatically muted.
≥You can control the volume setting using the volume or mute button on the TV’s remote control. (The volume level is displayed on
the main unit’s FL display.)
≥To cancel muting, you can also use the home theatre remote control (> 17).
≥If you turn off this unit, TV speakers will be automatically activated.
TV
TV speakers are active.
≥The volume of this unit is set to “0”.
– This function works when “BD/DVD”, “SD”, “USB”, “AUX”*1, “D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2 is selected as the
source on the home theatre system.
≥Audio output is 2-channel audio.
≥When “TV” is selected in “Speaker selection”, the audio from an iPod will not be output from the TV’s speakers during
slideshow background music playback. (> 22)
NOTE
RQT9464
26
When switching between this unit’s speakers and TV speakers, the TV screen may be blank for several seconds.
27 ページ 2009年4月9日 木曜日 午後2時53分
Automatic input switching
When the following operations are performed, the television will
automatically switch the input channel and display the
corresponding action.
– When play starts on the unit
– When an action that uses the display screen is performed
(e.g., Direct Navigator screen)
≥[BD-V] [DVD-V] When playback stops, the TV will automatically
return to TV tuner mode.
≥When you switch the TV input to TV tuner mode, this unit will
automatically switch to “AUX”*1, “D-IN 1” (DIGITAL IN 1)*1 or
“D-IN 2” (DIGITAL IN 2)*2.
≥This function does not work when the iPod selector (SIMPLE
mode) or iPod Video menu (EXTENDED mode) is chosen.
(> 29)
≥When [1PLAY] is pressed, the playback image is not
immediately displayed on the screen and it may not be
possible to watch the contents from where playback
NOTE started.
In this case, press [SKIP:] or [SEARCH6] to go
back to where playback started.
Automatic lip-sync function
(for HDAVI Control 3 or later)
Delay between audio and video is automatically adjusted,
enabling you to enjoy smooth audio for the picture (> 37, “Time
Delay”).
≥This function works only when “BD/DVD”, “SD”, “USB”, “AUX”*1,
“D-IN 1” (DIGITAL IN 1)*1 or “D-IN 2” (DIGITAL IN 2)*2 is
selected as the source on this unit.
Power off link
All connected equipment compatible with “HDAVI Control”,
including this unit, automatically turns off when you switch the
television off.
≥This unit automatically turns off even during playback or any
other operation.
To continue audio playback even when the TV is turned off,
select “Video” in “Power Off Link” (> 37).
∫ Intelligent Auto Standby
Intelligent Auto Standby responsibly manages your power
consumption.
This function is available with a TV that supports “HDAVI
Control 4”.
≥If connected with a TV (VIERA) with the “Intelligent Auto
Standby” setting activated on the TV, when switching the TV
input, the unit will be automatically turned to standby. For
details please read the operating instructions of the TV.
≥When “Speaker selection” is set to “Home Cinema”, the
main unit will not automatically turn to standby.
One touch play
You can turn on this unit and the TV, and start play with a single
press of a button.
While the unit and the TV are in standby mode;
Press [1PLAY].
≥This unit’s speakers will automatically be activated. (> 26)
≥When [1PLAY] is pressed, the playback image is not
immediately displayed on the screen and it may not be
possible to watch the contents from where playback
NOTE started.
In this case, press [SKIP:] or [SEARCH6] to go
back to where playback started.
*1 “AUX” or “D-IN 1” works depending on the “TV AUDIO”
setting (B 26, Setting the TV audio for VIERA Link “HDAVI
Control”).
*2 “D-IN 2” works depending on the “CABLE/SAT AUDIO”
setting (B 26, Setting the TV audio for VIERA Link “HDAVI
Control”).
Easy control only with VIERA remote control
If you connect this unit to a TV that has “HDAVI Control 2” or later
with an HDMI cable, you can operate this unit using buttons on
the TV remote control.
The buttons that you can use for this unit vary depending on the
TV. For details, refer to the operating instructions of the TV.
Use the remote control supplied with this unit if you cannot
operate this unit using buttons on the TV remote control.
≥The operation of this unit may be interrupted when you press
incompatible buttons on the TV remote control.
Using the START menu to operate this unit
By using the TV remote control, you can play media using the
START menu.
1 Press the button for VIERA Link
on the TV remote control.
2 Select the home theatre.
e.g., [BD-V]
START
Home Cinema
BD-Video
≥The START menu is displayed
Playback Disc
Top Menu
3 Select the desired items on the
START menu (> 14).
Menu
Network
Input Selection
Sound(Equalizer)
To Others
Using the option menu to operate this unit
By using the TV remote control, you can play discs using the
“Control Panel” and display the Top Menu (for BD-Video and
DVD-Video) or Pop-up Menu (for BD-Video).
≥This works only during “BD/DVD” or “SD” playback and
resume modes.
TV
SC-BTX70EGEB-RQT9464-B.book
1 Press [OPTION].
≥You cannot use the option menu while e.g., [BD-V]
the Top Menu for BD-Video or
Control Panel
DVD-Video is displayed.
≥This can also be displayed by using the Screen Aspect
VIERA menu screen.
Top Menu
Pop-up Menu
OK
2 Select an item, then press [OK].
Control Panel
Screen Aspect
OPTION
RETURN
Control Panel is displayed. Follow the
indications on the screen (> below).
(> 18)
Top Menu [BD-V] [AVCHD] [DVD-V] Top menu is displayed.
Menu [DVD-V]
Menu is displayed.
Pop-up Menu [BD-V]
Pop-up menu is displayed.
Rotate RIGHT [JPEG]
Rotate LEFT [JPEG]
Zoom in [JPEG]
Zoom out [JPEG]
Rotate the still picture.
Enlarge or shrink the still picture.
∫ Using the Control Panel
You can operate the playback with the
indicated controls.
e.g.
≥Depending on the menu, some button operations
cannot be performed from the TV’s remote control.
≥You cannot input numbers with the numbered buttons
NOTE
on the TV’s remote control ([0] to [9]). Use this unit’s
remote control to select the playlist etc.
∫ When you want to leave the TV on and set only this unit to standby mode
Press [Í] on this unit’s remote control and set to standby mode.
∫ When not using “HDAVI Control”
Set “VIERA Link” in the Setup menu to “Off”. (> 37)
RQT9464
27
SC-BTX70EGEB-RQT9464-B.book
28 ページ 2009年4月9日 木曜日 午後2時53分
Using the iPod
You can enjoy iPod music through this unit’s speakers or view iPod videos/photos on the TV.
iPod Connection
Preparation
≥To view photos/videos from the iPod
–Ensure the video connection to the VIDEO OUT terminal on this unit (> 9).
–Operate the iPod menu to make the appropriate photo/video output settings for your TV. (Refer to operating instructions of
your iPod.)
≥To display the picture, turn on the TV and select the appropriate video input mode.
≥Before connecting/disconnecting the iPod, turn the main unit off or reduce the volume of the main unit to its minimum.
1 Press [iPod < OPEN/CLOSE] to open the sliding door.
2 Press [<] to unlock the Dock for iPod and pull the
docking switch lever to tilt the Dock for iPod.
Dock adapter
(not included)
≥Keep your fingers away from the sliding
door when it is moving to avoid minor
injuries.
NOTE
≥When removing the iPod, pull it straight
out at the same angle as the tilt of the
Dock for iPod.
To open the sliding door during disc
playback
≥During disc playback the sliding door will
not open when [iPod < OPEN/CLOSE] is
pressed.
≥Press [iPod < OPEN/CLOSE] twice to
open the sliding door.
RADIO/EXT-IN
Click!
While an iPod is connected
≥Do not push or pull your iPod back and
forth with great force.
About dock adapter
≥Attach the dock adapter which should be
supplied with your iPod to the dock for the
stable use of the iPod.
If you need an adapter, consult your iPod
dealer.
Main unit
iPod
Dock for iPod
≥Hold the docking switch lever when connecting/disconnecting the iPod.
3 Connect the iPod (not included) firmly.
4 Gently push the docking switch lever back into place.
About recharging the battery
Recharging starts when the Dock for iPod is locked back into place.
≥iPod will start recharging regardless of
whether this unit is on or off.
≥“IPOD ¢” will be shown on the main unit’s
display during iPod charging in main unit
standby mode.
≥Check the iPod to see if the battery is fully
recharged.
≥If you are not using the iPod for an
extended period of time after recharging
has completed, disconnect it from main
unit, as the battery will be depleted
naturally. (Once fully recharged, additional
recharging will not occur.)
≥The cooling fan may operate while the
iPod battery is being charged.
Other devices
5 Press [iPod < OPEN/CLOSE] to close the sliding door.
≥To operate the iPod in SIMPLE mode (> 29), leave the sliding door
open and gently operate the iPod’s controls.
∫ Removing the iPod
1 Stop the playback of the iPod.
2 Press [iPod < OPEN/CLOSE] to open the sliding door.
3 Press [<] to unlock the Dock for iPod and pull the docking switch lever
to tilt the Dock for iPod.
4 Pull the iPod straight out.
5 Push the docking switch lever back into place.
6 Press [iPod < OPEN/CLOSE] to close the sliding door.
Compatible iPod
RQT9464
28
Name
Memory size
iPod touch 2nd generation
8 GB, 16 GB,
32 GB
iPod nano 4th generation (video)
8 GB, 16 GB
iPod classic
120 GB
iPod touch 1st generation
8 GB, 16 GB,
32 GB
iPod nano 3rd generation (video)
4 GB, 8 GB
iPod classic
80 GB, 160 GB
iPod nano 2nd generation (aluminum)
2 GB, 4 GB, 8 GB
iPod 5th generation (video)
60 GB, 80 GB
iPod 5th generation (video)
30 GB
iPod nano 1st generation
1 GB, 2 GB, 4 GB
iPod 4th generation (colour display)
40 GB, 60 GB
iPod 4th generation (colour display)
20 GB, 30 GB
iPod 4th generation
40 GB
iPod 4th generation
20 GB
iPod mini
4 GB, 6 GB
NOTE
≥Compatibility depends on the software
version of your iPod.
≥Audio/video cannot be recorded or
transmitted to iPods via this system.
≥Panasonic makes no warranty for iPod
data management.
≥For more information, refer to the
operating instructions for iPod.
≥The contents of the operating
instructions and those displayed on
iPod may differ partially, but this will not
fundamentally affect use of playback.
TIPS
∫ To use the iPod touch features
1 Press the Home button on the iPod
touch.
2 Select the iPod touch features on the
touch screen to operate.
SC-BTX70EGEB-RQT9464-B.book
29 ページ 2009年4月9日 木曜日 午後2時53分
iPod Playback
This system features two different iPod playback modes.
The first of these is EXTENDED mode, for playback of music and video contents. With this mode, you can operate the iPod from
the main unit. The second mode is SIMPLE mode, which can be used for playback of three types of contents – music, photos,
and videos. With this mode, simple operations such as play, stop, and search can be performed on the display of your iPod.
Enjoy music/video (EXTENDED mode)
Other methods of playback
1 Press [iPod] to select “IPOD”.
The iPod automatically switches to this unit’s display mode.
To switch the menu, press [STATUS] several times.
Music menu"""""#Video menu
^"iPod menu (iPod LCD)<n
≥“MUSIC” or “VIDEOS” is displayed on the main unit.
–When playing back video contents, ensure the video
connection to the VIDEO OUT terminal on this unit
(> 9) and switch the TV input to video in.
e.g., music main menu screen
While in “MUSIC” or “VIDEOS” mode, it is possible to select
the following playback modes.
Items
Play Mode
Selection/playback method
Shuffle*1
≥Off:
≥Songs:
≥Albums:
Repeat
≥Off:
≥One:
iPod Music
Playlists
Cancel
Play a single song/video
repeatedly.
Play all songs/videos from
selected items (e.g., Playlists,
Albums, etc.) repeatedly.
Artists
≥All:
Albums
Songs
Cancel
Play all songs on iPod in
random order.
Play all songs on album in
random order.
Podcasts
Audiobooks
*1 For music playback only.
2 Press [3, 4] to select an item and press [OK].
≥Play starts from the selected song or video.
≥To display the previous or next page, press [2, 1]
≥Press [RETURN] to return to the previous screen.
e.g., music playback screen Playback condition
iPod
Song
Artist
Album
Good morning
Ronaldo
Happy days
2:43
Playing position
Playback mode
45 of 1230
Shuffle (Albums)
Repeat (All)
Clear/display iPod Music or Video menu during
playback.
Press [TOP MENU/DIRECT NAVIGATOR].
NOTE
≥If the Video menu (EXTENDED mode) is accessed,
the video shuffle playback mode on the iPod is set
to "Off" when the iPod is disconnected from the unit.
Enjoy photos (SIMPLE mode)
You can also play music and video using SIMPLE mode.
1 Press [iPod] to select “IPOD”.
2 Press [STATUS] several times to select the iPod
menu (iPod LCD).
≥“ALL” is displayed on the main unit.
≥If the sliding door is closed, press [iPod < OPEN/
CLOSE] to open it.
The main unit will continue to operate even if the sliding
door is open.
Proceed operations through the iPod display.
3 Switch the TV input to video in.
≥Ensure the video connection to the VIDEO OUT terminal
on this unit (> 9).
1 Press [START].
2 Press [3, 4] to select “Menu” and then press [OK].
3 Press [3, 4] to select “Play Mode” and then
press [OK].
4 Press [3, 4] to select an item and press [OK].
5 Press [3, 4] to select the setting and press [OK].
Playback modes during and after connection.
≥Music playback modes set on the iPod will be
maintained when connected to the main unit.
NOTE
Changes made while the iPod is connected to the
main unit be kept on the iPod after disconnecting it.
≥If the Video menu (EXTENDED mode) is accessed,
the video shuffle playback mode on the iPod is set
to "Off" when the iPod is disconnected from the unit.
To return to the previous screen
Press [RETURN].
Other devices
OK
RETURN
TIPS
Basic controls
While playing music or video it is possible to use the following
buttons of the remote control.
Buttons
Functions
[1PLAY]
Play
[∫STOP]
[;PAUSE]
Pause
≥Press [1PLAY] to restart play.
≥Playback start position may not be
stored in memory in certain cases.
[SKIP:,
SKIP9]
Skip
(Press and hold)
[SEARCH6,
SEARCH5]
Search
≥Use the controls on the iPod unit during photo playback.
4 Play a slideshow on your iPod.
The picture will be displayed on your TV.
You can use the remote control to operate the iPod
menu.
≥[3, 4]:
To navigate menu items
≥[OK]:
To go to the next menu.
≥[RETURN]: To return to the previous menu.
The remote control operation may vary between iPod models.
You can select the surround sound effect when you press [SURROUND] (> 15).
You can select the sound mode when you press [SOUND] (> 15).
RQT9464
29
SC-BTX70EGEB-RQT9464-B.book
30 ページ 2009年4月9日 木曜日 午後2時53分
Enjoying VIERA CASTTM
You can access a selection of Internet services from the Home screen with VIERA CAST, for example YouTube, Picasa Web Albums. (Current as of March 2009)
≥VIERA CAST requires a broadband Internet connection. Dial-up Internet connections cannot be used.
Preparation
≥Network connection (> 11)
≥Network setting (> 31)
1 While stopped
Press [BD/SD] to select “BD/DVD”.
2 Press [VIERA CAST].
≥Message is displayed. Please read these instructions carefully and
then press [OK] to start VIERA CAST function.
≥Depending on the usage conditions, it may
take a while to read all the data.
≥The connection to the Internet may take time
NOTE
or the Internet may not be connected
depending on the connection environment.
≥The unit is connected to the Internet when
VIERA CAST is used, generating
communication charges.
To return to VIERA CAST Home screen
Press [VIERA CAST].
Welcome to Network Service
Your Panasonic Network Service allows you to access web-based content on your Player/Recorder.
Network Service is subject to change without notice. The Service through Network Service is operated
by their respective service providers, and service may be discontinued either temporarily or
permanently without notice. Therefore, Panasonic will make no warranty for the content or the
continuity of the services. All features of websites or content of the service may not be available. Some
content may be inappropriate for some viewers and may only be available for specific countries and
may be presented in specific languages. You may disable the Network Service feature by following the
instructions found in your Operating Instructions.
TIPS
It's recommanded your player/recorder is connected to Full HD display with HDMI. The display of the
contents may be truncated, depending on your TV. You may reduce to screen size by following the
instructions found in your Operating Instructions.
To exit from VIERA CAST
Press [START] or [TOP MENU/DIRECT
NAVIGATOR], then press [RETURN] to cancel
the menu.
Don’t show this message again
≥Set the “Network Lock” to “On” to restrict
using VIERA CAST. (> 38)
≥Set the “Audio Auto Gain Control” to “Off”
when the audio is warped while using the
VIERA CAST. (> 38)
≥When the display of the contents is
truncated, set the “Reduced Screen Display”
to “On”. (> 38)
≥Set the “On-Screen Language”, to switch the
language for Home screen. (> 36)
≥Set the “Time Zone” or “Summer Time” when
the wrong time is displayed on the screen.
(> 38)
ENTER
Images are for illustration purposes,
message may change without notice.
3 Press [3, 4, 2, 1] to select the item and press [OK].
≥You can operate VIERA CAST using the following buttons on the unit’s
remote control. [3, 4, 2, 1], [OK], [RETURN], coloured buttons and
numbered buttons.
≥To access more features on YouTube or Picasa Web Albums site,
enter your user ID and password that you have previously set up with
these sites through the internet on your PC. However, not all features
may be accessible through VIERA CAST.
VIERA CAST Home screen;
New York, NY
Weather
Settings 20°
NNW7
mph
TM
Featured Videos
Panasonic Select
Images are for illustration purposes,
contents may change without notice.
Advanced operations
Regarding “Settings”
Set VIERA CAST Home screen.
≥My Account: You can remove your account from the unit.
≥Lock:
Enter a password to lock YouTube and Picasa Web Albums.
≥Notices
Firmware updating
When this unit remains connected to the Internet, it will automatically check
for the latest firmware version when it is turned on.
When latest firmware version is available, the following screen is displayed.
Select “Yes” or “No”.
The latest firmware is available.
Latest Online Version: x.x
Current Installed Version: x.x
Do you want to start firmware update?
For the update information, please visit the
following website:
http://panasonic.net/support/
No
≥If “Yes” is selected, then follow the on-screen instructions.
≥If “No” is selected, then manually update the firmware later. (B right)
After the latest firmware is downloaded, the system will be restarted and the
firmware will be updated.
When the system is restarted, the screen display
disappears and “START” is displayed on the unit’s
display.
After the firmware is updated and the system is restarted, the following
screen indicates that the firmware update has been completed.
The firmware has been updated.
Current Installed Version: x.x
OK
RETURN
30
≥Downloading will require several minutes. It
may take longer or the Internet may not be
connected depending on the connection
NOTE
environment. It is required that you use a
broadband connection.
Firmware Update
Yes
RQT9464
≥VIERA CASTTM home screen is subject to
change without notice.
≥The services through VIERA CASTTM are
NOTE
operated by their respective service
providers, and service may be discontinued
either temporarily or permanently without
notice. Therefore, Panasonic will make no
warranty for the content or the continuity of
the services.
≥All features of websites or content of the
service may not be available.
≥Some content may be inappropriate for
some viewers.
≥Some content may only be available for
specific countries and may be presented in
specific languages.
≥During the update process, no other operations can be performed. Serious
damage may occur if you turn off the unit and/or press any buttons.
TIPS
≥If downloading on this unit fails or this unit is
not connected to the Internet, then you can
download the latest firmware from the
following website and burn it to a CD-R to
update the firmware.
http://panasonic.net/support/
(This site is in English only.)
≥When the unit is connected to the Internet,
communication charges may be generated.
≥If you do not want to check for the latest
firmware version when the unit is turned on,
set “Automatic Update Check” to “Off”. (> 38)
Manually updating the firmware
If the firmware update is not carried out when
the unit is turned on, a message is displayed
when displaying the START menu.
The latest firmware is available.
Please update firmware in Setup.
1) Press [SETUP].
2) Press [3, 4] to select “General” and
press [OK].
3) Press [3, 4] to select “Firmware Update”
and press [OK].
4) Press [3, 4] to select “Update Now” and
press [OK].
5) Press [2, 1] to select “Yes” and press
[OK].
SC-BTX70EGEB-RQT9464-B.book
31 ページ 2009年4月9日 木曜日 午後2時53分
Network settings
These settings are used if you will connect this unit to the Internet. (> 38)
≥The connection to the Internet may take time or the Internet may not be connected depending on the connection environment.
It is required that you use a broadband connection.
Preparation
≥Connect to a broadband network. (> 11)
Testing of “IP Address / DNS Settings”
Setting the IP address
Always test the connection when a LAN cable is connected.
1 While stopped
In most cases, default settings can normally be used
without making any changes.
Set the IP address only when the router has no DHCP
server functions or when the router’s DHCP server
function is disabled.
Press [BD/SD] to select “BD/DVD”.
2 Press [SETUP].
3 Press [3, 4] to select “Network Settings” and
press [OK].
4 Press [3, 4] to select “IP Address / DNS
Settings” and press [OK].
5 Press [3, 4] to select “Connection Test” and
press [OK].
IP Address/DNS Settings
Connection Test
On
IP Address Auto-Assignment
IP Address
Subnet Mask
Gateway Address
On
DNS-IP Auto-Assignment
Primary DNS
Secondary DNS
Connection Speed Auto-Config
On
After performing steps 1 – 4 (D left)
5 Press [3, 4] to select “IP Address
Auto-Assignment” and press [2, 1] to select
“Off”.
6 Press [3, 4] to select “IP Address”, “Subnet
Mask” or “Gateway Address” and press [OK].
7 Enter numbers with the numbered buttons and
press [OK].
≥After checking the specifications for your broadband
router, enter each number.
If the number is unknown, then check the number of
other devices such as personal computers connected
via a LAN cable. Assign a different number from those
of other devices for the “IP Address” and the same
number for others.
≥If a wrong number is entered, then press [CANCEL].
8 Press [2, 1] to select “Yes” and press [OK].
Connection Speed Setting
≥The numeric input range is between 0 and 255.
OK
RETURN
NOTE
NOTE
≥Perform the “Connection Test” also when any
change was made to the “IP Address / DNS
Settings”.
≥If the connection test fails, it may be necessary to set the
MAC address of this unit at the router side. The MAC
address can be displayed by pressing [SETUP] and
selecting “Network Settings”.
Network Settings
IP Address / DNS Settings
Proxy Server Settings
Network Service
MAC Address: xx-xx-xx-xx-xx-xx
Setting the DNS-IP
In most cases, default settings can normally be used
without making any changes.
When setting an assigned DNS server from your Internet
service provider, perform the following settings.
After performing steps 1 – 4 (D left)
5 Press [3, 4] to select “DNS-IP
Auto-Assignment” and press [2, 1] to select
“Off”.
6 Press [3, 4] to select “Primary DNS” or
“Secondary DNS”and press [OK].
7 Enter numbers with the numbered buttons and
press [OK].
≥Follow the instructions given by your Internet service
provider and enter the numbers.
If the number is unknown, then check the number of
other devices such as personal computers connected
via a LAN cable and assign the same number.
≥If a wrong number is entered, then press [CANCEL].
Advanced operations
“Testing...”: The test is in progress.
“Pass”:
The connection is completed.
Press [RETURN] to exit.
“Fail”:
Please check the connection and settings.
Primary DNS
OK
RETURN
Please input Primary DNS and press
[OK]. Press [CANCEL] to delete the selected
character. To clear this setting, delete all
characters and press [OK].
192
0 - 9
.
1
.
.
Number
8 Press [2, 1] to select “Yes” and press [OK].
≥The numeric input range is between 0 and 255.
NOTE
RQT9464
31
SC-BTX70EGEB-RQT9464-B.book
32 ページ 2009年4月9日 木曜日 午後2時53分
Network settings
Setting the connection speed
Setting the proxy server
When the connection test results in “Fail” after the IP and
DNS-IP addresses are assigned, perform the following
settings.
In most cases, default settings can normally be used
without making any changes.
Please use this setting when instructed to by your
Internet service provider.
After performing steps 1 – 4 (> 31)
5 Press [3, 4] to select “Connection Speed
Auto-Config” and press [2, 1] to select “Off”.
6 Press [3, 4] to select “Connection Speed
Setting” and press [2, 1] to select a
connection speed.
After performing steps 1 – 4 (> left)
5 Press [3, 4] to select “Proxy Address” and
press [OK].
≥The text entry screen is displayed.
Text field: shows the text you have entered
≥Select a connection speed in accordance with the
environment of the network connected.
≥When the settings are changed, the network connection
may be disabled depending on the device.
Proxy Address
_
1
2
3
4
5
6
7
8
9
0
Delete
Testing of “Proxy Server Settings”
Finish
Always test the connection when new “Proxy Server
Settings” have been made.
7
c
f
i
l
o
r
8 9 0
+ - *
%
&
@
_
)
} ~
=
$
>
]
(
t u v {
U V
W X Y Z w x y z
. , ? ! “ ’ : ;
\
`
I
^
Space
RETURN
0 -- 9
6 Press [3, 4, 2, 1] to select a character and
press [OK].
Repeat this step to enter other characters.
≥Press [;PAUSE] to delete.
7 Press [∫STOP] when you complete the entry.
8 Press [3, 4] to select “Proxy Port Number”
and press [OK].
9 Enter numbers with the numbered buttons and
press [OK].
Proxy Port Number
Proxy Server Settings
Input HTTP Proxy server port number and
press [OK]. The character below can be
deleted with [CANCEL]. The number will be
set to "0" if all characters are deleted and
[OK] is pressed.
Initialize
Proxy Address
Connection Test
6
b
e
h
k
n
q
/
#
<
[
s
OK
1 While stopped
Press [BD/SD] to select “BD/DVD”.
2 Press [SETUP].
3 Press [3, 4] to select “Network Settings” and
press [OK].
4 Press [3, 4] to select “Proxy Server Settings”
and press [OK].
5 Press [3, 4] to select “Connection Test” and
press [OK].
Proxy Port Number
1 2 3 4 5
a
B C
d
E F
g
H I
j
K L
m
N O
Q R S p
A
D
G
J
M
P
T
0
----
0
0 - 9
OK
Number
: Press [2, 1] to select “Yes” and press [OK].
Advanced operations
RETURN
“Testing...”: The test is in progress.
“Pass”:
The connection is completed.
Press [RETURN] to exit.
“Fail”:
Please check the connection and settings.
TIPS
≥The specified ports may be blocked and not be
able to be used depending on the network
environment.
In order to restore the default settings
After performing steps 1 – 4 (D left)
1) Press [3, 4] to select “Initialize” and press [OK].
2) Press [2, 1] to select “Yes” and press [OK].
Using the numbered buttons to enter characters
e.g., entering the letter “F”
3 4
2 A B C
3 D E F
4 G H I
1
3def
1
2
3def 3def
1) Press [3] to move to the 3rd row.
2) Press [3] twice to highlight “F”.
3) Press [OK].
RQT9464
32
SC-BTX70EGEB-RQT9464-B.book
33 ページ 2009年4月9日 木曜日 午後2時53分
Changing settings with the on-screen menu
On-screen menu operations
1 Press [BD/SD] to select e.g., [BD-V]
Disc
“BD/DVD”.
Play
2 Press [DISPLAY].
3 Press [3, 4] to select
Sound
the menu and press [1].
4 Press [3, 4] to select
Menus
the item and press [1].
5 Press [3, 4] to select the setting.
Signal Type
Subtitle
Subtitle Style
Off
Main
Angle
-
Items
1ENG
-
≥Depending on the condition of
the unit (playing, stopped, etc.)
and media contents, there may
NOTE
be some items that you cannot
select or change.
Settings
TIPS
≥Some items can be changed
by pressing [OK].
To exit the on-screen menu
Press [DISPLAY].
What you can change with the on-screen menu
Menus
Disc
Items
Signal Type
Settings and details
[BD-V]
≥Primary Video
Video:
The video recording method appears. (D below, Video attribute)
Soundtrack: Select the type of audio or language. (D below, Language, Audio attribute)
≥Secondary Video
Video:
Select on/off of images.
The video recording method appears. (D below, Video attribute)
Soundtrack: Select on/off of audio and the language. (D below, Language, Audio attribute)
Video
[AVCHD]
The video recording method appears. (D below, Video attribute)
Soundtrack
[AVCHD] [DVD-V]
Select the type of audio or language. (D below, Language, Audio attribute)
[DVD-VR] [MPEG2]
The audio attributes appear. (D below, Audio attribute)
[DivX]
Select the soundtrack number.
≥Soundtrack numbers are displayed even when there is only one audio type.
Subtitle
[BD-V] [AVCHD] [DVD-V]
Turn the subtitle on/off and select the language. (D below, Language)
[DVD-VR] (Only discs that contain subtitle on/off information)
Turn the subtitle on/off.
Turn the subtitle on/off and select “Text” or the subtitle number.
≥Subtitle number is displayed even if there are not multiple subtitles.
Subtitle Style
[BD-V]
Select the subtitle style.
Audio channel
[DVD-VR] [DivX] [MPEG2]
(> 17, Changing audio during play)
Angle
[BD-V] [DVD-V]
Select the number of the angle.
Some items may be changed only on the disc specific menu. (D 16)
Advanced operations
[DivX]
Language
ENG:
FRA:
DEU:
ITA:
ESP:
NLD:
English
French
German
Italian
Spanish
Dutch
SVE:
NOR:
DAN:
POR:
RUS:
JPN:
Swedish
Norwegian
Danish
Portuguese
Russian
Japanese
CHI:
KOR:
MAL:
VIE:
THA:
POL:
Chinese
Korean
Malay
Vietnamese
Thai
Polish
CES:
SLK:
HUN:
FIN:
¢:
Czech
Slovak
Hungarian
Finnish
Others
Audio attribute
Video attribute
Signal type
LPCM/
Digital/
Digital+/
TrueHD/DTS/DTS 96/DTS-HD
HI RES/DTS-HD MSTR/MPEG
MPEG-2/MPEG-4 AVC/VC-1
Video recording method
480/576/720/1080
Video Format
24p/50i/60i/50p/60p
Video Frame rate
YCbCr4:2:2/YCbCr4:4:4/RGB
Colour Space
bps (bit per second)
Transfer rate of bit
ch (channel)
Number of channels
k (kHz)
Sampling frequency
b (bit)
Number of bits
bps (bit per second)
Transfer rate of bit
RQT9464
33
SC-BTX70EGEB-RQT9464-B.book
34 ページ 2009年4月9日 木曜日 午後2時53分
Changing settings with the on-screen menu
To select these settings, perform steps 1 – 5 (> 33)
Menus
Play
Items
Repeat Play
Settings and details
(Only when the elapsed time is being displayed on the unit’s display.)
Selects the item which you want to repeat. The items displayed differ depending on the type
of media.
≥All tracks
All tracks
≥Chapter
Chapter
≥Playlists
Playlist
≥Title
Title
≥One track
Track
≥Off
Select “Off” to cancel.
Random
[CD] [MP3]
While playing, press [3, 4] to select “On”.
Random playback starts from the next track.
≥On
≥Off
Playback
Information
Window
Mode
Progressive
Advanced operations
24p [DVD-V]
Sound
Sound Effects*1, 2
Dialog Enhancer*1
High Clarity
Sound
[BD-V] [DVD-V]
Displays audio/video attribute information of disc (
), settings status of “Digital Audio
Output” (> 36) ( ) and HDMI output information ( *&/+ ). (> 33 Audio attribute, Video
attribute)
–Depending on the disc, display method may be different.
–The audio attribute information will be displayed following the "Digital Audio Output”
settings. (> 36)
Press [RETURN] to exit.
[BD-V] [AVCHD] [DVD-VR] [DVD-V] [DivX] [MPEG2]
Select the picture quality mode during play.
≥Normal:
Default setting
≥Cinema:
Mellows movies, enhances detail in dark scenes.
≥Fine:
Details are sharper
≥Soft:
Soft picture with smoother video
Select the method of conversion for progressive output to suit the type of material being
played (> 53, Film and video).
≥Auto:
Automatically detects the film and video content, and appropriately converts
it.
≥Video:
Select when using “Auto” and the content is distorted.
≥Film:
Select this if the edges of the film content appear jagged
or rough when “Auto” is selected.
However, if the video content is distorted as shown in the
illustration to the right, then select “Auto”.
≥On
≥Off
Only when you have selected “On” in “24p Output” (> 37) and play discs recorded at a rate
of 60 fields per second.
≥Off
Re-master *3
This feature gives you a more natural sound by adding higher frequency signals not
recorded on the track.
≥Re-master 1: When playing LPCM sound (Type of music): High tempo (e.g., pop and
rock)
Other types of sound (Effect level): Light
≥Re-master 2: When playing LPCM sound (Type of music): Various tempos (e.g., jazz)
Other types of sound (Effect level): Medium
≥Re-master 3: When playing LPCM sound (Type of music): Low tempo (e.g., classical)
Other types of sound (Effect level): Strong
[BD-V] [AVCHD] [DVD-VR] [DVD-V] [DivX] [MPEG2] (3 channels or more only, including a centre
channel)
The volume of the audio included in the centre channel is raised to make the dialog easier
to hear.
≥On
≥Off
When the analogue video terminal is not being used, the electrical current that flows
through the analogue video circuit can be stopped. This prevents adverse effects on the
audio signals and produces clearer sound.
Use this when outputting image via the HDMI AV OUT terminal. Analogue image will not be
output via the VIDEO OUT terminal.
≥On
≥Off
Only when you have selected “Enable” in “High Clarity Sound” (> 36)
*1 When audio is output from the HDMI AV OUT terminal this function is effective only when “Dolby D/Dolby D +/Dolby TrueHD”
or “DTS/DTS-HD” is set to “PCM”. (> 36)
*2 Not every function can be set individually.
*3 This function has no effect when the type of audio is Dolby Pro Logic II.
RQT9464
34
SC-BTX70EGEB-RQT9464-B.book
35 ページ 2009年4月9日 木曜日 午後2時53分
Changing the unit’s settings
Change the unit’s settings if necessary. The settings remain intact even if you switch the unit to standby.
Setup menu operations
1 While stopped
Press [BD/SD] to select “BD/DVD”.
2 Press [SETUP].
3 Press [3, 4] to select the menu and
press [OK].
4 Press [3, 4] to select the item and
press [OK].
≥There may be differences in
operation methods. If this
happens, follow the on-screen
NOTE
instructions for the operation.
Setup
Disc
Sound
Display
To return to the previous screen
Press [RETURN].
TV / Device Connection
Network Settings
General
If there are any other items, repeat these steps.
5 Press [3, 4, 2, 1] to select the
option and press [OK].
TIPS
OK
RETURN
To exit the screen
Press [SETUP].
Summary of settings
Underlined items are the factory presets.
“Disc”
DVD-Video Ratings Follow the on-screen instructions. Enter a
Set a ratings level to 4-digit password with the numbered
limit DVD-Video play. buttons when the password screen is
shown. It will be the common password
for “DVD-Video Ratings”, “BD-Video
Ratings” and “Network Lock”.
≥Do not forget your password.
BD-Video Ratings
Set an age limit of
BD-Video play.
≥8 No Limit:
≥1 to 7:
Soundtrack
Preference
≥English
≥German ≥French
≥Italian
≥Spanish ≥Dutch
≥Russian
≥Original: The original language of each disc will be selected.
≥Other ¢¢¢¢
[BD-V] [DVD-V]
Subtitle
Preference
Menu Preference
≥Some discs start in a certain language
despite any changes you make here.
≥When the selected language is not
available on the disc, the default
language is played. There are discs
where you can only switch the language
from the menu screen. (D 16)
≥Enter a code (> 52) with the numbered
buttons when you select “Other ¢¢¢¢”.
≥No Limit:
All BD-Video can be played.
≥0 to 254 year(s):Prohibits play of BD-Video with
corresponding ratings recorded on them.
Changing settings (When 0 to 254 year(s) is selected)
≥Unlock Player ≥Change Password
≥Change Level ≥Temporary Unlock
≥Automatic:
If the language selected for “Soundtrack Preference” is not
available, subtitles of that language will automatically appear
if available on that disc.
≥English
≥German ≥French
≥Italian
≥Spanish ≥Dutch
≥Russian
≥Other ¢¢¢¢
≥English
≥German
≥Italian
≥Spanish
≥Other ¢¢¢¢
≥Permit:
BD-Live Internet Access [BD-V] (> 19)
You can restrict Internet access when BD-Live functions are used.
≥Limit:
≥Prohibit:
DivX Subtitle Text [DivX]
Select a suitable item according to the language used for DivX
subtitles text (> 20).
≥This item is displayed only when pressing [SETUP] after
playing back a file.
≥Latin 1
≥Latin 2
≥Cyrillic
≥French
≥Dutch
≥Russian
Internet access is permitted for all BD-Live
contents.
Internet access is permitted only for BD-Live
contents which have content owner certificates.
Internet access is prohibited for all BD-Live
contents without a certificate.
Internet access is prohibited for all BD-Live
contents.
English, German, Spanish, etc.
Polish, Czech, Hungarian, etc.
Russian, etc.
Advanced operations
Choose the language for audio, subtitle
and disc menus.
All DVD-Video can be played.
Prohibits play of DVD-Video with
corresponding ratings recorded on them.
≥0 Lock All:
Prohibits play of all DVD-Video.
Changing settings (When level 0 to 7 is selected)
≥Unlock Player ≥Change Password
≥Change Level ≥Temporary Unlock
“Picture”
Still Mode [BD-V] [AVCHD] [DVD-V]
Select the type of picture shown when you pause playback
(> 53, Frames and fields).
Seamless Play [DVD-VR]
Select the play mode between playlist chapter segments and
partially deleted titles.
NTSC Contents Output
Select PAL60 or NTSC output when playing NTSC discs.
≥Automatic
≥Field: Select if jittering occurs when “Automatic” is selected.
(The picture is coarser.)
≥Frame:Select if small text or fine patterns cannot be seen
clearly when “Automatic” is selected. (The picture is
clearer and finer.)
≥On:
The chapters in playlists are played seamlessly. This
does not work while searching or when there are several
audio types included on the playlist. Additionally, the
positioning of chapter segments may change slightly.
≥Off:
The points where chapters in playlists change are played
accurately, but the picture may freeze for a moment.
≥NTSC: NTSC discs are played as NTSC.
≥PAL60:Select if picture is not displayed correctly when
“NTSC” is selected.
RQT9464
35
SC-BTX70EGEB-RQT9464-B.book
36 ページ 2009年4月9日 木曜日 午後2時53分
Changing the unit’s settings
To select these settings, perform steps 1 – 5 (> 35)
“Sound”
Advanced operations
Dynamic Range Compression [BD-V] [AVCHD] [DVD-V] [DivX]
(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)
Change the dynamic range (> 52) for late night viewing.
Digital Audio Output
≥Press [OK] to show the following settings.
Dolby D/Dolby D +/
Select whether Dolby Digital, Dolby
Dolby TrueHD
Digital Plus, Dolby TrueHD, DTS
Digital Surround, DTS-HD High
DTS/DTS-HD
Resolution Audio or DTS-HD
Master Audio is output in
“Bitstream” or “PCM” format.
≥Not making the proper settings
may result in noise.
≥If the unit is connected with the
HDMI AV OUT terminal, the
specifications of the connected
equipment take preference over
this unit and audio selected in
these items may not be output
MPEG Audio
(e.g., when a television is
connected, the HDMI audio
output of this unit is limited to
down-mixed 2ch.)
BD-Video Secondary Audio [BD-V]
Turn on/off the clicking sound on the menu and audio with
secondary video in picture-in-picture mode. (> 19)
PCM Down Conversion
Select how to output audio with a sampling frequency of
96 kHz or more.
≥Signals are converted to 48 kHz despite the settings across
in the following cases:
– when the signals have a sampling frequency of over 192 kHz
– when the disc has copy protection
– when “BD-Video Secondary Audio” is set to “On”
Downmix
Switch the downmix system for playing back multi-channel
surround sound.
≥When “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD”
is set to “Bitstream”, there are no downmix effects for the
outputted audio.
≥The audio will be outputted in “Stereo” in the following cases.
– AVCHD playback
– Playback of clicking sound on the menu and audio with
secondary video in picture-in-picture mode
High Clarity Sound
When the analog video terminal is not being used, the
electrical current that flows through the analogue video circuit
can be stopped. This prevents adverse effects on the audio
signals and produces clearer sound.
≥This works only when “BD/DVD”, “SD” or “USB”is selected
as the source.
≥Set to “Enable” and then set “High Clarity Sound” on the
on-screen menu to “On”. (> 34)
≥Use this when outputting image via HDMI AV OUT terminal.
Analogue image will not be output via the VIDEO OUT terminal.
Speaker
≥On
≥Auto:
≥Off
Effective only when Dolby TrueHD is played.
≥Bitstream:
Select “Bitstream” when the connected equipment can decode the
respective audio format.
– Connect equipment supporting HDMI (High Bit rate Audio) and
use a High Speed HDMI Cable in order to output high bit rate
audio such as Dolby Digital Plus, Dolby TrueHD, DTS-HD High
Resolution Audio or DTS-HD Master Audio.
≥PCM:
Select “PCM” when the connected equipment cannot decode the
respective audio format.
Refer to the operating instructions for connected devices to verify
whether or not they can decode each of the audio formats.
≥Bitstream: When connected to equipment with a built-in MPEG
decoder.
≥PCM:
When connected to equipment without a built-in MPEG
decoder.
≥On:
The primary audio and secondary audio are mixed and
output. The sampling frequency is converted to 48 kHz.
The clicking sound on the menu and secondary audio
≥Off:
are not output.
≥On:
Signals are converted to 48 kHz. (Choose when the
connected equipment cannot process signals with
sampling frequency of 96 kHz.)
≥Off:
Signals are output as 96 kHz. (Choose when the
connected equipment can process signals with
sampling frequency of 96 kHz.)
When connected to equipment that does not support
the virtual surround function.
≥Surround encoded:
When connected to equipment that supports the
conversion from 2 channels to multi channel surround.
≥Stereo:
≥Enable
≥Disable
Refer to page 39
“Display”
RQT9464
36
On-Screen Messages
Choose whether to show status messages automatically.
On-Screen Language
Choose the language for these menus and on-screen messages.
Screen Saver Function
This is to prevent burn-in on the screen.
≥When this is set to “On”, the masked-off area on the screen
becomes grey.
[Only when connecting with an HDMI cable and “HDMI Video
Format” (> 37) is set to any other mode than “576p/480p”]
≥Automatic
FL Display
Changes the brightness of the unit’s display.
≥Bright
≥Dim:
The display is dimmed.
≥Automatic: The display is dimmed, but brightens when you perform
some operations.
Information about the software used by this unit is displayed.
Software Licence
≥Off
≥English
≥Français ≥Español
≥Deutsch
≥Italiano
≥Nederlands ≥РУССКИЙ
≥On:
If there is no operation for 5 minutes or more, the displayed screen
switches to the other states automatically.
– When the Direct Navigator or START menu is displayed, the
display returns to the screen saver mode.
– When CD or MP3 is played, the display returns to the screen saver
mode. (Playback continues.)
– When still pictures are shown (except for slideshow), the display
returns to the Direct Navigator screen.
≥Off
SC-BTX70EGEB-RQT9464-B.book
37 ページ 2009年4月9日 木曜日 午後2時53分
“TV/Device Connection”
When connected to a 16:9 widescreen television:
Video recorded for 4:3 aspect screen is displayed as a
≥16:9:
4:3 ratio image in the centre of the screen.
When connected to a 4:3 aspect television:
≥4:3:
Video recorded for a widescreen is played as Pan &
Scan (unless prohibited by the producer of the disc).
When playing BD-Video, video is output as “4:3
Letterbox”.
≥4:3 Letterbox: Video recorded for a widescreen is played in the
letterbox style.
≥Auto ≥0ms ≥20ms≥40ms≥60ms≥80ms≥100ms ≥120ms ≥140ms
Time Delay*1
When connected with a Plasma display, adjust if you When using VIERA Link “HDAVI Control” with “HDAVI Control 3” (or later)
notice the audio is out of sync with the video.
compatible TV (> 26), select “Auto”. Audio and video will automatically
be set in sync.
–This works only when “BD/DVD”, “SD”, “USB”, “AUX”, “D-IN 1” (DIGITAL
IN 1) or “D-IN 2” (DIGITAL IN 2) is selected as the source. (> 27)
HDMI Connection
≥Press [OK] to show the following settings.
≥Automatic:
Automatically selects the output resolution best suited
HDMI Video Format*2
to the connected television (1080p, 1080i, 720p or
The items supported by the connected devices are
576p/480p).
indicated on the screen as “¢”. When any item
≥576p/480p
≥720p
without “¢” is selected, the images may be
≥1080i
≥1080p
distorted.
–When outputting 1080p signal, we recommend using High Speed HDMI
Cables that have the HDMI logo (as shown on the cover) and are less
than 5.0 meters to prevent video distortion etc.
–To enjoy high definition video up-converted to 1080p, you need to
connect the unit directly to 1080p compatible HDTV (High Definition
Television). If this unit is connected to an HDTV through other
equipment, it must also be 1080p compatible.
24p Output [BD-V] [DVD-V]
≥On:
Images in 24p are output in 24p as they are.
However,
When this unit is connected to a TV supporting
–when video is being output at 24 frames, images from
1080/24p output via an HDMI cable, this unit
any other terminal than the HDMI AV OUT terminal may
displays each frame at 1/24 second intervals – the
not be output properly.
same interval originally shot with the film camera.
– [BD-V]: when images other than 24p are played,
≥When playing DVD-Video, set to “On” and then
images are output at 60p.
set “24p” in “Picture” (> 34) to “On”.
≥Off
≥Standard:
HDMI Output Range
The video is output as it is.
≥Enhanced:
When the black and white contrast of a video is low, the
Effective when connected to a device that only
signal is enhanced to reproduce clear video.
supports RGB output.
≥On:
To output audio through the TV’s speakers or other
HDMI Audio Output
devices.
This setting selects whether or not to output audio
≥Off:
To output audio through system speakers. (The audio is
from HDMI.
output using the settings of the main unit.)
≥On:
VIERA Link
≥Off:
Select when you do not want to use “HDAVI Control”.
Set to use “HDAVI Control” function when
connected with an HDMI cable to a device that
supports “HDAVI Control”.
≥Video/Audio:
When the TV is turned off, this unit will turn off
Power Off Link
automatically.
Select the desired power off link setting of this unit
≥Video:
When the TV is turned off, this unit will turn off except
for VIERA Link operation (> 27). (This works
during the following conditions:
depending on the settings of the connected VIERA
–audio playback ([CD] [MP3])
Link “HDAVI Control” compatible equipment.)
–iPod mode
–radio mode
–“AUX” or “D-IN1” (DIGITAL IN 1) mode (non-selected
TV audio setting for VIERA Link)
–“D-IN2” (DIGITAL IN 2) mode (non-selected TV audio
setting for CABLE/SAT)
≥NTSC:
Select when connecting to a NTSC television.
TV System
Select when connecting to a PAL or multi-system
Change the setting to match the equipment you are ≥PAL:
television.
connecting with.
≥If picture output is not smooth, change the setting.
≥When NTSC contents are played, they are
outputted in the signal format specified in the
“NTSC Contents Output”, irrespective of the
settings here.
*1 This function has no effect when S.SURROUND is selected during AUX (TV) playback.
*2 In this unit, a P4HD (> 53) video processor is used to provide video of optimal resolution to the connected TV.
Advanced operations
TV Aspect
Set to match the type of television connected.
RQT9464
37
SC-BTX70EGEB-RQT9464-B.book
38 ページ 2009年4月9日 木曜日 午後2時53分
Changing the unit’s settings
To select these settings, perform steps 1 – 5(> 35)
Advanced operations
“Network Settings”
IP Address / DNS Settings (> 31)
≥Press [OK] to show the following settings.
Connection Test
IP Address Auto-Assignment
IP Address
Subnet Mask
Gateway Address
DNS-IP Auto-Assignment
Primary DNS
Secondary DNS
Connection Speed Auto-Config
Connection Speed Setting
This is enabled only when “Connection Speed Auto-Config”
is turned “Off”.
Proxy Server Settings (> 32)
≥Press [OK] to show the following settings.
Initialize
Proxy Address
Proxy Port Number
Connection Test
Network Service (> 30) (VIERA CAST)
≥Press [OK] to show the following settings.
Network Lock
You can restrict using VIERA CAST.
Follow the on-screen instructions. Enter a 4-digit password
with the numbered buttons when the password screen is
shown. It will be the common password for “DVD-Video
Ratings”, “BD-Video Ratings” and “Network Lock”.
≥Do not forget your password.
Audio Auto Gain Control
Volume that is different depending on the contents is
adjusted automatically to the standard volume while using
the VIERA CAST.
≥Depending on contents, this function effect will not work.
≥Select “Off” when the audio is warped.
≥This function has no effect when the audio source is 2 ch
and DOLBY VIRTUAL SPEAKER is activated. (> 15)
– When the optional wireless system and speaker set is
connected, this function has no effect when DOLBY PL II
is activated. (> 15)
Reduced Screen Display
The screen is displayed reduced so the displayed screen of
the VIERA CAST does not get truncated.
Time Zone
By selecting the time zone, it is possible to set the unit’s
time to match your location.
≥Some VIERA CAST contents require the time zone to be
set. Set the time zone if necessary.
Summer Time
Select “On” when using Daylight Saving time.
MAC Address (> 31)
Displays the “MAC Address” of this unit.
————
≥Off
≥On
— — —. — — —. — — —. — — —
— — —. — — —. — — —. — — —
— — —. — — —. — — —. — — —
≥Off
≥On
— — —. — — —. — — —. — — —
— — —. — — —. — — —. — — —
≥Off
≥On
≥10BASE Full Duplex
≥10BASE Half Duplex
≥100BASE Half Duplex
≥100BASE Full Duplex
≥Yes
≥No
(The initial setting is blank.)
(The initial setting is “0”.)
————
≥On
≥Off
Changing settings (When “On” is selected)
≥Change Password
≥On
≥Off
≥On
≥Off
≥GMT s12 to r12
(The initial setting is “r1”.)
GMT 0 l WET (Western European Time)
GMT r1l CET (Central European Time)
GMT r2l EET (Eastern European Time)
≥On
≥Off
“General”
RQT9464
38
Remote Control (> 49)
≥Set Code 1
≥Set Code 2
EASY SETUP (> 12)
≥Yes
≥No
You can execute some essential settings for the unit.
Default Settings
≥Yes
≥No
This returns all values in the Setup menu and the on-screen
menu, except for “Remote Control”, “On-Screen Language”,
“IP Address / DNS Settings”, “Proxy Server Settings”,
“Network Service”, “DVD-Video Ratings” and “BD-Video
Ratings” to the default settings.
DivX Registration [DivX] (> 20)
You need this registration code to purchase and play DivX Video-on-Demand (VOD) content.
Firmware Update (> 30)
≥Press [OK] to show the following settings.
≥Off
Automatic Update Check
≥On
When this equipment remains connected to the Internet, it
will check for the latest firmware version when it is turned
on and you can update it if necessary.
Update Now
≥Yes
≥No
You can update the firmware manually.
SC-BTX70EGEB-RQT9464-B.book
39 ページ 2009年4月9日 木曜日 午後2時53分
Speaker settings
(When the optional surround, surround back speakers are connected.)
The surround and surround back speakers will only be displayed when the speakers are connected with the optional Panasonic
wireless system SH-FX70 and the main unit’s settings have been reconfigured in the EASY SETUP. (> 12)
Adjusting the sound lag between speakers
ms
Delay time ( 0.0 )
For optimum listening with 4.1/6.1-channel sound, all the
speakers, except for the subwoofer, should be the same
distance from the seating position.
If you have to place the surround, surround back speakers
closer to the seating position, adjust the delay time to make up
for the difference.
If the distance B is less than A (D below), find the difference
in the relevant table and change to the recommended setting.
1 Press [3, 4, 2, 1] to select the distance box (
[OK].
ms
0.0
B Surround / Surround back speakers
Difference
Setting
Approx. 170 cm
5.0 ms
Approx. 340 cm
10.0 ms
Approx. 510 cm
15.0 ms
) and press
L
R
2 Press [3, 4] to select the setting and press [OK].
L
dB
0
Complete
e.g., 4.1ch speaker connection
Approximate room dimensions
: Actual speaker position
Test
LS
SW
dB
0
ms
0.0
dB
0
RS
dB
0
ms
0.0
dB
0
RB
R
: Ideal speaker position
A
LB
SW
[LS (L)] Surround [RS (R)]
B
LS
A B : Primary listening distance
RS
LS
[LB (L)] Surround back [RB (R)]
RS
Circle of constant primary listening distance
e.g., 6.1ch speaker connection
Approximate room dimensions
: Actual speaker position
L
R
SW
: Ideal speaker position
A
RS RS
B
B
LB
LB
RB
A B : Primary listening distance
Advanced operations
LS LS
RB
Circle of constant primary listening distance
Adjusting speaker level
dB
Volume (Channel balance) ( 0 )
(Effective when playing multi-channel audio)
1 Select “Test” and press [OK].
A test signal is output.
Front (L) —————)Front (R) —————) Surround (RS)
:
;
Surround (LS)(— Surround back (LB) (— Surround back (RB)
2 While listening to the test signal, press [3, 4] to adjust the
volume of each speaker.
The volume can be adjusted between r6 dB to s6 dB.
≥Set each speaker level according to the volume of the
Front (L) and Front (R) speaker volume respectively.
3 Press [OK].
The test signal stops.
≥No signal is output for the subwoofer. To adjust its volume,
see page 18, Adjusting speaker level during play.
L
Test
Surround
[LS (L)]
R
dB
0
Complete
Test
LS
LB
[LB (L)] Surround back
dB
0
ms
0.0
dB
0
dB
0
ms
0.0
dB
0
SW
RS
Surround
[RS (R)]
RB
Surround back [RB (R)]
To finish the speaker setting
Press [3, 4, 2, 1] to select “Complete” and press [OK].
≥The test signal is only output from the speakers that were acknowledged during the EASY SETUP.
NOTE
RQT9464
39
SC-BTX70EGEB-RQT9464-B.book
40 ページ 2009年4月9日 木曜日 午後2時53分
Wireless connections (optional)
By connecting 1 or 2 units of the optional Panasonic wireless system SH-FX70 with 2 or 4 optional Panasonic speakers
SB-HSX70, it is possible to change this unit into a 4.1 ch or 6.1 ch home theatre system.
This system's surround sound effect settings will change (> 15) and it is possible to listen to the true, original surround audio
signals of the playback contents. (However, the centre channel included in the audio source will be output from the front L R
speakers.)
Connecting the surround, surround back speakers (SB-HSX70) and the optional
wireless system (SH-FX70)
∫ Wireless setup diagram
e.g., 4.1ch
e.g., 6.1ch
Main unit
(with the digital
transmitter)
Main unit
(with the digital
transmitter)
Preparation
Preparation
SH-FX70: 2 units
SH-FX70: 1 unit
Seating position
Seating position
LS
SB-HSX70: 1 set
RS
LB
LS
RB
SB-HSX70: 2 sets
RS
Surround speaker cables
Surround speaker cables
LS: Surround (left), RS: Surround (right)
≥Place behind the seating position, about 1 m higher than ear
level.
NOTE
LS: Surround (left), RS: Surround (right)
≥Place on the side of the seating position.
LB: Surround back (left), RB: Surround back (right)
≥Place behind the seating position, about 1 m higher than ear
level.
≥Turn off all equipment before connection and read the appropriate operating instructions.
≥Connect the AC mains lead after all other connections are complete.
≥Do not use the wireless system and digital transmitter in a metal cabinet or bookshelf.
≥Place the wireless system within approximately 15 m from the home theatre unit.
Connections
∫ Digital transmitter
Do not insert or remove while the home theatre unit is on.
SH-TR70 digital transmitter
1 Push $ to open the digital transmitter door.
2 Insert fully until you hear a click.
Push!
Optional speaker
settings
∫ Wireless system
Connecting the speakers to the wireless system
Connect to terminals of the same colour.
SPEAKERS
ENCEINTES
LS / RB LB / RS
AC IN
SURR
I/D SET
SURROUND (3 – 6 )
L
R
SIDE SIDE AMBIOPHONIQUES
For 4.1ch connection
SURROUND (LS): Blue
Speaker cable SURROUND (RS): Grey
SURR
L
R
SIDE SIDE
Surround
selector
Insert fully.
Impedance: 3 ≠ to 6 ≠
Speaker input power: 100 W SURROUND (RS): Grey
SURROUND BACK (RB): Blue
(Min)
∫ AC mains lead
AC mains lead
RQT9464
40
For 6.1ch connection
SURROUND (LS): Blue
SURROUND BACK (LB): Grey
To household mains socket
Selector setting for
the left and right
speakers
Selector setting for
the left speakers
Selector setting for
the right speakers
SURR
L
SIDE
R
SIDE
SC-BTX70EGEB-RQT9464-B.book
41 ページ 2009年4月9日 木曜日 午後2時53分
Making the wireless link
1
Turn on the wireless system.
3 Turn on the additional wireless system.
Unit on/off button [C I, B Í]
Use this button to turn the unit on and off.
C I: The unit is on.
4 While pressing [5/9] on the main unit, press the
B Í: The unit is off.
numbered button [3] on the remote control until “P”
lights in the main unit’s display.
5 While “P” is displayed,
WIRELESS LINK
WIRELESS LINK indicator
Red:
The unit is on and the wireless link is
deactivated.
Green: The unit is on and the wireless link is
activated.
2
press [I/D SET] on the rear
of the additional wireless
system.
≥The indicator on the
additional system turns
green.
≥If “P” goes off before you
press [I/D SET], repeat step
4 and then continue the
procedure.

Use a pointed object.
Turn on the main unit.
The wireless link indicator on the main unit will be turned on.
6 While pressing [5/9] on the main unit, press the
e.g.
7 Turn off and on the additional wireless system.
SLP STCT
DDTS
PL
SRDE. PRG
PGM RND RDS
EQ W1W2 WS
≥If the indicator is flashing, refer to the
“Optional wireless system (SH-FX70)”
in the Troubleshooting guide. (> 49)
≥Make sure the indicator on the additional wireless system
lights up green.
8 Start the EASY SETUP to configure the speaker
settings. (> 12)
≥After changing the speaker settings start play on the main
unit.
For 4.1 ch settings, go to step 8.
NOTE
numbered button [3] on the remote control.
≥The main unit will not regcognise the additionally added speakers unless the speaker settings have been re-configured in
the EASY SETUP. (> 12)
– Be sure to re-configure the system each time speakers are added or removed.
≥If you should change the digital transmitter, repeat the pairing steps of the wireless system.
– If 2 wireless system units are used, repeat the pairing steps for each unit, 1 at a time.
≥You cannot use the wireless system with SH-FX65T or SH-FX67T digital transmitter.
Speaker installation option
Attaching to a wall
You can attach all of the speakers (except subwoofer) to a wall.
≥The wall or pillar on which the speakers are to be attached should be capable of supporting 10 kg per screw. Consult a qualified
building contractor when attaching the speakers to a wall. Improper attachment may result in damage to the wall and speakers.
1 Drive a screw (not included) into the wall.
e.g., Front speakers
At least 30 mm
Wall or pillar
7.5 mm to 9.4 mm
In this position,
the speaker will
likely fall if
moved to the
left or right.
3 mm to 5 mm
2 Fit the speaker securely onto the screw(s) with the hole(s).
DO
Move the
speaker so that
the screw is in
this position.
Preventing the speakers from falling
≥You will need to obtain the appropriate screw eyes to match the walls or pillars to which they are going to be fastened.
≥Consult a qualified housing contractor concerning the appropriate procedure when attaching to a concrete wall or a surface that may
not have strong enough support. Improper attachment may result in damage to the wall or speakers.
e.g.
Optional speaker
settings
4.0 mm
DO
NOT
String (not included)
Thread from the wall to the speaker and tie tightly.
Screw eye
(not included)
Rear of the speaker
Wall
Approx.
150 mm
RQT9464
41
SC-BTX70EGEB-RQT9464-B.book
42 ページ 2009年4月9日 木曜日 午後2時53分
Media (Disc, card and USB device)
information
Packaged discs
This chart shows the different type of retail/commercial discs you can use, and also includes the industry-standard logos that
should appear on the discs and/or packaging.
Type of
media/Logo
Features
BD-Video
High Definition (HD)
movie and music discs
≥Discs supporting
BD-Live (BD-ROM
Profile 2) that allows
interactive functions
to be used when this
unit is connected to
the Internet in
addition to the
BONUSVIEW
function.
Indicated
as
Type of
media/Logo
[BD-V]
DVD-Video
CD
≥Discs supporting
BONUSVIEW
(BD-ROM Profile 1
version 1.1/Final
Standard Profile) that
allows
Picture-in-Picture
functions to be used.
Features
High quality movie
and music discs
Compact Discs (CD’s)
that contain audio and
music
≥Operation and sound
quality of CDs that
do not conform to
CD-DA
specifications (copy
control CDs, etc.)
cannot be
guaranteed.
Indicated
as
[DVD-V]
[CD]
Recorded discs
This chart shows the different type of discs recorded with other devices that you can use.
Finalized This mark means you must finalize the disc with the DVD recorder, etc. before playback. For details about finalizing,
refer to the operating instructions for your equipment.
Type of
media/Logo
BD-RE
BD-R
DVD-RAM
DVD-R/RW
Reference
Finalized
RQT9464
42
Formats
≥Version 3 of the
BD-RE Recording
Format
≥JPEG format
≥Version 2 of the
BD-R Recording
Format
Indicated
as
Type of
media/Logo
[BD-V]
DVD-R DL
Finalized
[JPEG]
[BD-V]
≥Version 1.1 of the
DVD Video
Recording Format
≥JPEG format
≥AVCHD format
[DVD-VR]
≥DVD-Video Format
≥Version 1.1 of the
DVD Video
Recording Format
≥MP3 format
(DVD-RW is not
supported)
≥JPEG format
(DVD-RW is not
supported)
≥AVCHD format
≥DivX format
(DVD-RW is not
supported)
[DVD-V]
[DVD-VR]
rR/rRW/
rR DL
Finalized
[JPEG]
[AVCHD]
[MP3]
[JPEG]
[AVCHD]
[DivX]
CD-R/RW
Formats
Indicated
as
≥DVD-Video Format
≥Version 1.2 of the
DVD Video
Recording Format
≥MP3 format
≥JPEG format
≥AVCHD format
≥DivX format
[DVD-V]
[DVD-VR]
≥+VR (+R/+RW Video
Recording) Format
≥AVCHD format
[DVD-V]
[MP3]
[JPEG]
[AVCHD]
[DivX]
[AVCHD]
[CD]
≥CD-DA format
[MP3]
≥MP3 format
Finalized
≥JPEG format
[JPEG]
[DivX]
≥DivX format
≥It may not be possible to play the above discs in some
cases due to the type of discs, the condition of the
recording, the recording method and how the files were
created.
≥When a disc recorded in the AVCHD format is being
played, the video may be paused for a few seconds at
portions spliced, due to deletion or editing.
SC-BTX70EGEB-RQT9464-B.book
43 ページ 2009年4月9日 木曜日 午後2時53分
■ About playback compatibility for BD-R and BD-RE with high definition recordings of high definition broadcasts
With SC-BTX70 purchased in the below countries, it is possible to playback discs with recordings of the high definition broadcasts
listed to the right which were recorded with Panasonic Blu-ray Disc Recorder.
As high definition broadcasts are a new technology, areas confirmed as of March 2009 are as below.
Country
Digital Broadcast
France
TNT HD (Compatible model SC-BTX70EG)
United Kingdom
freesat (Compatible model SC-BTX70EB)
≥This unit is not compatible with HE-AAC (High-Efficiency Advanced Audio Coding).
Digital Broadcast programmes with HE-ACC audio that are recorded onto a BD-R or BD-RE in DR mode on a Panasonic
Blu-ray Disc Recorder cannot be played on this unit.
To playback titles recorded on a Panasonic Blu-ray Disc Recorder, be sure to change the recording mode.
SD cards
This chart shows the different type of cards recorded with other devices that you can use.
Type of media
Formats
Indicated
as
SD Memory Card*
[JPEG]
≥JPEG format
[AVCHD]
≥AVCHD
format
SDHC Memory Card
[MPEG2]
≥MPEG2
(from 4 GB to 32 GB)
format
* Including miniSD Card and microSD Card
In these operating instructions, the cards shown in the table
(D above) are comprehensively called SD cards.
(from 8 MB to 2 GB)
≥A miniSD Card and a microSD Card must be used
with the attached adaptor that comes with the card.
≥When using from 4 GB to 32 GB SD cards, only SD
cards that display the SDHC logo can be used.
≥This unit is compatible with SD Memory Cards that
meet SD Card Specifications FAT12 and FAT16
formats, as well as SDHC Memory Cards in FAT32
format.
≥Useable memory is slightly less than the card capacity.
≥If the SD card is formatted on a PC, you may not be able to
use it on this unit.
≥We recommend using a Panasonic SD card.
Please confirm the latest information on the following
website.
http://panasonic.co.jp/pavc/global/cs
(This site is in English only.)
≥Keep the Memory Card out of reach of children to prevent
swallowing.
≥When a card recorded in the AVCHD format is being played,
the video may be paused for a few seconds at portions
spliced, due to deletion or edition.
≥Switch the write-protect switch to the “LOCK” position to
protect the content from accidental erasure.
ADAPTER
USB device
This unit can playback pictures by connecting the USB memory recorded with a PC or similar in following formats, and Panasonic
digital cameras connected via USB cable.
≥MTP (Media Transport Protocol) device is not supported.
Indicated
Type of media
Formats
≥A multi-port USB card reader is not supported.
as
File system
[MP3]
≥MP3 format
USB device
≥FAT12, FAT16 and FAT32 file systems are supported.
[JPEG]
≥JPEG format
≥UDF/NTFS/exFAT file system is not supported.
[DivX]
≥DivX format
≥Depending on the sector size, some files may not work.
≥Only the first partition on USB devices with multi-partition is
Compatible USB devices
supported.
≥USB devices which are defined as USB mass storage class.
Despite meeting the conditions mentioned above, there may
–USB devices that support USB 1.0/1.1 and USB 2.0 Full
be USB device that cannot be used with this unit.
Speed/High Speed.
This unit does not support USB device charging.
≥USB devices of up to 128 GB can be used.
≥USB devices that support bulk only transfer.
CBI (Control/Bulk/Interrupt) is not supported.
≥Digital Cameras which require additional programme
installation when connected to a PC are not supported.
Many BD-Video movie contents are recorded in 24 frames/second in accordance with the film materials. However, they will
normally be output in 60 frames/second in accordance with the display format.
These can be output in 24p as the original. Therefore, high-quality video can be enjoyed with improved clarity, enhanced
perspective, etc.
NECESSARY CONNECTIONS
≥Connect to a TV supporting 1080/24p input via an HDMI cable.
NECESSARY SETTINGS
≥“24p Output”: “On” (> 37)
Discs that cannot be played
≥BD-RE with the cartridge
≥2.6 GB and 5.2 GB DVD-RAM
≥3.95 GB and 4.7 GB DVD-R for Authoring
≥DVD-RAM that cannot be removed from their cartridges
≥Version 1.0 of DVD-RW
≥DVD-ROM, CD-ROM, CDV, SACD, Photo CD, MV-Disc and PD
≥DVD-Audio
≥Video CD and SVCD
≥WMA discs
≥HD DVD
≥Other discs that are not specifically supported
Reference
Regarding 24p output [BD-V]
RQT9464
43
SC-BTX70EGEB-RQT9464-B.book
44 ページ 2009年4月9日 木曜日 午後2時53分
About MP3/JPEG/DivX files
File format
MP3
JPEG
Playable media
CD-R* , CD-RW* , DVD-R* , DVD-R DL* , USB
device
Extension
Files must have the extension “.mp3” or “.MP3”. Files must have the extension “.jpg” or “.JPG”.
1
1
Picture resolution
1
1
CD-R*1, CD-RW*1, DVD-RAM*2, DVD-R*1,
DVD-R DL*1, BD-RE*3, SD card, USB device
Between 34k34 and 8192k8192 pixels
(sub sampling is 4:2:2 or 4:2:0)
—
Compression rate 32 kbps to 320 kbps
—
Sampling rate
44.1 kHz/48 kHz
Reference
ID3 tags: version 1, 2.2, 2.3, 2.4
ID3 is a tag embedded in MP3 track to provide
information about the track.
This unit supports the versions listed above but
only titles and the names of artists can be
displayed.
≥If there is a large amount of still picture data
etc. within a MP3 file, play may not be
possible.
JPEG conforming DCF* is supported.
Thawing Time: approx. 2 sec. (7M pixels)
≥MOTION JPEG and Progressive JPEG is not
supported.
File format
DivX
Subtitles text file of DivX
Playable media
CD-R* , CD-RW* , DVD-R* , DVD-R DL* , USB
device
File format
Extension
1
—
1
1
1
—
Files must have the extension “.DIVX”, “.divx”,
“.AVI” or “.avi”.
Picture resolution Between 32k32 and 720k576 pixels
Reference
Reference
RQT9464
44
≥Certified to the DivX Home Theater Profile.
Video
–Number of stream: Up to 1
–Codec: DIV3, DIV4, DIVX, DV50, DIV6
–FPS (Frame Per Second): Up to 30 fps
Audio
–Number of stream: Up to 8
–Format: MP3, MPEG, Dolby Digital
–Multi channel: Dolby Digital is possible.
MPEG multi is 2 ch conversion.
≥GMC (Global Motion Compensation) is not
supported.
4
CD-R*1, CD-RW*1, DVD-R*1, DVD-R DL*1, USB device
MicroDVD, SubRip, or TMPlayer
Files must have the extension “.SRT”, “.srt”, “.SUB”,
“.sub”, “.TXT”, or “.txt”
—
≥The DivX video file and subtitles text file are inside the
same folder, and the file names are the same except
for the file extensions.
≥If there are more than one subtitles text files inside the
same folder, they are displayed in the following order of
priority: “.srt”, “.sub”, “.txt”.
≥In the following situations, the subtitles cannot be
displayed as recorded. Furthermore, depending on
the methods used to create the file or the state of the
recording, only parts of the subtitles may be
displayed, or the subtitles may not be displayed at all.
– When special text or characters are included in the
subtitles text.
– When the file size is larger than 256 KB.
– When characters with specified styling are included in
the subtitle data.
–Codes that specify the character style within files are
displayed as subtitle characters.
–When data with a different format exists within the
subtitle data.
≥If the file name of the DivX video file is not displayed
correctly on the menu screen (the file name is
displayed as “_”), the subtitles text may not be
displayed correctly.
≥Depending on the disc, the subtitles text cannot be
displayed when search and other such operations are
being performed.
≥English alphabet and Arabic numerals are displayed correctly. Other characters may not be displayed correctly.
≥The display order on this unit may differ from how the order is displayed on a computer.
≥Depending on how you create the media (writing software), files and folders may not play in the order you numbered them.
≥Depending on how you create the structure of folders (writing software), files and folders may not play. (> 45)
≥This unit is not compatible with packet-write format.
≥Depending on the recording conditions, the media may not play.
≥Operation may take time to complete when there are many files and/or folders and some files may not display or be playable.
*1 ISO9660 level 1 or 2 (except for extended formats), Joliet
This unit is compatible with multi-session.
This unit is not compatible with packet writing.
*2 Discs must conform to UDF 2.0.
*3 Discs must conform to UDF 2.5.
*4 Design rule for Camera File system: unified standard established by Japan Electronics and Information Technology Industries
Association (JEITA).
SC-BTX70EGEB-RQT9464-B.book
45 ページ 2009年4月9日 木曜日 午後2時53分
∫ Structure of folders that can play back on this unit
You can play files on this unit by structure of folders as
shown below. However depending on the method of
writing data (writing software), play may not be in the
order you numbered the folders.
: Folder which can be displayed with this unit
¢¢¢: Numbers
XXX: Letters
*1 ¢¢¢: from 001 to 999
*2 ¢¢¢: from 100 to 999
XXX: up to 5 figures
*3 ¢¢¢¢: from 0001 to 9999
Structures of still picture (JPEG) folders
in DVD-R/DVD-R DL/CD-R/CD-RW
Files inside a folder are displayed in the order they were
updated or taken.
e.g.,
Root
Folder A
Folder B
Folder C
Structure of MP3 folders in DVD-R/DVD-R DL/CD-R/
CD-RW/USB device
Prefix the file names with 3-digit numbers in the order you
want to play them.
e.g.,
Root
in BD-RE/DVD-RAM
≥Folder structure is not displayed.
e.g.,
Root
001XXXX.mp3
002XXXX.mp3
001
JPEG
Folder A
DCIM
003XXXX.mp3
004XXXX.mp3
005XXXX.mp3
*1
XXXXX *2
XXXX.JPG *3
Folder B
006XXXX.mp3
007XXXX.mp3
008XXXX.mp3
009XXXX.mp3
DCIM
Folder C
XXXXX *2
XXXX.JPG *3
010XXXX.mp3
011XXXX.mp3
012XXXX.mp3
Structure of DivX folders in DVD-R/DVD-R DL/CD-R/
CD-RW/USB device
Files inside a folder are displayed in the order they were
updated or taken.
e.g.,
Root
P0000001.divx
P0000002.divx
Folder A
P0000003.divx
P0000004.divx
P0000005.divx
in SD card/USB device
Displays JPEG files in all folders.
≥Folder structure is not displayed.
e.g.,
Root
DCIM
XXXXX *2
XXXX.JPG*3
Folder B
P0000006.divx
P0000007.divx
P0000008.divx
P0000009.divx
Folder C
P0000010.divx
P0000011.divx
P0000012.divx
Folder A
Licenses
Portions of this product are protected under copyright law and
are provided under license by ARIS/SOLANA/4C.
This product is licensed under the AVC patent portfolio license
and VC-1 patent portfolio license for the personal and
non-commercial use of a consumer to (i) encode video in
compliance with the AVC Standard and VC-1 Standard (“AVC/
VC-1 Video”) and/or (ii) decode AVC/VC-1 Video that was
encoded by a consumer engaged in a personal and
non-commercial activity and/or was obtained from a video
provider licensed to provide AVC/VC-1 Video. No license is
granted or shall be implied for any other use. Additional
information may be obtained from MPEG LA, LLC.
See http://www.mpegla.com.
x.v.ColourTM is a trademark.
VIERA CASTTM is a trademark of Panasonic Corporation.
Plays DivX® video
DivX® is a registered trademark of DivX,
Inc., and is used under license.
“Blu-ray Disc” is trademark.
“BD-LIVE” logo is trademark of Blu-ray Disc Association.
“BONUSVIEW” is trademark of Blu-ray Disc Association.
YouTube and Picasa are trademarks of Google, Inc.
iPod is a trademark of Apple Inc., registered in the U.S. and
other countries.
Reference
Java and all Java-based trademarks and logos are trademarks
or registered trademarks of Sun Microsystems, Inc. in the United
States and other countries.
Manufactured under license from Dolby Laboratories. Dolby, Pro
Logic, and the double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535;
7,392,195; 7,272,567; 7,333,929; 7,212,872 & other U.S. and
worldwide patents issued & pending.
DTS is a registered trademark and the DTS logos, Symbol,
DTS-HD and DTS-HD Master Audio | Essential are trademarks
of DTS, Inc.
© 1996-2008 DTS, Inc. All Rights Reserved.
This product incorporates copyright protection technology that is
protected by U.S. patents and other intellectual property rights.
Use of this copyright protection technology must be authorized
by Macrovision, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision.
Reverse engineering or disassembly is prohibited.
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC.
HDAVI Control™ is a trademark of Panasonic Corporation.
“AVCHD” and the “AVCHD” logo are trademarks of Panasonic
Corporation and Sony Corporation.
SDHC Logo is a trademark.
RQT9464
45
SC-BTX70EGEB-RQT9464-B.book
46 ページ 2009年4月9日 木曜日 午後2時53分
Troubleshooting guide
Before requesting service, make the following checks. If you are in doubt about some of the check points, or if the solutions
indicated in the chart do not solve the problem, consult your dealer for instructions.
The following do not indicate a problem with this unit:
≥Regular disc rotating sounds.
≥Image disturbance during search.
To reset this unit
Page
To restore the unit if it
freezes due to one of the
safety devices being
activated
≥Press and hold [Í/I] on the main unit for 3 seconds. (The settings remain unchanged.)
—
To return all settings other
than some settings to the
factory preset
≥Select “Yes” in “Default Settings” in the Setup menu.
This returns all values in the Setup menu and the on-screen menu, except for
“Remote Control”, “On-Screen Language”, “IP Address / DNS Settings”, “Proxy
Server Settings”, “DVD-Video Ratings”, “BD-Video Ratings” and “Network Service”
to the default settings.
38
To return to the factory
preset
(No setting)
≥Reset the unit as follows:
1 Press [Í/I] on the unit to turn off the unit.
2 Press and hold [5/9] and press [Í/I] and [DISC < OPEN/CLOSE] on the unit at
the same time for more than 5 seconds until “PLEASE WAIT” is displayed on the unit.
3 The power is turned on and then turned off automatically.
—
No power.
≥Insert the AC mains lead securely into a household mains socket.
11
The unit switches to
standby mode.
≥When the time set for the sleep timer has passed, the power will be turned off.
≥One of the unit’s safety devices is activated. Press [Í/I] on the main unit to turn
the unit on.
18
—
Power of this unit is turned
off when the input for the
TV is changed.
≥If connected with an HDAVI Control 4 compatible TV (VIERA) with the “Intelligent
Auto Standby” setting activated on the TV, when switching the TV input, the unit
will be automatically turned to standby if the TV audio is not output from the unit’s
speakers. For details please read the operating instructions of the TV.
27
≥The remote control and main unit are using different
codes. Change the code on the remote control.
Press and hold [OK] and the indicated number button
at the same time for more than 5 seconds.
≥The batteries are depleted. Replace them with new ones.
≥It may be necessary to set the code of the remote control again after changing the
batteries for remote control.
≥You are not pointing the remote control at the main unit’s remote control signal
sensor during operation.
≥Coloured glass may obstruct the signal reception/transmission.
≥Don’t place the signal sensor in direct sunlight or in areas that may be subject to
sunlight exposure.
≥Confirm the correct drive is selected.
≥Some operations may be prohibited by the disc.
≥The unit is hot (“U59” appears on the display). Wait for “U59” to disappear.
≥One of the unit’s safety devices may have been activated.
Reset the unit as follows:
1 Press [Í/I] on the main unit to switch the unit to standby.
If the unit doesn’t switch to standby, press and hold [Í/I] on the main unit for
about 3 seconds. The unit is forcibly switched to standby.
Alternatively, disconnect the AC mains lead, wait one minute, then reconnect it.
2 Press [Í/I] on the main unit to switch it on. If the unit still cannot be operated,
consult the dealer.
≥Condensation has formed. Wait 1 to 2 hours for it to evaporate.
≥Insert the disc correctly with the label facing up.
≥The disc is dirty.
≥You tried to play a blank media or unplayable media on this unit.
≥[DivX] If playing DivX VOD content, refer to the homepage where you purchased it.
≥The producers of the disc can control how discs are played. So you may not
always be able to control play as described in these operating instructions. Read
the disc’s instructions carefully.
49
Power
Operation
The remote control doesn’t
work properly.
The unit is on but cannot be
operated.
Play fails to start even when
[1PLAY] is pressed.
Play starts but then stops
immediately.
Reference
Cannot eject disc.
RQT9464
46
Startup is slow.
It takes time before play
starts.
Played back image is
distorted or does not
playback correctly. ([AVCHD])
Cannot set “On” in “24p
Output”.
The sliding door does not
close properly.
5
5, 49
5
—
—
14
—
51
—
—
16
3
42, 43
20
—
≥The unit may have a problem. While the unit is off, press and hold [5/9] and
[DISC < OPEN/CLOSE] on the main unit at the same time for about 5 seconds.
Remove the disc and consult the dealer.
≥Startup takes time in the following situations.
–Immediately after a power failure or the AC mains lead is connected.
–When the unit is connected with an HDMI cable.
—
≥High definition video (transfer rate of 18 Mbps or faster) cannot be played back
correctly if it was recorded on a DVD compatible to double speed or slower.
—
≥Only when the unit is connected to the HDMI terminal of a TV supporting 24p you
can select “On”.
≥Turn the power on and off again.
37
—
—
SC-BTX70EGEB-RQT9464-B.book
47 ページ 2009年4月9日 木曜日 午後2時53分
Displays
Page
The display is dim.
≥Change “FL Display” in the Setup menu.
36
The elapsed time displayed
is actually less than the
play time.
≥The displayed play time is converted from the number of frames at 29.97 frames
(equal to 0.999 seconds) to one second. There will be a slight difference between
the time displayed and the actual elapsed time (e.g., actual one-hour elapsed time
may display as approximately 59 minutes 56 seconds).
—
≥Make sure that the television is connected to the VIDEO OUT terminal or the
HDMI AV OUT terminal on this unit.
≥Make sure that the television’s input setting (e.g., AV 1) is correct.
≥An incorrect resolution is selected in “HDMI Video Format”, when the television is
connected to HDMI AV OUT terminals. While stopped, press and hold [1] and [∫]
on the main unit at the same time for more than 5 seconds to cancel this setting.
Set the item again. However, Dolby Digital Plus, Dolby TrueHD, and DTS-HD
audio are not output in bitstream. To output the bitstream, select “Default Settings”
to restore the factory presets and make proper settings.
≥If “24p Output” is set to “On” when the unit is connected to a TV through any
terminal other than HDMI, images may not display properly. In this case, set “24p
Output” to “Off”.
≥When “24p Output” is set to “On”, HDMI authentication takes place where 24p
images switch to other images, and a black screen is displayed.
≥When “24p Output” is set to “On”, jittering may occur while playing DVD-Video. In
this case, turn “24p Output” to “Off”.
≥Picture may not be seen when more than 2 devices are connected with HDMI
cables.
Reduce the number of connected devices.
≥The unit and television are using different video systems. While stopped, keep
pressing [∫] and [DISC < OPEN/CLOSE] on the main unit for 5 or more seconds.
The system switches from PAL to NTSC or vice versa.
≥The system used on the disc doesn’t match your television.
–PAL discs cannot be correctly viewed on an NTSC television.
–This unit can convert NTSC signals to PAL60 for viewing on a PAL television
(“NTSC Contents Output” in the “Picture”).
≥[DivX] Images may not be output due to how files were created.
≥If you are using an indoor TV antenna, change to an outdoor antenna.
≥The TV antenna wire is too close to the unit. Move it away from the unit.
9
TV screen and video
Picture is distorted.
Jittering occurs.
—
37
37
37
37
—
—
—
35
—
—
—
Picture stops.
≥[DivX] Picture may stop if the DivX files are greater than 2 GB.
—
The screen changes
automatically.
≥When the “Screen Saver Function” in the Setup menu is set to “On”, the display
may return to the screen saver mode automatically if there is no operation for
5 minutes or more.
36
Video is not output.
≥An image is not output from the VIDEO OUT terminal when the “High Clarity
Sound” is enabled. Set the “High Clarity Sound” in the on-screen menu to “Off” to
use the VIDEO OUT terminal.
34
Video is not output in high
definition.
≥High definition video cannot be output through the VIDEO OUT terminal.
≥Confirm that the “HDMI Video Format” in the Setup menu is set properly.
—
37
The Setup menu cannot be
accessed.
≥Select “BD/DVD” as the source.
14
Status messages do not
appear.
≥Select “Automatic” in “On-Screen Messages” in the Setup menu.
36
The 4:3 aspect ratio picture
expands left and right.
≥Use the television to change the aspect. Refer to your television’s operating
instructions.
≥When using an HDMI cable, set “TV Aspect” to “16:9”.
—
37
When playing DVD-Video
using progressive output,
one part of the picture
momentarily appears to be
doubled up.
≥Connect this unit to the TV with any cable except the HDMI cable.
9
There is no apparent
change in picture quality
when adjusted with the
“Picture” menu in the
on-screen menu.
≥The effect is less perceivable with some types of video.
—
The masked-off area is
masked in grey.
≥If the “Screen Saver Function” in the Setup menu is set to “Off”, the masked-off
area is displayed in black.
36
Still pictures (JPEG) do not
playback normally.
≥The images that were edited on the PC, such as Progressive JPEG, etc., may not
playback.
44
After choosing “Home
Cinema” in “Speaker
selection” with the TV’s
remote control, the TV’s
input selection also
changes.
≥Disconnect the HDMI cable from the TV and reconnect it to a different HDMI
terminal.
—
Screen size is wrong.
Reference
The images from this unit
do not appear on the
television.
RQT9464
47
SC-BTX70EGEB-RQT9464-B.book
48 ページ 2009年4月9日 木曜日 午後2時53分
Troubleshooting guide
Sound
No sound.
Low volume.
Distorted sound.
Cannot hear the desired
audio type.
Page
≥Turn the volume up.
≥Turn the muting off.
≥Check connections to speakers and other equipment.
≥Select the corresponding source.
≥Press [AUDIO] to select the audio.
≥Ensure the speaker settings for your speakers are correct.
≥To output audio from a device connected with an HDMI cable, set “HDMI Audio
Output” to “On” in the Setup menu.
≥When “BD-Video Secondary Audio” is set to “On”, Dolby Digital Plus, Dolby
TrueHD, and DTS-HD are converted to 48 kHz Dolby Digital or DTS Digital
Surround and output. LPCM 7.1 channel audio is converted to 5.1 channel audio.
In this case, set the “BD-Video Secondary Audio” to “Off”.
≥Audio may not be heard when more than 2 devices are connected with HDMI
cables.
Reduce the number of connected devices.
≥Re-master will not work when a bitstream signal is output from the HDMI AV OUT
terminal.
≥Depending on the connected equipment, the sound may be distorted if this unit is
connected with an HDMI cable.
≥The multi-channel audio from a device connected to the TV is not output in it’s
original multi-channel form.
–If the device has an optical audio output terminal, connect the device to this unit’s
“OPTICAL 2(STB)” terminal.
≥[DivX] Audio may not be output depending on how files were created.
17
17
8 – 10
14
17
39
37
Humming is heard during
play.
≥An AC mains lead or fluorescent light is near this unit. Keep other appliances and
cables away from this unit.
—
No surround sound.
≥Press [SURROUND] to select a surround effect.
15
Cannot switch audio.
≥There are discs for which audio cannot be changed because of how the disc was
created.
≥When audio is output from the HDMI AV OUT terminal, you cannot switch the
audio if “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” is set to “Bitstream”.
Set “Dolby D/Dolby D +/Dolby TrueHD” or “DTS/DTS-HD” to “PCM”.
—
36
≥Press [EXT-IN] to select the corresponding source.
14
≥When a BD-Video that supports the BD-Live is used, and an SD card is in the slot,
data may be written to the SD card. Erase the data by using “BD-Video Data
Erase”, format the card or use a new card.
≥Data that can be played from an SD card are AVCHD, MPEG2 and JPEG data.
19
≥The card is not compatible or the contents on the card may be damaged.
≥Turn off and then turn on the unit again.
43
—
≥Remove the USB device from the USB port and then insert again. If this does not
solve the problem, turn off and turn on the unit again.
≥Check that the USB device is inserted correctly.
≥The format of the USB device or of its contents is not compatible with the unit. (The
contents on the USB device may be damaged.)
≥The USB device contains a folder structure and/or file extensions that are not
compatible with this unit.
≥Turn off and then turn on the unit again.
≥USB memories connected using a USB extension cable or a USB hub may not be
recognized by this unit.
≥Some USB devices cannot be used with this unit.
≥If the USB device is inserted during playback the USB device may not be recognized by this unit.
≥Turn the power of this unit off once, and turn it back on.
—
No sound from the TV
36
—
36
—
10, 25
—
Card
The capacity of the SD card
decreased.
Music on an SD card cannot
be played.
The contents of the card
cannot be read.
43
USB
The contents of the USB
device cannot be read.
USB device cannot be
operated.
16
43
44
—
—
43
—
—
iPod operation
Reference
Cannot charge or operate.
≥Check that the iPod is connected firmly.
≥The battery of the iPod is depleted. Charge the iPod, and then operate again.
≥Check that there is nothing wrong with the iPod.
Cannot display iPod videos/ ≥Make sure that TV is connected to the VIDEO OUT terminal on this unit.
photos on the TV.
≥Operate the iPod menu to make the appropriate video/photo output settings for
your TV. (Refer to operating instructions for your iPod.)
The TV input channel
≥When the main unit is connected with an “HDAVI Control” compatible TV and
unintentionally changes to
VIDEO IN is selected for iPod video or photo playback, the TV input channel will
HDMI input.
automatically change to the HDMI input channel when [START] is pressed.
–Re-select the TV’s VIDEO IN input channel.
28
28
—
9
—
—
Radio
RQT9464
48
Distorted sound or noise is
heard. “ST” flickers or does
not light.
A beat sound is heard.
≥Adjust the position of the antenna.
≥Use an outdoor antenna.
—
10
≥Turn the TV off or move it away from the unit.
—
SC-BTX70EGEB-RQT9464-B.book
49 ページ 2009年4月9日 木曜日 午後2時53分
Optional wireless system (SH-FX70)
No power.
The indicator on the wireless
system does not turn green
even though [I/D SET] is
pressed and pairing completed.
The wireless link indicator
(e.g. “ [W1] ” or an indicator) is
flashing.
The wireless link indicator
(e.g. “ [W1] ” or an indicator)
does not light.
The wireless link indicator
keeps flashing between red and
green.
Page
≥Ensure the AC mains lead of the wireless system is connected properly.
≥Turn the wireless system off and then back on.
—
—
≥There is no link between the main unit and the wireless system. Turn the wireless
system off and then back on. Alternatively, turn the wireless system off, disconnect the
AC mains lead, and then reconnect it.
≥Check that the main unit is turned on, and the wireless system is turned on.
≥Ensure that the digital transmitter is fully inserted into the slot of the main unit.
≥Ensure the surround sound setting on the main unit.
≥There is a power supply problem. Consult the dealer.
—
—
40
—
—
Network
I can’t connect to the network.
While using my PC, I cannot
connect to the network.
VIERA CAST does not operate
or connect.
≥Has the LAN cable come unplugged? Check that the LAN cable is properly connected.
≥Have you plugged in a modular cable for use with a telephone into the LAN terminal on
this unit? Connect with a straight LAN cable.
≥Is the power for the modem or broadband router turned on? Turn the power on for each
device.
≥Is there a mistake in the network settings? Follow any instructions you may have
received from your ISP (Internet Service Provider) and make changes to the settings.
≥Are the broadband router settings correct? Read the operating instructions for the
broadband router.
≥Is the broadband router and/or modem correctly connected? Check the operating
instructions for each device and connect accordingly.
≥Check the “Network Settings” and “BD-Live Internet Access” settings.
≥Does your Internet Service Provider (ISP) or service contract prevent multiple
terminals connecting at the same time? Check the content of your contract.
≥Is the network connection correct?
≥Image of the video contents may be incomplete or may not display depending on how
busy the environment or the connected line is.
11
11
—
31
—
—
31, 35
—
11
—
Other difficulties with playback
The disc side sliding door will
not open.
Audio and video momentarily
pause.
BD-Video or DVD-Video is not
played.
Picture-in-picture is not played
with BD-Video.
The BD-Live is not played with
BD-Video.
Alternative soundtrack and
subtitles cannot be selected.
No subtitles.
Angle cannot be changed.
The resume play function does
not work.
≥Make sure that the iPod docking switch lever has clicked into it’s original position.
28
≥This occurs between playlist chapters or scenes ([AVCHD]).
≥When playing a title recorded on both layers, the unit automatically switches between
layers and plays the title in the same way as a normal program. However, video and
audio may momentarily cut out when the unit is switching layers.
≥Ensure the disc is for the correct BD-Video region code or DVD-Video region number,
and is not defective.
≥You have set a ratings level to limit BD-Video or DVD-Video play. Change this setting.
≥Some BD-Video can only be output with HDMI.
≥Confirm whether the disc supports picture-in-picture.
—
—
≥Confirm whether the disc supports the BD-Live.
≥The inserted SD card does not have sufficient available capacity.
≥The SD card is write-protected.
≥Sub contents copied to an SD card are provided by the disc producer as a part of the
BD-Video content. Even if you record images and audio onto an SD card, it cannot be
played as a BD-Live.
≥The languages are not recorded on the disc.
≥You may not be able to use the on-screen menu to change the soundtrack and
subtitles on some discs. Use the disc’s menus to make changes.
≥Subtitles are not recorded on the disc.
≥Turn the subtitles on. Set “Subtitle” on the on-screen menu to “On”.
≥Angles can only be changed during scenes where different angles are recorded.
≥Memorized positions are cancelled when
– pressing [∫STOP] several times.
– opening the sliding door.
≥The resume play function may not work depending on the disc.
≥[BD-V]: On BD-Video discs including BD-J, the resume play function does not work.
Cover
35
—
—
—
—
43
19
—
16
—
33
—
—
—
52
Change the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic products close together.
When the following indicator
Remote Control
1 Press [BD/SD] to select “BD/DVD”.
appears on the unit’s display and
Set Code 1
2 While stopped, press [SETUP].
you are unable to operate the unit
Set
Code
2
3 Press [3, 4] to select “General” and press [OK].
NOTE
e.g.,
Display
4 Press [3, 4] to select “Remote Control” and press
Press [] and [OK] together
[OK].
for more than 5 seconds on
the remote.
5 Press [3, 4] to select the code (1 or 2) and press
[OK].
6 To change the code on the remote control
While pressing [OK], press and hold the numbered button ([1] or [2])
for more than 5 seconds.
7 Press [OK].
The unit’s remote control code
Press and hold [OK] and the
indicated number button at the
same time for more than 5 seconds.
Reference
When other Panasonic products respond to this remote control
RQT9464
49
SC-BTX70EGEB-RQT9464-B.book
50 ページ 2009年4月9日 木曜日 午後2時53分
Messages
The following messages or service numbers appear on the television or unit’s display when something unusual is detected during startup and use.
On the television
Page
Authorisation Error.
This unit is not authorised to
play this title.
≥[DivX] You are trying to play the DivX VOD content that was purchased with a different
registration code. You cannot play the content on this unit.
Cannot play.
≥You inserted an incompatible disc.
42 – 45
Cannot play on this unit.
≥You tried to play a non-compatible image.
42 – 45
No disc is inserted.
≥The disc may be upside down.
—
Rental Expired.
≥[DivX] The DivX VOD content has zero remaining plays. You cannot play it.
20
$ This operation is not
available.
≥Some operations are unsupported by the unit. For example;
– [BD-V]: During play back, reverse slow-motion or reverse frame-by-frame is not possible.
—
$ This operation is
prohibited by this disc.
≥Depending on the disc, you may not be able to perform search or skip when film
previews and warning screens are being played back.
—
Cannot connect.
Please check the connection
of the LAN cable.
≥When a hub is used but its Link lamp does not light up, check the cable connection,
LAN terminal connection, cable itself (a cross cable may be used by mistake), etc.
11
IP address is not set.
≥The “IP Address” in “IP Address / DNS Settings” is “---. ---. ---. ---“. Set the “IP
Address”, “Subnet Mask”, and “Gateway Address“. (Select the automatic address
acquisition if necessary.)
31
Cannot obtain IP address.
Please check the connection
or setting of the router.
≥If you use a hub, then check the connection between the hub and the router.
– Use the UPLINK port of the hub to connect to a router.
– Check whether or not the hub’s Link lamp lights up. If it does not light up, then check
the cable connection, LAN terminal connection, cable itself (a cross cable may be
used by mistake), etc.
≥If the above conditions are OK, then the router may not operate in DHCP mode. Check
the router settings and operation. You may reset the router to restore it to normal.
11
This IP address is already in
use.
Please check the setting.
≥This unit’s IP address is used by another device. Check the IP addresses of this unit,
personal computers, and routers, etc. If necessary, reconfigure them to avoid IP
addresses from being duplicated.
—
Connection test could not be
conducted.
≥Turn the unit off. Remove the AC mains lead and reconnect it and try again. If the
same symptom persists, then consult your dealer.
—
≥If you use a hub, then check the connection between the hub and the router.
– Use the UPLINK port of the hub to connect to a router.
– If the hub’s Link lamp does not light up, then check the cable connection, LAN
terminal connection, cable itself (a cross cable may be used by mistake), etc.
≥Check the “IP Address”, “Subnet Mask”, and “Gateway Address” in the “IP Address /
DNS Settings”.
≥If the MAC address information is required, then press [SETUP] to display the
“Network Settings” menu.
11
20
11
IP address is not set correctly.
Connection test was
unsuccessful. No reply from
Gateway. Please check the
connection or setting of the
router.
31
31
Network connection was
rejected.
Please confirm Setup
“BD-Live Internet Access”.
≥When you set “BD-Live Internet Access” to “Limit” and play BD-Live contents which do
not have a content owner certificate, the Internet access of the content is not allowed.
If you allow the content to connect to Internet, set “BD-Live Internet Access” to
“Permit”.
35
Could not check for latest
firmware version.
Please try again later.
≥The firmware download server is currently unavailable. Please try again later.
—
High Clarity Sound is effective.
Analog video output is turned off
when playback starts.
≥“High Clarity Sound” in setup menu is set to “Enable”, and “High Clarity Sound” in
on-screen menu is set to “On”.
No Video
≥Depending on the connected iPod, video menu may not be available on the TV. Select
the iPod menu (iPod LCD) mode and operate video playback from your iPod menu.
29
—
HDMI ONLY
≥The unit fails to operate properly. Press [Í/I] on the main unit to switch the unit to
standby for 3 seconds. Now press [Í/I] on the main unit again to turn the unit on.
≥Some BD-Video discs can only be output with HDMI.
NET
No PLAY
≥Displays while VIERA CAST is starting up.
≥There is a viewing restriction on a BD-Video or DVD-Video.
30
35
No READ
PLEASE WAIT
≥The media is dirty or badly scratched. The unit cannot play.
≥The unit is carrying out internal process.This is not a malfunction. You cannot operate
the unit while “PLEASE WAIT” is displayed.
≥When connected to TV (VIERA) with HDAVI Control 4, and power supply is turned off
by the “Intelligent Auto Standby” function on the TV side.
≥The USB device is drawing too much power. Remove the USB device.
3
—
34, 36
On the unit’s display
Reference
F99
RQT9464
50
REMOVE
—
27
16
SET 
(“ ” stands for a number.)
≥The remote control and main unit are using different codes. Change the code on the
remote control.
Press and hold [OK] and the indicated number button at the same
time for more than 5 seconds.
49
UNFORMAT
≥You inserted an unformatted DVD-RAM, DVD-RW, +RW, an unused +R, +R DL or
DVD-RW (DVD-Video format).
—
SC-BTX70EGEB-RQT9464-B.book
51 ページ 2009年4月9日 木曜日 午後2時53分
On the unit’s display
UNSUPPORT
“[W1]” is flashing.
(when using the optional
wireless accessory: SH-FX70)
U59
U72
U73
Hor F
(“ ” stands for a number.)
DOCK UNLOCKED
IPOD OVER CURRENT ERROR
START
UPD/
FINISH
NOT CONDITIONAL
NOT CONNECTED
ILLEGAL OPEN
llllllll
Page
≥You have inserted a media the unit cannot play.
≥You tried to operate with a non-compatible USB device.
≥There is no link between this unit and the wireless system. Check that the wireless
system is plugged into the household mains socket and is turned on.
≥Ensure that the digital transmitter is fully inserted into the slot of this unit.
≥If the wireless system is not used, disconnect the digital transmitter from this unit.
≥The unit is hot.
The unit switches to standby for safety reasons. Wait for about 30 minutes until the
message disappears.
Select a position with good ventilation when installing the unit. Do not block the
cooling fan on the rear of the unit.
≥The HDMI connection acts unusually.
– The connected equipment is not HDMI compatible.
– Please use HDMI cables that have the HDMI logo (as shown on the cover).
– The HDMI cable is damaged.
≥Check and correct the speaker connections.
≥There is something unusual. (The service number displayed after H and F depends
on the unit’s condition.)
≥Check the unit using the troubleshooting guide. If the service number does not
disappear, do the following.
1 Disconnect the plug from the household mains socket wait a few seconds, then
reconnect it.
2 Press [Í/I] to turn the power on. (The unit may be fixed.)
If the service number does not disappear despite doing the above, request service
from the dealer. Inform the dealer of the service number when requesting service.
≥The iPod docking switch lever is not locked in position.
–Make sure that the iPod docking switch lever is properly pushed back into
place.
≥The iPod is drawing too much power. Remove the iPod, and turn the unit off and on again.
≥The system is being restarted during the firmware update. Please do not turn off power.
≥The firmware is being updated.
≥The firmware update is complete.
≥The requested operation cannot be conducted.
≥The iPod is not connected or it is not correctly connected. Reconnect the iPod.
≥The iPod cannot be operated. Check that there is nothing wrong with the iPod.
≥The sliding door is not in the correct position. Turn the main unit off and on again.
≥The main unit could not save the modified settings. Some settings may need to be reset.
42 – 45
43
40
40
—
—
—
8
—
46 – 49
28
—
30
30
30
—
28
—
—
—
Frequently asked questions
Setup
Can I connect other speakers?
Page
≥Speakers other than those supplied or the optional SB-HSX70 cannot be used.
This system achieves ideal audio properties through the combination of the main
unit and the supplied speakers or when the Panasonic wireless system SH-FX70
and the optional speaker set SB-HSX70 is connected.
—
Can I extend the speaker cables?
≥It is not recommended that you extend the speaker cables. Extending the speaker
cables may damage the speakers, and sound quality will be negatively affected.
—
Can I make the system into a
5.1ch/7.1ch sound system?
≥You cannot make into a 5.1ch/7.1ch sound system.
This system can only be 2.1ch or a 4.1ch/6.1ch with 1 or 2 units of the optional
Panasonic wireless system, SH-FX70.
40
Can I connect the unit directly to a
computer?
≥This unit cannot be connected directly to a computer.
—
Using other speakers may damage the system and will not produce correct
audio characteristics (e.g., no bass sounds).
Can I play BD-Video and
DVD-Video bought in another
country?
≥You cannot play:
– BD-Video discs that do not include region “B”.
– DVD-Video discs that do not include region “2” or “ALL”.
Refer to the cover of these operating instructions for more information about your
region code and number.
Refer to the disc’s jacket for more information.
Cover
Can BD-Video/DVD-Video that
does not have a region code/
number be played?
≥The region management information for BD-Video/DVD-Video indicates that the
disc conforms to industry standards. You cannot play discs that do not conform to
industry standards or do not have a region code or number.
—
Please tell me about disc
compatibility with this unit.
≥Refer to “Media (Disc, card and USB device) information” and “About MP3/JPEG/DivX files”.
≥You cannot write to a disc with this unit.
42 – 44
—
≥The following operations are available.
– Play back JPEG data recorded with a digital camera etc.
– Play back AVCHD motion pictures recorded with Panasonic High Definition Video Camera.
– Play back MPEG2 motion pictures recorded with a Panasonic Standard Definition Video Camera.
≥If a BD-Video disc supporting BD-Live or BONUSVIEW is used, it is possible to
copy secondary video, etc. from the Internet or disc to the card and play it back
together with the images on the disc, etc.
—
—
—
19
SD card
What kinds of operations are
available on the SD card slot on
this unit?
(Continued on the next page)
Reference
Disc
RQT9464
51
SC-BTX70EGEB-RQT9464-B.book
52 ページ 2009年4月9日 木曜日 午後2時53分
Frequently asked questions
SD card
Page
What kinds of cards can be used?
≥SD Memory Cards (from 8 MB to 2 GB), SDHC Memory Cards (from 4 GB to
32 GB), miniSD Cards*, and microSD Cards* can be used.
* A miniSD Card and a microSD Card must be used in the adaptor included with the memory card.
Please confirm the latest information on the following website.
http://panasonic.co.jp/pavc/global/cs
(This site is in English only.)
43
Language code list
Enter the code with the numbered buttons.
Abkhazian:
6566
Afar:
6565
Afrikaans:
6570
Albanian:
8381
Amharic:
6577
Arabic:
6582
Armenian:
7289
Assamese:
6583
Aymara:
6589
Azerbaijani:
6590
Bashkir:
6665
Basque:
6985
Bengali; Bangla:
6678
Bhutani:
6890
Bihari:
6672
Breton:
6682
Bulgarian:
6671
Burmese:
7789
Byelorussian: 6669
Cambodian:
7577
Catalan:
Chinese:
Corsican:
Croatian:
Czech:
Danish:
Dutch:
English:
Esperanto:
Estonian:
Faroese:
Fiji:
Finnish:
French:
Frisian:
Galician:
Georgian:
German:
Greek:
Greenlandic:
Guarani:
6765
9072
6779
7282
6783
6865
7876
6978
6979
6984
7079
7074
7073
7082
7089
7176
7565
6869
6976
7576
7178
Gujarati:
Hausa:
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
7185
7265
7387
7273
7285
7383
7378
7365
7165
7384
7465
7487
7578
7583
7575
7589
7579
7585
7679
7665
7686
Lingala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto, Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
7678
7684
7775
7771
7783
7776
7784
7773
7782
7779
7778
7865
7869
7879
7982
8083
7065
8076
8084
8065
8185
Rhaeto-Romance:
8277
Romanian:
8279
Russian:
8285
Samoan:
8377
Sanskrit:
8365
Scots Gaelic: 7168
Serbian:
8382
Serbo-Croatian: 8372
Shona:
8378
Sindhi:
8368
Singhalese:
8373
Slovak:
8375
Slovenian:
8376
Somali:
8379
Spanish:
6983
Sundanese:
8385
Swahili:
8387
Swedish:
8386
Tagalog:
8476
Tajik:
8471
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapük:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:
8465
8484
8469
8472
6679
8473
8479
8482
8475
8487
8575
8582
8590
8673
8679
6789
8779
8872
7473
8979
9085
Reference
Glossary
RQT9464
52
AVCHD
AVCHD is a new format (standard) for high definition video cameras
that can be used to record and play high-resolution HD images.
BD-J
Some BD-Video discs contain Java applications, and these
applications are called BD-J. You can enjoy various interactive
features in addition to playing normal video.
BD-Live
This is a BD-Video (BD-ROM Profile 2) that supports the new
functions such as Internet connection, etc. in addition to the
BONUSVIEW function.
Bitstream
This is the digital form of multi-channel audio data (e.g., 5.1
channel) before it is decoded into its various channels.
BONUSVIEW (Final Standard Profile)
This is a BD-Video (BD-ROM Profile 1 version 1.1) that supports the
new functions such as Picture-in-picture and Secondary Audio, etc.
Deep Colour
This unit incorporates HDMITM (V.1.3a with Deep Colour)
technology that can reproduce greater colour gradation (4096
steps) when connected to a compatible TV.
You can enjoy exceptionally rich, natural-looking colours, with
smooth, detailed gradation and minimal colour banding.
[A lower colour gradation (256 steps), without Deep Colour, will
be reproduced if connected to a TV which does not support
Deep Colour. The unit will automatically set appropriate output
to suit the connected TV.]
DivX
DivX is a popular media technology created by DivX, Inc. DivX
media files contain highly compressed video with high visual
quality that maintains a relatively small file size.
DNS Server
A server which acts like a telephone directory and translates
Internet domain names into IP addresses.
Dolby Digital
This is a method of coding digital signals developed by Dolby
Laboratories. Apart from stereo (2-channel) audio, these
signals can also be multi-channel audio.
Dolby Digital Plus
Multi-channel audio and higher audio quality is made possible using
Dolby Digital Plus. BD-Video supports up to 7.1 channel output.
Dolby Pro Logic II
Dolby Pro Logic II enables you to play stereo sources on
5.1-channel.
Dolby TrueHD
Dolby TrueHD is a very high quality audio format that
reproduces the studio master audio. BD-Video supports up to
7.1 channel output.
Down-mixing
This is the process of remixing the multi-channel audio found
on some discs into fewer channels.
DTS (Digital Theater Systems)
This surround system is used in many movie theatres. There is
good separation between the channels, so realistic sound
effects are possible.
DTS-HD
DTS-HD is a high-quality, sophisticated audio format used in
movie theatres. Previous DTS Digital Surround-compatible
equipment can play DTS-HD as DTS Digital Surround audio.
BD-Video supports up to 7.1 channel output.
DTS-HD High Resolution Audio
This is a signal format achieved by improving the previous
DTS, DTS-ES and DTS 96/24 formats. It is compatible with
sampling frequency 96 kHz/48 kHz. BD-Video supports up to
7.1 channel output.
DTS-HD Master Audio
This is a lossless audio format and compatible with 96 kHz/
7.1ch or less. In addition, faithful reproduction of the master
audio is enabled using lossless audio encoding technology.
BD-Video supports up to 7.1 channel output.
Dynamic range
Dynamic range is the difference between the lowest level of
sound that can be heard above the noise of the equipment and
the highest level of sound before distortion occurs.
Dynamic range compression means reducing the gap between
the loudest and softest sounds. This means you can listen at
low volumes but still hear dialog clearly.
53 ページ 2009年4月9日 木曜日 午後2時53分
Film and video
DVD-Video are recorded using either film or video. This unit
can determine which type has been used, then uses the most
suitable method of progressive output.
Film:
Recorded at 25 frames per second (PAL discs) or 24
frames per second (NTSC discs). (NTSC discs
recorded at 30 frames per second as well.)
Generally appropriate for motion picture films.
Video:
Recorded at 25 frames/50 fields per second (PAL
discs) or 30 frames/60 fields per second (NTSC
discs). Generally appropriate for TV drama
programs or animation.
Folder
This is a place on the disc, USB device or SD card where
groups of data are stored together. Additional folders can be
created within folders, and you can make detailed
classifications depending on the folder structure. (> 45)
Frames and fields
Frames refer to the single images that constitute the video you
see on your television. Each frame consists of two fields.

r
Frame
Field
Field
≥A frame still shows two fields, so there may be some blurring,
but picture quality is generally better.
≥A field still shows less picture information so it may be
rougher, but there is no blurring.
Gateway
IP address of the electronic device providing Internet access.
Usually called a router IP address. (e.g., 192.168.0.1)
HDMI (High-Definition Multimedia Interface)
HDMI is a digital interface for consumer electronic products.
Unlike conventional connections, it transmits uncompressed
digital video and audio signals on a single cable.
Hub
Used for connecting more than one device to the network.
IP address
A set of numbers which distinguish each device on the network
when, for example, connected to the Internet. When using a PC
in a LAN to access a PC or device that is not included in the LAN,
the IP address is called the local IP address. (e.g., 192.168.0.10)
JPEG (Joint Photographic Experts Group)
This is a system used for compressing/decoding colour still
pictures. If you select JPEG as the storage system on digital
cameras, etc., the data will be compressed to 1/10–1/100 of its
original size. The benefit of JPEG is less deterioration in
picture quality considering the degree of compression.
LAN (Local Area Network)
A group of linked devices in a company, school or home.
Indicates the boundaries of a particular network.
Local storage
This storage area is used as a destination for sub contents for
playing BD-Live on BD-Video.
LPCM (Linear PCM)
These are a kind of PCM format.
These are uncompressed digital signals, similar to those found
on CDs.
MPEG2 (Moving Picture Experts Group)
A standard for efficiently compressing and expanding colour video.
MPEG2 is a compression standard used for DVD and satellite
based digital broadcasting.
MPEG-4 AVC/H.264
A standard for efficiently compressing and expanding colour
video. MPEG-4 AVC/H.264 is an encoding method used for
recording of the high definition videos.
MP3 (MPEG Audio Layer 3)
An audio compression method that compresses audio to
approximately one tenth of its size without any significant loss
of audio quality.
Pan&Scan/Letterbox
In general, DVD-Video are produced with the intention that they be
viewed on a widescreen television (16:9 aspect ratio), so images
often don’t fit regular (4:3 aspect ratio) televisions. Two styles of
picture, “Pan & Scan” and “Letterbox”, deal with this problem.
Pan&Scan:The sides are cut off so the picture
fills the screen.
Letterbox: Black bands appear at the top and
bottom of the picture so the picture
itself appears in an aspect ratio of 16:9.
PCM (Pulse Code Modulation)
This is one format for converting analogue audio into digital
audio, enabling you to enjoy digital audio with no hassle.
Picture-in-picture
This is a function of BD-Video that plays the primary video and
secondary video simultaneously. For instance, the function is
capable of playing the original movie as the primary video
while playing video commentary from the film director on a
small screen as a secondary video.
Progressive/Interlace
The PAL video signal standard has 625 (or 576) interlaced (i)
scan lines, whereas progressive scanning, called 625p (or 576p),
uses twice the number of scan lines. For the NTSC standard,
these are called 525i (or 480i) and 525p (or 480p) respectively.
Using progressive output, you can enjoy the high-resolution
video recorded on media such as DVD-Video.
Your television must be compatible to enjoy progressive video.
Panasonic televisions with 625 (576)/50i · 50p, 525 (480)/60i ·
60p input terminals are progressive compatible.
P4HD (Pixel Precision Progressive Processing for HD)
This is a processor which makes use of an exclusive Panasonic
algorithm. Various processing is supported, including a
high-level conversion of the TV scanning format from interlace to
progressive and a high-level conversion of standard resolution
(480i or 576i) video signal to a 1080 High Definition video signal.
Consequently, this unit is able to provide video of optimal
resolution to the connected TV.
Router
Distinguishes the IP address assigned to each device, such as
the PC, and relays the flow of data within the network.
Sampling frequency
Sampling is the process of converting the heights of sound
wave (analogue signal) samples taken at set periods into digits
(digital encoding). Sampling frequency is the number of
samples taken per second, so larger numbers mean more
faithful reproduction of the original sound.
Subnet mask
Enables efficient network use. A set of numbers which identify
which part of the IP address allocated to every device
connected to the router is the network portion.
USB (Universal Serial Bus)
An interface specification to connect peripherals. Playback of
MP3, JPEG, or DivX recorded to a USB memory by PC or other
equipment, or JPEG in the Panasonic digital camera or similar
connected via USB connection cable is possible with this unit.
VIERA CAST
An information service unique with Panasonic where specific
Web sites can be viewed on this unit by connecting to the
Internet without using a PC.
x.v.ColourTM
x.v.ColourTM is a name for devices that are compatible with the
xvYCC format, an international standard for expanded colour in
motion pictures, and that follow the rules for signal transmission.
You can enjoy vivid colours of wider colour ranges for a more
realistic picture when connected to a TV that supports the
x.v.ColourTM with HDMI cable.
1080i (1125i)
In one high definition image, 1080 (1125) alternating scan lines
pass to create an interlaced image. Because 1080i (1125i) more
than doubles current television broadcasts of 480i, the detail is
much clearer and creates a more realistic and rich image.
1080p (1125p)
In one high definition image, 1080 (1125) scan lines pass at
the same time to create a progressive image. Since
progressive video does not alternate scan lines like interlace,
there is a minimal amount of screen flicker.
24p
This is a progressive image recorded at a rate of 24 frames per
second.
720p (750p)
In one high definition image, 720 (750) scan lines pass at the
same time to create a progressive image. Since progressive
video does not alternate scan lines like interlace, there is a
minimal amount of screen flicker.
Reference
SC-BTX70EGEB-RQT9464-B.book
RQT9464
53
SC-BTX70EGEB-RQT9464-B.book
54 ページ 2009年4月9日 木曜日 午後2時53分
Specifications
SPEAKER SECTION
∫ Front speakers SB-HFX70
Type
2 way, 3 speaker system (Bass reflex)
Speaker unit(s)
Woofer Front
6.5 cm Cone type (Bamboo)
Woofer Top
6.5 cm Cone type
Tweeter
5 cm Cone type (Bamboo)
Impedance/Input power (IEC)
6 ≠/125 W (Max) *1
Output sound pressure
80 dB/W (1.0 m)
Frequency range
80 Hz to 50 kHz (j16 dB)
100 Hz to 40 kHz (j10 dB)
Dimensions (WtHtD)
134 mmt246.5 mmt114 mm
Mass
Approx. 1.3 kg
∫ Subwoofer SB-HW560
Type
1 way, 1 speaker system (Kelton type)
Speaker unit(s)
1. Woofer
16 cm Cone type
2. Passive Radiator
25 cm
Impedance/Input power (IEC)
6 ≠/250 W (Max)
Output sound pressure
78 dB/W (1.0 m)
Frequency range
35 Hz to 200 Hz (j16 dB)
40 Hz to 198 Hz (j10 dB)
Dimensions (WkHkD)
181 mmk361 mmk315 mm
Mass
Approx. 4.7 kg
*1 Rating with the low cut filter equipped amplifier.
AMPLIFIER SECTION
RMS TTL Power Output
375 W
Front Ch
125 W per channel (6 ≠), 1 kHz, 10 % THD
Subwoofer Ch
125 W per channel (6 ≠), 100 Hz, 10 % THD
DIN TTL Power Output
195 W
Front Ch
65 W per channel (6 ≠), 1 kHz, 1.0 % THD
Subwoofer Ch
65 W per channel (6 ≠), 100 Hz, 1.0 % THD
Audio Input
AUX
k1
Digital Audio Input
Optical
k2
Sampling frequency
32 kHz, 44.1 kHz, 48 kHz
Audio Format
PCM, Dolby Digital
Headphone Output
Accommodation impedance
16 ≠ to 64 ≠
FM TUNER SECTION
Frequency range
Antenna terminals
87.50 MHz to 108.00 MHz (50-kHz step)
75 ≠ (unbalanced)
Reference
DISC SECTION
Playable disc:
BD-Video
BD-ROM: Version 2
BD-RE:
Version 3 (Single Layer, Dual Layer), JPEG*7
BD-R:
Version 2 (Single Layer, Dual Layer)
DVD-RAM: DVD Video Recording format, AVCHD format*9,
JPEG*5
DVD-R/DVD-R DL:
DVD-Video format*2, DVD-Video Recording
format*2, AVCHD format*2, 9, JPEG*5, MP3,
DivX*8
DVD-RW: DVD-Video format*2, DVD-Video Recording
format*2, AVCHD format*2, 9
+R/+RW/+R DL:
Video*2, AVCHD format*2, 9
DVD-VIDEO:
DVD-Video format
CD-Audio: CD-DA
CD-R/CD-RW:
CD-DA, JPEG*6, MP3, DivX*8
Optical pick-up:
System with 2 lenses
Wave length:
783 nm(CD)/661 nm(DVD)/405 nm(BD)
RQT9464
54
LASER Specification:
Class 1 LASER Product
Wave length:
783 nm(CDs)/661 nm(DVDs)/405 nm(BDs)
Laser power:
No hazardous radiation is emitted with the safety
protection
NORSK
Bølgelengde 783 nm (CDs)/661 nm (DVDs)/405 nm (BDs)
Laserstyrke
Ingen farlig stråling sendes ut
(med sikkerhets-beskyttelse)
SD CARD SECTION
SD card slot:
Connector:
1 system
SD card:
SD Memory Card*3 formatted FAT12, FAT16, FAT32*4:
JPEG*5, AVCHD format*9, MPEG2
≥Usable capacity will be less (SD Card).
USB device SECTION
USB slot:
USB Standard:USB 2.0 High Speed
Format:
Connector (1 system)
MP3, JPEG*5, DivX*8
FAT12, FAT16, FAT32
*2 Finalizing is necessary.
*3 includes SDHC card
includes miniSD cards (need a miniSD Adaptor)
includes microSD cards (need a microSD Adaptor)
*4 Does not support long file name
*5 The total combined maximum number of recognizable
picture contents and folders: 3000 picture contents and 300
folders.
*6 The total combined maximum number of recognizable
picture contents and folders: 999 picture contents and 99
folders.
*7 The total combined maximum number of recognizable
picture contents and folders: 9999 picture contents and 300
folders.
*8 The total combined maximum number of recognizable files
and folders: 200 files and 300 folders.
*9 AVCHD format V1.0
VIDEO SECTION
Signal system
PAL/NTSC
Video output
Output level
1.0 Vp-p (75 ≠)
Output connector
Pin jack (1 system)
HDMI AV output
Output format:
480p (525p)/576p (625p)/720p (750p)/1080i (1125i)/
1080p (1125p)
Output Connector:
Type A (19 pin)
HDMITM (v.1.3a with Deep Colour, x.v.ColourTM, High Bit rate
Audio)
≥This unit supports “HDAVI Control 4” function.
NETWORK SECTION
Ethernet
10BASE-T/100BASE-TX (1 system)
GENERAL
Power supply
AC 220 V to 240 V, 50 Hz
iPod Connector
DC OUT 5 V 500 mA MAX
Power consumption
85 W
Power consumption in standby mode
approx. 0.3 W
Dimensions (WkHkD)
500 mmk201 mmk114 mm
Mass
Approx. 3.1 kg
(Dimensions and Mass do not include the speakers.)
Operating temperature range
0 oC to r40 oC
Operating humidity range 35 % to 80 % RH (no condensation)
Specifications are subject to change without notice.
NOTE
SC-BTX70EGEB-RQT9464-B.book
55 ページ 2009年4月9日 木曜日 午後2時53分
SUOMI
NORSK
VAROITUS!
ADVARSEL!
LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ
KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA
ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1
YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE
LASERSÄTEILYLLE.
DETTE PRODUKTET ANVENDER EN LASER.
BETJENING AV KONTROLLER, JUSTERINGER ELLER
ANDRE INNGREP ENN DE SOM ER BESKREVET I
DENNE BRUKSANVISNING, KAN FØRE TIL FARLIG
BESTRÅLING.
DEKSLER MÅ IKKE ÅPNES, OG FORSØK ALDRI Å
REPARERE APPARATET PÅ EGENHÅND. ALT
SERVICE OG REPARASJONSARBEID MÅ UTFØRES
AV KVALIFISERT PERSONELL.
VAROITUS:
VÄHENNÄ TULIPALON, SÄHKÖISKUN TAI
LAITTEISTON VAHINGOITTUMISEN VAARAA
≥TÄTÄ LAITETTA EI SAA ALTISTAA SATEELLE,
KOSTEUDELLE, ROISKEILLE TAI TIPPUVILLE
NESTEILLE. LAITTEEN PÄÄLLE EI SAA MYÖSKÄÄN
ASETTAA MITÄÄN NESTEELLÄ TÄYTETTYÄ
ESINETTÄ, KUTEN MALJAKKOA.
≥KÄYTÄ VAIN SUOSITELTUJA LISÄVARUSTEITA.
≥ÄLÄ IRROTA KANTTA (TAI TAUSTAA). SISÄLLÄ EI
OLE KÄYTTÄJÄN HUOLLETTAVISSA OLEVIA OSIA.
HUOLLON SAA SUORITTAA VAIN
AMMATTITAITOINEN HENKILÖKUNTA.
VAROITUS!
≥ÄLÄ ASENNA TAI LAITA TÄTÄ LAITETTA
KABINETTITYYPPISEEN KIRJAKAAPPIIN TAI MUUHUN
SULJETTUUN TILAAN, JOTTA TUULETUS ONNISTUISI.
VARMISTA, ETTÄ VERHO TAI MIKÄÄN MUU
MATERIAALI EI HUONONNA TUULETUSTA, JOTTA
VÄLTETTÄISIIN YLIKUUMENEMISESTA JOHTUVA
SÄHKÖISKU- TAI TULIPALOVAARA.
≥ÄLÄ PEITÄ LAITTEEN TUULETUSAUKKOJA
SANOMALEHDELLÄ, PÖYTÄLIINALLA, VERHOLLA
TAI MUULLA VASTAAVALLA ESINEELLÄ.
≥ÄLÄ ASETA PALAVAA KYNTTILÄÄ TAI MUUTA
AVOTULEN LÄHDETTÄ LAITTEEN PÄÄLLE.
≥HÄVITÄ PARISTOT LUONTOA
VAHINGOITTAMATTOMALLA TAVALLA.
TÄMÄ LAITE ON TARKOITETTU KÄYTETTÄVÄKSI
LEUDOSSA ILMASTOSSA.
Pistorasia tulee asentaa laitteen lähelle helppopääsyiseen
paikkaan.
Verkkojohdon pistokkeen on oltava aina helposti
käytettävissä.
Tämä laite voidaan kytkeä kokonaan irti verkkovirrasta
irrottamalla verkkojohdon pistoke pistorasiasta.
ADVARSEL:
FØLG NEDENSTÅENDE INSTRUKSER FOR Å
REDUSERE RISIKOEN FOR BRANN, ELEKTRISK
STØT OG SKADE PÅ PRODUKTET:
≥DETTE APPARATET MÅ IKKE UTSETTES FOR
REGN, FUKTIGHET, DRYPP ELLER SPRUT, OG
INGEN VÆSKEFYLTE GJENSTANDER, SOM F.EKS.
VASER, MÅ PLASSERES PÅ APPARATET.
≥BRUK KUN ANBEFALT TILBEHØR.
≥IKKE FJERN DEKSELET (ELLER BAKSIDEN);
APPARATET INNEHOLDER INGEN DELER SOM KAN
SKIFTES ELLER REPARERES AV BRUKEREN.
OVERLAT TIL KVALIFISERTE SERVICETEKNIKERE
Å UTFØRE SERVICE.
ADVARSEL!
≥APPARATET MÅ IKKE PLASSERES I EN BOKHYLLE, ET
INNEBYGGET KABINETT ELLER ET ANNET LUKKET
STED HVOR VENTILASJONSFORHOLDENE ER
UTILSTREKKELIGE. SØRG FOR AT GARDINER ELLER
LIGNENDE IKKE FORVERRER
VENTILASJONSFORHOLDENE, SÅ RISIKO FOR
ELEKTRISK SJOKK ELLER BRANN FORÅRSAKET AV
OVERHETING UNNGÅS.
≥APPARATETS VENTILASJONSÅPNINGER MÅ IKKE
DEKKES TIL MED AVISER, BORDDUKER,
GARDINER OG LIGNENDE.
≥PLASSER IKKE ÅPEN ILD, SLIK SOM LEVENDE LYS,
OPPÅ APPARATET.
≥BRUKTE BATTERIER MÅ KASSERES UTEN FARE FOR
MILJØET.
DETTE APPARATET ER BEREGNET TIL BRUK UNDER
MODERATE KLIMAFORHOLD.
Strømuttaket må befinne seg i nærheten av utstyret og
være lett tilgjengelig.
Støpslet på strømkabelen må være klart til bruk.
Når dette apparatet skal kobles helt fra strømnettet (AC),
må støpslet på strømkabelen trekkes ut av stikkontakten.
(Back of product)
(Back of product)
(Laitteen takaosa)
(På baksiden av produktet)
Reference
FM
75 Ω ANT
RQT9464
55
SC-BTX70EGEB-RQT9464-B.book
56 ページ 2009年4月9日 木曜日 午後2時53分
Index
A
AC mains lead connection . . . . . . . . 11
Angle . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Audio
Attribute . . . . . . . . . . . . . . . . . . . . 33
Changing audio during play . . . . . 17
Channel . . . . . . . . . . . . . . . . . . . . 33
Language . . . . . . . . . . . . . . . . 33, 35
AVCHD . . . . . . . . . . . . . . . . . . . . . . . . 52
B
BD-J . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
BD-Live . . . . . . . . . . . . . . . . . . . . . 19, 52
BD-Video Ratings . . . . . . . . . . . . . . . . 35
BONUSVIEW . . . . . . . . . . . . . . . . . 19, 52
C
Chapter . . . . . . . . . . . . . . . . . . . . . . . . 17
Cleaning
Disc . . . . . . . . . . . . . . . . . . . . . . . . . 3
Lens . . . . . . . . . . . . . . . . . . . . . . . . 3
Main unit . . . . . . . . . . . . . . . . . . . . . 3
Connection
Antenna . . . . . . . . . . . . . . . . . . . . 10
AUX . . . . . . . . . . . . . . . . . . . . . . . . 9
Digital transmitter . . . . . . . . . . . . . 40
DVD recorder . . . . . . . . . . . . . . . . 10
HDMI. . . . . . . . . . . . . . . . . . . . . . . . 9
iPod . . . . . . . . . . . . . . . . . . . . . . . 28
OPTICAL IN . . . . . . . . . . . . . . . 9, 10
Set Top Box . . . . . . . . . . . . . . . . . 10
Speaker . . . . . . . . . . . . . . . . . . . . . 8
TV . . . . . . . . . . . . . . . . . . . . . . . . . . 9
USB . . . . . . . . . . . . . . . . . . . . 16, 21
Video cassette recorder . . . . . . . . 10
Wireless system . . . . . . . . . . . . . . 40
D
Deep Colour . . . . . . . . . . . . . . . . . . . . 52
Default Settings . . . . . . . . . . . . . . . . . 38
Dialog Enhancer . . . . . . . . . . . . . . . . . 34
Direct Navigator . . . . . . . . . . . . . . . . . 16
Direct Play . . . . . . . . . . . . . . . . . . . . . . 17
Discs that cannot be played . . . . . . . 43
DivX . . . . . . . . . . . . . . . . . . . . . 20, 44, 52
DNS Server . . . . . . . . . . . . . . . . . . 31, 52
Dolby Digital . . . . . . . . . . . . . . . . . 36, 52
Dolby Digital Plus . . . . . . . . . . . . . 36, 52
Dolby Pro Logic II . . . . . . . . . . . . . 15, 52
Dolby TrueHD . . . . . . . . . . . . . . . . 36, 52
DTS . . . . . . . . . . . . . . . . . . . . . . . . 36, 52
DTS-HD . . . . . . . . . . . . . . . . . . . . . 36, 52
DVD-Video Ratings . . . . . . . . . . . . . . 35
F
Finalize . . . . . . . . . . . . . . . . . . . . . . . . 42
Firmware . . . . . . . . . . . . . . . . . . . . . . . 30
Formatting SD cards . . . . . . . . . . . . . 19
Frame-by-frame . . . . . . . . . . . . . . . . . 17
H
HDMI . . . . . . . . . . . . . . . . . . . . . . . . 9, 53
High Clarity Sound . . . . . . . . . . . . 34, 36
I
IP address . . . . . . . . . . . . . . . . . . . 31, 53
iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
J
JPEG . . . . . . . . . . . . . . . . . . . . 21, 44, 53
L
LAN . . . . . . . . . . . . . . . . . . . . . . . . 11, 53
Language
Audio . . . . . . . . . . . . . . . . . . . 33, 35
Code list . . . . . . . . . . . . . . . . . . . . 52
Menu . . . . . . . . . . . . . . . . . . . . . . . 35
On screen . . . . . . . . . . . . . . . . . . 36
Soundtrack . . . . . . . . . . . . . . . 33, 35
Subtitle . . . . . . . . . . . . . . . . . . 33, 35
Local storage . . . . . . . . . . . . . . . . . . . 53
LPCM . . . . . . . . . . . . . . . . . . . . . . . . . . 53
M
Maintenance . . . . . . . . . . . . . . . . . . . . . 3
Menu
On-screen . . . . . . . . . . . . . . . . . . . 33
Pop-up . . . . . . . . . . . . . . . . . . . . . . 16
Setup . . . . . . . . . . . . . . . . . . . . . . . 35
MPEG2 . . . . . . . . . . . . . . . . . . . . . . . . . 53
MP3 . . . . . . . . . . . . . . . . . . . . . . 23, 44, 53
Mute the sound . . . . . . . . . . . . . . . . . . 17
O
On-screen
Language . . . . . . . . . . . . . . . . . . . 36
Menu . . . . . . . . . . . . . . . . . . . . . . . 33
Status messages . . . . . . . . . . . . . . 18
P
PCM Down Conversion . . . . . . . . . . . 36
Picture-in-picture . . . . . . . . . . . . . . . . 19
Playback Information Window . . . . . . 34
Playlists . . . . . . . . . . . . . . . . . . . . . . . . 13
Pop-up menu . . . . . . . . . . . . . . . . . . . . 16
Product disposal . . . . . . . . . . . . . . . . . . 3
Progressive . . . . . . . . . . . . . . . . . . 34, 53
Properties
Chapter . . . . . . . . . . . . . . . . . . . . . 17
Still picture . . . . . . . . . . . . . . . . . . . 22
Proxy Server . . . . . . . . . . . . . . . . . . . . 32
P4HD . . . . . . . . . . . . . . . . . . . . . . . . . . 53
R
Radio . . . . . . . . . . . . . . . . . . . . . . . 10, 24
Re-master . . . . . . . . . . . . . . . . . . . . . . 34
Remote control
Batteries . . . . . . . . . . . . . . . . . . . . . 5
Remote control code . . . . . . . . . . 49
Repeat Play . . . . . . . . . . . . . . . . . . . . . 34
Resume play function . . . . . . . . . . . . . 17
S
SD card . . . . . . . . . . . . . . . . . . . . . . . . 16
Search . . . . . . . . . . . . . . . . . . . . . . . . . 17
Setup menu . . . . . . . . . . . . . . . . . . . . . 35
Skip . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Sleep timer . . . . . . . . . . . . . . . . . . . . . . 18
Slideshow . . . . . . . . . . . . . . . . . . . . . . 22
Slow-motion . . . . . . . . . . . . . . . . . . . . 17
Soundtrack . . . . . . . . . . . . . . . . . . . . . 33
Status messages . . . . . . . . . . . . . . . . . 18
Still pictures . . . . . . . . . . . . . . . . . . . . . 21
Subtitle . . . . . . . . . . . . . . . . . . . . . . . . 33
Surround sound effects . . . . . . . . . . . 15
T
TV System. . . . . . . . . . . . . . . . . . . . . . . 37
U
Unit and media care . . . . . . . . . . . . . . . 3
USB . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
V
VIERA CASTTM . . . . . . . . . . . . . . . . . . . 30
VIERA Link “HDAVI ControlTM” . . . . . 26
W
Whisper-mode Surround . . . . . . . . . . 15
X
x.v.ColourTM . . . . . . . . . . . . . . . . . . . . . 53
24p . . . . . . . . . . . . . . . . . . . . . . 34, 37, 53
Panasonic Corporation
Web Site: http://panasonic.net
Pursuant to at the directive 2004/108/EC, article 9(2)
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
Information for Users on Collection
and Disposal of Old Equipment and
used Batteries
These symbols on the
products, packaging, and/
or accompanying
documents mean that
used electrical and
electronic products and
batteries should not be
mixed with general
household waste.
For proper treatment, recovery and
recycling of old products and used
batteries, please take them to
applicable collection points, in
accordance with your national
legislation and the Directives 2002/96/
EC and 2006/66/EC.
By disposing of these products and
batteries correctly, you will help to save
valuable resources and prevent any
potential negative effects on human
health and the environment which could
otherwise arise from inappropriate
waste handling.
For more information about collection
and recycling of old products and
batteries, please contact your local
municipality, your waste disposal
service or the point of sale where you
purchased the items.
Penalties may be applicable for
incorrect disposal of this waste, in
accordance with national legislation.
For business users in
the European Union
If you wish to discard
electrical and electronic
equipment, please contact
your dealer or supplier for
further information.
[Information on Disposal in other
Countries outside the European
Union]
These symbols are only valid in the
European Union. If you wish to discard
these items, please contact your local
authorities or dealer and ask for the
correct method of disposal.
Note for the battery
symbol (bottom two
symbol examples):
This symbol might be
used in combination with
a chemical symbol. In this
Cd
case it complies with the
requirement set by the
Directive for the chemical involved.
EU
p
RQT9464-B
F0409AC0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
