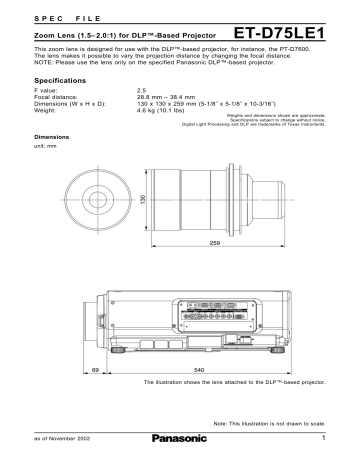

SPEC
FILE
Zoom Lens (1.5– 2.0:1) for DLP™-Based Projector
ET-D75LE1
This zoom lens is designed for use with the DLP™-based projector, for instance, the PT-D7600.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™-based projector.
Specifications
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.5
28.8 mm – 38.4 mm
130 x 130 x 259 mm (5-1/8˝ x 5-1/8˝ x 10-3/16˝)
4.6 kg (10.1 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
unit: mm
(Dimensions given in inches are approximate.)
The illustration shows the lens attached to the DLP™-based projector.
Note: This illustration is not drawn to scale.
as of November 2002
1
SPEC
FILE
Zoom Lens (2.0– 3.0:1) for DLP™-Based Projector
ET-D75LE2
This zoom lens is designed for use with the DLP™-based projector, for instance, the PT-D7600.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™-based projector.
Specifications
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.5
38.7 mm – 58.0 mm
130 x 130 x 244 mm (5-1/8˝ x 5-1/8˝ x 9-5/8˝)
4.0 kg (8.8 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
unit: mm
(Dimensions given in inches are approximate.)
The illustration shows the lens attached to the DLP™-based projector.
Note: This illustration is not drawn to scale.
as of November 2002
2
SPEC
FILE
Zoom Lens (3.0– 5.0:1) for DLP™-Based Projector
ET-D75LE3
This zoom lens is designed for use with the DLP™-based projector, for instance, the PT-D7600.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™-based projector.
Specifications
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.5
58.1 mm – 96.5 mm
130 x 130 x 246 mm (5-1/8˝ x 5-1/8˝ x 9-11/16˝)
4.1 kg (9.0 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
unit: mm
(Dimensions given in inches are approximate.)
The illustration shows the lens attached to the DLP projector.
Note: This illustration is not drawn to scale.
as of November 2002
3
SPEC
FILE
Zoom Lens (5.0– 8.0:1) for DLP™-Based Projector
ET-D75LE4
This zoom lens is designed for use with the DLP™-based projector, for instance, the PT-D7600.
The lens makes it possible to vary the projection distance by changing the focal distance.
NOTE: Please use the lens only on the specified Panasonic DLP™-based projector.
Specifications
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.5
96.5 mm – 154.1 mm
130 x 130 x 271 mm (5-1/8˝ x 5-1/8˝ x 10-11/16˝)
3.7 kg (8.2 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
unit: mm
(Dimensions given in inches are approximate.)
The illustration shows the lens attached to the DLP projector.
Note: This illustration is not drawn to scale.
as of November 2002
4
SPEC
FILE
ET-D75LE5
Fixed-Focus Lens (0.8:1)
This fixed-focus short-throw lens is designed for use with the DLP™-based projector, for instance,
the PT-D7600.
NOTE: Please use the lens only on the specified Panasonic DLP™-based projector.
Specifications
F value:
Focal distance:
Dimensions (W x H x D):
Weight:
2.5
14.8 mm
130 x 130 x 352 mm (5-1/8˝ x 5-1/8˝ x 13-7/8˝)
6.0 kg (13.2 lbs)
Weights and dimensions shown are approximate.
Specifications subject to change without notice.
Digital Light Processing and DLP are trademarks of Texas Instruments.
Dimensions
unit: mm
(Dimensions given in inches are approximate.)
The illustration shows the lens attached to the DLP projector.
Note: This illustration is not drawn to scale.
as of November 2002
5
