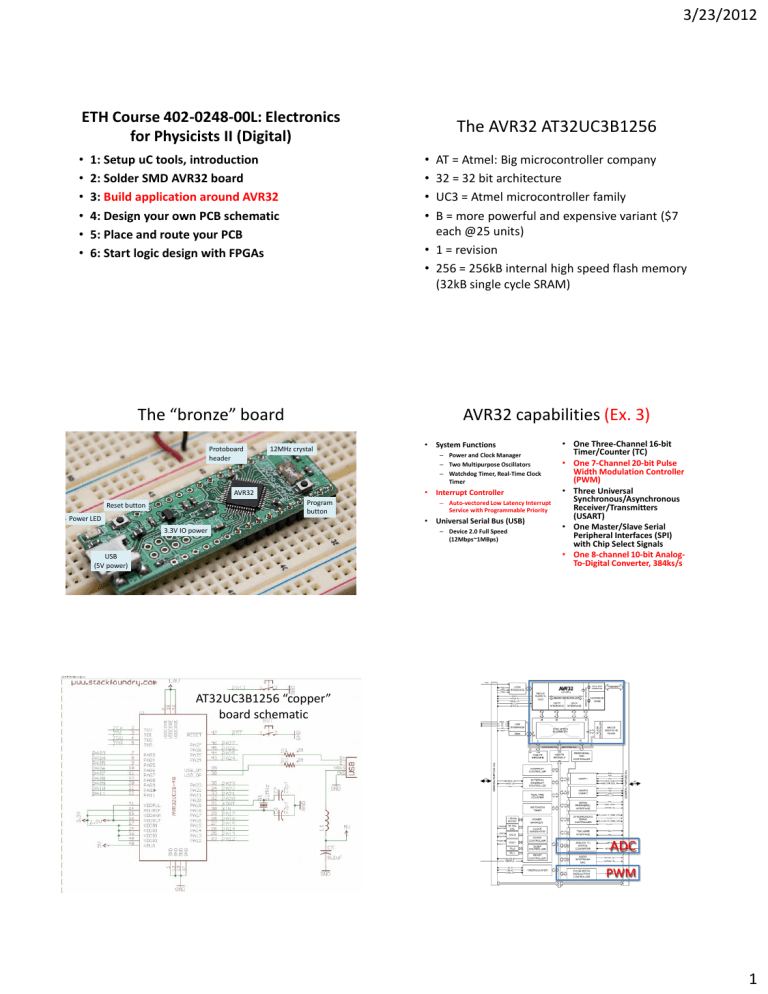

ETH Course 402-0248-00L: Electronics
for Physicists II (Digital)
•
•
•
•
•
•
The AVR32 AT32UC3B1256
•
•
•
•
1: Setup uC tools, introduction
2: Solder SMD AVR32 board
3: Build application around AVR32
4: Design your own PCB schematic
5: Place and route your PCB
6: Start logic design with FPGAs
AT = Atmel: Big microcontroller company
32 = 32 bit architecture
UC3 = Atmel microcontroller family
B = more powerful and expensive variant ($7
each @25 units)
• 1 = revision
• 256 = 256kB internal high speed flash memory
(32kB single cycle SRAM)
The “bronze” board
Protoboard
header
AVR32 capabilities (Ex. 3)
12MHz crystal
AVR32
•
– Power and Clock Manager
– Two Multipurpose Oscillators
– Watchdog Timer, Real-Time Clock
Timer
•
Interrupt Controller
•
Universal Serial Bus (USB)
– Auto-vectored Low Latency Interrupt
Service with Programmable Priority
Program
button
Reset button
Power LED
3.3V IO power
USB
(5V power)
System Functions
– Device 2.0 Full Speed
(12Mbps~1MBps)
• One Three-Channel 16-bit
Timer/Counter (TC)
• One 7-Channel 20-bit Pulse
Width Modulation Controller
(PWM)
• Three Universal
Synchronous/Asynchronous
Receiver/Transmitters
(USART)
• One Master/Slave Serial
Peripheral Interfaces (SPI)
with Chip Select Signals
• One 8-channel 10-bit AnalogTo-Digital Converter, 384ks/s
AT32UC3B1256 “copper”
board schematic
ADC
PWM
1
3/23/2012
AVR32 Software Framework
Exercise 3: “Sound volume robot”
• measures sound volume and moves arm to
indicate loudness
• microphone -> preamp -> ADC -> uC -> PWM output
e.g.
GPIO, ADC,
PWM
(debugging, programming)
Electret Microphone
“RC” servos (Radio-Control Servo-Motors)
• Position controlled – Servo has internal
position measurement and controller
• Rotation angle 120 degrees
• Pulse width from 1-2ms sets desired
position
• Pulses must be sent at frequency 50200Hz
• Pulse height >2V
•
•
•
•
Cheap (< 1$)
Electret material, no polarization voltage
is required
Low-noise JFET buffer
Metal foil is connected to source of the
JFET through metal capsule
metal capsule
metal ring
metal foil
electret foil
air gap
spacer
metal backplate
case
12
Microphone + Preamp
LM324 quad JFET opamp
“low is high”
Servo power supply
2
3/23/2012
AVR32 Analog to Digital converter
• 10-bit Successive approximation
register (SAR) type
• 6 multiplexed single-ended input
channels
• Max combined sample rate
384ks/s
• External trigger
• Hardware sequencer
• Peripheral DMA
3
