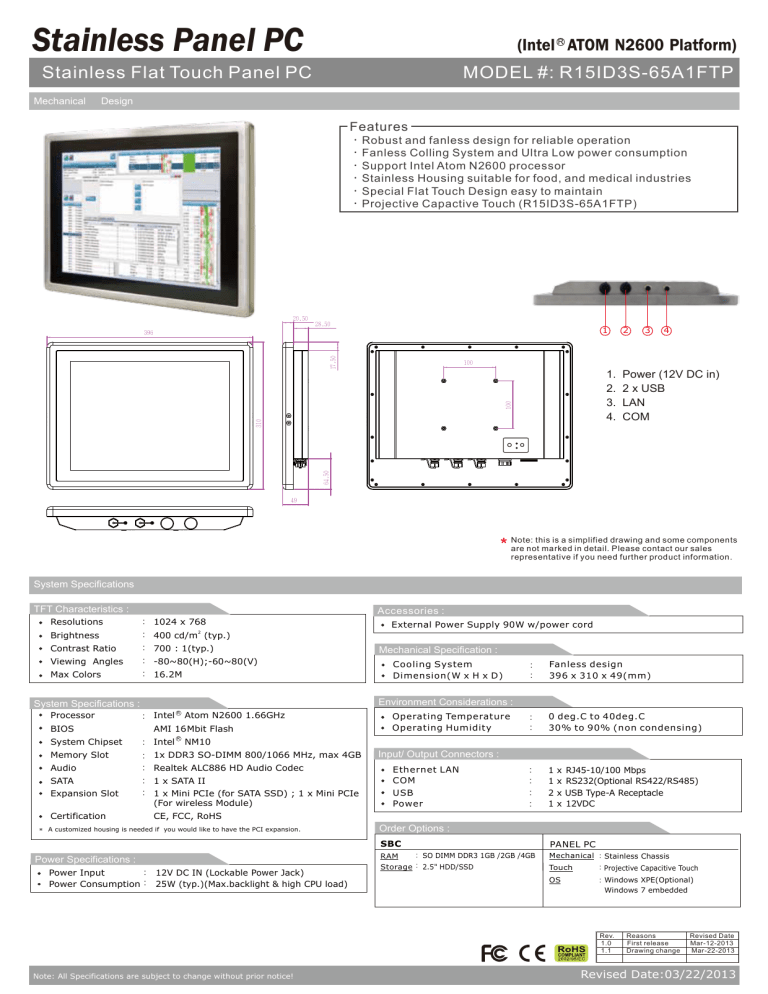

Stainless Panel PC
Stainless Panel PC
(Intel R ATOM N2600 Platform)
Stainless Flat Touch Panel PC
Mechanical
MODEL #: R15ID3S-65A1FTP
Design
Features
•Robust and fanless design for reliable operation
•Fanless Colling System and Ultra Low power consumption
•Support Intel Atom N2600 processor
•Stainless Housing suitable for food, and medical industries
•Special Flat Touch Design easy to maintain
•Projective Capactive Touch (R15ID3S-65A1FTP)
20.50
28.50
1
17.50
396
2
3
4
100
Power (12V DC in)
2 x USB
LAN
COM
64.50
310
100
1.
2.
3.
4.
49
this is a simplified drawing and some components
* Note:
are not marked in detail. Please contact our sales
representative if you need further product information.
System Specifications
TFT Characteristics :
Resolutions
Brightness
: 1024 x 768
: 400 cd/m2 (typ.)
Viewing Angles
: 700 : 1(typ.)
: -80~80(H);-60~80(V)
Max Colors
: 16.2M
Contrast Ratio
System Specifications :
Processor
AMI 16Mbit Flash
R
System Chipset
: Intel
Memory Slot
: 1x DDR3 SO-DIMM 800/1066 MHz, max 4GB
: Realtek ALC886 HD Audio Codec
SATA
Expansion Slot
External Power Supply 90W w/power cord
Mechanical Specification :
Cooling System
Dimension(W x H x D)
:
:
Fanless design
396 x 310 x 49(mm)
:
:
0 deg.C to 40deg.C
30% to 90% (non condensing)
:
:
:
:
1
1
2
1
Environment Considerations :
R
: Intel Atom N2600 1.66GHz
BIOS
Audio
Accessories :
NM10
: 1 x SATA II
: 1 x Mini PCIe (for SATA SSD) ; 1 x Mini PCIe
(For wireless Module)
Certification
Input/ Output Connectors :
Ethernet LAN
COM
USB
Power
x
x
x
x
RJ45-10/100 Mbps
RS232(Optional RS422/RS485)
USB Type-A Receptacle
12VDC
CE, FCC, RoHS
* A customized housing is needed if you would like to have the PCI expansion.
Order Options :
SBC
PANEL PC
: SO DIMM DDR3 1GB /2GB /4GB
Storage : 2.5" HDD/SSD
Mechanical : Stainless Chassis
RAM
Power Specifications :
:
Power Input
Power Consumption :
Operating Temperature
Operating Humidity
12V DC IN (Lockable Power Jack)
25W (typ.)(Max.backlight & high CPU load)
Touch
: Projective Capacitive Touch
OS
: Windows XPE(Optional)
Windows 7 embedded
Rev.
1.0
1.1
Note: All Specifications are subject to change without prior notice!
