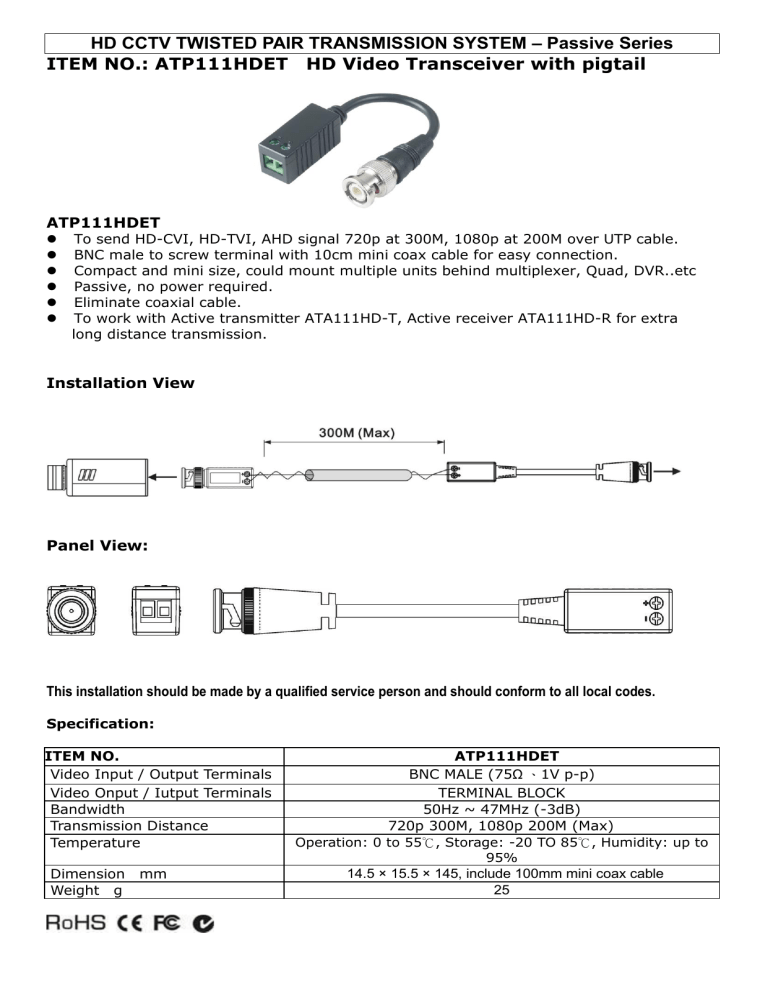

HD CCTV TWISTED PAIR TRANSMISSION SYSTEM – Passive Series
ITEM NO.: ATP111HDET HD Video Transceiver with pigtail
ATP111HDET






To send HD-CVI, HD-TVI, AHD signal 720p at 300M, 1080p at 200M over UTP cable.
BNC male to screw terminal with 10cm mini coax cable for easy connection.
Compact and mini size, could mount multiple units behind multiplexer, Quad, DVR..etc
Passive, no power required.
Eliminate coaxial cable.
To work with Active transmitter ATA111HD-T, Active receiver ATA111HD-R for extra
long distance transmission.
Installation View
Panel View:
This installation should be made by a qualified service person and should conform to all local codes.
Specification:
ITEM NO.
Video Input / Output Terminals
Video Onput / Iutput Terminals
Bandwidth
Transmission Distance
Temperature
Dimension
Weight g
mm
ATP111HDET
BNC MALE (75Ω 、1V p-p)
TERMINAL BLOCK
50Hz ~ 47MHz (-3dB)
720p 300M, 1080p 200M (Max)
Operation: 0 to 55℃, Storage: -20 TO 85℃, Humidity: up to
95%
14.5 × 15.5 × 145, include 100mm mini coax cable
25
