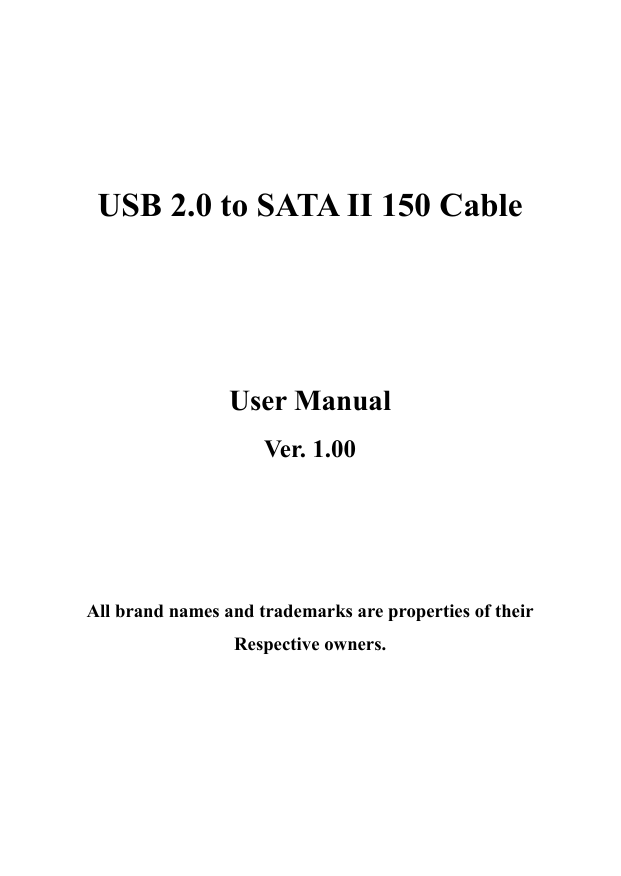

USB 2.0 to SATA II 150 Cable
USB 2.0 to SATA II 150 Cable
User Manual
Ver. 1.00
All brand names and trademarks are properties of their
Respective owners.
Features & Specifications

Fully compliant with USB 2.0 & USB 1.1

Transfer Rate: High-Speed up to 480 Mbps data transfer rate

Access any 2.5’’ or 3.5’’ SATA drive through USB 2.0 port

Compliant with Serial ATA 1.0 specification

Compliance with Gen1i/m of SATA II electrical specification 2.5

Supports LBA48 addressing mode

Plug-and-play without installing the driver

LED indicate for power status and drive activity

One Touch Backup file or data

Support Windows® 2000 / XP / Vista
System Requirements

Windows® 2000/XP/Vista

USB 1.1 or higher port
Package Contents

1 x USB 2.0 to SATA II 150 Cable

1 x User Manual

1 x Utility CD
MN3000000052 Page 2 Optional Accessories

1 x 5V/12V Power adapter
Note: Contents may vary depending on country/market
Hardware Description
Hardware Installation
Using a 2.5’’ SATA Drive
1.
Connect SATA connector to 2.5’’ SATA drive.
MN3000000052 Page 3 2.
If power is insufficient, please plug in the USB Extra Power cable
plug into a free USB port to get more power for the 2.5’’ hard
disk.
3.
Plug the USB 2.0 to SATA II 150 Cable into the USB port of your
PC.
Using a 3.5’’ SATA Drive
1.
Connect SATA connector to 3.5’’ SATA drive.
MN3000000052 Page 4 2.
Please connect the power adapter to the USB 2.0 to SATA II 150
Cable.
3.
Plug the USB 2.0 to SATA II 150 Cable into the USB port of your
PC.
(Note: DO NOT connect the USB Extra Power cable plug to any
USB ports!)
MN3000000052 Page 5 Warning
If extra power is needed, the USB Extra Power cable plug must be
connected to the same host as the USB 2.0 Signal/Data cable plug. If
they are connected to different host, it may cause hardware damage to
your computer. Simply speaking, the USB ports in a computer have the
same host. The USB ports in a hub have the same host. But the USB
ports in a computer and the USB ports in a hub connected to the
computer have different hosts.
Utility Installation
1.
To install the PC Clone EX utility, please locate the installation
CD folder “X:\JM20329” and then double click the setup.exe file.
MN3000000052 Page 6 2.
Follow the on-screen installation to complete the installation.
3.
“PC Clone EX” icon will displays in the notification area after
setup, you can double click the icon or press the right key of the
mouse to execute PC Clone EX.
For more information about the PC Clone EX utility,
please follow the steps on below:
Right click “PC Clone EX” icon in the notification area, then select
“Help” option in the pop-up menu.
MN3000000052 Page 7
