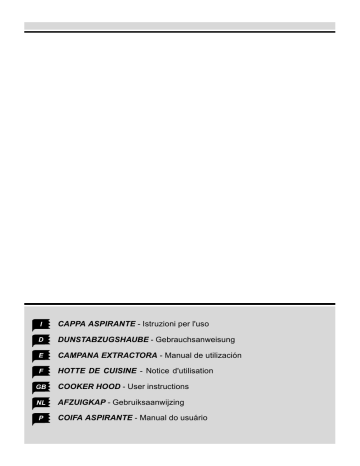

I
CAPPA ASPIRANTE - Istruzioni per l'uso
D
DUNSTABZUGSHAUBE - Gebrauchsanweisung
E
CAMPANA EXTRACTORA - Manual de utilización
F
HOTTE DE CUISINE - Notice d'utilisation
GB
COOKER HOOD - User instructions
NL
AFZUIGKAP - Gebruiksaanwijzing
P
COIFA ASPIRANTE - Manual do usuário
A
B
max 90 cm
C
M
20
Fig.1
A
B
= =
A
Fig.2
Fig.3
C
A
A
Fig.4
-3-
Fig.5
B
C
D
E
F
90°
Fig.7
Fig.6
A
A
B
C
G
A1 A2
C1 C2 C4
C3
B
Fig.8
Fig.9
-4-
B
C
D
E
A
ENGLISH
GENERAL
Carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed for use in the ducting
version (air exhaust to the outside – Fig.1B), filtering
version (air circulation on the inside – Fig.1A) or with
external motor (Fig.1C).
SAFETY PRECAUTION
1. Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depend on
the air in the environment and are supplied by other than
electrical energy, as the cooker hood removes the air
from the environment which a burner or fireplace need for
combustion. The negative pressure in the environment
must not exceed 4Pa (4x10-5 bar). Provide adequate
ventilation in the environment for a safe operation of the
cooker hood.
Follow the local laws applicable for external air evacuation.
Before connecting the model to the electricity network:
- control the data plate (positioned inside the appliance)
to ascertain that the voltage and power correspond to
the network and the socket is suitable. If in doubt ask a
qualified electrician.
If the power supply cable is damaged, it must be replaced
with another cable or a special assembly, which may be
obtained direct from the manufacturer or from the Technical
Assistance Centre.
2. WARNING !
In certain circumstances electrical appliances may be
a danger hazard.
A) Do not check the status of the filters while the
cooker hood is operating
B) Do not touch bulbs or adjacent areas, during or
straight after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker
hood
D) Avoid free flame, as it is damaging for the filters
and a fire hazard
E) Constantly check food frying to avoid that the overheated oil may become a fire hazard
F) Disconnect the electrical plug prior to any maintenance.
G) This appliance is not intended for use by young
children or infirm persons without supervision
H) Young children should be supervised to ensure they
do not play with the appliance
I) There shall be adequate ventilation of the room
when the rangehood is used at the same time as appliances burning gas or other fuels
L) There is a risk of fire if cleaning is not carried out
in accordance with the instructions
This appliance conforms to the European Directive EC/
2002/96, Waste Electrical and Electronic Equipment
(WEEE). By making sure that this appliance is disposed
of in a suitable manner, the user is helping to prevent
potential damage to the environment or to public health.
he
symbol on the product or on the accompanying
paperwork indicates that the appliance should not be
treated as domestic waste, but should be delivered to a
suitable electric and electronic appliance recycling
GB
collection point.
Follow local guidelines when disposing of waste.
For more information on the treatment, re-use and
recycling of this product, please contact your local
authority, domestic waste collection service or the shop
where the appliance was purchased.
INSTALLATION INSTRUCTIONS
Assembly and electrical connections must be carried
out by specialised personnel.
• Electric Connection
The appliance has been manufactured as a class II,
therefore no earth cable is necessary.
The connection to the mains is carried out as follows:
BROWN = L line
BLUE = N neutral
If not provided, connect a plug for the electrical load
indicated on the description label. Where a plug is provided, the cooker hood must be installed in order that the
plug is easily accessible.
An omnipolar switch with a minimum opening of 3mm
between contacts, in line with the electrical load and
local standards, must be placed between the appliance
and the network in the case of direct connection to the
electrical network.
• The minimum distance between the support surfaces of
the cooking pots on the cooker top and the lowest part of
the cooker hood must be at least 65 cm.
If a connection tube composed of two parts is used, the
upper part must be placed outside the lower part.
Do not connect the cooker hood exhaust to the same
conductor used to circulate hot air or for evacuating
fumes from other appliances generated by other than an
electrical source.
Before proceeding with the assembly operations, remove
the anti-grease filter(s) (Fig.6) so that the unit is easier
to handle.
In the case of assembly of the appliance in the suction
version prepare the hole for evacuation of the air.
• If your appliance has been designed for use in habitations
supplied with acentralised suction device perform the
following operations:
-The switch controls opening and closure of a valve
using a thermoelectical device. By placing the switch in
the ON position, after a minute, the valve opens rotating
90° allowing suction of the stale air. By placing the switch
in the OFF position, the valve closes after 100 seconds.
• FIXING TO THE WALL
Drill the holes A respecting the distances indicated (Fig.2).
Fix the appliance to the wall and align it in horizontal
position to the wall units. When the appliance has been
adjusted, definitely fix the hood using the screws A (Fig.4).
For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete,
plasterboard, etc.). If the screws and screw anchors are
provided with the product, check that they are suitable
for the type of wall on which the hood is to be fixed.
• FIXING THE DECORATIVE TELESCOPIC FLUE
Arrange the electrical power supply within the dimensions of the decorative flue. If your appliance is to be
installed in the ducting version or in the version with
external motor, prepare the air exhaust opening. Adjust
the width of the support bracket of the upper flue (Fig.3).
Then fix it to the ceiling using the screws A (Fig.3) in
such a way that it is in line with your hood and respecting
the distance from the ceiling indicated in Fig.2. Connect
- 13 -
the flange C to the air exhaust hole using a connection
pipe (Fig.4). Insert the upper flue into the lower flue and
rest above the frame. Extract the upper flue up to the
bracket and fix it with the screws B (Fig.3).
To transform the hood from a ducting version into a
filtering version, ask your dealer for the charcoal filters
and follow the installation instructions.
• FILTERING VERSION
Install the hood and the two flues as described in the
paragraph for installation of the hood in ducting version.
To assemble the filtering flue refer to the instructions
contained in the kit.
If the kit is not provided, order it from your dealer as
accessory.
The filters must be applied to the suction unit positioned
inside the hood. They must be centred by turning them 90
degrees until the stop catch is tripped (fig. 7).
USE AND MAINTENANCE
• It is recommended to operate the appliance prior to
cooking.
It is recommended to leave the appliance in operation for
15 minutes after cooking is terminated in order to completely eliminate cooking vapours and odours.
The proper function of the cooker hood is conditioned by
the regularity of the maintenance operations, in particular, the active carbon filter.
• The anti-grease filters capture the grease particles
suspended in the air, and are therefore subject to clogging according to the frequency of the use of the appliance.
In order to prevent fire hazard, it is recommendable to
clean the filter at a maximum of 2 months by carrying out
the following instructions:
- Remove the filters from the cooker hood and wash them
in a solution of water and neutral liquid detergent, leaving
to soak.
- Rinse thoroughly with warm water and leave to dry.
- The filters may also be washed in the dishwasher.
The aluminium panels may alter in colour after several
washes. This is not cause for customer complaint nor
replacement of panels.
• The active carbon filters purify the air that is replaced
in the environment. The filters are not washable nor reuseable and must be replaced at maximum every four
months. The saturation of the active carbon filter depends on the frequency of use of the appliance, by the
type of cooking and the regularity of cleaning the antigrease filters.
• Clean the fan and other surfaces of the cooker hood
regularly using a cloth moistened with denatured alcohol
or non abrasive liquid detergent.
When the function is active the LED flashes. To interrupt it before the 10 minutes have expired press key E
again.
• By pressing key F for two seconds (with the hood
switched off) the “clean air” function is activated. This
function switches the appliance on for ten minutes every
hour at the first speed. As soon as this function is activated the motor starts up at the first speed for ten
minutes, During this time key F and key C must flash at
the same time.
After ten minutes the motor switches off and the LED of
key F remains switched on with a fixed light until the
motor starts up again at the first speed after fifty minutes and keys F and C start to flash again for ten minutes
and so on.
By pressing any key for the exclusion of the hood light
the hood will return immediately to its normal functioning
(e.g. if key D is pressed the “clean air” function is deactivated and the motor moves to the 2nd speed straight
away. By pressing key B the function is deactivated).
• Active carbon/grease filter saturation:
- When button A flashes at a frequency of 2 seconds, the
grease filters must be cleaned.
- When button A flashes at a frequency of 0.5 seconds,
the carbon filters must be replaced.
After the clean filter has been replaced, the electronic
memory must be reset by pressing button A for
approximately 5 seconds, until the light on the button
stops flashing.
•COMMANDS:(Fig.9A)MECHANICAL_(Fig.9B) ELLIPTIC
the key symbols are explained below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
G = MOTOR WORKING indicator
•COMMANDS: (pic.8) SLIDER the key symbols are explained below:
A = Light switch
A1 = Off key
A2 = On key
B = Gemma warning light key
C = Speed control
C1 = Off key
C2 = FIRST SPEED key
C3 = SECOND SPEED key
C4 = THIRD SPEED key
THE MANUFACTURER DECLINES ALL RESPONSIBILITY
FOR EVENTUAL DAMAGES CAUSED BY BREACHING
THE ABOVE WARNINGS.
• The illumination installation is designed for use during
cooking and not for prolonged general illumination of the
environment. Prolonged use of the illumination installation notably reduces the duration of the bulb.
• COMMANDS: (Fig.5) LUMINOUS the key symbols are
explained below:
A = LIGHT
B = OFF
C = SPEED I
D = SPEED II
E = SPEED III
F = AUTOMATIC STOP TIMER - 15 minutes
• If your appliance does not have the INTENSIVE speed
function, press key E for two seconds and it will be
activated for 10 minutes after which it will return to the
previously set speed.
- 14 -
