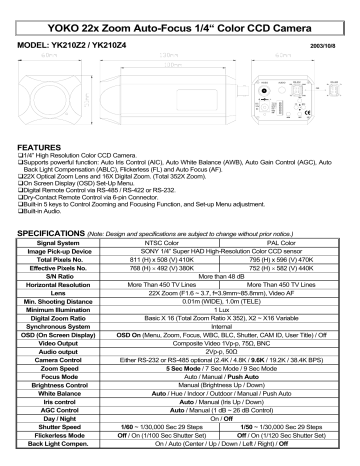

YOKO 22x Zoom Auto-Focus 1/4“ Color CCD Camera

YOKO 22x Zoom Auto-Focus 1/4“ Color CCD Camera
YOKO 22x Zoom Auto-Focus 1/4“ Color CCD Camera
MODEL: YK210Z2 / YK210Z4
2003/10/8
AUDIO
VIDEO
RS-232
RD
RS-485
GND
R+
T+
R-
T-
OR
TD
GND
DC
12V
IN
-
-
FEATURES
‰1/4” High Resolution Color CCD Camera.
‰Supports powerful function: Auto Iris Control (AIC), Auto White Balance (AWB), Auto Gain Control (AGC), Auto
Back Light Compensation (ABLC), Flickerless (FL) and Auto Focus (AF).
‰22X Optical Zoom Lens and 16X Digital Zoom. (Total 352X Zoom).
‰On Screen Display (OSD) Set-Up Menu.
‰Digital Remote Control via RS-485 / RS-422 or RS-232.
‰Dry-Contact Remote Control via 6-pin Connector.
‰Built-in 5 keys to Control Zooming and Focusing Function, and Set-up Menu adjustment.
‰Built-in Audio.
SPECIFICATIONS (Note: Design and specifications are subject to change without prior notice.)
Signal System
Image Pick-up Device
Total Pixels No.
Effective Pixels No.
S/N Ratio
Horizontal Resolution
Lens
Min. Shooting Distance
Minimum Illumination
Digital Zoom Ratio
Synchronous System
OSD (On Screen Display)
Video Output
Audio output
Camera Control
Zoom Speed
Focus Mode
Brightness Control
White Balance
Iris control
AGC Control
Day / Night
Shutter Speed
Flickerless Mode
Back Light Compen.
NTSC Color
PAL Color
SONY 1/4” Super HAD High-Resolution Color CCD sensor
811 (H) x 508 (V) 410K
795 (H) x 596 (V) 470K
768 (H) × 492 (V) 380K
752 (H) × 582 (V) 440K
More than 48 dB
More Than 450 TV Lines
More Than 450 TV Lines
22X Zoom (F1.6 ~ 3.7, f=3.9mm~85.8mm), Video AF
0.01m (WIDE), 1.0m (TELE)
1 Lux
Basic X 16 (Total Zoom Ratio X 352), X2 ~ X16 Variable
Internal
OSD On (Menu, Zoom, Focus, WBC, BLC, Shutter, CAM ID, User Title) / Off
Composite Video 1Vp-p, 75Ω, BNC
2Vp-p, 50Ω
Either RS-232 or RS-485 optional (2.4K / 4.8K / 9.6K / 19.2K / 38.4K BPS)
5 Sec Mode / 7 Sec Mode / 9 Sec Mode
Auto / Manual / Push Auto
Manual (Brightness Up / Down)
Auto / Hue / Indoor / Outdoor / Manual / Push Auto
Auto / Manual (Iris Up / Down)
Auto / Manual (1 dB ~ 26 dB Control)
On / Off
1/60 ~ 1/30,000 Sec 29 Steps
1/50 ~ 1/30,000 Sec 29 Steps
Off / On (1/100 Sec Shutter Set)
Off / On (1/120 Sec Shutter Set)
On / Auto (Center / Up / Down / Left / Right) / Off
Negative / Positive
Color Control
Wide Burst
Zoom / Focus Preset
Dry-Contact Remote Control
Key Control
Operating Temperature
Operation Humidity
Supplied Voltage
Power Consumption
* BOLD: Default Mode
Negative On / Off
On / Off
On / Off
128 Mode Set / Move (Store with Internal EEPROM)
6-pin connector: Tele, Wide, Near, Far, Menu, GND
Tele (Up), Wide (Down), Near (+), Far (-), Menu
-5℃~50℃
0 % RH ~ 60 % RH
12V ± 10% (Recommendation 12±0.5 V)
Max 4.1 W
