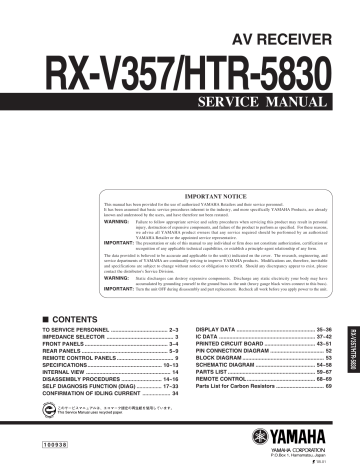

AV RECEIVER

RX-V357/HTR-5830

SERVICE MANUAL

IMPORTANT NOTICE

This manual has been provided for the use of authorized YAMAHA Retailers and their service personnel.

It has been assumed that basic service procedures inherent to the industry, and more specifically YAMAHA Products, are already known and understood by the users, and have therefore not been restated.

WARNING:

Failure to follow appropriate service and safety procedures when servicing this product may result in personal injury, destruction of expensive components, and failure of the product to perform as specified. For these reasons, we advise all YAMAHA product owners that any service required should be performed by an authorized

YAMAHA Retailer or the appointed service representative.

IMPORTANT:

The presentation or sale of this manual to any individual or firm does not constitute authorization, certification or recognition of any applicable technical capabilities, or establish a principle-agent relationship of any form.

The data provided is believed to be accurate and applicable to the unit(s) indicated on the cover. The research, engineering, and service departments of YAMAHA are continually striving to improve YAMAHA products. Modifications are, therefore, inevitable and specifications are subject to change without notice or obligation to retrofit. Should any discrepancy appear to exist, please contact the distributor's Service Division.

WARNING:

Static discharges can destroy expensive components. Discharge any static electricity your body may have accumulated by grounding yourself to the ground buss in the unit (heavy gauge black wires connect to this buss).

IMPORTANT:

Turn the unit OFF during disassembly and part replacement. Recheck all work before you apply power to the unit.

CONTENTS

TO SERVICE PERSONNEL ...................................... 2~3

IMPEDANCE SELECTOR ............................................. 3

FRONT PANELS ........................................................ 3~4

REAR PANELS .......................................................... 5~9

REMOTE CONTROL PANELS ...................................... 9

SPECIFICATIONS .................................................. 10~13

INTERNAL VIEW ......................................................... 14

DISASSEMBLY PROCEDURES ........................... 14~16

SELF DIAGNOSIS FUNCTION (DIAG)

................. 17~33

CONFIRMATION OF IDLING CURRENT

................... 34

DISPLAY DATA ..................................................... 35~36

IC DATA ................................................................. 37~42

PRINTED CIRCUIT BOARD .................................. 43~51

PIN CONNECTION DIAGRAM .................................... 52

BLOCK DIAGRAM ....................................................... 53

SCHEMATIC DIAGRAM ........................................ 54~58

PARTS LIST ........................................................... 59~67

REMOTE CONTROL .............................................. 68~69

Parts List for Carbon Resistors ................................ 69

1 0 0 9 3 8

P.O.Box 1, Hamamatsu, Japan

'05.01

2

RX-V357/HTR-5830

TO SERVICE PERSONNEL

1. Critical Components Information

Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

2. Leakage Current Measurement (For 120V Models Only)

When service has been completed, it is imperative to verify that all exposed conductive surfaces are properly insulated from supply circuits.

● Meter impedance should be equivalent to 1500 ohms shunted by 0.15

µF.

WALL

OUTLET

EQUIPMENT

UNDER TEST

AC LEAKAGE

TESTER OR

EQUIVALENT

INSULATING

TABLE

Leakage current must not exceed 0.5mA.

Be sure to test for leakage with the AC plug in both polarities.

“CAUTION”

“F371: FOR CONTINUED PROTECTION AGAINST RISK OF FIRE, REPLACE ONLY WITH SAME TYPE 6A, 125V FUSE.”

CAUTION

F371: REPLACE WITH SAME TYPE 6A, 125V FUSE.

ATTENTION

F371: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE DE 6A, 125V.

WARNING: CHEMICAL CONTENT NOTICE!

The solder used in the production of this product contains LEAD. In addition, other electrical/electronic and/or plastic (where applicable) components may also contain traces of chemicals found by the California Health and Welfare Agency (and possibly other entities) to cause cancer and/or birth defects or other reproductive harm.

DO NOT PLACE SOLDER, ELECTRICAL/ELECTRONIC OR PLASTIC COMPONENTS IN YOUR MOUTH FOR ANY REA-

SON WHATSOEVER!

Avoid prolonged, unprotected contact between solder and your skin! When soldering, do not inhale solder fumes or expose eyes to solder/flux vapor!

If you come in contact with solder or components located inside the enclosure of this product, wash your hands before handling food.

About Lead Free Solder

The P.C.B.s installed in this unit are soldered using the following solder.

DSP P.C.B.

FUNCTION P.C.B.

MAIN P.C.B.

Side A

Lead Free Solder

Side A

Side B

SMT

REFLOW

Process

Solder Dip

MI

FLOW

Process

Side B

Lead Free Solder

Lead Free Solder

Lead Free Solder

RX-V357/HTR-5830

Among some types of lead free solder currently available, it is recommended to use one of the following types for the repair work.

• Sn + Ag + Cu (tin + silver + copper)

• Sn + Cu (tin + copper)

• Sn + Zn + Bi (tin + zinc + bismuth)

Caution:

1. As the melting point temperature of the lead free solder is about 30

°C to 40°C (50°F to 70°F) higher than that of the lead solder, be sure to use a soldering iron suitable to each solder.

2. If lead solder must be used, be sure to remove lead free solder from each terminal section of the parts to be replaced and from the area around it completely before soldering, or make sure that the lead free solder and lead solder melt together fully.

IMPEDANCE SELECTOR

U, C models

FRONT PANELS

RX-V357 (C, R, T, K, A, L models)

IMPEDANCE SELECTOR

WARNING:

Do not change the IMPEDANCE SELECTOR switch setting while the power to this unit is on, otherwise this unit may be damaged.

3

RX-V357/HTR-5830

RX-V357 (B, G, E models)

HTR-5830 (U, C, R, T, K, A models)

4

HTR-5830 (B, G, E models)

REAR PANELS

RX-V357 (C model)

RX-V357 (R model)

RX-V357 (T model)

RX-V357/HTR-5830

5

RX-V357/HTR-5830

RX-V357 (K model)

RX-V357 (A model)

6

RX-V357 (B, G, E models)

RX-V357 (L model)

HTR-5830 (U, C models)

HTR-5830 (R model)

RX-V357/HTR-5830

7

RX-V357/HTR-5830

HTR-5830 (T model)

HTR-5830 (K model)

8

HTR-5830 (A model)

HTR-5830 (B, G, E models)

REMOTE CONTROL PANELS

RX-V357 (C, R, T, K, A, L models)

HTR-5830 (U, C, R, T, K, A models)

RX-V357 (B, G, E models)

HTR-5830 (B, G, E models)

RX-V357/HTR-5830

9

RX-V357/HTR-5830

10

SPECIFICATIONS

Audio Section

Minimum RMS Output Power (Power Amp. Section)

(1 kHz, 0.9 % THD, 8 ohms)

FRONT L/R

U, C models .................................. 110 W + 110 W

CENTER

U, C models ................................................. 110 W

SURROUND L/R

U, C models .................................. 110 W + 110 W

(1 kHz, 0.9 % THD, 6 ohms)

FRONT L/R

U, C models .................................. 110 W + 110 W

R, T, K, A, B, G, E, L models ....... 100 W + 100 W

CENTER

U, C models ................................................. 110 W

R, T, K, A, B, G, E, L models ...................... 100 W

SURROUND L/R

U, C models .................................. 110 W + 110 W

R, T, K, A, B, G, E, L models ....... 100 W + 100 W

Maximum Power [R, T, K, L models]

(EIAJ, 1 kHz, 10 % THD, 6 ohms)

FRONT L/R ......................................... 110 W + 110 W

CENTER ............................................................. 110 W

SURROUND L/R ................................. 110 W + 110 W

DIN Standard Output Power Per Channel

[B, G, E, L models]

(1 kHz, 0.7 % THD, 4 ohms)

FRONT L/R ......................................... 105 W + 105 W

CENTER ............................................................. 105 W

SURROUND L/R ................................. 105 W + 105 W

IEC Power

[B, G, E, L models]

1 kHz, 0.1 % THD, 6 ohms ..................... 90 W + 90 W

Dynamic Power Per Channel (IHF)

U, C models (8/6/4/2 ohms) .......... 120/140/160/180 W

R, T, K, A, B, G, L, E models

(6/4/2 ohms) ......................................... 105/135/165 W

Dynamic Headroom [U, C models]

6 ohms .............................................................. 0.38 dB

Input Sensitivity / Input Impedance

CD, etc. ........................................ 200 mV / 47 k-ohms

EXT. DECODER

FRONT L/R, CENTER, SURROUND L/R,

SUB WOOFER ...................... 200 mV / 47 k-ohms

Maximum Input Signal Level

(1 kHz, 0.5 % THD, Effect On)

CD, etc. .................................................. 2.0 V or more

Output Level / Output Impedance

REC OUT .................................... 200 mV / 1.2 k-ohms

SUB WOOFER (FRONT SP: Small) .. 4 V / 1.2 k-ohms

Headphone Jack Rated Output / Impedance

CD, etc. (1 kHz, 200 mV, 8 ohms) .... 0.4 V / 470 ohms

Frequency Response

CD, etc. to FRONT L/R (10 Hz to 100 kHz) .... 0 / -3.0 dB

Total Harmonic Distortion

(1 kHz, 50 W, 6 ohms)

CD, etc. (Effect Off) to

FRONT L/R SP OUT ............................. 0.06 % or less

Signal to Noise Ratio (IHF-A network)

CD, etc. (Input shorted, EFFECT OFF) to

FRONT L/R SP OUT

250mV .......................................... 100 dB or more

Residual Noise (IHF-A network)

FRONT L/R SP OUT ............................. 150

µV or less

Channel Separation

(Vol -14 dB, Effect Off)

CD, etc. (Input 5.1 k-ohms shorted, 1 kHz / 10 kHz)

..................................... 60 dB or more / 45 dB or more

Tone Control Characteristics

BASS

Boost/Cut ......................................

±10 dB (100Hz)

TREBLE

Boost/Cut .....................................

±10 dB (20 kHz)

Filter Characteristics

FRONT, SURROUND L/R

SP Small (H.P.F.) ............................ 90 Hz / 12 dB oct.

SUBWOOFER (L.P.F.) ................... 90 Hz / 18 dB oct.

Video Section

Video Signal Type

U, C, R, K models ............................................... NTSC

T, A, B, G, E, L models .......................................... PAL

Video Signal Level

........................................................... 1 Vp-p / 75 ohms

Component Signal Level

........................................................... 1 Vp-p / 75 ohms

Maximum Input Level

........................................................... 1.5 Vp-p or more

Signal to Noise Ratio

............................................................... 50 dB or more

Monitor Out Frequency Response

Video Signal Level .................... 5 Hz to 10 MHz, -3 dB

Component Signal Level ........... 5 Hz to 60 MHz, -3 dB

FM Section

Tuning Range

U, C models .................................... 87.5 to 107.9 MHz

R, L models ........ 87.5 to 108.0 / 87.50 to 108.00 MHz

T, K, A, B, G, E models ............... 87.50 to 108.00 MHz

50dB Quieting Sensitivity (IHF)

(1 kHz, 100 % Mod.)

Mono ................................................. 2.8

µV (20.2 dBf)

Signal to Noise Ratio (IHF)

Mono / Stereo ......................................... 73 dB / 70 dB

Harmonic Distortion

(1 kHz)

Mono/Stereo ............................................ 0.5 % / 0.5 %

RX-V357/HTR-5830

Antenna Input

..................................................... 75 ohms unbalanced

AM Section

Tuning Range

U, C models ...................................... 530 to 1,710 kHz

R, L models ............... 530 to 1,710 / 531 to 1,611 kHz

T, K, A, B, G, E models ..................... 531 to 1,611 kHz

Antenna

................................................................ Loop Antenna

General

Power Supply

U, C models ...................................... AC 120 V, 60 Hz

R, L models ............ AC 110-120/220-240 V, 50/60 Hz

T model ............................................. AC 220 V, 50 Hz

K model ............................................. AC 220 V, 60 Hz

A model ............................................. AC 240 V, 50 Hz

B, G, E models .................................. AC 230 V, 50 Hz

Power Consumption

U, C models ........................................ 240 W / 320 VA

R, T, K, A, B, G, E, L models ............................. 240 W

Standby Power Consumption (reference data)

U, C models ........................................................ 0.5 W

T, K, A, B, G, E models ....................................... 0.7 W

Maximum Power Consumption [R model]

5ch Drive, 10 % THD ......................................... 510 W

Dimensions (W x H x D)

.. 435 x 151 x 317.6 mm (17-1/8" x 5-15/16" x 12-1/2")

Weight

................................................... 9.0 kg (19 lbs. 13 oz.)

Finish

RX-V357 ................................. Gold color (T, L models)

Black color (C, R, A, B, G, E models)

Silver color (C, R, K, B, G, E, L models)

HTR-5830 ..................................... Gold color (T model)

Black color (U, C, R, G, E models)

Silver color (U, C, R, T, K, A, B, G, E models)

Accessories

Remote Control x 1, Batteries (Manganese Dry) x 2,

Indoor FM Antenna x 1, AM Loop Antenna x 1

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

“DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc.

"SILENT CINEMA" is a trademark of YAMAHA CORPORATION.

• DIMENSIONS

435 (17-1/8")

Unit : mm (inch)

* Specifications are subject to change without notice due to product improvements.

U ........ U.S.A. model

R ........ General model

C .... Canadian model

T ..... Chinese model

K ........ Korean model

B ........ British model

A ..... Australian model

G .... European model

E ........ South European model L ..... Singapore model

11

RX-V357/HTR-5830

• Set Menu Table

Category No.

BASIC

1

2

1

2

MAIN MENU

SETUP

SP LEVEL

SPEAKER SET

SP DISTANCE

ROOM: S >M L

SUB MENU

SUBWOOFER YES

SPEAKERS 5spk

>SET CANCEL

Check:Test Tone

Check OK? Yes

FL -----||------- R

C -----||-------

SL -----||-------

SR -----||-------

SWFR ------------|

1A CENTER SML

1B FRONT LRG

1C SURR LR SML

1D BASS BOTH

UNIT

FRONT L/R 3.00m

CENTER 3.00m

SOUND

3

4

5

LFE LEVEL

DYNAMIC RANGE

CENTER GEQ

SURR LR 3.00m

SP LFE 0

HP LFE 0

SP D.R > MAX

HP D.R > MAX

100Hz -||- 0

300Hz -||- 0

1kHz -||- 0

INPUT

3kHz -||- 0

10kHz -||- 0

6 HP TONE CONTROL HP BASS 0

HP TRBL 0

1 I/O ASSIGN 1A (A) DVD

1A (B) DTV/CBL

1B (1) DVD

1B (2) DTV/CBL

1C (3) CD

2 >AUTO LAST 2 INPUT MODE

1 DISPLAY SET

OPTION 2 MEMORY GUARD

3 AUDIO MUTE

1 DIMMER 0

2 M GUARD OFF

3 MUTE: MUTE

12

• The variable range of the parameter (Min/Max/Step)

DSP LEVEL

DELAY

-6/+3/1

1/99/1

Unit

dB ms

5ch Stereo Parameter

CT LEVEL

SL LEVEL

SR LEVEL

0/100/1

0/100/1

0/100/1

Pro Logic II Music Parameter

PANORAMA OFF/ON

DIMENSIONS

CT WIDTH

-3/+3/1

0/7/1

Unit

%

%

%

Unit

The value inside of [ ] shows initial setting.

VALUE [INITIAL]

S/[M]/L

[YES]/NONE

2/3/4/[5]

[SET]/CANCEL

[Yes]/No

[Center] ±10step

[Center] ±10step

[Center] ±10step

[Center] ±10step

[0dB] -20step

LRG/[SML]/NON

[LRG]/SML

LRG/[SML]/NON

SWFR/FRNT/[BOTH] meters(m)/feet(ft)

0.3 to 24m [3.00m]/0.1m step

0.3 to 24m [3.00m]/0.1m step

(Effective distance difference 1.5m)

0.3 to 24m [3.00m]/0.1m step

-20dB to [0dB]/1dB step

-20dB to [0dB]/1dB step

MIN/STD/[MAX]

MIN/STD/[MAX]

-6dB to +6dB [0dB]/1dB step

-6dB to +6dB [0dB]/1dB step

-6dB to +6dB [0dB]/1dB step

-6dB to +6dB [0dB]/1dB step

-6dB to +6dB [0dB]/1dB step

-6dB to +3dB [0dB]/1dB step

-6dB to +3dB [0dB]/1dB step

[DVD], MD/CD-R, CD, VCR, V-AUX, DTV/CBL

CD, VCR, V-AUX, [DTV/CBL], DVD, MD/CD-R

CD, VCR, V-AUX, DTV/CBL, [DVD], MD/CD-R

CD, VCR, V-AUX, [DTV/CBL], DVD, MD/CD-R

[CD], VCR, V-AUX, DTV/CBL, DVD, MD/CD-R

[AUTO]/LAST

-4 to [0]/1 step

[OFF]/ON

[MUTE]/-50dB/-20dB

RX-V357/HTR-5830

• Resetting the factory presets

To reset all of parameters, do the following procedure.

This procedure completely resets ALL parameters, including the SET MENU, level, assign, and tuner presets.

Note: Only the tuner’s frequency step is not reset in this procedure. (R, L models)

1 With the main unit in standby mode, hold down “STE-

REO (EFFECT)” key and press “STANDBY/ON” key.

Then PRESET is displayed.

2 Press “STEREO (EFFECT)” key to select the desired setting.

RESET To reset the main unit to its factory presets.

CANCEL To cancel without making any changes.

3 Press “STANDBY/ON” key.

If you selected RESET, the main unit is reset its factory presets and switches to standby mode.

If you selected CANCEL, the main unit switches to standby mode and nothing is reset.

Note: The setting you made are reflected the next time this main unit’s power is turned on.

• Changing tuner’s FREQUENCY STEP (R, L models only)

To change the tuner’s frequency step, do the following procedure.

1 With the main unit in standby mode, hold down “STE-

REO (EFFECT)” key and press “STANDBY/ON” key.

Then PRESET is displayed.

2 Press “PROGRAM ” or “PROGRAM ” key to select

TUNER.

3 Press “STEREO (EFFECT)” key to select the desired setting.

AM10/FM100 or AM9/FM50

4 Press “STANDBY/ON” key.

The main unit changes to standby mode.

Note: The setting you made are reflected the next time this main unit’s power is turned on.

13

RX-V357/HTR-5830

INTERNAL VIEW

1 2 3 4 5 6 7 8 9 0

H G F E D C B A

1 MAIN (2) P.C.B.

2 MAIN (6) P.C.B. (U, C models)

FUNCTION (7) P.C.B. (R, L models)

3 MAIN (4) P.C.B.

4 MAIN (5) P.C.B.

5 Tuner

6 MAIN (3) P.C.B.

7 FUNCTION (3) P.C.B.

8 FUNCTION (6) P.C.B.

9 FUNCTION (1) P.C.B.

0 DSP P.C.B.

A FUNCTION (9) P.C.B.

B FUNCTION (2) P.C.B.

C MAIN (1) P.C.B.

D FUNCTION (4) P.C.B.

E FUNCTION (8) P.C.B.

F Power Transformer

G FUNCTION (10) P.C.B.

H FUNCTION (5) P.C.B.

DISASSEMBLY PROCEDURES

(Remove parts in the order as numbered.)

Disconnect the power cable from the AC outlet.

1. Removal of Top Cover

a. Remove 5 screws (1) and 4 screws (2). (Fig. 1) b. Slide the Top Cover rearward to remove it. (Fig. 1)

Top Cover

2

1

CB653

CB431

3

2. Removal of Front Panel Unit

a. Loosen the harness fixture fixing the cable.

b. Remove CB431, CB653 and CB804. (Fig. 1) c. Remove 6 screws (3). (Fig. 1) d. Release a hook on the right side of the Front Panel

Unit, then remove the Front Panel Unit forward. (Fig. 1)

1

2

CB804

14

3

Front Panel Unit

3

Hook

Fig. 1

RX-V357/HTR-5830

3. Removal of MAIN (3) ~ MAIN (5), FUNCTION

(3), FUNCTION (6) P.C.B.s and Tuner

a. Remove CB242, CB391 and CB701. (Fig. 2) b. Remove 9 screws (4). (Fig. 3) c. Remove MAIN (3), MAIN (5) P.C.B.s. and the

Tuner. (Fig. 2) d. Remove 18 screws (5). (Fig. 3) e. Remove 3 screws (6). (Fig. 3) f. Remove Cord Stopper. (Fig. 2) g. Remove Rear Panel. (Fig. 2) h. Remove MAIN (4), FUNCTION (3) and

FUNCTION (6) P.C.B.s. (Fig. 2)

MAIN (5) P.C.B.

MAIN (4) P.C.B.

CORD STOPPER

REAR PANEL

CB701

TUNER

CB391

MAIN (3) P.C.B.

FUNCTION (3) P.C.B.

FUNCTION (6)

P.C.B.

CB242

Fig. 2

4 5

5

4. Removal of DSP P.C.B.

a. Remove 1 screw (7). (Fig. 4) b. Remove CB803. (Fig. 4) c. Remove the DSP P.C.B. with the Support/DSP. (Fig. 4)

6

Fig. 3

7

CB803

DSP P.C.B.

Note:

When assembling the DSP P.C.B., be careful not to bend the pin of the connectors (CB247 and CB249).

Support / DSP

Fig. 4

15

RX-V357/HTR-5830

5. Removal of MAIN (1), FUNCTION (1), FUNCTION (8) and FUNCTION (9) P.C.B.s

a. Remove 1 screw (8). (Fig. 5) b. Remove FUNCTION (1) P.C.B. (Fig. 5) c. Remove CB103, CB104 and CB652. (Fig. 5) d. Remove 3 screws (9). (Fig. 5) e. Remove 4 screws (0). (Fig. 5) f. Remove MAIN (1), FUNCTION (4), FUNCTION (8) and

FUNCTION (9) P.C.B.s. (Fig. 5)

FUNCTION (8) P.C.B.

A

B

CB104

CB103

0

9

CB652

9

MAIN (1) P.C.B.

FUNCTION (1) P.C.B.

0

0

FUNCTION (4) P.C.B.

FUNCTION (9) P.C.B.

8

Note:

When assembling the FUNCTION (1) P.C.B., be careful not to bend the pin of the connectors (CB101 and CB244).

Fig. 5

When checking the P.C.B.:

a. Remove the Top Cover.

b. Remove 3 screws (6). (Fig. 3) c. Remove 1 screw (7). (Fig. 4) d. Remove 3 screws (9). (Fig. 5) e. Remove 4 screws (0). (Fig. 5) f. Remove 1 screw (A). (Fig. 5) g. Remove 1 screw (B). (Fig. 5) h. Place the P.C.B. upright. (Fig. A and B) i. Be sure to connect the ground of MAIN (1) P.C.B.

(G103, G104, G241) and FUNCTION (4) P.C.B.

(G651) to the chassis with a jumper wire or the like.

16

Fig. A Fig. B

RX-V357/HTR-5830

SELF DIAGNOSIS FUNCTION (DIAG)

There are 15 DIAG menu items, each of which has sub-menu items.

Listed in the table below are menu items and sub-menu items.

Note that not all menu items listed will apply to the models covered in this service manual.

No DIAG menu

1 DSP THROUGH

2 RAM THROUGH

3 DOLBY PRO LOGIC

4 SPEAKERS SET

5 HP Test

6 OTHER INPUT

7 DISPLAY CHECK

8 MANUAL TEST

9 FACTORY PRESET

10 AD DATA CHECK

/FAN TEST sub-menu

1. ANALOG BYPASS

2. YSS 0dB

3. YSS Presence 0dB

4. YSS FULL BIT

5. YSS FULL BIT P

RAM 0dB

1. PRO LOGIC I

2. PRO LOGIC II

3. Neo:6 (Not applied to these models)

1. FRONT: SMALL 0dB

2. CENTER: NONE

3. LFE/BASS: FRONT

4. PRESENCE MIX: 5ch

5. SURROUND B power (Not applied to these models)

6. Tone Control Flat

7. Tone Control +10dB

8. Tone Control -10dB

1. FRONT 12 dB

2. FRONT 15 dB

EXTERNAL DECODER

1. VFD CHECK (Initial display)

2. VFD DISP OFF (All segments OFF)

3. VFD DISP ALL (All segments ON 100%)

4. VFD DIMMER (All segments ON 50%)

5. CHECKED PATTERN (ON in lattice)

1. TEST ALL

2. TEST FRONT L

3. TEST CENTER

4. TEST FRONT R

5. TEST SURROUND R

6. TEST SURROUND C (Not applied to these models)

7. TEST SURROUND L

8. TEST LFE

1. PRESET INHIBITED (memory initialization inhibited)

2. PRESET RESERVED (memory initialized)

1. DC/PS (protection indication)

2. THM/Fan

3. REC-OUT (Not applied to these models)

4. IMP SW/POWER LIMIT

5. K0/K1 (panel key)

6. FAN DRIVE TEST: HIGH (Not applied to these models)

7. FAN DRIVE TEST: MID (Not applied to these models)

8. FAN DRIVE TEST: LOW (Not applied to these models)

17

18

RX-V357/HTR-5830

No DIAG menu

11 IF STATUS

12 DSP RAM CHECK

13 SD DL CODE

14 SOFT SWITCH

15 ROM VERSION/CHECK SUM/

PORT sub-menu

1. INSIDE STATUS 1

2. INSIDE STATUS 2

3. CHANNEL STATUS 1

4. CHANNEL STATUS 2

5. CHANNEL STATUS 3

6. CHANNEL STATUS 4

7. CHANNEL STATUS 5

8. BSI (YSS) 1

9. BSI (YSS) 2

10. BSI (YSS) 3

11. BSI (YSS) 4

12. BSI (CS) 1

13. BSI (CS) 2

14. BSI (CS) 3

15. BSI (CS) 4

16. BSI (CS) 5

17. YSS938-1

18. YSS938-2

19. YSS938-3

20. SECOND DECODER

21. Mute Trigger

1. YSS938 BUS CHECK

2. PLD/SRAM BUS CHECK

1. ROM DATA Version

2. TOC Area 0

3. TOC Area 1

4. TOC Area 2

5. TOC Area 3

6. TOC Area 4

7. TOC Area 5

8. Sum check Area 0

9. Sum check Area 1

10. Sum check Area 2

11. Sum check Area 3

12. Sum check Area 4

13. Sum check Area 5

1. SW MODE: PCB/SOFT

2. MODEL SETTING: V357/V357T

3. TUNER DESTINATION: UC/AKGTE/RL

4. TUNER: EXIST/NOT

5. RDS: EXIST/NOT

6. ZONE 2: EXIST/NOT

7. VIDEO FORMAT (Not applied to these models)

1. VERSION

2. CHECK SUM ALL/PROGRAM

3. PORT

4. AAC PORT

(5 Byte)

(3 Byte)

(5 Byte)

(5 Byte)

(5 Byte)

(5 Byte)

(4 Byte)

(5 Byte)

(5 Byte)

(5 Byte)

(4 Byte)

(5 Byte)

(5 Byte)

(5 Byte)

(5 Byte)

(1 Byte)

(5 Byte)

(5 Byte)

(4 Byte)

(3 Byte)

(5 Byte)

RX-V357/HTR-5830

• Starting DIAG

Press the “STANDBY/ON” key while simultaneously pressing those two keys of the main unit as indicated in the figure below.

Keys of main unit

• Display provided when DIAG started

The FL display of the main unit displays the protection function history data and the version (1 alphabet) and the

DIAG menu [sub-menu (ANALOG BYPASS) of DIAG menu No.1 DSP THROUGH] a few seconds later.

When there is no history of protection function:

When there is no history of protection function Version (1 alphabet)

Opening message

After a few seconds

DIAG menu display

Turn on the power while pressing these keys.

When there is a history of protection function:

When there is a history of protection function due to excess current

Version (1 alphabet)

• Starting DIAG in the protection cancel mode

If the protection function works and causes hindrance to trouble diagnosis, cancel the protection function as described below, and it will be possible to enter the DIAG mode. (The protection functions other than the excess current detect function will be disabled.)

Press the “STANDBY/ON” key while simultaneously pressing those two keys indicated in the figure above. At this time, keep pressing those two keys for 3 seconds or longer.

In this mode, the “SLEEP” segment of the FL display of the main unit flashes to indicate that the mode is DIAG mode with the protection functions disabled.

CAUTION!

Using this product with the protection function disabled may cause damage to itself. Use special care for this point when using this mode.

• Canceling DIAG

[1] Before canceling DIAG, execute setting for PRESET of

DIAG menu No.9 (Memory initialization inhibited or

Memory initialized).

* In order to keep the user memory stored, be sure to select PRESET INHIBITED (Memory initialization inhibited).

[2] Turn off the power by pressing the “STANDBY/ON” key of the main unit.

Cause: An excessive current flowed through the power amplifier.

Supplementary information: As the current through the power transistor is detected, the abnormal channel can be identified by checking the current detect transistor.

Turning on the power without correcting the abnormality will cause the protection function to work immediately and the power supply will instantly be shut off.

Note)

• Applying the power to a unit without correcting the abnormality can be dangerous and cause additional circuit damage.

• The output transistors in each amplifier channel should be checked for damage before applying any power.

• The amplifier current should be monitored by measuring across the emitter resistors for each channel.

When there is a history of protection function due to an abnormal voltage in the power supply section

Version (1 alphabet)

Voltage display in %

Cause: The voltage in the power supply section is abnormal.

Supplementary information: The abnormal voltage is displayed in % based on 5V as 100%.

Turning on the power without correcting the abnormality will cause the protection function to work 1 second later and the power supply will be shut off.

19

20

RX-V357/HTR-5830

When there is a history of protection function due to abnormal DC output

Version (1 alphabet)

Cause: DC output of the power amplifier is abnormal.

Turning on the power without correcting the abnormality will cause the protection function to work 3 seconds later and the power supply will be shut off.

When there is a history of protection function due to excessive heat sink temperature Version (1 alphabet)

• Operation procedure of DIAG menu and

SUB-MENU

There are 15 MENU items, each of which has some SUB-

MENU items.

DIAG menu selection

Main unit: Select the menu using (Forward) and

(Reverse) PROGRAM keys.

SUB-MENU selection

Main unit: Select the sub-menu using - and + BASS/

TREBLE keys.

Keys of main unit

Voltage display in %

Cause: The temperature of the heat sink is excessive.

Supplementary information: The abnormal voltage is displayed in % based on 5V as 500%.

Turning on the power without correcting the abnormality will cause the protection function to work 1 second later and the power supply will be shut off.

* Additional causes of protection can be due to loose connections, associated components, CPU, etc.

* For the protection voltage value, refer to DIAG menu

No.10 described later.

• History of protection function

When the protection function has worked, its history is stored in memory with a backup. Even if no abnormality is noted while servicing the unit, an abnormality which has occurred previously can be defined as long as the backup data has been stored.

The history of the protection function is cleared when

DIAG is cancelled by selecting PRESET RESERVED

(Memory initialized) of DIAG menu No.9 or when the backup data is erased.

• Display during menu operation

During the DIAG operation, the function at work is indicated on the FL indicator. The contents displayed during the function operation are described in the later section on details of functions.

DIAG menu selection

SUB-MENU selection

• Functions in DIAG mode

In addition to the DIAG menu items, functions as listed below are available.

• Input selection, 6CH input

• Center/Surround/Sub-woofer level adjustment

• Muting

• Power on/off

• Master volume

* Functions related to the tuner and the set menu are not available.

* It is possible to confirm Menu No.11 IF STATUS while keeping the signal process (operation status) of each

DIAG menu by using the input mode key of the main unit.

• Initial settings used to start DIAG

The following initial settings are used when starting DIAG.

When DIAG is canceled, these settings are restored to those before starting DIAG.

• Master volume: -24dB

• Input: DVD (6CH INPUT OFF)

• Effect level: 0dB

• Audio mute: OFF

• Speaker setting: LARGE / BASS OUT = BOTH

• DIAG menu: DSP THROUGH (1. ANALOG BYPASS)

RX-V357/HTR-5830

• Details of DIAG menu

With full-bit output specified in some modes, it is possible to execute 0dBFS output without including the head margin in each channel.

1. DSP THROUGH

Main DSP of YSS938 is selected for Front L/R output.

ANALOG BYPASS

• The signal for L/R is output as it is without passing through the DSP section.

YSS Presence 0dB

• The Presence CH signal including the head margin is output at the Front CH.

Head margin:

FRONT L/R: -6dBFS, Center: 0dBFS,

SL/SR: 0dBFS, SWFR: Add L/R signal at 0dBFS.

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Both ch, -20 dBm +6.0 dB +11.5 dBm -

-

-

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

Both ch, -20 dBm

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

+6.0 dB -

-

-

-

YSS 0dB

• The signal is output including the head margin.

Head margin:

FRONT L/R: 0dBFS, Center: -6dBFS,

SL/SR: -12dBFS,

SWFR: Add L/R signal at -20dBFS.

YSS FULL BIT

• The signal is output in digital full bit without including the head margin. The SWFR signal is output but not in digital full bit.

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Both ch, -20 dBm +6.0 dB +11.5 dBm +11.5 dBm +11.5 dBm -0.5 dBm

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Both ch, -20 dBm +6.0 dB +11.5 dBm +11.5 dBm +11.5 dBm -0.5 dBm

DSP THROUGH

YSS (Analog)

Analog A/D

Digital

AD L/R

DIR

L/R

LS/RS

C/LFE

Main DSP

(Shaded items not used in this example)

L/R

C(L)

LFE

(R)

SL/SR

(L/R)

L/R

(L/R)

Sp Config

Sub DSP

C/SW

SL/SR

FL/FR

21

22

RX-V357/HTR-5830

YSS FULL BIT P

• The Presence CH signal is output in digital full bit at the

Front CH.

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

Both ch, -20 dBm

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

+6.0 dB -

-

-

-

DSP THROUGH

YSS (PCM)

Analog

A/D

Digital

AD L/R

DIR

L/R

LS/RS

C/LFE

Main DSP

(Shaded items not used in this example)

L/R

C(L)

LFE

(R)

SL/SR

(L/R)

L/R

(L/R)

Sp Config

Sub DSP

DSP THROUGH

YSS (DD / dts [EX / ES off])

Analog A/D

Digital

AD L/R

DIR

DD/dts decode

L/R

LS/RS

C/LFE

Main DSP

(Shaded items not used in this example)

L/R

C

LFE

RL/RR

(L/R)

Sp Config

FL/FR

Sub DSP

C/SW

SL/SR

L/R

C/SW

RL/RR

FL/FR

RX-V357/HTR-5830

2. RAM THROUGH

This function is for YSS938 only.

Only the CT signal is output through the Sub DSP –

DRAM.

RAM 0dB

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

Both ch, -20 dBm

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

+6.0 dB -

+5.5 dBm -

-

RAM THROUGH

(Auto)

Analog A/D

Digital

AD L/R

DIR

Same as DSP through "YSS"

(automatic selection)

Main DSP

L/R

LS/RS

C/LFE

*

* Each signal except the SW signal passes through the external DRAM.

The basic path is the same as DSP through

"YSS"

(automatic selection)

Sub DSP

4Mbit DRAM

(Shaded items not used in this example)

C/SW

L/R

SL/SR

23

24

RX-V357/HTR-5830

3. PRO LOGIC

PRO LOGIC I

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Each ch, -20 dBm +6.0 dB +11.5 dBm -

Both ch, -20 dBm +6.0 dB

-

-10.5 dBm

-

+14.5 dBm -

-

PRO LOGIC II

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Each ch, -20 dBm +6.0 dB +11.5 dBm -

Both ch, -20 dBm +6.0 dB

-

-10.5 dBm

-

+14.5 dBm -

-

The L/C/R/SL/SR signals undergo the Pro-Logic processing and C/SL/SR signals are output through Sub

DSP-DRAM. The Main DSP is selected for FRONT L/R output.

Using the sub-menu, it is possible to select PRO LOGIC I,

II (Movie). The Auto Input Balance function is always off.

When the Dolby Digital Multi input is used, the function is the same as in the Dolby Digital Normal mode.

The LFE signal is not output when decoding in the PRO

LOGIC I, II mode.

Dolby Pro Logic (Auto)

Analog

A/D

Digital

AD L/R

DIR

DPL/PLII decode

L/R

LS/RS

C/-

Main DSP

L/R

C

Sp Config

SL/SR

Sub DSP

4Mbit DRAM

(Shaded items not used in this example)

Neo:6

(Not applied to these models.)

C/SW

SL/SR

L/R

RX-V357/HTR-5830

4. SPEAKERS SET

The input signal is automatically identified and switched in the priority order of dts

→ DOLBY DIGITAL → AAC →

PCM AUDIO

→ Analog (A/D) according to the signal detection.

FRONT: SMALL 0dB

The signals output from the DSP block are the same as 1.

DSP THROUGH: YSS 0dB.

CENTER: NONE LFE/BASS: FRONT

Presence Mix: 5ch

Tone Control +10dB

Surround B power

Not applied to these models.

Tone Control –10dB

Tone Control Flat

The analog switch settings for each sub-menu are as shown in the table below.

Sub-menu

1 FRONT: SMALL 0dB

2 CENTER: NONE

3 LFE/BASS: FRONT

4 Presence Mix: 5CH

CENTER SP SURROUND SP FRONT SP FRONT LEVEL LFE/BASS

LARGE

NONE

LARGE

LARGE

LARGE

SMALL

LARGE LARGE

SMALL SMALL LARGE

LARGE

0dB

0dB

0dB

0dB

SWFR

BOTH

FRONT

BOTH

LARGE: This mode is used with a speaker having high bass reproduction performance (a large unit). Full bandwidth signals are output.

SMALL: This mode is used with a speaker having low bass reproduction performance (a small unit). The signals of 90Hz or less are mixed into the channel specified by LFE/BASS.

NONE: This mode is used with no center speaker.

The center content is reduced by 3dB and distributed to FRONT L/R.

6 Tone Control Flat

7

8

Sub-menu

Tone Control +10dB

Tone Control –10dB

Treble

0 dB

+10 dB

–10 dB

Bass

0 dB

+10 dB

–10 dB

Reference data

INPUT: DVD ANALOG (Both ch)

Sub-menu Input level Volume

FRONT L/R CENTER

1 FRONT: SMALL 0dB 1kHz Both ch, -20 dBm +6.0 dB +11.5 dBm -

2 CENTER: NONE 1kHz Both ch, -20 dBm +6.0 dB

3 LFE/BASS: FRONT 50Hz Both ch, -20 dBm +6.0 dB

+8.9 dBm

-

SPEAKER OUTPUT (1kHz)

4 Presence Mix: 5ch 1kHz Both ch, -20 dBm +6.0 dB +11.5 dBm

5 Surround B Power

(Not applied to these models.)

1kHz Both ch, -20 dBm +6.0 dB -

+7.5 dBm

-

-

-

SL/SR

-

-

-

-

-

6 Tone Control Flat 1kHz Both ch, -20 dBm +6.0 dB +11.5 dBm +11.5 dBm +11.5 dBm

7 Tone Control +10dB 1kHz Both ch, -20 dBm +6.0 dB +13.4 dBm +11.5 dBm +11.5 dBm

8 Tone Control -10dB 1kHz Both ch, -20 dBm +6.0 dB +9.6 dBm +11.5 dBm +11.5 dBm

SUBWOOFER

OUTPUT (50Hz)

-

-

+3.5 dBm

-

-

-0.5 dBm

-0.5 dBm

-0.5 dBm

25

26

RX-V357/HTR-5830

5. HP Test

The signal is output including the head margin.

FRONT 12dB MARGIN

FRONT 15dB MARGIN

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Both ch, -20 dBm +6.0 dB +11.5 dBm -

-

-

Reference data

INPUT: DVD ANALOG

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Both ch, -20 dBm +6.0 dB +14.5 dBm -

-

-

Analog

A/D

Digital

AD or CS L/R

DIR

Same as

"1. YSS"

(automatic selection)

L/R

LS/RS

C/LFE

Same as

"1. YSS"

(automatic selection)

Main DSP

(Shaded items not used in this example)

Sub DSP

C/SW

SL/SR

L/R

6. OTHER INPUT

The signal input through the 6CH INPUT terminals is output.

EXTERNAL DECODER

Reference data

INPUT: 6CH INPUT

SWFR: 50Hz, Others: 1kHz

Input level

SPEAKER OUTPUT (1kHz) SUBWOOFER

Volume FRONT

L/R

CENTER SL/SR

OUTPUT

(50Hz)

Both ch, -20 dBm +6.0 dB +11.5 dBm +11.5 dBm +11.5 dBm -10.5 dBm

RX-V357/HTR-5830

7. DISPLAY CHECK

This program is used to check the FL display section. The display condition varies as shown below according to the sub-menu operation. The signals are processed using

EFFECT OFF (The L/R signal is output using ANALOG

FRONT BYPASS.)

Regarding internal/external synchronization selection of the image signals by the microprocessor control, the internal synchronization is selected when the initial display is provided and when all FL's light up and the external synchronization at any other time.

Also, except when the initial display is provided, 128 characters for confirmation of the OSD driver are displayed as the image output.

Segment conditions of the FL driver and the FL tube are checked by turning ON and OFF all segments. Next, the operation of the FL driver is checked by using the dimmer control. Then a short between segments next to each other is checked by turning ON and OFF all segments alternately (in lattice). (In the example below, the segments in the second row from the top are shorted.)

Initial display /

初期表示

All segments OFF /

全セグメント消灯

All segments ON (dimmer 100%) /

全セグメント点灯(ディマー100%)

Lighting in lattice / 格子状点灯

Lighting of segments in lattice /

セグメント格子状点灯

All segments ON (dimmer 50%) /

全セグメント点灯(ディマー50%)

Short /

ショート

Normal /

正常

8. MANUAL TEST

The noise generator built into the DSP outputs the test noise through the channels specified by the sub-menu.

The noise frequency for LFE is 35 to 250 Hz. Other than that, the center frequency is 800Hz.

TEST ALL TEST FRONT L

Noise is output from all channels.

TEST FRONT R

Noise is output from the FRONT R channel.

TEST SURROUND L

Noise is output from the FRONT L channel.

TEST SURROUND R

Noise is output from the SURROUND R channel.

TEST LFE

Noise is output from the SURROUND L channel.

Noise is output from the SUB WOOFER channel.

TEST CENTER

Noise is output from the CENTER channel.

TEST SURROUND C

Not applied to these models.

27

28

RX-V357/HTR-5830

9. FACTORY PRESET

This menu is used to reserve and inhibit initialization of the back-up RAM. The signals are processed using EFFECT

OFF. (The L/R signal is output using ANALOG FRONT

BYPASS.)

PRESET INHIBIT (Initialization inhibited)

RAM initialization is not executed. Select this sub-menu to protect the values set by the user.

The production history is not erased using this sub-menu.

PRESET RESERVED (Initialization reserved)

Initialization of the back-up RAM is reserved. (Actually, initialization is executed the next time that the power is turned on.) Select this sub-menu to reset to the original factory settings or to reset the RAM. The production history is not erased using this sub-menu.

CAUTION: Before setting to the PRESET RESERVED, write down the existing preset memory content of the Tuner in a table as shown below. (This is because setting to the

PRESET RESERVED will cause the user memory content to be erased.)

P1 P2 P3 Preset group

A

B

C

D

E

P4 P5 P6 P7 P8

PRESET STATIONS /

プリセット局

STATION

PAGE NO.

1

2

3

A/C/E

6

7

4

5

8

FM FACTORY PRESET DATA (MHz)

U, C R, T, K, A, B, G, L, E

87.5

90.1

95.1

87.5

90.1

95.1

98.1

107.9

88.1

106.1

107.9

98.10

108.0

88.1

106.1

108.0

STATION

PAGE NO.

1

2

3

B/D

6

7

4

5

8

AM FACTORY PRESET DATA (kHz)

U, C, R T, K, A, B, G, L, E

630

1080

1440

630

1080

1440

530

1710

900

1350

1400

531

1611

900

1350

1404

RX-V357/HTR-5830

10. AD DATA CHECK/FAN TEST

This menu is used to display the A/D conversion value of the terminals which detects panel keys of the main unit and protection functions in % using the sub-menu. During signal processing, the condition before execution is maintained.

* The figures in the diagram are given as reference only.

DC/PS (protection detection)

DC: DC protection value

Normal value: 17 to 29 (Reference: 5V=100%)

If DC is out of the normal value range, the protection function works to turn off the power.

PS: Power supply voltage protection value

Normal value: 8 to 26 (Reference: 5V=100%)

If PS is out of the normal value range, the protection function works to turn off the power.

THM/Fan (temperature detection/fan drive level)

THM: Temperature detection value

Normal value: 30 to 147 (Reference: 5V=500%)

If THM is out of the normal value range, the protection function works to turn off the power.

Fan: Current fan drive level on the left and the past fan drive history on the right.

(Not applied to these models.)

REC-OUT

Not applied to these models.

K0/K1 (Panel key of main unit) (Reference: 5V=100%)

A/D of the key fails to function properly when the standard value is deviated. In this case, check the constant of partial pressure resistor, solder condition, etc. Refer to table 1.

[Table 1]

U, C, R, T, K, A, L models

Display (%)

0 - 6

7 - 13

14 - 21

22 - 31

32 - 41

42 - 53

54 - 63

64 - 72

73 - 80

81 - 88

89 - 95

96-100

K0

6CH INPUT

K1

TUNING MODE

INPUT SELECT RIGHT MEMORY

INPUT SELECT LEFT PRESET / TUNING

INPUT MODE

PROGRAM

PROGRAM

BASS / TREBLE +

PRESET / TUNING

A/B/C/D/E

FM/AM

PRESET / TUNING

BASS / TREBLE -

STEREO

CONTROL

SPEAKERS

KEY OFF

KEY OFF

B, G, E models

Display (%)

0 - 6

7 - 13

14 - 21

22 - 31

32 - 41

42 - 53

54 - 63

64 - 72

73 - 80

81 - 88

89 - 95

96-100

K0

6CH INPUT

K1

TUNING MODE

INPUT SELECT RIGHT MEMORY

INPUT SELECT LEFT PRESET / TUNING

INPUT MODE

PROGRAM

PROGRAM

BASS / TREBLE +

PRESET / TUNING

A/B/C/D/E

FM/AM

PRESET / TUNING

BASS / TREBLE -

STEREO

CONTROL

SPEAKERS

KEY OFF

PTY SEEK MODE

PTY SEEK START

EON

RDS MODE

KEY OFF

When K0/K1 menu is selected, keys become nonoperable due to detection of the values of all keys.

However, it is possible to advance to the next submenu by turning the VOLUME of the main unit. When using this function, note that turning the VOLUME more than 2 clicks will cause the volume value to change.

IMP SW/POWER LIMIT (Impedance/power limiter detection)

IMP: 8 or 6 ohms impedance switch setting (U, C models)

PL: Power limiter detection value (Reference: 5.0V=255%)

The voltage value of pin No. 91 of IC242 is displayed.

The port (pin No. 4 of IC242) output is controlled by using the input voltage.

value of pin No. 91 of IC242.

When higher than VthH, the port output is changed from H to L.

When lower than VthL, the port output is changed from L to H.

Note:

Vth=Threshold voltage

Detection level

PORT

No. 91

VthL

2.41V

2.77V

2.87V

VthH

2.90V

3.25V

3.35V

U, C models (8ohms)

U, C models (6ohms)

R, T, K, A, B, G, E, L models (6ohms)

Output level

PORT

No. 4

VthL

3.82V

3.55V

3.63V

VthH

0V

0V

0V

U, C models (8ohms)

U, C models (6ohms)

R, T, K, A, B, G, E, L models (6ohms)

FAN DRIVE TEST (Not applied to these models.)

HIGH

FAN DRIVE TEST (Not applied to these models.)

MID

FAN DRIVE TEST (Not applied to these models.)

LOW

29

30

RX-V357/HTR-5830

11. IF STATUS (Input function status)

Using the sub-menu, the status data is displayed one after another in the hexadecimal notation.

During signal processing, the status before execution of this menu is maintained.

* Numeric values in the figure example are for reference.

IS1, 2 (Internal status):

Indicates the status information of the microprocessor.

5th byte

4th byte

3rd byte

2nd byte

1st byte

3rd byte

2nd byte

1st byte

<1st byte> Digital input/output setting value

Upper 4 bits: REC OUT selected / lower 4 bits: INPUT selected

Preset name Value

8

9

4

6

2

3

0

1

Choice

NONE

OPTA

OPTB

OPTC

OPTD

OPTF

COAXA

COAXB

DTV/CBL

DVD

CD

<2nd byte> Fs information of reproduction signal

Display 00 01 02 03

Fs (kHz) Analog 32 44.1

48

04 05 06

64 88.2

96

0A

Unknown NRM

0B

Unknown DBL

0C 0D

Unknown QUAD Not defined

<3rd byte> Audio code mode information of reproduction signal

Display

Audio Code

00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D

1+1 1/0 2/0 3/0 2/1 3/1 2/2 3/2 2/3 3/3 OVER 6.1 MULTI MONO MULTI PCE Unknown

<4th byte> Format information of reproduction signal

*1: Analog processing used for digital reproduction is not possible because of a commercial bit or 4-ch audio reason.

58

5C

60

C0

23

50

51

54

C1

C4

Display

00

01

10

20

21

22

Signal format

Analog (Unlock)

*1

PCM Audio

Digital Data

IEC1937 Data

None PCM

Unknown dts

Red dts dts-ES MATRIX dts-ES DISCRETE dts-ES (Both flag)

AAC

Dolby Digital

D.D. Karaoke

D.D.6.1 (D.D.EX)

<5th byte> Signal processing status information

*2: With digital signals other than 32kHz, 44.1kHz and

48kHz, through processing method is used for reproducible signals.

bit7 bit6

MUTE request

Red dts flashing bit3 – bit2 Through & bypass (*2) bit5 6.1/EX processing bit1 bit4 FULL MUTE (ON: 1) bit0

– dts analog mute

RX-V357/HTR-5830

CS1-5: Indicates channel status information of the input signal (IEC60958).

MTT: Mute Trigger

BY1-4: Indicates information of the bit stream included in the DOLBY DIGITAL signal.

Byte No.

1

4

5

2

3

Mute condition

Function

Factor of the last mute

Error count of YSS938-FSCNT

Mute count by YSS938-FSCNT

Error factor of down load of CS49329

BS1-5: Indicates information of the bit stream included in the dts signal.

YS1-3: Indicates device status information of YSS938

(IC601).

* The numeric value in the figure is an example for reference.

12. DSP RAM CHECK

This menu is used to self-diagnose whether or not the bus connection for the YSS938 and the external RAM is made properly.

During signal processing, the status before execution of this menu is maintained.

The address bus and the data bus are checked and the connection condition is displayed.

When no error is detected, "NoEr" appears on display.

YSS938 Bus Check

Byte No.

3

4

1

2

5

Function

YSS MUTE Reg

YSS MODE Reg

YSS IPORT BIT 7-0

YSS IPORT BIT 14-8

YSS OPORT

Byte No.

3

4

1

2

5

Function

IEC 1937 Preamble Pc

Data Stream Reg

Status Reg

YSS ZERO Reg

MIREG

Display

WAIT

NoEr

DATA

RSCS

ADDR

Description

Bus is being checked.

No error detected.

Data bus shorted or open.

/RAS or /CAS shorted, or open.

Address bus shorted or open.

PLD / SRAM BUS CHECK

Byte No.

3

4

1

2

Function

DIR Status

DIR fs

DIR fs count

YSS ZERO BF

Display

WAIT

None

EDxx

EAxx

Description

Bus is being checked.

No error detected.

Data bus shorted or open. (XX: 00-07)

Address bus shorted or open. (XX: 00-0E)

SD: CS49329 Unsolicited Messages

(AUTODETECT_RESPONSE)

(Not applied to these models.)

31

32

RX-V357/HTR-5830

13. SD DL CODE

This menu is used to display the data version of the

FLASH ROM, TOC information and sum calculated value for the second decoder.

RDV

Displays the data version.

TA 0-5

Displays the TOC information.

14. SOFT SW

This menu is used to switch the function settings on the

P.C.B. through the software so as to activate the product.

The protection function follows the P.C.B. settings. When connected to AC or in the maker preset state, the unit is initialized to the P.C. B. setting. Display of each function after initialization varies depending on settings on P.C.B.

The operation mode can be changed by selecting the submenu and then using the EFFECT key. With SOF selected for the SW mode, the settings become effective.

SW MODE: PCB or SOFT can be selected.

SA 0-5

Displays the sum calculated value.

MODEL SETTING: V357 or V357T can be selected.

As there is no model to replace with, this mode is used the check for the T destination.

TUNER DESTINATION: UC, AKGTE or RL can be selected.

TUNER: NOT or EXIST can be selected.

RDS: NOT or EXIST can be selected.

ZONE2: NOT or EXIST can be selected.

(Not applied to these models.)

VIDEO FORMAT: NTSC or PAL can be selected.

(Not applied to these models.)

RX-V357/HTR-5830

15. MICROPROCESSOR INFORMATION

The version, checksum and the port specified by the microprocessor are displayed. The signal is processed using EFFECT OFF. The checksum is obtained by adding the data at every 8 bits for each program area and expressing the result as a 4-figure hexadecimal data.

Version

Release 1 digit / Main version 2 digit / DSP version 2 digit

Checksum

A: All area

Check of port setting for judging microprocessor function

Display of AAC function detection port state

“PORT:0 0 0 0 0 0 0 0”

bit 7 6 5 4 3 2 1 0

Tuner mode 0 (*1)

Tuner mode 1 (*1)

Tuner with (1) / without (0)

RDS with (1) / without (0)

VIDEO format: PAL (1) / NTSC (0)

*1

Type

2

3

0

1

Tuner mode

1 0

0

1

0

1

1

1

0

0

Port 3

(type 2)

Low

High

FM

76.0-90.0MHz / 100kHz

87.5-108.0MHz / 50kHz

Frequency range

AM

531-1611kHz / 9kHz

531-1611kHz / 9kHz

87.5-107.9MHz / 200kHz

87.5-108.0MHz / 100kHz

87.5-108.0MHz / 50kHz

530-1710kHz / 10kHz

530-1710kHz / 10kHz

531-1611kHz / 9kHz

33

34

RX-V357/HTR-5830

CONFIRMATION OF IDLING CURRENT

Confirmation of Idling Current of MAIN (1) P. C. B.

• Right after the power is turned on, confirm that the voltage across the terminals of R157 (FRONT Lch),

R158 (FRONT Rch), R148 (CENTER), R156

(SURROUND Lch), R159 (SURROUND Rch) are between 0.1mV and 10.0mV.

0.1mV ~ 10.0mV

(DC)

R157 (FRONT Lch)

R158 (FRONT Rch)

R148 (CENTER)

R156 (SURROUND Lch)

R159 (SURROUND Rch)

RX-V357/HTR-5830

DISPLAY DATA

V851 : 16-BT-122GNK (WC173100)

} 1

PATTERN AREA

PIN CONNECTION

Pin No.

69 68 67 66 65 64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35

Connection

F2 F2 NP NP P1 P2 P3 P4 P5 P6 P7 P8 P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31

Pin No.

34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1

Connection

P32 P33 P34 P35 P36 P37 P38 NX NX NX NX NX NX NX 16G 15G 14G 13G 12G 11G 10G 9G 8G 7G 6G 5G 4G 3G 2G 1G NP NP F1 F1

Note : 1) F1, F2 ..... Filament 2) NP ..... No pin 3) NX ..... No extened 4) DL ..... Datum line 5) 1G ~ 16G ..... Grid

GRID ASSIGNMENT

16G S21

1-1 2-1 3-1 4-1 5-1

1G

1-2 2-2 3-2 4-2 5-2

1-3 2-3 3-3 4-3 5-3

1-4 2-4 3-4 4-4 5-4

1-5 2-5 3-5 4-5 5-5

1-6 2-6 3-6 4-6 5-6

1-7 2-7 3-7 4-7 5-7

(1G~14G)

S10

2G 3G 4G 5G 6G 7G 8G

S9

9G 10G 11G 12G 13G 14G

S11

S1

S12

(16G)

S13

S18

S17

S14

S16

S19

S20

(16G)

S15

S1

1f

1a

1g

1b

2f 2a

2g

2b

S1

1e

1d

1c

2e

2d

2c

S6

S7

S8

15G

S6

S5

S1

S2 S3

(15G)

S4

35

36

RX-V357/HTR-5830

P34

P35

P36

P37

P38

P30

P31

P32

P33

P26

P27

P28

P29

P22

P23

P24

P25

P18

P19

P20

P21

P14

P15

P16

P17

P10

P11

P12

P13

ANODE CONNECTION

16G

P1

P6

P7

P8

P9

P2

P3

P4

P5

S16

S17

S18

S19

S20

S9

S10

S11

S12

S13

S14

S15

15G

S1

S7

S8

S2

S3

S4

2c

2d

2e

2f

1f

1g

2a

2b

2g

S5

S6

1a

1b

1c

1d

1e

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

5-6

1-7

2-7

3-7

4-7

5-7

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

14G 13G 12G

1-1 1-1 1-1

2-1

3-1

4-1

5-1

2-1

3-1

4-1

5-1

2-1

3-1

4-1

5-1

1-2

2-2

3-2

4-2

5-2

1-3

2-3

3-3

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

5-6

1-7

2-7

3-7

4-7

5-7

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

5-6

1-7

2-7

3-7

4-7

5-7

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

– –

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

5-6

1-7

2-7

3-7

4-7

5-7

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

11G 10G 9G~5G 4G

1-1 1-1 1-1 1-1

2-1

3-1

4-1

5-1

2-1

3-1

4-1

5-1

2-1

3-1

4-1

5-1

2-1

3-1

4-1

5-1

1-2

2-2

3-2

4-2

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

5-2

1-3

2-3

3-3

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

5-6

1-7

2-7

3-7

4-7

5-7

5-6

1-7

2-7

3-7

4-7

5-7

5-6

1-7

2-7

3-7

4-7

5-7

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

4-7

5-7

5-6

1-7

2-7

3-7

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

2G

1-1

2-1

3-1

4-1

5-1

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

4-7

5-7

5-6

1-7

2-7

3-7

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

3G

1-1

2-1

3-1

4-1

5-1

1-6

2-6

3-6

4-6

2-5

3-5

4-5

5-5

3-4

4-4

5-4

1-5

4-3

5-3

1-4

2-4

4-7

5-7

S21

5-6

1-7

2-7

3-7

5-2

1-3

2-3

3-3

1-2

2-2

3-2

4-2

1G

1-1

2-1

3-1

4-1

5-1

RX-V357/HTR-5830

IC DATA

IC242: M30626FHPFP (MAIN P.C.B.)

16bit

µ-COM (Main CPU)

P07/D7

P06/D6

P05/D5

P04/D4

P03/D3

P02/D2

P01/D1

P00/D0

P107/AN7

P106/AN6

P105/AN5

P104/AN4

P103/AN3

P102/AN2

P101/AN1

AVSS

P100/AN0

VREF

AVCC

P97/ADTRG/SIN4

90

91

92

87

88

89

81

82

83

84

85

86

96

97

98

93

94

95

99

100

41

40

39

44

43

42

50

49

48

47

46

45

35

34

33

38

37

36

32

31

P44/CS0

P45/CS1

P46/CS2

P47/CS3

P50/WRL/WR

P51/WRH/BHE

P52/RD

P53/BCLK

P54/HLDA

P55/HOLD

P56/ALE

P57/RDY/CLKOUT

P60/CTS0/RTS0

P61/CLK0

P62/RXD0

P63/TXD0

P64/CTS1/RTS1/CTS0/CLKS1

P65/CLK1

P66/RXD1

P67/TXD1

No.

Port No.

1 SOUT4

4

5

2

3

CLK4

P94

P93

SOUT3

8

9

6

7

SIN3

CLK3

BYTE

CNVss

10 P87

11 P86

12 RESET

13 Xout

14 Vss

15 Xin

16 Vcc

17 NMI

18 INT2

19 INT1

20 INT0

21 P81

22 P80

23 P77

24 P76

25 P75

26 P74

27 P73

28 CLK2

29 P71

30 TXD2

31 TXD1

32 RXD1

33 CLK1

34 P64

35 TXD0

36 RXD0

37 CLK0

38 P60

39 P57

40 P56

41 P55

42 P54

43 P53

Function name

DTFD

CKFD

/BLK

LIMB

SDM

SDD

YSSCK

BYTE

CNVss

CSY

/ICD

RESET

Xout

Vss

Xin

Vcc

NMI

INT938

PSW

REM1

/HP

VRA

VRB

CSN

/ICCDC

TXDF

RXDF

CLKF

BSY

IMP

5/6

/CEEEP

SDTR

SDRR/DEST

/EMP

SCKR

O

FLASH

FLASH

FLASH

FLASH

I

SI

CLK

O

O

SI/I (IPU)

GND

SCK

O

Vss

16MHz

Vcc (BU)

Vcc (BU)

INT

INT

INT

I

O

I (IPU)

I (IPU)

I (IPU)

O

O

O

O

I/O

SO

SCK

O

O

SO

SI

SCK

VSS

Vss/Vcc

O

O

I

Detail of function

FL Driver TxD

FL Driver CLOCK

FL Driver OFF

Power Limiter Control

YSS938 TxD

YSS938 RxD

YSS938 CLOCK

Vss: when single chip mode is used

Vss: when single chip mode is used, Vcc: when flash writing is used

YSS938 CE

YSS938/DA/AD/CODEC/DEM

Reset

Oscillator Out

µ-COM Ground

Oscillator in

µ-COM power supply, +5V

Connect to Vcc because it is unused.

YSS938 IPINT/MUTE/DIR

Standby SW Input

Remote Control Input

Open

Open

Headphone Detect

Volume Rotary A

Volume Rotary B

Chip Select for DAC

CODEC Reset

Open

Open

Open

Flash ROM Serial Write Data Transmission

Flash ROM Serial Write Data Reception

Flash ROM Serial Clock

Flash BUSY Signal Output

IMPEDANCE Select SW detection

Open

Open

EEPROM CE

RDS/OSD TxD

RDS RxD / Frequency SW (Dest R)

For Flash Writing (LO)

RDS/OSD Clock

Open

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

37

RX-V357/HTR-5830

IC242: M30626FHPFP (MAIN P.C.B.)

16bit

µ-COM (Main CPU)

Function name No.

Port No.

44 P52

45 P51

77 P13

78 P12

79 P11

80 P10

81 P07

82 P06

83 P05

84 P04

85 P03

86 P02

87 P01

88 P00

89 AN7

90 AN6

91 AN5

92 AN4

93 AN3

94 AN2

95 AN1

96 Avss

97 AN0

98 Vref

99 Avcc

100 P97

61 P31

62 Vcc

63 P30

64 Vss

65 P27

66 P26

67 P25

68 P24

69 P23

70 P22

71 P21

72 P20

73 P17

74 INT4

75 INT3

76 P14

46 P50

47 P47

48 P46

49 P45

50 P44

51 P43

52 P42

53 P41

54 P40

55 P37

56 P36

57 P35

58 P34

59 P33

60 P32

/CE

/MMT

/CMT

/SMT

/MTSW

HPRY

/GAIN

BD_MUTE

HPF

BD_CLK

BD_DAT

VIA

VIB

Vcc

Vss

/VR1

CMP0

CMP1

RDSE

CEP/TUN1

PDET

5M SW

SCKP/TUN0

SDTP

SDRP

TUNED

/ST

TMT

PRY

CSRY

MARYB

MARYA

PRI

LIMA

MODEL

PRD

PREMT

THM

ADKEY0

ADKEY1

Avss

PRV

VREF

AVcc

CEFD

I/O

O

O

AD

AD

AD

AD

O

I

O

O

O

I (IPU)

I (IPU)

I (IPU)

O

O

O

O

AD

AD

AD

Vss

AD

(+5v)

Vcc (BU)

O

O

Vcc (BU)

O

Vss

O

O

O

O

O

O/I

O

O/I

O/I

INT

INT

O/I

O

O

O

O

O

O

O

O

I

I/O

O

O

O

O

O

Detail of function

Open

Open

For Flash Writing (HI)

Open

Mute Front

Mute Center

Mute Surround

Mute LFE

Open

Headphone SP Relay Output

Open

Gain

BD3816 Mute

HPF

Clock Line for BD38xx System Control

Data Line for BD38xx System Control

Video Selector A

Video Selector B

µ-COM Power Supply, +5V

Open

µ-COM Ground

Video Rec Out Selector 1

Open

Compornent Selector 0

Compornent Selector 1

Open

Open

Open

RDS Enable, RDS Present/Absent

PLL IC Enable/Destination Discriminate 1

Power Down Detect INT

5M Switch Output

PLL IC Clock/Destination Discriminate 0

PLL IC TxD

PLL IC RxD

Tuned

Tuner/ST

Tuner Mute

Power Relay Output

Surround SP Relay Output

Front B SP Relay Output

Front A SP Relay Output

Protection Excess Current Detect

Open

Open

Connection Discriminate

Protection DC Detect

Power Limiter Detect

Temperature Detect

Open

Key AD Input 0

Key AD Input 1

AD Ground

Protection Power Supply Voltage Detect

AD Reference

AD Power Supply

FL Driver CE

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

38

Key Input (A-D) Pull-Up Resistance 10 k-ohms

U, C, R, T, K, A, L models

Ohm

V

ADKEY0

(94Pin, AN2)

ADKEY1

(95Pin, AN1)

0.0

0.0~0.3

6CH INPUT

+1.0k

~0.65

INPUT

>

TUNING MODE MEMORY

+1.0k

~1.05

INPUT

<

+1.5k

~1.55

INPUT

MODE

+2.2k

~2.05

+4.7k

~3.15

PROGRAM PROGRAM BASS/TREBLE BASS/TREBLE STEREO/

> < + – EFFECT

PRESET/TUNING PRESET/TUNING A/B/C/D/E

> < /NEXT

+3.3k

~2.65

FM/AM

PRESET/TUNING

/EDIT

+6.8k

~3.6

+10.0k

~4.0

B, G, E models

Ohm

V

ADKEY0

(94Pin, AN2)

ADKEY1

(95Pin, AN1)

0.0

0.0~0.3

6CH INPUT

+1.0k

~0.65

INPUT

>

TUNING MODE MEMORY

+22.0k

~4.4

TONE CONTROL

+47.0k

~4.75

SPEAKERS

A/B/OFF

– –

+1.0k

~1.05

INPUT

<

+1.5k

~1.55

INPUT

MODE

+2.2k

~2.05

PRESET/TUNING PRESET/TUNING A/B/C/D/E

> < /NEXT

+3.3k

~2.65

PROGRAM PROGRAM BASS/TREBLE BASS/TREBLE STEREO/

> < + EFFECT

FM/AM

+4.7k

~3.15

PRESET/TUNING

/EDIT

+6.8k

~3.6

PTY SEEK

MODE

+10.0k

~4.0

PTY SEEK

START

+22.0k

~4.4

TONE CONTROL

+47.0k

~4.75

SPEAKERS

A/B/OFF

EON RDS MODE/FREQ

RX-V357/HTR-5830

IC801 : YSS938 (DSP P.C.B.)

DSP

VSS

CPO

AVDD

DIRPCO

DIRPRO

AVSS

TESTBRK

TESTR1

TESTR2

VDD1

SDWCKI0

SDBCKI0

/SDBCKO

IPORT8

IPORT9

IPORT10

IPORT11

SDIA

SDOA2

SDOA1

SDOA2

SDIB3

SDIB2

XO

XI

SELI1

SELI0

SELOA

SELOB

TESTMS

TESTXEN

IPORT0

IPORT1

IPORT2

IPORT3

IPORT4

DDIN0

DDIN1

DDIN2

DDIN3

31

32

33

34

27

28

29

30

23

24

25

26

19

20

21

22

35

36

37

38

39

40

13

14

15

16

9

10

11

12

17

18

7

8

5

6

3

4

1

2

YSS938

XO XI

OVFSEL

External

Memory

Interface

SDOB3

SDOB2

SDOB1

SDOB0

SDOBCKSEL SDIBCKSEL

SDWCKI1

SDBCKI1

SELOA

SELOB

SELB SELA

Coefficient,

Program

RAM

MPLOAD

Control Signals

Control Register

µ-COM Interface

SYNC

U

FS128

C

V

ERR

BS

/LOCK

DBL/V

ERR/BS

DDIN3

DDIN2

DDIN1

DDIN0

DIRINT

SYNC/U

FS128/C

RAMOEN

RAMWEN

CASN

RAMD15

RAMD14

RAMD13

RAMD12

RAMD11

RAMD10

RAMD9

RAMD8

VDD1

VSS

RAMD7

RAMD6

RAMD5

RAMD4

ZEROBF0L

ZEROBF0R

ZEROBF1L

ZEROBF1R

RAMD3

RAMA9

RAMA3

RAMA4

SELI9

SELI10

SELI11

SELI12

SELI13

RAMA2

RAMA5

RAMA1

RAMA6

RAMA0

RAMA7

RAMA8

VDD1

VSS

RASN

89

88

87

86

93

92

91

90

85

84

83

82

81

101

100

99

98

97

96

95

94

112

111

110

109

108

107

106

105

120

119

118

117

116

115

114

113

104

103

102

39

RX-V357/HTR-5830

40

32 IPORT9

33 IPORT10

34 IPORT11

35 SDIA

36 SDOA2

37 SDOA1

38 SDOA0

39 SDIB3

40 SDIB2

41 SDIB1

42 SDIB0

43 VSS

44 VDD2

45 IPORT12

46 IPORT13

47 IPORT14

48 DIRSDO

49 DIRWCK

50 DIRBCK

51 DIRMCK

52 ERR/BS

53 SYNC/U

54 FS128/C

55 DBL/V

No.

Name

1 XO

2 XI

3 SELI1

4 SELI0

5 SELOA

6 SELOB

7 TESTMS

8 TESTXEN

9 IPORT0

10 IPORT1

11 IPORT2

12 IPORT3

13 IPORT4

14 DDIN0

15 DDIN1

16 DDIN2

17 DDIN3

18 VSS

19 CPO

20 AVDD

21 DIRPCO

22 DIRPRO

23 AVSS

24 TESTBRK

25 TESTR1

26 TESTR2

27 VDD1

28 SDWCKI0

29 SDBCKI0

30 /SDBCK0

31 IPORT8

IC801 : YSS938 (DSP P.C.B.)

DSP

I+

I+

Is

Is

I+

I+

I+

I+

Is

Is

I+

O+

O+

I+

I/O

O

I

I+

A

A

A

I+

I+

I+

I+

I+

I+

O

O

O

I+

I+

I+

I+

I

I+

I+

O

I+

O

O

O

O

I+

I+

I+

O

O

O

O

Function

Crystal oscillator connecting terminal

Crystal oscillator connecting terminal (24.576MHz)

Built-in selector input 1

Built-in selector input 0

Built-in selector output A

Built-in selector output B

Test terminal

DIR: Digital audio interface data input terminal 2/General purpose input terminal

DIR: Digital audio interface data input terminal 3/General purpose input terminal

Ground terminal

PLL filter connecting terminal

(AXD)

(GND)

(Unconnected)

(ISEL)

(RSEL) (Unconnected)

(Unconnected)

(Unconnected) Test terminal

General purpose input terminal

General purpose input terminal

General purpose input terminal

(CXDTA)

(CXDTB)

General purpose input terminal

General purpose input terminal

DIR: Digital audio interface data input terminal 0 (ISEL)

DIR: Digital audio interface data input terminal 1/General purpose input terminal (Pull down)

(Pull down)

(Pull down)

+3.3V power terminal (for DIR)

DIR: PLL filter connecting terminal

DIR: PLL filter connecting terminal

Ground terminal (for DIR)

Test terminal

PLL initialization signal input terminal for DSP

Test terminal

+3.3V power terminal (for terminal section)

(/ICD)

(Unconnected)

(Unconnected)

(WCKG) (Unconnected)

(BCKG) (Unconnected)

(Unconnected)

Word clock input terminal for SDIA, SDOA, SDIB, SDOB interface

Bit clock input terminal for SDIA, SDOA, SDIB, SDOB interface

DIRBCK or SDBCKI0 invert clock output terminal

IPINT general purpose input terminal

IPINT general purpose input terminal

IPINT general purpose input terminal

IPINT general purpose input terminal

AC-3/DTS bit stream (or PCM) data input terminal to Main DSP

PCM output terminal from Main DSP (C/LFE output)

PCM output terminal from Main DSP (LS/RS output)

PCM output terminal from Main DSP (L/R output)

PCM input terminal 3 to Sub DSP

PCM input terminal 2 to Sub DSP

PCM input terminal 1 to Sub DSP

PCM input terminal 0 to Sub DSP

Ground terminal

(NONPCM)

(NONPCM)

(MUTE)

(SDIA)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

+2.5V power terminal (for internal circuit)

IPINT general purpose input terminal

IPINT general purpose input terminal

IPINT general purpose input terminal

AC-3/DTS bit stream (or PCM) data output terminal from DIR

DIR: Serial data word clock (fs) output terminal

DIR: Serial data bit clock (64fs) output terminal

DIR: Serial data master clock (256fs or 128fs) output terminal

(DIRINT)

(DBL)

(DBL)

(WCK)

(BCK)

(MCK)

(Unconnected)

DIR: Data error detect output/block start output terminal

DIR: Serial data synchronous timing output/user data output terminal

(Unconnected)

(Unconnected)

DIR: Serial data master clock 128fs output/channel status output terminal (FS128) (Unconnected)

DIR: Double rate clock output/validity flag output terminal (DBL)

RX-V357/HTR-5830

IC801 : YSS938 (DSP P.C.B.)

DSP

87 RAMD5

88 RAMD6

89 RAMD7

90 VSS

91 VDD1

92 RAMD8

93 RAMD9

94 RAMD10

95 RAMD11

96 RAMD12

97 RAMD13

98 RAMD14

99 RAMD15

100 CASN

101 RAMWEN

102 RAMOEN

103 RASN

104 VSS

105 VDD1

106 RAMA8

107 RAMA7

108 RAMA0

109 RAMA6

110 RAMA1

No.

Name

56 SDWCKI1

57 SDBCKI1

58 VSS

59 SDOB3

60 SDOB2

61 SDOB1

62 SDOB0

63 VDD1

64 ZEROBF3R

65 ZEROBF3L

66 ZEROBF2R

67 ZEROBF2L

68 OPORT0

69 OPORT1

70 OPORT2

71 OPORT3

72 OPORT4

73 OPORT5

74 OPORT6

75 OPORT7

76 VSS

77 VDD2

78 RAMD0

79 RAMD1

80 RAMD2

81 RAMD3

82 ZEROBF0R

83 ZEROBF0L

84 ZEROBF0R

85 ZEROBF0L

86 RAMD4

O

O

O

O

O

O

O

O

O

I/O

I+

I+

O

O

O

O

O+

O+

O+

O+

O

O

O

O

O+

O+

O+

O+

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

I+/O

O

O

O

O

Function

Word clock input terminal for SDIB, SDOB interface

Bit clock input terminal for SDIB, SDOB interface

Ground terminal

PCM output terminal from Sub DSP

PCM output terminal from Sub DSP

PCM output terminal from Sub DSP

PCM output terminal from Sub DSP

+3.3V power terminal (for terminal section)

SDOB3 Rch zero flag output terminal

SDOB3 Lch zero flag output terminal

SDOB2 Rch zero flag output terminal

SDOB2 Lch zero flag output terminal

General purpose output terminal

General purpose output terminal

General purpose output terminal

General purpose output terminal

General purpose output terminal

General purpose output terminal

General purpose output terminal

General purpose output terminal

Ground terminal

+2.5V power terminal (for internal circuit)

Sub DSP: External memory data terminal 0

Sub DSP: External memory data terminal 1

Sub DSP: External memory data terminal 2

Sub DSP: External memory data terminal 3

SDOB1 Rch zero flag output terminal

SDOB1 Lch zero flag output terminal

SDOB0 Rch zero flag output terminal

SDOB0 Lch zero flag output terminal

Sub DSP: External memory data terminal 4

Sub DSP: External memory data terminal 5

Sub DSP: External memory data terminal 6

Sub DSP: External memory data terminal 7

Ground terminal

+3.3V power terminal (for terminal section)

Sub DSP: External memory data terminal 8

Sub DSP: External memory data terminal 9

Sub DSP: External memory data terminal 10

Sub DSP: External memory data terminal 11

Sub DSP: External memory data terminal 12

Sub DSP: External memory data terminal 13

Sub DSP: External memory data terminal 14

Sub DSP: External memory data terminal 15

Sub DSP: Column address strobe output terminal for external DRAM

Sub DSP: Write enable terminal for external memory

Sub DSP: Output enable terminal for external memory

Sub DSP: Low address strobe output terminal for external DRAM

Ground terminal

+3.3V power terminal (for terminal section)

Sub DSP: External memory address terminal 8

Sub DSP: External memory address terminal 7

Sub DSP: External memory address terminal 0

Sub DSP: External memory address terminal 6

Sub DSP: External memory address terminal 1

(WCKG) (Unconnected)

(BCKG) (Unconnected)

(ZF3R) (Unconnected)

(ZF3L) (Unconnected)

(ZF2R) (Unconnected)

(ZF2L) (Unconnected)

(/RINH1) (Unconnected)

(/RINH2) (Unconnected)

(/ICDA)

(/ICAD) (Unconnected)

(DPS)

(RST) (Unconnected)

(ERROR) (Unconnected)

(/PRST) (Unconnected)

(ZF1R) (Unconnected)

(ZF1L) (Unconnected)

(ZF0R) (Unconnected)

(ZF0L) (Unconnected)

41

RX-V357/HTR-5830

42

IC801 : YSS938 (DSP P.C.B.)

DSP

No.

Name

111 RAMA5

112 RAMA2

113 SELI13

114 SELI12

115 SELI11

116 SELI10

117 SELI9

118 RAMA4

119 RAMA3

120 RAMA9

121 RAMA10

122 RAMA11

123 VSS

124 VDD2

125 SELI8

126 SELI7

127 SELI6

128 SELI5

129 RAMA12

130 RAMA13

131 RAMA14

132 RAMA15

133 RAMA16

134 RAMA17

135 OVFB/END

136 ZEROFLG

137 VSS

138 NONPCM

139 DTSDATA

140 AC3DATA

141 MUTE

142 KARAOKE

143 VDD1

144 SURENC

145 CRC

146 /LOCK

147 DIRINT

148 /CS

149 SO

150 SI

151 SCK

152 /IC

153 IPINT

154 SELI4

155 VSS

156 SELI3

157 SELI2

158 TESTXI

159 TESTXO

160 VDD2

I+

I+

I

O

+2.5V

I+

I+

I+

I+

I/O

O

O

I+

O

O

O

O

O

O

O

O

O

I+

I+

I+

I+

O

O

O

O

Is

Is

Is

O+

I+

O

O

Is

Ot

O

O

O

O

O

+3.3V

O

O

Function

Sub DSP: External memory address terminal 5

Sub DSP: External memory address terminal 2

Built-in selector input 13

Built-in selector input 12

Built-in selector input 11

Built-in selector input 10

Built-in selector input 9

Sub DSP: External memory address terminal 4

Sub DSP: External memory address terminal 3

Sub DSP: External memory address terminal 9

Sub DSP: External memory address terminal 10

Sub DSP: External memory address terminal 11

Ground terminal

+2.5V power terminal (for internal circuit)

Built-in selector input 8

Built-in selector input 7

Built-in selector input 6

Built-in selector input 5

Sub DSP: External memory address terminal 12

Sub DSP: External memory address terminal 13

Sub DSP: External memory address terminal 14

Sub DSP: External memory address terminal 15

Sub DSP: External memory address terminal 16

Sub DSP: External memory address terminal 17

Sub DSP: Overflow/program end detect terminal

Main DSP: Zero flag output terminal

Ground terminal

Main DSP: Non-PCM data detect terminal

Main DSP: DTS data detect terminal

Main DSP: AC3 data detect terminal

Main DSP: Auto mute detect terminal

Main DSP: AC3 KARAOKE data detect terminal

Power terminal (for terminal section)

Main DSP: AC-3 2/0 mode Dolby surround encode input detect terminal

Main DSP: AC3 CRC error detect terminal

DIR: PLL lock detect terminal

DIR: Interrupt output terminal

Microprocessor interface chip select input terminal

Microprocessor interface data output terminal

Microprocessor interface data input terminal

Microprocessor interface clock input terminal

Initial clear input terminal

Interrupt output terminal by IPORT 8-14

Built-in selector input 4

Ground terminal

Built-in selector input 3

Built-in selector input 2

Test terminal (should be always connected to VSS)

Test terminal

Power terminal (for internal circuit)

(CXB)

(/CSY)

(SDDY)

(SDMYB)

(SCKYB)

(/ICYP)

(OPTC)

(OPTB)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(CXA)

(GND)

(OPTF) (Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(Unconnected)

(OPTD) (Unconnected)

(Unconnected)

Is: Schmidt trigger input terminal

I+: Input terminal with pull-up resistor

O: Digital output terminal

Ot: 3-state digital output terminal

A: Analog terminal

A B C D

1

PRINTED CIRCUIT BOARD (Foil side)

COAXIAL

CD

3

DIGITAL INPUT

OPTICAL

DTV

/CBL

2

DVD 1

DSP P. C. B.

(Side A)

Lead Free Solder Used

2

E F G

3

4

5

6

ADL

E

E

E

SW

RR

ADR

DAL

DAR

C

RL

FUNCTION (1)

CB453

20 21

120

121

1 40

81

80

1 3

1 5

160

41

44

1 11

12

34

33 23

22

1

40

7

FUNCTION (2)

CB551

SDM

SDD

YSSCK

CSY

/ICD

INT938

/ICCDC

+5D2

+5D1

VRB

VRA

REM1

PSW

/BLK

CKFD

DTFD

CEFD

ADKEY1

ADKEY0

+5MS

MG

+5M

VP

MAIN (1)

CB247

MAIN (1)

CB249

DSP P. C. B.

(Side B)

Lead Free Solder Used

1

7

14

8

1

7

14

8

H I J

RX-V357/HTR-5830

• Semiconductor Location

Ref. no. Location

D801 G3

D802

D803

G3

C5

D804

D805

D806

D807

C5

B4

B5

H5

D808

D809

D5

H6

D810 D6

IC801 C4

IC802 B4

IC803 D5

IC804 C5

IC805 B5

IC806 H3

IC807 G3

43

1

A

RX-V357/HTR-5830

B C D

PRINTED CIRCUIT BOARD (Foil side)

6 CH INPUT

FRONT SURROUND

CENTER/

SUB

WOOFER

FUNCTION (1) P. C. B.

(Side A)

CD

2

E

AUDIO

MD

IN

(PLAY)

/CD-R

OUT

(REC)

F G H

FUNCTION (1) P. C. B.

Lead Free Solder Used

(Side B)

I

3

4

FUNCTION (6)

CB677

5

6

7

44

• Semiconductor Location

Ref. no.

Location

D451 I3

D452

IC451

IC452

I4

I4

H5

IC453

IC454

IC455

IC456

Q451

Q452

Q453

Q454

Q455

Q456

E3

E4

I6

I6

H5

H6

I7

H6

I6

I6

DSP

CB803

ADFR

DAFL

ADFL

E

DAFR

DAC

DASL

DASW

DASR

E

E

TUR

TUL

E

BD_DATA

BD_CLK

BD_MUTE

NC

SWMT

-12

+12

GAIN

HPF

MAIN (1)

CB244

SR

E

SL

E

C

E

FR

E

FL

MAIN (1)

CB101

J K

A B

1

PRINTED CIRCUIT BOARD (Foil side)

FUNCTION (2) P. C. B.

(Side A)

C D E F G H

B, G, E models only

2

VOLUME

EON FREQ/TEXT

START MODE

PTYSEEK

3

4

TUNING MODE

AUTO/MAN'L MONO

MEMORY

MAN'L/AUTO FM

VRB

VRA

REM1

PSW

CKFD

CEFD

ADKEY0

ADKEY1

+5MS

VP

DTFD

MG

+5M

/BLK

DSP

CB804

FUNCTION (2) P. C. B.

(Side B)

Lead Free Solder Used

6CH INPUT

INPUT

+

PRESET/TUNING

SET MENU

-

INPUT MODE

A/B/C/D/E

NEXT

FM/AM PRESET/TUNING

EDIT

PROGRAM

+ BASS/TREBLE -

STEREO

EFFECT

TONE

CONTROL

5

48

49

33 32

17

16

64 1

6

I J

RX-V357/HTR-5830

FUNCTION (4)

CB653

AC4

NC

AC4

FUNCTION (5)

CB671

E

+5M

PSW

SPEAKERS

A/B/OFF

• Semiconductor Location

Ref. no.

Location

D551 H5

D552

IC551

Q551

Q552

H5

F5

E5

F5

Q553

Q554

Q555

Q556

G5

G5

G5

F5

7

45

1

A

RX-V357/HTR-5830

B C

PRINTED CIRCUIT BOARD (Foil side)

FUNCTION (3) P. C. B.

(Side A)

D E F

FUNCTION (3) P. C. B.

Lead Free Solder Used

(Side B)

FUNCTION (4) P. C. B.

(Side A)

G

2

3

4

E

VIR

VIL

E

VOR

VOL

E

SWMT

E

SW

DVR

DVL

E

DTR

DTL

E

AXR

AXL

DVD

DTV

/CBL

V-AUX

AUDIO

IN

VCR

OUT

SUB

WOOFER

OUTPUT

FUNCTION (2)

CB552

AC4

NC

AC4

H

FUNCTION (4) P. C. B.

Lead Free Solder Used

(Side B)

POWER TRANSFORMER

5

FUNCTION (6) P. C. B.

(Side B)

Lead Free Solder Used

FUNCTION (1)

CB451

I J K

FUNCTION (5) P. C. B.

(Side A)

FUNCTION (2)

CB553

E +5M PSW

PRV

-RY

+RY

-12

-5

E

+5

+12

+5D2

+5D1

MAIN (1)

CB246

STANDBY

/ON

FUNCTION (5) P. C. B.

Lead Free Solder Used

(Side B)

6

7

46

• Semiconductor Location

Ref. no.

Location

D651 H5

D652

D653

D654

IC651

IC652

H5

F3

F2

H2

H2

IC653

Q611

Q612

G2

D4

D4

A B

1

PRINTED CIRCUIT BOARD (Foil side)

FUNCTION (7) P. C. B.

(Side A)

R, L models

C

2

VOLTAGE SELECTOR

220-240V 110-120V

D

POWER TRANSFORMER

VI

YE

RE

OR

3

E F G

FUNCTION (8) P. C. B.

(Side A)

H

6

7

4

FUNCTION (9) P. C. B.

(Side A)

5

MAIN (1)

CB105

FUNCTION (10) P. C. B.

(Side A)

HPR

E

HPL

/HP

PHONES

SILENT CINEMA

I J

RX-V357/HTR-5830

FUNCTION (10) P. C. B.

(Side B)

Lead Free Solder Used

• Semiconductor Location

Ref. no.

Location

D431 H5

D432

D433

H6

H6

47

1

A

RX-V357/HTR-5830

B C

PRINTED CIRCUIT BOARD (Foil side)

MAIN (1) P. C. B.

(Side A)

2

3

4

5

MAIN (6)

W382A

IMP

IMP

FUNCTION (1)

CB452

MAIN (5)

CB701

CMP1

CMP0

-5V

+5V

TUR

TUL

NC

BD_DATA

BD_CLK

BD_MUTE

MG

MTSW

-12

+12

GAIN

HPF

DSP

CB802

SDM

SDD

YSSCK

CSY

/ICD

INT938

/ICCDC

+5D2

+5D1

VRB

VRA

REM1

PSW

/BLK

CKFD

DTFD

CEFD

ADKEY1

ADKEY0

+5MS

MG

+5M

VP

DSP

CB805

MAIN (3)

CB391

DEST

/VR1

VIB

VIA

+12

D E

TUNER PACK

NC

+10B

COMP

/ST

TUL

TUR

TUNED

TMT

TE

SCKP

CEP

SDRP

SDRP

6

7

48

SR

E

SL

E

C

E

FR

E

FL

FUNCTION (1)

CB454

1 15

1

+5D1

+5D2

+12

+5V

E

-5V

-12

+RY

-RY

PRV

F

FUNCTION (10)

CB431

ROM WRITER

MAIN (4)

W102B

E

SR

SL

E

CSRY

RY

G

R

SPEAKERS

A

FRONT

L

H

13

FUNCTION (4)

CB651

1 15

I

SPEAKERS

B

FRONT CENTER

R L

J

• Semiconductor Location

D115

D117

D118

D119

D120

D121

D122

D123

Ref. no. Location

D103 I6

D108

D109

H5

G5

D111

D112

D113

D114

C5

H5

G4

H4

IC101 E6

IC102 H6

IC103 D6

I3

F5

I4

G5

G4

G5

I3

H3

Q116

Q117

Q121

Q123

Q243

Q244

Q247

Q249

Q251

Q262

Ref. no. Location

Q106 E6

Q107

Q108

I6

I6

Q112

Q113

Q114

Q115

E5

H5

G6

D5

F4

E4

F3

F4

C6

F6

I3

H5

F3

C4

S12

PRY

MG

MAIN (2)

CB371

AC1

E

E

AC1

POWER

TRANSFORMER

K

5

6

7

A B C

1

PRINTED CIRCUIT BOARD (Foil side)

MAIN (1) P. C. B.

(Side B)

Lead Free Solder Used

2

D

3

E

30

31

50 51

1 100

81

80

12

13 24

4

F G H I J

RX-V357/HTR-5830

• Semiconductor Location

D251

D252

D253

D254

D255

D256

D257

D258

D259

IC241

IC242

D242

D243

D244

D245

D246

D247

D249

D250

Ref. no.

Location

D101

D102

E6

E6

D107

D110

D116

D241

E5

D5

F6

F3

F4

E4

F4

F3

E4

F4

F3

F4

D3

D3

D3

D3

F4

F3

C3

D3

D3

E3

D3

Q252

Q253

Q254

Q255

Q256

Q257

Q258

Q259

Q260

Q261

Ref. no.

Location

Q101

Q102

C5

C5

Q103

Q104

Q105

Q118

C5

C5

C5

G3

Q119

Q120

Q122

Q124

Q245

Q246

Q248

Q250

E4

F3

F3

F3

H3

G3

F6

G5

D4

D4

F4

E4

C5

C3

D4

E4

C4

C4

49

1

A

RX-V357/HTR-5830

B C

PRINTED CIRCUIT BOARD (Foil side)

MAIN (2) P. C. B.

(Side A)

POWER

TRANSFORMER

2

3

AC

6

7

50

4

MAIN (2) P. C. B.

(Side B)

Lead Free Solder Used

5

D E F G H I J

MAIN (3) P. C. B.

(Side A)

DVD

DTV

/CBL

VIDEO

V-AUX

IN

VCR

OUT

MONITOR

OUT

MG

PRY

S12

MAIN (1)

CB103

MAIN (1)

CB245

DEST

VR1

VIB

VIA

+12V

1 9

MAIN (1)

W102A

E

SR

SL

E

CSRY

RY

MAIN (4) P. C. B.

(Side A)

SPEAKERS

SURROUND

R L

K

MAIN (3) P. C. B.

(Side B)

Lead Free Solder Used

• Semiconductor Location

Ref. no.

Location

D371

D372

C3

D3

D373

D374

D375

D376

D4

D4

D3

D3

D377

D411

IC391

Q371

Q372

Q373

Q374

Q375

Q391

Q392

Q393

G3

G3

G3

C2

D2

C3

D3

D3

J3

F3

D2

A B

1

PRINTED CIRCUIT BOARD (Foil side)

MAIN (5) P. C. B.

(Side A)

MONITOR

OUT

COMPONENT

VIDEO

DVD A DTV

/CBL B

2

C

3

D E F

CMP1

CMP0

-5V

+5V

MAIN (1)

W241

MAIN (6) P. C. B.

(Side A)

U, C models

MAIN (1)

W382B

MAIN (1)

CB104

6

Ω

8

Ω

INPEDANCE SELECTOR

BR

GY

YE

G H

POWER TRANSFORMER

VI

YE

RE

OR

XX

4

5

6

7

MAIN (5) P. C. B.

(Side B)

Lead Free Solder Used

16

1

9

8

14

1

8

7

MAIN (6) P. C. B.

(Side B)

Lead Free Solder Used

U, C models

I J

RX-V357/HTR-5830

• Semiconductor Location

Ref. no.

Location

D381

D382

F6

F6

IC701

IC702

Q701

B6

C6

C6

Circuit No.

C148, 150, 162, 163, 411, 412

C154, 155, 156, 157, 415, 416, 418

C164, 165, 167, 168, 417

C274, 275, 277, 279, 280

C373, 375, 376

C374

C381, 382

CB381

D253, 381, 382

D372, 375

IC241

Q249, 372, 373, 374, 375

Q251

Q253

R204, 206, 216, 217, 411, 414

R219, 220, 415

R378

R380, 381, 382

R383, 384

SW381

XL241

X : NOT USED

O : USED / APPLICABLE

X

O

X

O

O

X

O

X

X

X

X

X

X

X

X

X

R

O

X

O

X

X

X

X

O

X

X

X

X

X

O

O

O

X

O

O

O

O

U, C

X

X

X

X

X

X

O

X

X

X

X

X

X

X

X

X

X

O

X

X

X

T

O

X

X

X

X

X

O

O

X

X

X

X

X

X

X

X

X

O

X

X

X

K

O

O

O

X

X

X

O

O

X

X

X

X

X

X

X

X

X

O

X

X

X

A B, G, E L

O O O

O

O

X

X

O

O

O

X

O

X

X

O

O

X

X

X

X

X

X

X

X

O

X

O

X

O

O

X

X

X

X

O

X

X

X

X

X

O

O

O

O

X

O

X

51

A

RX-V357/HTR-5830

B C

1

PIN CONNECTION DIAGRAM

• ICs

KIA7805API

KIA7812API

KIA7912PI

µPC29M33T-E1

PQ025EZ5MZP NJM2068MD LA7956

D E

MM74HCU04SJX

2

3

4

5

IN

COM

OUT

LC72722PM

24

1

GND

IN

OUT

3: IN

2: COM

1: OUT

AK4628VQ

1

5

TC74HCT08AF

12

34

33

44

1

23

22

11

12 14

1

7

8

1

4

M66003-0101FP

1

9

14

MSM514260E-60JS

1

49

48 33

32

7

20

64

1 16

17

40

1

TC74HC4053AF STK403-130Y STK404-130Y BD3816K1

64

65

41

40

8

15

16

13

1

1

80

1 24

25

M30626FHPFP

1

YSS938

121

120 81

80

81

80 51

50

100

1 30

31

160

1 40

41

6

F G H

• Diodes

1SS133

1SS270A

1T2

MTZJ30A

MTZJ4.7A

1SR154-400

Cathode

Anode

1SS355

KDS160-RTK

MA8075-H

MA8100-H

UDZ5.1B

UDZ6.8B

UDZS5.6BTE-17

UDZS6.2B

UDZS9.1B

Cathode

Anode

KPB103G TS6P03G SB01-05Q

Cathode

Anode

Cathode

+

+

Anode

I

• Transistors

2SA1015

2SB949

2SC1815

2SC2705

2SA2N5401C-AT

2SC2N5551C-AT

2SC4208A

E

C B

2SA1037K

2SC2412K

2SC3326

2SD1938F

KRA104S-RTK

KRC102S-RTK

KRC104S-RTK

C

2SC1740S

KRA104M-AT

KRC102M-AT

B

E

E

C

B

2SA1708

2SC4488

2SD1913

E

C

B

BC

E

7

52

J

1

2

3

4

5

6

7

8

9

10

A

BLOCK DIAGRAM

B C D E F G H I J K L M N

RX-V357/HTR-5830

DVD

DTV/CBL

DVD

DTV/CBL

VCR

V-AUX

• See page 57, 58

→ SCHEMATIC DIAGRAM

MAIN

INPUT

SELECTOR

IC701

IC702

INPUT

SELECTOR

IC391

MONITOR

MONITOR

FM/AM

TUNER

(12)

7.2MHz

DVD L/R

DTV/CBL

V-AUX L/R

VCR L/R

VCR

DVD

DTV/CBL

CD

CD L/R

MD/CD-R L/R

MD/CD-R L/R

VCR L/R

FRONT

L/R

CENTER

SUB

WOOFER

SURROUND

L/R

Q391~393

156

157

IC807

LEVEL

CONVERT

&

SIGNAL DETECT

9,125

MAIN u-COM

INPUT

SELECTOR

DIR

DSP IC801

YSS938

DOLBY

PROLOGIC

II

/

DOLBY

DIGITAL

/

DTS

DECODER

• See page 54

→ SCHEMATIC DIAGRAM

DSP

XL801

1

24.576MHz

2

SOUND FIELD

PROCESSING

/

SPEAKER

CONFIGURATION

/

VIRTUAL

PROCESSING

/

HEADPHONE

PROCESSING

62 6

D/A

FL/FR

21

22

61 7

D/A

C/SW

27

60 8

D/A

SL/SR

59 12

IC803 2/2

AK4628VQ

28

24

23

6 7 FL

2

IC452

1 FR

6 7 C

2

IC453

1 SR

6 7 SL

2

IC454

1 SW

4M DRAM

IC802

9

A/D

AK4628VQ

IC803 1/2

31,32

STANDBY/ON

SW671

VOLUME

SW551

IR REMOTE

U551

KEY

SW552~573

FL DISPLAY

V551

FL DRIVER

IC551

+5MS

DRIVE TR

Q551~556

INPUT SELECT

ADFL/

ADFR

23,24

INPUT SELECT &

VOLUME CONTROL

76-79

IC451

BD3816K1

26-32

15-21

SW (MIX)

53,54

49,50

51

48

PRV THM

• See page 57, 58

→ SCHEMATIC DIAGRAM

MAIN

20

19

24,25

94,95

1,2,3,100

97

MICRO

COMPUTER

IC242

92

13

XL242

15

16MHz

82

83-85

48-51

4

91

12

16,62

86

90

SERIAL CONTROL

POWER RELAY

SPEAKER RELAY

MUTE CONTROL

POWER LIMIT

POWER LIMIT DETECT

RESET

+5M

I DETECT

DC DETECT

DSP

TUNER

SELECTOR

VOLUME

AC CABLE

90Hz

HPF

Q455,

Q456

3/5

2/6

+

-

Q453, 454

4dB

GAIN

1/7

SL/SR

FL/FR

MUTE

Q102, 103

L R

FRONT

L/R

LEVEL

SHIFT

Q248

MUTE

Q101, 104

R L

SL/SR

C

MUTE

Q105

C

LEVEL

SHIFT

Q250

Lch IC102

Rch IC103

Power

Amp.

Lch IC102

Rch IC103

Power

Amp.

IC101

Power

Amp.

RY105

SPEAKER

RELAY

RY101

RY102

RY411

RY104

THM

DETECT

Q112~117

I PROTECT

RELAY DRIVE

Q118~120, 122, 124

SPEAKER

RELAY

DETECT

Q123

POWER

DETECT

C431, 432

PHONES

FRONT

L/R A

FRONT

L/R B

SL/SR

C158

C

SW

5

IC456

7

MUTE

Q611, 612

SW

SWMT

LEVEL

SHIFT

Q256

• See page 55, 56

→ SCHEMATIC DIAGRAM

FUNCTION

MUTE

CONTROL

C626

SW

OUTPUT

C377

RY371 F371

POWER LIMIT

C159

C160

Q108, 110

Q109, 111

-30

Q121

• See page 55, 56

→ SCHEMATIC DIAGRAM

FUNCTION

IC651

+12

R652

Q451

Q247

C666

C667

C668

C669

Q452

-12

IC652

R651

+B

+BV

G

-BV

-B

-VP

+RY

+12

+5B

+7

G

-7

-12

-RY

C665

IC653

+5

+5D1

+5D2

IC805

+3.3

IC804

+2.5

+3.3

+2.5

FL1

FL2

T371

C375

C376

Q372~375

Q243

S12

Q371

Power Detector

/Reset

Q258, 259

Q249

Q224

+5MS

+5BU

+5M

MG

POWER

RELAY

RESET

POWER

DETECT

• See page 57, 58

→ SCHEMATIC DIAGRAM

MAIN

53

1

A B

RX-V357/HTR-5830

SCHEMATIC DIAGRAM (DSP)

C D E F

Page 58 H5 to MAIN (1)

CB247

G H

Page 55 H1 to FUNCTION (1)

CB453

I J K

2

3

4

5

6

7

8

9

2.6

0

2.6

5.0

REGULATOR

3.4

3.4

5.0

5.0

0

0

4.0

0

4.9

4.0

0

4.9

4.9

2.4

2.8

0

0

0

4.9

0

2.3

1.7

1.1

1.7

1.7

1.7

4.8

1.4

4.8

~

~

4.8

1.4

1.4

1.4

~

~

4M DRAM

~

~

1.8

1.8

0

0

0

2.3

~

1.3

0

1.3

1.3

0

1.3

1.3

~

1.3

1.3

0

0

0

0

4.9

0

LEVEL CONVERT &

SIGNAL DETECT

0

2.5

0

0

0

0

0

3.4

0

4.0

4.0

0

2.5

0

0

0.1

0

0.5

4.9

0

1

DSP

Point 1 Pin 1 of IC801

IC802: MSM514260E-60JS

4Mbit DRAM

WE

13

OE

27

RAS 14

Timing

Generator

LCAS 29

UCAS

28

A0~A8

9

Column

Address

Buffers

Internal

Address

Counter

Refresh

Control Clock

9

Row

Address

Buffers

9

Row

Decoders

Word

Drivers

I/O

Controller

I/O

Controller

9

Column Decoders

Sense Amplifiers

Memory

Cells

16

I/O

Selector

16

8

Output

Buffers

8

8

Input

Buffers

8

8

Input

Buffers

8

8

Output

Buffers

8

VCC 20

On Chip

VBB Generator

VSS 21

DQ1~DQ8

DQ9~DQ16

IC803: AK4628VQ

192kHz 24Bit 8-channel CODEC

LIN

31

RIN

32

LOUT1 27

ROUT1

28

LOUT2

25

ROUT2 26

LOUT3 23

ROUT3

24

LOUT4

21

ROUT4 22

ADC

ADC

HPF

HPF

Audio

I/F

LPF

LPF

DAC DATT

DAC DATT

MCLK

LRCK

BICK

LPF DAC DATT

LPF

LPF

LPF

LPF

DAC DATT

DAC DATT

SDOUT

DAC

DAC

DATT

DATT

SDIN1

SDIN2

SDIN3

SDIN4

LPF DAC

AK4628

DATT

Format

Converter

39 MCLK

5

4

LRCK

BICK

10 DAUX

1

SDOS

9

6

7

8

12

SDTO

SDTI1

SDTI2

SDTI3

SDTI4

SDOS

I2C

SMUTE

BICK

LRCK

SDTI1

SDTI2

SDTI3

SDTO

DAUX

DFS0

5

6

3

4

7

1

2

8

9

10

11

1.4

1.4

1.4

2.5

0

0

0

4.9

0

0

0

33

32

31

30

29

28

27

26

25

24

23

DZF2/OVF

RIN

LIN

NC

MASTER

ROUT1

LOUT1

ROUT2

LOUT2

ROUT3

LOUT3

3.4

0.7

0.1

1.3

1.2

0

0

1.7

1.7

1.7

0

0

0

2.5

0

0

0

0

IC804: PQ025EZ5MZP

Regulator

Vin

1 3

Vo

2 Vc

5

GND

0

0

0

1.7

0.7

1.7

0.1

1.3

1.9

0

0

CODEC

2.5

2.5

0

2.5

2.5

CENTER

2.5

2.5

SURROUND L

FRONT L

IC805:

µPC29M33T-E1

Voltage Regulator

Amp.

1 INPUT

Safety Drive

Limiter

3 OUTPUT

Excessive Electric

Current Protection

2 COMMON (GND)

IC806: TC74HCT08AF

Quad 2-Input And Gate

1A 1

1B 2

1Y 3

2A 4

2B 5

2Y 6

GND 7

14 Vcc

13 4B

12 4A

11 4Y

9

8

10 3B

3A

3Y

IC807: MM74HCU04SJX

Hex Inverters

A1 1

Y1 2

A2 3

Y2 4

A3 5

Y3 6

GND 7

14 VCC

13 A6

12 Y6

11 A5

10

Y5

9 A4

8 Y4

10

54

★ All voltages are measured with a 10MΩ/V DC electronic volt meter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

L M N

DSP

1

A B C

SCHEMATIC DIAGRAM (FUNCTION 1/2)

FUNCTION (3)

D E

FUNCTION (6) FUNCTION (1)

INPUT Section

F

2

3

4

5

6

7

8

9

10

MUTE

0

0

-12.1

0

0

-12.1

★ All voltages are measured with a 10MΩ/V DC electronic volt meter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

CD L (ANALOG IN)

12.1

7.7

7.0

7.8

0

-7.7

-12.1

-7.7

-7.0

G

Page 58 F3 to MAIN (1)

CB244

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

INPUT SELECT

&

VOLUME CONTROL

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

0

H

Page 54 to DSP

CB803

H1

I J K L M N

RX-V357/HTR-5830

0

0.8

0

0

0.8

0

12.0

2

0

3

0

8

1

0

0

5

6

0

4

-12.1

7

0

12.0

2

0

3

0

8

1

0

5

0 6

4

-12.1

7

0

0

12.0

6

0

5

0

8

7

0

3

0

2

4

-12.1

1

0

0

FRONT L

0.1

0.1

12.0

0.1

0.7

0.7

0

0

0

0

HPF

-12.1

0.1

0.1

0.1

0.1

0.1

0.1

-12.1

HPF

0

0

12.0

0

FRONT L

CENTER

SURROUND L

CENTER

SURROUND L

IC452~IC456: NJM2068MD

Dual OP-Amp

OUT

1

1

–IN

1

2

+IN

1

3

–V

CC

4

+ – + –

8 +V

CC

7 OUT

2

6 –IN

2

5 +IN

2

IC451: BD3816K1

7-channel volume IC for 7-channel

AGND1 1

INA1

2

INA2

3

INB1

4

INB2

5

INC1

6

INC2

7

IND1 8

IND2 9

INE1 10

INE2 11

INF1 12

INF2 13

AGND2 14

INDVDFR 15

INDVDFL

16

INDVDC

17

INDVDSR

18

INDVDSL

19

INDVDCB

20

INDVDSW

21

AGND3

22

OUT1

23

OUT2

24

Input select ING SW

FRL select

6.1ch select

Master

Volume

LOGIC

Output mode select

TREBLE

+

BASS

+

64

VINFR

63 GOUTFL

62 VINFL

61

AGND10

60 TNF1

59

TNF2

58 BNFA1

57

BNFB1

56 BNFA2

55 BNFB2

54

OUTFR

53 OUTFL

52 AGND9

51 OUTC

50 OUTSR

49

OUTSL

48

OUTCB

47

AGND8

46

OUTSW

45

AGND7

44

VINC

43

GOUTC

42

VINSR

41

GOUTSR

25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

55

1

A B C

RX-V357/HTR-5830

SCHEMATIC DIAGRAM (FUNCTION 2/2)

D

FL DISPLAY

E

2

3

-26.0

-26.2

-22.4

-7.4

4.8

-26.2

4.8

-26.0

-26.2

-28.1

-26.2

-22.3

-16.7

-18.4

-16.7

-10.9

-16.5

-16.5

-16.7

-20.6

-22.4

-26.2

FL DISPLAY

DRIVER

-24.3

-26.3

-7.2

-18.5

-9.0

-10.9

-10.9

-14.7

4.8

2.1

2.1

4.9

0

0

4.9

4.9

4.8

-14.6

-14.7

4.8

-7.2

-7.2

4.8

4.8

-20.2

-20.2

-7.4

-7.4

4

F

5

6

7

8

9

R, L models only

FUNCTION (7)

FUNCTION (9) FUNCTION (8)

IR REMOTE

10

56

★ All voltages are measured with a 10MΩ/V DC electronic volt meter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

Page 54 to DSP

CB804

M8

G H I

-22.2

-28.3

-22.2

-28.3

FUNCTION (5) x: NOT USED

O: USED / APPLICABLE

J

R, L

K L M

4.9

0

0 0

0 0

FUNCTION (10)

0

23.4

-23.6

0

5.0

12.0

5.6

5.7

-5.6

-5.5

-4.9

-12.1

12.0

0

23.2

-12.2

0

-23.5

5.0

0

13.0

5.6

13.2

0

6.1

POWER SUPPLY

FUNCTION (2) FUNCTION (4)

IC551: M66003-0101FP

FL Display Driver

/CEFL

CKFL

DTFL

2

3

4

Serial receive circuit data

Display code

RAM

(8-bit x 60)

Code write

CGROM

(35 bit x 166) dot data write

CGROM

(35 bit x 16)

Code/ command control circuit

XIN 7

XOUT 6

Clock generator timing clock

Display controller code select scan pulse

/RESET 1

VDD 8

Vcc2

18

Vss 5

Vp

64

Segment output circuit

44 P35

19 P10

17

P9

9 P1

Segment digit select/ output circuit

45 P36

52

G12

51

G13

50 G14

49

48

47

P38

46 P37

63 G1

Digit output circuit

53 G11

IC651: KIA7812PI

IC653: KIA7805PI

Voltage Regulator

1 INPUT

R1

R22

Q11

R17 R23

Q11-1

Q15

Z1

Q12

Q14

Q17

R19

R12

R11

R13

Q18

R18

Q1

Q6

R7

R2

Q2

Q13

R3

R4

Q3

R5

Q4

C1

R6

Q7

Q5 Q9

R8

Q19

R9

R10

Q8

R15

Q10

Q16

R14

R16

R20

3

OUTPUT

R21

2 COMMON (GND)

IC652: KIA7912PI

Voltage Regulator

Q28

Q29

Q30

R0

Q2

Q4

Q6

R2

R13 R12

1 COMMON (GND)

Q17

R1

R14

R15

R16

R18

R22

R21

Q21

Q22

Q23

Q24

Q19

Q18

Q20

R17

R19

Q31

R20

Q25

Q3

Q5

Q7

R26

R3

R23

R24

R25

Q26

Q8

Q9

Q12 Q13

Q26-1

R4

Q27-1

R5

C2

Q27

D4

C1

Q14

Q15

Q16

R6

R9

Q11

R10

Q10

R7

R11

R8

3 OUTPUT

2 INPUT

AC 35.7

AC 11.1

AC 5.5

N

1

A B

SCHEMATIC DIAGRAM (MAIN 1/2)

C

2

3

4

5

6

7

8

9

D E

SURROUND L

MUTE

0

-12.1

0

-12.1

0

0

FRONT L

MUTE

0

-12.1

0

-12.1

0

0

CENTER

MUTE

0

-12.1

0.1

L CH POWER AMP

51.7

50.4

50.4

51.0

51.0

0

51.0

0

5.0

0

R CH POWER AMP

0

0

CENTER POWER AMP

0

0

DETECT

51.8

0.1

0

DETECT

51.8

0.1

0

52.1

52.0

0

0.1

DETECT

51.8

0

0.1

SURROUND L

0

DETECT

51.8

0.1

0

0.1

FRONT L

0

0.1

0

DETECT

51.8

0.1

0.1

50.4

49.8

48.9

1.1

49.3

CENTER

F G

0 0

0 0

0

DETECT

4.8

0

0 0 0

0 0 0

11.7

RELAY

DRIVE

-12.0

11.6

-12.0

-12.0

SPEAKER

RELAY

RELAY DRIVE

11.7

11.7

0.1

11.6

11.5

-12.0

-12.0

11.5

-12.0

-12.0

SPEAKER RELAY

RELAY DRIVE

11.7

11.7

0.1

0.1

11.6

11.5

11.6

-12.0

SPEAKER RELAY

-47.8

-28.3

-28.9

-28.9

0

H I

IC101: STK404-130Y

Power Amp.

J K

MAIN (4)

IC102, 103: STK403-130Y

Power Amp.

3

8

Pre

Driver

CH1

11

12

1

2

10

SUB

9 5 4 6 7

O: USED / APPLICABLE

13

Pre

Driver

CH2

15

14

11.5

-12.0

0.8

13.0

0.1

0.1

0.1

POWER RELAY

MAIN (2)

POWER SUPPLY

13.0

13.0

6.0

6.0

0 0

MAIN (6)

52.1

0

-52.0

0

AC 76.3

AC 12.2

10

MAIN (1)

POWER Section

L M N

RX-V357/HTR-5830

★ All voltages are measured with a 10MΩ/V DC electronic volt meter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

57

1

A B

RX-V357/HTR-5830

SCHEMATIC DIAGRAM (MAIN 2/2)

Point A-1 Pin 13 of IC242

C

Point A-2 emitter of Q258 1 and collector of Q259 2

2

D

1 Q258 E

2 Q259 C

POWER ON

(Connect the power cable)

POWER OFF

(Disconnect the power cable)

1 Q258 E

2 Q259 C

POWER ON

(Connect the power cable)

E

Page 57 A7 to MAIN (1) Power Section

3

Page 55 G1 to FUNCTION (1)

CB452_12 pin

F

K1 to MAIN (3)

CB391

G H

IC391: LA7956

Video Switch

6dB

AMP

DRIVER CONTROL

4 INPUT 1 OUTPUT

VIDEO SWITCH

1 2 3 4 5 6 7 8 9

VIDEO

OUT

A B VIN1 GND VIN2 VCC VIN3 VIN4

4

5

6

7

8

9.6

11.9

10.3

10.4

0

0

0

0

0

0.3

0.3

4.8

0

0

4.8

4.8

LEVEL

SHIFT

0

11.6

0

0

0.1

4.8

0

0.1

4.9

1

13.0

13.0

5.6

5.6

5.6

6.2

5.6

5.6

6.2

4.9

5.1

6.2

0

A-2

12.9

12.9

12.3

6.8

6.8

0

7.4

0

0

POWER DETECTOR

& RESET

4.9

4.2

0

4.8

4.9

0

2

0

4.9

0

0

0

0

1.2

4.8

1.2

4.8

0.5 0.5

4.8

4.9

4.9

0

0.8

0

4.9

4.9

4.9

0

4.9

0

0

1.1

1.2

4.8

0.5

4.8

RDS

DECODER

MICRO COMPUTER

A-1

11.6

11.9

MUTE

CONTROL

4.8

-12.0

4.9

4.8

-12.0

4.9

4.8

-12.0

4.9

4.8

-12.1

4.9

4.8

-12.1

4.9

-12.1

0

0.7

0

0

0

4.9

4.9

4.9

4.9

4.8

0

0

0

0

0

0.9

0

0

4.9

I J

INPUT

SELECTOR

K

G3 to MAIN (1) Power Section

W245

L

11.8

5.6

6.3

6.3

6.9

6.3

7.3

0

0

FREQUENCY STEP

IC241: LC72722PM

RDS Signal Processor

VDDA 3

VSSA

4

REFERENCE

VOLTAGE

MPX IN

2

ANTIALIASING

FILTER

1

57 kHz bpf

(SCF)

DO 20

CL

21

DI

22

CE

23

T1

7

T2

T3

8

9

T4 10

CCB

TEST

5 6

VREF

SMOOTHING

FILTER

PLL

(57 kHz)

CLOCK

RECOVERY

(1187.5 Hz)

DATA

DECODER

RAM

(24 BLOCK DATA)

ERROR CORRECTION

(SOFT DECISION)

CLK (4.332 MHz)

MEMORY

CONTROL

OSC/DIVIDER

SYNC / EC

CONTROLLER

SYNC

DETECT-1

SYNC

DETECT-2

14 VDDD

15 VSSD

19 RDS-ID

18

SYNC

24 SYR

11 16 17 13 12

MAIN (3)

9

M N

0

0

0

4.8

0

4.9

0

0

4.9

4.9

0

0

5.0

0

5.0

0

5.0

0

0

0

0

0

0

A4 to MAIN (1)

W241

0.7

0

0

0

-4.9

0

5.0

0

0

0

MAIN (5)

10

58

Page 54 to DSP

CB805

L8

MAIN (1)

µ-COM Section

X : NOT USED

O : USED / APPLICABLE

★ All voltages are measured with a 10MΩ/V DC electronic volt meter.

★ Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

★ Schematic diagram is subject to change without notice.

RX-V357/HTR-5830

PARTS LIST

ELECTRICAL PARTS

WARNING

Components having special characteristics are marked s and must be replaced with parts having specifications equal to those originally installed.

ABBREVIATIONS IN THIS LIST ARE AS FOLLOWS:

C.A.EL.CHP

: CHIP ALUMI.ELECTROLYTIC CAP

C.CE

: CERAMIC CAP

C.CE.ARRAY : CERAMIC CAP ARRAY

C.CE.CHP

: CHIP CERAMIC CAP

C.CE.ML

: MULTILAYER CERAMIC CAP

C.CE.M.CHP

: CHIP MULTILAYER CERAMIC CAP

C.CE.SAFTY

: RECOGNIZED CERAMIC CAP

C.CE.TUBLR

: CERAMIC TUBULAR CAP

C.CE.SMI

: SEMI CONDUCTIVE CERAMIC CAP

C.EL

C.MICA

C.ML.FLM

C.MP

C.MYLAR

: ELECTROLYTIC CAP

: MICA CAP

: MULTILAYER FILM CAP

: METALLIZED PAPER CAP

: MYLAR FILM CAP

C.MYLAR.ML : MULTILAYER MYLAR FILM CAP

C.PAPER

: PAPER CAPACITOR

C.PLS

C.POL

: POLYSTYRENE FILM CAP

: POLYESTER FILM CAP

C.POLY

C.PP

C.TNTL

: POLYETHYLENE FILM CAP

: POLYPROPYLENE FILM CAP

: TANTALUM CAP

C.TNTL.CHP

: CHIP TANTALUM CAP

C.TRIM

: TRIMMER CAP

CN

CN.BS.PIN

: CONNECTOR

: CONNECTOR,BASE PIN

CN.CANNON : CONNECTOR,CANNON

CN.DIN

CN.FLAT

: CONNECTOR,DIN

: CONNECTOR,FLAT CABLE

CN.POST

: CONNECTOR,BASE POST

COIL.MX.AM

: COIL,AM MIX

COIL.AT.FM

: COIL,FM ANTENNA

COIL.DT.FM

: COIL,FM DETECT

COIL.MX.FM

: COIL,FM MIX

COIL,OUTPT : OUTPUT COIL

DIOD.ARRAY : DIODE ARRAY

DIODE.BRG

: DIODE BRIDGE

DIODE.CHP

: CHIP DIODE

DIODE.VAR

: VARACTOR DIODE

DIOD.Z.CHP

: CHIP ZENER DIODE

DIODE.ZENR : ZENER DIODE

DSCR.CE

FER.BEAD

: CERAMIC DISCRIMINATOR

: FERRITE BEADS

FER.CORE

: FERRITE CORE

FET.CHP

: CHIP FET

FL.DSPLY

FLTR.CE

: FLUORESCENT DISPLAY

: CERAMIC FILTER

FLTR.COMB

: COMB FILTER MODULE

FLTR.LC.RF

: LC FILTER,EMI

GND.MTL

: GROUND PLATE

GND.TERM

: GROUND TERMINAL

HOLDER.FUS : FUSE HOLDER

IC.PRTCT

: IC PROTECTOR

JUMPER.CN

: JUMPER CONNECTOR

JUMPER.TST : JUMPER,TEST POINT

L.DTCT

: LIGHT DETECTING MODULE

L.EMIT

: LIGHT EMITTING MODULE

LED.DSPLY

: LED DISPLAY

LED.INFRD

: LED,INFRARED

MODUL.RF

: MODULATOR,RF

PHOT.CPL

: PHOTO COUPLER

PHOT.INTR

: PHOTO INTERRUPTER

PHOT.RFLCT : PHOTO REFLECTOR

PIN.TEST

: PIN,TEST POINT

PLST.RIVET

: PLASTIC RIVET

R.ARRAY

R.CAR.

: RESISTOR ARRAY

: CARBON RESISTOR

R.CAR.CHP

: CHIP RESISTOR

R.CAR.FP

: FLAME PROOF CARBON RESISTOR

R.FUS

: FUSABLE RESISTOR

R.MTL.CHP

: CHIP METAL FILM RESISTOR

R.MTL.FLM

: METAL FILM RESISTOR

R.MTL.OXD

: METAL OXIDE FILM RESISTOR

R.MTL.PLAT

: METAL PLATE RESISTOR

RSNR.CE

: CERAMIC RESONATOR

RSNR.CRYS

: CRYSTAL RESONATOR

R.TW.CEM

: TWIN CEMENT FIXED RESISTOR

R.WW

: WIRE WOUND RESISTOR

SCR.BND.HD : BIND HEAD B-TITE SCREW

SCR.BW.HD

: BW HEAD TAPPING SCREW

SCR.CUP

: CUP TITE SCREW

SCR.TERM

: SCREW TERMINAL

SCR.TR

: SCREW,TRANSISTOR

SUPRT.PCB

: SUPPORT,P.C.B.

SURG.PRTCT : SURGE PROTECTOR

SW.TACT

: TACT SWITCH

SW.LEAF

: LEAF SWITCH

SW.LEVER

: LEVER SWITCH

SW.MICRO

: MICRO SWITCH

SW.PUSH

: PUSH SWITCH

SW.RT.ENC

: ROTARY ENCODER

SW.RT.MTR

: ROTARY SWITCH WITH MOTOR

SW.RT

SW.SLIDE

: ROTARY SWITCH

: SLIDE SWITCH

TERM.SP

: SPEAKER TERMINAL

TERM.WRAP : WRAPPING TERMINAL

THRMST.CHP : CHIP THERMISTOR

TR.CHP

: CHIP TRANSISTOR

TR.DGT

: DIGITAL TRANSISTOR

TR.DGT.CHP : CHIP DIGITAL TRANSISTOR

TRANS : TRANSFORMER

TRANS.PULS : PULSE TRANSFORMER

TRANS.PWR : POWER TRANSFORMER ASS’Y

TUNER.AM

: TUNER PACK,AM

TUNER.FM

: TUNER PACK,FM

TUNER.PK

: FRONT-ENDTUNER PACK

VR

VR.MTR

VR.SW

VR.SLIDE

VR.TRIM

: ROTARY POTENTIOMETER

: POTENTIOMETER WITH MOTOR

: POTENTIOMETER WITH ROTARY SW

: SLIDE POTENTIOMETER

: TRIMMER POTENTIOMETER

Note) Those parts marked with “#” are not included in the P.C.B. ass’y.

59

RX-V357/HTR-5830

60

*

*

P.C.B. DSP

Schm

Ref.

PART NO.

Description Markets

WD044200 P.C.B.

WE741100 P.C.B.

DSP (YEM) UCRKABGEL

DSP T

CB802 VQ961200 CN.BS.PIN

9P

CB803 VQ044500 CN.BS.PIN

11P

CB804 VF982200 CN.BS.PIN

14P

CB805 VQ961700 CN.BS.PIN

14P

C805 UR847220 C.EL

C816 UR819100 C.EL

22uF 25V

1000uF 6.3V

C822 UR829100 C.EL

C824 UR819100 C.EL

C827 UR818100 C.EL

C828 UR819100 C.EL

C833 UR818470 C.EL

C834 UR818100 C.EL

C840 UR818470 C.EL

C859 UR818100 C.EL

1000uF 10V

1000uF 6.3V

100uF 6.3V

1000uF 6.3V

470uF 6.3V

100uF 6.3V

470uF 6.3V

100uF 6.3V

C872 UR818100 C.EL

C883 UR818100 C.EL

C886 UR819100 C.EL

C891 UR819100 C.EL

C912 UR818100 C.EL

C913 UR818100 C.EL

C916 UR828100 C.EL

C918 UR866220 C.EL

C919 UR847100 C.EL

C920 UR847100 C.EL

D801 VT332900 DIODE

D802 VT332900 DIODE

D803 VT332900 DIODE

D804 VT332900 DIODE

D805 VT332900 DIODE

D806 VT332900 DIODE

100uF 6.3V

100uF 6.3V

1000uF 6.3V

1000uF 6.3V

100uF 6.3V

100uF 6.3V

100uF 10V

2.2uF 50V

10uF 25V

10uF 25V

1SS355

1SS355

1SS355

1SS355

1SS355

1SS355

D807 WB081800 DIODE

D808 WB081800 DIODE

D809 WB081800 DIODE

D810 WB081800 DIODE

IC801 X0238B00 IC

IC802 XV077B00 IC

IC803 X3807A00 IC

IC804 XZ003A00 IC

IC805 X6051A00 IC

IC806 XZ012A00 IC

IC807 XY070A00 IC

PJ801 V4483900 JACK.PIN

R807 HV753220 R.CAR.FP

R892 HV753220 R.CAR.FP

R902 HV753100 R.CAR.FP

R903 HV753100 R.CAR.FP

SB01-05Q

SB01-05Q

SB01-05Q

SB01-05Q

YSS938

MSM514260E-60JS

AK4628VQ

PQ025EZ5MZP 2.5V

UPC29M33T-E1-AZ

TC74HCT08AF(EL)

MM74HCU04SJX INVER

1P YKC21-3895

2.2Ω 1/4W

2.2Ω 1/4W

1Ω 1/4W

1Ω 1/4W

R910 VU224000 R.MTL.FLM

0.22Ω 1W

R919 RE045100 R.ARRAY

100Ωx4

R920 RE045100 R.ARRAY

R921 RE045100 R.ARRAY

R922 RE045100 R.ARRAY

100Ωx4

100Ωx4

100Ωx4

✻ New Parts

*

*

*

*

P.C.B. DSP & P.C.B. FUNCTION

Schm

Ref.

PART NO.

Description

U801 WB001400 CN.PHOT.SN

1P GP1FA553RZ

U802 WB001400 CN.PHOT.SN

1P GP1FA553RZ

XL801 V3625700 RSNR.CRYS

24.576MHz

Markets

WE545000 P.C.B.

WE545100 P.C.B.

WE545200 P.C.B.

WE857100 P.C.B.

CB431 VK026300 CN.BS.PIN

4P

CB451 VQ963900 CN.BS.PIN

18P

CB452 VQ961500 CN.BS.PIN

12P

CB453 VM859500 CN.BS.PIN

11P

FUNCTION

FUNCTION

UCTKA

R

FUNCTION BGE

FUNCTION (YEM) L

CB454 VQ961200 CN.BS.PIN

9P

CB551 VN394900 CN.BS.PIN

14P

CB611 VQ962100 CN.BS.PIN

18P

CB652 LB919090 CN.BS.PIN

9P

CB653 VK024700 CN.BS.PIN

3P

CB676 VQ963900 CN.BS.PIN

18P

CB677 VQ962100 CN.BS.PIN

18P

CB691 V9377900 CN.BS.PIN

4P SE VHSERIES RL

C431 UA654100 C.MYLAR

C432 UA654100 C.MYLAR

C433 UA654100 C.MYLAR

C434 UA654100 C.MYLAR

C457 UA652220 C.MYLAR

C458 UA652220 C.MYLAR

C459 UA652220 C.MYLAR

C460 UA652220 C.MYLAR

C461 FG651470 C.CE

C462 FG651470 C.CE

C463 UR837100 C.EL

C464 UR837100 C.EL

C465 UR837100 C.EL

C466 UR837100 C.EL

C467 UR847470 C.EL

C468 UR847470 C.EL

0.01uF 50V

0.01uF 50V

0.01uF 50V

0.01uF 50V

220pF 50V

220pF 50V

220pF 50V

220pF 50V

47pF 50V

47pF 50V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

47uF 25V

47uF 25V

C469 UR838100 C.EL

C470 UR838100 C.EL

C473 UR837100 C.EL

C474 UR837100 C.EL

C475 UR837100 C.EL

C476 UR837100 C.EL

C477 UR837100 C.EL

C478 UR837100 C.EL

100uF 16V

100uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

C479 UR837100 C.EL

C480 UA653470 C.MYLAR

10uF 16V

4700pF 50V

C481 VE326000 C.MYLAR.ML

0.1uF 50V

C482 VE326000 C.MYLAR.ML

0.1uF 50V

C483 UA653470 C.MYLAR

4700pF 50V

C484 VE326000 C.MYLAR.ML

0.1uF 50V

C485 VE326000 C.MYLAR.ML

0.1uF 50V

✻ New Parts

RX-V357/HTR-5830

P.C.B. FUNCTION

Schm

Ref.

PART NO.

Description

100pF 50V

100pF 50V

100pF 50V

100pF 50V

100pF 50V

3900pF 50V

10uF 16V

10uF 16V

10uF 16V

100pF 50V

100pF 50V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

2.2uF 50V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

10uF 16V

0.047uF 50V

100pF 50V

100uF 16V

100uF 16V

10uF 16V

0.027uF 50V

0.027uF 50V

100uF 16V

100uF 16V

0.027uF 50V

0.027uF 50V

10uF 16V

10uF 16V

820pF 50V

820pF 50V

820pF 50V

820pF 50V

820pF 50V

10uF 16V

330uF 6.3V

470pF 50V

220pF 50V

220pF 50V

220pF 50V

220pF 50V

C486 UR837100 C.EL

C487 UR837100 C.EL

C488 UR866220 C.EL

C489 UR837100 C.EL

C490 UR837100 C.EL

C491 UR837100 C.EL

C492 UR837100 C.EL

C493 UR837100 C.EL

C494 UR837100 C.EL

C495 UR837100 C.EL

C496 UR837100 C.EL

C497 UR837100 C.EL

C498 UA654470 C.MYLAR

C499 UA652100 C.MYLAR

C500 UR838100 C.EL

C501 UR838100 C.EL

C502 UA652100 C.MYLAR

C503 UA652100 C.MYLAR

C504 UA652100 C.MYLAR

C505 UA652100 C.MYLAR

C506 UA652100 C.MYLAR

C507 UA653390 C.MYLAR

C508 UR837100 C.EL

C509 UR837100 C.EL

C510 UR837100 C.EL

C511 UA652100 C.MYLAR

C512 UA652100 C.MYLAR

C513 UR837100 C.EL

C514 UR837100 C.EL

C515 UR837100 C.EL

C516 UR837100 C.EL

C517 UR837100 C.EL

C518 UR837100 C.EL

C519 UA654270 C.MYLAR

C520 UA654270 C.MYLAR

C521 UR838100 C.EL

C522 UR838100 C.EL

C523 UA654270 C.MYLAR

C524 UA654270 C.MYLAR

C525 UR837100 C.EL

C526 UR837100 C.EL

C527 UA652820 C.MYLAR

C528 UA652820 C.MYLAR

C529 UA652820 C.MYLAR

C530 UA652820 C.MYLAR

C531 UA652820 C.MYLAR

C554 UR837100 C.EL

C562 UR818330 C.EL

C612 UA652470 C.MYLAR

C614 UA652220 C.MYLAR

C615 UA652220 C.MYLAR

C616 UA652220 C.MYLAR

C617 UA652220 C.MYLAR

✻ New Parts

P.C.B. FUNCTION

Markets

Schm

Ref.

PART NO.

Description

*

C618 UA652220 C.MYLAR

C619 UA652220 C.MYLAR

C620 UA652220 C.MYLAR

C621 UA652220 C.MYLAR

C622 FG651470 C.CE

C623 FG651470 C.CE

C624 UR837100 C.EL

C625 UR837100 C.EL

C626 UA654100 C.MYLAR

C651 UR837470 C.EL

C652 UR837470 C.EL

C653 UR837470 C.EL

C654 UR837470 C.EL

C655 UR838100 C.EL

C656 UR838100 C.EL

C657 UR867100 C.EL

220pF 50V

220pF 50V

220pF 50V

220pF 50V

47pF 50V

47pF 50V

10uF 16V

10uF 16V

0.01uF 50V

47uF 16V

47uF 16V

47uF 16V

47uF 16V

100uF 16V

100uF 16V

10uF 50V

C658 UR867100 C.EL

C659 UR838100 C.EL

C660 UA654100 C.MYLAR

C661 UR867100 C.EL

10uF 50V

100uF 16V

0.01uF 50V

10uF 50V s C662 UR73A100 C.EL

10000uF 16V s C663 UR759220 C.EL

2200uF 35V s C664 UR759100 C.EL

1000uF 35V

C665 VE326000 C.MYLAR.ML

0.1uF 50V

C666 VE326000 C.MYLAR.ML

0.1uF 50V

C667 VE326000 C.MYLAR.ML

0.1uF 50V

C668 VE326000 C.MYLAR.ML

0.1uF 50V

C669 VE326000 C.MYLAR.ML

0.1uF 50V

D431 VU172500 DIODE.ZENR

UDZS9.1B

D432 VT332900 DIODE 1SS355

D433 VT332900 DIODE 1SS355

D451 VU994300 DIODE.ZENR

MA8075-H 7.7V

D452 VU994300 DIODE.ZENR

MA8075-H 7.7V

D551 VU172100 DIODE.ZENR

UDZS6.2B 6.2V

D552 VU172100 DIODE.ZENR

UDZS6.2B 6.2V

D651 VU172000 DIODE.ZENR

UDZS5.6BTE-17 5.6V

D652 VU172000 DIODE.ZENR

UDZS5.6BTE-17 5.6V

s D653 WA653100 DIODE.BRG

KBP103G 1.0A 200V s D654 WA653100 DIODE.BRG

KBP103G 1.0A 200V

IC451 X6299A00 IC BD3816K1-C

IC452 X3505A00 IC

IC453 X3505A00 IC

IC454 X3505A00 IC

IC455 X3505A00 IC

NJM2068MD-TE2

NJM2068MD-TE2

NJM2068MD-TE2

NJM2068MD-TE2

IC456 X3505A00 IC

IC551 X2874A00 IC

NJM2068MD-TE2

M66003-0101FP FLD s IC651 X4153A00 IC

KIA7812PI s IC652 X4154A00 IC

KIA7912PI s IC653 X4928A00 IC

KIA7805API 5V

JK431 V9408200 JACK.PHONE

MSJ-064-05B GR

PJ451 V7190400 JACK.PIN

PJ452 V7046800 JACK.PIN

PJ611 V7189700 JACK.PIN

6P

6P MSP-246V1-01NI

1P

✻ New Parts

Markets

61

RX-V357/HTR-5830

62

P.C.B. FUNCTION

Schm

Ref.

PART NO.

Description

PJ612 V7046700 JACK.PIN

PJ613 V7046800 JACK.PIN

PN451 WB213200 PIN

PN551 WB213200 PIN

PN651 WB213200 PIN

PN696 WB213200 PIN

PN697 WB213200 PIN

Q451 iC1815I0 TR

Q452 iA1015I0 TR

Q453 VD303700 TR

Q454 VD303700 TR

Q455 VD303700 TR

Q456 VD303700 TR

Q551 VV556400 TR

Q552 VV556400 TR

Q553 VV556400 TR

4P MSP-244V1-01NI

6P MSP-246V1-01NI

L=70 WB21320

L=70 WB21320

L=70 WB21320

L=70 WB21320

L=70 WB21320

2SC1815 Y

2SA1015 Y

2SC3326 A,B

2SC3326 A,B

2SC3326 A,B

2SC3326 A,B

2SC2412K Q,R,S

2SC2412K Q,R,S

2SC2412K Q,R,S

Q554 VV556400 TR

Q555 VV556400 TR

Q556 VV556400 TR

Q611 VZ725900 TR

2SC2412K Q,R,S

2SC2412K Q,R,S

2SC2412K Q,R,S

2SD1938F S,T

Q612 VZ725900 TR

Q651 VK407600 TR

2SD1938F S,T

2SC4208A Q,R,S

Q652 iA1015I0 TR 2SA1015 Y

R431 VP940800 R.MTL.OXD

470Ω 1W

R432 VP940800 R.MTL.OXD

470Ω 1W

R483 HV753220 R.CAR.FP

2.2Ω 1/4W

R484 HV753220 R.CAR.FP

R589 HV755100 R.CAR.FP

2.2Ω 1/4W

100Ω 1/4W

R592 HV755100 R.CAR.FP

R651 HV753470 R.CAR.FP

R652 HV753470 R.CAR.FP

R657 HV753100 R.CAR.FP

100Ω 1/4W

4.7Ω 1/4W

4.7Ω 1/4W

1Ω 1/4W

R658 HV753100 R.CAR.FP

1Ω 1/4W

R660 VP939500 R.MTL.FLM

1Ω 1W

R663 HV753100 R.CAR.FP

R664 HV753100 R.CAR.FP

1Ω 1/4W

1Ω 1/4W

ST431 WA789700 SCR.TERM

ST451 WA789600 SCR.TERM

M3

SW551 V9281300 SW.RT.ENC

EVEKD2F3024B

SW552 WD483100 SW.TACT

SW553 WD483100 SW.TACT

SKRGAAD010

SKRGAAD010

SW554 WD483100 SW.TACT

SW555 WD483100 SW.TACT

SW556 WD483100 SW.TACT

SW557 WD483100 SW.TACT

SW558 WD483100 SW.TACT

SW559 WD483100 SW.TACT

SW560 WD483100 SW.TACT

SW561 WD483100 SW.TACT

SW562 WD483100 SW.TACT

SW563 WD483100 SW.TACT

SW564 WD483100 SW.TACT

SW565 WD483100 SW.TACT

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

✻ New Parts

Markets

*

*

*

*

*

*

*

P.C.B. FUNCTION & P.C.B. MAIN

Schm

Ref.

PART NO.

SW566 WD483100 SW.TACT

SW567 WD483100 SW.TACT

SW568 WD483100 SW.TACT

SW569 WD483100 SW.TACT

SW570 WD483100 SW.TACT

SW571 WD483100 SW.TACT

SW572 WD483100 SW.TACT

SW573 WD483100 SW.TACT

SW671 WD483100 SW.TACT

SW691 VZ075500 SW.SLIDE

U551 WC746300 L.DTCT

V551 WC173100 FL.DSPLY

WA790800 SHEET

WA790900 SPACER

Description

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SKRGAAD010

SL14-22AM5F

RPM7138-H9

16-BT-122GNK

4.6/10/32

Markets

WE544300 P.C.B.

WE544400 P.C.B.

WE544500 P.C.B.

WE544600 P.C.B.

MAIN

MAIN

MAIN

MAIN

WE544700 P.C.B.

WE544800 P.C.B.

MAIN

MAIN

WE856900 P.C.B.

MAIN (YEM) L

CB101 VQ963000 CN.BS.PIN

9P

A

BGE

T

K

UC

R

CB103 VK024700 CN.BS.PIN

3P

CB104 LB932040 CN.BS.PIN

4P

CB242 VM923600 CN.BS.PIN

13P

CB244 VQ963300 CN.BS.PIN

12P

CB246 VF728200 CN.BS.PIN

10P

CB247 VQ963000 CN.BS.PIN

9P

CB248 VQ044400 CN.BS.PIN

9P

CB249 VQ963500 CN.BS.PIN

14P

CB372 WC050700 CLIP.FUSE

EYF52BCY

CB373 WC050700 CLIP.FUSE

EYF52BCY

CB374 VG879900 CN.BS.PIN

2P

CB375 VG879900 CN.BS.PIN

2P

CB381 LB933050 CN.BS.PIN

5P SE VH

CB391 VK026400 CN.BS.PIN

5P

CB701 VB858300 CN.BS.PIN

4P

C101 UA654100 C.MYLAR

0.01uF 50V

C102 UR877100 C.EL

C103 UR877100 C.EL

C104 UR877100 C.EL

C105 UR877100 C.EL

C106 UR877100 C.EL

C107 UA652220 C.MYLAR

C108 UA652220 C.MYLAR

C109 UA652220 C.MYLAR

C110 UA652220 C.MYLAR

C111 UA652220 C.MYLAR

C112 UR877100 C.EL

C113 UR877100 C.EL

10uF 63V

10uF 63V

10uF 63V

10uF 63V

10uF 63V

220pF 50V

220pF 50V

220pF 50V

220pF 50V

220pF 50V

10uF 63V

10uF 63V

UC

✻ New Parts

BGE

BGE

BGE

BGE

RL

RX-V357/HTR-5830

*

*

P.C.B. MAIN

Schm

Ref.

PART NO.

Description

C114 UR867330 C.EL

C115 UA652100 C.MYLAR

C116 UR877100 C.EL

C117 UR877220 C.EL

C118 UR877100 C.EL

C119 UR877220 C.EL

C120 FG651100 C.CE

C122 UR877100 C.EL

C123 UR877100 C.EL

C124 UR877100 C.EL

C125 UA652100 C.MYLAR

C126 UA652100 C.MYLAR

C127 UR867330 C.EL

C128 UR867330 C.EL

C129 UR867330 C.EL

C130 UR867330 C.EL

C131 UA652100 C.MYLAR

C132 UR877220 C.EL

C133 UA652100 C.MYLAR

C135 FG651100 C.CE

100pF 50V

22uF 63V

100pF 50V

10pF 50V

C136 FG651100 C.CE

C137 FG651100 C.CE

10pF 50V

10pF 50V

C138 FG651100 C.CE

10pF 50V

C139 VE326000 C.MYLAR.ML

0.1uF 50V

C140 VE326000 C.MYLAR.ML

0.1uF 50V

C141 VE326000 C.MYLAR.ML

0.1uF 50V

C142 VE326000 C.MYLAR.ML

0.1uF 50V

C143 VE326000 C.MYLAR.ML

0.1uF 50V

C144 UR876470 C.EL

C145 UR828220 C.EL

C146 UR858100 C.EL

C147 UR866470 C.EL

4.7uF 63V

220uF 10V

100uF 35V

4.7uF 50V

33uF 50V

100pF 50V

10uF 63V

22uF 63V

10uF 63V

22uF 63V

10pF 50V

10uF 63V

10uF 63V

10uF 63V

100pF 50V

100pF 50V

33uF 50V

33uF 50V

33uF 50V

33uF 50V

C148 UA654100 C.MYLAR

C149 UR868100 C.EL

C150 UA654100 C.MYLAR

C151 UA654100 C.MYLAR

C152 WE514200 C.EL

C152 WC998700 C.EL

C153 WE514200 C.EL

C153 WC998700 C.EL

C154 UA654100 C.MYLAR

C155 UA654100 C.MYLAR

C156 UA654100 C.MYLAR

C157 UA654100 C.MYLAR

C158 UA654100 C.MYLAR

C159 VR324900 C.MYLAR

C160 VR324900 C.MYLAR

C161 UR866100 C.EL

C162 UA654100 C.MYLAR

C163 UA654100 C.MYLAR

C164 UA652100 C.MYLAR

C165 UA652100 C.MYLAR

C167 UA652470 C.MYLAR

0.01uF 50V

100uF 50V

0.01uF 50V

0.01uF 50V

6800uF 63V

6800uF 63V

6800uF 63V

6800uF 63V

0.01uF 50V

0.01uF 50V

0.01uF 50V

0.01uF 50V

0.01uF 50V

0.1uF 100V

0.1uF 100V

1uF 50V

0.01uF 50V

0.01uF 50V

100pF 50V

100pF 50V

470pF 50V

✻ New Parts

Markets

RTKABGEL

RTKABGEL

KABGE

KABGE

KABGE

RTKABGEL

RTKABGEL

UCRTKAL

BGE

UCRTKAL

BGE

KABGEL

KABGEL

KABGEL

KABGEL

P.C.B. MAIN

Schm

Ref.

PART NO.

Description

C168 UA652470 C.MYLAR

C243 UR819100 C.EL

C244 UR819100 C.EL

C248 UR866100 C.EL

C253 UR857470 C.EL

C254 UR877100 C.EL

C256 UR847470 C.EL

C258 WB165500 C.EL

C259 UR818220 C.EL

C260 UR847470 C.EL

C261 UR837330 C.EL

C263 UR877100 C.EL

C264 UR818470 C.EL

C274 UR847470 C.EL

C275 UR847470 C.EL

C277 VA761100 C.CE

470pF 50V

1000uF 6.3V

1000uF 6.3V

1uF 50V

47uF 35V

10uF 63V

47uF 25V

0.33F 5.5V

220uF 6.3V

47uF 25V

33uF 16V

10uF 63V

470uF 6.3V

47uF 25V

47uF 25V

27pF 50V

C279 VA761100 C.CE

C280 UR847470 C.EL

C283 UR866220 C.EL

C284 UR866220 C.EL

C285 UR866220 C.EL

C286 UR866220 C.EL

C371 UR858470 C.EL

C372 UA654100 C.MYLAR

27pF 50V

47uF 25V

2.2uF 50V

2.2uF 50V

2.2uF 50V

2.2uF 50V

470uF 35V

0.01uF 50V

C373 UR897100 C.EL

C374 UA654100 C.MYLAR

C375 UA654100 C.MYLAR

C376 UA654100 C.MYLAR

10uF 100V

0.01uF 50V

0.01uF 50V

0.01uF 50V s C377 WB121400 C.CE.SAFTY

0.01uF 295V

C381 UR877100 C.EL

10uF 63V

C382 UR877100 C.EL

C393 UR877100 C.EL

C394 UR877100 C.EL

C395 UR877100 C.EL

10uF 63V

10uF 63V

10uF 63V

10uF 63V

C396 UR877100 C.EL

C397 UR829100 C.EL

C398 UR829100 C.EL

C401 UR838100 C.EL

C411 UA654100 C.MYLAR

C412 UA654100 C.MYLAR

C415 UA654100 C.MYLAR

C416 UA654100 C.MYLAR

C417 UA652100 C.MYLAR

C418 UA652470 C.MYLAR

C707 UR877100 C.EL

C708 UR877100 C.EL

C709 UR837100 C.EL

C710 UR837100 C.EL

C711 UR837100 C.EL

D101 VT332900 DIODE

D102 VT332900 DIODE s D103 VD631600 DIODE

D107 WC398800 DIODE

10uF 63V

1000uF 10V

1000uF 10V

100uF 16V

0.01uF 50V

0.01uF 50V

0.01uF 50V

0.01uF 50V

100pF 50V

470pF 50V

10uF 63V

10uF 63V

10uF 16V

10uF 16V

10uF 16V

1SS355

1SS355

1SS133,176

KDS160-RTK

✻ New Parts

Markets

KABGE

BGE

BGE

BGE

BGE

BGE

RTKABGEL

RTKABGEL

KABGEL

KABGEL

KABGE

KABGEL

RL

UCTKABGE

RL

RL

UC

UC

63

RX-V357/HTR-5830

P.C.B. MAIN

Schm

Ref.

PART NO.

Description Markets

64

*

D108 VN008700 DIODE

D109 VN008700 DIODE

D110 WC398800 DIODE

D111 VN008700 DIODE

D112 VN008700 DIODE

D113 VN008700 DIODE

D114 VN008700 DIODE

D115 VN008700 DIODE

1SS270A

1SS270A

KDS160-RTK

1SS270A

1SS270A

1SS270A

1SS270A

1SS270A

D116 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D117 VN008700 DIODE 1SS270A

D118 VD631600 DIODE

D119 VD631600 DIODE

1SS133,176

1SS133,176 s D120 VG443200 DIODE.ZENR

MTZJ30A 30V

D121 VD631600 DIODE 1SS133,176 s D122 WA653200 DIODE.BRG

TS6P03G 6.0A 200V

D123 VD631600 DIODE 1SS133,176

D241 VT332900 DIODE

D242 VT332900 DIODE

1SS355

1SS355

D243 VU172200 DIODE.ZENR

UDZ6.8B 6.8V

D244 VT332900 DIODE 1SS355

D245 VU172100 DIODE.ZENR

UDZS6.2B 6.2V

D246 VT332900 DIODE 1SS355

D247 VT332900 DIODE

D249 VT332900 DIODE

1SS355

1SS355

D250 VU995500 DIODE.ZENR

MA8100-H 10.3V

D251 VT332900 DIODE 1SS355

D252 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D253 VT332900 DIODE 1SS355

D254 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D255 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D256 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D257 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

UC

D258 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D259 VU171900 DIODE.ZENR

UDZ5.1B 5.1V

D371 VD631600 DIODE 1SS133,176

D372 VG437000 DIODE.ZENR

MTZJ4.7A 4.7V

s D373 VS997800 DIODE s D374 VS997800 DIODE s D375 VS997800 DIODE s D376 VS997800 DIODE s D377 VS997800 DIODE

D381 VT532500 DIODE

D382 VT532500 DIODE

D411 VD631600 DIODE

1T2

1T2

1T2

1T2

1T2

1SR154-400

1SR154-400

1SS133,176 s F371 WB221200 FUSE s F371 VV071700 FUSE s IC101 X5064A00 IC s IC102 X5063A00 IC s IC103 X5063A00 IC

IC241 X0082A00 IC

IC242 X6305A00 IC.CPU

IC391 XH436A00 IC

IC701 XY879A00 IC

RL

RL

UC

UC

T6A 125V UCRL

TSD 3.15A 250V SEM TKABGE

STK404-130Y 130W

STK403-130Y 130W

STK403-130Y 130W

LC72722PM

M30626FHPFP(written)

LA7956

TC74HC4053AF(EL)

BGE

✻ New Parts

P.C.B. MAIN

Schm

Ref.

PART NO.

IC702 X2904A00 IC

PJ391 V7190000 JACK.PIN

PJ392 V7190000 JACK.PIN

PJ393 V7190000 JACK.PIN

PJ701 V8143900 JACK PIN

PN391 WB213200 PIN

PN412 WB213200 PIN

PN701 WB213200 PIN s Q101 VD303700 TR s Q102 VD303700 TR s Q103 VD303700 TR s Q104 VD303700 TR s Q105 VD303700 TR

Q106 V3966800 TR

Q107 WC398400 TR s Q108 VC407900 TR

Q112 WC398400 TR

Q113 WC398400 TR

Q114 WC398400 TR

Q115 WC398400 TR

Q116 WC398400 TR

Q117 WC397700 TR

Q118 WC434900 TR.DGT

Q119 WC434900 TR.DGT

Q120 WC434900 TR.DGT

Q121 iA1015I0 TR

Q122 WC434900 TR.DGT

Q123 iC1815I0 TR

Q124 WC434900 TR.DGT

Q243 VP872700 TR

Q244 VP872600 TR

Q245 WC435000 TR.DGT

Q246 WC435100 TR.DGT

Q247 iC1815I0 TR

Q248 WC435100 TR.DGT

Q249 VP872700 TR

Q250 WC435100 TR.DGT

Q251 iC174020 TR

Q252 WC435100 TR.DGT

Q253 VV556400 TR

Q254 VV556500 TR

Q255 VV556500 TR

Q256 VV556500 TR

Q257 VV556500 TR

Q258 VV556500 TR

Q259 VV556400 TR

Q260 VV556500 TR

Q261 VV556400 TR

Q262 WC398600 TR.DGT

Q371 VE198800 TR

Q372 iA1015I0 TR

Q373 VP872600 TR

Q374 iA1015I0 TR

✻ New Parts

Description

2SC2N5551C-AT

2SC2N5551C-AT

2SC2N5551C-AT

2SC2N5551C-AT

2SC2N5551C-AT

2SA2N5401C-AT

KRA104S-RTK

KRA104S-RTK

KRA104S-RTK

2SA1015 Y

KRA104S-RTK

2SC1815 Y

KRA104S-RTK

2SC4488 S,T

2SA1708 S,T

KRC102S-RTK

NJM2581M VIDEO AMP

2P

2P

2P

9P SHIELD YKC21

L=70 WB21320

L=70 WB21320

L=70 WB21320

2SC3326 A,B

2SC3326 A,B

2SC3326 A,B

2SC3326 A,B

2SC3326 A,B

2SA949 O,Y

2SC2N5551C-AT

2SD1913 R,S

KRC104S-RTK

2SC1815 Y

KRC104S-RTK

2SC4488 S,T

KRC104S-RTK

2SC1740S QRS

KRC104S-RTK

2SC2412K Q,R,S

2SA1037K Q,R,S

2SA1037K Q,R,S

2SA1037K Q,R,S

2SA1037K Q,R,S

2SA1037K Q,R,S

2SC2412K Q,R,S

2SA1037K Q,R,S

2SC2412K Q,R,S

KRA104M-AT

2SC2705 O,Y

2SA1015 Y

2SA1708 S,T

2SA1015 Y

Markets

RL

BGE

UC

RL

RL

RL

P.C.B. MAIN

Schm

Ref.

PART NO.

Description

Q375 WC529200 TR.DGT

Q391 iC1815I0 TR

Q392 iC1815I0 TR

Q393 iC174020 TR

Q701 VD303700 TR

R121 HV753220 R.CAR.FP

R122 HV753220 R.CAR.FP

R125 HV753220 R.CAR.FP

R126 HV753220 R.CAR.FP

KRC102M-AT

2SC1815 Y

2SC1815 Y

2SC1740S QRS

2SC3326 A,B

2.2Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W s

R129 HV754470 R.CAR.FP

47Ω 1/4W

R130 HV753220 R.CAR.FP

2.2Ω 1/4W

R132 HV753220 R.CAR.FP

2.2Ω 1/4W s

R133 HV754100 R.CAR.FP

10Ω 1/4W s

R143 HV756470 R.CAR.FP

4.7KΩ 1/4W s

R144 HV754100 R.CAR.FP

10Ω 1/4W

R148 WB279900 R.WW

RGC55C 0.22+0.22

R156 WB279900 R.WW

R157 WB279900 R.WW

R158 WB279900 R.WW

R159 WB279900 R.WW

R166 HV753470 R.CAR.FP

RGC55C 0.22+0.22

RGC55C 0.22+0.22

RGC55C 0.22+0.22

RGC55C 0.22+0.22

4.7Ω 1/4W s

R171 VP939700 R.MTL.FLM

4.7Ω 1W

R178 HV753470 R.CAR.FP

4.7Ω 1/4W

R180 HV753470 R.CAR.FP

R182 HV753470 R.CAR.FP

R184 HV753470 R.CAR.FP

4.7Ω 1/4W

4.7Ω 1/4W

4.7Ω 1/4W s

R190 VP939700 R.MTL.FLM

4.7Ω 1W s

R191 VP939700 R.MTL.FLM

4.7Ω 1W s

R192 VP939700 R.MTL.FLM

4.7Ω 1W s

R193 VP939700 R.MTL.FLM

4.7Ω 1W

R198 HV756470 R.CAR.FP

4.7KΩ 1/4W s

R201 HV755330 R.CAR.FP

R204 HV753220 R.CAR.FP

R206 HV753220 R.CAR.FP

R208 HV753220 R.CAR.FP

R216 HV753220 R.CAR.FP

R217 HV753220 R.CAR.FP

R219 HV754100 R.CAR.FP

R220 HV754100 R.CAR.FP

RY371 V2712300 RELAY

330Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

10Ω 1/4W

10Ω 1/4W

R378 VC757900 R.MTL.OXD

47Ω 2W

R380 V6730000 R.CAR.

2.2MΩ 1/2W

R381 HV753100 R.CAR.FP

R382 HV753100 R.CAR.FP

1Ω 1/4W

1Ω 1/4W

R399 HV755270 R.CAR.FP

R405 HV753220 R.CAR.FP

R411 HV753220 R.CAR.FP

R414 HV753220 R.CAR.FP

270Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

2.2Ω 1/4W

R415 HV754100 R.CAR.FP

RY101 V5966300 RELAY

RY102 V5966300 RELAY

RY104 V5178900 RELAY

RY105 V5966300 RELAY

10Ω 1/4W

DS24D2-OS(M)

DS24D2-OS(M)

DC DQ24D1-OS(M)

DS24D2-OS(M)

DC SDT-S-112LMR

✻ New Parts

Markets

RL

RTKABGEL

RTKABGEL

RTKABGEL

RTKABGEL

KABGEL

RL

UC

UC

UC

RTKABGEL

RTKABGEL

KABGEL

KABGEL

P.C.B. MAIN

Schm

Ref.

PART NO.

Description

RY411 V5966300 RELAY

ST241 WA789600 SCR.TERM

ST371 WA789600 SCR.TERM

SW381 VZ075500 SW.SLIDE

DS24D2-OS(M)

M3

M3

SL14-22AM5F s

T371 XW606A00 TRANS.PWR

s

T371 XW974A00 TRANS.PWR

s

T371 XW608A00 TRANS.PWR

TE101 VY696300 TERM.SP

TE101 VY696400 TERM.SP

TE102 WB054000 TERM.SP

TE411 WB054100 TERM.SP

4P

4P

YKD21-5002N

YKD21-5004N

XL241 V3930900 RSNR.CRYS

4.332MHz

XL242 WB213000 RSNR.CE

16.0MHz

EP600140 SCR.BND.HD

3x10 MFZN2BL

Markets

BGE

UC

UC

RL

TKABGE

UCRTA

KBGEL

✻ New Parts

CHIP PARTS

Schm

Ref.

PART NO.

Description

RD356240 R.CHP

RD356330 R.CHP

RD356470 R.CHP

RD356510 R.CHP

RD356560 R.CHP

RD356680 R.CHP

RD356820 R.CHP

RD357100 R.CHP

RD357150 R.CHP

RD357180 R.CHP

RD357220 R.CHP

RD357330 R.CHP

RD357470 R.CHP

RD357680 R.CHP

RD358100 R.CHP

RD358220 R.CHP

RD358470 R.CHP

RD359100 R.CHP

US061100 C.CE.M.CHP

10pF 50V

US061180 C.CE.CHP

18pF 50V

US061220 C.CE.M.CHP

22pF 50V

US061330 C.CE.M.CHP

33pF 50V

US061470 C.CE.M.CHP

47pF 50V

US062100 C.CE.M.CHP

100pF 50V

US062220 C.CE.CHP

220pF 50V

US062330 C.CE.M.CHP

330pF 50V

US062470 C.CE.M.CHP

470pF 50V

US062560 C.CE.CHP

560pF 50V

US063100 C.CE.M.CHP

1000pF 50V

US063470 C.CE.CHP

4700pF 50V

US064100 C.CE.M.CHP

0.01uF 50V

US135100 C.CE.CHP

0.1uF 16V

US135220 C.CE.CHP

RD350000 R.CHP

0.22uF 16V

0Ω 1/16W

RD353220 R.CHP

RD354150 R.CHP

RD354470 R.CHP

RD354750 R.CHP

RD354820 R.CHP

RD355100 R.CHP

RD355220 R.CHP

RD355470 R.CHP

RD355560 R.CHP

RD355680 R.CHP

RD355820 R.CHP

RD356100 R.CHP

RD356150 R.CHP

RD356180 R.CHP

RD356200 R.CHP

RD356220 R.CHP

2.2Ω 1/16W

15Ω 1/16W

47Ω 1/16W

75Ω 1/16W

82Ω 1/16W

100Ω 1/16W

220Ω 1/16W

470Ω 1/16W

560Ω 1/16W

680Ω 1/16W

820Ω 1/16W

1KΩ 1/16W

1.5KΩ 1/16W

1.8KΩ 1/16W

2KΩ 1/16W

2.2KΩ 1/16W

2.4KΩ 1/16W

3.3KΩ 1/16W

4.7KΩ 1/16W

5.1KΩ 1/16W

5.6KΩ 1/16W

6.8KΩ 1/16W

8.2KΩ 1/16W

10KΩ 1/16W

15KΩ 1/16W

18KΩ 1/16W

22KΩ 1/16W

33KΩ 1/16W

47KΩ 1/16W

68KΩ 1/16W

100KΩ 1/16W

220KΩ 1/16W

470KΩ 1/16W

1MΩ 1/16W

Markets

✻ New Parts

RX-V357/HTR-5830

65

A

RX-V357/HTR-5830

1

EXPLODED VIEW

B

2

3

4

5

6

7

C D E F G H I J

171

101

172

U, C models

103

5 (6)

164

R, L models

103

1-1 (7)

164

172

1-25

1-1

(10)

1-25

1-25

17

16

1-13

121

U, C, R, T, K,

A, L models

200-1

202

U, C, R, T, L models

163

200

1-5

1-6

1-4

1-1

(5)

1-25

171

2-104

1-1

(2)

150

15

163

1-25

167

1-2

168

2-104

1-1

(8)

167

170

1-1

(4)

2-20

168

170

163

5 (2)

B, G, E models

151

167

109

1-1 (9)

201

201-1

203

120

163

152

202

K, A, B, G, E models

120

163

160

5 (4)

5

(1)

5 (5)

23

168

2-103

167

12

2-104

167

2-7

103

5

1-1

(3)

(3)

1-1

(6)

2-1

160

160

1-1

(1)

160

160

66

MECHANICAL PARTS

Schm

Ref.

*

*

*

*

*

*

*

*

*

*

*

1-1 WE545000 P.C.B. ASS'Y

1-1 WE545100 P.C.B. ASS'Y

1-1 WE545200 P.C.B. ASS'Y

1-1 WE857100 P.C.B. ASS'Y

1-2 MF114180 FLEXIBLE FLAT CABLE

1-4 WE066700 FRONT PANEL ASS'Y

1-4 WE233600 FRONT PANEL ASS'Y

1-4 WE066800 FRONT PANEL ASS'Y

1-4 WE067200 FRONT PANEL ASS'Y

1-4 WE067100 FRONT PANEL ASS'Y

1-4 WE067300 FRONT PANEL ASS'Y

1-4 WE762000 FRONT PANEL ASS'Y

1-5 WC411600 BUTTONCASE 350

1-5 WC411500 BUTTONCASE 350

1-5 WC411800 BUTTONCASE 350

1-5 WC411700 BUTTONCASE 350

*

*

*

*

*

*

*

*

*

*

*

*

* s 15

* s 15

* s 15

* s 15 s 15 s 16 s 16 s 16 s 16 s 16 s 16 s 16 s 16

17

23

5

5

5

12

12

1-6 WC411900 BUTTON/RDS 350

1-13 WC910400 SHEET, WINDOW

1-13 WC412800 SHEET, WINDOW

1-13 WE813800 SHEET, WINDOW

1-13 WE814900 SHEET, WINDOW

1-25 WE774800 BIND HEAD P-TIGHT SCREW

2-1 WD044200 P.C.B. ASS'Y

2-1 WE741100 P.C.B. ASS'Y

5

5

5

5

2-7 MF111070 FLEXIBLE FLAT CABLE

2-20 WC656000 SUPPORT/TR 5P

2-103 WE774600 SCREW IC

2-104 VT669300 PW HEAD B-TIGHT SCREW

WE544300

WE544400

WE544500

WE544600

P.C.B. ASS'Y

P.C.B. ASS'Y

P.C.B. ASS'Y

P.C.B. ASS'Y

WE544700

WE544800

WE856900

WB424000

P.C.B. ASS'Y

P.C.B. ASS'Y

P.C.B. ASS'Y

AM/FM TUNER

WB424100 AM/FM TUNER

X6311A00 POWER TRANSFORMER

X5278B00 POWER TRANSFORMER

X5279B00 POWER TRANSFORMER

X5280B00

X5275B00

WB120500

WC992700

WB120600

WC753000

WC743700

WB212200

WB212300

VN363600

V2438700

MF113140

POWER TRANSFORMER

POWER TRANSFORMER

POWER CABLE

POWER CABLE

POWER CABLE

POWER CABLE

POWER CABLE

POWER CABLE

POWER CABLE

POWER CABLE

CORD STOPPER

FLEXIBLE FLAT CABLE

✻ New Parts

PART NO.

Description

FUNCTION

FUNCTION

FUNCTION

FUNCTION

14P 180mm P=1.25

Remarks Markets

UCTKA

R

BGE

(YEM) L

V357GD

V357BL

V357SI

5830GD

5830BL

5830SI

5830SI

V357GD,5830GD

V357BL

5730BL

V357SI,5830SI

UCRTKA

BGE

V357,5830

V357,5830

V357

5830

BGE

UCRKAL

T

BGE

GE

3x8 MFZN2W3

DSP

DSP

11P 70mm P=1.25

(YEM) UCRKABGEL

T

2m

2m

2m

2m

2m

2m

2m

2m

3x18 MFZN2W3

3x8-8 MFC2

MAIN

MAIN

MAIN

MAIN

MAIN

MAIN

MAIN

ENG06709Q

ENG07711Q

T

K

UC

R

A

BGE

(YEM) L

UCRTL

KABGE

UC

RL

TK

A

BGE

UC

R

A

B

T

K

GE

(YEM) L

10P1

13P 140mm P=1.25

RX-V357/HTR-5830

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

*

Schm

Ref.

PART NO.

Description Remarks Markets

101 WE065200 TOP COVER

101 WE538700 TOP COVER

101 WE065000 TOP COVER

101 WE538900 TOP COVER

101 WE065100 TOP COVER

103 WE065600 REAR PANEL

103 WE065700 REAR PANEL

103 WE065800 REAR PANEL

103 WE233500 REAR PANEL

103 WE066000 REAR PANEL

103 WE065900 REAR PANEL

103 WE066100 REAR PANEL

103 WE066200 REAR PANEL

103 WE066300 REAR PANEL

103 WE066400 REAR PANEL

103 WE066500 REAR PANEL

GD T

GD (YEM) L

BL

SI (YEM) UCRKABGEL

SI

V357

V357

V357

T

UC

R

TK

V357

V357

A

BGE

V357 (YEM) L

5830 UC

5830

5830

5830

5830

R

TK

A

BGE

109 WA796100 SUPPORT/PCB

120

120

120

WA790600

V0042500

VS025000

LEG (GD)

LEG (GD)

LEG (HS)

D60/H21

D60/H21

D60/H21

D60/H21 120 WA790700 LEG (BL)

121

121

121

WE064300

WE064200

WE064400

KNOB D48

KNOB D48

KNOB D48

VOLUME

VOLUME

VOLUME

CBTD001B 150 VU590000 BINDING TIE

151 WB870100 DAMPER

152 WC879000 DAMPER

160 WE774100 BIND HEAD BONDING B-T. SCREW 3x8 MFZN2B3

163 WE774300 BIND HEAD B-TIGHT SCREW

164 WE774000 BIND HEAD SCREW

167 VT669300 PW HEAD B-TIGHT SCREW

168 WE774600 SCREW IC

3x8 MFZN2W3

3x6 MFZN2W3

3x8-8 MFC2

3x18 MFZN2W3

170 WE774700 BIND HEAD S-TIGHT SCREW

171 VD069600 PW HEAD S-TIGHT SCREW

171 VH313200 PW HEAD S-TIGHT SCREW

172 WE200400 DISH HEAD B-TIGHT SCREW

172 WE200500 DISH HEAD B-TIGHT SCREW

GD

V357BL,SI

5830BL

GD

BL

SI

4x10 MFZN2W3

4x8-10 MFNI33 GD,SI

4x8-10 MFNI3BL BL

3x6 MFNI33 GD,SI

3x6 MFNI3BL BL

T

GD (YEM) L

UCR

ACCESSORIES

200 WA220300 REMOTE CONTROL

200-1 AAX46580 BATTERY COVER

201 WA617700 REMOTE CONTROL

201-1 AAX49660 BATTERY COVER

202 V6267000 INDOOR FM ANTENNA

202 WB212500 INDOOR FM ANTENNA

202 WB212400 INDOOR FM ANTENNA

203 VR248500 AM LOOP ANTENNA

203 WB212600 AM LOOP ANTENNA

BATTERY, MANGANESE DRY

RAV300

RAV16

1.4m 1pc

1.4m 1pc

1.4m 1pc

1.0m 1pc

1.0m 1pc

R6CP 2pcs

RRC4001-1001LC UCRTKAL

103RRC-244-01G UCRTKAL

RC1112921/00 BGE

3139 224 22451 BGE

(YEM) UCRL

T

KABGE

(YEM) UCRKABGEL

T

✻ New Parts

67

1

2

3

A

RX-V357/HTR-5830

B C D

REMOTE CONTROL RAV300 (U, C, R, T, K, A, L models)

SCHEMATIC DIAGRAM

3.0V

R3

0

+

C1

47

µF

+

C2

220

µF

IC2

2

2.1V

3

1

D3

RLS-73

C4

0.1

µF

R1

2

Ω (1/4W)

D1

SID303C-01

R2

22

Q1

2SC3265-Y

C3

0.1

µF

R4

100k

T1

T2

OPEN

X1

4MHz

1

P0D2

2

P0D3

3

P1B/INT

4

P0E0

5

P0E1

6

P0E2

7

P0E3

8

REM

9

VDD

10

XOUT

11

XIN

12

GND

13

RESETPU

14

P1A0

15

P1A1

JP1 JP2

P1A2

30

P0D1

29

P0D0

28

P0C3

27

P0C2

26

P0C1

25

P0C0

24

SLEEP

P0B3

23

TUNER

P0B2

22

MD/CD-R

P0B1

21

CD

P0B0

20

SYSTEM POWER

19

P0A3

STANDBY

18

P0A2

AV POWER

17

P0A1

TV POWER

16

P0A0

6CH INPUT

AUDIO

PAUSE

REC

V-AUX

VCR

D-TV/CBL

DVD

AMP

FF

STOP

REW

CODE SET

SKIP +

PLAY

SKIP-

VOLUME -

VOLUME +

INPUT

CH -

CH +

MUTE

VOL -

VOL +

2

1

4

3

MUTE

7

8

5

E

MENU

0

9

8

TITLE

ENTER

+10

DISPLAY

RETURN

>

SELECT

<

4

NOT MOUNTED

F

5

6

G H I

Key

No.

34

35

36

37

38

29

30

31

32

33

24

25

26

27

28

19

20

21

22

23

14

15

16

17

18

9

10

11

12

13

6

7

4

5

8

1

2

3

49

50

51

52

53

54

44

45

46

47

48

39

40

41

42

43

Function

9

0

6

7

8

3

4

1

2

5

AMP

TV VOL +

TV VOL –

TV MUTE

TV CH +

TV CH –

TV INPUT

VOLUME +

VOLUME –

MUTE

+10

ENTER

TITLE

TV POWER

AV POWER

STANDBY

SYSTEM POWER

CD

MD/CD-R

TUNER

SLEEP

DVD

D-TV/CBL

VCR

V-AUX

REC, DISC SKIP

PAUSE

AUDIO

6CH INPUT

SKIP -

PLAY

SKIP +

CODE SET

REW

STOP

FF

MENU

<

SELECT

>

RETURN

DISPLAY

7A-87

7A-1A

AMP

7A-1E

7A-1D

7A-15

7A-C9

7A-16

7A-57

7A-C1

7A-54

7A-0F

7A-55

7A-90

7A-95

7A-97

7A-56

7A-86

7A-98

7A-9C

7A-53

7A-52

7A-1B

7A-1C

7A-88

7A-89

7A-8A

7A-8B

7A-8C

7A-8D

7A-8E

7A-8F

7A-85

7A-99

7A-09

7A-0C

7A-4F

7A-09

7A-0B

7A-08

7A-0A

7A-0D

CD

79-19

79-10

79-1A

79-0B

79-11

79-12

79-13

79-14

79-15

79-16

79-17

79-18

79-0A

79-A5

79-88

79-89

79-8A

79-8B

79-8C

79-8D

79-8E

79-8F

79-85

79-86

79-87

79-AB

79-A8

79-AE

79-AC

79-AA

79-AD

79-AF

79-A9

MD

7F-9E

7F-94

7F-95

7F-96

7F-97

7F-98

7F-99

7F-90

7F-9A

7F-8A

7F-91

7F-92

7F-93

7F-86

7F-82

7F-87

7F-88

7F-84

7F-89

CD-R

7F-80

7F-83

7C-94

7C-95

7C-96

7C-97

7C-98

7C-99

7C-9A

7C-9B

7C-85

7C-87

DVD (Y)

7C-80

7C-8B

7C-83

7C-AD

7CB9

7C-82

7C-BA

7C-86

7C-9C

7C-93

7C-9D

7C-9E

7C-B1

7C-B4

7C-B2

7C-B5

7C-B8

7C-B6

7C-B7

7C-B3

7C-A6

6A-AA

9A-AA

5A-AA

A6-AA

66-AA

96-AA

56-AA

A9-AA

6A-5A

A9-9A

DVD (P)

A5-AA

55-56

AA-5A

95-A6

6A-9A

A5-9A

AA-9A

69-9A

69-AA

AA-AA

A9-56

A9-A5

6A-56

A9-66

A6-66

99-66

A5-66

59-66

5A-A9

69-66

55-AA

13-A3

14-A4

15-A5

16-A6

17-A7

18-A8

19-A9

89-39

9B-2B

10-A0

11-A1

12-A2

85-35

80-30

87-37

82-32

88-38

81-31

86-36

92-22

DVD (M)

3D-8D

06-B6

33-83

49-F9

0A-BA

4A-FA

04-B4

00-B0

05-B5

6A-AA

9A-AA

5A-AA

A6-AA

66-AA

96-AA

56-AA

A9-AA

6A-5A

A9-9A

DVD-R (P)

A5-AA

56-5A

AA-5A

95-A6

6A-9A

A5-9A

AA-9A

69-9A

69-AA

AA-AA

A9-56

A9-A5

6A-56

A9-66

A6-66

99-66

A5-66

59-66

5A-A9

69-66

55-AA

7A-10

7A-12

7A-11

7A-E8

7A-E9

7A-EA

7A-EB

7A-EC

7A-E5

7A-E6

7A-E7

CODE

TUNER

J

7

68

5

6

7

A B C

1

REMOTE CONTROL RAV16 (B, G, E models)

2

3

D

The schematic diagram is not available.

CUSTOM CODE: 7A

Key

No.

3

4

1

2

5

Key

Name

DVD

D-TV/CBL

VCR

POWER

CD

8

9

6

7

MD/CD-R

V-AUX

6CH INPUT

TUNER

10 A/B/C/D/E

11 PRESET –

12 PRESET +

13 / DTS

14 6.1 / 5.1

15 NIGHT

16 SLEEP

17 TEST

11

10

90

97

95

57

85

C9

55

87

16

12

C1

54

0F

1F

15

Data Code

Key

No.

Key

Name

18 VOLUME +

19 STEREO

20 PROG –

21 MUTE

22 PROG +

23 LEVEL

24 VOLUME –

25 SET MENU

26

27 ———

28 ———

29 ———

30

31 –

32 +

33 ———

Data Code

86

1B

9C

98

———

1A

56

59

1C

58

———

———

99

53

52

———

4

E F G H I J

RX-V357/HTR-5830

Value

2.0 k

2.2 k

2.4 k

2.7 k

3.0 k

3.3 k

3.6 k

3.9 k

560

680

820

910

1.0 k

1.2 k

1.5 k

1.8 k

4.7 k

5.1 k

5.6 k

6.8 k

8.2 k

9.1 k

200

220

270

330

390

430

470

510

82

91

100

110

120

150

160

180

22

27

33

39

47

56

68

75

1.0

1.8

2.2

3.3

4.7

5.6

10

15

❊ : Not available

1/4W Type Part No. 1/6W Type Part No.

HJ35

3100

HJ35

HJ35

3180

3220

HF85

3100

HF85

3220

HJ35

3330

HJ35

3470

HF85

HF85

3330

3470

HJ35

HF45

HJ35

HF45

3560

4100

4150

4220

HJ35

4270

HF85

3560

HF45

4100

HF85

4150

HF45

4220

HF45

HJ35

HF45

4330

4470

4470

HF45

4560

HF85

4270

HF45

4330

HF85

4390

HF45

4470

HF45

HF45

HF45

4680

4750

4820

HF45

4910

HF45

4560

HF45

4680

HF45

4750

HF45

4820

HF45

HJ35

HF45

HF45

HJ35

5100

5110

5120

5150

5160

HF45

4910

HF45

5100

HF85

5110

HF45

5120

HF45

5150

HF45

5180

HF45

5180

HF45

5200

HF45

5220

HF45

5270

HF45

HF45

HF45

5200

5220

5270

HF45

5330

HF45

5330

HF45

5390

HF45

5430

HF45

5470

HF45

HF45

HF45

5390

5430

5470

HF45

5510

HF45

5510

HF45

5560

HF45

5680

HF45

5820

HF45

HF45

HF45

5560

5680

5820

HF45

5910

HF45

5910

HF45

6100

HF45

6120

HF45

6150

HF45

HF45

HF45

6100

6120

6150

HF45

6180

HF45

6180

HJ35

6200

HF45

6220

HJ35

6240

HF85

HF45

HF85

6200

6220

6240

HF45

6270

HF45

6270

HF45

6300

HF45

6330

HJ35

6360

HF45

HF45

HF85

6300

6330

6360

HF45

6390

HF45

6390

HF45

6470

HF45

6510

HF45

6560

HF45

HF45

HF45

6470

6510

6560

HF45

6680

HF45

6680

HF45

6820

HF45

6910

HF45

HF45

6820

6910

Parts List for Carbon Resistors

Value

62 k

68 k

82 k

91 k

100 k

110 k

120 k

150 k

180 k

220 k

270 k

300 k

330 k

390 k

470 k

560 k

680 k

820 k

1.0 M

1.2 M

1.5 M

1.8 M

2.2 M

3.3 M

3.9 M

4.7 M

27 k

30 k

33 k

36 k

39 k

47 k

51 k

56 k

10 k

11 k

12 k

13 k

15 k

18 k

22 k

24 k

1/4W Type Part No. 1/6W Type Part No.

HF45

7100

HF45

7100

HF45

HJ35

7110

7120

HF45

7110

HF85

7120

HF45

HF45

HF45

HF45

7130

7150

7180

7220

HF45

7130

HF45

7150

HF45

7180

HF45

7220

HF45

HJ35

HF45

HF45

HF45

HF45

HF45

HF45

7240

7270

7300

7330

7360

7390

7470

7510

HF45

7240

HF85

7270

HF45

7300

HF45

7330

HF45

7360

HF45

7390

HF45

7470

HF45

7510

HF45

7560

HF45

7620

HF45

7680

HF45

7820

HF45

7910

HF45

8100

HF45

8110

HF45

8120

HF45

HF45

HJ35

HF45

HF45

HF45

HJ35

HF45

8470

HJ35

8560

HJ35

8680

HJ35

8820

HF45

9100

HJ35

HJ35

HJ35

HJ35

HJ35

HJ35

HJ35

8150

8180

8220

8270

8300

8330

8390

9120

9150

9180

9220

9330

9390

9470

HF45

HF45

HF45

HF45

HF45

HF45

HF45

HF45

HF45

8150

HF45

8180

HF85

8220

HF45

8270

HF45

8300

HF45

8330

HF85

8390

HF45

8470

HF85

HF85

HF85

7560

7620

7680

7820

7910

8100

8110

8120

8560

8680

8820

HF45

9100

HF85

9150

HF85

9180

HF85

9220

HF85

9330

HF85

9470

1/4W Type

HJ35

10mm

1/4W Type

HF45

1/6W Type

HF85

5mm

69

RX-V357/HTR-5830

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
