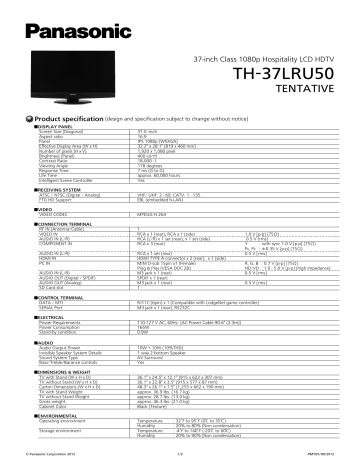

TH-37LRU50
37-inch Class 1080p Hospitality LCD HDTV
TH-37LRU50
TENTATIVE
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Aspect ratio
Panel
Effective Display Area (W x H)
Number of pixels (HxV)
Brightness (Panel)
Contrast Ratio
Viewing Angle
Response Time
Life Time
Intelligent Scene Controller
37.0 -inch
16:9
IPS 1080p (WSXGA)
32.2" x 28.1" (819 x 460 mm)
1,920 x 1,080 pixel
400 cd/㎡
18,000 :1
178 degrees
7 ms (G to G)
approx. 60,000 hours
Yes
■RECEIVING SYSTEM
ATSC / NTSC (Digital / Analog)
FTG HD Support
VHF/ UHF: 2 - 69, CATV: 1 - 135
EBL (embedded b-LAN)
■VIDEO
VIDEO CODEC
MPEG4/H.264
■CONNECTION TERMINAL
RF IN (Antenna/Cable)
VIDEO IN
AUDIO IN (L/R)
COMPONENT IN
1
RCA x 1 (rear), RCA x 1 (side)
RCA (L/R) x 1 set (rear), x 1 set (side)
RCA x 3 (rear)
AUDIO IN (L/R)
HDMI IN
PC IN
AUDIO IN (L/R)
AUDIO OUT (Digital / SPDIF)
AUDIO OUT (Analog)
SD Card slot
RCA x 1 set (rear)
HDMI TYPE A connector x 2 (rear), x 1 (side)
MINI D-sub 15pin x1 (Female)
Plug & Play (VESA DDC 2B)
M3 jack x 1 (rear)
SPDIF x 1 (rear)
M3 jack x 1 (rear)
1
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p] (75Ω)
PB, PR : ±0.35 V [p-p] (75Ω)
0.5 V [rms]
R, G, B : 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
0.5 V [rms]
■CONTROL TERMINAL
DATA / MTI
SERIAL Port
RJ11C (6pin) x 1 (Compatible with LodgeNet game controller)
M3 jack x 1 (rear), RS232C
■ELECTRICAL
Power Requirements
Power Consumption
Stand-by condition
110-127 V AC, 60Hz (AC Power Cable 90.6" (2.3m))
165W
0.9W
■AUDIO
Audio Output Power
Invisible Speaker System Details
Sound System Type
Bass/Treble/Barance controls
10W + 10W (10%THD)
1 way 2 bottom Speaker
AV Surround
Yes
■DIMENSIONS & WEIGHT
TV with Stand (W x H x D)
TV without Stand (W x H x D)
Carton Dimensions (W x H x D)
TV with Stand Weight
TV without Stand Weight
Gross weight
Cabinet Color
36.1" x 24.5" x 12.1" (915 x 622 x 307 mm)
36.1" x 22.8" x 3.5" (915 x 577 x 87 mm)
48.3" x 26.1" x 7.5" (1,255 x 662 x 190 mm)
approx. 36.9 lbs. (16.7 kg)
approx. 28.7 lbs. (13.0 kg)
approx. 46.3 lbs. (21.0 kg)
Black (Texture)
■ENVIRONMENTAL
Operating environment
Storage environment
© Panasonic Corporation 2012
Temperature
Humidity
Temperature
Humidity
:
:
:
:
32°
F to 95°
F (0℃ to 35℃)
20% to 80% (Non condensation)
-4°
F to 140°
F (-20℃ to 60℃)
20% to 90% (Non condensation)
1/2
PMY05/09/2012
TH-37LRU50
37-inch Class 1080p Hospitality LCD HDTV
MAIN FEATURE
ACCESSORIES
Yes
Yes
Yes
Yes
Yes
Image Viewer (JPEG playback)
Cloning
15/30/60/90
Initial INPUT
INPUT Lock
Initial VOL level
Maximum VOL level
Button Lock
Remote Control User Level
CEC Control
Quick Boot
Integrated Pro:Idiom
Local Aucentication
Welcome message
SD Card Slot
OFF Timer
Hotel Mode
INCLUDED ACCESSORIES
Security Bit
Swivel Stand (degrees:30°
/60°
/90°
)
Remote control transmitter
Batteries for the Remote Control
Transmitter (AA Battery x 2)
Operating Instruction
Non
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
ENERGY STAR 5.3, CEC
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003, ISTA
Yes
Wall hanging
VESA compliant
W 7.9" x H 7.9" (W 200 x H 200mm)
UPC Code
T.B.D
DIMENSIONS
Cautions: This drawing is not a scale
7.8 (197)
Units : inches (mm)
8.8
(222)
11.0
(279)
Rotation angle of 30°
36.1 (915)
3.5 (87)
1.1 (28)
17.1
(433)
14.7
(373)
4 (101)
2 (49)
13.6 (344)
11 (280)
22.8 (577)
24.5 (622)
Rotation angle of 60°
4.6(119)
3.8 (99)
Rotation angle of 90°
1.7 (45)
7.7 (195)
11.3 (287)
12.1 (307)
19.7
(499)
15.8 (399)
<rear>
© Panasonic Corporation 2012
<side>
2/2
16.4
(416)
CONNECTION TERMINAL
PMY05/09/2012
