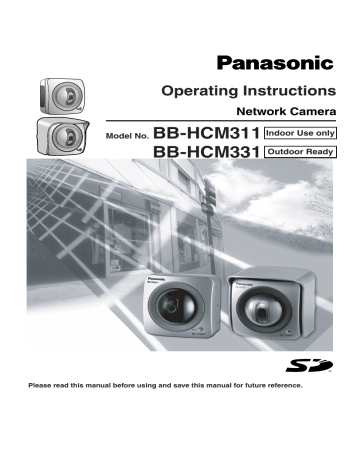

Operating Instructions

Network Camera

Model No.

BB-HCM311

BB-HCM331

Indoor Use only

Outdoor Ready

Please read this manual before using and save this manual for future reference.

2

Operating Instructions

Main Features

[For BB-HCM331] Splash Resistant body for indoor and outdoor use

Your Panasonic Network Camera has a splash resistant body. The splash resistant body allows the camera to be used indoors or outdoors.

IPv6

*1

Network Camera

Your Panasonic Network Camera supports IPv6 (Internet Protocol Version 6), IPv6 was created to address the additional IP addresses that will be needed as the

Internet continues to expand. Since the camera also supports IPv4 that's currently used, it is "dual stack" design will seamlessly operate while IPv6 is phased in. For

more information in IPv6 you wish to visit http://www.ipv6.org/. See page 22 for

more information.

Audio 2-way Communication

*2

(Walkie-talkie Type)

Your Panasonic Network Camera now provides 2-way audio, between the camera and your PC. You will be able to hear the person on camera and respond using a microphone connected to your PC's sound card (customer-provided.) They will hear your response through the amplified speaker (customer-provided) connected to the camera.

For example, the camera can be used in the following various locations:

• In the baby's room, to hear if the baby is crying.

• At the front door, to see and hear who is at the door.

• In the children's play room, to see and hear if they are safe.

Note

PLEASE NOTE that under certain circumstances, audio/video recording may be PROHIBITED by law. This device should be used only in compliance with all applicable federal, state and local statutes.

Better Image Quality

The CCD sensor and the color night view mode provides better image quality and low light performance.

• The CCD sensor gives you clear image.

• You can monitor live video (Motion JPEG) that refreshes its image 30 frames per second.

• Color night view mode allows you to monitor the camera in low illuminance.

*1

*2

To connect in IPv6, subscribe to the ISP's "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service. The camera does not work in IPv6-only network.

Audio feature does not work on mobile phones. Talk button and Listen button cannot be used simultaneously. In consequence of traffic and network environments, the audio may be delayed or may break up.

Operating Instructions

Digital zoom feature

*1

Camera has a 10x digital zoom feature. This feature allows you to increase or decrease the size of the object on the Single Camera screen, the Multi Camera screen, and the Buffered Image screen. Therefore, it will be easy to view the object that located to a distant place.

*2

A mouse wheel operation and clicking the right mouse button increase or decrease the size of the object on the Single Camera screen.

Various Camera Control Features

The camera pans or tilts fast in maximum 80 ° per second. You can control the camera at high speed from your PC or mobile phone. Alarm position feature also allows the camera to automatically turn the lens to the alarm position. Additionally, the following control features are available to easily and quickly monitor the camera.

Click to Center ......... When you click a certain point on the camera image, the point is centered on the image.

Preset Position ......... You can register 20 preset positions. When you click or select each position, the image switches to its position.

Output Control ......... You can control the external devices (Open or Short to

GND) (E.g., turning the light on or ringing a buzzer).

SD Memory Card

*3

Recording

The camera has an SD memory card slot. You can record camera images to the

SD memory card. If you enable alarm buffer/transfer, you can record the image at the timing of signal detection of door sensor or light. About 58,000 images (320 x

240 resolution and standard quality) can be recorded to 1 GB SD memory card. If you enable 1-minute interval timer buffer/transfer, you can record the images for about 41 days.

Multi-Camera Support

Multi-Camera page displays up to 4 cameras while supporting each audio 2-way communication. The previous model displays only 4 cameras, but this camera can switch 3 sets of 4 cameras. Additionally, the camera can displays maximum 12 cameras on a page in a static image.

DynamicDNS Service Support

DynamicDNS service allows you to access the camera over the Internet with your favorite domain name (e.g. bob.viewnetcam.com) instead of a global IP address.

*1

*2

*3

This feature is not available when viewing on a mobile phone.

As the magnification increases, the image quality decreases.

SD memory card is sold separately. The camera supports 1 GB, 512 MB, 256 MB, 128 MB or

64 MB Panasonic SD memory card.

3

4

Operating Instructions

Multi-Language Display

Top page, Single Camera and Multi-Camera page can be displayed in English,

French, German, Italian, Spanish, Russian, Simplified Chinese or Japanese. The

Setup, Maintenance and Support pages are displayed only in English or Japanese.

Motion Detection feature

Camera has a Motion Detection feature that detects movement, such as people, based on the preset threshold and sensitivity of Camera. You can buffer the camera images, transfer to an FTP server or send E-mails using the Motion

Detection function as a trigger.

Operating Instructions

How to Use This Documentation

The following 4 manuals are provided for BB-HCM311.

Installation

Installation provides explanations for items included with the camera.

Getting Started

Getting Started provides explanations for the initial configuration and the ways of camera mount. The Getting Started helps you to easily configure the camera.

Operating Instructions (this manual)

Operating Instructions explains operations, settings, features and the cleaning method when using the camera. The illustrations used in this manual are of BB-HCM331.

Troubleshooting

Troubleshooting provides explanations for troubleshooting tips.

The following 3 manuals are provided for BB-HCM331.

Getting Started

Getting Started provides explanations for the initial configuration and the ways of camera mount. The Getting Started helps you to easily configure the camera.

Installation/Troubleshooting

Installation/Troubleshooting provides explanations for accessories included with the camera, the initial configuration, and troubleshooting tips. The

Installation/Troubleshooting helps you to easily configure the camera.

Operating Instructions (this manual)

Operating Instructions explains operations, settings, features and the cleaning method when using the camera.

Trademarks

• Adobe, Acrobat and Reader are either registered trademarks or trademarks of

Adobe Systems Incorporated in the United States and/or other countries.

• Microsoft, Windows, Hotmail and ActiveX are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.

• Pentium is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries.

• SD mark is a trademark of the SD Card Association.

• Screen shots reprinted with permission from Microsoft Corporation.

• All other trademarks identified herein are the property of their respective owners.

• This software is based in part on the work of the Independent JPEG Group.

Abbreviations

• UPnP is the abbreviation for "Universal Plug and Play".

• "Network Camera" is called "Camera" in this Operating Instructions.

5

6

Operating Instructions

Precaution

Information on Disposal for Users of Waste Electrical &

Electronic Equipment (private households)

This symbol on the products and/or accompanying documents means that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling, please take these products to designated collection points, where they will be accepted on a free of charge basis. Alternatively, in some countries you may be able to return your products to your local retailer upon the purchase of an equivalent new product.

Disposing of this product correctly will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. Please contact your local authority for further details of your nearest designated collection point.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the

European Union

This symbol is only valid in the European Union.

If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Operating Instructions

Informations relatives à l’évacuation des déchets, destinées aux utilisateurs d’appareils électriques et

électroniques (appareils ménagers domestiques)

Lorsque ce symbole figure sur les produits et/ou les documents qui les accompagnent, cela signifie que les appareils électriques et électroniques ne doivent pas être jetés avec les ordures ménagères.

Pour que ces produits subissent un traitement, une récupération et un recyclage appropriés, envoyez-les dans les points de précollecte désignés, où ils peuvent être déposés gratuitement. Dans certains pays, il est possible de renvoyer les produits au revendeur local en cas d’achat d’un produit équivalent.

En éliminant correctement ce produit, vous contriburez à la conservation des ressources vitales et à la prévention des éventuels effets négatifs sur l’environnement et la santé humaine, pouvant être dus à la manipulation inappropriée des déchets. Veuillez contacter les autorités locales pour connaître le point de pré-collecte le plus proche.

Des sanctions peuvent être appliquées en cas d’élimination incorrecte de ces déchets, conformément à la législation nationale.

Utilisateurs professionnels de l’Union européenne

Pour en savoir plus sur l’élimination des appareils électriques et

électroniques, contactez votre revendeur ou fournisseur.

Informations sur l’évacuation des déchets dans les pays ne faisant pas partie de l’Union européenne

Ce symbole n’est reconnu que dans l’Union européenne.

Pour supprimer ce produit, contactez les autorités locales ou votre revendeur afin de connaître la procédure d’élimination à suivre.

7

8

Operating Instructions

Benutzerinformationen zur Entsorgung von elektrischen und elektronischen Geräten (private Haushalte)

Dieses Symbol auf Produkten und/oder begleitenden

Dokumenten bedeutet, dass verbrauchte elektrische und elektronische Produkte nicht mit gewöhnlichem Haushaltsabfall vermischt werden sollen.

Bringen Sie zur ordnungsgemäßen Behandlung,

Rückgewinnung und Recycling diese Produkte zu den entsprechenden Sammelstellen, wo sie ohne Gebühren entgegengenommen werden. In einigen Ländern kann es auch möglich sein, diese Produkte beim Kauf eines entsprechenden neuen Produkts bei

Ihrem örtlichen Einzelhändler abzugeben.

Die ordnungsgemäße Entsorgung dieses Produkts dient dem

Umweltschutz und verhindert mögliche schädliche Auswirkungen auf

Mensch und Umgebung, die aus einer unsachgemäßen Handhabung von

Abfall entstehen können. Genauere Informationen zur nächstgelegenen

Sammelstelle erhalten Sie bei Ihrer Gemeindeverwaltung.

In Übereinstimmung mit der Landesgesetzgebung können für die unsachgemäße Entsorgung dieser Art von Abfall Strafgebühren erhoben werden.

Für Geschäftskunden in der Europäischen Union

Bitte treten Sie mit Ihrem Händler oder Lieferanten in Kontakt, wenn Sie elektrische und elektronische Geräte entsorgen möchten. Er hält weitere

Informationen für sie bereit.

Informationen zur Entsorgung in anderen Ländern außerhalb der Europäischen Union

Dieses Symbol ist nur in der Europäischen Union gültig.

Bitte treten Sie mit Ihrer Gemeindeverwaltung oder Ihrem Händler in

Kontakt, wenn Sie dieses Produkt entsorgen möchten, und fragen Sie nach einer Entsorgungsmöglichkeit.

Operating Instructions

Informazioni per gli utenti sullo smaltimento di apparecchiature elettriche ed elettroniche obsolete (per i nuclei familiari privati)

Questo simbolo sui prodotti e/o sulla documentazione di accompagnamento significa che i prodotti elettrici ed elettronici usati non devono essere mescolati con i rifiuti domestici generici.

Per un corretto trattamento, recupero e riciclaggio, portare questi prodotti ai punti di raccolta designati, dove verranno accettati gratuitamente. In alternativa, in alcune nazioni potrebbe essere possibile restituire i prodotti al rivenditore locale, al momento dell’acquisto di un nuovo prodotto equivalente.

Uno smaltimento corretto di questo prodotto contribuirà a far risparmiare preziose risorse ed evitare potenziali effetti negativi sulla salute umana e sull’ambiente, che potrebbero derivare, altrimenti, da uno smaltimento inappropriato. Per ulteriori dettagli, contattare la propria autorità locale o il punto di raccolta designato più vicino.

In caso di smaltimento errato di questo materiale di scarto, potrebbero venire applicate delle penali, in base alle leggi nazionali.

Per gli utenti aziendali nell’Unione Europea

Qualora si desideri smaltire apparecchiature elettriche ed elettroniche, contattare il rivenditore o il fornitore per ulteriori informazioni.

Informazioni sullo smaltimento in nazioni al di fuori dell’Unione Europea

Questo simbolo è valido solo nell’Unione Europea.

Qualora si desideri smaltire questo prodotto, contattare le autorità locali o il rivenditore e chiedere informazioni sul metodo corretto di smaltimento.

9

10

Operating Instructions

Información sobre la eliminación para los usuarios de equipos eléctricos y electrónicos usados (particulares)

La aparición de este símbolo en un producto y/o en la documentación adjunta indica que los productos eléctricos y electrónicos usados no deben mezclarse con la basura doméstica general.

Para que estos productos se sometan a un proceso adecuado de tratamiento, recuperación y reciclaje, llévelos a los puntos de recogida designados, donde los admitirán sin coste alguno.

En algunos países existe también la posibilidad de devolver los productos a su minorista local al comprar un producto nuevo equivalente.

Si desecha el producto correctamente, estará contribuyendo a preservar valiosos recursos y a evitar cualquier posible efecto negativo en la salud de las personas y en el medio ambiente que pudiera producirse debido al tratamiento inadecuado de desechos.

Póngase en contacto con su autoridad local para que le informen detalladamente sobre el punto de recogida designado más cercano.

De acuerdo con la legislación nacional, podrían aplicarse multas por la eliminación incorrecta de estos desechos.

Para empresas de la Unión Europea

Si desea desechar equipos eléctricos y electrónicos, póngase en contacto con su distribuidor o proveedor para que le informe detalladamente.

Información sobre la eliminación en otros países no pertenecientes a la Unión Europea

Este símbolo sólo es válido en la Unión Europea.

Si desea desechar este producto, póngase en contacto con las autoridades locales o con su distribuidor para que le informen sobre el método correcto de eliminación.

Operating Instructions

11

12

Operating Instructions

System Requirements for your PC

Your PC (Personal Computer) and network must meet the following technical specifications for the camera to work properly.

For IPv4 Connection

Item

Operating

System

CPU

Description

Microsoft

®

Windows

®

XP, Microsoft

®

Windows

®

2000

Microsoft

®

Windows

®

Me, Microsoft

®

Windows

®

98SE

Protocol

Interface

For viewing single camera

Pentium

®

III (800 MHz or greater is recommended.)

For viewing multiple cameras

Pentium 4 (1.8 GHz or greater is recommended.)

TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)

10/100 Mbps network card installed

Web Browser

Internet Explorer 6.0 or later (Not included on the Setup CD-

ROM)

Audio

Audio input/output feature (Microphone or speaker)

Operating Instructions

For IPv6 Connection

Item

Operating

System

CPU

Microsoft

®

Windows

®

Description

XP Service Pack 1 or later

For viewing single camera

Pentium III (800 MHz or greater is recommended.)

For viewing multiple cameras

Pentium 4 (1.8 GHz or greater is recommended.)

Protocol

Interface

TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ICMPv6, NDP)

10/100 Mbps network card installed

Web Browser

Internet Explorer 6.0 or later (Not included on the Setup CD-

ROM)

Audio

Audio input/output feature (Microphone or speaker)

Note

See Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the latest information about web browser.

13

14

Operating Instructions

Camera Feature Locations

Front View

Lens Cover

Lens (0.5 m—Unlimited)

Indicator

The indicator color shows camera status.

Microphone

The microphone picks up audio around the camera.

(See page 38)

Indicator Display

Power on

Not on the LAN

On the LAN

Normal Operation*

1

Automatic

Setup

Using

DHCP

Setting

Finished setting

Getting IP address*

2

Got IP address

Updating Firmware

Pressing FACTORY

DEFAULT RESET button

UPnP

TM

Failure

Internal Failure

Orange blinking

Orange blinking Green blinking

Green

Green blinking

Green

Green blinking Green

Green blinking

Green

Orange blinking

Orange blinking Turning off

(The camera restarts after that.)

Orange blinking (About a 2-second interval)

Red blinking*

3

*

1

The indicator turns orange if the camera is not connected to the LAN.

*

2

The indicator blinks orange if the camera is not connected to the LAN.

*

3

See page 4 of the Troubleshooting manual (for BB-HCM311) or page 8 of the

Installation/Troubleshooting manual (for BB-HCM331) on the Setup CD-ROM.

Side View

Operating Instructions

[For BB-HCM331]

RESTART Button

Restarts the camera.

(See page 160)

SD Memory Card Slot

(See page 157)

FACTORY DEFAULT RESET Button

Resets settings to default (see page

161).

Cover

Bottom View

Stand/Tripod Mounting Hole (See Getting Started)

15

16

Operating Instructions

Rear View

Stand

Mounting Hole

(See Getting

Started)

DC IN jack

(See Getting

Started)

External I/O

(See page 158)

MAC Address (see

Getting Started) and

Serial number (S/N) is indicated on the label.

Ethernet (LAN) port

(See Getting Started)

Hook for Audio Cables

(See Getting Started)

Hook for AC Adaptor

Cord

(See Getting Started)

Audio Output Terminal

(See page 40)

External Microphone

Input Terminal

(See page 40)

Note

[For BB-HCM331] When installing the external microphone and external speaker outdoors, they must be for outdoor use.

Operating Instructions

Table of Contents

1

Camera Monitoring......................................................20

1.1

Accessing the Camera ................................................................. 20

1.1.1

To Access the Camera in IPv6 ................................................................ 22

1.2

Viewing Single Camera page....................................................... 24

1.2.1

Auto Centering the Image (Click to Center)............................................. 29

1.2.2

Capturing a Still Image ............................................................................ 30

1.2.3

Using Operation Bar ................................................................................ 31

1.2.4

Zooming In and Out................................................................................. 33

1.2.5

Setting Home Position/Alarm Position/Preset Position ............................ 34

1.3

Listening to Camera Audio—Talking to the Camera .................... 38

1.4

Viewing Multi-Camera page ......................................................... 41

1.5

Viewing Buffered Image page ...................................................... 43

1.5.1

Deleting Buffered Images ........................................................................ 45

1.6

Viewing Still Images on Your Mobile Phone ................................. 46

2

Various Camera Features ...........................................48

2.1

Using Camera Features ............................................................... 48

2.2

Connecting the Camera to Your IPv4 Network............................. 51

2.3

Connecting the Camera to Your IPv6 Network............................. 56

2.4

What is IPsec? ............................................................................. 60

2.5

Encrypt the Camera Image in Transport Mode ............................ 63

2.6

Encrypt the Camera Image in Tunnel Mode................................. 66

2.7

Using UPnP™ (Universal Plug and Play) .................................... 70

2.7.1

Connecting the Camera to a Router Supporting UPnP™ (IPv4 Only) .... 71

2.7.2

Connecting the Camera to a Router Not Supporting UPnP™ (IPv4 Only) ......... 72

2.8

Registering with the DynamicDNS service .................................. 73

2.8.1

DynamicDNS Service (IPv4/IPv6) ........................................................... 76

2.9

Setting Date and Time ................................................................. 78

2.10

Changing Camera Settings .......................................................... 81

2.11

Adjusting Audio ............................................................................ 86

2.12

Changing Authentication Setting and Administrator User Name and

Password...................................................................................... 88

2.13

Logging in to the Camera............................................................. 91

2.14

Creating, Modifying or Deleting General Users............................ 92

17

18

Operating Instructions

2.15

Buffering or Transferring Images by Timer ................................... 95

2.16

Buffering or Transferring Images by Alarm Signal...................... 104

2.17

Buffering or Transferring Images by Motion Detection Signal .... 115

2.18

Transfer the Camera Image in Transport Mode.......................... 126

2.19

Transfer the Camera Image in Tunnel Mode .............................. 127

2.20

Setting the Motion Detection...................................................... 128

2.21

Notifying Setup of an Alarm Log ................................................ 131

2.22

Changing Initial Settings on the Single Camera page or the Multi-

Camera page ............................................................................. 133

2.23

Configuring Multiple Cameras.................................................... 136

2.24

Format the SD memory card ..................................................... 138

2.25

Stop the SD Memory Recording ................................................ 139

2.26

Start the SD Memory Recording................................................ 140

2.27

Specifying Operation Time......................................................... 141

2.28

Controlling External Output Terminal ......................................... 143

2.29

Changing Indicator Display ........................................................ 144

3

Camera Maintenance ................................................145

3.1

Maintenance page ..................................................................... 145

3.1.1

Confirming the Status ............................................................................ 146

3.1.2

Confirming Session Status .................................................................... 146

3.1.3

Displaying Alarm Logs ........................................................................... 147

3.1.4

Restarting the Camera .......................................................................... 148

3.1.5

Updating the Camera Firmware............................................................. 149

3.1.6

Creating Configuration File .................................................................... 152

3.1.7

Loading Settings from a Configuration File............................................ 153

3.1.8

Resetting the Camera to Factory Default............................................... 154

3.2

Support page ............................................................................. 155

3.2.1

Seeing Help page .................................................................................. 155

3.2.2

Seeing Product Information ................................................................... 155

3.2.3

Seeing Support Information................................................................... 156

3.3

Using the SD Memory Card ....................................................... 157

3.4

External I/O ................................................................................ 158

3.5

[For BB-HCM331] RESTART Button.......................................... 160

3.6

FACTORY DEFAULT RESET Button.......................................... 161

Operating Instructions

3.7

Mounting the Camera................................................................. 162

3.8

Default Setting List ..................................................................... 164

3.9

Cleaning ..................................................................................... 174

3.9.1

Cleaning the Main Unit .......................................................................... 174

3.10

Setting an IP Address on Your PC ............................................. 175

3.11

Using Setup Program................................................................. 176

3.12

Setting Your PC.......................................................................... 179

3.12.1 Setting the Proxy Server Settings on Web Browser ............................. 179

3.12.2 Setting UPnP™ to Display Camera Shortcut in My Network Places ............... 182

3.12.3 Setting the Internet Temporary File Setting on Web Browser................ 182

3.13

ASCII Character Table ............................................................... 183

3.14

File Size and Number of Buffered Images ................................. 184

3.15

Number of Images on the SD Memory Card.............................. 185

3.16

Specifications............................................................................. 186

Index..................................................................................189

19

20

Operating Instructions

1 Camera Monitoring

1.1

Accessing the Camera

1.

Start up the web browser on your PC.

2.

Enter "http://IPv4 Address (or URL):Port Number" on the address bar, and press [Enter] on the keyboard.

• When port number is 80 (default), you do not need to enter port number.

See page 53 for details about port number.

For IPv6 connection, see page 22 and page 23, and prepare the

requirements. Enter the "http://(IPv6-registered URL):Port Number" on the address bar.

• If the camera image is not displayed, see page 7 and page 8 of the

Troubleshooting manual (for BB-HCM311) or page 48 and page 49 of the

Installation/Troubleshooting manual (for BB-HCM331) on the Setup CD-

ROM.

E.g. http://192.168.0.253:50000 (in IPv4) http:// .viewnetcam.com:50000 (in IPv6)

3.

The Enter Network Password window is displayed, and enter the user name and password that were set, and click [OK].

Note

When [Permit access from guest users] is set on the Security: Administrator page, authentication window will not be displayed.

4.

Click the following tabs to display each page.

A B C D E F G

Operating Instructions

Version Number

Select a language.

Displays IPv4, IPv6 or IPsec connection.

A To Single Camera page (page 24)

B To Multi-Camera page (page 41)

C To Buffered Image page (page 43)

D To Setup page (page 48)

E To Maintenance page (page 145)

G To log in to the camera (page 91)

F To Support page (page 155)

Note

• When users other than an administrator are accessing the camera,

[Setup] and [Maintenance] tab will not be displayed. Additionally, When

[Do not permit access from guest users] is set on the Security:

Administrator page, [Login] tab will not be displayed.

• If [View Multi-Camera page] or [View Buffered Image page] is not permitted on the General User page, [Multi-Camera] or [Buffered Image] tab will not be displayed.

21

22

Operating Instructions

1.1.1

To Access the Camera in IPv6

You need to prepare the followings to access the camera in IPv6.

PC Requirements

Operating System: Windows XP Service Pack 1 or later

Web Browser: Internet Explorer 6.0 or later

An IPv6 Router

An IPv6 Connection Service

To connect in IPv6, subscribe to the ISP's "IPv4/IPv6 Dual-Stack" or "IPv6 over

IPv4 Tunneling" service. The camera does not work in IPv6-only network.

IPv6 Domain Name Service

In Windows XP, you cannot access the camera entering IP address on the web browser. You need to enter IPv6 URL registered in the domain name service. We

recommend Viewnetcam.com service (see page 73) as a domain name service.

Ask your ISP about other IPv6 domain name service.

What is IPv6?

• IPv6 is short for "Internet Protocol Version 6".

• IPv6 was created to address the additional IP addresses that will be needed as the Internet continues to expand.

• IPv6 is expected to gradually replace IPv4, with the 2 coexisting for a number of years during a transition period.

• Though most ISPs (Internet Service Providers) do not yet support IPv6, many local networks already use it. When your ISP supports IPv6, your

Panasonic Network Camera will be ready!

• For more information you wish to visit http://www.ipv6.org/.

Operating Instructions

Setting up the IPv6 Router, your PC, and the Camera

Setting up the IPv6 Router

Set up the router as you subscribe to the IPv6 service. If the access from WAN side is disabled on the router, enable the TCP packets from WAN side in the packet filtering. See the Panasonic Network Camera support website at http://

panasonic.co.jp/pcc/products/en/netwkcam/ for information about the recommended routers.

Setting up your PC

1.

Click [Start] [All Programs] [Accessories] [Command Prompt].

• Command Prompt window is displayed.

2.

Enter "ipv6 install".

• "Succeeded" is displayed.

Note

• If Windows XP Service Pack 1 or later is not installed, "Succeeded" will not be displayed. Install it on your PC.

• When you use Windows XP Service Pack 2, click [Start] [Control

Panel] [Security Center] [Windows Firewall] [Advanced] tab [Settings] button of ICMP in the Windows Firewall window, then check [Allow incoming router request] check box in the ICMP Settings window.

3.

Enter "ipconfig".

• If the IPv6 address is properly assigned to your PC, IPv6 address will be displayed on the window.

Setting up the Camera

Usually, IPv6 address is automatically assigned. If you assign a static IPv6

address, see page 56. To access the camera in IPv6, you need to subscribe to a

DynamicDNS service such as Viewnetcam.com, and register the URL.

Confirming that You Can Access the Camera

Confirm that the image is properly displayed (see page 20).

23

24

Operating Instructions

1.2

Viewing Single Camera page

1.

Access the camera (see page 20).

• The Top page is displayed.

2.

Click the [Single] tab at the top of the page.

When Security Warning window is displayed, click [Yes] (see page 25).

See page 27 for Security Warning window when using Microsoft Windows

XP Service Pack 2.

Capture Image

Button

(See page 30)

Operation Bar

(See page 31)

Digital Zoom

(See page 33)

Refresh Interval

(See page 31)

Audio Control

Bar (Talk

Button, Listen

Button and

Adjustment

Bar)

(See page 38)

Click to Center

(See page 29)

Camera Image

Click the URL when gray color screen is displayed.

Click the URL in case of no audio.

Displaying to operate with

IPv4, IPv6, or

IPsec.

The banner is displayed.

(See page 28)

3.

Close the web browser.

Operating Instructions

Note

• Refresh interval is [Motion] by default. You can change it on the operation

bar (see page 31).

• Refresh interval may change depending on the network condition, PC performance and what object you view. SD memory recording, using

IPsec or enabling Motion Detection will also slow refresh interval.

• When displaying video (Motion JPEG), the camera allows up to 30 simultaneous accesses. When trying more than 30 accesses, the 31st user will see a gray screen. (Maximum 30 accesses for a Buffered Image page too.)

• When the pan/tilt reaches the end, a shadow may be displayed partially.

This is not a problem.

• To reduce the data traffic, the video can be automatically changed to

refreshing still images on the General User page (see page 92).

• To display the Single Camera page directly, add it to the [Favorites] on the web browser.

• When you view a dark image, enable the color night view mode on the

Camera Setup page (see page 81). The image will be brighter, but the

refresh interval may slow down and image quality may decrease in a dark place.

Security Warning window

To view a video (Motion JPEG) or to use audio feature, ActiveX

®

Controls must be installed. When trying to display a video for the first time, Security Warning window will be displayed. When using Windows XP or Windows 2000, log in as an administrator to install it.

25

26

Operating Instructions

If you cannot install ActiveX Controls or you cannot see the video in the Internet Explorer

• Click [Tools] [Internet Options] [Security] tab and click [Custom level] on the web browser.

(1) Check "Prompt" in "Download signed ActiveX Controls".

(2) Check "Enable" in "Run ActiveX Controls and plug-ins".

• ActiveX Controls can be installed from the file on the Setup CD-ROM.

(1) Restart the PC.

(2) Confirm that Internet Explorer is closed.

(3) Double-click"ocx\ActiveXInst.exe" on the Setup CD-ROM.

Note

• When the IP address was changed for the camera, enter it on the address bar.

• Video may not be displayed quickly or audio may not be listened immediately.

Wait for a while.

• If you use a proxy server, set the web browser not to access the proxy server

(see page 179).

• In some corporate network environments a firewall may be used for security purposes. It is possible that this may prevent motion video from being displayed. In this situation we suggest:

– Contact your network administrator.

– Try using regularly refreshed images.

Operating Instructions

Security Warning window on Microsoft Windows XP Service Pack 2

To view a video (Motion JPEG) or to use audio feature, ActiveX Controls must be installed. Follow the steps shown below to install ActiveX Controls.

1.

Click the warning displayed above the tabs, and click [Install ActiveX

Control...].

2.

Click [Install].

27

28

Operating Instructions

The Banner

When the camera accesses the Internet, the banner displays product information about cameras or announcements about the latest firmware, etc. from Panasonic.

Whether or not to display the banner can be set at Banner Display (see page 133).

Note

• The banner is displayed when [Yes] is checked for Allow Access from the

Internet on the Automatic Setup page, or when [Enable] is checked for Auto

Port Forwarding on the UPnP page for the Connection Mode of Static or

DHCP.

• Even if [Yes] is checked for Allow Access from the Internet on the Automatic

Setup page, or [Enable] is checked for Auto Port Forwarding on the UPnP page for the Connection Mode of Static or DHCP, when the camera is not connected to the Internet, is displayed.

Operating Instructions

1.2.1

Auto Centering the Image (Click to Center)

Using your mouse, click any portion of the camera image. As long as it is within the pan/tilt range of the camera, the image will automatically move to place the selected point in the center of the screen.

1.

Move the cursor to the desired point.

Cursor

2.

Click it.

• The clicked point is centered.

See page 32 for the pan/tilt operation.

Note

• When using the digital zoom feature, the Click to Center feature is available.

• When End Display appears on the operation bar, Click to Center does not

work beyond the pan/tilt end (see page 31).

• The clicked position may slightly miss the center depending on the lens direction.

If Click to Center is not permitted on the General User page (see page 92),

Click to Center does not work.

29

30

Operating Instructions

1.2.2

Capturing a Still Image

A still image can be saved on your PC.

1.

Operate pan/tilt and select a resolution to display an image.

2.

Click the capture image button.

Capture Image Button

• The camera image opens in another window.

3.

Right-click the image, and select [Save Picture As...].

• Save as dialog box is displayed.

4.

Specify the location, and click [Save].

• Camera image is saved at that location.

5.

Click [Close].

Operating Instructions

1.2.3

Using Operation Bar

End Display and Preset

Display:

When the pan/tilt has reached the end (Left End,

Right End, Up End and Down End), End Display appears. When clicking or selecting a preset position, the preset name appears.

Pan/Tilt

Scan:

Moves the lens throughout the horizontal ( ) or vertical ( ) range, and returns to the original position.

Pan/Tilt/

Home

Position:

Preset

Button:

Controls lens direction. The camera can be set up to turn to the home position when detecting motions.

Pan ( : Left, : Right), Tilt ( : Up,

: Down) and Home Position ( : Center

[Default])

Applies the camera direction to a preset position.

The camera can be set up to turn to the preset positions when detecting motions. You can preset

8 positions (see page 34—page 37).

Preset

Position:

Applies the camera direction to home position. When the external sensor detects a signal, the camera can be set up to turn to the position of Alarm 1 or Alarm 2. You can preset 20

positions. Only an administrator can operate it (see page 34).

Brightness: Changes brightness in nine steps including [STD] (Standard).

Clicking [-] or [+] changes the image brightness.

Output

Control:

Controls output signals of the External I/O.

Refresh

Interval:

Sets a refresh interval. (Motion—60-second interval)

Resolution: Selects [640 x 480] or [320 x 240] (default) pixels.


Quality:

Selects the image quality.

• [Favor Clarity] optimizes the image for good clarity.

• [Standard] keeps the standard quality. (default)

• [Favor Motion] optimizes the image for motion display.

31

32

Operating Instructions

Note

When the camera image is not displayed correctly, click [Refresh] at the tool bar on the web browser. The image will be refreshed.

Pan/Tilt Operation

Pan/tilt scan buttons automatically move the lens horizontally from -60 ° to +60 ° and vertically from -45 ° to +20 ° and return the lens to the original position. Each pan/tilt arrow moves the lens Up, Down, Right or Left, and the home position button moves it to the home position.

Pan/Tilt

Scan

Pan/Tilt

Pan/Tilt Range

Pan: -60 ˚ to +60 ˚

Tilt: -45 ˚ to +20 ˚

Note

When the pan/tilt reaches the end, a shadow may be displayed partially. This is not a problem.

Operating Instructions

1.2.4

Zooming In and Out

Camera has a 10x digital zoom feature.

There are two methods of increasing/decreasing the size of the object on the

Single Camera screen, the Multi Camera screen, and the Buffered Image screen

(only while playing video):

1.

Rotating the mouse wheel

Rotating the mouse wheel away from you zooms in, and rotating it towards you zooms out.

2.

Clicking the right mouse button

Clicking the right mouse button on the upper third of the Single Camera screen zooms in, and clicking on the lower third of the Single Camera screen zooms out.

Note

• The Click to Center feature is available even while zooming in or out.

• This feature is not available when viewing on a mobile phone.

• As the magnification increases, the image quality decreases.

Rotating the mouse wheel

On a screen, rotating the mouse wheel away from you zooms in, and rotating it towards you zooms out.

Zoom in

Zoom out

Note

The performance of the mouse varies according to your OS.

Clicking the right mouse button

Clicking the right mouse button on the upper third zooms in, and clicking on the lower third zooms out. Zooming in and out is also available by moving the mouse up with pressing the right mouse button, or moving the mouse down with pressing the right mouse button.

Zoom in

Zoom out

33

34

Operating Instructions

1.2.5

Setting Home Position/Alarm Position/Preset

Position

Registering Home Position/Alarm Position

A home position or 2 alarm positions can be registered. When restarted, the camera takes a home position. The alarm position is one that the camera turn to when detecting alarms or motions. If the Lens Position When Triggered setting is

set (see page 106 or page 116), the camera takes an alarm position after the

External I/O detects a signal or the camera detects motions. See page 158 for the

External I/O.

1.

Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving changes.

2.

Pan and tilt the camera to a desired position.

3.

Click or select the home position or the alarm position.

4.

Click [Save] to register, or click [Back] and [Cancel] to cancel.

• If "Success!" is displayed, click

[Back].

Home

Position

Pan/Tilt

Program

Home Position,

Alarm Position and Preset

Position

Note

The digital zoom value will not be saved.

Operating Instructions

Registering a Preset Position

20 camera positions can be registered as presets. By default, the preset positions

(1—4) are registered 1: Upper Left, 2: Upper Right, 3: Lower Left and 4: Lower

Right. These buttons can be changed (see page 37). The camera can be set up to

turn to the preset positions when detecting motions.

• Registered buttons are shown in blue.

• Unregistered buttons are shown in white.

1.

Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving changes.

2.

Pan and tilt the camera to a desired position.

3.

Select a preset position (1—20) from drop-down list, and enter the preset name.

E.g.:

Setting "Middle" for the preset 5.

When selecting a preset button (1—8), enter the preset name.

• Maximum 15 characters.

• Enter ASCII characters (see page

183) or characters in each

language. But [Space], ["], ['], [&], [<] and [>] are not available.

4.

Click [Save] to register, or click [Back] and [Cancel] to cancel.

• If "Success!" is displayed, click

[Back].

Note

• When registering preset positions, the camera also saves brightness and white balance settings.

• Only an administrator can register preset positions.

• The digital zoom value will not be saved.

Pan/Tilt

Home

Position,

Alarm

Position and

Preset

Position

Preset number

Setting a name

Only buttons

1 to 8 are displayed.

The button turns blue.

The preset number and preset name are displayed.

35

36

Operating Instructions

Viewing the Image

1.

Click the home position, alarm position or registered preset position.

• The camera takes each position, and the image is displayed.

The preset name is displayed.

Home

Position

Pan/Tilt

Putting the cursor displays the preset name.

Home Position,

Alarm Position and Preset

Position

Changing or Deleting the Settings

1.

Click [Program].

• [Program] switches to [Cancel].

Click [Cancel] to quit without saving changes.

2.

Pan and tilt the camera to a desired position.

• When deleting, this step is not necessary.

3.

Click the home position, alarm position or a preset position (1—20).

Note

All the items can be selected from dropdown list. It is also possible to set positions 1 to 8 as preset buttons.

4.

Click [Save] after setting the preset name or click [Delete].

• If you quit to change or delete settings, click [Back], and then

[Cancel].

• If "Success!" is displayed, click

[Back].

Home

Position

Pan/Tilt

Home Position,

Alarm Position and Preset

Position

Preset number

Changing the name

Note

The home position or the alarm position cannot be deleted, and these position names cannot be changed either.

The deleted button turns white.

Only buttons

1 to 8 are displayed.

The preset number and preset name disappear.

Operating Instructions

37

38

Operating Instructions

1.3

Listening to Camera Audio—Talking to the

Camera

1.

Access the camera (see page 20).

• The Top page is displayed.

2.

Click the [Single] tab at the top of the page.

3.

The Audio Control Bar (Talk Button, Listen Button and Adjustment Bar) is displayed at the top of the screen. Listening or Talking is selected using the 2 icons. For general users, the feature must be enabled, otherwise it will not be displayed.

Audio Feature

Listen Button

Talk Button

: You can talk from the camera using the PC's microphone. Clicking the button temporarily stops sending audio.

: The audio is stopped.

Clicking the button again starts the Talk feature.

: You can listen to the audio around the camera.

Clicking the button temporarily stops the audio.

: The audio is stopped.

Adjustment Bar

(Volume adjustment only for listening)

This slider adjusts the volume. To the right side, the volume is larger. To the left side, the volume is smaller.

Operating Instructions

Note

• Talk button and Listen button cannot be used simultaneously. Talk feature is stopped during listening. Talk feature can be used only for a user. Listen feature can be used for maximum 10 users. If the audio is interrupted, reduce

the max. bandwidth (see page 51 and page 56). In this case, the number of

users for listening are reduced.

• Audio features such as camera microphone sensitivity and mute during pan/tilt

can be set up on the Audio page (see page 86).

• If you are running other applications or opening multiple windows, the audio may be interrupted or delayed.

• When the image is refreshed during any operation such as preset registration or a web browser refresh, the volume is reset to the default (midrange) position. Audio that was muted is enabled.

• The audio may be interrupted due to your PC's performance or network

environment. Reduce the max. bandwidth (see page 51 and page 56).

• If the camera is accessed while the PC user visits other websites, the active microphone may pick up audio from the PC's speakers. Be careful with it.

• Talk feature cannot be used from a PC when the camera is accessed via a proxy server.

• If you cannot listen to the audio or talk from your PC, see page 14 of the

Troubleshooting manual (for BB-HCM311) or page 54 of the Installation/

Troubleshooting manual (for BB-HCM331) on the Setup CD-ROM.

• If you use external microphone, excessive length or poor quality microphone cable can cause a degradation in audio quality.

• To talk to the camera from your PC, an external amplified speaker must be connected to the camera. The speaker connects to the camera with a stereo audio cable similar to that used by your PC. Though the connector is stereo, the audio is not.

• [For BB-HCM331] If you install the camera outdoors, external microphone or external speaker must be outdoor compatible.

39

40

Operating Instructions

External Microphone

Cable diameter : 2 0.3 mm or below

3.5 mm mini plug

(Plug-in power +3.3 V)

External Speaker

GND

Signal

3.5 mm stereo mini plug

(Output impedance 560 line level)

For Microphone

GND

Not

Connected

Signal

For Speaker

MIC

EXTSP

• The cables for the external microphone and external speaker must be shielded, and less than 3 m long. Using nonstandard cables may cause sound interference due to strong radio waves.

• The external microphone input terminal does not correspond to a line level.

Audio may be distorted when the line level is input. Audio distortion will be solved if you insert the following circuits. Under no circumstance should high level audio, such as from a speaker, be connected to this input terminal. Doing so is likely to damage the camera.

Resistor Capacitor

Camera

External Microphone

Input Terminal

Audio Line

Out

33 K 1 F

Operating Instructions

1.4

Viewing Multi-Camera page

To view multiple cameras on the Multi-Camera page, you need to configure each

camera on the Multi-Camera Setup page (see page 136).

1.

Access the camera (see page 20).

• The Top page is displayed.

2.

Click the [Multi] tab at the top of the page.

• Multi-Camera page can display up to 12 camera images.

Capture Image Button (See page 30)

Switches cameras to display. If you select [All] at the View Type, video

(Motion JPEG) or audio buttons cannot be displayed.

Selects [320 x 240]

(default) or [160 x 120] pixels resolution.

Selects a refresh interval

(Motion—60-second interval).

When clicking the camera name, the Single Camera page is displayed on another window.

Audio Control Bar (Talk Button, Listen Button and Adjustment Bar)

(See page 38)

3.

Close the web browser.

41

42

Operating Instructions

Note

• When selecting [All] at the View Type, all images are displayed in 160 x

120 pixels resolution, and the Audio Control Bar is not displayed.

• 640 x 480 pixels image cannot be displayed on the Multi-Camera page.

• When viewing video (Motion JPEG), we recommend using an Ethernet switching hub instead of the repeater hub to prevent degradation in video display.

• Due to the network congestion or the number of accesses, the refresh interval may slow down.

• When the refresh interval is slow, restrict the bandwidth on the Network

page (see page 54 and page 59). The refresh interval may be improved.

• To reduce the data traffic, the video can be automatically changed to

refreshing still images on the General User page (see page 92).

• When viewing 4 cameras on the Multi-Camera page, you may need 3 to 4

Mbps bandwidth. If the bandwidth is not enough, the refresh interval may slow down.

• The digital zoom can be used. (only for video)

• Click to Center feature can be used while using the digital zoom.

When the image is not displayed on the Multi-Camera page

• Confirm that the Internet IP address is specified for each camera and that each camera is connected to the Internet. For Internet access, local IP addresses

(192.168.

.

) cannot be used.

Confirm the settings on the Multi-Camera Setup page (see page 136).

• Confirm that the web browser is not accessing the proxy server (see page

179).

When setting [Do not permit access from guest users] on the

Security: Administrator page

• An authentication window is displayed in camera access. Enter the administrator's or the general user's user name and password.

• When you view the images on the Multi-Camera page, all authentication windows of the configured cameras are displayed. Enter the administrator's or the general user's user name and password registered for each camera.

Operating Instructions

1.5

Viewing Buffered Image page

To buffer the images on the internal memory, you need to set up image transfer

settings (see page 95, page 104 or page 115). You can view buffered images on

this Buffered Image page.

Note

Sound cannot be buffered on the Buffered Image page.

1.

Access the camera (see page 20).

• The Top page is displayed.

2.

Click the [Buffered Image] tab at the top of the page.

3.

Click the trigger number.

The trigger number is displayed (see page 95, page 104 or page 115).

The trigger is displayed

(see page 95, page 104

or page 115).

43

44

Operating Instructions

4.

Display images clicking buttons below.

Date and time of the day when the images were buffered are displayed.

Date, time and frame number are displayed.

[Play]:

The buffered images are displayed continuously.

[<Prev] or [Next>]:

The previous or next image is displayed.

[First], [<1000], [<100], [<10] or [10>], [100>], [1000>], [Last]:

First, 10th, 100th, 1000th image before or last, 10th, 100th, 1000th image after of the displayed image appears.

Note

• Date, Time and frame number are not displayed in play mode.

• A still image can be saved on the Buffered Image page, if you are not playing images on it. Put the cursor on the image, and right-click it. Then select [Save

Picture As...].

• Maximum number of buffered images change depending on resolution, image quality and what object the camera buffers. At the 320 x 240 pixels resolution and the standard quality, the camera buffers about 125 frames.

(If 3 triggers are enabled [maximum 5 triggers], the internal memory or the SD memory card capacity is divided into 3 sections. In this case, each trigger can

buffer about 40 images.) See page 184 for the internal memory capacity. See

page 185 for the SD memory card capacity.

• The buffered images are displayed chronologically.

• The digital zoom can be used while viewing buffered images (only while playing video).

• Click to Center feature can be used while using the digital zoom.

Operating Instructions

1.5.1

Deleting Buffered Images

If you intend to delete images for each transfer condition, click [Delete Buffered

Images] on the Trigger Setting page (see page 95, page 104 or page 115).

Note

• If you click [Save] on the Trigger Setting page, all buffered images on the SD memory card are deleted.

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

– Turning off the camera.

– Saving the Date and Time page.

– Restarting, updating firmware or resetting the camera to factory default.

Changing the setting for [Enable Image Buffer/Transfer]. (See page 95,

page 104 or page 115)

45

46

Operating Instructions

1.6

Viewing Still Images on Your Mobile Phone

You can view still images over the Internet from a compatible mobile phone.

Enter "http://IP address (or URL):Port Number/Mobile" on a mobile phone and press [OK].

• When the port number is set to 80 (default), it is not required.

E.g. http://202.208.167.

(or

:50000/Mobile

.viewnetcam.com:50000/Mobile)

• The camera must be allowed the Internet access for mobile phone access.

• When an authentication window is displayed, enter the administrator's or the general user's user name and password.

• A still image is displayed. (Video [Motion JPEG] cannot be displayed.)

Pressing 2, 4, 6 or 8 on the mobile phones allows you to pan or tilt the camera in four directions:

Left, Up, Down or Right.

Pressing 5 will refresh the image.

160 x 120 resolution is displayed at the first access. Pressing 0 switches the resolution to 320 x 240.

Executing [Home Position] moves the lens to the home position.

Pressing 1, 3, 7 or 9 on the keypad allows you to use the first four registered preset positions.

Registered presets 5—20 are available by activating the link on the mobile phone page.

Displays up to 50 Logs in order of time, and only when logging in as an administrator.

Go to the control page when clicking.

Displays the number of new logs.

Displays the date and time, the kind of signal and sensor.

Go to the control page when clicking.

Operating Instructions

Note

• Audio feature does not work on mobile phones.

• If the features are not permitted on the General User page, the buttons related

with the features are not displayed. (See page 92)

• If the image is not displayed properly, try the following 2 URLs.

1. http:// IP address(or URL):Port Number/MobileH for HTML.

(or .viewnetcam.com:50000/MobileH)

2. http:// IP address(or URL):Port Number/MobileX for XHTML.

(or .viewnetcam.com:50000/MobileX)

• When pan/tilt reaches the end, the keypad number and character disappear.

E.g.: The pan reaches the left end.

"(4)L" disappears.

• Some mobile phones are not compatible with Panasonic Network Cameras.

Some phones may allow viewing only on port 80, and some may not support password authentication. See the Panasonic Network Camera support website at http://panasonic.co.jp/pcc/products/en/netwkcam/ for a mobile phone model list, and the compatibility level which has been verified with the

Panasonic Network Camera.

• Some mobile phones display images not at the specified resolution but at a decreased size.

47

48

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

(10)

(11)

(12)

(13)

(14)

(15)

(16)

(17)

(18)

Operating Instructions

2 Various Camera Features

2.1

Using Camera Features

1.

Access the camera (see page 20).

• The Top page is displayed.

Note

• When [Permit access from guest users] is set on the Security:

Administrator page, click [Login] tab and log in as an administrator.

• When users other than an administrator are accessing the camera, the

[Setup] and [Maintenance] tabs are not displayed.

• If [View Multi-Camera page] or [View Buffered Image page] is not permitted on the General User page, [Multi-Camera] or [Buffered Image] tab will not be displayed.

2.

Click [Setup] tab at the top of the page.

Operating Instructions

Basic

(1) Network (IPv4)

Configures the IPv4 network settings to connect the

camera to the network (see page 51).

(2) Network (IPv6)

Configures the IPv6 network settings to connect the

camera to the network (see page 56).

(3) IPsec

(4) UPnP

Enables IPsec (Transport or Tunnel mode) (see page 60).

Enables automatic port forwarding or shortcut to the

camera (see page 70).

(5) DynamicDNS

Registers with the DynamicDNS service (see page 73).

(6) Date and Time

Sets the date and time, automatic time adjustment and

adjust clock for daylight saving time settings (see page 78).

(7)

(8)

Camera

Audio

Sets camera name, white balance, pan/tilt range, return to specified position and color night view settings (see page

81).

Sets output, volume, PC audio input timeout, input, camera microphone sensitivity and mute during pan/tilt settings

(see page 86).

Account

(9) Administrator

*1

Sets authentication setting and administrator security (user

name and password) (see page 88).

(10) General User

*1

Sets general user security (user name and password) and

general user's access level (see page 92).

Buffer/Transfer

(11) Trigger

Sets image buffer or transfer by timer or alarm or motion

detection. (See page 95, page 104 or page 115)

Sets the threshold and the sensitivity (see page 128).

(12) Motion

Detection

(13) Alarm Log

Sets the information to notify the log by e-mail (see page

131).

49

50

Operating Instructions

Advanced

(14) Image Display

Sets resolution, image quality and refresh interval of Single

Camera and Multi-Camera page, time stamp setting,

language and banner (see page 133).

(15) Multi-Camera

*1

Sets the camera IP address or host name, camera name on the Multi-Camera page (maximum 12 cameras) (see page

136).

Sets time period to display camera images (see page 141).

(16) Operation

Time

(17) External

Output

(18) Indicator

Control

Sets the digital output terminal of the External I/O (see

page 143).

Sets indicator display (see page 144).

*1

If you change [Administrator], [General User], or [Multi-Camera Setup page] settings, changes will not be applied to the video (Motion JPEG) viewers. Restart the camera to make changes applied to all video viewers.

Operating Instructions

2.2

Connecting the Camera to Your IPv4 Network

The Network page offers three options to configure the camera in IPv4.

• [Automatic Setup] automatically assigns an unused IP address to the camera, and uses UPnP

TM

(Universal Plug and Play) to configure your router.

• [Static] allows the user to use a specific IP address.

• [DHCP] is offered for ISPs who require this option.

1.

Click [Network (IPv4)] on the Setup page.

2.

Click a connection mode.

Normally sets Automatic Setup.

Uses a static IP address.

Uses ISP DHCP server function.

Each page is displayed (see page 51—page 52).

3.

Enter each parameter in the proper data field.

Automatic Setup

The camera automatically obtains the network settings (subnet mask, default gateway and DNS server address) utilizing a DHCP feature on the router. The camera also automatically searches the unused IP address on your network.

If you select [Yes] at the Allow Access from the Internet, the camera automatically enables port forwarding by using UPnP

TM

. In this case, the camera automatically searches the unused port number on your network in the order of 80 and from 50000 to 50050.

• Clicking [Cancel] takes you back to the previous page without saving changes.

51

Operating Instructions

DHCP Setup Static Setup

• Clicking [Cancel] takes you back to the previous page without saving changes.

4.

Click [Save] when finished.

• New settings are saved.

• When finished, the following page is displayed.

52

Note

The current network settings are shown on the Status page in the Maintenance

section (see page 146).

5.

Click [Restart].

• The camera restarts, and the Top page is displayed.

• If the camera is restarted, all buffered images on the internal memory are deleted. The buffered images on the SD memory card are not deleted.

• Checking [Yes] for [Allow Access from the Internet] on [Automatic Setup] may not display the Top page, because the port number may change. Use the Setup Program to access the camera.

Operating Instructions

Note

When you do not know the camera IP address while setting [Automatic Setup] or [DHCP Setup], you can search it by using the Setup Program (see page

176).

Setting

Allow Access from the Internet

(Automatic Setup

Only)

Description

• Allow Access from the Internet setting automatically configures the router's Port Forwarding setting (some routers call it "Address Translation", "Static IP

Masquerade", "Virtual Server" or "Port Mapping"). To enable Internet access to the camera, check [Yes]. In this case, the camera automatically searches the unused port number on your network in the order of 80 and from 50000 to 50050. To disable Internet access to the camera, check

[No].

Network

Configuration from

Setup Program

(Static/DHCP Only)

• If you prohibit the Setup Program from changing the network settings, clear the check box.

Port Number

(Static/DHCP Only)

• The port number is 80 by default. When you use multiple cameras with a router on your network, each camera must

be assigned its own port number (see page 72).

• Do not set the following port numbers.

E.g., FTP: 20 and 21, Telnet: 23, SMTP: 25, DNS: 53,

POP3: 110, HTTPS: 443, ICQ: 4000 and IRC: 6661—

6667.

• Enter only the number (1—65535).

• Some ISPs do not allow you to use port 80. Ask your ISP or network administrator about the accessible port number over the Internet.

• IP address

• Subnet Mask

(Static Only)

• If your ISP or network administrator specifies the IP address and subnet mask, enter them in each data field.

• If you use the camera on the LAN, set the IP address in the

same class as your PC (see page 175).

• Set 4 digits (0—255) and 3 periods such as

"192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available.

53

54

Operating Instructions

Setting

Host Name

(DHCP Only)

Description

• If your ISP uses the DHCP function which automatically assigns the IP address to the camera, enter the ISPassigned host name. (Host name may be used as an authentication.)

Enter ASCII characters for the host name (see page 183).

But [Space], ["], ['], [&], [<] and [>] are not available.

Default Gateway

*1

(Static/DHCP Only)

• If you have the assigned Default Gateway address by your

ISP or network administrator, enter it in this data field.

• Set 4 digits (0—255) and 3 periods such as

"192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available.

DNS Server

Address

*1

(Static/DHCP Only)

• DNS server address is required in the following conditions.

– Transferring camera images by E-mail or FTP

– Setting cameras by their host names on the Multi-

Camera Setup page

– Using the DynamicDNS service

– Using the alarm log notification

• If you have the assigned DNS server addresses by your

ISP or network administrator, enter them in this data field.

They usually have two addresses.

• Set 4 digits (0—255) and 3 periods such as

"192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available.

Max. Bandwidth

Usage

• The bandwidth can be restricted.

• Select the maximum bandwidth usage from [Unlimited] to

[0.1 Mbps].

• This setting is valid in both IPv4/IPv6.

Note

Set the maximum bandwidth usage seeing the following file sizes. These are examples for a JPEG file with a standard image quality. File sizes may change depending on the image quality or how bright the object is.

160 x 120 pixels: About 3.5 KB (40 Kbit)

320 x 240 pixels: About 10 KB (128 Kbit)

640 x 480 pixels: About 18KB (264 Kbit)

Operating Instructions

Setting

Connection Type

Description

• Select [Auto Negotiation] normally. If you cannot access the camera, see page 7 of the Troubleshooting manual (for

BB-HCM311) or page 48 of the Installation/

Troubleshooting manual (for BB-HCM331) on the Setup

CD-ROM.

• This setting is valid in both IPv4/IPv6.

*1

If you automatically obtain the IP address from the DHCP server, you do not need to set it.

55

Operating Instructions

2.3

Connecting the Camera to Your IPv6 Network

The Network page offers two options to configure the camera in IPv6.

• [Automatic Setup] automatically assigns an IPv6 address to the camera.

• [Static] allows the user to use a specific IPv6 address.

Note

IPv6 is the expanded protocol created for future Internet expansion. Your network and your ISP must support IPv6 before you can use this feature.

1.

Click [Network (IPv6)] on the Setup page.

2.

Click a connection mode.

Normally sets Automatic Setup.

Uses a static IP address.

3.

Enter each parameter in the proper data field.

Automatic Setup

The camera is automatically assigned an IPv6 prefix from the IPv6 router, and produces the original IPv6 address from the IPv6 prefix. If you select [No] for

Allow Access from the Internet, the camera can be accessed only from the

LAN that has the same IPv6 prefix as the camera.

56

• Clicking [Cancel] takes you back to the previous page without saving changes.

Operating Instructions

Static Setup

You can assign a static IPv6 address to the camera. If you select [No] at the

Allow Access from the Internet, the camera can be accessed only from the

LAN that has an same IPv6 prefix as the camera.

• Clicking [Cancel] takes you back to the previous page without saving changes.

4.

Click [Save] when finished.

• New settings are saved.

• When finished, the following page is displayed.

Note

The current network settings are shown on the Status page in the Maintenance

section (see page 146).

5.

Click [Restart].

• The camera restarts, and the Top page is displayed.

57

58

Operating Instructions

Note

• When you do not know the camera IP address while setting [Automatic

Setup], you can search it by using the Setup Program (see page 176). Or

you can search it on the Status page (see page 146) after accessing the

camera in IPv4.

• If the camera is restarted, all buffered images on the internal memory are deleted. The buffered images on the SD memory card are not deleted.

Setting Description

Allow Access from the Internet

(Automatic Setup

Only)

• If [Yes] is selected at the Allow Access from the Internet, you can access the camera from the Internet. If [No] is selected, the camera can be accessed only from the LAN that has the same IPv6 prefix as the camera.

Port Number (Static

Only)

• The port number is 80 by default. The port number must be unique for each terminal on your network.

• Do not set the following port numbers.

E.g., FTP: 20 and 21, Telnet: 23, SMTP: 25, DNS: 53,

POP3: 110, HTTPS: 443, ICQ: 4000 and IRC: 6661—

6667.

• Enter only the number (1—65535).

• Some ISPs do not allow you to use port 80. Ask your ISP or network administrator about the accessible port number over the Internet.

IP address

(Static Only)

Default Gateway

(Static Only)

• Enter a global address. You do not need to enter prefix length.

• IPv6 address consists of 8 hexadecimal digits divided with

":". Consecutive 0s can be abbreviated as "::".

(E.g. 2001:2:3:4::5)

• If you have the assigned Default Gateway IPv6 address by your ISP or network administrator, enter it in this data field.

• IPv6 address consists of 8 hexadecimal digits divided with

":". Consecutive 0s can be abbreviated as "::".

(E.g. 2001:2:3:4::5)

Setting

DNS Server

Address

Max. Bandwidth

Usage

Connection Type

Operating Instructions

Description

• DNS server address is required in the following conditions.

– Transferring camera images by E-mail or FTP

– Setting cameras by their host names on the Multi-

Camera Setup page

– Using the DynamicDNS service

– Using the alarm log notification

• If you have the assigned DNS server IPv6 addresses by your ISP or network administrator, enter them in this data field. They usually have two addresses.

• IPv6 address consists of 8 hexadecimal digits divided with

":". Consecutive 0s can be abbreviated as "::".

(E.g. 2001:2:3:4::5)

• The bandwidth can be restricted.

• Select the maximum bandwidth usage from [Unlimited] to

[0.1 Mbps].

• This setting is valid in both IPv4/IPv6.

Note

Set the maximum bandwidth usage seeing the following file sizes. These are examples for a JPEG file with a standard image quality. File sizes may change depending on the image quality or how bright the object is.

160 x 120 pixels: About 3.5 KB (40 Kbit)

320 x 240 pixels: About 10 KB (128 Kbit)

640 x 480 pixels: About 18 KB (264 Kbit)

• Select [Auto Negotiation] normally. If you cannot access the camera, see page 7 of the Troubleshooting manual (for

BB-HCM311) or page 48 of the Installation/

Troubleshooting manual (for BB-HCM331) on the Setup

CD-ROM.

• This setting is valid in both IPv4/IPv6.

59

Operating Instructions

2.4

What is IPsec?

IPsec provides security for the transmission of sensitive information over unprotected networks such as the Internet. IPsec authenticates IP packets between participating IPsec devices.

Unreadable

Malicious User

60


Allowed User

Internet

Readable

Camera's IPsec Feature

The camera can use IPsec in both IPv4/IPv6. The camera supports the following

IPsec feature.

IKEv1

IPsec

Item Supported Feature

Pre-shared Key Method

Phase 1 mode

Phase 2 mode

Cipher Algorithm

: Main mode

*1

: Quick mode

Message-Digest

Algorithm

: DES-CBC, 3DES-CBC, AES-CBC (128,

192, 256 bits)

: HMAC-MD5, HMAC-SHA-1

ESP (Encapsulating Security Payload)

*2

Transport mode, Tunnel mode

Cipher Algorithm

Message-Digest

Algorithm

:DES-CBC, 3DES-CBC, AES-CBC (128,

192, 256 bits)

:HMAC-MD5-96, HMAC-SHA-1-96

*1

*2

The camera does not support aggressive mode.

The camera does not support authentication header (AH).

Operating Instructions

IPsec Mode Selection

Select transport mode or tunnel mode to access the camera.

Transport Mode (IPv4 Only)

The image is encrypted in the whole way between the camera and your PC. In the environment of Windows XP Service Pack 1 or later, transport mode is available only in IPv4.

Transport Mode

PC

Encrypted

Prepare the following requirements.

Item

Camera

Supported Feature

Operating System

Web Browser

ISP Service

: Windows XP Service Pack 1 or later

: Internet Explorer 6.0 or later

: Services for multiple global addresses (A global address must be set up on your

PC.)

Note

To use IPsec, you need to set up your operating system.

See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the setup.

ISP Service : Services for multiple global addresses (A global address must be set up to the camera.)

61

Operating Instructions

Tunnel Mode (IPv4/IPv6)

An IPsec mode of operation where the entire IP packet including IP header is authenticated and encrypted. A new IP header is added (protecting the entire original packet). Both VPN clients and VPN gateways can use this mode.

Note

The camera can be accessed only from the PCs under the VPN router. Other

PCs cannot access the camera.

62

LAN WAN

Tunnel Mode

PC

Not Encrypted

Prepare the following requirements.

Item

Router

Camera

Encrypted

ISP Service

(in IPv4)

ISP Service

(in IPv6)

Supported Feature

Operating System

Web Browser

: Windows XP, Windows 2000, Windows

Me, Windows 98SE (in IPv4)

: Windows XP Service Pack 1 or later (in

IPv6)

: Internet Explorer 6.0 or later

: Static global address service (A global address must be set up to the WAN side of the router.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

Note

See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the recommended router.

ISP Service

(in IPv4)

ISP Service

(in IPv6)

: Services for multiple global addresses (A global address must be set up to the camera.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

Operating Instructions

2.5

Encrypt the Camera Image in Transport Mode

The camera can encrypt the image using IPsec transport mode.

Note

If you use IPsec, refresh interval slows down.

1.

Click [IPsec] on the Setup page.

2.

Click Camera in the Transport column.

• If you use transport mode in E-mail or FTP transfer, click No. in the Buffer/

Transfer column.

The display shows that the communication is in

HTTP and any people can access the camera if they have the pre-shared key.

Set up these settings to transfer images in transport mode (see page

126).

Set to use Alarm Log (see page 131).

Note

To display Alarm Log, set Alarm 1, Alarm 2 or Motion Detection for Trigger

Setting and check [Enable].

3.

Enter each parameter in the data field.

63

Operating Instructions

Status

Setting

Pre-Shared Key

Description

• Check the box to use this encryption method.

• It is the key to use in the authentication of communications.

Enter the same pre-shared key as your PC.

Enter ASCII characters for the host name (see page 183).

But [Space], ["], ['], [&], [<] and [>] are not available.

Note

If the pre-shared key leaks to a third party, it may lead to illegal access, private information leak or interference. To protect your security and privacy, pay attention to the following points.

• Make it known only to the specified people.

• Set it as many characters as possible.

• Change the password regularly.

4.

Click [Save] when finished.

• New settings are saved.

5.

Click [Cancel].

• The IPsec page is displayed.

6.

Check [Use] in the IPsec column, check encoding strength, and click [Save].

64

IPsec

Setting Description

• Check the box to enable IPsec features. If you clear the box, whole IPsec features will be invalid.

Encoding strength • Encoding strength for IPsec can be selected. If you select

[Standard], DES or NULL is valid as an algorithm, and then the data will become easier to be decrypted.

Operating Instructions

7.

Click [Restart].

8.

Set up your PC as it fits to the requirements on page 61.

• Set the FTP server or E-mail server to transfer images.

9.

Access the camera (see page 20).

• If you can access the camera, the IPsec setup is complete.

Note

• In IPsec communications, "IPsec" is displayed on the Top page or the

Single Camera page.

• If you cannot communicate using IPsec, see page 20 of the

Troubleshooting manual (for BB-HCM311) or page 60 of the Installation/

Troubleshooting manual (for BB-HCM331) on the Setup CD-ROM.

• See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the IPsec features.

65

66

Operating Instructions

2.6

Encrypt the Camera Image in Tunnel Mode

The camera can encrypt the image using IPsec tunnel mode.

Note

• Do not set IPsec on the PCs under the VPN router. Communications may be blocked.

• If you use IPsec, refresh interval slows down.

• The camera can be accessed only from the PCs under the VPN router.

Other PCs cannot access the camera.

1.

Click [IPsec] on the Setup page.

2.

Click Add in the Tunnel column.

3.

Enter each parameter in the data field.

Operating Instructions

Status

Setting

Pre-Shared Key

Network address

Router address

Description

• Check the box to use this encryption method.

• It is the key to use in the authentication of communications.

Enter the same pre-shared key as your VPN router.

Enter ASCII characters for the host name (see page 183).

But [Space], ["], ['], [&], [<] and [>] are not available.

Note

If the pre-shared key leaks to a third party, it may lead to illegal access, private information leak or interference. To protect your security and privacy, pay attention to the following points.

• Make it known only to the specified people.

• Set it as many characters as possible.

• Change the password regularly.

• Enter the destination network address.

• Enter "IP address/Prefix length" in the data field.

• Enter the WAN IP address of the VPN router on a destination network.

Note

• IPv6 link-local address is not available.

• The camera can be accessed only from the PCs under the VPN router. Other PCs cannot access the camera.

4.

Click [Save] when finished.

• New settings are saved.

5.

Click [Cancel].

• The IPsec page is displayed.

6.

Check [Use] in the IPsec column, check encoding strength, and click [Save].

67

68

Operating Instructions

IPsec

Setting Description

• Check the box to enable IPsec features. If you clear the box, whole IPsec features will be invalid.

Encoding strength • Encoding strength for IPsec can be selected. If you select

[Standard], DES or NULL is valid as an algorithm, and then the data will become easier to be decrypted.

7.

Click [Restart].

8.

Set up your VPN router as shown below.

• To use tunnel mode, you need to set up your VPN router.

Phase 1

IKE Items

Authentication

Method

ID

Mode

Diffie-Hellman

MODP Group

Cipher Algorithm

Settings

Pre-shared Key Method

Specifies by address.

Main mode

*1

Specifies 1 or 2.

Select from DES-CBC, 3DES-CBC or

AES-CBC (128, 192, 256 bits). (Multiple selections are available.)

HMAC-MD5, HMAC-SHA-1 Message-Digest

Algorithm

Lifetime Specifies by 28800 s (Byte setting is not supported.)

Operating Instructions

Phase 2

IKE Items

Mode

PFS

Cipher Algorithm

Settings

Quick mode

Specifies either of Off, D-H Group 1 or D-

H Group 2.

Select from DES-CBC, 3DES-CBC,

AES-CBC (128, 192, 256 bits) or NULL.

(Multiple selections are available.)

HMAC-MD5-96, HMAC-SHA-1-96 Message-Digest

Algorithm

Lifetime Specifies by 28800 s (Byte setting is not supported.)

*1

The camera does not support aggressive mode.

• Set up the IPsec policy as shown below.

Items

Protocol

Source Network

ANY

Settings

Network address and subnet mask on the LAN side of the

VPN router

A global address on the WAN side of the VPN router Source IP address

Destination Network A global address of the camera

Destination IP address A global address of the camera

9.

Access the camera (see page 20).

• If you can access the camera, the IPsec setup is complete.

Note

• In IPsec communications, "IPsec" is displayed on the Top page or the

Single Camera page.

• If you cannot communicate using IPsec, see page 20 of the

Troubleshooting manual (for BB-HCM311) or page 60 of the Installation/

Troubleshooting manual (for BB-HCM331) on the Setup CD-ROM.

• See the Panasonic Network Camera support website at

http://panasonic.co.jp/pcc/products/en/netwkcam/ for the IPsec features.

69

Operating Instructions

2.7

Using UPnP™ (Universal Plug and Play)

UPnP

TM

can automatically configure your router to be accessed from the Internet.

In order to use this feature, your router needs to support this feature and it must be enabled. Most router manufacturers disable this feature as the default setting. See

http://panasonic.co.jp/pcc/products/en/netwkcam/ for details and see your router's manual for how to enable UPnP

TM

. After the UPnP

TM

is enabled on the router, set [Enable] for auto port forwarding.

Note

The camera's UPnP

TM

does not support IPv6. Use this feature in IPv4.

1.

Click [UPnP] on the Setup page.

2.

Set up UPnP.

70

Setting

Auto Port

Forwarding

Description

• If the network setting is [Static] or [DHCP], enabling auto port forwarding allows you to access the camera from the

Internet.

Note

If the network setting is [Automatic Setup], enable [Allow

Access from the Internet] on the Network page (see page

53).

Display Shortcut

Icon in My

Network Places

• Enabling it displays a shortcut to the camera in the My

Network Places folder.

Note

If you use Windows XP or Windows Me, this feature is available. Enable UPnP

TM

Windows component before

using this feature (see page 182).

Operating Instructions

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to UPnP page].

• The UPnP page is displayed.

2.7.1

Connecting the Camera to a Router Supporting

UPnP™ (IPv4 Only)

To allow access from the Internet with a router supporting UPnP

TM

, follow the procedures shown on Getting Started.

Note

• In some routers, the UPnP

TM

feature is disabled by default. Enable your router's UPnP

TM

feature following the router manual before you set up the camera. See the Panasonic Network Camera support website at http://

panasonic.co.jp/pcc/products/en/netwkcam/ for details.

• If the maximum idle time is set in PPPoE or PPTP connection with your

ISP, disable it on the router. See the router manual for details.

71

Operating Instructions

2.7.2

Connecting the Camera to a Router Not Supporting

UPnP™ (IPv4 Only)

To allow access from the Internet with a router not supporting UPnP

TM

, follow the procedures below.

1.

Select [Static] on the Network (IPv4) page.

(1)

Access the camera (see page 20).

(2) Click [Setup] tab at the top of the page.

(3) Select [Static] on the Network page.

• The Static IP Address Configuration page is displayed. Make a note of the IP address and port number, since they are required to enable port forwarding on the router.

(4) Click [Save] without changing the settings.

(5) Click [Restart].

2.

Enable port forwarding on the router.

Using the IP address and port number note written on step 1-(3), enable port forwarding on the router. See the router manual for how to enable port forwarding.

3.

Register with a DynamicDNS service.

Port Forwarding feature

*1

(IPv4 Only)

The port forwarding feature is required to allow access from the Internet with a router not supporting UPnP

TM

. It exchanges a local IP address to a global one.

Each camera must be assigned a unique port number.

Global IP address of the router vvv.xxx.yyy.zzz:80 vvv.xxx.yyy.zzz:81

Port No.

Port Forwarding feature

vvv.xxx.yyy.zzz:80 192.168.0.253:80 vvv.xxx.yyy.zzz:81 192.168.0.252:81

Modem

Router

Internet

CATV xDSL

Optical cable

192.168.0.1

Local IP address

192.168.0.252

Port No. 81

192.168.0.253

Port No. 80

Note

The IP addresses shown above may differ from those offered on your home network.

72

*1

"Port forwarding" may be called "Address translation", "Static IP Masquerade", "Virtual server" or "Port mapping" in other products.

Operating Instructions

2.8

Registering with the DynamicDNS service

DynamicDNS service is a service that allows you to assign an easy-to-remember name to the camera, similar to your favorite web site. DynamicDNS service also allows you to easily access the camera, even when your ISP changes the IP address. Panasonic Communications recommends you to register with it for the

Internet access to the camera. See http://www.viewnetcam.com for details about the Viewnetcam.com service.

Click [DynamicDNS] on the Setup page.

When you select [Disable]

• The DynamicDNS service is disabled.

• Clicking [Cancel] cancels your settings without saving changes.

When you select [Viewnetcam.com]

1.

Click [Next].

• Clicking [Cancel] cancels your settings without saving changes.

2.

Click [Save] when finished.

73

74

Operating Instructions

• New settings are saved.

• When finished, the message dialog is displayed.

• Clicking [Cancel] cancels your settings without saving changes.

Setting

Personal

(Camera) URL

Your Account

Link

Description

• The camera's personal URL will be displayed after you register with the Viewnetcam.com service.

• The URL is displayed to register with the Viewnetcam.com service. Clicking [Your Account Link] item name displays the Viewnetcam.com registration website.

3.

Click [Go to Viewnetcam.com page].

• The Viewnetcam.com page is displayed.

4.

Click Your Account Link.

• The Viewnetcam.com registration website is displayed.

Note

• When the Viewnetcam.com registration website is not displayed, confirm that the URL is displayed in the right column of the Your

Account Link. If the URL is not displayed, follow the procedures below.

1. Wait for a while, and click [Refresh] on the web browser.

2. Confirm that your network (your PC and camera) is connected to the Internet.

• Personal (Camera) URL is available after you registered with the

Viewnetcam.com service.

• If port forwarding is not enabled or your network is not connected to the Internet, the Viewnetcam.com service is not available.

5.

Register with the Viewnetcam.com service following the website.

• The Viewnetcam.com page is displayed.

6.

Access the camera with a registered URL from the Internet (see page 20).

• When the Top page is displayed, the Viewnetcam.com registration is complete.

Note

• It may take a maximum of 30 minutes for the registered URL to work.

• If "Expired" is displayed at the Personal (Camera) URL on the

Viewnetcam.com page or at the Camera URL in the DynamicDNS on the Status page, restart the camera. After that, confirm that your registered URL is displayed on their pages.

Operating Instructions

Confirming the Internet access

Due to the router specifications, the image may not be displayed even if you access the camera from your PC on the same LAN as the camera. In this case, access the camera in the following procedures.

Accessing from the PC on another network (see page 20)

Accessing from your mobile phone (see page 46)

When you select [User-specified DynamicDNS]

1.

Click [Next].

• Clicking [Cancel] cancels your settings without saving changes.

2.

Set each parameter.

• You can get DynamicDNS information from the DynamicDNS service industry company.

3.

Click [Save] after finished.

• New settings are saved.

• When finished, "Success!" is displayed.

75

76

Operating Instructions

4.

Click [Go to DynamicDNS page].

• The DynamicDNS page is displayed.

Note

• It may take several minutes for the registered URL to connect.

• Some DynamicDNS service is not connected.

Confirming the Internet access

Due to the router specifications, the image may not be displayed even if you access the camera from your PC on the same LAN as the camera. In this case, access the camera in the following procedures.

Accessing from the PC on another network (see page 20)

Accessing from your mobile phone (see page 46)

2.8.1

DynamicDNS Service (IPv4/IPv6)

DynamicDNS allows you to choose an easy-to-remember address (such as

"bob.viewnetcam.com") that you can use to view images from your camera over the

Internet. This service is compatible with both IPv4 and IPv6 addresses. Some

DynamicDNS service is not compatible with IPv6 address.

What is the advantage of DynamicDNS service?

In order to view camera images over the Internet, you need to know your camera's global IP address. However, many Internet Service Providers (ISPs) assign their customers a "dynamic" IP address that changes monthly, weekly, or each time they log on. Unless you have been assigned a static IP address (an IP address that does not change periodically) by your ISP, you may find it difficult to access your camera over the Internet because your IP address changes periodically.

Viewnetcam.com service allows you to access your camera even if your assigned global IP address changes.

Operating Instructions

How the DynamicDNS service works

DynamicDNS service server

4.

DNS server

3.

DNS looks up

New address registered with

DNS server current address

Off-site PC

Internet

ISP

2.

Camera reports new address

On-site Network

Camera

1.

Global IP address changes

5.

Camera connection established

1.

Your ISP assigns a global IP address to your Internet access account that changes periodically. This is the address needed to access the camera over the Internet.

2.

When your ISP assigned global IP address changes, your camera automatically notifies the DynamicDNS service server of the new address in the DynamicDNS. The camera notifies the DynamicDNS service server of the new address in DynamicDNS in the following cases.

– When starting the camera

– Depending the time to be set at the update interval

– When clicking the [Save] button

3.

The DynamicDNS server contacts a Domain Name System (DNS) and registers your new global IP address to your chosen DynamicDNS address

(such as "bob.viewnetcam.com").

4.

When you enter your DynamicDNS address in your web browser while away from home or the office, the DNS server looks up the global IP address assigned to your DynamicDNS address.

5.

The DNS server finds your current global IP address and allows you to connect to your camera.

Note

• Ask your ISP about what type of IP address you are using.

• Some ISPs assign you a local IP address. In this case, you cannot use the

DynamicDNS service.

• If the camera is using a port number other than 80, the port number must be specified at the end of the DynamicDNS URL. For example:

Using port 80: http://(Cameraname).viewnetcam.com

Using any other port: http://(Cameraname).viewnetcam.com:Port

Number

77

Operating Instructions

2.9

Setting Date and Time

The Date and Time page allows you to set date and time. Date and time are used for each image (Single, Multi and Buffered), Trigger, Alarm Log and Operation

Time.

Note

Saving the date and time settings deletes all buffered images on the internal memory. The buffered images on the SD memory card are not deleted.

1.

Click [Date and Time] on the Setup page.

2.

Set each parameter.

• Set [Automatic Time Adjustment] to synchronize the time automatically with an NTP server.

78

• Clicking [Cancel] cancels your settings without saving changes.

Operating Instructions

Setting

Time Setting

Description

• Select date and format (AM/PM or 24 H). These settings are used for each image (Single, Multi and Buffered),

Trigger, Alarm Log and Operation Time. But E-mail subject and file name by E-mail or FTP transfer uses only 24 h format.

Automatic Time

Adjustment

• NTP (Network Time Protocol) server synchronizes the camera's internal clock. It adjusts automatically every day.

Check the box to enable it.

• Set the NTP server IP address. In IPv4, set 4 digits (0—

255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available. In IPv6, set 8 hexadecimal digits divided with ":". Consecutive 0s can be abbreviated as "::". Or set a host name (1—255 characters).

• Select your time zone.

Note

The camera will not synchronize to the NTP server if the time setting from the NTP server moves forward or backward more than 1 hour at a time. This is to protect the camera's time setting from fraudulent NTP server tampering, incorrect time information, etc.

Adjust Clock for

Daylight Saving

Time

• During the daylight saving time, the internal clock is turned forward an hour. The clock will shift one hour forward at the set time on the Start Day, and move back one hour at the set time on the End Day. Check the box to enable it.

Note

An "s" is put between date and time of time stamp when enabling this feature. The time stamp will be attached to the transferred images by the Image Transfer feature.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Date and Time page].

• The Date and Time page is displayed.

79

80

Operating Instructions

Note

Date and time settings become incorrect depending on the length of power-on time or the internal temperature. Using the Automatic Time Adjustment is recommended.

Operating Instructions

2.10 Changing Camera Settings

The Camera page allows you to set the camera name, white balance, pan/tilt range, return to specified position and color night view settings.

1.

Click [Camera] on the Setup page.

2.

Set each parameter.

• Clicking [Cancel] cancels your settings without saving changes.

81

82

Operating Instructions

Setting Description

Camera Name • The camera name is displayed on the Single Camera page.

Enter ASCII characters (see page 183) or characters in

each language (1—15 characters for a 1-byte character and 1—7 characters for a 2-byte character). But [Space],

["], ['], [&], [<], and [>] are not available.

White Balance Select from the following options.

• Auto (default) — Automatic adjustment

Pan Range

*1

• Fixed Indoor — Electric bulb (2800 K)

• Fixed Fluorescent

(White)

— White (3600 K)

• Fixed Fluorescent

(Daylight)

— Daylight (4000 K)

• Fixed Outdoor

• Hold

— Solar light (6000 K)

— Setting [Hold] keeps the current white balance.

Note

White balance is also saved in the home position, alarm position and preset positions.

Select from the following options.

• Minimum — Current settings, -60—+60

• Home Position

*2

— Current settings, -60—+60

• Maximum — Current settings, -60—+60

• The values must be selected as minimum home position maximum.

Note

If you wrongly set the range, your privacy may be seen.

Confirm the range after the setup.

Setting

Tilt Range

*1

Return to

Specified

Position

Operating Instructions

Description

Select from the following options.

• Minimum — Current settings, -45—+20

• Home Position

*2

• Maximum

— Current settings, -45—+20

— Current settings, -45—+20

• The values must be selected as minimum home position maximum.

Note

If you wrongly set the range, your privacy may be seen.

Check the range after the setup.

• If the camera is not operated during the specified period, the camera turns to the specified position.

• The following settings are available.

– Time - Do not move, 10 s, 20 s, 30 s, 1 min, 5 min, 10 min, 30 min, 1 h

– Specified Position - Home Position, Alarm No.1, Alarm

No.2, Preset No.1-20

• If a preset position is deleted after the preset position is set for Specified Position, a blank is displayed and the specified position does not work.

Note

• A preset position (1—20) is displayed as a ("preset number"."preset name"). (e.g.: 1.sample)

• A deleted preset position is displayed as a ("preset number".). (e.g.: 1.)

• If you did not set any presets, the camera cannot turn to the preset position.

83

84

Operating Instructions

Setting

Color Night

View

Description

• In the color night view mode, the camera image becomes brighter in a low illuminance. The camera image returns normal operation in a bright location.

• If you enable the color night view mode, refresh interval may slow down.

Note

In the color night view mode, the image may have white or colored circles around the object. This is not a problem, since it is a CCD sensor characteristic.

*1

*2

See page 85 for details about pan/tilt range settings.

These home position settings are displayed as you set on page 34.

3.

Click [Save] when finished.

• New settings are saved. If the [Pan Range] or [Tilt Range] settings are changed, the camera turns to the home position.

• When finished, "Success!" is displayed.

4.

Click [Go to Camera page].

• The Camera page is displayed.

Operating Instructions

Specifying Pan/Tilt Range

1.

Access the camera (see page 20), and click [Single] at the top of the Top page.

2.

Open another web browser, and display the Camera page (see page 81).

3.

Align the Single Camera page and the Camera page side to side.

4.

Set the pan/tilt range.

• Selecting [Current Settings] displays the current angle of the camera.

Select each value while adjusting the pan/tilt on the Single Camera page.

Note

The values must be selected as minimum home position maximum.

Max.: +20 ˚

Max.: +60 ˚

Min.: -60 ˚

Min.: -45 ˚

5.

Click [Save] on the Camera page.

• New settings are saved. The camera turns to the home position.

85

Operating Instructions

2.11 Adjusting Audio

The Audio page allows you to adjust the built-in microphone, the use of external speaker, microphone sensitivity and external speaker volume.

1.

Click [Audio] on the Setup page.

2.

Set each parameter.

86

• Clicking [Cancel] cancels your settings without saving changes.

Operating Instructions

Output

Setting

Volume

PC Audio Input

Timeout

Input

Camera

Microphone

Sensitivity

Description

• It controls audio output for external speaker connected to the camera.

• It controls the volume to output to external speaker.

Minimum: Turn down the volume

Standard: Standard setting (default)

Maximum: Turn up the volume

• You can set the length of time to receive the audio from your PC.

• The following settings are available.

1 min, 2 min, 3 min, 5 min, 10 min, 20 min, 30 min, 60 min

• It controls audio input from the built-in microphone or external microphone.

• You can select the built-in microphone or external microphone sensitivity.

Minimum: Decreased sensitivity

Standard: Standard setting (default)

Maximum: Enhanced sensitivity

Mute during Pan/Tilt • You can temporarily stop listening (audio input) when the camera pans or tilts.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Audio page].

• The Audio page is displayed.

87

Operating Instructions

2.12 Changing Authentication Setting and

Administrator User Name and Password

The Security: Administrator page allows you to change authentication, administrator user name and password. The authentication window is displayed, and allows the registered users to access the camera.

Note

• If you access the camera for the first time, the window to set administrator user name and password is displayed. Make a note of the user name and password so that you will not forget them.

• The user name and password should be secured at your own responsibility.

Pay attention to the following points.

– Set the user name and password as many characters as possible.

– Change the password regularly.

IMPORTANT

• It is important to limit access to the camera by use of a unique User Name and a secret Password. Because the camera is accessed through the Internet it is possible that the camera could be accessed by unknown individuals, including those who are commonly known as "crackers" to whom you do not want to allow access. The use of a unique User Name and a Password known only to you will help insure that only authorized individuals are given access to the camera. You have the option of proceeding without a User Name and

Password, but it is strongly recommended that you utilize these protections.

1.

Click [Administrator] on the Setup page.

2.

Set each parameter.

88

• Clicking [Cancel] cancels your settings without saving changes.

Operating Instructions

Setting

General

Authentication

Description

Authentication has 2 phases.

• If you set [Permit access from guest users], the camera does not display the authentication window in camera access. All guest users can view the image without user name and password.

Note

If you set [Permit access from guest users], [Login] tab is displayed at the top of the page. After you log in as an

administrator (see page 91), you can access the Setup

page and the Maintenance page.

User Name/

Password

• If you set [Do not permit access from guest users], the camera displays authentication window in camera access.

Users must enter the user name and password.

• User Name (6 to 15 characters): Enter the user name.

• Password (6 to 15 characters): Enter the password.

Note

The password must be different from the user name.

• Retype Password: Reenter the password.

Enter ASCII characters (see page 183). But [Space], ["], ['],

[&], [<], [>] and [:] are not available.

Note

• When setting authentication, set the user name and password, and save them.

• When users other than an administrator are accessing the camera,

[Setup] and [Maintenance] tab will not be displayed.

• The user name and password are case sensitive.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

89

Operating Instructions

4.

Click [Go to Security: Administrator page].

• The Security: Administrator page is displayed.

Note

• When the user name and password have been changed, the camera displays an authentication window. Enter the user name and password, and click [OK].

90

Administrator/General Users/Guest Users

The camera has 3 user levels (administrator, general users and guest users).

Items

User Name and

Password

Number of Users

Accessible Pages

Access Level

Administrator

Required

General Users

Required

Guest Users

Not Required

1

All Pages

All Operations

50 —

Pages Except For

Setup and

Maintenance page

Pages Except For

Setup and

Maintenance page

Access level can be set for each general user (see

page 92).

Access level can be set for guest users (see page

92).

Note

Guest users mean unregistered users. Set [Permit access from guest users]

on the Security: Administrator page (see page 88).

Operating Instructions

2.13 Logging in to the Camera

If you set [Permit access from guest users] on the Security: Administrator page,

[Login] tab is displayed at the top of the page. After you log in as an administrator, you can access the Setup page and the Maintenance page.

1.

Click [Login] tab at the top of the page.

2.

Check the login mode, and click [Login].

Note

The authentication window is displayed. Enter the user name and password set for General Users or Administrator.

3.

Enter a valid user name and password according to the Login mode selected in step 2, and click [OK].

91

92

Operating Instructions

2.14 Creating, Modifying or Deleting General Users

The General User page allows you to create, modify or delete general users. Up to

50 general users can be registered. The access level is set for each general user.

If you set [Permit access from guest users] on the Security: Administrator page, the access level can be set for guest users.

Note

For general users, the Setup and Maintenance tabs are not displayed.

1.

Click [General User] on the Setup page.

2.

If you create a general user, click [Create].

• When setting [Do not permit access from guest users]

• When setting [Permit access from guest users]

• If you change the settings of general users or guest users, select their name and click [Modify]. The modification page is displayed.

• If you delete a general user, select the name and click [Delete]. The confirmation page is displayed.

Operating Instructions

3.

Set each parameter.

• Settings for a general user • Settings for guest users

• Clicking [Cancel] takes you back to the previous page without saving changes.

Setting

User ID List

User Name/

Password

Description

• Up to 50 general users can be registered.

• The list is used to modify or delete general user settings.

• User Name (6 to 15 characters): Enter the user name.

• Password (6 to 15 characters): Enter the password.

Note

The password must be different from the user name.

• Retype Password: Reenter the password.

Enter ASCII characters (see page 183). But [Space], ["], ['],

[&], [<], [>] and [:] are not available.

93

94

Operating Instructions

Setting

Access Level

Description

Access level is set for each general user. Check the feature to enable.

• In the limit time of continuous motion JPEG, set the time to change the video (Motion JPEG) to still images for each user. (Not permitted, Unlimited, 10 seconds—60 minutes)

In the refresh interval, set the refresh interval after the video changes to still images. (3—60 seconds)

• See each page for the following features.

Pan/Tilt Control (see page 32)

Preset Control (see page 31)

Click to Center Control (see page 29)

Brightness Control (see page 31)

External Output Control (see page 31)

Change Refresh Interval (see page 31)

Change Resolution (see page 31)

Change Quality (see page 31)

Capture Image Button (see page 30)

Listen (see page 38)

Talk (see page 38)

View Multi-Camera page (see page 41)

View Buffered Image page (see page 43)

4.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

5.

Click [Go to General User page].

Operating Instructions

2.15 Buffering or Transferring Images by Timer

The Trigger page allows you to enable image buffer/transfer by E-mail or FTP.

1.

Click [Trigger] on the Setup page.

2.

Click No. to enable buffer/transfer.

3.

Check [Enable Image Buffer/Transfer], and select [Timer] for trigger, and click

[Next>].

Note

• Click [Delete Buffered Images] to delete the buffered images.

• Click [Save] to save the settings.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

95

96

Operating Instructions

Setting

Enable Image

Buffer/Transfer

Trigger

Description

• Check the box to enable the Trigger setting. Clear the box to disable it.

• Selecting [Timer] enables the camera to buffer/transfer the image by timer.

• Selecting [Alarm 1 or 2] enables the camera to buffer/ transfer the image by alarm signal.

• Selecting [Motion Detection] enables the camera to capture/transfer the images when the motion detects something.

4.

Set the time, and click [Next>].

Note

The timer works by an internal clock. Set the date and time before using timer

buffer/transfer (see page 78).

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting

A day of the week

Active Time of

Trigger

Description

• Check the box to enable the day. Clear the box to disable it.

• Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

5.

Set the image settings, and click [Next>].

Operating Instructions

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting


Resolution

Description

• Select image resolution (640 x 480, 320 x 240 (default) or

160 x 120 pixels) to buffer or transfer.

Image Quality • Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality. (default)

[Favor Motion] optimizes for enhanced motion.

[Mobile Phone] is for a transfer to a mobile phone.

Note

640 x 480 pixels cannot be set for a transfer to a mobile phone.

6.

Set the image buffer frequencies, and click [Next>].

Note

Due to the network environment, object, number of accesses, enabling IPsec, the camera may not record the numbers of images as you set. In this case, set the image buffer frequencies longer.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting

Image Buffer

Frequency

Description

• Select the image buffer frequency to buffer or transfer the image. (1 image per hour—30 images per second)

97

98

Operating Instructions

7.

Select the transfer method, and click [Next>].

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Note

If you transfer image by E-mail or FTP, confirm that the default gateway and

DNS server addresses are assigned correctly (see page 51 and page 56).

Setting

No Transfer,

Memory

Overwrite

Description

No Transfer, No

Memory

Overwrite

• If the internal memory is full, the camera stops the buffer.

• If the internal memory is full, the camera deletes the old images, and continues to buffer the image.

FTP

E-mail

• The camera transfers the image to an FTP server (see

page 99).

The camera transfers the image by E-mail (see page 101).

Operating Instructions

When you set [FTP] for Transfer Method

Select [FTP], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

99

100

Operating Instructions

Setting Description

Server IP

Address or

Host Name

*1

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name (1—

255 characters).

• You can set IPv6 address.

Port No.

• Enter a number (1—65535). Usually set to 21.

Login ID

*2

• If your ISP requires a login ID, set it (0—63 characters).

Password

*2

• If your ISP requires a password, set it (0—63 characters).

Login Timing • Select the login timing to an FTP server. If you set [One Time] during 1-minute transfer, the camera logs in to the server only once, and can reduce the time to log in or log out.

Upload File

Name

*1

• Set the file name to save on an FTP server. Enter 1—234 characters. Entering "\" creates directories for a file. (E.g.

NetworkCamera\image.jpg)

Overwrite

Setting

Data

Transfer

Method

• Selecting [Overwrite File] saves and overwrites the image on the server. Selecting [Save as New File with Time Stamp] saves the image attaching time stamps on the file name, and the images are not overwritten.

(E.g. image20050101093020500.jpg) Underlined numbers are "9h30min20s500ms on January 1, 2005". The letter "s" is inserted after the day when referring to a summer time zone.

• Select [Passive Mode] normally. If FTP does not work, select

[Active Mode] and check the operation.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

When you set [E-mail] for Transfer Method

Select [E-mail], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Note

• The camera works only with an SMTP (Simple Mail Transfer Protocol) server. It does not work with mail servers like "Hotmail

®

" using a web browser.

• The subject name by E-mail transfer uses only 24 h format. The file name is "image.jpg".

E.g. "image:20050101093020500".

Underlined numbers are "9h30min20s500ms on January 1, 2005". The letter "s" is inserted after the day when referring to a summer time zone.

101

102

Operating Instructions

Setting Description

SMTP Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

• Enter a number (1—65535). Usually set to 25.

POP3 Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(0—255 characters).

• You can set IPv6 address.

Port No.

Login ID

*2

• Enter a number (1—65535). Usually set to 110.

• If your ISP requires a login ID to log in to a POP3 server, set it (0—63 characters).

Password

*2

Reply E-mail

Address

Destination Email Address

*2

1—3

Subject

*2

*2

• If your ISP requires a password to log in to a POP3 server, set it (0—63 characters).

• Set the sender's E-mail address. We recommend you to set the administrator's E-mail address.

• Set the destination E-mail address (up to 3).

Enter a subject with ASCII characters (see page 183) or

characters in each language (0—44 characters for a 1-byte character and 0—22 characters for a 2-byte character).

Text •

Enter text with ASCII characters (see page 183) or

characters in each language (0—63 characters for a 1-byte character and 0—31 characters for a 2-byte character). But

["] and [end-of-line] key are not available.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

8.

Confirm the settings, and click [Save].

• New settings are saved.

• When finished, "Success!" is displayed.

9.

Click [Go to Trigger page].

• The Trigger page is displayed.

Note

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

– Turning off the camera.

– Saving the Date and Time page.

– Restarting, updating firmware or resetting the camera to factory default.

103

104

Operating Instructions

2.16 Buffering or Transferring Images by Alarm

Signal

The Trigger page allows you to enable image buffer/transfer by E-mail or FTP.

1.

Click [Trigger] on the Setup page.

2.

Click No. to enable buffer/transfer.

3.

Check [Enable Image Buffer/Transfer], select [Alarm 1 or 2] for trigger, select

[Rising: GND to Open (High).] or [Falling: Open (High) to GND.] and click

[Next>].

Note

• Click [Delete Buffered Images] to delete this buffered images.

• Click [Save] to save the settings.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Operating Instructions

Setting

Enable Image

Buffer/Transfer

Trigger

Alarm enable condition

Description

• Check the box to enable the Trigger setting. Clear the box to disable it.

• Selecting [Timer] enables the camera to buffer/transfer the image by timer.

• Selecting [Alarm 1 or 2] enables the camera to buffer/ transfer the image by alarm signal.

• Selecting [Motion Detection] enables the camera to capture/transfer the images when the motion detects something.

• Selecting the method of the detection for an alarm connected to the External I/O terminal.

• Select [Rising: GND to Open (High).] or [Falling: Open

(High) to GND.]. [Rising: GND to Open (High).] is the state that GND pin and pin 1 or pin 2 is left open.

[Falling: Open (High) to GND.] is the state that GND pin

and pin 1 or pin 2 is short-circuited. (See page 158)

4.

Set the time, and click [Next>].

Note

The timer works by an internal clock. Set the date and time before using timer

buffer/transfer (see page 78).

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting

A day of the week

Active Time of

Trigger

Description

• Check the box to enable the day. Clear the box to disable it.

• Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

105

106

Operating Instructions

5.

Set the Lens Position When Triggered setting, and click [Next>].

Note

If you enable the Lens Position When Triggered setting, buffer/transfer starts after the camera turns to the Home Position, registered Preset No.1–20 or

Alarm No.1–2.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting Description

Lens Position

When Triggered

• Set [Move to alarm position] to move the lens to the Home

Position, alarm position (see page 34) or Preset 1–20

when the alarm signal is detected.

6.

Set the image settings, and click [Next>].

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting


Resolution

Description

• Select image resolution (640 x 480, 320 x 240 (default) or

160 x 120 pixels) to buffer or transfer.

Operating Instructions

Setting Description

Image Quality • Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality. (default)

[Favor Motion] optimizes for enhanced motion.

[Mobile Phone] is for a transfer to a mobile phone.

Note

640 x 480 pixels cannot be set for a transfer to a mobile phone.

7.

Set the image buffer frequencies, and click [Next>].

Note

Due to the network environment, object, number of accesses, enabling IPsec, the camera may not record the numbers of images as you set. In this case, set the image buffer frequencies longer.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting

Enable Pretrigger Image

Buffer

Description

• Check the box to enable the setting. The camera buffers or transfers the image right before the alarm signal is detected.

• Set an interval, number of images to buffer and total number. The buffered images may not match the total number due to memory capacity, image resolution, image quality or what object you view.

107

Operating Instructions

Setting

Enable Posttrigger Image

Buffer

Description

• Check the box to enable the setting. The camera buffers or transfers the image right after the alarm signal is detected.

• Set an interval, number of images to buffer and total number. The buffered images may not match the total number due to memory capacity, image resolution, image quality or what object you view.

8.

Select the transfer method, and click [Next>].

108

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Note

If you transfer image by E-mail or FTP, confirm that the default gateway and

DNS server addresses are assigned correctly (see page 51 and page 56).

Setting

No Transfer,

Memory

Overwrite

Description

No Transfer, No

Memory

Overwrite

• If the internal memory is full, the camera stops the buffer.

• If the internal memory is full, the camera deletes the old images, and continues to buffer the image.

FTP

E-mail

• The camera transfers the image to an FTP server (see

page 109).

The camera transfers the image by E-mail (see page 111).

Operating Instructions

When you set [FTP] for Transfer Method

Select [FTP], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

109

110

Operating Instructions

Setting Description

Server IP

Address or

Host Name

*1

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name (1—

255 characters).

• You can set IPv6 address.

Port No.

• Enter a number (1—65535). Usually set to 21.

Login ID

*2

• If your ISP requires a login ID, set it (0—63 characters).

Password

*2

• If your ISP requires a password, set it (0—63 characters).

Login Timing • Select the login timing to an FTP server. If you set [One Time] during 1-minute transfer, the camera logs in to the server only once, and can reduce the time to log in or log out.

Upload File

Name

*1

• Set the file name to save on an FTP server. Enter 1—234 characters. Entering "\" creates directories for a file. (E.g.

NetworkCamera\image.jpg)

Overwrite

Setting

Data

Transfer

Method

• Selecting [Overwrite File] saves and overwrites the image on the server. Selecting [Save as New File with Time Stamp] saves the image attaching time stamps on the file name, and the images are not overwritten.

(E.g. image20050101093020500.jpg) Underlined numbers are "9h30min20s500ms on January 1, 2005". The letter "s" is inserted after the day when referring to a summer time zone.

• Select [Passive Mode] normally. If FTP does not work, select

[Active Mode] and check the operation.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

When you set [E-mail] for Transfer Method

Select [E-mail], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Note

• The camera works only with an SMTP (Simple Mail Transfer Protocol) server. It does not work with mail servers like "Hotmail" using a web browser.

• The subject name by E-mail transfer uses only 24 h format. The file name is "image.jpg".

E.g. "image:20050101093020500".

Underlined numbers are "9h30min20s500ms on January 1, 2005". The letter "s" is inserted after the day when referring to a summer time zone.

111

112

Operating Instructions

Setting Description

SMTP Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

• Enter a number (1—65535). Usually set to 25.

POP3 Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(0—255 characters).

• You can set IPv6 address.

Port No.

Login ID

*2

• Enter a number (1—65535). Usually set to 110.

• If your ISP requires a login ID to log in to a POP3 server, set it (0—63 characters).

Password

*2

Reply E-mail

Address

Destination Email Address

*2

1—3

Subject

*2

*2

• If your ISP requires a password to log in to a POP3 server, set it (0—63 characters).

• Set the sender's E-mail address. We recommend you to set the administrator's E-mail address.

• Set the destination E-mail address (up to 3).

Enter a subject with ASCII characters (see page 183) or

characters in each language (0—44 characters for a 1-byte character and 0—22 characters for a 2-byte character).

Text •

Enter text with ASCII characters (see page 183) or

characters in each language (0—63 characters for a 1-byte character and 0—31 characters for a 2-byte character). But

["] and [end-of-line] key are not available.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

9.

After you confirm the settings and click [Next>], set E-mail notification and click

[Next>].

• If you select [Enable], the E-mail Notification When Triggered page is

displayed. Enter the settings seeing page 111 and page 112.

Setting

Disable

Enable

Description

• The camera does not send an E-mail notification when buffering or transferring image.

• The camera sends an E-mail notification (up to 3 destinations) when buffering or transferring image.

10.

Click [Save] after confirming the settings.

• New settings are saved.

• When finished, "Success!" is displayed.

113

114

Operating Instructions

11.

Click [Go to Trigger page].

• The Trigger page is displayed.

Note

• If you set a short interval to transfer image to a mobile phone, many Emails may be sent to it leading to a large phone bill. Therefore, we recommend you to set a long interval. 1 image per minute frequency is recommended.

• Alarm transfer stops its operations until the camera finishes all transfers.

For example, if the camera transfers 3 images per minute and 6 images in total, the alarm detection will be in the following operation.

120 seconds

1st 2nd 3rd 4th 5th 6th

Detectable Undetectable Detectable

An alarm signal is detected.

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

– Turning off the camera.

– Saving the Date and Time page.

– Restarting, updating firmware or resetting the camera to factory default.

Operating Instructions

2.17 Buffering or Transferring Images by Motion

Detection Signal

The Trigger page allows you to enable image buffer/transfer by E-mail or FTP.

1.

Click [Trigger] on the Setup page.

2.

Click [No.] to enable buffer/transfer.

3.

Check [Enable Image Buffer/Transfer], select [Motion Detection] for trigger, and click [Next>].

Note

• Click [Delete Buffered Images] to delete this buffered images.

• Click [Save] to save the settings.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting

Enable Image

Buffer/Transfer

Description

• Check the box to enable the Trigger setting. Clear the box to disable it.

115

116

Operating Instructions

Setting

Trigger

Description

• Selecting [Timer] enables the camera to buffer/transfer the image by timer.

• Selecting [Alarm 1 or 2] enables the camera to buffer/ transfer the image by alarm signal.

• Selecting [Motion Detection] enables the camera to capture/transfer the images when the motion detects something.

4.

Set the time, and click [Next>].

Note

The timer works by an internal clock. Set the date and time before using timer

buffer/transfer (see page 78).

• Clicking [>Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting

A day of the week

Active Time of

Trigger

Description

• Check the box to enable the day. Clear the box to disable it.

• Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

5.

Set the image settings, and click [Next>].

Operating Instructions

Note

If you enable the Lens Position When Triggered setting, buffer/transfer starts after the camera turns to the Home Position, registered Preset No.1–20, or

Alarm No.1–2.

• Clicking [>Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting Description

Lens Position

When Triggered

• Set [Move to alarm position] to move the lens to the Home

Position, alarm position (see page 34) or Preset 1–20

when the alarm signal is detected.

6.

Set the image settings, and click [Next>].

• Clicking [>Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Setting


Resolution

Description

• Select image resolution (640 × 480, 320 × 240 (default) or

160 × 120 pixels) to buffer or transfer.

Image Quality • Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality. (Default)

[Favor Motion] optimizes for enhanced motion.

[Mobile Phone] is for a transfer to a mobile phone.

Note

640 × 480 pixels cannot be set for a transfer to a mobile phone.

117

Operating Instructions

7.

Set the image buffer frequencies, and click [Next>].

118

Note

Due to the network environment, object, number of accesses, enabling IPsec, the camera may not record the numbers of images as you set. In this case, set the image buffer frequencies longer.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

• Clicking [<Back] takes you back to the previous page.

Setting

Enable Pretrigger Image

Buffer

Enable Posttrigger Image

Buffer

Description

• Check the box to enable the setting. The camera buffers or transfers the image right before the motion detection signal is detected.

• Set an interval, number of images to buffer and total number. The buffered images may not match the total number due to memory capacity, image resolution, image quality or what object you view.

• Check the box to enable the setting. The camera buffers or transfers the image right after the motion detection signal is detected.

• Set an interval, number of images to buffer and total number. The buffered images may not match the total number due to memory capacity, image resolution, image quality or what object you view.

8.

Select the transfer method, and click [Next>].

Operating Instructions

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Note

If you transfer image by E-mail or FTP, confirm that the default gateway and

DNS server addresses are assigned correctly (see page 51 and page 56).

Setting Description

No Transfer, No

Memory

Overwrite

• If the internal memory is full, the camera stops the buffer.

No Transfer,

Memory

Overwrite

FTP

• If the internal memory is full, the camera deletes the old images, and continues to buffer the image.

E-mail

• The camera transfers the image to an FTP server (see

page 120).

The camera transfers the image by E-mail (see page 122).

119

120

Operating Instructions

When you set [FTP] for Transfer Method

Select [FTP], and click [Next>]. The following page is displayed.

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Operating Instructions

Setting Description

Server IP

Address or

Host Name

*1

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name (1—

255 characters).

• You can set IPv6 address.

Port No.

• Enter a number (1—65535). Usually set to 21.

Login ID

*2

• If your ISP requires a login ID, set it (0—63 characters).

Password

*2

• If your ISP requires a password, set it (0—63 characters).

Login Timing • Select the login timing to an FTP server. If you set [One Time] during 1-minute transfer, the camera logs in to the server only once, and can reduce the time to log in or log out.

Upload File

Name

*1

• Set the file name to save on an FTP server. Enter 1—234 characters. Entering "\" creates directories for a file. (E.g.

NetworkCamera\image.jpg)

Overwrite

Setting

Data

Transfer

Method

• Selecting [Overwrite File] saves and overwrites the image on the server. Selecting [Save as New File with Time Stamp] saves the image attaching time stamps on the file name, and the images are not overwritten.

(E.g. image20050101093020500.jpg) Underlined numbers are "9h30min20s500ms on January 1, 2005". The letter "s" is inserted after the day when referring to a summer time zone.

• Select [Passive Mode] normally. If FTP does not work, select

[Active Mode] and check the operation.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

121

Operating Instructions

When you set [E-mail] for Transfer Method

Select [E-mail], and click [Next>]. The following page is displayed.

122

• Clicking [<Back] takes you back to the previous page.

• Clicking [Cancel] takes you back to the Trigger page without saving changes.

Note

• The camera works only with an SMTP (Simple Mail Transfer Protocol) server. It does not work with mail servers like "Hotmail" using a web browser.

• The subject name by E-mail transfer uses only 24 h format. The file name is "image.jpg".

E.g. "image:20050101093020500".

Underlined numbers are "9h30min20s500ms on January 1, 2005". The letter "s" is inserted after the day when referring to a summer time zone.

Operating Instructions

Setting Description

SMTP Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(1—255 characters).

• You can set IPv6 address.

Port No.

• Enter a number (1—65535). Usually set to 25.

POP3 Server IP

Address or Host

Name

*1

• If you set the server IP address, set 4 digits (0—255) and

3 periods such as "192.168.0.253". But "0.0.0.0" and

"255.255.255.255" are not available. Or set a host name

(0—255 characters).

• You can set IPv6 address.

Port No.

Login ID

*2

• Enter a number (1—65535). Usually set to 110.

• If your ISP requires a login ID to log in to a POP3 server, set it (0—63 characters).

Password

*2

Reply E-mail

Address

Destination Email Address

*2

1—3

Subject

*2

*2

• If your ISP requires a password to log in to a POP3 server, set it (0—63 characters).

• Set the sender's E-mail address. We recommend you to set the administrator's E-mail address.

• Set the destination E-mail address (up to 3).

Enter a subject with ASCII characters (see page 183) or

characters in each language (0—44 characters for a 1-byte character and 0—22 characters for a 2-byte character).

Text •

Enter text with ASCII characters (see page 183) or

characters in each language (0—63 characters for a 1-byte character and 0—31 characters for a 2-byte character). But

["] and [end-of-line] key are not available.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

123

124

Operating Instructions

9.

After you confirm the settings and click [Next>], set E-mail notification and click

[Next>].

• If you select [Enable], the E-mail Notification When Triggered page is

displayed. Enter the settings seeing page 122 and page 123.

Setting

Disable

Enable

Description

• The camera does not send an E-mail notification when buffering or transferring image.

• The camera sends an E-mail notification (up to 3 destinations) when buffering or transferring image.

10.

Click [Save] after confirming the settings.

• New settings are saved.

• When finished, "Success!" is displayed.

Operating Instructions

11.

Click [Go to Trigger page].

• The Trigger page is displayed.

Note

• If you set a short interval to transfer image to a mobile phone, many Emails may be sent to it leading to a large phone bill. Therefore, we recommend you to set a long interval. 1 image per minute frequency is recommended.

• Motion Detection transfer stops its operations until the camera finishes all transfers. For example, if the camera transfers 3 images per minute and 6 images in total, the Motion Detection will be in the following operation.

120 seconds

1st 2nd 3rd 4th 5th 6th

Detectable Undetectable Detectable

A Motion Detection signal is detected.

• If you are buffering images on the internal memory, the following operations also delete all buffered images.

– Turning off the camera.

– Saving the Date and Time page.

– Restarting, updating firmware or resetting the camera to factory default.

Note

• A change due to light or wind may detect motions mistakenly.

• Motion detection level is changed depending on resolution, image quality, and object situation. Confirm the level by performing motion detection recording.

• Enabling Motion Detection delays the frame rate of the camera.

• Objects moving fast may not be detected.

• Motion Detection may not work in the dark.

125

126

Operating Instructions

2.18 Transfer the Camera Image in Transport Mode

The camera can transfer the image in transport mode by E-mail or FTP.

Transport Mode

E-mail or FTP

Server

Encrypted

Prepare the following requirements.

Item

E-mail or FTP

Server

Operating

System

ISP Service

Camera ISP Service

Supported Feature

: IPsec supported

: Services for multiple static global addresses (A global address must be set up to the server.)

: Services for multiple static global addresses (A global address must be set up to the camera.)

See page 63 and set up the E-mail or FTP server.

Operating Instructions

2.19 Transfer the Camera Image in Tunnel Mode

The camera can transfer the image in tunnel mode by E-mail or FTP.

E-mail or

FTP Server

VPN Router

LAN WAN

Tunnel Mode

Not Encrypted

Prepare the following requirements.

Encrypted

Camera

Item

VPN Router ISP Service

(in IPv4)

(in IPv6)

(in IPv4)

(in IPv6)

ISP Service

ISP Service

ISP Service

Supported Feature

: Services for static global addresses (A global address must be set up to the WAN side.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

: Services for multiple static global addresses (A global address must be set up to the camera.)

: "IPv4/IPv6 Dual-Stack" or "IPv6 over IPv4

Tunneling" service

See page 66 and set up the E-mail or FTP server.

127

Operating Instructions

2.20 Setting the Motion Detection

The Motion Detection page allows you to adjust sensitivity of the Motion Detection.

Threshold: If the threshold is set low, this function sensitively detects changes.

Sensitivity: If you set sensitivity high, amplitude of motion detection bar gets jumpy.

1.

Click [Motion Detection] on the Setup page.

2.

Click the Motion Detection bar in Threshold to set the threshold level.

3.

Click the Motion Detection bar in Sensitivity to set the sensitivity level.

128

4.

Click [Save] to save the settings.

• Clicking [Cancel] cancels your settings without saving changes

5.

Click [Go to Motion Detection page].

• The Motion Detection page is displayed.

Setting

Threshold

Sensitivity

Description

• Adjust the threshold for Motion Detection.

• If you set sensitivity high, amplitude of motion detection bar gets jumpy.

Note

The Motion Detection feature does not work during pan/tilt operation.

Preview

Display current threshold and detection level.

• The threshold is displayed by between green and red bar.

• The detection level is displayed by between dark and light color.

Note

Setting Threshold and Sensitivity is enabled after saving, and reflect to preview.

Operating Instructions

Threshold

What is the threshold?

The threshold is a value for the camera to detect motions on the image during the motion detection buffering. Setting the threshold lower allows subtler changes to be detected. Setting the threshold higher allows bigger changes that might occupy half the image to be detected.

What is the sensitivity?

The sensitivity is the brightness change level for the camera to detect as the motion. The high sensitivity setting enables the camera to detect the slight brightness change. Lower the sensitivity to make the camera to detect only the big brightness change.

Detect motions according to the threshold.

When the level exceeds the threshold, the camera detects motions.

Note

Lowering the threshold and heightening sensitivity enable the camera easily to detect the trivial motion on the part of the image.

129

130

Operating Instructions

Note

• The motion detection is activated by object outline's changes and the brightness changes. This feature is designed to alleviate false detections by overall brightness changes due to sunlight. But in this case, the camera may falsely detect the rapid brightness changes by the artificial light such as the fluorescent light. In other cases, motion detection by the Network

Camera Recorder detects whole objects and brightness changes. The way to detect motion differs between the camera and Network Camera

Recorder. Additionally, if the object's color is absorbed by the background color, the camera is hard to detect the motions.

• The detecting level depends on the object, resolution, or image quality.

Confirm the condition on the Preview window with following the above procedure when setting the Motion Detection.

Operating Instructions

2.21 Notifying Setup of an Alarm Log

Once a day, an alarm log sent at a specified time can be checked. To enable Alarm

Log, set Alarm 1, Alarm 2 or Motion Detection for Trigger Setting and check

[Enable].

1.

Click [Alarm Log] on the Setup page.

When selecting Alarm1, Alarm2 or Motion Detection in Trigger page, the Alarm log window is displayed.

2.

Set each parameter.

Note

• Click [Save] to save the settings.

• Clicking [Cancel] cancels your settings without saving changes.

131

132

Operating Instructions

Setting Description

A setup of operation • Alarm log operation can be set here.

Time • Set the date and time to send alarm logs via E-mail.

SMTP Server IP

Address or Host

Name

*1

Port No.

POP3 Server IP

Address or Host

Name

*1

Port No.

Login ID

*2

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available. Or set a host name (1—255 characters).

• An IPv6 address can be set.

• Enter a number (1—65535). Usually set to 25.

• If you set the server IP address, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But "0.0.0.0" and "255.255.255.255" are not available. Or set a host name (1—255 characters).

• An IPv6 address can be set.

• Enter a number (1—65535). Usually set to 110.

Password

*2

• If your ISP requires a login ID to log in to a POP3 server, set it (0—63 characters).

• If your ISP requires a password to log in to a POP3 server, set it (0—63 characters).

Reply E-mail

Address

*2

Destination E-mail

Address 1-3

*2

• Set the destination E-mail address (up to 3).

Subject

• Set the sender's E-mail address. We recommend you to set the administrator's E-mail address.

Enter a subject with ASCII characters (see page 183)

or characters in each language (0—44 characters for a

1-byte character and 0—22 characters for a 2-byte character). But ["] is not available.

*1

*2

But [Space], ["], ['], [&], [<] and [>] are not available.

But ["] is not available.

Operating Instructions

2.22 Changing Initial Settings on the Single

Camera page or the Multi-Camera page

The Image Display page allows you to change initial settings (display settings when a user accesses the camera) of image resolution, image quality and refresh interval. You can display a time stamp on the image. The initial language can be selected from eight languages. The banner can be displayed for administrator or general users or both.

1.

Click [Image Display] on the Setup page.

2.

Set each parameter.

• Clicking [Cancel] cancels your settings without saving changes.

133

134

Operating Instructions

Setting Description

Image Resolution • Select the image resolution.

640 x 480 pixels (Only for the Single Camera page)

320 x 240 pixels (default)

160 x 120 pixels (Only for the Multi-Camera page)

Image Quality

Refresh Interval

• Select the image quality.

[Favor Clarity] optimizes for good quality.

[Standard] offers standard quality. (Default)

[Favor Motion] optimizes for enhanced motion.

• Select a refresh interval.

Motion, 3 s, 5 s, 10 s, 30 s, and 60 s

Time stamp setting • You can display a time stamp on the upper left side of the image. Select from [Enable] or [Disable].

Language

Note

• If you enable this feature, the time is also stamped on the buffered image.

• Set AM/PM format and 24H format on the Date and Time page.

• Select the initial language from English, French,

German, Italian, Spanish, Russian, Simplified Chinese or Japanese. The selected language is displayed as the initial language on the Top, Single Camera, Multi-

Camera and Buffered Image pages. If you select

English or Japanese, all pages can be changed. But if you select other language, the Setup, Maintenance and

Support pages are displayed only in English.

Banner Display • When the camera accesses the Internet, the banner displays product information about cameras or announcements about the latest firmware, etc. from

Panasonic. Checking [Display] for Administrator is particularly recommended.

• When checked, the banner is displayed for administrator or general users or both.

• The banner is displayed only on the Single Camera

page (see page 24).

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Image Display page].

• The Image Display page is displayed.

Operating Instructions

135

136

Operating Instructions

2.23 Configuring Multiple Cameras

The Multi-Camera Setup page allows you to configure the camera IP addresses and camera names to view multiple images on the Multi-Camera page. These configurations are required to use the Multi-Camera page. Up to 12 cameras can be configured.

1.

Click [Multi-Camera] on the Setup page.

2.

Click [Add].

Note

• If you click the camera number, the modification page is displayed. The camera setting can be modified or deleted on it.

• If you configured multiple cameras, you can change the camera number.

Select the number, and click [Move].

3.

Set each parameter.

• Clicking [Cancel] cancels your settings without saving changes.

Operating Instructions

Setting

Display

IP Address

*1

or

Host Name

*2

Port No.

Description

Check the box to enable the camera.

Set the IP address or the host name to enable the camera.

• Set the port number (1—65535).

Camera Name

*3

• This camera name is displayed only on the Multi-Camera page.

*1

*2

*3

In IPv4, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But

"0.0.0.0" and "255.255.255.255" are not available.

In IPv6, set the host name.

Enter ASCII characters for the host name (see page 183). But [Space], ["], ['],

[#], [&], [%], [=], [+], [?], [<] and [>] are not available.

Enter 1—255 characters.

Enter ASCII characters (see page 183) or characters in each language (1—15

characters for a 1-byte character and 1—7 characters for a 2-byte character).

But [Space], ["], ['], [#], [&], [%], [=], [+], [?], [:], [<], and [>] are not available.

Note

• Set the local IP address and port number for the camera on the same

LAN.

• If the cameras will be accessed from the Internet, be sure to use the global

IP address. In this situation, local IP addresses such as 192.168. x.x cannot be used.

4.

Click [Save] when finished.

• New settings are saved.

• The Multi-Camera Setup page is displayed.

137

138

Operating Instructions

2.24 Format the SD memory card

Before you record the camera image, you need to format the SD memory card.

Note

• You can confirm the SD memory capacity on the Status page (see page

146).

1.

Insert the SD memory card (see page 157).

2.

Click [Trigger] on the Setup page.

3.

Click [Format].

4.

Click [OK] on the confirmation window.

• Format is complete.

5.

Click [Go to Trigger page].

• The Trigger page is displayed.

Operating Instructions

2.25 Stop the SD Memory Recording

After you stop the SD memory recording, remove the SD memory card.

Note

• You can confirm the SD memory capacity on the Status page (see page

146).

If the camera is restarted (see page 148), the SD memory recording starts

again.

• If you remove the SD memory card and insert it again, the SD memory

recording starts again (see page 157).

1.

Click [Trigger] on the Setup page.

2.

Click [SD video recording stop].

3.

Click [OK] on the confirmation window.

• The SD memory recording is stopped.

4.

Click [Go to Trigger page].

• The Trigger page is displayed.

Note

Ensure that recording has stopped before removing the SD memory card. Do not remove the SD memory card, nor restart or turn off the camera while recording images on the card. Doing so can cause a decrease in SD memory card capacity, data corruption or camera malfunction.

139

Operating Instructions

2.26 Start the SD Memory Recording

The SD memory recording can be started on the Trigger page.

Note

• You can confirm the SD memory capacity on the Status page (see page

146).

If the camera is restarted (see page 148), the SD memory recording starts

again.

• If you remove the SD memory card and insert it again, the SD memory

recording starts again (see page 157).

1.

Click [Trigger] on the Setup page.

2.

Click [SD video recording start].

140

• "SD video recording was started." is displayed.

3.

Click [Go to Trigger page].

• The Trigger page is displayed.

Note

Ensure that recording has stopped before removing the SD memory card.

(See page 139) Do not remove the SD memory card, nor restart or turn off the

camera while recording images on the card. Doing so can cause a decrease in SD memory card capacity, data corruption or camera malfunction.

Operating Instructions

2.27 Specifying Operation Time

The Operation Time page allows you to limit the operation time. The camera image turns to a gray screen outside the operation time.

Note

• If you wrongly set the time period, your privacy may be seen. Confirm the time period after the setup.

• If you access the camera as an administrator, you can view the image outside the time period.

1.

Click [Operation Time] on the Setup page.

2.

Click [No.] to set the operation time.

Note

If No. 1—7 are disabled, the camera can always be operated.

3.

Check [Enable], set the time, and click [Save]

• Clicking [Cancel] takes you back to the previous page.

141

142

Operating Instructions

Setting

Enable

Description

• Check the box to enable the setting. Clear the box to disable it.

• Check the box to enable the day. Clear the box to disable it.

A day of the week

Operation Time • Select the [Always] option when you do not specify the time period. If you specify the time period, select the time period option and set the time period.

4.

Click [Save] when finished.

• New settings are saved.

• The Operation Time page is displayed.

About Operation Time

In the operation time settings, the enabled settings take priority over the disabled settings. Therefore, if Monday or Tuesday is disabled in a setting but enabled in other settings, the camera can be operated on both Monday and Tuesday.

Operating Instructions

2.28 Controlling External Output Terminal

The digital output terminal allows you to control external devices. You can change the initial status of the output signal.

Note

Connect the external devices to the camera.

1.

Click [External Output] on the Setup page.

2.

Click [Save] when finished.

• Clicking [Cancel] cancels your settings without saving changes.

• New settings are saved.

• When finished, "Success!" is displayed.

Setting Description

External Device

Control Output

• If you check [Open], the internal transistor turns off and the external output terminal gets high impedance (open collector) when the camera powers up. If you check [Short to GND], the internal transistor turns on and is electrically short-circuited to GND pin when the camera powers up.

The external output terminal gets low impedance (0 V).

Button name modification

• You can change the output control button names on the operation bar. You can name the button depending on your external devices.

3.

Click [Go to External Output Control page].

• The External Output Control page is displayed.

143

144

Operating Instructions

2.29 Changing Indicator Display

The Indicator Control page allows you to select Indicator operation. Indicator has three options.

• Always on

• Turn the indicator on when the camera is accessed.

• Always off

1.

Click [Indicator Control] on the Setup page.

2.

Select indicator option.

• Clicking [Cancel] cancels your settings without saving changes.

Note

See page 14 for indicator display.

• Selecting [Never turn indicator on] keeps indicator always off.

3.

Click [Save] when finished.

• New settings are saved.

• When finished, "Success!" is displayed.

4.

Click [Go to Indicator Control page].

• The Indicator Control page is displayed.

Operating Instructions

3 Camera Maintenance

3.1

Maintenance page

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

Maintenance

(1)

(2)

Status

Session Status

Displays the camera settings and status (see page 146).

Displays information on access to the camera (see page

146).

(3) Alarm Log

(4) Restart

Displays alarm logs (see page 147).

Restarts the camera (see page 148).

(5) Update Firmware

Updates the camera firmware (see page 149).

(6) Save Settings

(7) Load Settings

(8) Reset to Factory

Default

Creates a configuration file (see page 152).

Loads settings from a configuration file (see page 153).

Resets the camera to its default settings (see page 154).

145

146

Operating Instructions

3.1.1

Confirming the Status

The Status page allows you to check the status of the camera. The status information provides support for troubleshooting.

Clicking [Status] displays the following page.

Note

See Panasonic Network Camera support website at http://panasonic.co.jp/

pcc/products/en/netwkcam/ for details about status information.

3.1.2

Confirming Session Status

Displays client information connecting to camera.

Clicking [Session Status] displays the following page.

Operating Instructions

3.1.3

Displaying Alarm Logs

Displays up to 50 Alarm Logs in order of time. Old logs will be overwritten by new one.

1.

Click [Alarm Log] on Maintenance page.

2.

Alarm Logs are displayed.

Note

If the camera is restarted, all alarm logs are deleted.

Item

New Alarm Logs

Date

Sensor Type

Signal Type

Description

• Displays the number of new alarm logs.

• Displays the date and time when the Alarm 1, 2, or Motion

Detect were responded.

• Displays the Trigger Setting (Alarm 1, 2, or Motion

Detection) on the Trigger page.

• Displays the Alarm enable condition on the Trigger page when selected Alarm 1 or 2.

147

148

Operating Instructions

3.1.4

Restarting the Camera

The Restart page can restart the camera. The camera can also be restarted by

pressing the RESTART button (see page 160) or by disconnecting the AC adaptor

cord from the outlet and reconnecting it again.

Note

When the camera restarts, the buffered images will be deleted. The buffered images on the SD memory card are not deleted.

1.

Click [Restart] on the Maintenance page.

2.

Click [Restart].

• Restarting takes about 1 minute. The Top page is displayed when finished.

Operating Instructions

3.1.5

Updating the Camera Firmware

The Update Firmware page allows you to update the camera firmware. If the new firmware is available, install it into the camera.

Note

• Do not turn off the power during firmware update.

• All buffered images on the internal memory will be deleted after the firmware update. The buffered images on the SD memory card are not deleted.

• The firmware version is displayed on the Top page and the Status page.

1.

Download the new firmware on the Panasonic Network Camera support website at http://panasonic.co.jp/pcc/products/en/netwkcam/, and save it on your PC.

2.

Click [Update Firmware] on the Maintenance page.

3.

Click [Update Firmware].

• The camera restarts.

149

150

Operating Instructions

• The Update page is displayed in about 1 minute.

4.

Click [Browse...].

• A dialog box is displayed to select the firmware.

5.

Select the firmware (including directory information) and click [Open].

• The firmware file name is displayed.

6.

Confirm the firmware file name, and click [Update Firmware].

• Clicking [Cancel] takes you back to the Top page without firmware update.

• The next message is displayed during update.

• The camera restarts automatically after update.

• The Top page is displayed in about 1 minute.

Operating Instructions

7.

Confirm that the version number on the Top page is updated.

Updated version

• If the version number is updated, the firmware update is complete.

151

152

Operating Instructions

3.1.6

Creating Configuration File

A configuration file can be saved on your PC. You can load the camera settings

from the configuration file on the Load Settings page (see page 153).

Note

The saved image has privacy information. Prevent private information leaks.

1.

Click [Save Settings] on the Maintenance page.

2.

Click [Save].

3.

Click [Save] on the File Download dialog box.

4.

Specify the location, and click [Save] on the Save As dialog box.

• The configuration file is saved in the location.

Note

• The file extension (.dat) cannot be changed. If you change it, the settings cannot be loaded.

• If you try to update the camera, create a configuration file after updating the firmware. If there is a firmware version difference between the camera that you create a configuration file from and the camera that you try to load settings to, the settings may not be loaded to the camera.

Operating Instructions

3.1.7

Loading Settings from a Configuration File

The settings can be loaded from a configuration file. If you reset the camera to factory default, the camera can load its settings from the configuration file.

Note

• The configuration file has network settings. When the settings are loaded, the network settings are also loaded as they were saved.

• If you try to update the camera, create a configuration file after updating the firmware. If there is a firmware version difference between the camera that you create a configuration file from and the camera that you try to load settings to, the settings may not be loaded to the camera.

1.

Click [Load Settings] on the Maintenance page.

2.

Click [Browse...].

3.

Select the configuration file on the Choose file dialog box, and click [Open].

• The file name is displayed in the data field.

4.

Confirm the file name, and click [Load].

5.

Click [Restart].

• The camera restarts, and the Top page is displayed.

153

154

Operating Instructions

3.1.8

Resetting the Camera to Factory Default

All camera settings are reset to factory default directly after the Execute button is clicked.

1.

Click [Reset to Factory Default] on the Maintenance page.

2.

Click [Execute].

• The indicator blinks orange, and then turns off for 10 seconds.

• All camera settings (user name, password, IP address, subnet mask etc.) are reset to factory default.

• If the camera is reset to factory default, the network connection mode changes to [Automatic Setup]. Reconfigure the camera seeing Getting

Started.

Note

• The internal clock will not be reset, but the time format will return to AM/

PM mode (see page 78). Set it again.

See page 164—page 172 for default settings.

• Pressing the FACTORY DEFAULT RESET button resets the camera to the

factory default (see page 161).

• All buffered images on the internal memory are deleted when resetting the camera to factory default. The buffered images on the SD memory card are not deleted.

• The reset operation takes about 1 minute.

• Do not turn off the camera during the reset operation.

• If the camera is restarted, all alarm logs are deleted.

Operating Instructions

3.2

Support page

(1)

(2)

(3)

Support

(1) Help

(2) Product

Information

(3) Support

Information

Displays the Help page (see page 155).

Displays product information website (see page 155).

Displays support information website (see page 156).

3.2.1

Seeing Help page

The Help page displays explanations for each feature about the following 1. to 6. items.

Clicking [Help] on the Support page displays the next page.

3.2.2

Seeing Product Information

You can see product information on the Panasonic Network Camera support website.

Clicking [Product Information] on the Support page displays the URL, click it.

Note

If the camera is not connected to the Internet, the website cannot be displayed.

155

156

Operating Instructions

3.2.3

Seeing Support Information

You can see support information on the Panasonic Network Camera support website.

Clicking [Support Information] on the Support page displays the URL, click it.

Note

If the camera is not connected to the Internet, the website cannot be displayed.

Operating Instructions

3.3

Using the SD Memory Card

The SD memory card (customer-provided) can store image data and replay them.

Follow the instructions below to insert the SD memory card into the camera.

1.

Open the cover on the side of the camera.

2.

Insert the SD memory card, and push with your finger until it clicks. Or push the card lightly to remove.

LOCK

Place the card face to the front.

Note

• Ensure that recording has stopped before removing the SD memory card.

(See page 139) Do not remove the SD memory card, nor restart or turn

off the camera while recording images on the card. Doing so can cause a decrease in SD memory card capacity, data corruption or camera malfunction.

• Insert or remove the SD memory card after removing the sunshade.

3.

Replace the cover firmly.

Note

• Sound cannot be recorded.

• Format the SD memory card, before you record the image data. (See

page 138)

157

158

Operating Instructions

3.4

External I/O

If you connect the external devices such as sensors to the External I/O and image buffer/transfer by alarm signal is set, the camera image is transferred by the alarm detection.

Explanation of the External I/O

Pin

G

1

G

2

3

4

Features

GND pin

External Sensor Input 1

• Use it by opening or GND short-circuit.

GND pin

External Sensor Input 2

• Use it by opening or GND short-circuit.

External Device Control Output

You can control it on the External Output page (see page 143).

• It is an open collector circuit, and the maximum drawing-in current is the same as pin 4. Do not exceed the voltage of DC power output terminal (pin 4).

DC Power Output Terminal

• 10.5—13.5 V DC

• Maximum of 100 mA load drive is possible.

Note

The External I/O (Input/Output) is independent. Output terminal is controlled

only by External Output Control page on page 143.

Operating Instructions

Circuit Diagram Example

Camera

12 V

Relay Light

G

1

G

4

3

2

Door Sensor 2 (Alarm 2)

Door Sensor 1 (Alarm 1)

DC10.5 V–13.5 V

CAUTION

The external I/O is not capable of connecting directly to devices that require large amounts of current. In some case, a custom interface circuit (customer-provided) may have to be used. Serious damage to the camera may result if a device is connected to the external I/O that

exceeds its electrical capability (see page 158).

The low voltage/current circuits and high voltage/current circuits are in the camera circuit. The qualified electrician should do the wiring not by yourself. Incorrect wiring could damage the camera. You could receive the fatal electric shock.

159

160

Operating Instructions

3.5

[For BB-HCM331] RESTART Button

The camera has a RESTART button on the side.

RESTART Button

(Press the button with a pointed object.)

Pressing the RESTART button restarts the camera.

Note

• After removing the sunshade, press the RESTART button.

• All buffered images on the internal memory are deleted when restarting the camera. The buffered images on the SD memory card are not deleted.

• Restarting takes 1 minute.

Operating Instructions

3.6

FACTORY DEFAULT RESET Button

The camera has a FACTORY DEFAULT RESET button on the side.

FACTORY DEFAULT RESET Button

(Press the button with a pointed object.)

Pressing the FACTORY DEFAULT RESET button resets the camera to factory default. If you lose your user name and password, use this button to reset the camera.

• Press the FACTORY DEFAULT RESET button for 1 second when the camera is on.

• The indicator blinks orange, and then turns off for 5 seconds.

• Do not turn off the camera until the indicator lights green.

Note

• After removing the sunshade, press the FACTORY DEFAULT RESET button.

• The internal clock will not be reset, but the time format will return to AM/

PM mode (see page 78). Set it again.

See page 164—page 173 for default settings.

• All buffered images on the internal memory are deleted when resetting the camera to factory default. The buffered images on the SD memory card are not deleted.

• The reset operation takes about 1 minute.

• If the camera is restarted, all alarm logs are deleted.

161

162

Operating Instructions

3.7

Mounting the Camera

Two mounting methods are shown in the following figures: Tripod Mount and

Ceiling Mount. See Getting Started for two other methods of mounting. Confirm the top and bottom of the camera when mounting. Ask the authorized dealer for Ceiling

Mount.

Note

Mounting and cabling instructions described below follow generally accepted guidelines suitable for residential installations. In some areas, commercial and industrial installations are regulated by local or state ordinances. For such installations, contact your local building department or building inspector for more details.

Flexible Stand Mount

Stand/Tripod

Mounting Hole

Screw the threaded mount into the stand/tripod mounting hole.

Turn the grip firmly.

Flexible

Stand

Tripod Mount

Stand/Tripod

Mounting Hole

Tripod

Operating Instructions

Ceiling Mount

Note

• Do not mount the camera upside down. The image may be displayed upside down.

Top

Make sure the indicator is always in the lower right corner.

Bottom

• When mounting, we suggest using the hardware we provide. Mounting in any other manner may cause the camera to fall, causing personal injury or damage to the camera.

• To reduce the load on the mounting hardware, dress the cables neatly and secure with tape.

Mount the flexible stand firmly to the ceiling with the three screws (accessories).

Attach the camera screwing the threaded mount into the stand mounting hole.

Screw

Do not mount the camera on a soft material. The camera may fall and break down.

Use appropriate screws suited for the material of the ceiling.

Adjust the camera position and secure the flexible stand firmly.

Caulk around flexible stand if necessary.

Stand

Mounting

Hole

Roll up the cables and flexible stand with the self bonding tape (accessories for BB-HCM331 only) or tape

(customer-provided).

Self bonding tape

(accessories for

BB-HCM331 only) or tape (customerprovided)

Waterproof the rest of the cable

(for BB-HCM331 only, see Getting

Started).

163

164

Operating Instructions

3.8

Default Setting List

Basic

Items

Network

(IPv4)

Connection Mode

Allow Access from the

Internet (Automatic

Setup only)

Network Configuration from Setup Program

(Static/DHCP only)

Port No.

(Static/DHCP only)

IP address

(Static only)

Subnet Mask

(Static only)

Host Name

(DHCP only)

Default

Automatic

Setup

No

Enable

80

192.168.0.

253

255.255.

255.0

[Blank]

Default Gateway

(Static/DHCP only)

DNS Server 1

DNS Server 2

(Static/DHCP only)

Max. Bandwidth Usage

(Mbps)

Connection Type

[Blank]

[Blank]

Unlimited

Auto

Negotiation

Required

-

-

-

Note

Automatic Setup/

Static/DHCP

-

-

-

When setting Static

20, 21, 25 and 110 is not available.*2

*1

When setting Static

When setting

DHCP (Not always required)

*1

0—63 characters

*4

When using

Gateway

When using

DNS

*1

*1

-

0.1, 0.2, 0.3, 0.5, 1 or Unlimited

-

Operating Instructions

Network

(IPv6)

IPsec

Items

Connection Mode

Default

Automatic

Setup

No

Required

-

Note

Automatic Setup/

Static

Allow Access from the

Internet (Automatic

Setup only)

Port No.

(Static only)

IP address

(Static only)

Default Gateway (Static only)

DNS Server 1

DNS Server 2

Max. Bandwidth Usage

(Mbps)

Connection Type

Use

Encoding strength

Transport

-

80

[Blank]

[Blank]

[Blank]

Unlimited

Auto

Negotiation

No check

Standard

(AES, 3DES,

DES, NULL)

[Blank]

-

When setting Static

20, 21, 25 and 110 is not available.*2

*1

When using

Gateway

When using

DNS

-

*1

*1

0.1, 0.2, 0.3, 0.5, 1 or Unlimited

-

-

-

-

-

Standard/High

-

UPnP

Tunnel

Auto Port Forwarding

Display Shortcut Icon in

My Network Places

[Blank]

Disable

Enable

-

-

-

-

-

-

165

166

Operating Instructions

Dynamic

DNS

Items

Viewnetcam.com

User-specified

DynamicDNS

Date and

Time

Time Setting

Automatic Time

Adjustment

Time Zone

Adjust Clock for

Daylight Saving Time

Start Day

End Day

Default

No check

[Blank]

10 min

AM/PM -

No check When using

NTP

GMT 00:00

No check

Mar,

Last Sunday,

1 AM

Oct,

Last Sunday,

1 AM

Required

When setting viewnetcam.

com

Viewnetcam.com/

User-specified

DynamicDNS/

Disable

Viewnetcam.com/

User-specified

DynamicDNS/

Disable

-

Note

-

-

-

-

At the time of starting/10,

30(min), 1, 3, 6,

12, 24(h)

-

-

-

-

-

-

Operating Instructions

Camera

Items

Camera Name

White Balance

Default

Network

Camera

Auto

Pan Range (Minimum) -60 degrees

(Home Position) 0 degrees

(Maximum) +60 degrees

Tilt Range (Minimum) -45 degrees

(Home Position)

(Maximum)

Return to Specified

Position (Time)

0 degrees

+20 degrees

Do not move

(Specified Position)

Color Night View

Home

Position

Disable -

-

-

-

-

-

-

-

-

Required Note

Required 1—15 characters

*6

Auto/Fixed Indoor/

Fixed Fluorescent

(White)/Fixed

Fluorescent

(Daylight)/Fixed

Outdoor/Hold

-60—+60 degrees

-60—+60 degrees

-60—+60 degrees

-45—+20 degrees

-45—+20 degrees

-45—+20 degrees

Do not move, 10,

20, 30 (sec), 1, 5,

10, 30 (min), 1 h

Home Position/

Alarm No. 1, 2/ registered preset number and preset name

-

167

168

Operating Instructions

Audio

Items

Output

Volume

PC Audio Input Timeout

Input

Camera Microphone

Sensitivity

Mute during Pan/Tilt

Default

Enable

Standard

1 min

Enable

Standard

Enable

Required

-

-

-

-

-

-

Note

-

Minimum/

Standard/

Maximum

1, 2, 3, 5, 10, 20,

30, 60 (min)

-

Minimum/

Standard/

Maximum

-

Account

Security:

Administrator

Items

General

Authentication

User Name

Password

Retype

Password

Default

[Blank]

Required Note

Do not permit access from guest users

[Blank]

-

When setting administrator

6—15 characters

*3

[Blank] When setting administrator

6—15 characters

*3

When setting administrator

6—15 characters

*3

Operating Instructions

Items

General User User ID List

User Name

Password

Retype

Password

Limit time of

Continuous

Motion JPEG

Refresh

Interval

Access Level

Default

[Blank]

[Blank]

[Blank]

[Blank]

Not permitted

3 s

Required Note

-

When setting general user

6—15 characters

*3

When setting general user

6—15 characters

*3

When setting general user

6—15 characters

*3

-

-

Not permitted,

Unlimited, 10, 30

(s), 1, 5, 10, 30, 60

(min)

3, 5, 10, 30, 60 (s)

No checks -

Buffer/Transfer

Trigger

Items

Status

Trigger

Active Time of Trigger

Image Setting

(Image Resolution)

Image Quality

Image Buffer

Frequency

Transfer Method

Notify

Default

Off

Timer

Always

320 x 240

Standard

Every 1 s, buffer 1 image.

No Transfer,

No Memory

Overwrite

-

Required

-

-

-

-

-

-

-

Note

-

-

-

160 x 120, 320 x

240, 640 x 480

Favor Clarity,

Standard, Favor

Motion, Mobile phone

1 image per hour—30 images per second

-

-

169

170

Operating Instructions

Items

Motion

Detection

Threshold to start recording

Alarm

Log

Sensitivity

A setup of operation

Active Time

Default

Third blocks from the left

Center

Disable

PM 12h 0min

Checked

[Blank]

Required

-

Note

-

-

When selecting

Alarm1,

Alarm2 or

Motion

Detection in

Trigger.

-

Disable/

Enable(When there is no newarrival alarm log:Disable)/

Enable(When there is no newarrival alarm log:Enable)

AM/PM, 1–12

(h), 0/10/20/30/

40/50 (min)

-

Time

Notice setup of an alarm log

Port No. (SMTP)

Port No. (POP)

Subject

25

110

Alarm Log

-

-

-

Operating Instructions

Advanced


Display

Items

Single Camera Image

Resolution

Single Camera Image

Quality

Default

320 x 240

Standard

Single Camera

Refresh Interval

Multi-Camera Image

Resolution

Multi-Camera Image

Quality

Motion

320 x 240

Standard

Multi-Camera Refresh

Interval

Time stamp setting

Language

Motion

Disable

English

Banner Display

(Administrator)

(General User)

Checked

Checked

Required

-

-

-

-

-

Note

320 x 240 or 640 x 480

Favor Clarity,

Standard or

Favor Motion

3, 5, 10, 30, 60

(s) or Motion

160 x 120 or 320 x 240

Favor Clarity,

Standard or

Favor Motion

3, 5, 10, 30, 60

(s) or Motion

When reducing traffic

-

-

-

Enable/Disable

English/

Japanese/

French/German/

Italian/Spanish/

Simplified

Chinese/Russian

-

-

171

172

Operating Instructions

Multi-

Camera

Items

Multi-Camera

Display

IP Address or Host

Name

Port No.

Camera Name

Operation

Time

Operation Time

External

Output

External Device

Control Output

Button name modification

Indicator

Control

Indicator Control

Default

[Blank]

Checked

[Blank]

[Blank]

[Blank]

Always

Required Note

-

When setting

Multi-Camera

-

When setting

Multi-Camera

IP address*1

Host name*5 is

1—255 characters.

When setting

Multi-Camera

20, 21, 25 and

110 are not available.*2

When setting

Multi-Camera

1—15 characters

*7

-

Open

Open/Short

Turn indicator on when camera is on

-

-

-

Open/Short to

GND

-

-

Preset Buttons

Preset

Buttons

Items

Preset 1

Preset 2

Preset 3

Preset 4

Default

UpperLeft

UpperRight

LowerLeft

LowerRight

Required

-

-

-

-

Note

-

-

-

-

Operating Instructions

*1 In IPv4, set 4 digits (0—255) and 3 periods such as "192.168.0.253". But

"0.0.0.0" and "255.255.255.255" are not available.

In IPv6, set 8 hexadecimal digits divided with ":". Consecutive 0s can be abbreviated as "::".

*2 Set the number of 1—65535.

*3 Enter ASCII characters (see page 183). But [Space], ["], ['], [&], [<], [>] and [:]

are not available.

*4 Enter ASCII characters for the host name (see page 183). But [Space], ["], ['],

[&], [<], and [>] are not available.

*5 Enter ASCII characters for the host name (see page 183). But [Space], ["], ['],

[#], [&], [%], [=], [+], [?], [<], and [>] are not available.

*6 Enter ASCII characters (see page 183) or characters in each language (1—15

characters for a 1-byte character and 1—7 characters for a 2-byte character).

But [Space], ["], ['], [&], [<], and [>] are not available.

*7 Enter ASCII characters (see page 183) or characters in each language (1—15

characters for a 1-byte character and 1—7 characters for a 2-byte character).

But [Space], ["], ['], [#], [&], [%], [=], [+], [?], [<], and [>] are not available.

173

174

Operating Instructions

3.9

Cleaning

After the camera is turned off by disconnecting the AC plug, clean the camera.

3.9.1

Cleaning the Main Unit

If the lens cover has the sand or the dust, image quality may decrease. After taking away the sand or the dust on it, wipe it with a dry cloth.

Note

• Do not use alcohol, polishing powder, cleanser, benzine, thinner, wax, petroleum products or hot water to wipe the camera. Also avoid glass cleaner, pesticide or hair spray. They may cause change in the shape or color.

• Do not directly touch the lens cover. Your fingerprints can cause the image to be out of focus.

• [For BB-HCM331] Do not directly pour the water with a hose to wash the unit or the lens cover.

Operating Instructions

3.10 Setting an IP Address on Your PC

Your PC's IP address can be assigned by the following procedures.

1.

Display the TCP/IP Properties window.

• The steps are different depending on your OS. The steps are shown below.

OS

Windows Me,

Windows 98SE

Steps

Windows XP [Start] ( [Settings]) [Control Panel] [Network and

Internet Connections] [Network Connections] [Local Area

Connection] in use [Properties] Select Internet Protocol

[TCP/IP] [Properties] [Use the following IP address]

Windows 2000 [Start] [Settings] [Control Panel] [Network and Dial-up

Connections] [Local Area Connection] in use

[Properties] Select Internet Protocol [TCP/IP]

[Properties] [Use the following IP address]

[Start] [Settings] [Control Panel] [Network] Select

[TCP/IP] with adaptor in use [Properties] [IP Address]

[Specify an IP address]

• When using Windows XP and Windows 2000, log in as an administrator to access the TCP/IP Properties window.

2.

Enter IP address and subnet mask.

3.

Click [OK].

• In Windows Me or Windows 98SE, the PC needs to be restarted to enable the settings.

Local IP Address

Local IP address is the network ID that is not used on the Internet. They are classified into Class A, Class B and Class C, as shown below. Set the IP address in the range of the number specified in the class corresponding to your local network scale.

Class

Class A

Class B

Class C

Subnet Mask

255. 0. 0. 0

Local IP Address

10. 0. 0. 1 — 10. 255. 255. 254

255. 255. 0. 0 172. 16. 0. 1

255. 255. 255. 0 192. 168. 0. 1

172. 31. 255. 254

192. 168. 0. 254

175

176

Operating Instructions

3.11 Using Setup Program

The Setup Program can be used for the following purposes.

• Finding the IP address and port number of the camera connected to your network.

• Setting up the camera automatically.

• Setting up the camera manually to a Static or a DHCP setting.

• Disabling IPsec.

• Displaying the Setup page.

Finding the camera

1.

Insert the Setup CD-ROM into the CD-ROM drive of your PC.

• If the Panasonic Network Camera Setup window does not appear, click

"setup.exe" on the Setup CD-ROM.

2.

Click [Camera Setup].

Displays version information about this program.

Sets up the camera.

Displays the camera manuals.

If your PC does not have Adobe

®

Acrobat

®

Reader

®

, install it from the Adobe Reader website.

Installs Network Camera

Recorder trial version.

Closes the Setup Program.

• When the following dialog box is displayed, click [Unblock].

Operating Instructions

• You can find the camera IP address and port number by looking up the

MAC address of your camera.

MAC

Address

IP

Address

Port

No.

Camera

Status

Camera

List window

Displays IPv4 or

IPv6 information.

IPv6 Information

Note

• If you try to find multiple cameras, each MAC address beside the Ethernet

(LAN) port verifies which camera you are setting up.

• See Getting Started for the setup from the MAC address.

177

Operating Instructions

Automatic Setup (Local or Internet Access) or Manual Setup

1.

Click [Execute] on the Camera List window shown on page 177.

2.

Click each button to execute the program.

Sets up the camera to view on the LAN.

Sets up the Internet access to the camera.

Manually sets up the camera.

Disables IPsec. If disabled, the button is displayed gray.

Displays the Setup page (see

page 48).

Note

• See Getting Started for the local and Internet access setup.

Manual Setup window

Set up each parameter seeing page 53—page 55.

• If more than 20 minutes have passed since the camera was turned on, the camera cannot be set up from the Setup Program. If the camera cannot be set up, restart the camera.

178

• If "Camera setup completed" is displayed, click [Close] to finish the

Manual Setup.

3.

Close all Setup windows.

Operating Instructions

3.12 Setting Your PC

3.12.1 Setting the Proxy Server Settings on Web Browser

If the proxy server is not used, the settings are not required. If you are using the proxy server, the following settings are required.

• To communicate with a camera installed inside a LAN, changing the web browser settings is recommended.

• A firewall of a proxy server in a corporate environment may prevent access to the camera. Consult your network administrator.

Note

• A proxy server is used to protect your network connected to the Internet.

• If the camera is accessed via a proxy server, problems may occur. Consult your network administrator before installing the camera.

• If the camera is accessed via a proxy server, the refresh interval may be slow.

How to Set the Proxy Server Settings

1.

Start up Internet Explorer. (The example is Internet Explorer 6.0.)

2.

Click [Tools] [Internet Options...].

179

Operating Instructions

3.

Click the [Connections] tab, and click [LAN Settings].

180

4.

See if the Use a proxy server check box is checked or not. If checked, click

[Advanced...].

See if the check box is checked or not.

If checked, click [Advanced...].

• If not checked, click [Cancel]. Proxy settings are not required.

Operating Instructions

5.

Enter the camera IP address into the Do not use proxy server for addresses beginning with data field. (Example: 192.168.0.253)

6.

Click [OK].

Note

When accessing the camera via a proxy server, the Talk Button is displayed gray. Talk feature cannot be used.

181

182

Operating Instructions

3.12.2 Setting UPnP™ to Display Camera Shortcut in My

Network Places

To display the camera shortcut in the My Network Places folder, Windows component should be added. Enable UPnP

TM

(Universal Plug and Play) following the steps below.

OS

Windows XP

Windows Me

Steps

[Start] ( [Settings]) [Control Panel] [Add or Remove

Programs] [Add/Remove Windows Components] Select

[Networking Services] [Details] Check [UPnP User

Interface] [OK] [Next] [Finish]

[Start] [Settings] [Control Panel] [Add/Remove

Programs] [Windows Setup] tab Select [Communications]

[Details] Check [Universal Plug and Play] [OK] [OK]

[Restart] Complete

Note

This feature is available only when Windows XP or Windows Me is being used.

3.12.3 Setting the Internet Temporary File Setting on Web

Browser

The old image may be displayed. In this case, set the web browser following the steps below.

[Tools] [Internet Options] [General] tab [Settings] in the Temporary Internet files Check [Every visit to the page] in the Check for newer versions of stored pages [OK] [OK] Complete

Operating Instructions

3.13 ASCII Character Table

(space)

"

!

#

$

%

&

(

)

'

*

-

.

+

,

/

8

9

:

5

6

7

;

<

=

>

?

2

3

4

0

1

ASCII Character Table

H

I

J

K

L

M

N

O

@

A

B

C

D

E

F

G

P

Q

X

Y

Z

U

V

W

\

[

]

^

_

R

S

T h i j k l m n o

` a b c d e f g v w x y z

{

|

}

~ t u r s p q

183

184

Operating Instructions

3.14 File Size and Number of Buffered Images

The following table shows the relationship between the file size of the image and the maximum number of buffered images.

Note

The following file sizes were shown at the largest value.

Resolution Items Capture

File Size About 60 KB

640 x 480

(pixels)

Buffered

Images

-

Favor

Clarity

Standard Favor

Motion

About

50 KB

About

40

About

33 KB

About 60

About

20 KB

About

100

320 x 240

(pixels)

160 x 120

(pixels)

File Size About 30 KB

Buffered

Images

-

File Size About 10 KB

Buffered

Images

-

About

25 KB

About

80

About

7 KB

About

290

About

16 KB

About

125

About

5 KB

About

400

About

8 KB

About

250

About

3 KB

About

675

Mobile

Phone

-

-

About

8 KB

About

250

About

3 KB

About

675

Operating Instructions

3.15 Number of Images on the SD Memory Card

The camera supports the Panasonic SD memory card.

• 1 GB: RP-SDH01GU1A

• 512 MB: RP-SDH512U1A

• 256 MB: RP-SD256U1A

• 128 MB: RP-SD128BU1A

• 64 MB: RP-SD064BPPA

Resolution/

Image Quality

160 x

120

(pixels)

Favor

Motion

Standard

320 x

240

(pixels)

Favor

Clarity

Favor

Motion

Standard

Favor

Clarity

640 x

480

(pixels)

Favor

Motion

Standard

Favor

Clarity

1 GB

About

300,000

About

180,000

About

130,000

About

110,000

About

58,000

About

37,000

About

47,000

About

28,000

About

18,000

512 MB

About

157,000

About

94,000

About

67,000

About

58,000

About

29,000

About

18,000

About

23,000

About

14,000

About

9,000

256 MB 128 MB 64 MB

About

78,000

About

47,000

About

33,000

About

29,000

About

14,000

About

9,000

About

11,000

About

7,000

About

4,000

About

19,000

About

11,000

About

8,000

About

7,000

About

3,000

About

2,000

About

2,000

About

1,000

About

1,000

About

39,000

About

23,000

About

16,000

About

14,000

About

7,000

About

4,000

About

5,000

About

3,000

About

2,000

Note

The actual numbers of recordable images may differ from the ones above depending on the kind of SD memory card.

185

186

Operating Instructions

3.16 Specifications

Network Camera

Items

Zoom

Pan/Tilt Angle

Number of Pixels

Illuminance

White Balance

Focus

Caliber Ratio (F No.)

Horizontal Viewing Angle

Exposure

Specifications

10x digital zoom

Pan: -60 ° to +60 °, Tilt: -45 ° to +20 °

1/4-inch CCD Sensor 320,000 pixels

3—100,000 lx (0.2—100,000 lx in color night view mode)

Auto/Manual/Hold

Fixed 0.5 m—Infinity

F3.5

53 °

Auto

Other Specifications

Items

[For BB-HCM331]

Splash Resistant Standard

Video Compression

Video Resolution

Buffered Image

*1

Audio Communication

Audio Bandwidth

Audio Play Method

Input Encoding Method

Audio Input

Audio Output

*2

Specifications

IPX4

JPEG (3 Levels)

640 x 480, 320 x 240 (default), 160 x 120

About 125 frames (320 x 240) with time display

(When SD memory card is not inserted.)

2-way Half Duplex

300 Hz—3.4 KHz

Play with ActiveX

Encoding with ActiveX

Built-in Microphone or External Microphone Input

Terminal

Audio Line Output Terminal for External Speaker

Operating Instructions

Other Specifications

Frame rate

*3

Items Specifications

Max. 12 frames/second (640 x 480)

Max. 30 frames/second (320 x 240 or 160 x 120)

Supported Protocols

IPsec Feature

IPv4/IPv6 Dual-Stack

• IPv4:

TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS,

ARP, ICMP, POP3, NTP, IPsec, UPnP™

• IPv6:

TCP, UDP, IP, HTTP, FTP, SMTP, DNS, ICMPv6,

POP3, NDP, NTP, IPsec

ESP Encryption, ESP Authentication

Transport mode/Tunnel mode

IKE (Internet Key Exchange)

IKE (Internet Key Exchange) Pre-Shared Key

Cipher Algorithm DES-CBC, 3DES-CBC, AES-CBC

Message-Digest Algorithm HMAC-MD5, HMAC-SHA-1

Message Transfer Condition Alarm or Timer

Image Transfer Method SMTP, FTP

Interface

Indicator Display

10Base-T/100Base-TX Ethernet RJ-45 connector x

1

Power/Network Communication/Camera operation/

Ethernet link

External Microphone Input

Audio Output

External I/O

SD Memory Card Slot

Dimension (HWD)

Weight

ø 3.5 mm Mini Jack

ø 3.5 mm Stereo Mini Jack (But output is mono.)

External Sensor Input x 2

External Sensor Output x 1

Full Size

About 100 mm x About 100 mm x About 73.5 mm

310 (Only the unit)

187

188

Operating Instructions

Other Specifications

Items

Power Supply

BB-HCM311

Specifications

AC adaptor: Input 100—240 V AC, 50/60 Hz

Output 12 V DC, 750 mA

Consumption: About 3 W (6 W during pan/tilt scan)

Temperature Operation: 0 °C to +40 °C

Storage: 0 °C to +50 °C

BB-HCM331

Humidity Operation: 20 %—80 % (No Condensation)

Storage: 20 %—90 % (No Condensation)

Temperature Operation: -20 °C to +50 °C

Storage: -25 °C to +60 °C

Humidity Operation: 20 %—90 % (No Condensation)

Storage: 20 %—90 % (No Condensation)

*2

*3

*1

The maximum number of frames changes depending on the image quality and what object you buffer.

Connect it to an amplifier or an external speaker with a built-in amplifier.

Frame rate may slow down depending on the network environment, the PC performance, the image quality, enabling IPsec, SD memory recording or what object you view.

Operating Instructions

Index

189

190

Operating Instructions

A

Abbreviations

5

ActiveX Controls

25

Administrator/General Users/Guest Users

90

Alarm Image Buffer/Transfer

104

Alarm Log

131

,

147

Alarm Position

34

ASCII Character Table

183

Audio page

86

B

Buffered Image page

43

C

Camera Access

20

Camera page

81

Capture Image Button

30

Ceiling Mount

163

Cleaning

174

Click to Center

29

Clicking the right mouse button

33

CPU

12

,

13

D

Date and Time page

78

Default Setting List

164

Digital zoom feature

3

DynamicDNS

73

,

76

E

Explanation of the External I/O

158

External I/O

158

External Output page

143

F

FACTORY DEFAULT RESET Button

161

Flexible Stand Mount

162

For IPv4 Connection

12

For IPv6 Connection

13

G

General User page

92

H

Help page

155

Home Position

34

How to Use This Documentation

5

I

Image Display page

133

Indicator Control page

144

IPsec

60

IPv6 Domain Name Service

22

L

Listen

38

Load Settings page

153

Login

91

M

Maintenance page

145

Mobile Phone

46

Motion Detection

115

,

128

Multi-Camera page

41

Multi-Camera Setup page

136

N

Network (IPv4) page

51

Network (IPv6) page

56

O

Operating System

12

,

13

Operation Bar

31

Operation Time page

141

P

Pan/Tilt Range

32

,

85

Preset position

34

Product Information page

155

Protocol

12

,

13

R

Reset to Factory Default page

154

RESTART Button

160

Restart page

148

Rotating the mouse wheel

33

S

Save Settings page

152

SD memory card

138

,

139

Security: Administrator page

88

Session Status

146

Setup page

48

Setup Program

176

Single Camera page

24

Specifications

186

Status page

146

Support Information page

156

Support page

155

System Requirements for your PC

12

T

Talk

38

Timer Image Buffer/Transfer

95

Top page

21

Trademarks

5

Transport mode

63

,

126

Tripod Mount

162

Tunnel mode

66

,

127

U

Update Firmware page

149

UPnP page

70

W

Web Browser

12

,

13

Operating Instructions

191

The information in this document is subject to change without notice.

Panasonic Communications Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

Copyright:

This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications Co., Ltd.

2005 Panasonic Communications Co., Ltd. All Rights Reserved.

PSQX3754ZB

KK0505JT1056 (CE)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
