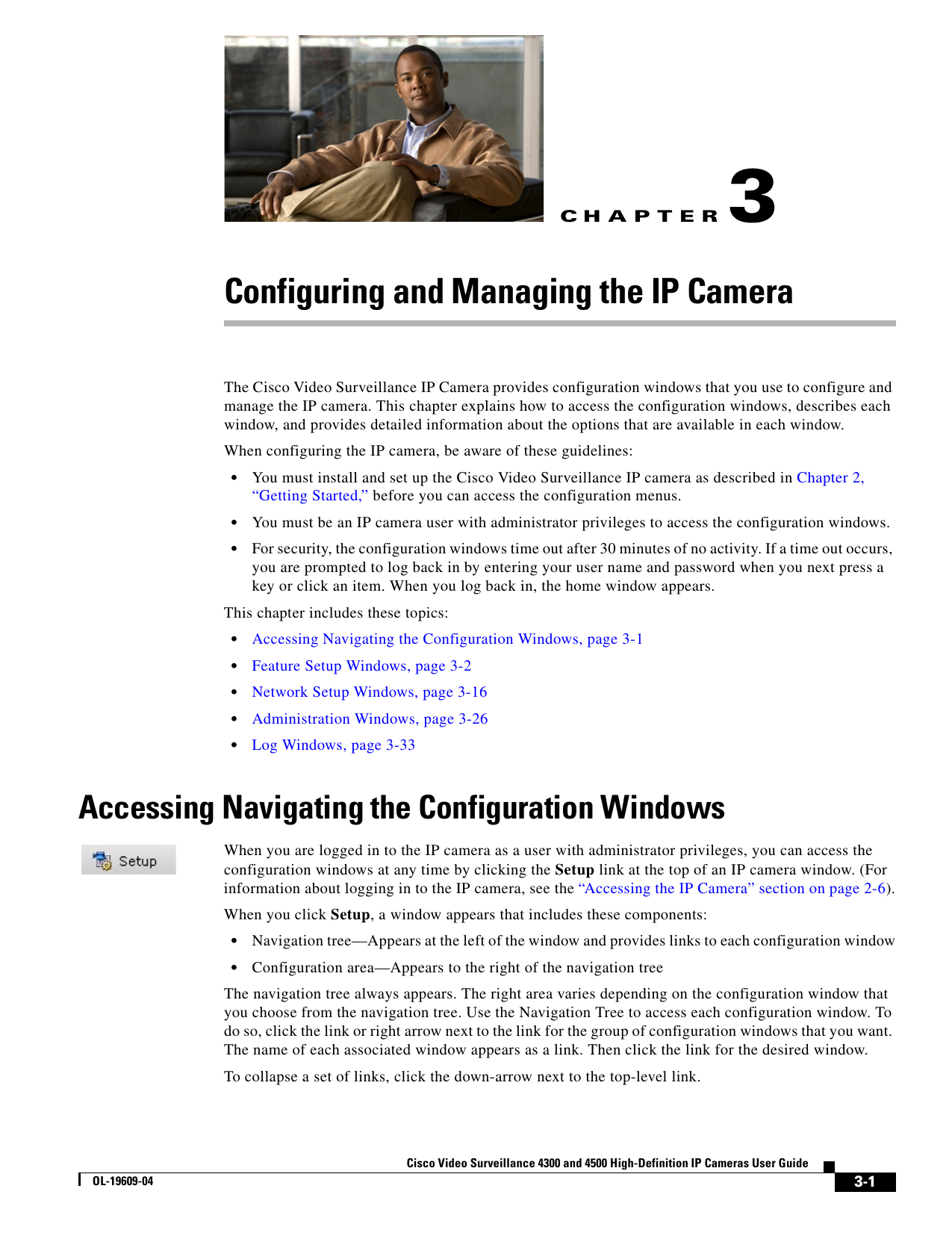

Configuring and Managing the IP Camera

CH A P T E R
3
Configuring and Managing the IP Camera
The Cisco Video Surveillance IP Camera provides configuration windows that you use to configure and
manage the IP camera. This chapter explains how to access the configuration windows, describes each
window, and provides detailed information about the options that are available in each window.
When configuring the IP camera, be aware of these guidelines:
•
You must install and set up the Cisco Video Surveillance IP camera as described in Chapter 2,
“Getting Started,” before you can access the configuration menus.
•
You must be an IP camera user with administrator privileges to access the configuration windows.
•
For security, the configuration windows time out after 30 minutes of no activity. If a time out occurs,
you are prompted to log back in by entering your user name and password when you next press a
key or click an item. When you log back in, the home window appears.
This chapter includes these topics:
•
Accessing Navigating the Configuration Windows, page 3-1
•
Feature Setup Windows, page 3-2
•
Network Setup Windows, page 3-16
•
Administration Windows, page 3-26
•
Log Windows, page 3-33
Accessing Navigating the Configuration Windows
When you are logged in to the IP camera as a user with administrator privileges, you can access the
configuration windows at any time by clicking the Setup link at the top of an IP camera window. (For
information about logging in to the IP camera, see the “Accessing the IP Camera” section on page 2-6).
When you click Setup, a window appears that includes these components:
•
Navigation tree—Appears at the left of the window and provides links to each configuration window
•
Configuration area—Appears to the right of the navigation tree
The navigation tree always appears. The right area varies depending on the configuration window that
you choose from the navigation tree. Use the Navigation Tree to access each configuration window. To
do so, click the link or right arrow next to the link for the group of configuration windows that you want.
The name of each associated window appears as a link. Then click the link for the desired window.
To collapse a set of links, click the down-arrow next to the top-level link.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-1
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
The configuration windows are organized as follows:
•
Feature Setup
– Streaming
– Camera
– Video Overlay
– IO Ports
– Pan/Tilt
– Event
– Patrol Sequence
– Analytics
•
Network Setup
– Basic
– IP Addressing
– Time
– Discovery
– SNMP
– 802.1x
– IP Filtering
– QoS
•
Administration
– Initialization
– Users
– Maintenance
– Firmware
– Device Processes
– Password Complexity
•
Log
– Setup
– Local Log
Feature Setup Windows
The Feature Setup windows let you configure a variety of IP camera features and functions. The
following sections describe the Feature Setup windows in detail:
•
Streaming Settings Window, page 3-3
•
Camera Settings Window, page 3-6
•
Video Overlay Settings Window, page 3-8
•
IO Ports Settings Window, page 3-8
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-2
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
•
Pan Tilt Settings Window, page 3-9
•
Event Notification Window, page 3-10
•
Patrol Sequence Window, page 3-14
•
Analytics Windows, page 3-16
Streaming Settings Window
The Streaming Settings window provides options for configuring audio and video streams from the IP
camera. You can configure settings for the primary and an optional secondary video stream.
Configuring a secondary stream is useful for providing a video stream that is at a lower resolution than
the primary stream to third-party devices or software.
The primary stream supports H.264 for video and G.711 A-law, G.711 u-law, and AAC for audio. The
secondary stream supports MJPEG for video and does not support audio.
When configuring video streams, be aware of the following guidelines:
•
You cannot configure a secondary stream (channel 2) if you configure the resolution for the primary
stream (channel 1) to 1920 x 1080
•
You cannot configure the resolution for the primary stream to 1920 x 1080 if a secondary stream is
enabled
•
The resolution of the primary stream must be higher than the resolution of the secondary stream
•
You cannot configure a maximum frame rate of 60 for the primary stream if the secondary stream is
enabled.
•
Multiple secondary frame rates are now supported for MJPEG. Table 3-1 shows the frame rate
combinations of primary (H.264) and secondary (MJPEG) streams. If a secondary frame rate that is
not shown in this table is selected in Cisco Video Surveillance Manager, the IP camera uses the
closest available frame rate.
Table 3-1
Stream Support for Cisco Video Surveillance 4000 Series IP Camera Video
Resolution
Primary (fps)
Secondary (fps)
1080p
Any
Not supported
720p or lower
60
Not supported
30
30
15
10
5
3
1
25
25
13
5
1
—
—
20
20
10
5
1
—
—
15
15
8
5
3
1
—
10
10
5
1
—
—
—
8
8
—
—
—
—
—
6
6
—
—
—
—
—
To display the Streaming Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
Streaming.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-3
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-2 describes the options in the Streaming Settings window.
Table 3-2
Streaming Settings Window Options
Option
Description
Current Channel Area
Channel
Choose the video stream (Channel 1 or Channel 2) to which the
configuration settings in the Streaming Settings window apply. Channel 1 is
the primary stream and Channel 2 is the secondary stream.
Enable Channel
Check this check box to cause the IP camera to send audio/video data on the
selected stream.
Channel Name
Name of the video stream.
The name can contain up to 16 characters, which can be letters, numbers, and
special characters, but no spaces. Special characters are: ! % ( ) + , - : = @ _ ~
Streaming Setup Area
Note
These options apply to the primary stream only.
Enable SRTP
Check this check box to enable Secure Real-time Transport Protocol (SRTP),
which provides encryption for the audio/video stream from the IP camera.
RTSP Port
Transmission Control Protocol (TCP) port on which the IP camera receives
Real-Time Streaming Protocol (RTSP) commands. You must configure this
port if you want to allow third-party devices or software to access video
streams from the IP camera.
RTSP is a standard for connecting a client to control streaming data over the
web.
Valid values are 554 and 1024 through 65535. The default port is 554.
Video Source Port
Universal Datagram Protocol (UDP) port on which the IP camera transmits
Video Real-Time Transport Protocol (RTP) data.
Valid values are even numbers 1024 through 65534. The default port is 1024.
Audio Source Port
UDP port on which the IP camera transmits audio RTP data
Valid values even numbers 1024 through 65534. The default value is 1026.
Max RTP Packet Size
Maximum number of bytes per data packets that are sent in each RTP
request.
Configure a lower number if you are streaming video to a cell phone that
requires smaller data packets.
Valid values are 400 through 1400. The default value is 1400.
Enable Multicast
Check this check box to send video and audio data as a multicast stream.
When multicast is enabled, the IP camera sends video and audio to the
multicast addresses that you designate. Multicast enables several devices to
receive the video signal from the IP camera simultaneously.
Multicast Address
Enter the multicast IP address on which the IP camera sends a multicast
audio/video stream.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-4
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-2
Streaming Settings Window Options (continued)
Option
Description
Multicast Video Port
Enter the port on which the IP camera sends a multicast video stream.
Valid values are even numbers 1024 through 65532.
Multicast Audio Port
Enter the port on which the IP camera sends a multicast audio stream.
Valid values are even numbers 1024 through 65532.
Time to Live
Enter the number of hops, which specifies the number of network devices
that an audio/video stream can pass before arriving at its destination or being
dropped.
Valid values are 1 through 255.
Video Area
Video Standard
Choose the system for video transmission: NTSC or PAL.
The setting that you make affects each channel that is enabled.
Video Codec
Display only: Shows the codec for video transmission: H.264 for the primary
stream and MJPEG for the secondary stream.
Video Resolution
Choose the resolution for video transmission. The resolutions in this
drop-down list depend on the video standard that you selected.
You can also change the resolution for video transmission by using the Video
Resolution drop-down list in the Camera Video/Control window, as
described in Table 4-1.
Maximum Frame Rate
Choose the maximum frame rate of the video stream.
Video Quality
Choose an option for the video quality of the primary video stream from the
IP camera:
•
Constant Bit Rate—Available for the primary stream only. Specifies
that the video stream is output at or close to the constant bit rate that you
choose. The default value is 4 Mbps. A higher bit rate provides better
video quality but consumes more bandwidth.
•
Fixed Quality—Specifies that video is output at a fixed quality, which
ranges from Very High to Low. The bit rate may vary to maintain this
quality. The default fixed quality is Normal. A higher fixed quality
provides better video quality but consumes more bandwidth.
You can use these options to help manage bandwidth use in your network.
For example, if the IP camera is focused on an area with little movement,
such as an emergency exit, you can configure it with a low fixed quality.
Audio Setup Area
Note
These options apply to the primary stream only.
Enable Audio
Check this check box if you if you want the IP camera to transmit and receive
audio.
Audio Compression
Choose the codec (G.711 A-Law, G.711 u-Law, or AAC) for audio that is
transmitted from the IP camera.
AAC provides highest quality audio and consumes the least bandwidth.
The default value is G.711 A-law.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-5
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-2
Streaming Settings Window Options (continued)
Option
Description
Audio Sampling Rate
Display only. Displays the sampling rate for audio from the IP camera.
Audio Resolution
Display only. Displays the resolution for audio from the IP camera.
Camera Settings Window
The Camera Settings window provides options for selecting a microphone, making certain video
adjustments, and configuring the operation of the IP camera day and night filters.
A microphone captures audio at the camera location. This audio is sent to the PC that you use to view
video from the IP camera. You can listen to the audio when viewing video in the Camera Video/Control
window.
The IP camera day and night filters allow the IP camera to optimize its video image for various lighting
conditions. When the IP camera uses its day filter, it is operating in day mode. In this mode, the camera
displays video images in color. When the IP camera uses its night filter, it is in night mode. In this mode,
the camera displays video images in black and white.
To display the Camera Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
Camera.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-3 describes the options in the Camera Settings window.
Table 3-3
Camera Settings Window Options
Option
Description
Microphone Area
Microphone Type
Choose the type of microphone that you are using.
•
Internal Microphone—Audio is captured by the internal microphone
on the IP camera.
•
External Microphone—Audio is captured by an optional external
microphone, available from third-parties. Choosing this option disables
the internal microphone.
Video Adjustments Area
Auto Iris Mode
Choose whether auto iris mode is enabled or disabled:
•
On—Auto iris mode is enabled. With this setting, the iris opening in the
IP camera lens adjusts automatically based on light conditions. This
setting is the default and recommended choice.
•
Off - Auto iris mode is disabled. With this setting, the iris opening in the
IP camera lens remains fully open.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-6
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-3
Camera Settings Window Options (continued)
Option
Description
Sensitivity
Designates how the iris opening in the IP camera lens adjusts when auto iris
mode is enabled. As sensitivity increases, the auto iris closes more to reduce
the light level and increase the depth of field in bright environments.
However, a high sensitivity may cause the image to oscillate between bright
and dim. In this situation, reduce the sensitivity to improve the image quality.
White Balance Mode
Choose one the following white balance modes from the drop-down list:
•
Manual—Choose this option if you want to set the white balance by
using the White Balance slider in the Camera Video/Control window as
described in Chapter 4, “Viewing Live Video.”
•
Auto—Suitable for most conditions that do not have special lighting
•
Indoor (incandescent)—Suitable for indoor conditions
•
Fluorescent (white light)—Suitable for indoor conditions with
fluorescent white lighting
•
Fluorescent (yellow light)—Suitable for indoor conditions with
fluorescent yellow lighting
•
Outdoor—Suitable for outdoor conditions.
The default setting is Auto.
Day Night Filter Area
Filter Type
Choose the day/night mode for the IP camera:
•
Day—IP camera always remains in day mode.
•
Night—IP camera always remains in night mode.
•
Auto—IP camera automatically switches between day and night mode
based on the lighting condition threshold that you specify.
Day to Night Threshold If the Filter Type day/night mode is set to Auto, choose the value that
specifies the relative light threshold at which the IP camera switches from
day to night mode. A lower value designates that the IP camera switches
from day to night mode in brighter conditions. A higher value designated
that the IP camera switches modes in darker conditions.
The default value is 10.
Night to Day Threshold If the Filter Type day/night mode is set to Auto, choose the value that
specifies the relative light threshold at which the IP camera switches from
night to day mode. A lower value designates that the IP camera switches
from night to day mode in darker conditions. A higher value designated that
the IP camera switches modes in lighter conditions.
The default value is 15.
Enable Night Vision
Schedule
Check this check box if you want to configure the times that the camera
switches to and from night mode. Enabling the Night Vision Schedule
disables the Filter Type option.
Note
If you configure a schedule, make sure that the time on the IP camera
is set correctly.
Start Time
Enter the time, in 24 hour format, that the camera enables its night filter.
End Time
Enter the time, in 24 hour format, that the camera disables its night filter.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-7
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Video Overlay Settings Window
The Video Overlay Settings window provides options for configuring overlay information that appears
on the video image in the Camera Video/Control window.
To display the Video Overlay Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
Video Overlay.
If you change any options in this window, you must click the Save Settings button to save the change.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-4 describes the option in the Video Overlay Settings window.
Table 3-4
Video Overlay Settings Window Options
Option
Description
Text Overlay Area
Enable Time Stamp
Check this check box to display the time from the internal clock of the IP
camera as an overlay on the video image from the IP camera.
Enable Text Display
Check this check box to display the text that you enter in the Display Text
field as an overlay on the video image from the IP camera.
This option can be useful for identifying this IP camera in an installation
with several IP cameras.
Display Text
If you check the Enable Text Display check box, the text that you enter in
this field appears as an overlay on the video image from the IP camera.
The text can contain up to 26 characters, which can include letters, numbers,
spaces, and these characters: ! $ % ( ) + , - . / : = @ ^ _ ` { } ~
IO Ports Settings Window
The IO Ports Settings window lets you configure various options for the two input and two output ports
on the IP camera. A state change of an input ports triggers a camera to take configured actions. Output
ports send signals that can control external devices, such as alarms or door switches.
The IP camera can trigger an action only when the input that is received on an input port comes from a
contact that is in a normally closed condition. The camera triggers the action when the contact changes
to an open condition.
To display the IO Ports Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
IO Ports.
If you change the option in this window, you must click the Save Settings button to save the change. If
you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-5 describes the option in the IO Ports Settings window.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-8
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-5
IO Ports Settings Window Options
Option
Description
Input Ports Area
Port #
Display only. Indicates input port 1 and input port 2.
Current State
Display only. Indicates the current state (high or low) of the corresponding
port.
Event Trigger
Choose the state (Rising or Falling) that triggers designated camera actions.
When an input port changes to the configured state, the camera determines
that an event has occurred and takes the actions that you have configured.
Output Ports
Port #
Display only. Indicates output port 1 and output port 2.
Current State
Display only. Indicates the current state (high or low) of the corresponding
port.
Default State
Choose the state (low or high) that the corresponding port is set to when the
IP camera powers on or resets.
The port changes to this state when you click Save Settings.
The default setting is High.
Event Action
Display only. Indicates the current state (high or low) that the output port
changes to when an event occurs.
Automatic Reset
Check this check box if you want the corresponding output port to go back
to its default state after an event occurs.
Duration
If you checked the Automatic Reset check box, enter the amount of time, in
milliseconds, that elapses before the port goes back to its default state after
an event changes it from the default state.
Pan Tilt Settings Window
The Pan Tilt Settings window provides options for configuring pan and tilt functions for the IP camera.
These functions require that the IP camera be installed with a pan/tilt mount that supports the Pelco D
protocol.
If you use a pan/tilt mount that requires RS-422 or RS-485 connections, you must connect the mount to
the IP camera through a Cisco data converter (part number CIVS-KYBD22232-B).
To display the Pan Tilt Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
Pan/Tilt.
If you change any options in this window, you must click the Save Settings button to save the change.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-6 describes the option in the Pan Tilt Settings window.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-9
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-6
Pan Tilt Settings Window Options
Option
Description
Pan/Tilt Area
Pan and Tilt Enabled
Check this check box to enable pan and tilt operation for the IP camera.
Protocol
Display only. Indicates the protocol for the pan/tilt functionality.
Address
Enter the logical address of the external PTZ device.
To determine this address, refer to the documentation for that device.
RS-232 Settings
Baud Rate
Choose the Baud rate value that is configured on the device that controls the
pan and tilt functions of the IP camera.
The default setting is 4800 bps.
Data Bits
Display only. Indicates the data bits configuration for the serial port on the
IP camera.
Parity
Display only. Indicates the parity configuration for the serial port on the IP
camera.
Stop Bits
Display only. Indicates the stop bits configuration for the serial port on the
IP camera.
Event Notification Window
The Event Notification window provides options for how the IP camera handles events. An event is any
of the following:
•
A change of state from low to high or from high to low on an input port of the IP camera. For related
information about input ports, see the “IO Ports Settings Window” section on page 3-8.
•
Motion that the IP camera detects. For related information about motion detection, see the “Motion
detection controls” rows in Table 4-1.
•
Loss of video signal.
When an event occurs, it triggers the IP camera to take certain configured actions:
•
HTTP notification—IP camera sends notification to a remote system via HTTP. This information
includes the following:
– Device ID—ID of the IP camera
– Device name—Name of the IP camera
– IP address—IP address of the IP camera
– MAC address—MAC address of the IP camera
– Channel ID—Channel identification number (1 for primary stream or 2 for secondary stream)
– Channel name—Name that is configured for the channel
– Date and time—Date and time that the event occurred
– Active post Count—Sequence number of the notification for this event
– Event type—Type of event
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-10
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
– Event state—Indicates whether the event is active or inactive at the time that the event was
detected for this notification
– Event description—Description of the event.
– Input port ID—If the event was triggered by an input port state change, port ID of the port
– Region index—If the event was triggered by motion detection, identification number of the
region in which the IP camera detected motion
– Sensitivity level—If the event was triggered by motion detection, sensitivity that is configured
for the region in which motion was detected
– Detection threshold—If the event was triggered by motion detection, threshold that is
configured for the region in which motion was detected
•
Email notification—An event can cause the IP camera to send a notification e-mail message to
designated recipients. The message can include a video file or still image of the activity that
triggered the event.
This message includes the same information that is provided with HTTP notification.
•
Output port state change—Changes the state of an IP camera output port from low to high or from
high to low.
•
Syslog server message—Sends a notification message to the designated Syslog server.
The Event Notification window also allows you to designate schedules. If an event takes place within a
designated schedule, the IP camera takes the actions that you configure.
To display the Event Notification window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
Event.
If you change any options in this window, you must click the Save Settings button to save the change.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-7 describes the option in the Event Notification window.
Table 3-7
Event Notification Window Options
Option
Description
Event Triggering Area
Triggered by
Check the desired check boxes to designate the events that trigger actions:
Input 1—Event is triggered when input port 1 on the IP camera changes
state from high to low.
Input 2—Event is triggered when input port 2 on the IP camera changes
state from high to low.
Motion Detection—Event is triggered when the camera detects motion, if
motion detection is configured as described the “Motion detection controls”
rows in Table 4-1.
Video Loss—Event is triggered if the IP camera loses input to its codec
sensor module.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-11
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-7
Event Notification Window Options (continued)
Option
Description
Actions
Check the desired check boxes to designate that actions that the IP camera
takes when the corresponding trigger occurs.
•
Email—Sends information about the event in an e-mail message to the
designated recipient. You design the recipient and configure other
e-mail options in other fields in this window.
•
Output 1—Changes the state of the output 1 port on the IP camera as
defined in the Port Settings window.
•
Output 2—Changes the state of the output 2 port on the IP camera as
defined in the Port Settings window.
•
Syslog—Sends information about the event to a designated Syslog
server.
•
HTTP—Sends information about the event as an HTTP stream to a
remote system.
Event Scheduling Area
Scheduling Grid
Designate the times at which an event causes the IP camera to take the
designed actions. If an event occurs during a time that is not designated, the
IP camera does not take any action.
Each cell in this grid represents one hour on the corresponding day, starting
at 12:00 a.m. (0:00). To designate times, click the desired cells. Selected
cells appear shaded.
To select all times, click the Set All button.
To deselect all times, click the Clear All button.
To change the scheduling settings to the last saved configuration, click
Undo.
Set All button
Selects all cells in the scheduling grid.
Clear All button
Deselects all cells in the scheduling grid.
Undo All button
Deselects cells in the scheduling grid that you selected since last saving
Event Notification window settings.
HTTP Notification Area
Primary HTTP Server
Identify the primary server to which HTTP messages are sent by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
URL Base
Enter a string to be used as the prefix in the HTTP URL. The HTTP URL is
sent in this format:
http://<IP address>/<URL Base>?<system-provided-name-value-pairs>
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the primary server to which
HTTP messages are sent.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-12
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-7
Event Notification Window Options (continued)
Option
Description
User Name
If authentication is required on the primary server to which HTTP messages
are sent, enter the user name.
Password
If authentication is required on the primary server to which HTTP messages
are sent, enter the password.
HTTP Authentication
If authentication is required on the primary server to which HTTP messages
are sent, choose the authentication method.
Secondary HTTP Server Identify an optional secondary server to which HTTP messages are sent by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
URL Base
Enter a string to be used as the prefix in the HTTP URL for the secondary
server. The HTTP URL is sent in this format:
http://<IP address>/<URL Base>?<system-provided-name-value-pairs>
where IP address is the IP address of the destination server, URL Base is the
string that you enter, and system-provided-name-value-pairs is information
about the event.
Port Number
Enter the port number that receives messages on the secondary server to
which HTTP messages are sent.
User Name
If authentication is required on the secondary server to which HTTP
messages are sent, enter the user name.
Password
If authentication is required on the secondary server to which HTTP
messages are sent, enter the password.
HTTP Authentication
If authentication is required on the secondary server to which HTTP
messages are sent, choose the authentication method.
Email Notification Area
Primary SMTP Server
Identify the primary SMTP server that is used for sending e-mail by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
Primary SMTP Port
Enter the port number for the primary SMTP server.
POP Server
Identify the primary POP server that is used for sending e-mail by choosing
IP Address or Hostname from the drop-down list and entering the IP
address or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the primary SMTP server requires authentication to send e-mail, choose
the appropriate authentication type. The authentication type typically is the
same as that for the POP3 server that you use to receive e-mail.
Account Name
If the primary SMTP server requires authentication, enter the account name
for the server.
Password
If the primary SMTP server requires authentication, enter the account
password for the server.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-13
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
Table 3-7
Event Notification Window Options (continued)
Option
Description
Secondary SMTP
Server
Identify an optional secondary SMTP server that is used for sending e-mail
by choosing IP Address or Hostname from the drop-down list and entering
the IP address or host name in the corresponding field.
Secondary SMTP Port
Enter the port number for the secondary SMTP server.
POP Server
Identify an optional secondary POP server that is used for sending e-mail by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
This field is dimmed if you do not choose Requires POP Before SMTP in
the Authentication field that follows.
Authentication
If the secondary SMTP server requires authentication to send e-mail, choose
the appropriate authentication type. The authentication type typically is the
same as that for the POP3 server that you use to receive e-mail.
Account Name
If the secondary SMTP server requires authentication, enter the account
name for the server.
Password
If the secondary SMTP server requires authentication, enter the account
password for the server.
Send To
Enter an e-mail address to which an e-mail message is sent when an event
occurs.
Show From Address As Enter the e-mail address to be shown in the From field for the e-mail message
that is sent when an event occurs.
Subject
Enter the text to be shown in the Subject field for the e-mail messages that
the IP camera sends when events occur. The subject can contain up to 118
characters, including spaces.
Attach Video Streaming Check this check box to include in the e-mail message body the URL from
URL Address
which the recipient can access the live video stream from the camera on
which the event was detected.
Attach Snapshot
Check this check box to include with the e-mail message a still picture from
the beginning of the event. This snapshot is stored on the IP camera until the
message is sent.
This functionality is available only when the secondary video stream is
enabled.
Patrol Sequence Window
The Preset Settings window provides options for configuring a patrol sequence for the IP camera. A
patrol sequence consists of up to eight steps, each of which causes the camera to move to a designated
preset position and remain in the position for a designated time.
When you create a patrol sequence, you define the order of the steps. When the patrol sequence executes,
the IP camera goes to the preset position that is defined by the first step, then moves through each preset
position in the configured order. It stops at the preset position that is defined by the last step.
Before you can configure a patrol sequence, you must define preset positions as described in the “Presets
controls” rows in Table 4-1. These rows also explain how to start and stop the execution of a patrol
sequence.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-14
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Feature Setup Windows
To display the Patrol Sequence window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click
Patrol Sequence.
If you change any options in this window, you must click the Save Settings button to save the change.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-8 describes the option in the Patrol Sequence window.
Table 3-8
Patrol Sequence Window Options
Option
Description
Patrol Sequence Area
Dwell Time
Choose the length of time in seconds that the camera remains in each preset
position when a patrol sequence executes.
Available list
Configure the order in which the IP camera executes up to 8 steps in a patrol
sequence. The Available list displays preset positions that you can use in the
patrol sequence. You define these preset positions in the Camera
Video/Control window. The Selected list displays the steps in the patrol
sequence.
Selected list
When the patrol sequence executes, the IP camera goes to the first preset
position in the Selected list, then moves through each position in the list in
order. It remains in each position for the time that is defined in the Time
Delay field. It stops at the last position in the list.
To move preset positions between the Available list and the Selected list, use
the following buttons. Buttons become highlighted when they are available.
—Move the selected preset position or positions from the Available
list to the Selected list. To select a preset position, click it to
highlight it. To select more than one preset positions, Ctrl-click
each one.
—Move the selected preset position or positions from the Selected
list to the Available list. To select a preset position, click it to
highlight it. To select more than one preset positions, Ctrl-click
each one.
—Move all preset positions from the Available list to the Selected
list.
—Move all preset positions from the Selected list to the Available
list.
To configure the order of steps in the Selected list, use the following buttons.
Buttons become highlighted when they are available. To select a preset
position, click it to highlight it.
—Move the selected preset position to the top of the list.
—Move the selected preset position up one position.
—Move the selected preset position down one position.
—Move the selected preset position to the bottom of the list.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-15
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Analytics Windows
The Analytics windows provide access to options for configuring the Cisco video analytics feature.
To display the Analytics windows, access the configuration windows as described in the “Performing the
Initial Setup of the IP Camera” section on page 2-5, click Feature Setup, then click Analytics. A new
browser session starts and the Analytics Home window appears. This window displays video from the
IP camera and provides access to other windows that contain information and configuration options.
For detailed information about Cisco video analytics and the Analytics windows, see Cisco Video
Analytics User Guide.
Note
The Cisco video analytics feature requires Cisco Video Surveillance Manager (VSM) 6.3.1 or later to
process analytics events. For related information, see the current version of Cisco Video Surveillance
Manager User Guide.
Network Setup Windows
The Network Setup windows let you configure various network-related settings for the IP camera.
The following sections describe the Network Setup windows in detail:
•
Basic Settings Window, page 3-16
•
IP Addressing Window, page 3-17
•
Time Settings Window, page 3-18
•
Discovery Settings Window, page 3-20
•
SNMP Settings Window, page 3-21
•
802.1x Settings Window, page 3-23
•
IP Filter Settings Window, page 3-24
•
QoS Settings Window, page 3-25
Basic Settings Window
The Basic Settings window provides options for identifying the IP camera and controlling basic
operations.
To display the Basic Settings window, access the configuration windows as described in the “Performing
the Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click Basic.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-9 describes the options in the Basic Settings window.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-16
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Table 3-9
Basic Settings Window Options
Option
Description
Basic Settings Area
ID
Enter a unique identification for the IP camera, which is used to identify the
IP camera to various external applications.
The ID can contain up to 64 numbers.
Name
Enter a name for the IP camera. This name appears in the IP camera log file
for information that is associated with this IP camera.
The name can contain up to 64 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~. Cisco
recommends that you give each IP camera a unique name so that you can
identify it easily.
Description
Enter a description of the IP camera. For example, enter the IP camera
location, such as “North Entrance Camera 1.”
The description can contain up to 128 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~
Location
Enter the physical location of the IP camera, such as “North Entrance.”
The location can contain up to 64 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~
Contact
Enter system contact information for someone such as the system
administrator. For example, enter the e-mail address of the system
administrator.
The contact can contain up to 64 characters, which can include letters,
numbers, spaces, and these characters: ! $ % ( ) + , - . / = @ ^ _ ` { } ~
Basic Device Operations Area
Enable Power LED
Check this check box if you want the Power LED on the back of the IP
camera to light.
If you do not check this check box, this LED does not light.
IP Addressing Window
The IP Addressing window provides options for configuring the IP address of the IP camera.
To display the IP Addressing window, access the configuration windows as described in the “Performing
the Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click IP Addressing.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-10 describes the options in the IP Addressing window.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-17
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Table 3-10
IP Addressing Window Options
Option
Description
IP Addressing Area
Configuration Type
Choose the method by which the IP camera obtains its IP address:
•
Dynamic—If your network includes a DHCP server for dynamic
allocation of IP addresses, choose this option if you want DHCP to
assign an IP address and subnet mask to the IP camera. Depending on
your router, the default gateway, primary DNS server, and secondary
DNS server may also be assigned. The DHCP server must be configured
to allocate static IP addresses based on MAC addresses so that the IP
camera always receives the same address.
•
Static—Choose this option if you want to manually enter an IP address,
subnet mask, default gateway, and DNS server IP addresses for the
camera.
IP Address
If you configured the IP camera for a static IP address, enter that IP address.
Subnet Mask
If you configured the IP camera for a static IP address, enter the subnet mask
for the IP camera. Use the same value that is configured for the PCs on your
network.
Gateway Address
If you configured the IP camera for a static IP address, enter the gateway for
the IP camera. Use the same value that is configured for the PCs on your
network.
Primary DNS
Optional. Enter the IP address of the primary the DNS server that is used in
your network. Use the same value that is used for the PCs on your LAN.
Typically, your ISP provides this address.
This address is required if you use a host name instead of an IP address in
any configuration field in the IP camera configuration windows.
Secondary DNS
Optional. Enter the IP address of a secondary (backup) DNS server to use if
the primary DNS server is unavailable. Enter the DNS server to be used if
the primary DNS server is unavailable.
This address is required if you have a secondary DNS server an you use a
host name instead of an IP address in any configuration field in the IP camera
configuration windows.
Time Settings Window
The Time Settings window provides options for setting and maintaining the time of the IP camera.
To display the Time Settings window, access the configuration windows as described in the “Performing
the Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click Time.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-11 describes the options in the Time Settings window.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-18
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Table 3-11
Time Settings Window Options
Option
Description
Set Time Mode Area
Manually Configure
Time
Choose this option if you want to set the time for the IP camera manually.
Use NTP Server to
Update Time
Choose this option if you want the IP camera to obtain its time from a
network time protocol (NTP) server.
If you check this check box, the camera contacts the designated NTP server
every 64 seconds and synchronizes its internal clock with the time of that
server.
Local Time Area
Note
These options do not apply if you choose the Use NTP Server to Update Time option.
Set Local Date
Enter a date for the IP camera. The camera is updated with this date when
you click Save Settings.
Set Local Time
Enter a time for the IP camera. The camera is updated with this time when
you click Save Settings.
Clone PC Time button
Click this button to update the IP camera date and time with the date and time
of the PC that you are using.
Time Zone and Daylight Saving Area
Time Zone
Choose the time zone in which the IP camera is located.
The time that appears when you view video from this IP camera reflects this
time zone.
Adjust for Daylight
Saving Time
Check this check box if you want the time of the IP camera to adjust
automatically for daylight saving time.
Edit Default Daylight
Saving Configuration
for Time Zone
Check this check box if you want the daylight saving time adjustment of the
IP camera to be different than the default adjustment for the selected time
zone.
Time Offset
If you choose to overwrite the default time zone configuration, enter the
number of minutes that the time of the camera adjusts when daylight saving
time starts.
The camera automatically adjusts its time back by this number of minutes
when daylight saving time ends.
Start Date
Start Time
End Date
End Time
If you choose to overwrite the default time zone configuration, enter the day
and time (in 24 hour format) that daylight saving time begins. At this day and
time, the time of the IP camera adjusts by the value in the Time Offset field.
If you choose to overwrite the default time zone configuration, enter the day
and time (in 24 hour format) that daylight saving time ends. At this day and
time, the time of the IP camera adjusts to the non-daylight saving time.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-19
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Table 3-11
Time Settings Window Options (continued)
Option
Description
NTP Server Settings Area
Note
These options do not apply if you choose the Manually Configure Time option.
Primary NTP Server
If you configured the IP camera to obtain its time from an NTP server,
identify the primary NTP server by choosing IP Address or Hostname from
the drop-down list and entering the IP address or host name in the
corresponding field.
Primary NTP Server
Port
If you configured the IP camera to obtain its time from an NTP server, enter
the primary NTP server port number.
Valid values are 123 and 1024 through 65535. The default port is 123.
Secondary NTP Server
If you configured the IP camera to obtain its time from an NTP server,
identify the secondary NTP server by choosing IP Address or Hostname
from the drop-down list and entering the IP address or host name in the
corresponding field.
Secondary NTP Server
Port
If you configured the IP camera to obtain its time from an NTP server, enter
the optional secondary NTP server port number.
Valid values are 123 and 1024 through 65535. The default port is 123.
Discovery Settings Window
The Discovery Settings window provides options for configuring the IP camera to work with Cisco
Discovery Protocol or Bonjour. These applications facilitate monitoring and management of your
network.
To display the Discovery window, access the configuration windows as described in the “Performing the
Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click Discovery.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-12 describes the options in the Discovery Settings window.
Table 3-12
Option
Discovery Settings Window Options
Description
Cisco Discovery Protocol (CDP) Area
Enable CDP
Check this check box if CDP is enabled in your network and you want the
IP camera to broadcast CDP discovery messages.
Show Neighbors button Displays a new window with information about CDP-enabled device
neighbors in your network.
Bonjour Area
Enable Bonjour
Check this check box if Bonjour is enabled in your network and you want the
IP camera to broadcast Bonjour discovery messages.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-20
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
SNMP Settings Window
The SNMP Settings window provides options for configuring Simple Network Management Protocol
(SNMP) settings for the IP camera. These settings can help you manage complex networks by sending
messages to different devices on the network.
To display the SNMP window, access the configuration windows as described in the “Performing the
Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click SNMP.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-13 describes the options in the SNMP Settings window.
Table 3-13
SNMP Settings Window Options
Option
Description
SNMP v2c Area
Enable SNMP v2c
Check this check box to enable SNMP v2c.
Read Community String Enter the SNMP read community string, which identifies the valid read
community.
Trap Community String Enter the SNMP trap community string.
Primary Trap Receiver
Identify the primary trap receiver of the SNMP v2c manager by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
Secondary Trap
Receiver
Identify an optional secondary trap receiver of the SNMP v2c manager by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
SNMP v3 Area
Enable SNMP v3
Check this check box to enable SNMP v3.
Use Default Local
Engine ID
Click this radio button if you want to use the default local engine ID for
SNMP.
The default local engine ID is 8000000903<MAC>, where <MAC> is the
MAC address of the IP camera.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-21
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Table 3-13
SNMP Settings Window Options (continued)
Option
Description
Manually Configure
Local Engine ID
Click this radio button if you want to enter a local engine ID manually, then
enter a unique local engine ID.
Enter this information in a standard format as defined in RFC3411. Valid
formats include (but are not limited to) the following:
•
8000000903<MAC>
where <MAC> is the MAC address of the IP camera. For example, if the
IP camera MAC address is 00:04:9F:11:22:33, enter
800000090300049F112233. This format is the default.
•
8000000901<IPv4_address_hex>
where <IPv4_address_hex> is the IPv4 address of the IP camera in
hexadecimal format. For example, if the IP camera IPv4 address is
192.168.0.100, enter 8000000901C0A80064.
•
8000000904<text>
where <text> is a string of up to 54 characters.
Primary Trap Receiver
Identify the primary trap receiver of the SNMP v3 manager by choosing IP
Address or Hostname from the drop-down list and entering the IP address
or host name in the corresponding field.
Secondary Trap
Receiver
Identify an optional secondary trap receiver of the SNMP v3 manager by
choosing IP Address or Hostname from the drop-down list and entering the
IP address or host name in the corresponding field.
User #
Display only. Lists the user number of each IP camera user who is configured
with the administrator privilege level.
User Name
Display only. Displays the name that is associated with the corresponding
user number
Authentication Method
Choose the authentication protocol for SNMP v3 messages that are sent on
behalf of the corresponding user.
Authentication
Password
Enter a password for the authentication protocol for SNMP v3 messages that
are sent on behalf of the corresponding user.
This password can contain from 8 to 63 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
Privacy Method
Choose DES if you want to use this privacy method for SNMP v3 messages
that are sent on behalf of the corresponding user.
If you do not want to use a privacy method, choose None.
Privacy Password
If you choose a privacy method, enter a password for SNMP v3 messages
that are sent on behalf of the corresponding user.
This password can contain from 8 to 63 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-22
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
802.1x Settings Window
The 802.1x Settings window provides options for configuring 802.1x authentication for the IP camera.
These settings require that RADIUS be configured on your network to provide the client authentication.
To display the 802.1x Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click
802.1x (RADIUS).
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-14 describes the options in the 802.1x Settings window.
Table 3-14
802.1x Settings Window Options
Option
Description
802.1x Settings Area
Enable 802.1x
Check this check box to enable 802.1x authentication for the IP camera.
Protocol Type
Choose the protocol for 802.1x authentication. Options are EAP-TLS,
EAP-TTLS, EAP-PEAP, and EAP-FAST.
The remaining fields in this window change depending on the protocol type
that you choose.
EAP-TLS Configuration Options
Note
These options appear if you select the protocol type EAP-TLS.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Device (Client)
Certificate
Path and folder where the device certificate for the IP camera is stored. You
can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to the
IP camera.
Password (for Private
Key)
If the private key in the device certificate is password protected, enter the
password that is required to unlock the private key.
Root CA Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to the
IP camera.
EAP-TTLS Configuration Options
Note
These options appear if you select the protocol type EAP-TTLS.
Inner Authentication
Choose an inner authentication method for EAP-TTLS. Options are
MS-CHAP, MS-CHAP v2, PEAP, and EAP-MDS.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Password
Enter the password that the IP camera uses to access the RADIUS server.
Anonymous ID
Optional. Unsigned public identifier to be used instead of a user name for
logging in to the RADIUS server.
Validate Server
Certificate
Check this check box if you want the identity of the RADIUS server to be
validated.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-23
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
Table 3-14
802.1x Settings Window Options (continued)
Option
Description
Root CA Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to the
IP camera.
EAP-PEAP Configuration Options
Note
These options appear if you select the protocol type EAP-PEAP.
Inner EAP Protocol
Choose an inner authentication method for EAP-PEAP.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Password
Enter the password that the IP camera uses to access the RADIUS server.
Anonymous ID
Optional. Anonymous identifier to be used instead of a user name for
logging in to the RADIUS server.
Validate Server
Certificate
Check this check box if you want the identity of the RADIUS server to be
validated.
Root Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to the
IP camera.
Root CA Certificate
Path and folder where the root certificate that is required for 802.1x
authentication is stored. You can click Browse to find this location.
After you enter this information, click Upload to upload the certificate to the
IP camera.
EAP-FAST Configuration Options
Note
These options appear if you select the protocol type EAP-FAST.
Inner EAP Protocol
Choose an inner authentication method for EAP-FAST.
User Name
Enter the user name that the IP camera uses to access the RADIUS server.
Password
Enter the password that the IP camera uses to access the RADIUS server.
Anonymous ID
Optional. Anonymous identifier to be used instead of a user name for
logging in to the RADIUS server.
Allow Automatic PAC
Provisioning
Check this check box if you want to allow authentication servers to establish
a secure connection with the IP camera so that they can provide the IP
camera with new Protected Access Credentials (PACs).
PAC file
Path and folder where the PAC file is stored. You can click Browse to find
this location.
After you enter this information, click Upload to upload the certificate to the
IP camera.
IP Filter Settings Window
The IP Filter Settings window provides options for controlling access to the IP camera by designating
up to 10 IP addresses or address ranges that are allowed or denied access to the IP camera.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-24
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Network Setup Windows
To display the IP Filtering window, access the configuration windows as described in the “Performing
the Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click IP Filtering.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-15 describes the options in the IP Filter Settings window.
Table 3-15
IP Filter Settings Window Options
Option
Description
IP Filter Area
Enable IP Filtering
Check this check box to cause the IP camera to allow or deny access to IP
addresses as configured in the IP Filtering window.
Filter Entries Area
#
Display only. Filter number.
Action
Choose an action for the corresponding IP address or address range:
IP Address/Bit Mask
•
Deny—IP address or address range cannot access the IP camera
•
Allow—IP address or address range can access the IP camera
Enter the IP address and bit mask to which the corresponding action applies.
Make these entries in Classless Inter-Domain Routing (CIDR) notation.
CIDR is defined in RFC 4632.
QoS Settings Window
The QoS Settings window provides options for configuring quality of service (QoS) settings for
audio/video streams.
To display the QoS Settings window, access the configuration windows as described in the “Performing
the Initial Setup of the IP Camera” section on page 2-5, click Network Setup, then click IP Filtering.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-16 describes the options in the QoS Settings window.
Table 3-16
QoS Settings Window Options
Option
Description
Class of Service (CoS) Area
Enable CoS for Video
Streaming
Check this check box to enable class of service (CoS) control for video
streams.
If you enable this option, the IP camera specifies a VLAN tag that appends
to an Ethernet MAC frame for video streaming data.
Video Priority
Value from 0 (lowest priority) through 7 (highest priority) that specifies the
CoS priority value for steaming video data.
Video VLAN ID
Enter the ID of the video VLAN to which CoS packets are directed.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-25
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
Table 3-16
QoS Settings Window Options (continued)
Option
Description
Enable CoS for Audio
Streaming
Check this check box to enable class of service (CoS) control for audio
streams.
Audio Priority
Value from 0 (lowest priority) through 7 (highest priority) that specifies the
CoS priority value for steaming audio data.
Audio VLAN ID
Enter the ID of the audio VLAN to which CoS packets are directed.
Differentiated Services (DiffServ) Area
Enable DiffServ for
Video Streaming
Check this check box to enable Differentiated Services (DiffServ) for video
streams.
If you enable this option, the IP camera specifies the DSCP priority value
that appends to an IP header for video streaming packets.
Video DSCP Priority
Value
Value from 0 (lowest priority) through 63 (highest priority) that specifies the
DSCP priority value for steaming video data.
Enable DiffServ for
Audio Streaming
Check this check box to enable Differentiated Services (DiffServ) for audio
streams.
Audio DSCP Priority
Value
Value from 0 (lowest priority) through 63 (highest priority) that specifies the
DSCP priority value for steaming audio data.
Administration Windows
The Administrator windows lets you perform several general administrative operations, including
enabling HTTP and HTTPS access to the IP camera, configuring users, resetting or rebooting the IP
camera, and updating firmware.
The following sections describe the Administration windows in detail:
•
Account Initialization Window, page 3-26
•
User Settings Window, page 3-28
•
Maintenance Settings Window, page 3-29
•
Firmware Settings Window, page 3-31
•
Device Processes Window, page 3-32
•
Password Complexity Window, page 3-33
Account Initialization Window
The Account Initialization window provides options for configuring passwords for the IP camera default
administrator accounts, and for configuring which protocols can be used to access the IP camera.
The IP camera always has an HTTP/HTTPS administrator who can access the IP camera through an
HTTP or HTTPS connection. The name of this administrator is admin. The password is configurable.
If you want to access the IP camera through SSH, you must configure a password for an SSH
administrator. The name of this administrator is root. The password is configurable.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-26
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
To display the Account Initialization window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Administration, then click
Initialization.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-17 describes the options in the Account Initialization window.
Table 3-17
Account Initialization Window Options
Option
Description
Administrator Accounts Area
Protocol
Display only. Indicates the protocol that the corresponding administrator can
use to access the IP camera: HTTP/HTTPS or SSH.
User Name
Display only. Indicates the default user name for the corresponding
administrator: admin or root
Password
Enter a password for the corresponding administrator. The password is case
sensitive and must contain from 8 to 32 characters, which can be letters,
numbers, and special characters, but no spaces. Special characters are: ! $ (
)-.@^_`{}~
Confirm password
Re-enter the password for the corresponding administrator.
Access Protocols Area
Enable HTTP
Check this check box if you want to allow HTTP connections to the IP
camera.
HTTP Port
Enter the HTTP port that is used to access the IP camera. Valid port numbers
are 80 and 1024 through 32767. The default port is 80.
If you configure the HTTP port to a value other than 80, you must specify
the port number in the URL for the IP camera when you access it through an
HTTP connection. For example, if the IP address of the IP camera is
192.168.1.100 and the HTTP port is 1024, enter this URL for the IP camera:
http://192.168.1.100:1024.
Enable HTTPS
Check this check box if you want to allow HTTPS connections to the IP
camera.
HTTPS Port
Enter the HTTPS port that is used to access the IP camera. Valid port
numbers are 443 and 1024 through 65535. The default port is 443.
If you configure the HTTPS port to a value other than 443, you must specify
the port number in the URL for the IP camera when you access it through an
HTTPS connection. For example, if the IP address of the IP camera is
192.168.1.100 and the HTTPS port is 1024, enter this URL for the IP
camera: https://192.168.1.100:1024.
Enable Secure Shell
(SSH)
Check this check box if you want to allow access to the camera through a
SSH connection.
Secure Shell (SSH) Port Enter the SSH port that is used to access the IP camera. Valid port numbers
are 22 and 1024 through 65535. The default port is 22.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-27
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
User Settings Window
The User Settings window lets you configure the following types of IP camera users:
•
Administrator—Can access all IP camera windows, features, and functions.
•
Viewer—Can access only the Camera Video/Control window and all features in that window except:
– Video image controls
– Set Current Preset as Home button
– Add Preset Position button
– Deleted Selected Preset button
– Pan/tilt speed controls
– Motion detection controls
There is always at least one user with Administrator privileges configured. The user name of this user is
“admin.” You can configure up to four additional users and assign privilege levels to each one.
When you configure users, follow these guidelines:
•
After you enter a name, password, and privilege level for a user, click Add next to the user
information to save your changes.
•
To change the password for an existing user, click Change next to the user name.
•
To remove a user, click Delete next to the user. If you delete a user who is logged into the IP camera,
the user remains logged in and can continue access the IP camera.
•
To change the name of a user, you must delete the user then create a new user.
To display the User Settings window, access the configuration windows as described in the “Performing
the Initial Setup of the IP Camera” section on page 2-5, click Administration, then click Users.
Table 3-18 describes the options in the User Settings window.
Table 3-18
User Settings Window Options
Option
Description
User List Area
User Name
Enter a unique name for the user.
The user name is case sensitive and can include up to 64 letters, numbers,
and special characters, but no spaces. Special characters are: ! % ( ) + , - =
@_~
There is always one user named admin (all lower case), which cannot be
deleted.
Password
Enter a password for the user.
The password is case sensitive and must contain from 8 to 32 characters,
which can be letters, numbers, and special characters, but no spaces. Special
characters are: ! $ ( ) - . @ ^ _ ` { } ~
Confirm Password
Re-enter the password for the user.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-28
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
Table 3-18
User Settings Window Options (continued)
Option
Description
Privilege Level
Select the desired privilege level for the user:
•
Administrator—Can access all IP camera windows, features, and
functions.
•
Viewer—Can access the Camera Video/Control window with limited
controls, and can access the Refresh, Logout, About, and Help links
from that window.
Change button
Click this button to change the password of the corresponding user.
Add button
Click this button to add the corresponding user. That user can then log in to
the IP camera.
Delete button
Click this button to remove the corresponding user. This user can no longer
log in to the IP camera.
Maintenance Settings Window
The Maintenance Settings window provides options for setting or restarting the IP camera, saving
configuration information from the IP camera, and uploading the configuration information to the IP
camera.
Saving and uploading configuration is useful for these activities:
•
Configuring multiple IP cameras—If your network includes several IP cameras that should have
similar configurations, you can configure one IP camera, save that configuration, and upload it to
other IP cameras. Then, instead of manually configuring all options on each IP camera, you
manually configure only the options that are unique, such as the IP address, if not obtained from
DHCP.
•
Backing up configuration—If you save the configuration from the IP camera, you can upload it to
the IP camera to restore the configuration if it is lost, or if you can upload it to a replacement IP
camera, if needed.
To display the Maintenance Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Administration, then click
Maintenance.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-19 describes the options in the Maintenance Settings window.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-29
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
Table 3-19
Maintenance Settings Window Options
Option
Description
Factory Default Area
Restore button
Click the Restore button to reset all IP camera settings to their factory
default values.
To confirm the restore procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
This action has the same effect as pressing and holding the Reset button on
the IP camera for at least 15 seconds. After you perform this procedure,
follow the steps in the “Performing the Initial Setup of the IP Camera”
section on page 2-5.
Reset button
Click the Reset button to reset all IP camera settings except the static IP
address, gateway IP address, and log in credentials (user name and
password) to their factory default values.
To confirm the restore procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
Reboot Area
Reboot button
Click the Reboot button to reboot the software on IP camera.
To confirm the reboot procedure, click OK in the confirmation pop-up
window. Otherwise, click Cancel.
This action has the same effect as pressing and immediately releasing the
Reset button on the IP camera, or powering the IP camera down and then
powering it up.
Device Configuration Area
Export Configuration
from Camera
Click the Export button to save the current IP camera configuration
information to a binary file.
When you click this button, the File Download window appears. Use this
window to save the configuration file.
You can then load this configuration information to any same-model IP
camera in the network. This feature is useful for creating a backup of this
configuration and for configuring other IP cameras based on this
configuration.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-30
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
Table 3-19
Maintenance Settings Window Options (continued)
Option
Description
Import configuration to
camera
Path and folder where a configuration file is stored. You can click Browse to
find this location. After you enter this information, click Import to load the
configuration file to the IP camera.
After you upload a configuration file to the IP camera, the IP camera restarts
automatically.
If you upload configuration from another IP camera that is active in your
network, make sure to configure this IP camera with a name, description, and
unique IP address (if not obtained through DHCP). To change these options,
see the “Basic Settings Window” section on page 3-16 and the “IP
Addressing Window” section on page 3-17.
A configuration file that you upload includes the passwords that are
configured for the administrator and for users. If you change any passwords
after saving the configuration file, be aware that uploading the file overwrites
the new passwords with the saved ones.
Firmware Settings Window
The Firmware Settings window lets you view information about the firmware that is installed on the IP
camera and upgrade the firmware.
Before you upgrade firmware, download the firmware file to a PC that is accessible on your network and
unzip the file if it is zipped. To download firmware, go to this web page:
http://www.cisco.com/en/US/products/ps6918/Products_Sub_Category_Home.html
After you upgrade firmware, the IP camera restarts automatically. It retains all configuration
information.
To display the Firmware Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Administration, then click
Firmware.
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-20 describes the options in the Firmware Settings window.
Table 3-20
Option
Firmware Settings Window Options
Description
Device Information Area
IP Address
Display only. IP address of the IP camera
MAC Address
Display only. MAC address of the IP camera.
Device Name
Display only. ID of the IP camera, as configured in the Basic Settings
window. For more information, see the “Basic Settings Window” section on
page 3-16.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-31
Chapter 3
Configuring and Managing the IP Camera
Administration Windows
Table 3-20
Firmware Settings Window Options (continued)
Option
Description
Firmware Maintenance Area
Firmware Version
Version of the firmware that is installed on the IP camera.
Firmware Released
Date
Release date of the current firmware.
Details button
Click this button to display a pop-up window with additional information
about the firmware on the IP camera.
Firmware Upgrade
To upgrade the firmware on the IP camera, begin by entering the path and
folder where new firmware file for the IP camera is stored. The upgrade file
may be stored on another PC. You can click Browse to find this location.
Upgrade button
After entering the path and folder for the firmware file, click this button to
load the firmware upgrade on the IP camera.
Do not power down the IP camera during the upgrade procedure.
Device Processes Window
The Device Processes window displays the processes that occupy TCP or UDP ports, and lets you stop
any of these processes.
Take care when stopping processes because some processes are required for the camera to operate
properly. Processes that you stop in this window can restart the next time that you log in to the IP camera.
If you delete a required process and the camera stops functioning, exit your web browser and then log
back in to the IP camera to restart the process. If the process does not restart, power the IP camera off
and then back on.
To display the Device Processes window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Administration, then click
Device Processes.
To stop any process, click the Delete button that appears to the right of the process in the window.
Table 3-21 describes the options in the Product Process window. All options are for display only.
Table 3-21
Device Process Window Options
Option
Description
Protocol
Port (tcp or udp) that the process occupies
Local Address
IP address of the device that the process is listening to
Foreign Address
IP address and port number of the client device that is connected for the
process
State
State of the process
Program Name
Name of the process
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-32
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Log Windows
Password Complexity Window
IP camera administrator and user passwords must always meet the requirements that are described in the
“User Settings Window” section on page 3-28. The Password Complexity window provides options for
configuring additional requirements for the IP camera passwords.
To display the Password Complexity window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Administration, then click
Password Complexity.
Table 3-22 describes the options in the Password Complexity window.
Table 3-22
Password Complexity Window Options
Option
Description
Password must contain
at least three of the
following: lower case
letters, upper case
letters, digits, and
special characters
Password must contain characters from at least 3 of these categories:
Password cannot
include any character
that occurs three or
more times
consecutively
Administrator password cannot include any character that occurs 3 or more
times in a row.
Password cannot be a
repeat or reverse of the
user name
Password cannot be the same as the user name either forward of reversed
•
Lower case letters (a through z)
•
Upper case letters (A through Z)
•
Digits (0 through 9)
•
Special characters (: ! " # $ % & ' ( ) * + , - . : ; < = > ? @ [ \ ] ^ _ ` { | } ~)
Log Windows
The Log windows let you set up and view the IP camera log file, which captures information about the
IP camera and its activities.
The IP camera stores the log file in its internal SDRAM. If the SDRAM becomes full, the IP camera
begins to overwrite existing information. To avoid losing log information, you can configure the IP
camera to send log information to a Syslog server.
The following sections describe the Log windows in detail:
•
Log Setup Settings Window, page 3-33
•
Local Log Window, page 3-35
Log Setup Settings Window
The Log Setup Settings window provides options for configuring the log file and an optional syslog
server on which to store log files.
To display the Log Setup Settings window, access the configuration windows as described in the
“Performing the Initial Setup of the IP Camera” section on page 2-5, click Log, then click Setup.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-33
Chapter 3
Configuring and Managing the IP Camera
Log Windows
If you change any options in this window, you must click the Save Settings button to save the changes.
If you do not click this button, changes are not retained when you exit the window. Save Settings appears
at the bottom of the window. You may need to scroll down to it.
Table 3-23 describes the options in the Log Setup Settings window.
Table 3-23
Log Setup Settings Window Options
Option
Description
Local Log Settings Area
Minimum Log Severity
Choose the minimum severity of messages that the appear in the log file. The
system logs all messages of this severity and higher. Message severities,
from highest to lowest, are:
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affects the ability
of the system to function.
•
Warning—A undesirable condition occurred.
•
Notice—Notification about a system condition that is not necessarily an
error condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
The default severity is Informational.
Maximum Log Entries
Maximum number of entries that the log file maintains. When the log file
reaches this limit, it begins overwriting entries, starting with the oldest one.
The default value is 100.
Syslog Settings Area
Enable Syslog
Check this check box to send the log information to a designated Syslog
server. The selected information also is maintained on the IP camera until it
is overwritten.
This option is useful for consolidating logs in deployments with several
IP cameras and for retaining logs.
Primary Syslog Server
Identify the primary Syslog server by choosing IP Address or Hostname
from the drop-down list and entering the IP address or host name in the
corresponding field.
Primary Syslog Server
Port
Enter the primary Syslog server port number that receives the logs.
Facility
Enter the system facility that receives logs on the Syslog server.
Valid values are 514 and 1024 through 65535. The default Syslog port is 514.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-34
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Log Windows
Table 3-23
Log Setup Settings Window Options (continued)
Option
Description
Minimum Log Severity
Choose the minimum severity of messages that are sent to the Syslog server.
The system sends all messages of this severity and higher. Message
severities, from highest to lowest, are:
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affects the ability
of the system to function.
•
Warning—A undesirable condition occurred.
•
Notice—Notification about a system condition that is not an error
condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
The default severity is Informational.
Secondary Syslog
Server
Identify an optional secondary Syslog server by choosing IP Address or
Hostname from the drop-down list and entering the IP address or host name
in the corresponding field.
Secondary Syslog
Server Port
Enter the port number that receives the logs on the secondary Syslog server.
Facility
Enter the system facility that receives logs on the Syslog server.
Minimum Log Severity
Choose the minimum severity of messages that are sent to the secondary
Syslog server. The system sends all messages of this severity and higher.
Message severities, from highest to lowest, are:
Valid values are 514 and 1024 through 65535. The default Syslog port is 514.
•
Emergency—The system is unusable.
•
Alert—A situation occurred that requires immediate action.
•
Critical—A situation occurred that requires action soon.
•
Error—An error occurred, but it does not necessarily affect the ability
of the system to function.
•
Warning—An undesirable condition occurred.
•
Notice—Notification about a system condition that is not an error
condition.
•
Informational—Information about a system activity.
•
Debug—Information about a system activity with detailed technical
information. Includes messages of every other severity.
Local Log Window
The Local Log window lets you view the log file that is stored on the IP camera.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-35
Chapter 3
Configuring and Managing the IP Camera
Log Windows
To display the Local Log window, access the configuration windows as described in the “Performing the
Initial Setup of the IP Camera” section on page 2-5, click Log, then click Local Log.
Table 3-24 describes the options in the Local Log window.
Table 3-24
Option
Local Log Window Options
Description
Log List Area
Rows per page
Choose the number of log entry rows to display per page and click the Go
button to the right of this option to update the display.
Filter
Choose the type of log message to include in the display.
To include messages of every severity, choose All.
Since
Choose the time period for which you want to view log messages.
Go button
Update the log display based on the values in the Filter and Since fields.
Severity
An icon in this column indicates the severity of the corresponding log
message:
—Emergency message
—Alert message
—Critical message
—Error message
—Warning message
—Notice message
—Informational message
—Debug message
To display log messages in order of severity with the least severity first, click
the Severity column heading. Click the heading again to reverse the display
order.
Date/Time
Date and time that the logged activity occurred.
By default, log messages appear in the order that the activity occurred with
the oldest message first. To reverse this display order, click the Date/Time
column heading.
Description
Message that describes the logged activity. For detailed information about
log messages, see Table 3-25 on page 3-37.
Page controls
Let you move through the log file entries:
Page field—Enter a page number and press Enter.
—Go to first page
—Go to previous page
—Go to next page
—Go to last page
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-36
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Log Windows
Table 3-25 describes the messages that can appear in the IP camera log file. When you view the log file,
each message includes the date and time that it was logged. In this table:
•
Messages appear in alphabetical order
•
Angle brackets (<>) indicate items that are replaced by appropriate information when the message
appears. Italic text describes these items.
•
Severity indicates the severity of the message:
– 0—Emergency (the system is unusable)
– 1—Alert (a situation occurred that requires immediate action)
– 2—Critical (a situation occurred that requires action soon)
– 3—Error (an error occurred, but it does not necessarily affect the ability of the system to
function)
– 4—Warning (an undesirable condition occurred)
– 5—Notice (notification about a system condition that is not an error condition)
– 6—Informational (information about a system activity)
– 7—Debug (information about a system activity with detailed technical information)
Table 3-25
Log Messages
Message Name
Description that Appears in Log File
Explanation
AUTHENTICATION_FAILED
Access authentication to <web server,
streaming server, or SSH server> by
user <user> <IP address or
hostname> failed.
An attempt to log in or authenticate to 3
the IP camera failed.
AUTHENTICATION_FAILED
Access authentication to <server type> The IP camera was unable to access an 4
server <server IP address or
SNTP, Syslog, DNS, SMTP, HTTP, or
hostname> failed.
802.1x server.
AUTHORIZATION_FAILED
Unauthorized address <IP address or
An attempt was made to access the IP 3
hostname> attempted to access camera. camera by using invalid user
credentials for from an IP address that
has been configured for no access.
CODEC_LOST
Connection to Codec/Sensor module
The IP camera codec/sensor module is 4
was lost. Internal module is either down not responding.
or not responding.
CONFIG_SAVE_FAILED
Saving configuration to user <user>
<IP address or hostname> failed.
A user attempt to save the IP camera
configuration failed.
CONFIG_SAVED
Configuration saved by user <user>
<IP address or hostname>.
The IP camera configuration was saved 5
by a user.
CONFIG_UPLOAD_FAILED
Uploading configuration failed from
A user attempt to import the IP camera 3
user <user> <IP address or hostname>. configuration failed.
CONFIG_UPLOADED
Configuration uploaded from user
<user> <IP address or hostname>.
DEFAULTS_FAILED
Restoring factory defaults failed for
An attempt to reset the IP camera to its 3
user <user> <IP address or hostname>. factory default configuration failed.
The IP camera configuration was
imported by a user.
Severity
3
5
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-37
Chapter 3
Configuring and Managing the IP Camera
Log Windows
Table 3-25
Log Messages
Message Name
Description that Appears in Log File
Explanation
Severity
DEFAULTS_RESTORED
Factory defaults restored successfully
by user <user> <IP address or
hostname>.
The IP camera was reset to its factory
default configuration.
5
DEVICE_REBOOT_AUTO
Device rebooted.
The IP camera rebooted automatically. 5
DEVICE_REBOOT_MANUAL
Device was rebooted manually by user The IP camera was rebooted by a user. 5
<user> <IP address or hostname>.
DHCP_LEASE
DHCP lease renewal was successful.
The IP camera renewed its DHCP
lease.
DSP_ENCODING_HALTED
The Codec/Sensor module’s DSP
encoding was halted. Either the analog
image signal from the sensor has been
lost, or an internal encoding error has
occurred.
The DSP of the IP camera codec/sensor 2
module DSP stopped encoding. The
analog image signal from the sensor
may be lost or an internal encoding
error may have occurred.
EMAIL_TRIGGERED
Event triggered: email sent to <e-mail
address>.
An event occurred and e-mail
notification of the event was sent.
5
ETH_BER
Bit Error Rate (BER) exceeded
specified threshold of <threshold>.
The bit error rate (BER) exceeded the
specified threshold.
4
ETH_SIGNAL_DEGRADE
Ethernet signal degrading.
The IP camera detected a degrading
Ethernet signal.
4
FRAMES_DROPPED
Output frame rate does not match the
camera’s configured frame rate.
The IP camera is sending video at a
frame rate that does not match the
configured frame rate.
3
FW_UPGRADE_FAILED
Upgrading firmware failed from user
<user> <IP address or hostname>.
An attempt to upgrade the IP camera
firmware failed.
0
FW_UPGRADED
Firmware upgraded successfully from The IP camera firmware was updated.
user <user> <IP address or hostname>.
HTTP_TRIGGERED
Event triggered: notification sent to
HTTP server <IP address or
hostname>.
INPUT_ONE_CHANGED
Input port one changed to <high/low>. Input port 1 on the IP camera changed 5
state.
INPUT_ONE_RESET
Input port one reset to <high/low>.
INPUT_TWO_CHANGED
Input port two changed to <high/low>. Input port 1 on the IP camera changed 5
state.
INPUT_TWO_RESET
Input port two reset to <high/low>.
Input port 1 on the IP camera reset to
its default state.
5
IP_CONFLICT
IP Address conflict for <IP address>.
IP camera experienced an IP address
conflict.
4
IR_FILTER_DAY_AUTO
IR filter changed to day automatically.
The IP camera enabled its day filter
automatically.
6
IR_FILTER_DAY_MANUAL
IR filter manually changed to day by
The IP camera day filter was enabled
user <user> <IP address or hostname>. by a user.
An event occurred and HTTP
notification of the event was sent.
Input port 1 on the IP camera reset to
its default state.
6
5
5
5
6
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-38
OL-19609-04
Chapter 3
Configuring and Managing the IP Camera
Log Windows
Table 3-25
Log Messages
Message Name
Description that Appears in Log File
Explanation
Severity
IR_FILTER_NIGHT_AUTO
IR filter changed to night
automatically.
The IP camera enabled its night filter
automatically.
6
IR_FILTER_NIGHT_MANUAL IR filter changed to night by user
<user> <IP address or hostname>.
The IP camera night filter was enabled 6
by a user.
LOG_IN
User <user> <IP address or hostname> A user logged in to the IP camera.
logged in to <web server or SSH
server>.
5
LOG_OUT
User <user> <IP address or hostname> A user logged out of the IP camera.
logged out of <web server or SSH
server>.
5
MOTION_DETECTED
Motion detected in region <region
index>.
The IP camera detected motion in its
video field.
5
MOTION_STOPPED
Motion in region <region index>
stopped.
The IP camera stopped detecting
motion in its video field.
5
OUTPUT_ONE_RESET
Output port one reset to <high/low>.
Output port 1 on the IP camera reset to 5
its default state.
OUTPUT_ONE_TRIGGERED
Output port one triggered to
<high/low>.
Output port 1 on the IP camera
changed state.
OUTPUT_TWO_RESET
Output port two reset to <high/low>.
Output port 2 on the IP camera reset to 5
its default state.
OUTPUT_TWO_TRIGGERED
Output port two triggered to
<high/low>.
Output port 2 on the IP camera
changed state.
5
PAN
Pan <left/right> by user <user>
<IP address or hostname>.
The IP camera was panned by a user.
6
PATROL_START
Patrol started by user <user> <IP
address or hostname>.
A patrol sequence was started by a
user.
6
PATROL_STOP
Patrol stopped by user <user> <IP
address or hostname>.
A patrol sequence was stopped by a
user.
6
POWER_SUPPLY_FAILURE
DC power supply failure.
The DC power for the IP camera failed. 2
PTZ_LOST
Connection to PTZ device was lost.
Device is either down or not
responding.
The pan/tilt device that the IP camera
is connected to is not responding.
SERVER_CONTACTED
Communication established with
<server type> server <server or
IP address>.
6
The IP camera established
communication with an SNTP, DHCP,
Syslog, DNS, SMTP, HTTP, or 802.1x
server.
SERVER_LOST
Communication lost with <server
type> server <server or IP address>.
The IP camera lost communication
with an SNTP, DHCP, Syslog, DNS,
SMTP, HTTP, or 802.1x server.
SERVER_UNREACHABLE
Failed to contact <server type> server
<server or IP address>.
The IP camera was unable to contact an 4
SNTP, DHCP, Syslog, DNS, SMTP,
HTTP, or 802.1x server or a gateway.
5
4
4
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
OL-19609-04
3-39
Chapter 3
Configuring and Managing the IP Camera
Log Windows
Table 3-25
Log Messages
Message Name
Description that Appears in Log File
Explanation
Severity
START_STREAM
Channel <channel ID> started
streaming to user <user> <IP address
or hostname>.
The IP camera began streaming video
to a user device.
6
STOP_STREAM
Channel <channel ID> stopped
streaming to user <user> <IP address
or hostname>.
The IP camera stopped streaming
video to a user device.
6
TEMP_THRESHOLD_T1
Current temperature, <temperature>,
The internal temperature of the IP
<exceeds/is below> <high temperature/ camera is lower than 59°F (15°C) or
low_temperature> threshold.
higher than 149°F (65°C).
2
TEMP_THRESHOLD_T2
Current temperature, <temperature>,
The internal temperature of the IP
<exceeds/is below> <high temperature/ camera is lower than 32°F (0°C) or
low_temperature> threshold.
higher than 176°F (80°C).
4
TEMP_THRESHOLD_T3
The internal temperature of the IP
Current temperature, <temperature>,
<exceeds/is below> <high temperature/ camera is lower than 5°F (–15°C) or
low_temperature> threshold.
higher than 194°F (90°C).
5
TILT
Tilt <up/down> by user <user>
<IP address or hostname>.
6
TIME_DST_SWITCH
Time switched to Daylight Savings
The IP camera internal clock switched 6
time with an offset of <offset> minutes. to daylight saving time.
TIME_REG_SWITCH
Time switched from Daylight Savings The IP camera internal clock switched 6
time with an offset of <offset> minutes. to standard time.
UNEXPECTED_EXCEPTION
An attempt by a user to pan the IP
Unexpected exception occurred. Pan
<left/right> failed by user <user> <IP camera failed.
address or hostname>.
1
UNEXPECTED_EXCEPTION
Unexpected exception occurred. Tilt
<up/down> failed by user <user>
<IP address or hostname>.
1
UNEXPECTED_EXCEPTION
Unexpected exception occurred. Patrol An attempt by a user to start a patrol
failed by user <user> <IP address or sequence failed.
hostname>.
1
UNEXPECTED_EXCEPTION
Unexpected exception occurred. Could IP camera could not read or write
not <read/write> <to/from> repository information to its internal repository.
by user <user> <IP address or
hostname>.
2
The IP camera was tilted by a user.
An attempt by a user to tilt the IP
camera failed.
Cisco Video Surveillance 4300 and 4500 High-Definition IP Cameras User Guide
3-40
OL-19609-04

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
