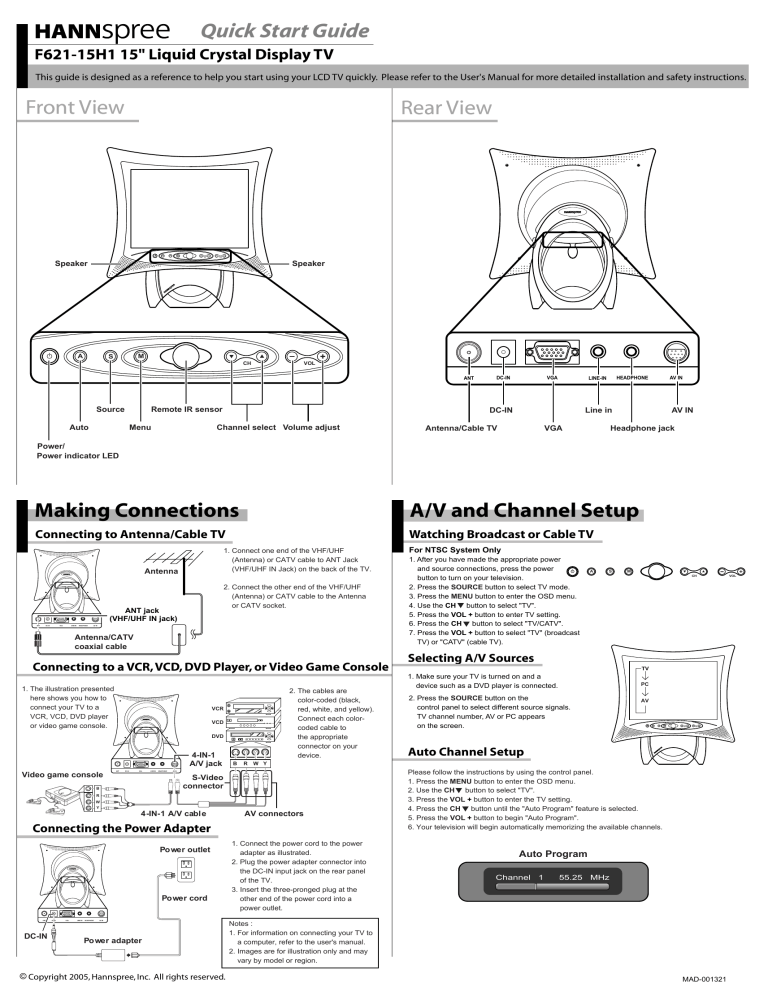

Quick Start Guide
F621-15H1 15" Liquid Crystal Display TV
This guide is designed as a reference to help you start using your LCD TV quickly. Please refer to the User's Manual for more detailed installation and safety instructions.
Front View
Rear View
A
S
M
CH
VOL
Speaker
Speaker
A
M
S
CH
VOL
ANT
Source
Remote IR sensor
Auto
Menu
DC-IN
VGA
DC-IN
Channel select Volume adjust
HEADPHONE
LINE-IN
AV IN
Line in
Antenna/Cable TV
VGA
AV IN
Headphone jack
Power/
Power indicator LED
Making Connections
A/V and Channel Setup
Connecting to Antenna/Cable TV
Watching Broadcast or Cable TV
1. Connect one end of the VHF/UHF
(Antenna) or CATV cable to ANT Jack
(VHF/UHF IN Jack) on the back of the TV.
Antenna
2. Connect the other end of the VHF/UHF
(Antenna) or CATV cable to the Antenna
or CATV socket.
ANT jack
(VHF/UHF IN jack)
DC-IN
ANT
VGA
LINE-IN
HEADPHONE
AV IN
Antenna/CATV
coaxial cable
Connecting to a VCR, VCD, DVD Player, or Video Game Console
1. The illustration presented
here shows you how to
connect your TV to a
VCR, VCD, DVD player
or video game console.
2. The cables are
color-coded (black,
red, white, and yellow).
Connect each colorcoded cable to
the appropriate
connector on your
device.
VCR
VCD
DVD
4-IN-1
A/V jack
Video game console
ANT
DC-IN
VGA
LINE-IN
HEADPHONE
B
R
AV IN
R
W
Y
4-IN-1 A/V cable
AV connectors
Connecting the Power Adapter
Power outlet
Power cord
ANT
DC-IN
DC-IN
VGA
LINE-IN
HEADPHONE
AV IN
Power adapter
Copyright 2005, Hannspree, Inc. All rights reserved.
1. After you have made the appropriate power
and source connections, press the power
button to turn on your television.
2. Press the SOURCE button to select TV mode.
3. Press the MENU button to enter the OSD menu.
4. Use the CH button to select "TV".
5. Press the VOL + button to enter TV setting.
6. Press the CH button to select "TV/CATV".
7. Press the VOL + button to select "TV" (broadcast
TV) or "CATV" (cable TV).
A
S
M
CH
Selecting A/V Sources
1. Make sure your TV is turned on and a
device such as a DVD player is connected.
PC
2. Press the SOURCE button on the
control panel to select different source signals.
TV channel number, AV or PC appears
on the screen.
AV
A
S
M
CH
VOL
Auto Channel Setup
W Y
S-Video
connector
B
For NTSC System Only
1. Connect the power cord to the power
adapter as illustrated.
2. Plug the power adapter connector into
the DC-IN input jack on the rear panel
of the TV.
3. Insert the three-pronged plug at the
other end of the power cord into a
power outlet.
Please follow the instructions by using the control panel.
1. Press the MENU button to enter the OSD menu.
2. Use the CH button to select "TV".
3. Press the VOL + button to enter the TV setting.
4. Press the CH button until the "Auto Program" feature is selected.
5. Press the VOL + button to begin "Auto Program".
6. Your television will begin automatically memorizing the available channels.
Auto Program
Channel
1
55.25
MHz
Notes :
1. For information on connecting your TV to
a computer, refer to the user's manual.
2. Images are for illustration only and may
vary by model or region.
MAD-001321
