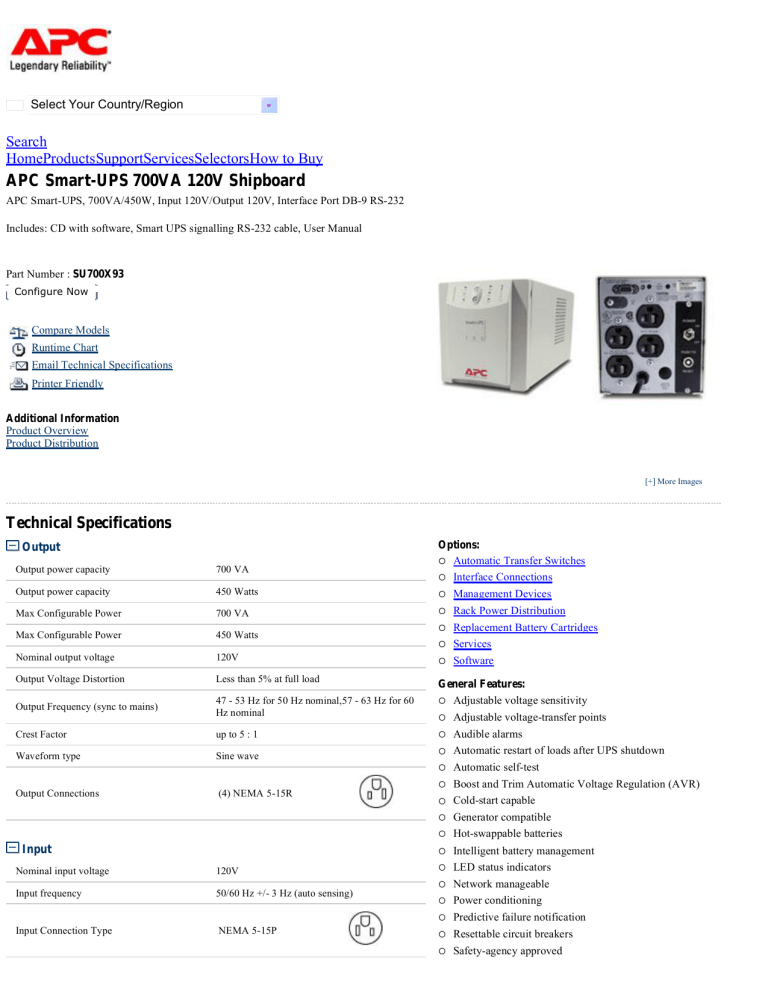

APC Smart-UPS 700VA 120V Shipboard
APC Smart-UPS, 700VA/450W, Input 120V/Output 120V, Interface Port DB-9 RS-232
Includes: CD with software, Smart UPS signalling RS-232 cable, User Manual
Part Number : SU700X93
Configure Now
Compare Models
Runtime Chart
Email Technical Specifications
Printer Friendly
Additional Information
Product Overview
Product Distribution
[+] More Images
Technical Specifications
Output
Options:
¡ Automatic Transfer Switches
Output power capacity
700 VA
Output power capacity
450 Watts
¡
Max Configurable Power
700 VA
¡
Max Configurable Power
450 Watts
¡
Replacement Battery Cartridges
Services
Nominal output voltage
120V
¡
Software
Output Voltage Distortion
Less than 5% at full load
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal,57 - 63 Hz for 60
Hz nominal
General Features:
¡ Adjustable voltage sensitivity
¡
¡
¡
Crest Factor
up to 5 : 1
¡
Waveform type
Sine wave
¡
¡
Output Connections
(4) NEMA 5-15R
¡
¡
¡
¡
Input
¡
Nominal input voltage
120V
Input frequency
50/60 Hz +/- 3 Hz (auto sensing)
¡
¡
¡
¡
Input Connection Type
NEMA 5-15P
¡
¡
Interface Connections
Management Devices
Rack Power Distribution
Adjustable voltage-transfer points
Audible alarms
Automatic restart of loads after UPS shutdown
Automatic self-test
Boost and Trim Automatic Voltage Regulation (AVR)
Cold-start capable
Generator compatible
Hot-swappable batteries
Intelligent battery management
LED status indicators
Network manageable
Power conditioning
Predictive failure notification
Resettable circuit breakers
Safety-agency approved
Cord Length
6 feet ( 1.83 meters)
¡
Input voltage range for main operations
92 - 147V
¡
Input voltage adjustable range for mains
operation
86 - 154V
¡
Serial Connectivity
SmartSlot
Temperature-compensated battery charging
more details....
Topology: Line Interactive
Batteries & Runtime
Battery type
Maintenance-free sealed Lead-Acid battery with
suspended electrolyte : leakproof
Replacement battery cartridge
RBC5
RBC™ Quantity
1
Typical backup time
at half load
18.6 minutes (225 Watts)
Typical backup time
at full load
5.8 minutes (450 Watts)
Runtime Chart
Smart-UPS
Communications & Management
Interface port
DB-9 RS-232
Control panel
LED status display with load and battery bargraphs and On Line : On Battery : Replace
Battery : and Overload Indicators
Audible alarm
Alarm when on battery : distinctive low battery
alarm : configurable delays
Emergency Power Off (EPO)
Optional
Surge Protection and Filtering
Surge energy rating
320 Joules
Filtering
Full time multi-pole noise filtering : 0.3% IEEE
surge let-through : zero clamping response time :
meets UL 1449
Physical
Maximum height
6.20 inches (157 mm)
Maximum width
5.40 inches (137 mm)
Maximum depth
14.10 inches (358 mm)
Net weight
29.00 lbs. ( 13.18 kg)
Shipping Weight
32.00 lbs. ( 14.55 kg)
Shipping Height
11.00 inches (279 mm)
Shipping Width
10.75 inches (273 mm)
Shipping Depth
19.50 inches (495 mm)
Color
Beige
Environmental
Operating Environment
0 - 40 °C (32 - 104 °F)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000 feet (0-3000 meters)
Storage Temperature
-15 - 45 °C (5 - 113 °F)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000 feet (0-15000 meters)
Online thermal dissipation
85 BTU/hr
Protection Class
--
Conformance
Approvals
CSA,FCC Part 15 Class A,UL 1778
Standard warranty
2 years repair or replace,optional on-site
warranties available,optional extended warranties
available
