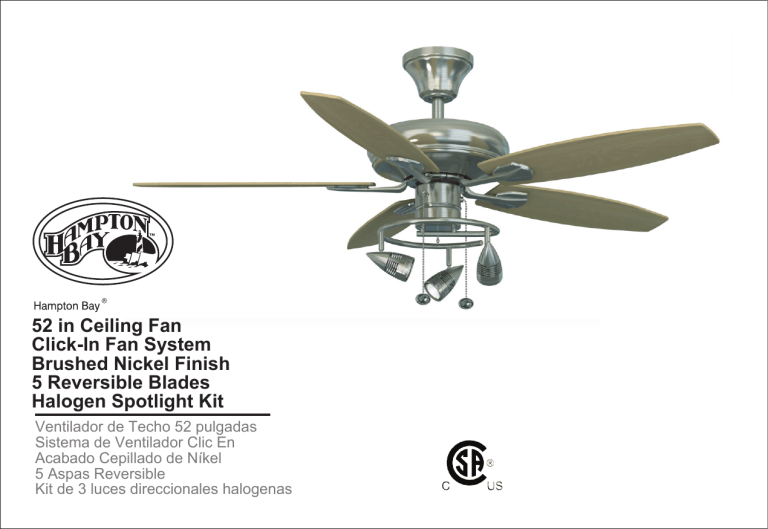

52 in Ceiling Fan

Click-In Fan System

Brushed Nickel Finish

5 Reversible Blades

Halogen Spotlight Kit

Ventilador de Techo 52 pulgadas

Sistema de Ventilador Clic En

Acabado Cepillado de Níkel

5 Aspas Reversible

Kit de 3 luces direccionales halogenas

Hampton Bay Lifetime Limited Warranty

The retailer warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a lifetime after the date of purchase by the original purchaser. The retailer also warrants that all other fan parts, excluding any glass or plexiglass blades, to be free from defects in workmanship and material at the time of shipment from the factory for a period of one year after the date of purchase by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the product is returned to the retailer. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by affixing any accessories, is not covered by this warranty. Because of varying climatic conditions in the United States this warranty does not cover any changes in brass finish, including rusting, pitting, corroding, tarnishing or peeling. Brass finishes of this type give their longest useful life when protected from varying weather conditions. A certain amount of wobble is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render the warranty invalid. There is no other express warranty. The retailer hereby

disclaims any and all warranties, including but not limited to those of merchantability and fitness for a particular purpose to the extent permitted

by law. The duration of any implied warranty which cannot be disclaimed is limited to the time period as specified in the express warranty. Some states do not allow limitation on how long an implied warranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental,

consequential, or special damages arising out of or in connection with product use or performance except as may otherwise be accorded by law.

Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specific legal rights, and you may also have other rights which vary from state to state. This warranty supersedes all prior warranties.

Date purchased

Store Purchased

CSA Model No.

Serial No.

Vendor No.

UPC

Lifetime Limited Warranty

Safety Rules

Unpacking Your Fan

Installation Preparation

Power Plug Preparation and Fan Assembly

Power Plug Wiring And Installation

Power Plug Alternate Wiring Option (2 wall switches)

Power Plug Alternate Wiring Option (Add remote control)

Fan Installation

To Remove The Fan

Attaching The Fan Blades

Installing The Light Kit

Prepare Fan Without Downrod

Prepare Fan (Using Longer Downrod)

Installation Information

Troubleshooting And Care Of Your Fan

Specifications

Section

1

2

3

4

5A

10

11

12

13

14

7

8

9

5B

5C

6

1. WARNING: To reduce the risk of electric shock, ensure electricity has

been turned off at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical Code and

local electrical codes. Electrical installation should be performed by a

qualified licensed electrician.

3. WARNING: To reduce the risk of electrical shock and fire, do not use this

fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of personal injury, use only the two steel

screws (and flat washers) provided with the outlet box for mounting to the

outlet box. Most outlet boxes commonly used for the support of lighting

fixtures are not acceptable for fan support and may need to be replaced,

consult a qualified electrician if in doubt.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,

MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT.

7. Do not operate reversing switch while fan blades are in motion. Fan must

be turned off and blades stopped before reversing blade direction.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan and other items, be cautious

when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan blades. A dry

dust cloth or lightly dampened cloth will be suitable for most cleaning.

11. After making electrical connections, spliced conductors should be turned

upward and pushed carefully up into outlet box. The wires should be

spread apart with the grounded conductor and the equipment-grounding

conductor on one side of the outlet box.

12. Electrical diagrams are reference only. Light kits that are not packed with

the fan must be UL Listed and marked suitable for use with the model fan

you are installing. Switches must be UL General Use Switches. Refer to

the Instructions packaged with the light kits and switches for proper

assembly.

5. The outlet box and support structure must be securely mounted and capable

of reliably supporting a minimum of 35 pounds. Use only UL Listed outlet

boxes marked FOR FAN SUPPORT.

6. The fan must be mounted with a minimum of 7 feet clearance from the

trailing edge of the blades to the floor.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE

BLADE BRACKETS DURING ASSEMBLY OR AFTER INSTALLATION.

DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

NOTE:

READ AND SAVE ALL INSTRUCTIONS!

1. Safely Rules

2

1

3

5

6 a b c

4 d

Unpack your fan and check the contents. You should have the following items:

1. Power plug receptacle

2. Canopy assembly

3. Canopy ring

4. Fan motor assembly

5. Set of blades

6. Light kit

6

6. Loose parts bag containing:

a. 8/32 screw – 15.3 mm long (2 screws)

b. Flat washers (4)

c. Blade screws (5)

Blade balancing kit (1)

Carefully open the packaging. Remove motor assembly and place on carpet or

Styrofoam to avoid damage to finish. [NOTE: Do NOT remove motor assemby from packaging by grasping the blade arms as this may cause blade arms to bend. Grasp the motor assembly in order to remove it from the packaging.]

Do not discard fan carton or Styrofoam inserts should this fan need to be returned for repairs.

2. Unpacking Your Fan

VIEW INSTRUCTIONAL VIDEO ON DVD OR www.safetyquicklight.com

Tools Required

Phillips screwdriver, straightslot screwdriver, adjustable wrench, pliers, wire strippers, step ladder, and wire cutters.

Mounting Options

If there isn't an existing UL listed mounting box, then read the following instructions.

Disconnect the power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 50 lbs).

Do not use plastic outlet boxes.

Figure B1, B2, B3 and B4 are examples of different ways to mount the outlet box.

Figure B2- Ceiling angle is not to exceed

11 degree angle.

Fig.B1

Fig.B3

3. Installation Preparation

For Technical Support, Please Call 1-866-885-4649

Monday - Friday 8 am - 6 pm EST.

Fig.B2

Note: You may need a longer downrod to maintain properblade clearance when installing on a steep, sloped ceiling.

Fig.B4

To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 4

(available at your Hampton Bay Retailer).

Separate powerplug receptacle from canopy

Partially loosen the 2 screws on each side of canopy. Push canopy pin up, twist Powerplug receptacle counterclockwise and lift to remove

Powerplug from canopy.

Note: Keep canopy pin pressed up when removing power plug.

Fig.C1

Powerplug receptacle screw slots

Assemble the downrod to the motor housing

If you want to change the downrod—(1) add a longer downrod or (2) eliminate the downrod. See Section 10 and 11 for Assembly steps.

Fig.C2

slotted opening quick connector pin canopy ring clip motor collar canopy pin canopy

Important: Note the position of Powerplug bracket when removing it from canopy. When installing fan, the bracket screw slots should be in the same 90 degree position when attaching canopy/ fan to the ceiling.

Assemble the canopy and downrod to the Fan housing-- First, place the canopy ring through the downrod. Make sure slotted opening on ring is facing up towards ceiling. Connect the quick connector from downrod to quick connector from motor housing. Slide downrod into motor collar, place pin through downrod and secure it with clip.

Tighten screws.

4. Power Plug Preparation and Fan Assembly

Fig.D1-1 outlet box

Fig.D1-2

(CLOSE-UP VIEW of TERMINALS on Powerplug) red wire,

if present

green/bare wire

re d

L2

G gro und

Fig.D1-3 black wire white wire

W

(green/

bare) wire

L1

G

Turn off circuit breakers to current fixture at breaker panel and be sure operating light switch is turned to the OFF position.

WARNING: Failure to disconnect power supply prior to installation may result in serious injury.

Prepare wiring from outlet box. Be sure there are no deep cuts in the exposed copper wiring as it could break off in the terminals. Cut and strip 1/2 in. of insulation from end of each wire if neccessary.

[NOTE: Do NOT strip any more than 1/2 in. of insulation from end of wires as this could cause a short at any time.] Use 14 Awg solid copper wiring.

IMPORTANT: Wiring must not come down and around the face of the Powerplug.

Powerplug

k bl ac

L1

L1

W te whi

flat washers spring washers black wire white wire

Electrical wiring (refer to diagram as necessary) can be made as follows: Connect BLACK wire from ceiling to terminal in Powerplug marked L1.

Connect WHITE wire from ceiling to terminal in

Powerplug marked W.

Connect GREEN/BARE wire from ceiling to terminal in Powerplug marked G.

*If there is another live wire (ex., RED) from ceiling, connect that wire to the L2 terminal in Powerplug and refer to alternate wiring options.

NOTE: Be sure to push each wire from ceiling all the

way into corresponding terminal on Powerplug. If wire is not inserted completely, there is a possibility that the electrical connection will fail.

Install Powerplug to outlet box using screws, and flat washers. Push electrical wiring gently into outlet box.

Note: To remove wire from powerplug terminal, turn and pull wire counterclockwise direction (about 3 rotations).

5A. Power Plug Wiring And Installation

Note: To operate fan and light on 2 separate switches, follow wiring instructions for Powerplug Receptacle in Section 5A. Refer to Fig. D1-2 and ensure

1 Live wire (Black) is inserted into L1 and the 2nd Live wire (Red) is inserted into L2 terminal on the receptacle. Follow instructions below for making

powerplug wiring adjustments on fan bracket.

Fig. D2-1 Fig. D2-2 Fig. D2-3

Remove black wire from plug (L1) terminal black wire blue wire

Loosen/ remove screw – insert the LIVE BLUE WIRE from the fan into L2. Tighten screw.

powerplug

Detach the black wire from the powerplug as shown.

Using a philips head screw driver, loosen and remove the wire and the screw. Do not lose the screw.

Remove the wire nut which is securing the blue and black wire together and separate the black and the blue lead. Discard the black pigtail lead.

Loosen/ remove screw – insert the LIVE BLACK WIRE from the fan into L1. Tighten screw.

Insert the blue wire into the L2 and insert the black wire into the L1. Make sure the wiring is securely tucked below the bracket and is not in the way of the power plug when installing the fan. Once wire is inserted into terminal, tighten screw. Make sure there are no loose strands and only jacketed cord is exposed.

5B. Power Plug Alternate Wiring (2 Wall Switches)

Install remote control into fan bracket

Note: Follow Receptacle powerplug wiring instructions in Section 5A. Follow instructions below for making powerplug adjustments on fan bracket.

Fig. D3-1 Fig. D3-2 blue wire powerplug

Remove black wire from plug (L1) terminal ground wire white wire

Fig. D3-3 white wire black wire wire nut black wire white wire remote control blue wire black wire blue wire

Connect wires black pigtail wire

Detach the fan wiring from the plug. Remove the black wire from the L1 connector. Remove the white wire from the W connector. Remove the ground wire from the G connector. Using a small phillips head screwdriver, loosen and remove the screw (put the screw aside). Pull all of the wires out of the powerplug.

Remove the wire nut that is securing the blue and black wire together and separate the black and blue leads so that you have 4 separate wires from the fan--white, black, blue and ground. Discard the black pigtail lead.

(connect to plug)

Connect the black wire from remote control receiver to the black wire from the fan housing. Connect the blue wire from the fan to the blue wire of the remote receiver and connect the white wire from the fan to the white wire of the remote receiver. Secure the wires using wire connectors as shown.

5C. Powerplug Alternate Wiring (Add Remote Control)

Fig. D3-5

Fig. D3-4 Fig. D3-6

Insert AC IN Live wire (black or red) into L1–Tighten screw.

screw push button pin fan bracket insert remote here canopy pin screw

AC In wire remote control

Insert green colored ground wire into G terminal – Tighten screw

Insert AC IN N into W – Tighten screw

Remove detachable pin and the 4 screws from the canopy (keep the 4 screws). Lift up the fan bracket and slide the remote control body into the center of the fan bracket.

Place the remote control body in the fan bracket and tuck the 3 connected fan/ remote wires under the bracket too. Re-install the canopy pin and the 4 screws.

(IMPORTANT: Do not fully tighten these screws by 2 rotations). The 2 AC In wires of the remote receiver will be connected to the power plug. (See D3-6)

Make wire connection to powerplug - wire strip length=3/16”. Only jacketed cord should be visible- no

exposed wire strands. Tighten screw. Make sure wires are secured and tucked out of the way of the powerplug.

5C. Remote Control Installation Continued

Please read the following information carefully and refer to the diagram as they contain extremely important information about the installation of the canopy to the Powerplug that you will need to know prior to actually attaching the canopy to the Powerplug.

Fig. E1

Important: When lifting the fan up to ceiling make sure fan canopy is aligned properly with powerplug bracket.

Fig. E2

Powerplug

screw slots

Powerplug locking pin locking pin terminal

canopy screws

canopy pin canopy pin canopy canopy

Pushing up on the canopy pin will allow the locking pin to slide into the locking pin terminal. Releasing the canopy pin will secure the locking pin in the locking pin terminal.

6. Fan Installation

The canopy screws/ fan bracket must be in a 90 degree or “X” formation with screw slots on receptacle.

Once the fan assembly is aligned properly with the Powerplug, push the canopy pin up, lift fan assembly into place and twist canopy to the right, moving the canopy screws into slots on Powerplug. Release the canopy pin.

Fig. E3 canopy pin

Securely tighten all 4 canopy screws with a Phillips screwdriver and secure canopy ring in place.

Fig. E4

Line up here

Screw

Keep pin pushed up canopy ring

WARNING: Be sure the canopy is fully twisted to the RIGHT and that the canopy screws are in the correct position.

Secure the canopy ring into place–Line up the canopy pin with the “L” shaped opening on the ring. Turn ring to the right, let the canopy pin seat into the “L” shaped slot. Push the canopy ring up into place up towards the ceiling. Make sure ring does not interfere with canopy pin.

Note: Make sure the downrod hanger ball is seated into fan canopy bracket allowing the ball to move freely.

6. Fan Installation Continued

Fig. F1 canopy ring

Fig. F2 screw

First, drop down the ring on one side and then slide the canopy ring down the canopy.

Loosen all screws (2 rotations) – do not fully remove screws. Turn the canopy to the left.

Fig. F3 canopy pin canopy

Hold the canopy and push up on the canopy pin to remove the fan. Be careful NOT to let go of fan.

7. To Remove The Fan

WARNING:

ONCE THE CANOPY PIN IS PRESSED UP, THE

FAN WILL BE RELEASED AND CAN FALL FROM

THE CEILING. HOLD THE FAN SECURELY

WHILE PRESSING THE CANOPY PIN.

Fig. G1 Fig. G2

Mounting arm

Blade

Blade screw

WARNING:

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

HOLDERS WHILE INSTALLING,

BALANCING THE BLADES, OR

CLEANING THE FAN. DO NOT

INSERT FOREIGN OBJECTS

BETWEEN ROTATING FAN BLADES.

Attach the fan blade to the mounting arm-- lining it up with the pegs on the mounting arm.

Securely tighten the blade to the mounting arm using the blade screw.

Fig. G3

1. Check that all blades and blade bracket screws are secure. If all blade levels are not

equal, you can adjust the blade level with the following procedure. The following

procedure should correct most fan wobble. Check after each step.

2. Most fan wobble problems are caused when blade levels are unequal. Check this level

by selecting a point on the ceiling above the tip of one of the blades. Measure this

distance as shown in Fig. G3. Rotate the fan until the next blade is positioned for

measurement. Repeat for each blade. The distance should be equal within 1/8".

3. If the blade wobble is still noticeable, interchanging two adjacent (side by side)blades

can redistribute the weight and possibly result in smoother operation.

4. Make sure the downrod hanger ball is seated into the notch on fan bracket allowing

the ball move freely in the canopy.

5. If slight wobble still noticeable, use the balancing kit following enclosed instructions

provided with kit.

8. Attaching The Fan Blades

Fig. H2

Fig. H1 plug powerplug receptacle

Switch housing cover

Remove the switch housing cover plate by pulling down on cover, no tools needed.

This will expose the powerplug receptacle for the light kit.

Fig.H3

Fig. H4

Line up the Light Kit plug with the powerplug Receptacle in fan housing.

NOTE: If light kit does not illuminate, repeat steps shown in Figures H3 and H4.

Ensure push button is pressed while inserting plug into powerplug receptacle.

Hold fan in place when connecting light kit push in

Keep the push button pressed while inserting plug into the receptacle.

Let go of the button- place one hand on light kit and one hand on fan while pushing up. Push upwards on the canopy of the light kit to the fan. Listen for the click.

9. Installing The Light Kit

Fig. J1 screw screw canopy pin canopy pin clip downrod pin

Remove canopy pin from side of canopy. Remove the 4 screws from side of canopy and fully remove fan bracket, hanger ball and downrod from canopy. (Keep the 4 canopy screws)

Fig. J3 hanger ball

Fig. J4 ground lead screw

Fig.

J

6 ground lead black wire quick connector bracket

Fig. J2 fan bracket hanger ball downrod canopy

Remove the hanger ball and downrod from the bracket allowing the wires to pass through the downrod.

Fig. J5 screw canopy ring notch opening

Bottom cover

Remove the bottom cover from the canopy. Cover pulls off.

Attach the canopy to the fan housing – First place the canopy ring on the canopy. Make sure the notched opening in canopy ring is facing up towards ceiling. Secure the canopy to the motor housing using 3 screws as shown.

Fig.

J

7 blue wire canopy pin

Connect the quick connector from the bracket to quick connector from motor housing.

10. Prepare Fan Without Downrod

Proceed to Section 6 -

INSTALL THE FAN

Fig. K1 screw screw

Fig. K2 fan bracket hanger ball

Fig. K3 Fig. K4 canopy pin ground lead downrod clip canopy pin downrod longer downrod black wire blue wire pin canopy downrod

Remove canopy pin from side of canopy. Remove the

4 screws from side of canopy and fully remove fan bracket, hanger ball and downrod from canopy.(Keep downrod.

Remove the hanger ball and downrod from through the downrod.

Detach the hanger ball and ground lead from the downrod and install the ground lead on the new longer downrod.

wire extension quick connector

Connect the fan bracket wires to a wire extender kit -- Attach the wires from the Fan Bracket and plug to one end of with black blue wire with blue wire.

Fig . K5 Fig. K6 Fig. K7 Fig. K8 notch opening canopy pin black wire quick connector canopy ring blue wire pin clip downrod wires

Insert the connected wires into the downrod and attach the hanger ball onto the downrod. Place the longer

Place the canopy up through the downrod and hanger ball positioning canopy up towards the fan bracket. Re-attach the fan bracket back onto the canopy using the 4 screws (that you removed in

Assemble and Attach the downrod with canopy to the Fan housing – First, place the canopy ring through the downrod and up to the canopy. Make sure the notched opening

Slide downrod into motor collar, secure it with clip. Tighten screws.

onto the fan bracket in place. The wires should be long enough to pass through the bottom.

fan bracket. Make sure the 4 screws are reinstalled not be fully tightened. Re-attach the canopy pin.

Attach the quick connector from downrod to quick connector from motor housing.

Proceed to Section 6 -

INSTALL THE FAN

For Questions, contact 866-885-4649 M-F, 8 am - 6 pm EST

11. Prepare Fan (Using Longer Downrod)

WIRING DIAGRAMS

(L 1)

W

BLACK (Live)

WHITE

(L 2)

G -g ro u n d

(L 1)

W

WHITE

GROUND

BLACK (Live 1)

(L 2)

G -g ro u n d

WHITE

GROUND

RED (Live 2)

BLACK

(L 1) W

WIRE NUT

G -g ro u n d

WHITE

WHITE

(L 2)

GROUND

WHEN MULTIPLE WIRES ARE CONNECTED TOGETHER, USE A SOLID

WIRE -14 AWG JUMPER LEAD TO INSERT INTO THE RECEPTACLE TERMINAL

TROUBLESHOOTING POINTS:

1. NOT GETTING ELECTRICAL CONNECTION

First, make sure the electrical connections to the powerplug receptacle are correct and your house supply wires are fully inserted into contact terminals.

Firmly push in wires - you can pull on the wire to make sure the wire is correctly installed.

Red wire

(If present)

L 2

L 1

If your ceiling fan is not working or you do not hear the click, the powerplug on the fan bracket may not be fully

Black wire

inserted and locked into place with the receptacle and may not be making the electrical connection.

The lower set of ball bearings on the plug must be locked in place in order to get the electrical connection.

Ground wire

G

W

White wire

2. REMOVE WIRE FROM POWERPLUG RECEPTACLE TERMINALS

The wire will come right out of the terminal if you rotate

(turn) the wire towards you approx. 3 – 5 rotations. The wire can hold greater than a 20 lb. pull, so the wire will not release from the terminal using a direct pull. The wire must be rotated in order to release.

IMPORTANT SAFETY INFORMATION:

CAUTION: Before beginning installation, disconnect power by turning off the circuit breaker or by removing the fuse at the fuse box.

NOTE: Please consult a qualified electrician if you are not certain of installation.

1. Caution: Make certain that your pre-existing outlet box is compliant with national and local codes. If you are not sure contact a qualified electrician.

2. The powerplug receptacle requires installation to the branch circuit (solid 14 AWG wire) and should be installed by a qualified person or electrician.

3. A UL Listed cover plate is available to cover up the receptacle when the ceiling fan is not installed.

4. The ceiling fan may be unplugged and removed for maintenance, cleaning, etc.

5. Fast Attach Device Specifications: Suitable for luminaires (50 lbs) and ceiling fans (35 lbs). Certified and tested with a 200 lb. load. Suitable for Indoor/Outdoor use.

Rated for 120V, 5A.

12. Installation Information

Troubleshooting And Care Of Your Fan

IMPORTANT: make sure the power is off at the electrical panel box before you attempt any repairs.

Problem

Fan will not start:

Fan sounds noisy:

Solution

1. Check circuit breakers or fuses.

2. Check line wire connections to the fan and switch wire connections in the switch housing.

CAUTION: Make sure main power is off.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade bracket to the motor hub are tight.

3. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing.

CAUTION: Make sure main power is off.

4. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan will disappear during this time.

5. If using an optional light kit, make sure the screws securing the glassware are tight. Check that light bulbs

are also secure.

6. Do not connect the fan with wall mounted variable speed control(s).

Here are some suggestions to help you maintain your fan:

1. Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments

twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.)

2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the

finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor,

blades, or possibly cause an electrical shock.

3. You can apply a light coat of furniture polish to the wood blades for additional protection and enhanced beauty. Cover small scratches with a light

application of shoe polish.

4. There is no need to oil your fan. The motor has permanently lubricated bearings.

13. Troubleshooting And Care Of Your Fan

52

Low

Med

High

120

120

120

0.23

0.39

0.52

12

33

62

68

120

170

1800

3500

5055

9 kgs 9.6 kgs

1.67

Customer Service Questions: 1-866-885-4649 - M-F 8:00 am - 6:00 pm EST

14. Specifications

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
