435 deep water
435 DEEP WATER

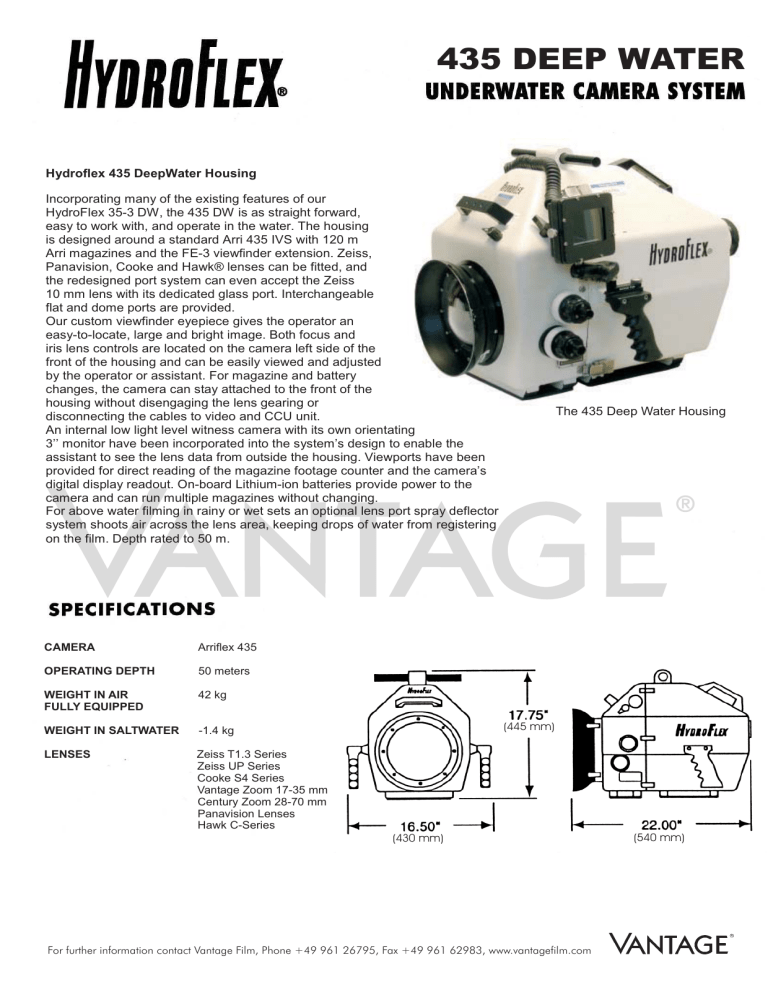

Hydroflex 435 DeepWater Housing
Incorporating many of the existing features of our
HydroFlex 35-3 DW, the 435 DW is as straight forward,
easy to work with, and operate in the water. The housing
is designed around a standard Arri 435 IVS with 120 m
Arri magazines and the FE-3 viewfinder extension. Zeiss,
Panavision, Cooke and Hawk® lenses can be fitted, and
the redesigned port system can even accept the Zeiss
10 mm lens with its dedicated glass port. Interchangeable
flat and dome ports are provided.
Our custom viewfinder eyepiece gives the operator an
easy-to-locate, large and bright image. Both focus and
iris lens controls are located on the camera left side of the
front of the housing and can be easily viewed and adjusted
by the operator or assistant. For magazine and battery
changes, the camera can stay attached to the front of the
housing without disengaging the lens gearing or
disconnecting the cables to video and CCU unit.
An internal low light level witness camera with its own orientating
3’’ monitor have been incorporated into the system’s design to enable the
assistant to see the lens data from outside the housing. Viewports have been
provided for direct reading of the magazine footage counter and the camera’s
digital display readout. On-board Lithium-ion batteries provide power to the
camera and can run multiple magazines without changing.
For above water filming in rainy or wet sets an optional lens port spray deflector
system shoots air across the lens area, keeping drops of water from registering
on the film. Depth rated to 50 m.
CAMERA
Arriflex 435
OPERATING DEPTH
50 meters
WEIGHT IN AIR
FULLY EQUIPPED
42 kg
WEIGHT IN SALTWATER
-1.4 kg
LENSES
Zeiss T1.3 Series
Zeiss UP Series
Cooke S4 Series
Vantage Zoom 17-35 mm
Century Zoom 28-70 mm
Panavision Lenses
Hawk C-Series
The 435 Deep Water Housing
(445 mm)
(430 mm)
For further information contact Vantage Film, Phone +49 961 26795, Fax +49 961 62983, www.vantagefilm.com
(540 mm)
435 AQUACAM
435 AquaCam
The 435 RAC (RemoteAquaCam) was engineered
primarily for use with our remote 2-axis Hydrohead on
a crane for at sea or wet stage work. Field testing
has also proven the 435 RAC to be useful for handheld
filming under the water or floating on the surface because
of its aquadynamic shape. Moreover the 435 RAC is
ideal to shoot on cramped underwater sets, e.g.
submerged cars.
Designed around a standard Arriflex 435, custom SL
Cine 120 m magazines and Preston remote focus
and iris controls, this low profile camera system can
be easily fitted with Cooke, Zeiss, Hawk® or Panavision
spherical and anamorphic lenses. Small Vantage and
Century lightweight zoom lenses can also be used. Both
flat and dome ports are available as well as a variety of
port extension rings to accommodate the different
lenses. Water drops are cleared from the front port
by air-powered rain deflector.
The 435 AquaCam Housing
Utilizing the Arriflex IVS (Internal Video System), the 435 RemoteAquaCam provides 100% video
from remote viewing. In the hand-held mode a 6’’ underwater color monitor allows the operator to
set the frame while the camera assistant rolls camera, and pulls focus, iris and zoom from above
water from as far as 30 m away. The optional Preston Marine Fl&Z hand unit gives the camera
assistant start/stop, focus and iris control underwater. All RCU functions can be controlled using a
custom cable to surface. Depth rated to 30 m.
CAMERA
Arriflex 435
OPERATING DEPTH
30 meters
WEIGHT IN AIR
FULLY EQUIPPED
35 kg (handheld version)
33 kg (remote version)
WEIGHT IN SALTWATER
1.2 kg (handheld version, w/ weight)
-1.3 kg (remote version)
LENSES
Zeiss T1.3 Series
Zeiss UP Series
Cooke S4 Series
Vantage Zoom 17-35 mm
Century Zoom 28-70 mm
Panavision Lenses
Hawk C-Series
The Preston Marine Fl&Z hand unit
For further information contact Vantage Film, Phone +49 961 26795, Fax +49 961 62983, www.vantagefilm.com
Hydroflex 35-3 Deep Water Housing
The HydroFlex, 35-3 Deep Water Housing was developed
as a reflex 35 mm high speed underwater camera system.
The housing was designed to fit a stock Arri 35-3 camera
with a custom video tap and Zeiss, Panavision or Hawk®
C-Series lenses. Various spherical and anamorphic lenses
can be utilized in conjunction with interchangeable dome or
flat ports to provide the cinematographer with a full range of
options underwater, on the surface, or on a wet set. External
controls are provided for iris, focus and video power.
Internally mounted lights can be switched on to read
f-stop, focus and footage counters.
Multiple 3/8-16 holes top and bottom facilitate a number
of mounting configurations, and our mounting accessories
allow easy rigging to jib arms, dollys and cranes.
Additional features such as remote camera run, and an
underwater monitor further enhance the versatility
of this system. When the video tap is used in conjunction
with an underwater speaker system, a director can view a
thru-the-lens image plus maintain communication with a
crew below. For above water filming in rainy or wet sets an
optional lens port spray deflector system shoots air across
the lens area, keeping drops of water from registering on the film.
Depth rated to 50 m.
The Hydroflex 35-3 Deep Water Housing
CAMERA
Arriflex 35-3
OPERATING DEPTH
50 meters
WEIGHT IN AIR
FULLY EQUIPPED
38.5 kg
WEIGHT IN SALTWATER
1.4 kg
LENSES
Zeiss T1.3 Series
Zeiss T2.1 Series
Zeiss UP Series
Cooke S4 Series
Panavision Lenses
Hawk C-Series
For further information contact Vantage Film, Phone +49 961 26795, Fax +49 961 62983, www.vantagefilm.com
Shallow Water
Designed primarily for use above water in wet environments,
the HydroFlex 35-3 Shallow Water Housing has become a
popular housing. Constructed of fibreglass and aluminium,
the housing fits a standard Arriflex 35-3 camera with 120 m
magazine and Zeiss or Panavision lenses. An exterior
aluminium frame is an integral part of this housing, and it
provides many options for mounting from the top and bottom.
When fitted with its custom lead pack for underwater use, the
HydroFlex Shallow Water Housing is well balanced and easy
to maneuver, making it the perfect swimming pool housing,
as it can also be used underwater to a depth of 6 m. For above
water filming in rainy or wet sets, an optional lens port spray
deflector system shoots air across the lens area, keeping
drops of water from registering on the film. The 35-3
Shallow Water Housing accepts Zeiss PL T1.3 & 2.1
series and most Panavision spherical and anamorphic
lenses. Video assist, remote run capabilities and waterproof
monitor help round out this versatile housing.
Depth rated to 6 m.
The Hydroflex 35-3 Shallow Water Housing
CAMERA
Arriflex 35-3
OPERATING DEPTH
6 meters
WEIGHT IN AIR
FULLY EQUIPPED
23.5 kg
WEIGHT IN SALTWATER
0.9 kg (w/ weights)
LENSES
Zeiss T1.3 Series
Zeiss T2.1 Series
Panavision Lenses
For further information contact Vantage Film, Phone +49 961 26795, Fax +49 961 62983, www.vantagefilm.com
416/SR3 AQUACAM
Underwater Camera System
416/16SR3 AquaCam
Incorporating many existing features of our Hydroflex 35mm
housings, the 416/16SR3 AquaCam is the state-of-the-art
16mm underwater housing. Field testing has proven the
AquaCam to be ideal for handheld filming under the water
or floating on the surface. Moreover this underwater housing
is useful to shoot on cramped underwater sets, e.g. submerged cars. It is also prepared to be operated along with the
2-axis Hydro Head.
Designed around a standard Arriflex 416/16SR3 and
Preston remote focus and iris controls, this low profile camera system can be easily fitted with Zeiss or Cooke lenses.
Canon zoom lenses can also be used. Both flat and dome
ports are available as well as a variety of port extension
rings to accommodate the different lenses. Water drops are
cleared from the front port by air-powered rain deflector.
The 16SR3 AquaCam Housing
Utilizing a specially designed Eyepiece Video system, the 416/16SR3 AquaCam provides 100% video from remote viewing. In the hand-held mode a 6‘‘ underwater monitor allows the operator to set the frame while the camera
assistant rolls camera, and pulls focus, iris and zoom from above water from as far as 30 meter away. The optional
Preston Marine Fl&Z hand unit gives the camera assistant start/stop , focus and iris control underwater. All RCU functions can be controlled using a custom cable to surface. Depth rated to 30 meters.
SPECIFICATIONS
CAMERA
Arriflex 416
Arriflex 16SR3
OPERATING DEPTH
30 meters
WEIGHT IN AIR FULLY EQUIPPED
40 kg (handheld version)
29 kg (remote version)
WEIGHT IN SALTWATER
1.5 kg (handheld version, w/weight)
LENSES
Zeiss T1.3 Series
Zeiss UP Series
Cooke S4 Series
Canon Zoom Lenses
The Preston Marine FI&Z hand unit
For further information contact Vantage Film, Phone +49 961 26795, Fax +49 961 62983, www.vantagefilm.com
Red one DEEP WATER
Underwater Camera System
The housing was designed to fit a stock RED ONE camera
and Zeiss, Cooke or Hawk® lenses. Various spherical
and anamorphic lenses can be utilized in conjunction
with interchangeable dome or flat ports to provide the
cinematographer with a full range of options underwater, on
the surface, or on a wet set. External controls are provided
for iris, focus and video power. Internally mounted lights can
be switched on to read f-stop, focus and footage counters.
Multiple 3/8-16 holes top and bottom facilitate a number
of mounting configurations, and our mounting accessories
allow easy rigging to jib arms, dollys and cranes.
Additional features such as remote camera run, and an
underwater monitor further enhance the versatility of
this system. When the video tap is used in conjunction
with an underwater speaker system, a director can
view a thru-the-lens image plus maintain communication
with a crew below. For above water filming in rainy or
wet sets an optional lens port spray deflector system shoots
air across the lens area, keeping drops of water from
registering on the film. Depth rated to 50 m.
SPECIFICATIONS
Camera
RED ONE
Operating Depth
50 meters
Weight in air
fully equipped
38.5 kg
Weight in saltwater 1.4 kg
Lenses
Zeiss T1.3 Series
Zeiss T2.1 Series
Zeiss UP Series
Cooke S4 Series
Hawk V-Lite
Hawk C-Series
If you’d like to run some tests with our Red one Deep Water
Camera System before your next important shoot, give us a call.
For further information contact Vantage Film, Phone +49 961 26795, Fax +49 961 62983, www.vantagefilm.com
