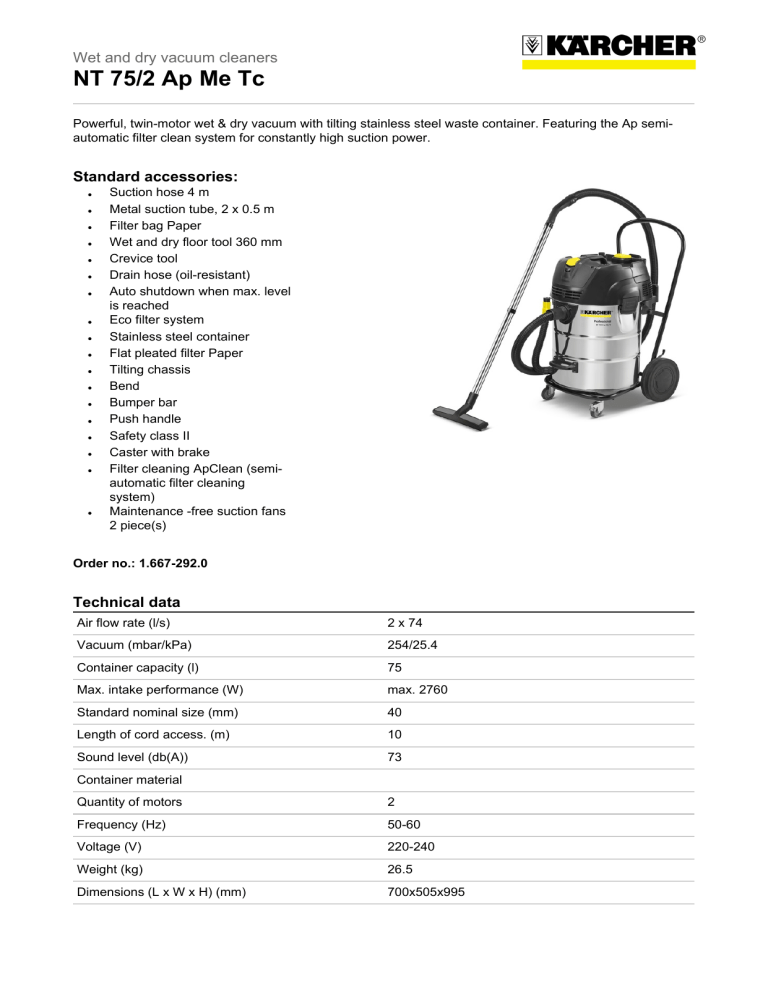

NT 75/2 Ap Me Tc
Wet and dry vacuum cleaners
NT 75/2 Ap Me Tc
Powerful, twin-motor wet & dry vacuum with tilting stainless steel waste container. Featuring the Ap semiautomatic filter clean system for constantly high suction power.
Standard accessories:
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Suction hose 4 m
Metal suction tube, 2 x 0.5 m
Filter bag Paper
Wet and dry floor tool 360 mm
Crevice tool
Drain hose (oil-resistant)
Auto shutdown when max. level
is reached
Eco filter system
Stainless steel container
Flat pleated filter Paper
Tilting chassis
Bend
Bumper bar
Push handle
Safety class II
Caster with brake
Filter cleaning ApClean (semiautomatic filter cleaning
system)
Maintenance -free suction fans
2 piece(s)
Order no.: 1.667-292.0
Technical data
Air flow rate (l/s)
2 x 74
Vacuum (mbar/kPa)
254/25.4
Container capacity (l)
75
Max. intake performance (W)
max. 2760
Standard nominal size (mm)
40
Length of cord access. (m)
10
Sound level (db(A))
73
Container material
Quantity of motors
2
Frequency (Hz)
50-60
Voltage (V)
220-240
Weight (kg)
26.5
Dimensions (L x W x H) (mm)
700x505x995
Details
Description
The NT 75/2 Ap Me Tc is a high-performance wet/dry vacuum cleaner with the ApClean system for
constantly high cleaning power and uninterrupted use. The robust 75-litre tank is ideal for large dirt
volumes and is easy to empty thanks to the tilting chassis. This vacuum cleaner has a compact turbine
casing with integrated filter cover for easy removal of the large flat pleated filter. Effective semi-automatic
ApClean filter cleaning provides constantly high cleaning power, uninterrupted use and long filter life. The
NT 75/2 Ap Me Tc also features electronic fill level monitoring, ensuring the maximum allowable fill
volume is not exceeded with wet vacuuming. Vacuumed liquids can be easily be emptied via an oilresistant drain hose. Accessories can be attached to the vacuum cleaner quickly and easily using the
practical clip system. The device has a hose storage compartment, an accessory compartment and a
large storage area (e. g. for tools). With 75 litre stainless steel container and tilting chassis for easy
emptying of dry dirt.
Features & Benefits
On-board practical storage
Large on-board storage area for tool and accessory storage.
Integrated drain hose
Easily accessible drain hose for convenient liquid disposal.
ApClean (semi-automatic filter cleaning system)
The free filter means that the user can work for long intervals without interruption.
Optimal suction power with high efficiency.
Hose and bend attachment
Convenient suction hose and bend attachment for easy transport and storage.
Accessories
Adapter (tube -> nozzle)
Adapter
From DN 40 to DN 61: Plastic adapter (electrically non-conductive). Suitable for
NT vacuum cleaners.
Order no. 5.453-019.0
Adapter for electric power tools, clip on, el.
Power tool adapter C 35, el.
3-way plastic adapter. For DN 26 to DN 36. For connecting power tools to an
industrial C or C-DN 35 suction hose. Suitable for NT vacuum cleaners.
Order no. 5.453-042.0
Adapter for electric power tools, C 35, el.
Inner Ø 25.4 mm, outer Ø 34.6 mm/ 38 mm, el. Only NT-vacuums.
Order no. 5.453-048.0
Connecting sleeve for electric tool C 35, el.
Inner Ø 28.6 mm, outer Ø 37.3 mm/ 38.8 mm, el. Only NT-vacuums.
Order no. 5.453-049.0
Adapter for electric power tools, C 35, el.
Inner Ø 27 mm, outer Ø 36.5 mm/ 38.8 mm, el. Only NT-vacuums.
Order no. 5.453-050.0
Connecting sleeve for electric tool C 35, el.
Inner Ø 32 mm, outer Ø 39 mm, el. Only NT-vacuums.
Order no. 5.453-051.0
Connecting sleeve for electric tools C 35, el.
Inner Ø 28 mm, outer Ø 34 mm/ 38.8 mm, el. Only NT-vacuums.
Order no. 5.453-052.0
Adapter for electric power tools, screwable
Power tool adapter, threaded, DN 35
3-way plastic adapter with fitting instructions. For DN 26 to DN 36. For connecting
to an industrial DN 35 suction hose.
Order no. 5.453-016.0
Adapter for electric power tools, screwable
Adapter for electric power tools, screwable, ID 35
Inner Ø 28.6 mm, outer Ø 37.3/38.8 mm.
Order no. 5.453-026.0
Power tool adapter, threaded, DN 35
Electrically conductive power tool adapter, threaded. Internal diameter: 32
mm.External diameter: 39 mm.
Order no. 6.902-059.0
Power tool adapter, threaded, DN 35
2-way power tool adapter, threaded. For connecting to an industrial DN 35 suction
hose. Internal diameter: 28 mm.External diameter: 34 mm and 38.8 mmSuitable
for NT vacuum cleaners.
Order no. 6.902-095.0
All-purpose brushes
All-purpose brush
Natural bristles (ox hair), bristle element 120 x 45 mm.
Order no. 6.903-863.0
All-purpose nozzles (wet/dry)
All-purpose nozzle (wet/dry)
All-purpose plastic nozzle (DN 40) with 360 mm working width. With side rollers,
brush strips (6.905-878.0) and squeegees (6.905-877.0). Only for NT vacuum
cleaners.
Order no. 6.906-554.0
All-purpose nozzle (wet/dry)
All-purpose aluminium nozzle with 370 mm working width. With height-adjustable
side rollers, brush strips (6.903-064.0) and oil-resistant squeegees (6.903-081.0).
Only for NT vacuum cleaners.
Order no. 6.903-018.0
All-purpose nozzle (wet/dry)
All-purpose aluminium nozzle (DN 40) with 450 mm working width. With heightadjustable side rollers, brush strips (6.903-065.0) and oil-resistant squeegees
(6.906-146.0). Only for NT vacuum cleaners.
Order no. 6.906-383.0
All-purpose nozzle (wet and dry), DN 35
All-purpose aluminium nozzle (DN 35) with 370 mm working width. With heightadjustable side rollers, brush strips (6.903-064.0) and oil-resistant squeegees
(6.903-081.0). Only for NT vacuum cleaners.
Order no. 6.906-384.0
All-purpose nozzle (wet/dry)
All-purpose plastic nozzle (DN 35) with 360 mm working width. With side rollers,
brush strips (6.905-878.0) and squeegees (6.905-877.0). Only for NT vacuum
cleaners.
All-purpose nozzles (wet/dry)
Order no. 6.906-513.0
Bend metal
Bend, DN 35, metal
Robust, chromium-plated metal bend (DN 35), can be used instead of a plastic
bend (with clip system adapter 5.407-112.0; C 35-DN 35, plastic, el.).
Order no. 6.900-519.0
Bend, DN 40, metal
Robust, chromium-plated metal bend (DN 40), can be used instead of a plastic
bend (with clip system adapter 5.407-111.0; C 40-DN 40, plastic, el.).
Order no. 6.900-276.0
Bend stainless
Bend, stainless steel ID 35
Stainless steel and crooked, ID 35
Order no. 6.903-141.0
Bend, stainless steel ID 40
Stainless steel and crooked, ID 40
Order no. 6.902-079.0
Car cleaning nozzles
Car vacuuming tool, DN 40
Angled, flat, plastic car vacuuming tool with about 90 mm working width. Only for
NT vacuum cleaners.
Order no. 6.900-952.0
Connecting sleeve C-DN (clip on taper), EL (electroconductive)
C-ID 35 adapter
Connects C 35 hose for ID 35, electrically conductive.
Order no. 5.407-112.0
C 40 adapter
Electrically conductive adapter (C 40) with DN 35 connection for connecting DN
35 accessories to an industrial C 40 or C-DN 40 suction hose. Suitable for NT
vacuum cleaners.
Order no. 5.407-109.0
C-DN 40 adapter
Connects C 40 hose for ID 40, electrically conductive.
Order no. 5.407-111.0
Connecting sleeves
Adapter, DN 32/35, with internal thread
Electrically non-conductive adapter with internal thread. For connecting two
suction hoses without connectors. Suitable for DN 32 or DN 35.
Order no. 6.902-077.0
Adapter, DN 40 with internal thread
Electrically non-conductive adapter with screw thread at both ends. For
connecting 2 DN 40 suction hoses without connectors.
Connecting sleeves
Order no. 6.900-286.0
Connecting sleeve, ID 61, with female thread
For connecting 2 suction hoses, thread on both sides
Order no. 6.902-078.0
Crevice nozzles
Crevice tool
Plastic crevice tool (DN 40) for vacuuming in crevices and corners. Length: 290
mm.
Order no. 6.903-033.0
Crevice tool
Plastic crevice tool (DN 35) for vacuuming in crevices and corners. Length: 210
mm.
Order no. 6.900-385.0
Crevice tool
Plastic crevice tool (DN 35) for vacuuming in crevices and corners. Length: 370
mm.
Order no. 6.900-922.0
Crevice tool
Metal crevice tool (DN 40) for vacuuming in crevices and corners. Length: 400
mm.
Order no. 6.905-817.0
Crevice tools
Grout nozzle, synthetic
Grout nozzle, plastic, 370 mm
Order no. 6.900-222.0
Grout nozzle, stainless steel
Grout nozzle, stainless steel, 400 mm
Order no. 6.900-926.0
Extension hoses (Clip-system)
Extension hose, C 40
2.5 m electrically non-conductive standard extension hose for all C-40 hoses with
clip system.
Order no. 6.906-344.0
Flat pleated filter (paper)
Flat pleated filter
Paper flat pleated filter (BIA-(U,S,G,C) dust class M) suitable for NT 65/2 Eco, NT
65/2 Eco Tc, NT 65/2 Eco Me.
Order no. 6.904-283.0
Flat pleated filter (PES)
Flat filters (PES)
Flat filter (PES) - BIA-(U,S,G,C) dust class M: rotproof polyester fleece, ideal for
wet use and abrasives. Standard for NT 72/2 Eco Tc.
Order no. 6.904-284.0
Floor nozzles
Floor nozzle cpl. 500 mm
Aluminium, oil-proof, 500 mm, with hight-adjustable rollers, strips (6.903-067.0)
and rubber lips (6.906-168.1)
Order no. 4.130-413.0
HEPA filter for dust class H
HEPA surface filter
HEPA surface filter - dust class H (H 14) - with glass-fibre layers increases filter
capacity when vacuuming health-endangering and carcinogenic dust.
Order no. 6.904-364.0
Membrane filter / fabric filter
Membrane filter/fabric filter
Polyester needle fleece membrane/fabric filter - BIA-C -, washable up to 40°C,
metal fibres for earthing. Suitable for virtually all industrial two-motor NT vacuum
cleaners.
Order no. 6.904-282.0
Miscellaneous
Extension cable
Extension cable, 20 m, 3x1.5 mm². With splash-proof earthing pin plug, strain
relief and anti-kink sleeve.
Order no. 6.647-022.0
Other accessories for T and NT
Pre-separator
Complete container (80 litre) and lid (ID 61). For coarse dirt and fluids (without
suction hose).
Order no. 3.864-010.0
Other accessories for T and NT
Barrel separator
Metal, from DN 61 to 61, only for liquids.
Order no. 3.864-012.0
Lid for separator
For 6.902-051.0/4.070-111.0 and NT 802 I tank.
Order no. 4.063-132.0
Adapter ring for 200 l drum
Ring adapter for EURO steel drum (200 l) with lid but in connection with additional
lid (separator) 4.063-132.0.
Order no. 6.902-051.0
Other nozzles
45º rubber suction nozzle
Angled 45°, for suction of machines, oil-resistant
Order no. 6.902-106.0
Metal scratcher and scraper nozzle
Scratcher and scraper tool DN 61, sheet metal, 117 mm
Order no. 6.903-360.0
Aluminium surface nozzle
Flat surface nozzle cpl. DN 51, 200 mm, aluminium with brush and stainless steel
bumper
Order no. 4.130-415.0
Paper filter (2 ply)
Paper filter bags
5 3-ply, tear-resistant paper filter bags. BIA-(U, S, G, C) dust class M. For all NT
48/1, NT 65/2 Eco + Me and NT 72/2 Eco Tc models.
Order no. 6.904-285.0
Pipe dusting nozzles
Pipe dusting nozzle, ID 35
Plastic, pipe diameter 100 mm
Order no. 6.903-035.0
Pipe dusting nozzle
Plastic, pipe diameter 200 mm
Order no. 6.903-036.0
Plastic bend
Plastic bend
Plastic bend (DN 40) with C-40 clip system, suitable for all NT models.
Order no. 5.031-904.0
Plastic bend
Plastic bend (DN 35) with C-35 clip system. For all industrial single-motor NT 361
to NT 611 Eco models (except NT Eco M and NT Eco H).
Order no. 5.031-718.0
Plastic bend
Electrically conductive plastic bend (DN 35) with C-35 clip system. For all
industrial single-motor NT 361 to NT 611 Eco models.
Order no. 5.031-939.0
Plastic bend
Electrically conductive plastic bend (DN 40) with C-40 clip system, suitable for all
NT vacuum cleaners.
Order no. 5.032-427.0
Plastic sacks for dust-free disposal
Plastic sacks for dust-free disposal
PE plastic sack.
Order no. 6.900-698.0
Radiator brushes
Radiator brush
Radiator brush is suitable for crevice tool 6.900-385.0 or 6.905-240.0.
Order no. 6.903-034.0
Reducer (tube -> nozzle)
Reducer
Reducer for accessory extension. Ideal for accessories with DN 35 connecting
cone in combination with accessories with DN 40 connecting cone.
Order no. 6.902-017.0
Reducer from ID 35 to 32
Reducer with internal connecting cone DN 32. Ideal for accessories from the
industrial vacuum cleaner range in combination with industrial NT vacuum
cleaners.
Order no. 6.902-072.0
Reducing sleeves
Reducer
Threaded reducer - from C-40 to DN 35. Suitable for NT vacuum cleaners.
Order no. 5.407-108.0
Reducer
Reducer (C 40 to C 35) for connecting accessories with C-35 clip connection to
suction hoses with C 40 clip system.
Order no. 5.407-113.0
Repair kits
Repair set, C 40
Repair set (C40) includes threaded hose adapters (without bayonet adapter) for
industrial NT vacuum cleaners with clip system.
Order no. 2.639-873.0
Repair kit ID 61
Suction hose repair kit. Optional for all NT 65/2 and 72/2, NT 993 I, NT 802 I.
Order no. 2.862-038.0
Rubber suction tools, nose 45°
Rubber suction tools, nose 45°
45° rubber suction nozzle (DN 35), oil-resistant and suitable for vacuuming
machines. Only for NT vacuum cleaners.
Order no. 6.902-104.0
Rubber suction tools, nose 45°
45° rubber suction nozzle (DN 40), oil-resistant and suitable for vacuuming
machines. Only for NT vacuum cleaners.
Order no. 6.902-105.0
Rubber tool
Rubber nozzle, ID 40
Rubber.
Order no. 4.763-057.0
Set reducing / extension sleeves
Set reducing / extension sleeves
ID 40/35, ID 35/32 (tube -> nozzle), plastic.
Order no. 2.860-117.0
Special filter bags, wet filter bags
Special filter bags, wet filter bags
Approved for dust class L, general cleaning, wet and dry, tear-resistant.
Order no. 6.904-252.0
Suction brushes
Suction brush
Rotatable suction brush (DN 35) with natural bristles (cow hair). Bristle size 70x45
mm. Only CV and NT vacuum cleaners.
Order no. 6.903-862.0
Suction hoses (Clip-system)
Suction hose
4 m suction hose with bayonet and C 40 clip connection. Without bend and
adapter.
Order no. 6.906-321.0
Suction hoses (Clip-system)
Suction hose (clip system), C 40, 10 m
10 m standard suction hose without bend and adapter. With bayonet at vacuum
end and C 40 clip connection at accessory end.
Order no. 6.906-279.0
Suction hose
With bayonet and clip connection.
Order no. 6.906-714.0
Suction hose
Electrically conductive, 4 m suction hose with bayonet and C 40 clip connection.
Without bend and adapter.
Order no. 6.906-546.0
Suction hose (Clip-system), C 40, 16 m
With bayonet and clip connection.
Order no. 6.906-635.0
Suction hose (clip system), C 40, 10 m, el.
Suction hose with bayonet coupling, electrically conductive.
Order no. 6.906-877.0
Suction hoses complete
Suction hose, complete
4 m standard suction hose with DN 61 bayonet at vacuum end and DN 61 cone at
accessory end.
Order no. 4.440-264.0
Suction hose complete, ID 61, smooth inside
Industrial hose, PVC/elastomer with steel spiral, smooth inside.
Order no. 4.440-328.0
Suction hose, complete, DN 61, 10 m
10 m standard suction hose with DN 61 bayonet at vacuum end and DN 61 cone
at accessory end.
Order no. 4.440-467.0
Suction hose complete, ID 61, 4 m, oil-resistant
Oil-resistant.
Order no. 4.440-613.0
Suction hoses complete
Suction hose, complete
Oil-resistant.
Order no. 4.440-614.0
Suction hose complete, ID 61, 4 m, el.
Electrically conductive.
Order no. 4.440-616.0
Suction hose, complete
Electrically non-conductive 4.0m standard suction hose with bayonett at vacuum
end and DN 40 cone at accessory end.
Order no. 4.440-263.0
Suction hose complete, ID 40, 4 m, oil-resistant,
Oil-resistant.
Order no. 4.440-303.0
Suction hose, complete
Electrically non-conductive 10.0m standard suction hose with bayonett at vacuum
end and DN 40 cone at accessory end.
Order no. 4.440-463.0
Suction hose complete
Electrically conductive, 10.0m, ID 40
Order no. 4.440-466.0
Suction hose complete, ID 40, 10 m, oil-resistant
Oil-resistant.
Order no. 4.440-612.0
Suction hoses complete (Clip-system)
Suction hose
4 m electrically non-conductive suction hose with bend, bayonet at vacuum end
and C 40 clip connection at accessory end. Without module.
Order no. 4.440-678.0
Suction hose, complete (clip system), C DN 40, 4 m
4 m electrically non-conductive suction hose with bend (C-DN 40) and module
(4.060-474.0), bayonet at vacuum end and C 35 clip connection at accessory
end.
Order no. 4.440-679.0
Suction hose complete (Clip-system), C ID 40, 4 m, el.
With bend and module (4.060-533.0), electrically conductive.
Order no. 4.440-728.0
Suction tubes metal
Suction tube
Chromium-plated metal suction tube (DN 40, 1x0.5 m), standard for virtually all
two-motor industrial vacuum cleaners. Optional for industrial single-motor NT
vacuum cleaners with DN 40 suction hose.
Order no. 6.900-275.0
Suction tube
Chromium-plated metal suction tube (DN 35, 1x0.5 m), standard for virtually all
single-motor industrial NT vacuum cleaners.
Order no. 6.900-514.0
Suction tubes stainless steel
Suction tube, ID 40
Stainless steel suction tube (DN 40, 0.5 m) only suitable for NT vacuum cleaners.
Order no. 6.902-081.0
Suction tube
Stainless steel suction tube (DN 40, 1.0 m) only suitable for NT vacuum cleaners.
Order no. 6.906-531.0
Suction tubes stainless steel
Suction tube, DN 35
Order no. 6.902-154.0
Target group specific vacuum cleaner accessory sets
Professional cleaning kit ID 40
Individual parts: Suction hose 4 m (4.440-263.0), bend, metal (6.900-276.0),
suction tube 2 x 0.5 m, metal (6.900-275.0), grout nozzle (6.903-033.0), floor
nozzle with rollers (6.903-051.0).
Order no. 2.637-353.0
Car cleaning kit
Contains: - Car cleaning nozzle ID 35 - Upholstery/crevice tool ID 35 - Suction
brush ID 35 - Connecting sleeve C 35/ ID 35
Order no. 2.862-166.0
Industrial kit ID 61
Individual parts: Suction hose 4 m (4.440-264.0), metal bend (6.902-011.0), metal
suction tubes 2 x 0.5 m (6.902-013.0), grout nozzle (6.900-926.0), aluminium flat
surface tool (4.130-415.0), metal floor tool (4.130-413.0).
Order no. 2.637-355.0
Chip cleaning kit
Individual parts: suction hose 4 m, oil-proof (4.440-613.0), crevice tool
(6.900-222.0), rubber suction nozzle angled at 45° (6.902-106.0).
Order no. 2.640-760.0
Y-adapter kit
Y-adapter kit
Plastic distributor - suitable for NT vacuum cleaners.
Order no. 2.637-217.0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
