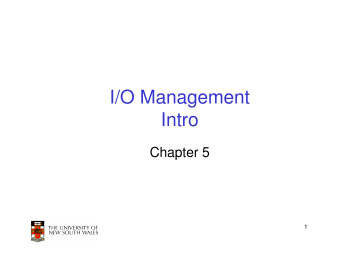

I/O Management Intro

I/O Management

Intro

Chapter 5

1

Learning Outcomes

• A high-level understanding of the properties of a variety of I/O devices.

• An understanding of methods of interacting with I/O devices.

• An appreciation of the trend towards offloading more I/O handling to devices themselves.

2

I/O Devices

• There exists a large variety of I/O devices:

– Many of them with different properties

– They seem to require different interfaces to manipulate and manage them

• We don’t want a new interface for every device

• Diverse, but similar interfaces leads to code duplication

• Challenge:

– Uniform and efficient approach to I/O

3

Categories of I/O Devices (by usage)

• Human interface

– Used to communicate with the user

– Printers, Video Display, Keyboard, Mouse

• Machine interface

– Used to communicate with electronic equipment

– Disk and tape drives, Sensors, Controllers, Actuators

• Communication

– Used to communicate with remote devices

– Ethernet, Modems, Wireless

4

I/O Device Handling

• Data rate

– May be differences of several orders of magnitude between the data transfer rates

– Example: Assume 1000 cycles/byte I/O

• Keyboard needs 10 KHz processor to keep up

• Gigabit Ethernet needs 100 GHz processor…..

5

6

Sample Data Rates

USB 3.0 625 MB/s (5 Gb/s)

Thunderbolt 2.5GB/sec (20 Gb/s)

PCIe v3.0 x16 16GB/s

7

I/O Device Handling Considerations

• Complexity of control

• Unit of transfer

– Data may be transferred as a stream of bytes for a terminal or in larger blocks for a disk

• Data representation

– Encoding schemes

• Error conditions

– Devices respond to errors differently

• lp0: printer on fire!

– Expected error rate also differs

8

I/O Device Handling Considerations

• Layering

– Need to be both general and specific, e.g.

– Devices that are the same, but aren’t the same

• Hard-disk, USB disk, RAM disk

– Interaction of layers

• Swap partition and data on same disk

• Two mice

– Priority

• Keyboard, disk, network

9

Accessing I/O Controllers

a) Separate I/O and memory space

– I/O controller registers appear as I/O ports

– Accessed with special I/O instructions

b) Memory-mapped I/O

– Controller registers appear as memory

– Use normal load/store instructions to access

c) Hybrid

– x86 has both ports and memory mapped I/O

Linux Device Drivers; Jonathan Corbet, Alessandro Rubini, and Greg Kroah-Hartman

10

Bus Architectures

(a) A single-bus architecture

(b) A dual-bus memory architecture

11

Intel IXP420

12

Interrupts

• Devices connected to an Interrupt Controller via lines on an I/O bus (e.g. PCI)

• Interrupt Controller signals interrupt to CPU and is eventually acknowledged.

• Exact details are architecture specific.

13

I/O Interation

14

Programmed I/O

• Also called polling, or busy

waiting

• I/O module (controller) performs the action, not the processor

• Sets appropriate bits in the I/O status register

• No interrupts occur

• Processor checks status until operation is complete

– Wastes CPU cycles

15

Interrupt-Driven I/O

• Processor is interrupted when I/O module (controller) ready to exchange data

• Processor is free to do other work

• No needless waiting

• Consumes a lot of processor time because every word read or written passes through the processor

16

Direct Memory Access

• Transfers data directly between Memory and Device

• CPU not needed for copying

DMA

Controller in

Device

CPU Memory Device

DMA

Controller

Separate

DMA

Controller

CPU Memory Device

DMA

Controller

17

Direct Memory Access

• Transfers a block of data directly to or from memory

• An interrupt is sent when the task is complete

• The processor is only involved at the beginning and end of the transfer

18

DMA Considerations

Reduces number of interrupts

– Less (expensive) context switches or kernel entry-exits

Requires contiguous regions (buffers)

– Copying

– Some hardware supports “Scatter-gather”

• Synchronous/Asynchronous

• Shared bus must be arbitrated (hardware)

– CPU cache reduces (but not eliminates) CPU need for bus

CPU Memory Device

19

The Process to Perform DMA

Transfer

20

Device Evolution - Complexity and Performance

21

Evolution of the I/O Function

• Processor directly controls a peripheral device

– Example: CPU controls a flip-flop to implement a serial line

Bus

CPU

Memory

Flip

Flop

Serial

Line

22

Bus

Evolution of the I/O Function

• Controller or I/O module is added

– Processor uses programmed I/O without interrupts

– Processor does not need to handle details of external devices

– Example: A Universal Asynchronous Receiver Transmitter

• CPU simply reads and writes bytes to I/O controller

• I/O controller responsible for managing the signaling

CPU

Memory UART

Serial

Line

23

Evolution of the I/O Function

• Controller or I/O module with interrupts

– Processor does not spend time waiting for an

I/O operation to be performed

Interrupt

Line

CPU

Memory UART

Serial

Line

Bus

24

Evolution of the I/O Function

• Direct Memory Access

– Blocks of data are moved into memory without involving the processor

– Processor involved at beginning and end only

Interrupt

Line

CPU

Memory UART

Serial

Line

Bus

25

Evolution of the I/O Function

• I/O module has a separate processor

– Example: SCSI controller

• Controller CPU executes SCSI program code out of main memory

Interrupt

Line

CPU

Memory

CPU

SCSI

Controller

SCSI

Bus

Cable

26

Evolution of the I/O Function

I/O processor

– I/O module has its own local memory, internal bus, etc.

– Its a computer in its own right

– Example: Myrinet 10 gigabit NIC

Interrupt

Line

CPU

Memory

CPU RAM

Myrinet

Controller

Bus

27

General Trend

• More specialised hardware

• Offloading more functionality into hardware

– Reduced load on CPU

• Improved performance

28
