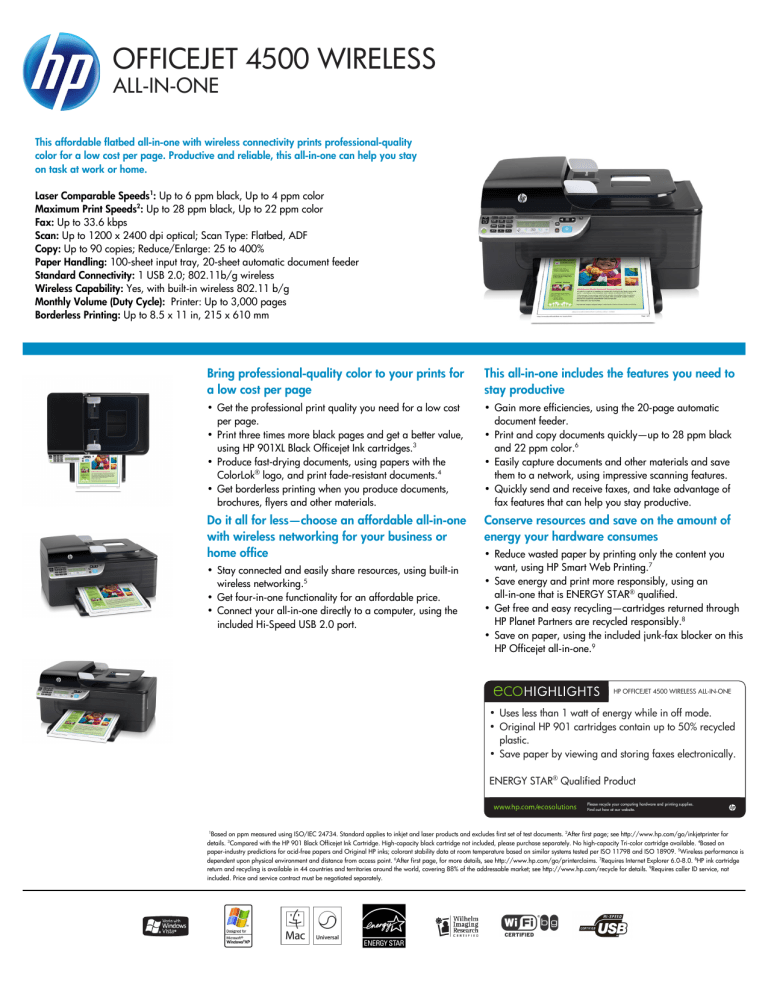

OFFICEJET 4500 WIRELESS
ALL-IN-ONE
This affordable flatbed all-in-one with wireless connectivity prints professional-quality
color for a low cost per page. Productive and reliable, this all-in-one can help you stay
on task at work or home.
Laser Comparable Speeds1: Up to 6 ppm black, Up to 4 ppm color
Maximum Print Speeds2: Up to 28 ppm black, Up to 22 ppm color
Fax: Up to 33.6 kbps
Scan: Up to 1200 x 2400 dpi optical; Scan Type: Flatbed, ADF
Copy: Up to 90 copies; Reduce/Enlarge: 25 to 400%
Paper Handling: 100-sheet input tray, 20-sheet automatic document feeder
Standard Connectivity: 1 USB 2.0; 802.11b/g wireless
Wireless Capability: Yes, with built-in wireless 802.11 b/g
Monthly Volume (Duty Cycle): Printer: Up to 3,000 pages
Borderless Printing: Up to 8.5 x 11 in, 215 x 610 mm
Bring professional-quality color to your prints for
a low cost per page
This all-in-one includes the features you need to
stay productive
• Get the professional print quality you need for a low cost
per page.
• Print three times more black pages and get a better value,
using HP 901XL Black Officejet Ink cartridges.3
• Produce fast-drying documents, using papers with the
ColorLok® logo, and print fade-resistant documents.4
• Get borderless printing when you produce documents,
brochures, flyers and other materials.
• Gain more efficiencies, using the 20-page automatic
document feeder.
• Print and copy documents quickly—up to 28 ppm black
and 22 ppm color.6
• Easily capture documents and other materials and save
them to a network, using impressive scanning features.
• Quickly send and receive faxes, and take advantage of
fax features that can help you stay productive.
Do it all for less—choose an affordable all-in-one
with wireless networking for your business or
home office
Conserve resources and save on the amount of
energy your hardware consumes
• Stay connected and easily share resources, using built-in
wireless networking.5
• Get four-in-one functionality for an affordable price.
• Connect your all-in-one directly to a computer, using the
included Hi-Speed USB 2.0 port.
• Reduce wasted paper by printing only the content you
want, using HP Smart Web Printing.7
• Save energy and print more responsibly, using an
all-in-one that is ENERGY STAR® qualified.
• Get free and easy recycling—cartridges returned through
HP Planet Partners are recycled responsibly.8
• Save on paper, using the included junk-fax blocker on this
HP Officejet all-in-one.9
HP OFFICEJET 4500 WIRELESS ALL-IN-ONE
• Uses less than 1 watt of energy while in off mode.
• Original HP 901 cartridges contain up to 50% recycled
plastic.
• Save paper by viewing and storing faxes electronically.
ENERGY STAR® Qualified Product
Please recycle your computing hardware and printing supplies.
Find out how at our website.
1
Based on ppm measured using ISO/IEC 24734. Standard applies to inkjet and laser products and excludes first set of test documents. 2After first page; see http://www.hp.com/go/inkjetprinter for
details. 3Compared with the HP 901 Black Officejet Ink Cartridge. High-capacity black cartridge not included, please purchase separately. No high-capacity Tri-color cartridge available. 4Based on
paper-industry predictions for acid-free papers and Original HP inks; colorant stability data at room temperature based on similar systems tested per ISO 11798 and ISO 18909. 5Wireless performance is
dependent upon physical environment and distance from access point. 6After first page, for more details, see http://www.hp.com/go/printerclaims. 7Requires Internet Explorer 6.0-8.0. 8HP ink cartridge
return and recycling is available in 44 countries and territories around the world, covering 88% of the addressable market; see http://www.hp.com/recycle for details. 9Requires caller ID service, not
included. Price and service contract must be negotiated separately.
OFFICEJET 4500 WIRELESS
ALL-IN-ONE
AIO FUNCTIONS
Color printing, color copying, color scanning, color faxing
PROCESSOR SPEED
192 MHz
PRINT TECHNOLOGY
HP Thermal Inkjet
HP REAL LIFE
TECHNOLOGIES™
HP Solution Center, HP Smart Web Printing, HP Update, Shop for HP Supplies
OPERATING SYSTEM
(COMPATIBLE)
Microsoft® Windows® 7 x64*, Windows® 7*, Windows Vista® x64, Windows Vista®,
Windows® XP Professional, Windows® XP Home; Mac OS X v 10.4.x, Mac OS X v
10.5, Mac OS X v 10.6**; Linux. *Windows® 7 Ready7
PRINT SPEED1
Black: Up to 28 ppm; Color: Up to 22 ppm;
4 x 6 photo: As fast as 71 sec;
Laser Comparible Speeds: Up to 6 ppm black, Up to 4 ppm color
MINIMUM SYSTEM
REQUIREMENTS
PC: Windows® 7: 1 GHz 32-bit (x86) or 64-bit (x64) processor, 1 GB RAM (32-bit)/2
GB RAM (64-bit), 1100 MB free hard disk space, Internet Explorer 8.0; Windows
Vista®: 800 MHz 32-bit (x86) or 64-bit (x64) processor, 512 MB RAM, 1150 MB free
hard disk space, Internet Explorer 7.0; Windows® XP (32-bit) (SP1): Intel Pentium II or
Celeron processor, 512 MB RAM, 790 MB free hard disk space, Internet Explorer 6.0;
Windows® 7 Ready;
Mac: Mac OS X v 10.4.11, v 10.5.6, v 10.6: PowerPC G4, G5, or Intel Core
processor, 256 MB memory, 500 MB free hard disk space
OPERATING
ENVIRONMENT
Recommended Operating Temperature: 59 to 90° F (15 to 32° C);
Maximum Operating Temperature: 41 to 104° F (5 to 40° C);
Temperature Storage Range: -40 to 140° F;
Operating Humidity: 15 to 85% RH;
Humidity Recommended Operating Range: 15 to 85% RH
POWER5
Power Supply Type: External;
Power Supply Required: Input voltage 100 to 240 VAC (+/- 10%),
50/60 Hz (+/- 3 Hz);
Power Consumption (Standby): 3.0 watts;
Power Consumption (powersave): 2.8 watts;
Power Consumption (Maximum): 17 watts maximum
PRINT RESOLUTION
Black: Up to 600 x 600 dpi rendered dpi black;
Color: Up to 4800 x 1200 dpi optimized on select HP photo papers with
1200 x 1200 input dpi
STANDARD CONNECTIVITY 1 USB 2.0; 802.11b/g wireless
External I/O Ports: 1 USB, 1 Phone
WIRELESS CAPABILITY
Yes, with built-in wireless 802.11 b/g
BORDERLESS PRINTING
SUPPORTED
Yes (up to 8.5 x 11 in, 215 x 610 mm)
PRINT LANGUAGES
STANDARD
HP PCL 3 GUI, HP PCL 3 enhanced
FAX FEATURES
Fax Forwarding Supported: Yes; Fax Polling Supported: Yes; Fax Phone TAM
Interface Supported Yes; PC Interface Supported: Yes, PC fax send only; Remote
Retrieval Capability Supported: No; Junk Barrier Supported: Yes (requires Caller ID);
Maximum Broadcast Locations: 48; Distinctive Ring Detection Supported: Yes;
Delayed Sending Supported: Yes; Auto Redialing Supported: Yes; Auto Fax
Reduction Supported: Yes; Fax Memory: Up to 100 pages; Maximum Speed Dials:
Up to 90
ACOUSTICS
FAX PHONE FEATURES
Color fax, auto reduction, auto redial, speed dial, group speed dial, junk barrier,
poll to receive, forwarding (black only), distinctive ring, delayed send (black only),
scan and fax, fax phone TAM interface, PC fax send only
Acoustic Power Emissions: 7.0 B(A) (Draft printing);
Acoustic Pressure Emissions: 56 dB(A) (Draft printing)
PRODUCT
DIMENSIONS/WEIGHT
W x D x H: 17.07 x 15.81 x 8.53 in;
Weight: 13.03 lb
FAX AND MODEM
DESCRIPTION
Up to 33.6 kbps
WHAT’S IN THE BOX?
FAX SPEED
3 sec per page
HP Officejet 4500 Wireless All-in-One, HP 901 Tri-color Officejet Ink cartridge
(~ 360 pages), HP 901 Black Officejet Ink cartridge (~ 200 pages), Software CD, Set
Up Poster, Fax Getting Started Guide, Wireless Getting Started Guide, power supply
and power cord, phone cord, USB cable.
FAX RESOLUTION2
Black: 203 x 196 dpi; Color: 200 x 200 dpi; Photo: 300 x 300 dpi
WARRANTY FEATURES
One-year limited hardware warranty backed by HP Customer Care, service and
support, one-year technical phone support, plus a toll-free number
SCAN TECHNOLOGY/TYPE Flatbed, ADF
SCAN INPUT MODES
Front Panel (Scan and Copy), Software Solution Center
ACCESSORIES
HP USB Cable 2.0 (a-b) 3 meter, C6520A
SCAN SPEED
Preview Mode: Up to 29.4 sec; OCR Letter: < 50 sec
SCAN SIZE
8.5 x 11.7 in
REPLACEMENT INK
CARTRIDGES6
HP 901 Black Officejet Ink Cartridge (~ 200 pages)
HP 901 Tri-color Officejet Ink Cartridge (~ 360 pages)
HP 901XL Black Officejet Ink Cartridge (~ 700 pages)
SCAN RESOLUTION3
Optical: Up to 1200 dpi; Hardware: Up to 1200 x 2400 dpi optical;
Enhanced: Up to 19,200 dpi
SERVICE AND SUPPORT
BIT-DEPTH/GRAYSCALE
LEVELS
48-bit; 256 Grayscale levels
COPY RESOLUTION
Black Text/Graphics Up to 600 x 1200 dpi optimized on select HP photo papers with
600 scan dpi;
Color Graphics: Up to 1200 x 1200 dpi optimized on select HP photo papers with
1200 x 1200 input dpi
HP 2-year NBD Exchange with Enhanced Technical Phone Support, UQ206E
HP 3-year NBD Exchange with Enhanced Technical Phone Support, UQ207E
HP Basic Installation Service (1 consumer printer with wireless capability), US284E
HP Premium Installation Service (up to 3 PCs and/or printers with wireless
network setup), US285E
COPY SPEED4
Black: Up to 28 cpm; Color: Up to 22 cpm
COPIER SETTINGS
Stand-alone copying: Actual size, Fit to page, Custom, Full page, Legal to letter
COPIER RESIZE
25 to 400%
NUMBER OF COPIES
Up to 90 copies
DUTY CYCLE (MONTHLY,
LETTER)
Up to 3,000 pages
DISPLAY
1-line LCD (text)
MEDIA TYPES
Paper (inkjet, photo, plain), envelopes, cards, transparencies, iron-on transfers, HP
premium media
MEDIA SIZES SUPPORTED
Letter, legal, executive, cards;
Custom Media Sizes: 3 x 4 to 8.5 x 30 in
MEDIA WEIGHT
SUPPORTED
US letter, legal, envelopes: 20 to 24 lb, cards: up to 110 lb index maximum, 4 x 6
photo: up to 145 lb;
Recommended Media Weight: 16 to 24 lb
AUTOMATIC DOCUMENT
FEEDER CAPACITY
Standard, 20 sheets
PAPER HANDLING
100-sheet input tray, 20-sheet output tray;
Input Capacity: Up to 100 sheets letter/legal, Up to 25 sheets transparencies, Up to
10 sheets labels, Up to 40 sheets 4 x 6 photos,
Up to 40 cards;
Output Capacity: Up to 25 sheets letter/legal, Up to 10 sheets labels,
Up to 10 cards
DUPLEX PRINT OPTIONS
None (not supported)
MEMORY
STANDARD/MAXIMUM
32 MB
OFFICEJET 4500 WIRELESS ALL-IN-ONE Product Number: CN547A
ENERGY STAR® qualified models; see: http://www.hp.com/go/energystar
1
After first page; see http://www.hp.com/go/inkjetprinter for details. 2Based on standard ITU-T test image #1 at standard resolution. More complicated pages or higher resolution will take longer and use more memory. 3Copy speed may vary depending on the type of
output. 4The maximum dpi at which you can scan is limited by available computer memory, disk space and other system factors. 5Power requirements are based on the country/region where the product is sold. Do not convert operating voltages or use with other voltages.
Doing so might cause damage that would not be covered under the HP product warranty. 6Yield varies considerably based on content of printed pages and other factors. See http://www.hp.com/go/learnaboutsupplies 7** Support information available from
http://www.hp.com/support
©2009 Hewlett-Packard Development Company, L.P. HP is a registered trademark of the Hewlett Packard Company. All other trademarks are the property of their respective owners. Microsoft and Windows are registered trademarks of Microsoft Corporation. ENERGY
STAR and the ENERGY STAR mark are registered. This listing of non HP products does not constitute an endorsement by Hewlett Packard Company. The information contained herein is subject to change without notice and is provides "as is" without warranty of any kind. HP
shall not be liable for technical or editorial errors or omissions contained herein. November 2009
