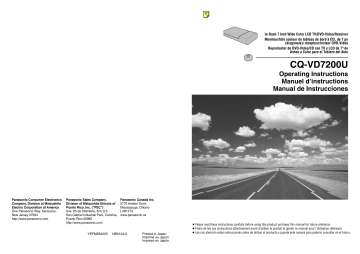

In-Dash 7 Inch Wide Color LCD TV/DVD-Video/Receiver
Moniteur/télé couleur de tableau de bord à ÉCL de 7 po
(diagonale)/ récepteur/lecteur DVD-Vidéo
Reproductor de DVD-Video/CD con TV y LCD de 7" de
Anhco a Color para el Tablero del Auto
CQ-VD7200U
Operating Instructions
Manuel d’instructions
Manual de Instrucciones
Panasonic Consumer Electronics
Company, Division of Matsushita
Electric Corporation of America
One Panasonic Way, Secaucus,
New Jersey 07094
http://www.panasonic.com
Panasonic Sales Company.
Division of Matsushita Electric of
Puerto Rico, Inc. (“PSC”)
Ave. 65 de Infanteria, Km. 9.5
San Gabriel Industrial Park, Carolina,
Puerto Rico 00985
http://www.panasonic.com
YEFM284225
Panasonic Canada Inc.
5770 Ambler Drive,
Mississauga, Ontario
L4W 2T3
www.panasonic.ca
NB0104-0
Printed in Japan
Imprimé au Japon
Impreso en Japón
¡Please read these instructions carefully before using this product and keep this manual for future reference.
¡Prière de lire ces instructions attentivement avant d’utiliser le produit et garder ce manuel pour l’utilisation ultérieure.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
E
N
G
L
I
S
H
Safety Information
Consignes de sécurité
The following applies only in the U.S.A.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE
THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING
OR MOISTURE.
CAUTION!
THIS PRODUCT UTILIZES A CLASS I LASER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.
Part 15 of the FCC Rules
FCC Warning:
Any unauthorized changes or modifications to this
equipment would void the user's authority to operate
this device.
ADVERTENCIA:
AVERTISSEMENT:
AFIN DE LIMITER LES RISQUES D’INCENDIE OU
D’ÉLECTROCUTION OU ENCORE D’ENDOMMAGEMENT DE L’APPAREIL, N’EXPOSEZ PAS CET
APPAREIL À LA PLUIE, AUX ÉCLABOUSSURES
D’EAU OU À L’HUMIDITÉ.
ATTENTION!
NOTICE:
This product contains lead in some components.
Disposal of these materials may be regulated in your
community due to environmental considerations.
For disposal or recycling information please contact
your local authorities, or the Electronics Industries
Alliance: <http://www.eiae.org.>
Laser products:
Wave length: 780 nm
Laser power: No hazardous radiation is emitted with
safety protection.
CET APPAREIL EST UN PRODUIT LASER DE LA
CLASSE I.
L’UTILISATION DE COMMANDES OU RÉGLAGES OU
L’EXÉCUTION D’OPÉRATIONS AUTRES QUE CELLES
QUI SONT INDIQUÉES DANS CE DOCUMENT PEUVENT RÉSULTER EN UNE EXPOSITION À UN RAYONNEMENT DANGEREUX.
N’OUVREZ PAS LES COUVERCLES ET N’ESSAYEZ
PAS D’EFFECTUER VOUS-MÊME DES RÉPARATIONS. ADRESSEZ-VOUS À UN PERSONNEL QUALIFIÉ POUR TOUTE RÉPARATION.
Produits laser:
Longueur d’onde: 780 nm
Puissance du laser: Aucune radiation dangereuse
n’est émise avec la protection de
sécurité.
CAUTION:
PLEASE FOLLOW THE LAWS AND REGULATIONS
OF YOUR STATE, PROVINCE OR COUNTRY FOR
INSTALLATION OF THE UNIT.
Información para su seguridad
ATTENTION:
OBSERVEZ LES LOIS ET RÉGLEMENTS DE VOTRE
PROVINCE OU PAYS POUR L’INSTALLATION DE
L’APPAREIL.
PARA REDUCIR EL PELIGRO DE INCENDIOS Y DE
DESCARGAS ELÉCTRICAS ASÍ COMO DE DAÑOS DEL
PRODUCTO, NO LO EXPONGA A LA LLUVIA, A SALPICADURAS, CONDENSACIÓN DE AGUA NI HUMEDAD.
¡PRECAUCIÓN!
ÉSTE ES UN PRODUCTO LÁSER DE LA CLASE I.
LA UTILIZACIÓN DE CONTROLES, EL HACER
AJUSTES O EL SEGUIR PROCEDIMIENTOS DISTINTOS DE LOS ESPECIFICADOS EN ESTE MANUAL
PODRÍA CAUSAR UNA EXPOSICIÓN PELIGROSA A
LA RADIACIÓN.
NO ABRA LAS CUBIERTAS NI HAGA REPARACIONES USTED MISMO. SOLICITE LOS TRABAJOS
DE SERVICIO AL PERSONAL CALIFICADO.
Productos láser:
Longitud de onda: 780 nm
Potencia láser: Con protección de seguridad no se emite
radiación peligrosa.
F
R
A
N
Ç
A
I
S
E
S
P
A
Ñ
O
L
PRECAUCIÓN:
RESPETE LAS LEYES Y REGULACIONES DE SU ESTADO,
PROVINCIA O PAÍS PARA LA INSTALACIÓN DEL APARATO.
Lo siguiente se aplica solamente a los EE.UU.
Parte 15 de los Reglamentos FCC
Advertencia FCC:
Cualesquier cambios o modificaciones sin autorización a este equipo puede anular la autoridad del
usuario para operar este dispositivo.
AVISO:
Este producto contiene plomo en algunos componentes.
La eliminación de estos materiales puede estar reglamentado en
su comunidad debido a las consideraciones ambientales.
Para informarse acerca de la eliminación o reciclaje comuníquese
con las autoridades locales, o la Alianza de Industrias
Electrónicas: <http://www.eiae.org.>
Find the model number and serial number on either
the back or bottom of the unit. Please record them in
the space below and retain this booklet as a permanent record of your purchase to help with identification in case of theft.
MODEL NUMBER
2
CQ-VD7200U
Il est recommandé de noter, dans l’espace prévu cidessous, les numéros de modèle et de série inscrits
soit à l’arrière soit sous le fond de l’appareil, et de
conserver ce manuel comme mémorandum de
l’achat afin de permettre l’identification de l’appareil
en cas de vol.
CQ-VD7200U
CQ-VD7200U
Busque el número del modelo y el número de serie
ya sea en la parte trasera o en el fondo de la unidad.
Sírvase anotar dichos números en el espacio siguiente, y mantenga este librete como una anotación
permanente de su compra para ayudar en la identificación en el caso de robo.
NÚMERO DEL MODELO CQ-VD7200U
SERIAL NUMBER
NUMÉRO DE MODÈLE
DATE PURCHASED
NUMÉRO DE SÉRIE
NÚMERO DE SERIE
FROM
DATE DE L’ACHAT
FECHA DE COMPRA
VENDEUR
NOMBRE DE LA TIENDA
CQ-VD7200U
3
E
N
G
L
I
S
H
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this product
will bring you many hours of enjoyment. Our reputation is built on precise electronic and mechanical engineering, manufactured with carefully selected components and assembled by people who take pride in their work.
Once you discover the quality, reliability, and value we have built into this product, you too will be proud to be
a member of our family.
Contents
❏ Features
¢ Features .................................................. 4
■
■
¢ Use This Product Safely ...................... 10
Integration of the monitor, TV tuner, FM/AM radio, DVD/Video CD player, and
CD/MP3 player
¢ Components/Remote Control Unit
Preparation ........................................... 12
¡A CD-R and a CD-RW that hold CD-DA data can be reproduced.
¡A CD-ROM, a CD-R and a CD-RW that hold MP3 data can be reproduced.
¡MP3 ID3Tag is supported.
¢ Name of Controls and Functions........ 13
7-inch wide LCD (Liquid Crystal Display) display
¢ Indications on the Screen.................... 16
Delivers images of high quality and superb color reproduction.
■
¢ Safety Information.................................. 2
Fully powered display positioning mechanism (except for lateral angle)
Components, battery installation and battery notes
Name of buttons and its functions
The state of the current output appears, OSD (On
Screen Display) on/off
¢ Discs that can be Played Back............ 17
Positioning of the display unit is fully power driven. This includes extending the unit, raising it to upright
position, adjusting its vertical (tilt) angle and moving it to the front and rear.
The lateral angle to the right and left can be adjusted manually.
■
GUI (Graphic User Interface)
GUI displays various indications with colorful symbols to enhance visibility, enjoyment, and operability.
■
■
Image capture function
Images can be imported from TV, VTR, DVD or Video CD for a wall paper.
Built-in automatic dimmer
The brightness of the screen is automatically adjusted in response to surrounding brightness.
■
ID code
■
External extension terminal
¡Two video input (on the hide-away unit side)
You can connect a car navigation system, VCR, camcorder and rear view camera with this unit if they have video output type terminal.
¡One video output (on the hide-away unit side)
You can connect optional monitor for passengers in the rear seat. For example, you can enjoy a map of the car navigation on the front monitor, and passengers in the rear seat can enjoy DVD movie on the rear monitor at the same
time. Moreover, different sounds can be played in the front seat and rear seat in the private mode.
■
CD changer control function
An optional CD changer (CX-DP880U) can be connected.
Note: Dual CD changers can be connected at once by incorporating with CA-CD55 (option).
Monitor position, navigation set up, rear view camera set up, ID code setting, button operation
sound, video control setting, memory clearance,
VTR skip
¢ SET-UP : Display (Screen) Settings.... 44
Dimmer, display adjustment
¢ SET-UP : DVD Settings ........................ 46
Language setting, display aspect and DVD software
mode
¢ SET-UP : Clock/date Settings.............. 48
Clock and date setting, calendar display
¢ SET-UP : Capture Function ................. 50
Image capture, Wallpaper, Image Deletion
¢ SET-UP : Sound Settings..................... 54
Bass/treble, balance/fader, subwoofer control
¢ General .................................................. 18
¢ SET-UP : Other Settings ...................... 56
Power, mode change, volume, mute, loudness, display open/close and monitor position adjustment
Display change, aspect ratio, rear monitor set up,
private mode
¢ TV Tuner ................................................ 20
TV mode, channel setting, direct channel selection,
preset channels
¢ VTR ........................................................ 22
VTR1/VTR2 mode, connectable external devices
¢ DVD/Video CD Player ........................... 24
4-digit ID code for increased security.
¢ SET-UP : User Settings ........................ 38
E
N
G
L
I
S
H
Disc insert/eject, basic operation, chapter/title
selection, useful function
¢ CD/MP3 Player ...................................... 28
Disc insert/eject, direct folder selection, basic
operation, points to remember when recording an
MP3 disc
¢ Audio Formats ...................................... 32
Audio formats, dynamic range compression
¢ Radio ..................................................... 34
Radio mode, band, tuning, preset station
¢ CD Changer Control............................. 36
¢ Installation Guide ................................. 60
Step-by-step procedures
¢ Electrical Connections......................... 72
Cautions and cable wiring diagram
¢ Troubleshooting ................................... 84
Where to get service help, troubleshooting tips,
error display messages and reset switch
¢ Maintenance.......................................... 92
Care of the unit, notes on discs, notes on CD-Rs/
CD-RWs
¢ Definition of Terms............................... 94
¢ Language Code List ............................. 95
¢ Specifications ....................................... 96
CD Changer mode, system expansion, basic
operation
¡Please take note that this model does not support CD-DA/SACD hybrid discs.
¡Please take note that this model does not support Sirius satellite radio.
This book refers to the connection to the Panasonic car navigation system that will come on the market in future.
Descriptions regarding the car navigation system are boxed with dotted line.
4
CQ-VD7200U
CQ-VD7200U
5
E
N
G
L
I
S
H
1
Use This Product Safely
WARNING:
TO AVOID RISK OF SERIOUS INJURY OR POSSIBLE VIOLATION OF LAWS, NOT FOR USE WHERE
VISIBLE TO DRIVER FOR ANY PURPOSE OTHER THAN NAVIGATION OR USE WITH REAR VIEW
CAMERA.
When Driving
¡The driver must not operate the color LCD (liquid crystal display) monitor. Operating the color LCD monitor may
lead to carelessness and cause an accident. Stop your vehicle in a safe location when operating the unit.
¡The driver must not watch videos while driving. It may lead to carelessness and cause an accident.
¡Keep the unit at an appropriate sound level. Driving with the sound at a level that prevents you from hearing sounds
outside and around the vehicle may cause an accident.
CAUTION:
Follow local rules and regulations for installing monitor and TV antenna.
When Car Washing
E
N
G
L
I
S
H
This system is designed so that you cannot see
the moving picture while you are driving.
2
¡Park your car in a safe place and engage the side brake (parking
brake) lever before watching the monitor.
¡A rear monitor (option) displays moving picture while driving.
Note: Be sure to connect the side brake (parking brake) connection lead. (a page 76)
Cautions:
¡Picture might not be displayed, or it might take more time than usual to display picture at low temperatures.
Also, movement of picture might become labored, or picture quality might deteriorate at low temperatures.
[practicable temperature: 32 °F to 104 °F (0 °C to 40 °C)]
¡Do not touch the LCD (liquid crystal display).
If you touch the LCD, your fingerprints will be visible because the surface of the LCD is specially processed.
¡In some cases, noise is generated. It depends on the position or direction of a mobile phone and a CB transiever,
etc. Change the position or direction of the mobile phone and a CB transiever, etc. or keep them away from the unit.
Do not expose the product, including the speakers and discs, to water or excessive moisture. This could cause electrical
shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your car. Give the interior a chance to cool down
before switching the unit on.
Use the Proper Power Supply
This product is designed to operate with a 12 V DC, negative ground battery system (the normal system in a North
American car.)
Disc Mechanism
Do not insert coins or any small objects. Keep screwdrivers and other metallic objects away from the disc mechanism and
disc.
Protect the DVD Software
When you leave the car, be sure to eject the disc from this unit and take it with you.
Use Authorized Servicenters
Do not attempt to disassemble or adjust this precision product. Please refer to the Servicenter list included with this product
for service assistance.
ID Code
Prior to operating this unit, it is a advisable to assign your 4-digit ID code for security. (Make sure to use four digits for ID
code.)
Once the ID code has been set, the unit cannot be operated if the main power supply is disconnected then re-connected. It
is electronically locked so that a thief could not use the stolen unit unless that person knows the code you have set.
The ID code operation must be performed only by the person to whom the unit belongs.
Generally, it is not necessary to enter the ID code each time when using the unit if it has never been disconnected from the
main power supply (car battery). For the ID code setting procedures, see pages 40-41.
Caution: Record your registered ID code and keep it in a secure location. If you forget it, you will be unable
to use the unit. If you cannot operate the unit because you forget the ID code, please consult your nearest Panasonic
Servicenter.
ID Code Input
Enter the ID code after turning on the power and activating the display.
For Installation
The product should be installed in a horizontal position with the front end up at a convenient angle, but not more than 30˚.
The user should bear in mind that in some areas there may be restrictions on how and where this unit must be installed.
Consult your dealer for further details.
Success
Note: When you fail in entering the ID code, a screen on the right is displayed and
the unit beeps three times. Enter a correct ID code.
If you fail to enter the correct ID code three times consecutively, the power is turned
off. Turn on the power again and enter a correct ID code in this case.
10
CQ-VD7200U
CQ-VD7200U
11
Name of Controls and Functions
E
N
G
L
I
S
H
Display Unit
E
N
G
L
I
S
H
[ ] (OPEN/CLOSE)
¡Opens/closes the monitor.
(a page 18)
3
4
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
[TILT]
¡Shows the monitor position
setting menu. (a page 19)
¡Tilts the monitor forward
temporarily. (a page 19)
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
P·MODE
1. Display Unit
ENTER
TRACK/
CHANNEL
1
1
2. Hide-away Unit
3. Remote Control
Unit
<YEFX9993009>
Dimmer sensor
(a page 44)
[}] [{] (DISC)
¡Searches for TV stations
and memorizes them
automatically. (a page 21)
¡Selects a folder or a disc.
(a page 29, 37)
¡Selects (vertically) or adjusts
an operation or item.
ENTER
Disc slot
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
Remote control
sensor
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
Remote Control Unit Preparation
[}] [{] (VOLUME)
¡Adjusts the sound volume.
(a page 18)
NAVI
ENTER
ASPECT
ASP
P·MODE
[]] [[] (TRACK/CHANNEL)
¡Selects or searches
a channel, track, file
or frequency.
(a page 20, 29, 34, 37)
¡Sequential transition from one
file to the next. (a page 29)
¡Selects (horizontally) or
adjusts an operation or item.
ENTER
TRACK/
CHANNEL
[ENTER]
¡Selects a band.
(a page 34)
¡Searches for broadcast
stations and memorizes them
automatically.
(a page 35)
¡Determines an operation or
item.
ENTER
[MUTE]
¡Mutes the sound temporarily. (a page 18)
¡Compensates bass and treble in the low and
middle volume level. (LOUD) (a page 18)
[MENU]
¡Shows the menu screen. (a page 38)
¡Shows the rear monitor setting menu.
(a page 58)
[MODE] (POWER)
¡Switches on/off the power. (a page 18)
¡Changes the modes such as sound and
picture. (a page 18)
[u]
¡Ejects/reloads a disc. (a page 24, 28)
[ASP] (ASPECT) (P • MODE)
¡Selects the aspect ratio. (a page 57)
¡Activates/inactivates the private mode.
(a page 59)
[NAVI] (NAVIGATION)
¡Activates/inactivates the car
navigation. (a page 23, 38)
Note: Refer to “Electrical Connections” for names on the rear of the hide-away unit. (a page 74-75)
12
CQ-VD7200U
CQ-VD7200U
13
Remote Control Unit of the DVD/Video CD/CD/MP3 Playback
(Operation only for the remote control)
Meaning of symbols
[NAVI] (NAVIGATION)
¡Activates/inactivates the car
navigation. (a page 23, 38)
Indicates the compatible types of disc.
E
N
G
L
I
S
H
7
Indications on the Screen
Discs that can be Played Back
The State of the Current Output Appears
Disc
Note: Contents displayed and their positions partly vary with each mode. Refer to the description of each mode for details.
DVD video
Example:
DVD Mode
Mark (logo)
Disc size Video format Audio format Region No.
NTSC
Image•Sound/Mode Display
Video CD
The current mode appears.
Prohibition
Input is not possible
because a soundtrack, subtitle language or angle number which was not
recorded on the disc
has been selected or
because the user has
attempted to perform
an operation which is
not supported by the
unit.
Disc Indicator
TEXT
CD-R/RW
(a page 48)
Additional
Information
Channel,
source type,
various settings, etc.
Information of
Each Mode
Playing
elapsed time,
title, preset
list, etc.
Mode Display
Recordable
OSD (On-Screen Display) On/off
❒ Region Management Information
Example:
1
1 2
4 6
This product is designed and manufactured to respond to the Region Management
Information that is recorded on a DVD disc. If the Region number described on the
DVD disc does not correspond to the Region number of this product, this product
cannot play the disc.
The Region number for this product is “1” and “ALL”.
ALL
❒ Symbols used on jackets (Examples of such symbols include)
¡Number of subtitle languages
¡Number of audio tracks
2
OSD off
(During playback)
Press [OSD] on
the Remote
Control.
Notes:
¡On-Screen Display also appears when operation is made (for 4 seconds).
¡On-Screen Display can be toggled between on and off only in the TV, VTR1/2, DVD and VCD modes. (When the captured
image is set as a wallpaper in the CD, MP3, RADIO and CD changer modes, pressing [OSD] switches captured images.)
Screen size (H:V aspect ratio)
¡4:3 standard size
4:3
2
3
The numbers indicate the number of languages, tracks, angles, etc., recorded on the
disc.
You can switch between OSD-ON and OSD-OFF regarding the mode information.
LPCM (CD-DA),
MP3
ReWritable
Note: About CD-Rs and CD-RWs, refer to “Notes on CD-Rs/RWs”. (a page 93)
¡Number of angles
OSD on
LPCM (CD-DA),
dts
CD
Clock Time
Default: off
Volume Display
MUTE or LOUD
blinks when the
MUTE or LOUD
function is set to ON.
8
5” (12 cm)
: Sound (Radio (AM/FM)/CD/MP3/Changer (CH-C))
When the car navigation
mode is set to ON.
1
ALL
LPCM, MPEG1
: Image and sound (TV/VTR1•2/DVD/Video CD (VCD))
(OSD on a see below)
LPCM, MPEG1,
MPEG2, dts,
Dolby Digital
E
N
G
L
I
S
H
¡Letterbox
LB (a page 94)
¡16:9 wide size
16:9 LB
: Play back in letterbox format on a
standard screen (4:3).
16:9 PS
: Play back in “Pan & Scan” (a page 94)
format on a standard screen (4:3).
Note: The size of the image that is displayed on the screen
depends on the screen mode (“Aspect Ratio” a page 57),
and on the screen size for the content on the disc.
❒ The following discs cannot be played back on this product.
¡DVD-Audio
¡DVD-ROM
¡DVD-R
¡DVD-RAM
¡DVD+RW
¡DVD-RW
¡SVCD
¡VSD
¡CVD
¡CD-G
¡CD-ROM (except MP3)
¡CD-RW (except MP3 and CD-DA) ¡CD-R (except MP3 and CD-DA) ¡SACD
¡photo CD
¡CDV
¡Divx Video Discs
¡CD-EXTRA (audio-only playback possible)
¡Discs recorded in PAL format, others
¡CD-DA/SACD hybrid
¡DVDs with a region number other than “1” or “ALL”
¡Playing back a photo CD disc with this unit could damage the data that is recorded on the disc.
16
CQ-VD7200U
CQ-VD7200U
17
/
TRACKL
CHANNE
DE
P·MO
ER
POW
DVD/VCD(Video CD)/
CD/MP3
E
N
G
L
I
S
H
TV Tuner
It is required to install the supplied antenna to
receive TV broadcasts. Refer to the description of
mounting the TV antenna. (a page 70)
11
E
N
G
L
I
S
H
Preset Channels
12
This function can search for channels automatically. Up to 18 channels can be stored.
Press and hold [}] or [{] for more than 2 seconds.
[}]: the search starts from ch. 2 successively.
[{]: the search starts from ch. 69 in reverse successively.
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
Auto Preset
Memory
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
[MODE]
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
[] ] [[ ] (CHANNEL)
[}] [{] (Preset memory)
1
* See below
¡A stored channel can be renewed every time you store another channel.
¡The unit may receive a channel that has poor-quality images depending
on broadcasting conditions.
¡The search returns to the start position if there is no receivable
channel.
TV Mode
Press [MODE] to change to TV mode.
* “–” appears if the number of receivable channels is less than 18.
2
Channel Setting
[[] (CHANNEL): up
[]] (CHANNEL): down
Press and hold [[] (CHANNEL) or
[]] (CHANNEL) for more than 0.5 seconds.
Seeking will start.
Preset Channel
Calling
Press [}] or [{] to select the channel.
Direct Channel Selection
(Only for remote control)
Enter a channel number by pressing [0] to [9].
Example: Channel Number 17
Press [1] and [7].
20
CQ-VD7200U
CQ-VD7200U
21
E
N
G
L
I
S
H
VTR
You can view the images and listen to the sounds
from the connected external devices in the VTR1
mode and VTR2 mode respectively.
13
External Devices Connectable to VTR1/VTR2
E
N
G
L
I
S
H
14
Refer to “Electrical Connections” for each external device connection. (a page 80-81)
Example:
VTR1
: Camcorder
VTR2
: Rear View Camera
VTR2-IN
VTR1-IN
VCR/Camcorder
CQ-VD7200U
Hide-away Unit
CQ-VD7200U
Select the same mode (VTR1 or VTR2) as the terminal that is connected
to a VCR or Camcorder (VTR1-IN or VTR2-IN).
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
[MODE]
Camcorder
Rear View Camera
VTR1/VTR2 Mode
Press [MODE] to change to VTR1 or VTR2 mode.
Rear View
Camera
Select the same mode (VTR1 or VTR2) as the terminal that is connected
to a rear view camera (VTR1-IN or VTR2-IN).
Note: It can also be set to switch to an image through the rear view camera automatically if the shift lever is put into the reverse position.
(a page 40)
Note: You can set up the system so that the VTR
mode is not selected (VTR skip). (a page 42)
(VTR set to either CAMERA INPUT and NAVI INPUT
is not skipped even if VTR skip is set to on.)
Car Navigation
22
CQ-VD7200U
Select the same mode (VTR1 or VTR2) as the terminal that is connected
to a car navigation system (VTR1-IN or VTR2-IN).
Note: It can also be set to switch to an image and sound through the car
navigation system only by pressing [NAVI] (NAVIGATION). (a page 38)
CQ-VD7200U
23
DVD VIDEO
VIDEO
CD
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Indicates the compatible types of disc.
1
16
1
Note: It is possible to press []] [[] on the display unit instead of [s] [d] on the remote control. ( [[] on the display
unit cannot be used in place of [d] that is used for slow playback.)
24
CQ-VD7200U
CQ-VD7200U
25
E
N
G
L
I
S
H
DVD/Video CD Player
(continued)
DVD VIDEO
VIDEO
CD
E
N
G
L
I
S
H
Indicates the compatible types of disc.
Chapter/Title Selection
Useful Function
1
17
1
18
Switching the
Subtitle
DVD
Language
VIDEO
DVD Menu/
Video CD Menu
Use this menu during
playback to select content,
audio, subtitle, etc., from a
menu (the DVD/Video CD
menu) that is unique to each
disc.
Switching the
Audio
DVD
Language
VIDEO
DVD
VIDEO
Press [SUB] (SUB TITLE) during playback.
It is possible to change the subtitle language during play if the multiple
languages are recorded on the disc.
Note: There may be a brief delay before the subtitles appear.
Press [AUDIO] during playback.
It is possible to change the audio language during play if multiple audio
languages are recorded on the disc.
Press [ANGLE] during playback.
Switching the
Angle
DVD
VIDEO
For DVDs which contain scenes which have been shot simultaneously
from a number of different angles the same scene can be viewed from
each of these different angles during play.
Title Menu
Press [AUDIO] (ST/MONO).
If the DVD has multiple titles
recorded on it, it is possible
to select the preferred title
from the title menu to start
playback.
DVD
VIDEO
To return the previous display, press [RET] (RETURN).
Switching between
Stereo and
Monaural
VIDEO
CD
[DVD]
(DVD MENU)
(a page 26)
Starting Playback
from a Specific
Title/Chapter
DVD
VIDEO
CQ-VD7200U
STEREO
: stereo sound
MONO Lch : the left channel audio is output on both the left and
right speakers.
MONO Rch : the right channel audio is output on both the left
and right speakers.
[TITLE]
(TITLE/CHAPTER)
(a page 26)
[]] [[] [}] [{]
(Select)
[ENTER]
(a page 26)
[SUB]
(SUB TITLE)
[ANGLE]
[0] to [9]
(Title/chapter
Number)
(a page 26)
[AUDIO]
(ST/MONO)
[RET] (RETURN)
(a page 26)
26
It is possible to switch the audio between stereo sound and monaural
sound (L or R).
Notes:
¡If no operation is performed for 5 seconds, the display returns to the regular
mode.
¡It may not be possible to switch the language unless the unit is at the DVD menu
(a page 26) or is at the DVD settings.
(a page 46)
¡The language on the DVD settings has a
priority over when the power is turned on
or the disc is loaded. (a page 46)
¡The number of languages depends on the
disc. Some discs have only one language
or have no language.
CQ-VD7200U
27
E
N
G
L
I
S
H
CD/MP3 Player
CD
MP3
E
N
G
L
I
S
H
Indicates the compatible types of disc.
Disc Insert
The mode that supports the disc is selected, and playback starts.
1
19
1
20
When a disc is in the player, press [MODE] to
change to CD or MP3 player mode and playback
starts.
Notes:
¡Do not insert a disc when disc indicator
or
eject button lights because a disc is already
loaded.
¡The power will be turned on automatically when a
disc is loaded.
¡You can play a disc even if the monitor is closed.
Disc Eject
Press [
28
CQ-VD7200U
CQ-VD7200U
29
E
N
G
L
I
S
H
1
21
CD/MP3 Player
E
N
G
L
I
S
H
(continued)
This player allows you to play MP3 files recorded on CD-ROMs, CD-Rs
(Recordable) and CD-RWs (Rewritable).
Folder selection order/MP3 file playback order (Example)
: [] ][[ ]
Root Folder
Current Folder
Folder in the next
lower level of tree
What is MP3?
MP3, short for MPEG-1 Audio Layer 3, MPEG-2 Audio Layer 3 LSF (Low Sampling Frequency), is a standard for compressing digital video data adopted for video CDs and similar media. It is one of the audio compression systems covered by
MPEG's (Motion Picture Experts Group) digital audio compression standards. What it does is reduce the number of bytes
in a song without detracting from the sound quality by eliminating big sound waves within the sound range that is imperceptible to the human ear. This compression allows you to reduce the contents of a conventional music CD by a factor of
around 10. This means that you can record the contents of 10 music CDs on a single CD-R or CD-RW. (The figures refer
to data recorded on a 650 MB CD-R or CD-RW at a fixed bit rate of 128 kbps and a sampling frequency of 44.1 kHz.)
: MP3 files are included
2
Points to Remember When Recording an MP3 Disc
1
5
¡Do not record files other than MP3s or unnecessary folders on a disc. If many folders or files other than MP3s
are recorded on a disc, it may take some time before playback starts.
¡Use ISO 9660 file system (Extension of the ISO 9660 file systems are included.) (a page 31). APPLE HFS file
system is not supported. If they do not conform to ISO 9660 file system, the file may not play normally, or the file
or folder names may not be displayed correctly.
¡Make sure to add the “.mp3” extension to each MP3 file name. A file with a different file name extension or none
at all will not play.
¡Although Multi session recording is supported, the use of Disc-at-Once is recommended. Make sure to close the
session when you finished recording on a disc.
¡A disc recorded by the packet writing software are not supported.
¡A playlist function is not supported. Record files and folders in the order in which you want them to be played.
Some writing software lets you specify the recording order by adding a prefix in the range of “01” - “99”, etc. to the
file name. For details refer to the user manual of your writing software.
Notes:
¡You may encounter trouble in playing MP3s or displaying the information of MP3 files recorded with certain writing
softwares or CD recorders (CD-R/RW drives).
¡If a disc contains both MP3 and CD-DA, only CD-DA data is reproduced properly. (MP3 files are played but no
sound is output).
Root
Tree 1
6
File Selection
In the order
6
4
~
e
w
■ Converting (encoding) audio data to an MP3 file
~
q
r
Tree 2
Root
: No MP3 files
Root Folder
(Root Directory)
Folder Selection
In the order
q
3
■ Recording MP3 files on a CD-R/RW
1
3
1
22
: [}][{]
5
4
1
¡It is recommended that you set the bit rate to “128 kbps or more” and “Fixed”.
¡Bit rate 8 kbps of MPEG-2 and sampling frequency 16 kHz of MPEG-2 can not be reproduced.
¡VBR (Variable Bit Rate) is not supported.
¡The playback sound quality differs depending on the encoding software and the bit rate. For details refer to the user
manual of your encoding software.
2
r
Tree 1
Tree 2
Notes:
¡This unit counts the number of folders irrespective
of the presence or absence of MP3 file.
¡If the selected folder does not contain any MP3
files, the nearest MP3 files in the order of playback
will be played.
¡Playback order may be different from other MP3
players even if the same disc is used.
¡“ROOT” appears when displaying the root folder’s
folder name.
Tree 3
Maximum number of files/folders
¡Maximum number of trees: 8
¡Maximum number of folders: 254 (Root folder is not included.)
¡Maximum number of files: 512
Note: If the number of files and folders exceeds the number mentioned above, successful playback may not be performed.
Supported file systems and file names
Supported file system
ISO 9660 Level 1/Level 2
Joliet*
Romeo
Apple Extension to ISO 9660
Displayable folder names and file names
Name files and folders in accordance with the standard of each file system.
Refer to the instructions of writing software for details.
¡This player can display file names of up to 31 ASCII character set in scroll mode.
* Up to 15 letters can be displayed when scrolling in the Joliet system.
According to the standard, “á”, “ç”, etc. can be used. However, this unit can
not display those letters.
¡The unit recognizes only ASCII character set. Chinese characters, accented
French characters and accented Spanish characters will be converted into an
asterisk.
Note: MP3 encode software and writing software are not supplied to this model.
Copyright
Warning: Never assign the “.mp3” file name extension to a file that is not in the MP3 format. This may produce
noise from the speakers and cause speaker damage and can damage your hearing.
It is prohibited by copyright laws to copy, distribute and deliver copyrighted materials such as music without the approval
of copyright holder except for personal use.
No warranty
Above description complies with our investigations as of December 2003. It has no warranty for reproducibility and displayability of MP3.
30
CQ-VD7200U
CQ-VD7200U
31
E
N
G
L
I
S
H
E
N
G
L
I
S
H
1
1
24
32
CQ-VD7200U
CQ-VD7200U
33
E
N
G
L
I
S
H
Radio
One-touch Selection of a Station
1
25
Up to 6 stations each can be saved in the FM1, FM2, FM3 and AM preset station memories.
E
N
G
L
I
S
H
26
1
Select a band and frequency. (step w and e on the previous page)
Press and hold [1] to [6] on the remote control for more than 2 seconds.
Manual Preset
Memory
The frequency blinks once, and
a receiving station is saved in
the memory.
Select a band. (step w on the previous page)
Press and hold [ENTER] for more than 2 seconds.
Auto Preset
Memory
¡The 6 strongest available stations will be automatically saved in the
memory under preset numbers 1 to 6.
¡Once set, the preset stations are sequentially scanned for 5 seconds
each.
¡To stop the scanning, press [1] to [6] on the remote control.
Note: New stations overwrite existing saved stations after following this procedure.
Preset Station
Calling
34
CQ-VD7200U
Select a band. (step w on the previous page)
Press [1] to [6] on the remote control.
CQ-VD7200U
35
E
N
G
L
I
S
H
CD Changer Control
E
N
G
L
I
S
H
Basic Operation
1
27
28
1
Perform these operations with the remote control.
All Tracks
Press [4] (RANDOM).
Press [4] (RANDOM) again to cancel.
Random Play
All Tracks on Press and hold [4] (RANDOM) for more than 2 seconds.
the Current Disc Press and hold [4] (RANDOM) again to cancel.
Scan Play
The first 10 seconds of each
track will be played.
All Tracks
Press [5] (SCAN).
Press [5] (SCAN) again to cancel.
1st Track on
Each Disc
Press and hold [5] (SCAN) for more than 2 seconds.
Press and hold [5] (SCAN) again to cancel.
Current Track
Press [6] (CH REPEAT).
Press [6] (CH REPEAT) again to cancel.
Current Disc
Press and hold [6] (CH REPEAT) for more than 2 seconds.
Press and hold [6] (CH REPEAT) again to cancel.
Repeat Play
36
CQ-VD7200U
CQ-VD7200U
37
E
N
G
L
I
S
H
SET-UP: User Settings
(continued)
[MODE]
(End)
31
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
32
[0] to [9]
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
Rear View Camera Set up
CAMERA INPUT (Rear view camera input)
Selection of the terminal that connects to the
rear view camera allows you to view images
through the rear view camera automatically
when you put the shift lever into the reverse
position.
Preparation: Connect the reverse lead.
(a page 81)
Default: OFF
CAMERA INPUT
OFF
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “USER”.
w Press [ENTER] to set.
USER
SCALE (Rear view camera scale display)
Images through the rear view camera can be
shown in the scale display mode.
q Press [}] or [{] to
select “CAMERA SETUP”.
CAMERA SETUP
q Press [}] or [{] to select
an item.
w Press [[] , []] , [}] or
[{] to select or adjust the
setting.
e Press [ENTER] to set.
SCREEN
SCALE ADJUST (Scale adjustment)
Default: 0 (width/angle)
: connected to the VTR1-IN
VTR2
: connected to the VTR2-IN
Note: Make sure to select “OFF” when no rear view camera is connected.
SCALE
Rear view camera scale display
OFF
: scale display off
ON
: scale display on
Scale adjustment
How to set your ID code (for the first time)
q Enter an 4 digit ID code.
w Enter the same 4 digit ID code again.
ID Code setting
Generally, it is not necessary to enter the ID
code each time when using the unit if it has
not been disconnected from the main power
supply (car battery).
VTR1
Press [[] or []] to adjust the width.
Press [}] or [{] to adjust the angle.
DVD
DATE
Prior to operating this unit, it is advisable to
assign your 4-digit ID code for security.
(Make sure to use four digits for ID code.)
Once the ID code has been set, the unit cannot
be operated if the main power supply is disconnected then re-connected. It is electronically locked so that a thief could not use the
stolen unit unless that person knows the code
you have set.
The ID code operation must be performed only
by the person whom the unit belongs to.
: unconnected
SCALE ADJUST
Default: OFF
Rear view camera input
CAPTURE
AUDIO
q Press [}] or [{] to
select “ID-CODE”.
w Press [ENTER] to set.
ID-CODE
Press [0] to [9] on the remote
control to input the ID code.
Caution: Record your registered ID code and keep it in a
secure location. If you forget it,
you will be unable to use the
unit. In case you forget the ID
code, please consult your nearest Panasonic Servicenter.
How to change your ID code
q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, a
new ID code cannot be registered.
w Enter a new 4 digit ID code.
e Enter the new 4 digit ID code again.
How to cancel the known ID code
Note: Should your unit ever require service, cancel your ID code before sending for repair.
q Enter the preset (old) 4 digit ID code. If the wrong ID code is entered, it is
not possible to cancel the ID code function.
w Press and hold [ENTER] until “Complete!” is displayed. The ID code cancelling procedure is completed. The unit now works without an ID code.
Note: Refer to ID Code Input regarding how to enter the ID code. (a page 11)
40
CQ-VD7200U
CQ-VD7200U
41
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
3
Setting
BEEP
Beep setting
OFF
: operation sound (Beep) OFF
ON
: operation sound (Beep) ON
VIDEO-CNT
q Press [}] or [{] to select
an item.
w Press [[] or []] to select
the setting.
e Press [ENTER] to set.
Video control setting
VTR1
: connected to the VTR1-IN
VTR2
: connected to the VTR2-IN
Notes:
¡Select a terminal connected to the DVD output terminal of a Panasonic car
navigation system with a built-in DVD player (available in future) through
an RCA cord.
¡When you connect a Panasonic car navigation system with a built-in DVD
player, connect a video control lead as well. (a page 72)
E
N
G
L
I
S
H
SET-UP: Display (Screen) Settings
[MODE]
(End)
35
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
POWER
ASPECT
ASP
ENTER
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
[MENU]
TRACK/
CHANNEL
P·MODE
E
N
G
L
I
S
H
36
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Dimmer
Menu
q Press [MENU] to
display the menu.
Default: AUTO
w Press [[] or []] to
select “SCREEN”.
2
Submenu
3
Setting
q Press [}] or [{] to
select “DIMMER”.
AUTO : automatically adjusted according to ambient light intensity.
w Press [ENTER] to set.
DIMMER
1
q Press [[] or []] to select
the setting.
w Press [ENTER] to set.
2
3
Darker
4
Brighter
USER
CONTRAST
SCREEN
Decrease the contrast
between black and white
DVD
q Press [}] or [{] to select
an item.
DATE
Display Adjustment
CAPTURE
Adjust the image contrast
q Press [}] or [{] to
select “PICTURE”.
BRIGHT
Increase the contrast
between black and white
Adjust the image brightness
w Press [[] or []] to adjust.
Lighten
Darken
w Press [ENTER] to set.
Default: ±0
Setting range: –15 to +15
AUDIO
COLOR
Adjust the image color depth
Lighten the depth of
color on the display
TINT
Adjust the image tone or tint
Emphasize red in
the color image
44
CQ-VD7200U
Deepen the depth of
color on the display
Emphasize green in
the color image
CQ-VD7200U
45
E
N
G
L
I
S
H
SET-UP: DVD Settings
[MODE]
(End)
37
CQ-VD7200U
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
38
[0] to [9]
[MENU] [MODE] [}] [{] []] [[]
(Select)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
MENU
q Press [MENU] to
display the menu.
Language Setting
Default: ENGLISH
w Press [[] or []] to
select “DVD”.
USER
q Press [}] or [{] to
select “LANGUAGE”.
w Press [ENTER] to set.
Note: This operation allows you to select a
language for DVD software on the precondition
that the DVD software supports your selecting
language.
SCREEN
q Press [}] or [{] to select
an item.
w Press [[] or []] to select
the setting.
e Press [ENTER] to set.
Language code input
LANGUAGE
DVD menu language
ENG
: English
FRE
SPA
: Spanish
OTHER
SUB TITLE
: other language
Input the language code.
Subtitle language
ENG
: English
SPA
: Spanish
DISP OFF
: French
FRE
OTHER
: French
: other language
Input the language code.
: subtitle are not displayed.
Note: A disc supporting closed captioning and subtitles may overlap each
other on the screen. In this case, turn the subtitle off.
DVD
AUDIO
q Input the four digit language
code pressing the buttons [0]
to [9] on the remote control.
w Press [ENTER] to set.
(Language code list a page 95)
DATE
CAPTURE
AUDIO
Display Aspect and DVD
Software Mode
Default: DVD ASPECT...WIDE
LETTERBOX...PAN & SCAN
Note: Screen aspect of the display unit is
changed according to the aspect ratio setting
(a page 57) and DVD software's aspect.
46
CQ-VD7200U
Audio language
ENG
: English
FRE
SPA
: Spanish
OTHER
DVD ASPECT
WIDE
NARROW
q Press [}] or [{] to
select “DISPLAY”.
DISPLAY
q Press [}] or [{] to select
an item.
w Press [[] or []] to select
the setting.
e Press [ENTER] to set.
: other language
Input the language code.
Display aspect setting
: plays a video in wide screen (16:9).
: plays a video in 4:3 screen.
LETTERBOX
w Press [ENTER] to set.
: French
DVD software mode
PAN & SCAN : plays wide-screen video in Pan & Scan mode (in which the
left and right edges of the screen are cut off).
LETTERBOX : plays wide-screen video in letterbox mode (in which black
bands appear at the top and bottom of the screen).
Notes:
¡Set the software setting according to the symbol used on jackets. (a page 17)
¡DVD software mode setting is ignored if “PAN & SCAN” or “LETTERBOX” is
already set in the software.
CQ-VD7200U
47
E
N
G
L
I
S
H
SET-UP: Clock/date Settings
[MODE]
(End)
39
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ASP
ENTER
ENTER
[MENU]
TRACK/
CHANNEL
P·MODE
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
E
N
G
L
I
S
H
40
[MENU] [MODE] [}] [{] []] [[]
(Select/adjust)
(End)
[ENTER]
1
Menu
2
Submenu
3
Setting
DISPLAY
q Press [MENU] to
display the menu.
Clock and Date Setting
Default: DISPLAY...OFF
YEAR ADJUST...2003
MONTH ADJUST...1
DAY ADJUST...1
HOUR ADJUST...AM 12
MINUTE ADJUST...00
Notes:
¡The clock starts after the unit returns to the
regular mode by pressing [MODE].
¡Perform the setup of Daylight Saving Time
manually.
USER
SCREEN
OFF
: clock display OFF
ON
: clock display ON ([12:00] is displayed before adjusting
the clock.)
YEAR ADJUST
w Press [[] or []] to
select “DATE”.
Clock display
Year adjustment
q Press [}] or [{] to select
an item.
q Press [}] or [{] to
select “CLOCK”.
w Press [[] or []] to select
or adjust the setting.
MONTH ADJUST
Month adjustment
e Press [ENTER] to set.
w Press [ENTER] to set.
CLOCK
DAY ADJUST
Day adjustment
HOUR ADJUST
Hour adjustment
DVD
DATE
MINUTE ADJUST
CAPTURE
Minute adjustment
AUDIO
Calendar Display
q Press [}] or [{] to
select “CALENDAR”.
w Press [ENTER] to set.
Note: The calendar is not editable. (e.g.
Holidays cannot be marked.)
48
CQ-VD7200U
CALENDAR
Press [}]: calendar from the current year to years in future successively
Press [{]: calendar from the current year to years in the past successively
Press [] ]: calendar from the current month to months in the past successively
Press [[ ]: calendar from the current month to months in future successively
CQ-VD7200U
49
[MODE]
(End)
[MENU]
[}] [{]
[] ] [[ ]
(Select)
[ENTER]
3
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
Setting
q Press [ENTER] to import the image.
w Press [[] or []] to select a save area.
¡You can store five images at maximum.
¡The existing image is replaced with a new image when saving an image in
an area. Check the right-hand smaller image on the screen before saving a
new one. If you would like to keep the existing image, do not overwrite.
e Press [ENTER] to save the image.
r Image saving completed.
Notes:
¡Do not turn off the unit while saving an image.
¡To capture an image from TV, the broadcasting conditions should be
excellent.
[OSD]
(CAPTURE)
Direct Image Capture (Only for remote control)
If you would like to capture a picture, press and hold [OSD] (CAPTURE) for
more than 2 seconds.
Subsequent steps are the same as the steps w described above.
E
N
G
L
I
S
H
SET-UP: Capture Function
43
(continued)
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
E
N
G
L
I
S
H
44
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
NAVI
POWER
ASPECT
ASP
ENTER
TRACK/
CHANNEL
P·MODE
1
Menu
2
Submenu
3
Setting
WALLPAPER
FULL
Wallpaper
Default: FULL
Captured wallpaper scale selection between full
screen and animation section.
Note: Wallpaper is displayable only in the CD,
MP3, radio and CD changer modes.
WINDOW
q Press [MENU] to
display the menu.
w Press [[] or []] to
select “CAPTURE”.
WALLPAPER
q Press [[] or []] to select
the setting.
w Press [ENTER] to set.
FULL
w Press [ENTER].
DATE
CAPTURE
AUDIO
WINDOW
q Press [[] or []] to select the image to be deleted.
The default image is displayed on the right-hand smaller window.
DVD
Deletion of saved image.
: animation section
USER
SCREEN
Image Deletion
(INITIALIZE)
: full screen
Note: When the wallpaper is set to FULL, you can switch the screen to
NORMAL by pressing [ASP] (On remote control unit: Press [A]). To cancel,
press [ASP] (or [A]) again.
q Press [}] or [{] to
select “WALLPAPER”.
w Press [ENTER] to set.
Wallpaper scale
q Press [}] or [{] to
select “INITIALIZE”.
e Press [[] or []] to select YES. Press [ENTER].
w Press [ENTER] to set.
INITIALIZE
r The existing image is deleted and the default image is displayed.
Note: Deleted images cannot be recovered.
52
CQ-VD7200U
CQ-VD7200U
53
[MODE]
(End)
[MENU]
[}] [{]
[] ] [[ ]
(Select/adjust)
[ENTER]
3
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one if there is no
operation for more than 60 seconds after changing to
the setting menu.
Setting
BASS
Bass adjustment
Decrease the bass level.
q Press [}] or [{] to select
an item.
TREBLE
Increase the bass level.
Treble adjustment
w Press [[] or []] to adjust.
Decrease the treble level.
Increase the treble level.
Press [}]: front enhanced
Press [{]: rear enhanced
Press [[ ]: right enhanced
Press [] ]: left enhanced
LEVEL
Subwoofer volume level
Down
Up
Note: No sound comes out from Subwoofer when set to level 0.
q Press [}] or [{] to select
an item.
w Press [[] or []] to select
or adjust.
e Press [ENTER] to set.
LPF
Subwoofer low pass filter (Cut off frequency)
120 Hz
: no more than 120 Hz
80 Hz
: no more than 80 Hz
Aspect Ratio
Press [ASP] (ASPECT) on the display unit or press [A] (ASPECT) on the
remote control to change the aspect ratio as follows.
Default: NORMAL
Mode: 4 types
NORMAL
¡The conventional display image has a 4
to 3 ratio of horizontal to vertical.
¡In this case, a blank area remains on the
right and left sides of the display.
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
DISC
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
ASPECT
ASP
ASP
ENTER
FULL
¡The screen is extended horizontally as a
whole to the aspect ratio of 16 to 9.
¡The extension ratio is the same at any
point of the screen.
TRACK/
CHANNEL
P·MODE
[ASP] (ASPECT)
ZOOM
¡The screen is fully extended at the normal
aspect ratio of 4 to 3.
¡The top and bottom of the screen are
slightly cut.
JUST
¡The screen is extended horizontally to the
aspect ratio of 16 to 9.
¡The extension ratio increases toward the
right and left ends of the screen.
Notes:
¡This adjustment is common to TV, VTR1, VTR2, DVD and video CD mode.
¡You cannot change the aspect in the menu screen and a screen in the CD, MP3, radio and CD changer mode. These
are fixed to “FULL” as well as a Navigation image.
¡When the rear view camera is in operation with the transmission gear shift in the reverse position, the image is
shown on the “FULL” screen only.
¡In some cases, the picture looks different from the original one due to your selection of aspect.
E
N
G
L
I
S
H
49
SET-UP: Other Settings
Rear Monitor Set Up
Private Mode
You can have different picture and
sound at the front and rear
monitor at the same time.
q Press and hold [MENU] for more than
2 seconds.
Default: AUTO
e Press [ENTER] to set.
Preparation: Connect another
optional rear monitor. (e.g. CYVMX6800U)(a page 80)
w Press [[] or []] to select the setting.
Rear monitor setting menu
TV
CQ-VD7200U
DISC
VOLUME
NAVIGATION
MUTE
MENU
MENU
MODE
MODE
POWER
NAVI
ASPECT
ENTER
ENTER
ASP
DVD
TRACK/
CHANNEL
P·MODE
[MENU] [MODE] []] [[]
(End)
[MODE] (End)
[MENU]
[]] [[]
50
Press and hold [ASP] (P • MODE) on the display unit or [A] (P • MODE) on
the remote control for more than 2 seconds to activate the private mode function or inactivate it in turn.
You can mute the sounds from
the rear speakers if necessary.
Activation of the private mode
allows you to enjoy the front
monitor and rear monitor (e.g.
CY-VMX6800U) independently
with different sources at the
same time.
“P • MODE” indicator lights when
the Private Mode is activated.
Default: OFF
AUTO
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
E
N
G
L
I
S
H
(continued)
: picture and sound come out. These are in the same mode
as the front monitor.
: picture and sound in the TV mode always come out.
CQ-VD7200U
IN-DASH 7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
: picture and sound in the DVD player mode (disc in the DVD
player) always come out.
Only sound in the CD, MP3 player mode.
VTR1
: picture and sound in the VTR1 mode always come out.
VTR2
: picture and sound in the VTR2 mode always come out.
VOLUME
NAVIGATION
MUTE
MENU
MODE
POWER
NAVI
Private Mode ON
ASPECT
ASP
ASP
ENTER
Radio
Radio
DVD
DVD
Radio
Mute
TRACK/
CHANNEL
P·MODE
[ASP] (P • MODE)
Notes:
¡Press [MODE] to return to the regular mode.
¡The display returns to the previous one with no operation for 60 seconds
after changing to the rear monitor setting menu.
¡You can mute the sound from the rear speakers connected to this unit, so
that you can have different sound of modes at the front and rear monitor.
(a See Private Mode on next page)
¡Picture and sound from the car navigation system connected to an RGB
input cord are not available at the rear monitor.
Private Mode OFF
DISC
[A] (P • MODE)
Main Unit
Monitor
VTR1/VTR2
TV
DVD (VCD, CD, MP3)
Radio
CD Changer
It is recommended to use optional Over-head Monitor
(CY-VMX6800U) and headphones supplied to CYVMX6800U.
The rear monitor does not display television
picture when the main unit is in the radio
mode.
VTR1/VTR2
TV
Rear Monitor
58
CQ-VD7200U
DVD (VCD, CD, MP3)
Note: Be sure to set to OFF when you do not use the private mode.
Different types of discs cannot be played
back at the same time.
For a CD and MP3, the screen becomes blue.
CQ-VD7200U
59
E
N
G
L
I
S
H
Installation Guide
WARNING
51
❐ This installation information is designed for experienced installers and is not intended
for non-technical individuals. It does not contain warnings or cautions of potential dangers involved in attempting to install this product.
Any attempt to install this product in a motor car by anyone other than a qualified
installer could cause damage to the electrical system and could result in serious personal injury or death.
❏ Installation Hardware
(For Installation)
52
No.
Item
q Trim Plate
be required for connection and disconnection of the battery to install this product.
Before attempting installation of this electronic component, contact your car dealer or
manufacturer to determine the required procedure and strictly follow their instructions.
FAILURE TO FOLLOW THE PROCEDURE MAY RESULT IN THE UNINTENDED DEPLOYMENT OF AIR BAGS OR ACTIVATION OF THE ANTI-THEFT SYSTEM RESULTING IN DAMAGE TO THE VEHICLE AND PERSONAL INJURY.
Diagram
Qty
1
w Mounting Collar
1
This product should be installed by a professional.
However, if you plan to install this product yourself, your
first step is to decide where to install it. The instructions in
these pages will guide you through the remaining steps:
(Please refer to the “WARNING” statement above).
¡Identify and label the car wires.
¡Connect the car wires to the wires of the power connector.
¡Install the unit.
¡Check the operation of the unit.
Caution: This unit operates with a 12 volt DC negative ground auto battery system only. Do not attempt
to use it in any other system. Doing so could cause
serious damage.
Before you begin installation, look for the following items
which are packed with your unit.
¡Warranty Card …… Fill this out promptly.
¡Panasonic Servicenter for Service Directory ……
Keep for future reference in case the product needs
servicing.
¡Installation Hardware …… Needed for installation.
2
<YEFX0052424A>
@0 Mounting Bracket
Qty
2
<YEFG021010A>
@1 Base Bracket
2
<YEFG012424>
Double-Faced Adhesive Tape
@2
(for hide-away unit)
2
@3 Velcro Tape
2
1
t Mounting Bolt (M5)
1
@4 Antenna Clamp
4
y Flange Nut (M6)
1
@5 Cord Clamp (for antenna)
4
Washer Assembling Hex.Bolt
(M5 x 10 mm)
Washer Assembling Hex.Bolt
i
(M6 x 20 mm)
u
o Rear Support Strap
1
1
1
<YEFG04019>
Binding-Head Screw
(M5 x 6 mm)
Flat-Head Screw
!1
(M5 x 6 mm)
Binding-Head Screw
!2
(M4 x 3 mm)
!0
2
4
!3 Spacer
Double-Faced Adhesive Tape
!4
(for spacer)
2
1
set
<YEP9FZ2761>
Double-Faced Adhesive Tape
!5
(for speaker)
1
!6 Clamp (for speaker)
2
Binding-Head Screw
(M5 x 8 mm)
Tapping Screw
!8
(ø 6 x 20 mm)
!9 Hex. Nut (M5)
<YEP9FZ3042>
<YEP9FZ3041>
❏ Installation Hardware
(For Wiring)
No.
Item
Diagram
Power Connector
(for display unit)
Reverse Extension Cord
@7
(for rear view camera)
@6
@8 Clip Connector
Qty
1
1
1
<YEAJ011723>
4
<YEP9BS1169>
!7
4
4
4
<YEP9BS1194>
CQ-VD7200U
Diagram
r Rubber Pad
<YEP9FZ3040>
60
Item
<YEFG012694>
<YEP9BS1152>
❏ Overview
No.
<YEP9FZ2739>
e Mounting Spring
❐ If your car is equipped with air bag and/or anti-theft systems, specific procedures may
E
N
G
L
I
S
H
Display Unit/Hide-away Unit
@9
Connecting Cord
1
<YEAJ071458>
Power Connector
#0
(for hide-away unit)
1
<YEAJ011666>
#1 Ground Lead
1
<YEAJ09271>
Radio Antenna Extension
#2
Cord
1
<YEAA09141>
Note:
¡The number in parenthesis underneath each accessory
part name is the part number for maintenance and service.
¡Accessories and their parts numbers are subject to
modification without prior notice due to improvements.
¡Trim Plate q and Mounting Collar w are mounted on
the main unit at shipment.
CQ-VD7200U
61
E
N
G
L
I
S
H
53
Installation Guide
(continued)
❏ Before Installation
❏ Dashboard Specifications
Warning
¡Do not install the monitor in a location which obstructs
driving, visibility or which is prohibited by applicable
laws and regulations. If the monitor is installed in a
location which obstructs forward visibility or operation
of the air bag or other safety equipment or which interferes with operation of the car, it may cause an accident.
THICKNESS
MIN. 3/16" (4.75 mm)
MAX. 7/32" (5.56 mm)
2-3/32" (53 mm)
7-5/32" (182 mm)
¡Never use bolts or nuts from the car's safety devices for
installation. If bolts or nuts from the steering wheel,
brakes or other safety devices are used for installation of
the monitor, it may cause an accident.
¡Attach the wires correctly. If the wiring is not correctly
performed, it may cause a fire or an accident. In particular, be sure to run and secure the lead wire so that it
does not get tangled with a screw or the moving portion
of a seat rail.
❏ Identify All Leads
The first step in installation is to identify all the car wires
you’ll use when hooking up your LCD monitor.
As you identify each wire, we suggest that you label it using
masking tape and a permanent marker. This will help avoid
confusion when making connections later.
Note: Do not connect the power connector to the display
unit until you have made all connections. If there are no
plastic caps on the hooking wires, insulate all exposed
leads with electrical tape until you are ready to use them.
Identify the leads in the following order.
Speakers (not supplied speaker)
Identify the car speaker leads. There are two leads for each
speaker, usually color coded.
A handy way to identify the speaker leads and the speaker
they are connected with is to test the leads using a 1.5 V
AA battery as follows.
Hold one lead against one pole of the battery and stroke the
other lead across the other pole. You will hear a scraping
sound in a speaker if you are holding a speaker lead.
If not, keep testing different lead combinations until you
have located all the speaker leads. When you label them,
include the speaker location for each.
E
N
G
L
I
S
H
54
Power Lead
If your car has a radio or is pre-wired for one:
Cut the connector wires one at a time from the plug (leaving
the leads as long as possible) so that you can work with
individual leads. Turn the ignition on to the accessory position, and ground one lead of the test bulb to the chassis.
¡Use with 12 volt DC negative ground car. This unit is
only for use with a 12 volt DC negative ground car. It
cannot be used in large trucks or diesel cars which are
24 volt DC cars. If it is used in the wrong type of car, it
may cause a fire or an accident.
Cautions:
¡Use the specified fuse. Be sure to always use the
specified fuse. If a fuse other than the specified fuse
is used, it may cause a fire or an accident.
¡Do not damage the cord by pinching or pulling it.
Do not pull or damage the cord. If the cord is not
treated properly, it will short out or be severed and
may cause a fire or an accident.
❏ Required Tools
You’ll need a screwdriver and the following:
12 V DC
Test Bulb
Electrical
Tape
Side-Cut
Pliers
Touch the other lead of the test bulb to each of the exposed
wires from the cut radio connector plug. Touch one wire at a
time until you find the outlet that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb also turns
off and on, that outlet is the car power lead.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for radio
(RADIO) accessory (ACC) or ignition (IGN).
Battery Lead
If your stereo unit has a yellow lead, you will need to locate
the car's battery lead. Otherwise you may ignore this procedure. (The yellow battery lead provides continuous power
to maintain a clock or other functions.)
If your car has a radio or is pre-wired for one:
With the ignition and headlights off, identify the car battery
lead by grounding one lead of the test bulb to the chassis
and checking the remaining exposed wires from the cut
radio connector plug.
If your car is not wired for an audio unit:
Go to the fuse block and find the fuse port for the battery,
usually marked BAT.
62
CQ-VD7200U
CQ-VD7200U
63
E
N
G
L
I
S
H
55
Installation Guide
(continued)
❏ Connect All Leads
Now that you have identified all the wires in the car, you're
ready to begin connecting them to the LCD monitor wires.
The wiring diagram (a page 72-83) shows the proper
wiring and color coding of the leads.
We strongly recommend that you test the unit before making a final installation.
You can set the unit on the floor and make temporary connections to test the unit. Use electrical tape to cover all
exposed wires.
Important: Connect the red power lead last, after you
have made and insulated all other connections.
Power
Connect the red power lead to the correct car radio wire or
to the appropriate fuse port on the fuse block.
If the LCD monitor functions properly with all these connections made, disconnect the wires and proceed to the
final installation.
❏ Final Installation
Lead Connections
Connect all wires, making sure that each connection is
insulated and secure. Bundle all loose wires and fasten
them with tape so they will not fall down later. Now insert
the LCD monitor into the mounting collar.
❏ Precautions
Cautions:
¡We strongly recommend that you wear gloves for
installation work to protect yourself from injuries.
¡When bending the mounting tab of the mounting
collar with a screwdriver, be careful not to injure
your hands and fingers.
¡Disconnect the cable from the negative (–) battery terminal (see caution at right).
¡Unit should be installed in a horizontal position with the
front end up at a convenient angle, but less than 30°.
Congratulations! After making a few final checks, you’re
ready to enjoy your new LCD monitor.
Ground
Connect the black ground lead of the power connector to
the metal car chassis.
Speakers (not supplied speaker)
Connect the speaker wires. See the wiring diagram for the
proper hookups. Follow the diagram carefully to avoid
damaging the speakers and the stereo unit.
The speakers used must be able to handle more than 45 W
of audio power. If using an optional audio power, the speakers should be able to handle the maximum amplifier output
power. Speakers with low input ratings can be damaged.
Speaker impedance should measure 4–8 Ω, which is typically marked on most speakers. Lower or higher impedance speakers will affect output and can cause both speaker and stereo unit damage.
Caution: Never ground the speaker cords. For example, do not use a chassis ground system or a threewire speaker common system. Each speaker must be
connected separately using parallel insulated wires. If
in doubt about how your car’s speakers are wired,
please consult with your nearest professional installer.
Battery
Connect the yellow battery lead to the correct radio wire or
to the battery fuse port on the fuse block.
Equipment
Connect any optional equipment according to the instructions furnished with the equipment. Read the operating and
installation instructions of any equipment you will connect
to this unit.
64
CQ-VD7200U
❏ Final Checks
1. Make sure that all wires are properly connected and
insulated.
2. Make sure that the LCD monitor is securely held in
the mounting collar.
3. Turn on the ignition to check the unit for proper
operation.
If you have difficulties, consult your nearest authorized professional installer for assistance.
This unit should be professionally installed. In case of difficulty, please consult with your nearest professional
installer.
1. This unit only operates in a 12-volt DC negative ground
system.
2. Follow the electrical connections carefully (a page 7283). Failure to do so may result in damage to the unit.
3. Connect the power lead after all other connections are
made.
4. Be sure to connect the battery lead (yellow) to the positive terminal (+) of the battery or fuse block (BAT) terminal.
5. Insulate all exposed wires to prevent short circuiting.
6. Secure all loose wires after installing the unit.
7. Please carefully read the operating and installation
instructions of the respective equipment before connecting it to this unit.
E
N
G
L
I
S
H
56
Caution: Please follow the laws and regulations of
your state, province or country for installation of the
unit.
less than 30°
Caution: Various settings that have been stored in
the memory in other on-board equipment (car navigation etc.) may be lost if the battery terminals are disconnected.
Therefore, we recommend to make a record of or to
back up the settings before disconnecting the terminals.
After completing installation of the main unit, set the
equipment again according to the record.
❏ Transportation Bracket Removal
Be sure to remove the transportation brackets before use (installation).
Use Binding-Head Screws (M5 x 6 mm) for installation. (a page 68)
Be careful not to lose these Binding-Head Screws.
Transportation
Display Unit
Binding-Head
Screws
(M5 x 6 mm)
Bracket
Transportation
Bracket
Binding-Head
Screws
(M5 x 6 mm)
CQ-VD7200U
65
E
N
G
L
I
S
H
Installation Guide
E
N
G
L
I
S
H
(continued)
57
58
Method for Fixing the Rear of the Unit
(a) Using the Rear Support Strap o
Drill a hole 6.5 to 7 mm
in diameter.
y Flange Nut
(M6)
(b) Using the Rubber Pad r
r Rubber Pad
t Mounting Bolt (M5)
i Washer Assembling Hex.
Bolt (M6 x 20 mm)
Fire wall of car
Display Unit
Bracket
(On car)
o Rear Support Strap
u Washer
Assembling
Hex. Bolt
(M5 x 10 mm)*1
Display Unit
*1: Use M5 x 8 mm size bolt (optional) if bolts other than
the supplied ones are to be used.
To Remove the Display Unit
q Push the right and left clamp plates outward, one at a time, and pull the display unit toward yourself.
w After removing the right and left clamp plates, pull the unit with both hands till it comes off.
w
q
Push here to
remove the
clamp plates.
66
CQ-VD7200U
CQ-VD7200U
67
E
N
G
L
I
S
H
E
N
G
L
I
S
H
Mounting the Hide-away Unit
59
60
Cautions:
¡Never mount the unit in any of the following locations to avoid damage due to overheating;
1. Near the heater port.
2. Places like the dashboard or rear deck, where it may be exposed to direct sunlight.
¡Do not mount the unit near the door, where it could be exposed to rain.
¡Do not separate the hide-away unit.
❑ Mount the unit on the car carpet by using Velcro Tape @3.
Attach the seal side of the Velcro Tape @3
to the hide-away unit, then mount the unit
on the carpet.
Note: Some carpet materials may not be
suitable for this mounting method. In this
case, please contact your nearest
Panasonic Servicenter for installation.
@3 Velcro Tape
❑ Unit installation by using the Mounting Brackets @0 and the Base Brackets @1.
!9 Hex. Nut (M5)
@0 Mounting Bracket
!7 Binding-Head Screw
(M5 x 8 mm)
Carpet
Let the bolts of
the base bracket
pass the carpet.
Before mounting the speaker, wipe water, dust and oil stains
off from the place where the speaker should be mounted to
enhance adhesive strength.
!8 Tapping Screw (ø 6 x 20 mm)
@1 Base Bracket
Make cuts by
using cutter.
@2 Double-Faced Adhesive Tape
Drill for 4.8 mm diameter holes to the chassis.
* Put the tape and the base bracket together with each hole of the tape and
bracket connected so that the screw goes in at two positions.
Note: Apply an anticorrosive to the holes and tapping screws.
Caution: You run the risk of interfering with the mounting or causing damage by drilling into the gas tank, a wiring
harness, or other component.
68
CQ-VD7200U
CQ-VD7200U
69
E
N
G
L
I
S
H
62
Insert the grounding plate into the antenna body and hold the antenna element with the Antenna Clamp @4.
Follow the steps below to install the grounding plate.
q Insert the grounding plate into the antenna body.
w Hold the grounding plate with the terminal cover.
e Screw the grounding plate.
r Hold the antenna element with the Antenna Clamp @4.
Peel the sheet from the back of antenna body
and affix it. Then, affix the grounding plate on a
metal part.
Follow the steps below to affix the antenna securely.
q Affix the antenna body.
w Straighten the antenna element and affix it.
e Put the Antenna Clamp @4 on the center of the antenna element.
r Adjust the angle and position of the grounding plate and affix it.
CQ-VD7200U
71
E
N
G
L
I
S
H
E
N
G
L
I
S
H
63
64
VIDEO-CONT
Hide-away Unit
(Rear)
SIDE BRAKE
Note: See next page for hide-away unit
electrical connection.
REVERSE
(Black)
Panasonic
ACC
(Black/green stripe)
BATTERY 5A
72
CQ-VD7200U
Speaker
Note: Supplied only for operational sound such as a beep.
Do not use it for a center speaker.
Caution: Do not use the supplied speaker for some
other units or components.
CQ-VD7200U
73
!
@
!
@
!
@
!
@
NAVI MUTE
ANT-CONT MAX 0.1A
TWIN CD C-CONT
AMP-CONT MAX 0.1A
BATTERY 15A
ACC
E
N
G
L
I
S
H
Electrical Connections
Connecting the Side Brake (Parking Brake) Connection Lead
67
Color of the Connectors
68
Color of the connectors used for the connections in
pages 78-83.
Caution: For safety, be sure to ask your nearest professional installer to do this connection.
Side brake (Parking brake)
E
N
G
L
I
S
H
(continued)
Foot brake
Side brake (parking brake) switch
Red
White
Yellow
(Not used)
The side brake (parking brake) switch position varies with the car model.
For details on the exact location of the side brake (parking brake) switch
in your car, contact your dealer.
Brake light
Battery
+
SIDE BRAKE
Side Brake (Parking Brake) Connection
Lead (Blue/yellow stripe)
When the side brake (parking brake) lever is
engaged, the unit is grounded by the chassis.
q Attach a Clip Connector @8 to the end of the side
brake (parking brake) connection lead.
@8 Clip Connector
—
Car chassis
w The Clip Connector @8 is connected to the power
source side lead of the side brake (parking brake)
lever.
Comes up to this point.
Side Brake (Parking Brake)
Connection Lead
(Blue/yellow stripe)
76
CQ-VD7200U
Power source side lead
CQ-VD7200U
77
E
N
G
L
I
S
H
69
Electrical Connections
E
N
G
L
I
S
H
(continued)
Connection with CD Changer (CX-DP880U)
Connection with Dual CD Changer Selector (CA-CD55)
Note: Refer to the operating instructions for the connected devices, in addition.
70
Note: Refer to the operating instructions for the connected devices, in addition.
CD changer
CX-DP880U
Power Connector
(Supplied to CX-DP880U)
(option)
CQ-VD7200U
Hide-away Unit
(Front)
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
DIN Cord
RCA Cord
Battery Lead (Yellow)
To the car battery,
continuous +12 V DC
(R) (Red)
DIN Cord
(Supplied to CA-CD55)
(L) (White)
(R)
(Red)
Dual CD Changer
Selector
CA-CD55
CD·C-1
(option)
CD changer
(L)
(White)
CD·C-2
CX-DP880U
(option)
DIN Cord
(R) (Red)
CQ-VD7200U
Hide-away Unit
(Front)
(R) (Red)
(L) (White)
(L) (White)
Power Connector
(Supplied to CX-DP880U)
Ground Lead (Black)
To a clean, bare metallic part
of the car chassis
RCA Cord
(Supplied to CA-CD55)
(R)
(Red)
TWIN CD·C-CONT
(L)
(White)
Clip connector
(Option)
CD changer
CX-DP880U
(option)
Battery Lead (Yellow)
To the car battery, continuous +12 V DC
RCA Cord
Ground Lead (Black)
To a clean, bare metallic part of the car chassis
DIN Cord
Battery Lead (Yellow)
To the car battery, continuous
+12 V DC
78
CQ-VD7200U
Power Connector
(Supplied to CX-DP880U)
CQ-VD7200U
79
E
N
G
L
I
S
H
Electrical Connections
E
N
G
L
I
S
H
(continued)
Connection with Rear View Camera
71
Note: Refer to the operating instructions for the connected devices, in addition.
Rear View Camera
Control Unit (option)
CQ-VD7200U
Display Unit (Rear)
72
Camera Input
(Video)
(Yellow)
Rear View Camera (option)
Panaso nic
@6 Power Connector
Hide-away Unit
(Front)
RCA Cord (Option)
(Video)
(Yellow)
Connecting the Reverse Lead
If using an optional rear view camera, the reverse lead must be
connected.
Connect the reverse lead (violet/white stripe) to the positive (+)
lead of the reverse lamp (the lamp with a clear lens that lights
when the transmission gear is shifted into the reverse position).
Notes:
¡Connect the reverse lead after cutting the terminal at the end.
¡Use a Reverse Extension Cord @7 if needed.
Reverse lamp
REVERSE
Cut here.
CQ-VD7200U
Take it out of the back of
the tail lamp mount.
Battery
Car chassis
P
Reverse Lead (Violet/white stripe)
80
Clip connector
(Option)
Check the reverse lamp.
R
N
D
2
L
Transmission gear
CQ-VD7200U
81
E
N
G
L
I
S
H
73
Electrical Connections
E
N
G
L
I
S
H
(continued)
Connection with Digital Surround Processor (CY-AC300)
@9 Display Unit/Hide-away Unit Connecting Cord
Note: Refer to the operating instructions for the connected devices, in addition.
74
CQ-VD7200U
Display Unit (Rear)
Digital Surround Processor
CY-AC300
Operating Unit (option)
Operating Unit/Main Unit
Connecting Cord
(Supplied to CY-AC300)
SUB·W
REAR
FRONT
ANALOG-IN
AL
DIGIT
ND
SURROU
DIGATAL
PROCESS
CE
UR
SO
AC300
display
i-color
t mult
brigh
super
VOL
S
E
L
MUTE
SOURCE
1
2
3
OR
PRO LOGIC
ker
ter Spea
for Cen
Amplifier
CE
Power
N SPA
& 30w
POSITIO
4
P I
POS
DR COM
DIMMER
DIM
SPC
Digital Surround Processor
CY-AC300
(Rear)
(Front)
PWR
Notes on handling optical fiber cable:
¡Do not allow the cable to be damaged by getting it caught in the door,
placing a heavy object on it, etc.
¡Make sure that the cable is not
strained when it is connected.
¡Do not bend the cable sharply.
DIGITAL-IN
25 mm or more
Optical Fiber Cable
(CA-LRD60: Option)
Power Connector
(Supplied to CY-AC300)
(R)
(L) (R) (L) (R) (L) (R)
Digital Audio Output
Connector (optical)
@6 Power Connector
CENTER
Center Speaker Lead
External Amplifier
Control Power Cord
CQ-VD7200U
Hide-away Unit
(L)(White)
(R)(Red)
AMP-CONT MAX 0.1A
RCA Cord
(Option)
RCA Cord (Option)
(When a two-way cord is used)
RCA Cord
(Option)
(Black/green
stripe)
(Black)
(L)(White)
(R)(Red)
(L)(White)
(R)(Red)
(L)(White)
(R)(Red)
!
@
#0 Power Connector
CY-M9054 (Option)
(Top)
CY-M7052 (Option)
(Top)
Amplifier Control Power
Cord (Blue/white stripe)
(Rear)
(Front)
Amplifier Control Power
Cord (Blue/white stripe)
(Connect to AMP-CONT)
Panasonic
Center Speaker
EAB-CF2
82
CQ-VD7200U
Subwoofer
(Right)
(Left)
Rear Speaker
(Right)
(Left)
Front Speaker
CQ-VD7200U
83
E
N
G
L
I
S
H
Troubleshooting
Preliminary Steps
Check and take steps as described in the tables below.
75
If You Suspect Something Wrong
Immediately switch power off.
Disconnect the power cable and check that there is neither smoke
nor heat from the unit before asking for repairs. Never try to repair
the unit yourself because it is dangerous to do so.
Cautions:
¡Do not use the unit if it malfunctions or if
there appears to be something wrong.
¡Do not use the unit in an irregular condition, for example, no sound, or if it is emitting smoke or foul smell, as this may cause
ignition or electric shock. Immediately stop
using it and call the store where you purchased it.
■ Common
E
N
G
L
I
S
H
■ Common (Continued)
Trouble
Cause/Step
76
A mobile phone is used near the unit.
aKeep the mobile phone away from the unit.
Noise
Picture is not clear.
The unit’s grounding wire is not connected securely.
aCheck the metal areas of the car body (chassis), and connect the
grounding wire more securely.
■ Monitor
Trouble
Cause/Step
Car’s ignition switch is not on.
aTurn your car’s ignition switch to ACC or ON.
Cables are not correctly connected.
aConnect cables correctly.
Battery cable is not correctly connected.
aConnect the battery cable to the terminal that is always live.
No power
Trouble
The tilt angle or the
front-rear position of
the display is not
adjustable.
The monitor does not
go back into the unit.
Accessory cable is not correctly connected.
aConnect the accessory cable to your car's ACC source.
Grounding wire is not correctly connected.
aConnect the grounding wire to a metal part of your car.
There is an obstacle.
aInstall the unit where the unit moves freely.
The monitor direction is not proper.
aChange the monitor direction to the center.
The monitor stops on the way to the home position.
aRaise the monitor a little and press [ ] (OPEN/CLOSE).
■ Remote Control
Trouble
Fuse is burnt.
aCall the store where you purchased the unit, or your nearest Panasonic
Servicenter (see the attached sheet) and ask for fuse replacement.
Cause/Step
Battery Poles (+) (–) are reversed.
aInsert the battery correctly.
The volume is adjusted to zero.
aRaise the volume.
Mute is set to ON.
aSet it to OFF.
Cause/Step
Buttons are invalid for
operation.
No sound
Cables are not correctly connected.
aConnect cables correctly.
Wrong battery.
aCheck the battery.
Battery has run down.
aReplace the battery.
Remote control is in the wrong direction.
aDirect the remote control at remote control sensor on the display unit.
Condensation (dew)
aWait for a while before use.
Side brake (parking brake) cord is not correctly connected.
aConnect the side brake connection lead correctly.
Only sound,
no picture.
■ TV
Trouble
You did not pull the side brake (parking brake) lever.
aPull the side brake (parking brake) lever.
Unclear image due to
noise
84
CQ-VD7200U
Cause/Step
The intensity of the radio wave is too low.
aChange the broadcast station.
Connection or installation of the TV antenna has not been performed correctly.
aCheck the connection or installation.
CQ-VD7200U
85
E
N
G
L
I
S
H
77
Troubleshooting
■ DVD video, Video CD, CD, CD-R, CD-RW
Trouble
■ CD
Trouble
Cause/Step
The disc is upside down.
aPlace the disc in the correction direction, the label side up.
The disc is inside but
no sound.
The disc is ejected
automatically.
E
N
G
L
I
S
H
(continued)
The disc is dirty.
aClean the disc, referring to the section on “Notes on Discs”(a page 93).
78
CD text is not
displayed normally.
Disc is dirty, or has scratches.
aClean the disc, referring to the section on “Notes on Discs”(a page 93).
Time is counted but no
sound comes out.
The 1st track of a mix mode disc was reproduced. (Mix mode is a format in
which data, except music, is recorded on the 1st track and music data is
recorded on other than the 1st track in a session.)
aPlay back music data recorded on other than the 1st track.
The unit can only play the following types of discs: DVD video, video CD, music
CD and MP3.
CD sound skips, tone
quality is low.
The disc is dirty.
aClean the disc, referring to the section on “Notes on Discs”(a page 93).
Mounting angle is over 30°.
aAdjust mounting angle to less than 30°.
Sound skip due to
vibration.
Cause/Step
■ MP3
Trouble
Unstable mounting.
aMount the unit securely with the mounting parts, referring to the section on
installation.
No playback.
The buttons do not
work.
Some operations are not permitted with certain discs.
(Refer to the guide provided with your disc.)
The disc is not ejected.
¡Disc is defective.
¡Mechanical trouble.
aPress [u]. If failure persists, press the reset switch. If normal operation
is not restored, call the store where you purchased the unit or the nearest
Panasonic Servicenter.
Trouble
Cause/Step
Cannot switch the audio
language/subtitle
language/angle.
¡It is not possible to switch if the disc does not have multiple audio languages/subtitle languages/angles recorded on it. (Refer to the guide provided
with your disc.)
¡Some discs permit switching through a menu screen.
¡Sometimes, switching angles is possible only with certain scenes.
The audio/subtitle
language selected in the
DVD settings is not
used.
If audio or subtitles in the languages are not recorded on the disc, the audio or
subtitles do not switch to that language. (Some discs permit switching through
a menu screen. Refer to the guide provided with your disc.)
The disc does not conform to any of the file systems supported by this player.
aInsert a disc that conforms to the file systems supported by this player.
(a page 31).
The MP3 file is missing the “.mp3” file name extension.
aMake sure to add the “.mp3” extension to each MP3 file name.
It takes too long for
playback to start.
Poor recording quality,
sound skipping
■ DVD video
Cause/Step
The folders and files recorded on the disc are layered too much.
aAs checking of files takes longer in this case, do not record any unnecessary folders or files other than MP3s on the disc.
(If there are many hierarchies of files and folders, it may take up to 150
seconds to start playback.)
aThe recording quality differs depending on the encoding software used,
and on settings such as the bit rate. Set the bit rate within the range specified in the specifications chart (a page 96).
It is recommended to set the bit rate to “128 kbps or more” and “Fixed”.
High-speed writing was executed when MP3 data was recorded on the disc.
aDecrease writing speed as low as possible.
Files are not played in
the desired order.
Folder/file name is not
displayed correctly.
Files or folders are not recorded in the desired playback order.
aSome writing software lets you specify the recording order by adding a
prefix in the range of “01” - “99”, etc. to the file name. For details refer
to the user manual of your writing software.
The disc does not conform to the file systems supported by this player.
aInsert a disc that conforms to the file systems supported by this player.
(a page 31).
aThere may be a problem with your writing software or CD recorder (CDR/RW drive). For details refer to the user manual of your writing software.
86
CQ-VD7200U
CQ-VD7200U
87
E
N
G
L
I
S
H
79
Troubleshooting
■ MP3 (Continued)
Trouble
■ Display Settings
Cause/Step
You turned off the ignition switch of the car during playback.
aPlaying another file will return the file playing time to normal.
File playing time is not
displayed correctly.
You played a file in which character information had been recorded by use of
ID3Tag 2.0 or later version.
aA file in which character information was recorded by use of ID3Tag 2.0
or later version may not be reproduced normally. For example, the file
playing time may not be displayed correctly.
■ Radio
Trouble
The motor antenna relay control lead is not connected correctly.
aIf there is a motor antenna in the car, connect the motor antenna relay
control lead to the motor antenna lead that is installed in the car correctly.
The radio antenna is not extended enough.
aFully extend the radio antenna.
■ Car Navigation, VCR, Camcorder, Rear View Camera, Rear Monitor
Trouble
The picture from a car
navigation system is
not displayed.
The picture from a VCR or a
camcorder is not displayed.
The picture from a rear
view camera is not displayed.
The picture or the sound
of the rear monitor is not
switchable.
88
CQ-VD7200U
Trouble
Cause/Step
The brightness of the
screen is not stable.
“AUTO” dimmer is selected.
aSelect one of the dimmer levels from among 1 to 4 to make the dimmer
adjustment become free from light intensity.
The picture is dark.
The picture is whitish.
Something is wrong
with the picture. The
picture is light in color.
The screen is not adjusted properly.
aMake every adjustment of the screen.
Red, blue, or green
spots appears.
This is a characteristic of liquid crystal panels and is not a problem.
80
Cause/Step
Station is too far, or signals are too weak.
aSelect other stations of higher signal level.
Poor reception of FM
stereo and monaural
broadcasts.
E
N
G
L
I
S
H
(continued)
Cause/Step
■ Sound Settings
Trouble
Cause/Step
No sound from left,
right, front, or rear
speaker.
Cables are not correctly connected.
aConnect the cables correctly.
Left and right sounds
are reversed.
The speaker leads are connected in reverse between right and left.
aConnect the speaker wires to the correct one.
No sound from the
subwoofer.
Subwoofer volume level is set to zero.
aRise the volume of Subwoofer.
Private mode is set to “ON”.
aSet private mode to “OFF”.
The connection of a car navigation system is not correct.
aConnect it correctly.
Input setting of a car navigation system is not correct.
aMake the input setting correct.
A VCR or Camcorder is not connected correctly.
aConnect a VCR or Camcorder correctly.
Rear view camera is not connected correctly.
aConnect a rear view camera correctly.
Input setting of a camera is not correct.
aMake the input setting correct.
“AUTO” is not selected for the setting of a rear monitor.
aSelect “AUTO” for the setting.
CQ-VD7200U
89
E
N
G
L
I
S
H
81
Troubleshooting
(continued)
Error Display Messages
If the Unit Begins to Malfunction...
■ CD/MP3/DVD/Video CD/CD Changer
Display
Reset switch
Insert a hard, slender stick into the hole and push the switch.
E
N
G
L
I
S
H
82
Cause/Step
- E1 -
Disc is dirty, or is upside down.
aCheck disc.
Important
Push the switch only when the unit fails to operate with any buttons. (Stored settings and adjustments are not cleared.)
If the unit fails to return to normal condition, call the nearest Panasonic Servicenter and ask for repairs.
- E2 -
Disc has scratches.
aCheck disc.
Display Unit
- E3 -
No operation by some cause.
aPress [u]. If failure persists, press the reset switch. (Press the reset
switch in the CD changer). If normal operation is not restored, call the
store where you purchased the unit or the nearest Panasonic
Servicenter.
- E4 -
The type of the file that is selected is not supported.
aCheck disc.
Hide-away Unit
CQ-VD7200U
NO DISC
No disc is in the player.
aInsert disc into the disc slot.
DISC
NAVIGATION
MENU
NO MAGAZINE
PAL/NTSC ERROR
REGION ERROR
RESE
T
7 INCH WIDE COLOR LCD TV / DVD - VIDEO / RECEIVER
No magazine is in the changer.
aLoad the changer with CD-loaded magazine.
An attempt was made to play a PAL disc.
aPress [u] and check the disc.
An attempt was made to play a disc with a region number other than “1” or
“ALL”.
aPress [u] and check the disc.
MODE
POWER
NAVI
ASPECT
ASP
P·MODE
ENTER
TRACK/
CHANNEL
Reset switch
Notes:
¡We recommend that you press both of the reset switches on the Display Unit and the Hide-away Unit one by one in any
order.
¡If the ID-CODE has been already set, you will be asked to enter the ID-CODE right after the unit is restarted.
Notes:
¡There may be cases when the disc numbers affected by an error are displayed before E1 and E2.
¡Displays and the steps to be taken for errors vary in part from changer to changer. For details, refer to the Operating
Instructions for the changer used.
Maintenance
Your product is designed and manufactured to ensure a minimum of maintenance. Use a dry soft cloth for routine exterior
cleaning. Never use benzine, thinner or other solvents.
Product Servicing
If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized
Panasonic Servicenter. The product should be serviced only by a qualified technician.
Replacing the Fuse
Use fuses of the same specified rating (5 A for display unit, 15 A for hide-away unit). Using different substitutes or fuses with
higher rating, or connecting the product directly without a fuse, could cause fire or damage to this unit.
If the replacement fuse fails, contact your nearest Panasonic Servicenter for service.
90
CQ-VD7200U
CQ-VD7200U
91
E
N
G
L
I
S
H
83
Maintenance
To Prevent Damage to the System Exterior
Notes on Discs
Do not apply pesticides, benzine, thinner or other volatile substances to the unit.
The cabinet surface primarily consists of plastic materials.
Do not wipe with benzine, thinner or similar substances because this will result in
discoloration or removal of the paint.
When a cloth with a cleansing chemical is used, follow the caution points.
Do not leave the unit in contact with rubber or vinyl products for long periods of
time.
Do not use cleaners which have polishing granules because this could damage the
surface of the unit.
Pesticide
Alcohol
Wax
Tape
How to hold the disc
¡Do not touch the underside of the disc.
¡Do not scratch the disc.
¡Do not bend disc.
¡When not in use, keep disc in the case.
84
Label side
Do not use irregularly shaped discs.
Thinner
Benzine Adhesive
Tape
Do not leave discs in the following places:
¡Direct sunlight
¡Near car heaters
¡Dirty, dusty and damp areas
¡On seats and dashboards
Disc cleaning
Use a dry, soft cloth to wipe from the center outward.
Clean Dirt by Wiping Lightly with a Soft Cloth
Do not use irregularly shaped discs.
<Right>
<Wrong>
Do not attach any seals or labels to your discs.
When the unit is dirty, wipe the surface of the display using the Wiping Cloth (supplied).
■
E
N
G
L
I
S
H
Do not write on the disc label in a heavy pen or
ballpoint pen.
Without a Wiping Cloth
When the unit is dirty, wipe with a well-wrung cloth dipped in liquid dish washing detergent (neutral) diluted with water
and then go over the same surface with a dry cloth.
(Since there is the possibility of water drops getting inside of the unit, do not directly apply cleanser to the surface.)
Wring well.
Go over the same surface with a dry
cloth.
Wipe lightly.
a
a
Notes on CD-Rs/RWs
¡You may have trouble playing back some CD-R/RW discs recorded on CD recorders (CD-R/RW drives), either due to
their recording characteristics or dirt, fingerprints, scratches, etc. on the disc surface.
¡CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside
a car for extended periods may damage and make playback impossible.
¡The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CD
recorder (CD-R/RW drive) and a disc if they are incompatible with one another.
¡This player cannot play CD-R/RW discs if the session is not closed.
¡This player cannot play CD-R/RW discs which contain other than CD-DA or MP3 data.
¡Be sure to observe the handling instructions of CD-R/RW discs.
Dish washing soap diluted with water
Note: Do not scratch the screen with your nails or other hard objects. The resulting scratches or marks will obscure the
images.
Caution: If water drops or similar wet substances get inside the monitor, it may cause a malfunction.
92
CQ-VD7200U
CQ-VD7200U
93
E
N
G
L
I
S
H
85
Definition of Terms
Digital audio output connector (Optical)
The digital audio output connector (optical) converts
electrical signals into optical signals and transfers
them to the amplifier. Consequently, it has a number
of features including its immunity from electrical interference from external sources and its ability to prevent
the generation of noise and its minimal effect on the
external environment.
Interactive DVD
An interactive DVD is DVD software which includes
multiple angles, multiple plot endings, etc.
Dolby Digital
This fully discrete format divides the music signals
into 5.1 channels: Front Left (L), Front Right (R),
Center (C), Left Surround (LS), Right Surround (RS)
and Subwoofer (SW: 0.1 channel) for recording and
playback. The number of channels that are recorded
depends on the software. (1 to 5.1 channels)
LPCM (Linear PCM audio)
In this format, the audio signal is converted to digital
data and recorded in two channels without compression. Because the capacity of a DVD video disc is
large, it can store more data with better accuracy than
a CD.
Manufactured under license from Dolby
Laboratories. “Dolby” and the double-D symbol
are trademarks of Dolby Laboratories.
Confidential unpublished works. Copyright
1992 – 1997 Dolby Laboratories. All rights
reserved.
Dolby Pro Logic
This format records signals from four channels [Front
Left (L), Front Right (R), Center (C), and Monaural
Surround (S)] in two channels, decodes those channels through a Dolby Pro Logic decoder, and then outputs the resulting signals in four channels.
dts
This format requires more data than Dolby Digital, and
provides higher quality surround playback.
Similar to Dolby Digital, this fully discrete format
divides the music signals into 5.1 channels: Front Left
(L), Front Right (R), Center (C), Left Surround (LS),
Right Surround (RS) and Subwoofer (SW: 0.1 channel) for recording and playback.
Manufactured under license from Digital
Theater Systems, Inc. US Pat. No. 5,451,942
and other world-wide patents issues and pending. “DTS” and “DTS Digital Surround” are
trademarks of Digital Theater Systems, Inc. ©
1996 Digital Theater Systems, Inc. All rights
reserved.
94
Language Code List
CQ-VD7200U
Letterbox screen
This refers to a screen on which the playback picture
of wide-screen DVDs or Video CDs appears with black
bands running along the top and bottom.
Pan & Scan screen
This refers to a screen on which the playback picture
of wide-screen DVDs or Video CDs is cut off at the left
and right sides.
Playback control (Video CD)
If the Video CD has “With Playback Control” or others
written on the disc surface or on the jacket, the scenes
or information to be viewed (or listened to) can be
selected interactively with the screen by looking at the
menu shown on the screen.
In these instructions, playback using the menu screen
is referred to as the “menu play” for video CDs. This
player supports Video CDs with playback control.
Title, Chapter (DVD)
DVDs are divided into some large sections (titles) or
some small sections (chapters). Each section is numbered; these numbers are called “Title number” or
“Chapter number”.
Title 1
Chapter 1
Title 2
Chapter 2 ……
Chapter 1 ……
Track (Video CD/CD)
Video CDs or CDs are divided into some sections
(tracks). Each section is numbered; these numbers are
called “Track number”.
Track 1
Track 2
Track 3
Track ……
E
N
G
L
I
S
H
How to input the language code, refer to page 46.
Code
6565
6566
6570
6577
6582
6583
6588
6590
6665
6669
6671
6672
6678
6679
6682
6765
6779
6783
6789
6865
6869
6890
6976
6978
6979
6983
6984
6985
7065
7073
7074
7079
7082
7089
7165
7168
7176
7178
7185
7265
7273
7282
7285
Language Name
Afar
Abkhazian
Afrikaans
Ameharic
Arabic
Assamese
Aymara
Azerbaijani
Bashkir
Byelorussian
Bulgarian
Bihari
Bengali; Bangla
Tibetan
Breton
Catalan
Corsican
Czech
Welsh
Danish
German
Bhutani
Greek
English
Esperanto
Spanish
Estonian
Basque
Persian
Finnish
Fiji
Faroese
French
Frisian
Irish
Scots Gaelic
Galician
Guarani
Gujarati
Hausa
Hindi
Croatian
Hungarian
Code
7289
7365
7378
7383
7384
7387
7465
7473
7487
7565
7575
7576
7577
7578
7579
7583
7585
7589
7665
7678
7679
7684
7686
7771
7773
7775
7776
7778
7779
7782
7783
7784
7789
7865
7869
7876
7879
7982
8065
8076
8083
8084
8185
Language Name
Armenian
Interlingua
Indonesian
Icelandic
Italian
Hebrew
Japanese
Yiddish
Javanese
Georgian
Kazakh
Greenlandic
Cambodian
Kannada
Korean
Kashmiri
Kurdish
Kirghiz
Latin
Lingala
Laothian
Lithuanian
Latvian, Lettish
Malagasy
Maori
Macedonian
Malayalam
Mongolian
Moldavian
Marathi
Malay
Maltese
Burmese
Nauru
Nepali
Dutch
Norwegian
Oriya
Panjabi
Polish
Pashto, Pushto
Portuguese
Quechua
Code
8277
8279
8285
8365
8368
8372
8373
8375
8376
8377
8378
8379
8381
8382
8385
8386
8387
8465
8469
8471
8472
8473
8475
8476
8479
8482
8484
8487
8575
8582
8590
8673
8679
8779
8872
8979
9072
9085
Language Name
Rhaeto-Romance
Romanian
Russian
Sanskrit
Sindhi
Serbo-Croatian
Singhalese
Slovak
Slovenian
Samoan
Shona
Somali
Albanian
Serbian
Sundanese
Swedish
Swahili
Tamil
Telugu
Tajik
Thai
Tigrinya
Turkmen
Tagalog
Tonga
Turkish
Tatar
Twi
Ukrainian
Urdu
Uzbek
Vietnamese
Volapük
Wolof
Xhosa
Yoruba
Chinese
Zulu
CQ-VD7200U
86
95
E
N
G
L
I
S
H
87
Specifications
Display Unit
Hide-away Unit
General
Power supply
Current consumption
Maximum power output (external speaker)
Compatible speaker impedance
Dimensions (W x H x D)
Weight
:
:
:
:
:
:
12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground
Less than 1.5 A
0.7 W
8Ω
7” x 1-15/16” x 6-5/16” (178 x 50 x 160 mm)
5 lbs. 1 oz. (2.3 kg)
Monitor
Liquid crystal panel
Screen dimensions (W x H x D)
Number of pixels
Valid pixel ratio
Display method
Drive method
Light source
:
:
:
:
:
:
:
7” wide
6-1/16” x 3-7/16” x 6-15/16” (154 x 87 x 177 mm)
336,960 pixels (234 vertical x 480 horizontal x 3)
Over 99.99%
Transparent color filter format
TFT (Thin Film Transistor) active matrix format
Internal light (Built-in small fluorescent lamp)
Supplied speaker
Impedance
Maximum power input
: 8Ω
: 2W
Digital audio output
Disc
DVD
Video CD
Sound recording format
Optical digital audio output from connector
Dolby Digital
Dolby Digital bitstream (1 – 5.1 ch)
DTS*
DTS bitstream (1 – 5.1 ch)
(The analog portion is not output.)
Linear PCM
(48 kHz 16/20/24 bit)
Linear PCM (2 ch)
(48 kHz sampling/16 bit only)
MPEG 1
MPEG 1 bitstream
Linear PCM
Linear PCM (2 ch) (44.1 kHz sampling/16 bit)
Linear PCM
Linear PCM (2 ch) (44.1 kHz sampling/16 bit)
DTS*
DTS bitstream (1 – 5.1 ch)
(The analog portion is not output.)
MP3
Linear PCM (2 ch) (32 kHz/44.1 kHz/48 kHz sampling/16 bit)
CD
MP3
E
N
G
L
I
S
H
General
Power supply
Current consumption
Maximum power output
Compatible speaker impedance
Video input signal
Audio input sensitivity
Video output signal
Pre-Amp output voltage
Pre-Amp output impedance
Dimensions (W x H x D)
Weight
:
:
:
:
:
:
:
:
:
:
:
12 V DC (11 V - 16 V), test voltage 14.4 V, negative ground
Less than 10 A (during disc playback)
45 W x 4 ch (at 16 V)
4Ω
Composite video signal, 1.0 Vp-p (75 Ω)
2 Vrms
Composite video signal, 1.0 Vp-p (75 Ω)
4 Vrms
Less than 60 Ω
9-5/8” x 1-5/8” x 5-7/8” (245 x 42 x 150 mm)
3 lbs. 16 oz. (1.8 kg)
FM stereo radio
Frequency range
Usable sensitivity
Stereo separation
S/N ratio
:
:
:
:
87.9 - 107.9 MHz
12 dBf
35 dB (1 kHz)
70 dB
AM stereo radio
Frequency range
Usable sensitivity
Image rejection ratio
: 530 - 1 710 kHz
: 28 dB/µV
: 50 dB
Video section
Signal format
Video output
Region number
: NTSC (Standard signal format in U.S and Japan)
: 75 Ω, 1 Vp-p
: 1 and ALL
Audio section
Output voltage/Impedance
Distortion
Front L/R (1 kHz, 0 dB, PCM input)
S/N ratio
88
: 4 Vrms/220 Ω
: 0.04 %
: 90 dB (during CD playback and connected with optical fiber cable)
Above specifications comply with EIA standards.
Note: Specifications and the design are subject to modification without notice due to improvements in technology.
*DTS only works with optical outputs.
“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents
and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
