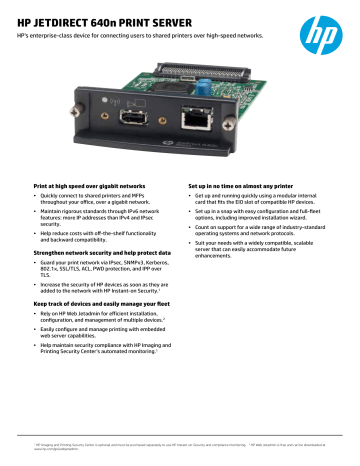

HP JETDIRECT 640n PRINT SERVER

HP JETDIRECT 640n PRINT SERVER
HP JETDIRECT 640n PRINT SERVER
HP’s enterprise-class device for connecting users to shared printers over high-speed networks.
Print at high speed over gigabit networks
Set up in no time on almost any printer
• Quickly connect to shared printers and MFPs
throughout your office, over a gigabit network. • Get up and running quickly using a modular internal
card that fits the EIO slot of compatible HP devices. • Maintain rigorous standards through IPv6 network
features: more IP addresses than IPv4 and IPsec
security. • Set up in a snap with easy configuration and full-fleet
options, including improved installation wizard. • Help reduce costs with off-the-shelf functionality and backward compatibility. Strengthen network security and help protect data
• Count on support for a wide range of industry-standard
operating systems and network protocols. • Suit your needs with a widely compatible, scalable
server that can easily accommodate future
enhancements. • Guard your print network via IPsec, SNMPv3, Kerberos,
802.1x, SSL/TLS, ACL, PWD protection, and IPP over
TLS. • Increase the security of HP devices as soon as they are
added to the network with HP Instant-on Security.1
Keep track of devices and easily manage your fleet
• Rely on HP Web Jetadmin for efficient installation,
configuration, and management of multiple devices.2
• Easily configure and manage printing with embedded
web server capabilities. • Help maintain security compliance with HP Imaging and
Printing Security Center’s automated monitoring.1
1
HP Imaging and Printing Security Center is optional and must be purchased separately to use HP Instant-on Security and compliance monitoring.
www.hp.com/go/webjetadmin.
2
HP Web Jetadmin is free and can be downloaded at
Technical Specifications HP JETDIRECT 640n PRINT SERVER (J8025A)
Connectivity
RJ-45 (10/100/1000 Base-TX)
Network Types
Gigabit Ethernet, Fast Ethernet, Ethernet 802.3, (10/100/1000T, 802.3/802.3u/802.3ab)
Print Server Type
Internal
Memory
Standard, 512MB
What’s In The Box
HP Jetdirect 640n IPv6/IPsec Print Server; HP installation software and documentation on
CD-ROM; Warranty cards; Set up documentation
Software Included
HP Install Network Printer Wizard
Printer Management
HP Web Jetadmin*; HP Embedded Web Server
Ordering Information
J8025A
HP Jetdirect 640n IPv6/IPsec
Print Server; HP installation
software and documentation
on CD-ROM; Warranty cards;
Set up documentation
* HP Web Jetadmin can be downloaded for free at www.hp.com/go/webjetadmin.
Browsers Supported
Microsoft Internet Explorer 5.x and higher; Safari; Mozilla 1.x; Firefox 1.x; Chrome
Upgradeable Firmware
Yes
Ipp Supported
Yes
Network operating
systems#
Microsoft® Windows® 8, Microsoft® Windows® 7, Windows VistaTM, Windows VistaTM x64,
Windows® XP Professional, Windows® XP Professional x64, Windows® Server 2003 (32/64 bit), Windows® 2000, Mac OS X v 10.2, Mac OS X v 10.3, Mac OS X v 10.4 or higher,
Novell NetWare 5.1 or higher, Red Hat Linux 7.x or higher, SuSE Linux 8.x or higher, HP-UX 10.20, 11.x, 11.i, Solaris 2.5 or higher (SPARC), AIX 3.2.5 or higher, MPE-iX, Citrix MetaFrame, Windows® Terminal Services
#
Not all protocol and operating system combinations are supported. For more information refer to the Jetdirect
Administrator’s Guide on the support page at www.hp.com/go/jetdirect. Select Network Print Servers & Software,
select the HP Jetdirect 2700w, then select HP Support and Drivers.
Network Protocols
IPv4/IPv6: Apple Bonjour Compatible (Mac OS 10.2.4 and higher), SNMPv1/v2c/v3, HTTP,
HTTPS, FTP, TFTP, Port 9100, LPD, IPP, Secure-IPP, WS Discovery, IPsec/Firewall; IPv6: DHCPv6, MLDv1, ICMPv6; IPv4: Auto-IP, SLP, Telnet, IGMPv2, BOOTP/DHCP, WINS, IP Direct
Mode, WS Print; other: IPX/SPX, AppleTalk, NetWare NDS, Bindery, NDPS, iPrint
Security
Secure configuration and management based on industry standards including SNMP v 3; SSL/TLS (HTTPS); 802.1X authentication; Ipsec
Supported Peripherals
HP EIO-based peripherals. HP Business Inkjet 2300, 2800; HP Colour LaserJet CP3505,
CP3525, CP4025, CP4525, CP5525, CP6015, 3000, 3800, 4700, 5550 series printers, CM3530 MFP, CM4540 MFP, CM4730 MFP, CM6030 MFP, CM6040 MFP, 4730 MFP; HP Designjet
T620, T770, T790, T1120, T1200, T1300, T2300, T7100, Z2100, Z3100, Z3200, Z5200,
Z6100, Z6200; HP Digital Sender 9200C, 9250C; HP LaserJet P3005, P3015, P4014, P4015,
P4515, 2420, 4240, 4250, 4350, 5200, 9040, 9050 series printers, M3027 MFP, M3035 MFP,
M4345 MFP, M4555 MFP, M5025 MFP, M5035 MFP, M9040 MFP, M9050 MFP, 4345 MFP, 9040 MFP, 9050 MFP; HP CM 8050/8060 Colour MFP with Edgeline Technology
Dimensions (w x d x h)
89 x 136 x 31 mm
Weight
0.08 kg
Warranty
One-year replacement warranty; telephone support determined by regional call center hours; HP e-mail support and user forums available; see hp.com for more information.
Environmental Ranges
Operating Temperature
0 to 55° C
Storage Temperature
-40 to 65° C
Operating Humidity
0 to 95% RH
Non-Operating
Humidity
15 to 85% RH
Power Specifications
Power Consumption
4.0 watts maximum
Certifications
Safety
Complies with EN60950-1: 2001; IEC 60950-1 EN62311:2008
Electromagnetic
Emission Standard
FCC CFR 47 Part 15 Class-B/ ICES-003 Issue 4: 2004, EN 301 489-17, EN55022, EN 55024, EN 61000-3-2, EN 61000-3-3
ENERGY STAR and the ENERGY STAR mark are registered U.S. marks. Linus is a U.S. registered trademark of Linus Torvalds. Windows and Windows XP are registered trademarks
of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Linux is a U.S. registered trademark of Linus Torvalds. Microsoft, Windows, Windows XP, and Windows Vista are U.S. registered trademarks of Microsoft Corporation.
© Copyright 2012 Hewlett-Packard Development Company L.P.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or
omissions contained herein.
To learn more, visit www.hp.com.
Published in Singapore. 4AA4-4412EEAP, November 2012
