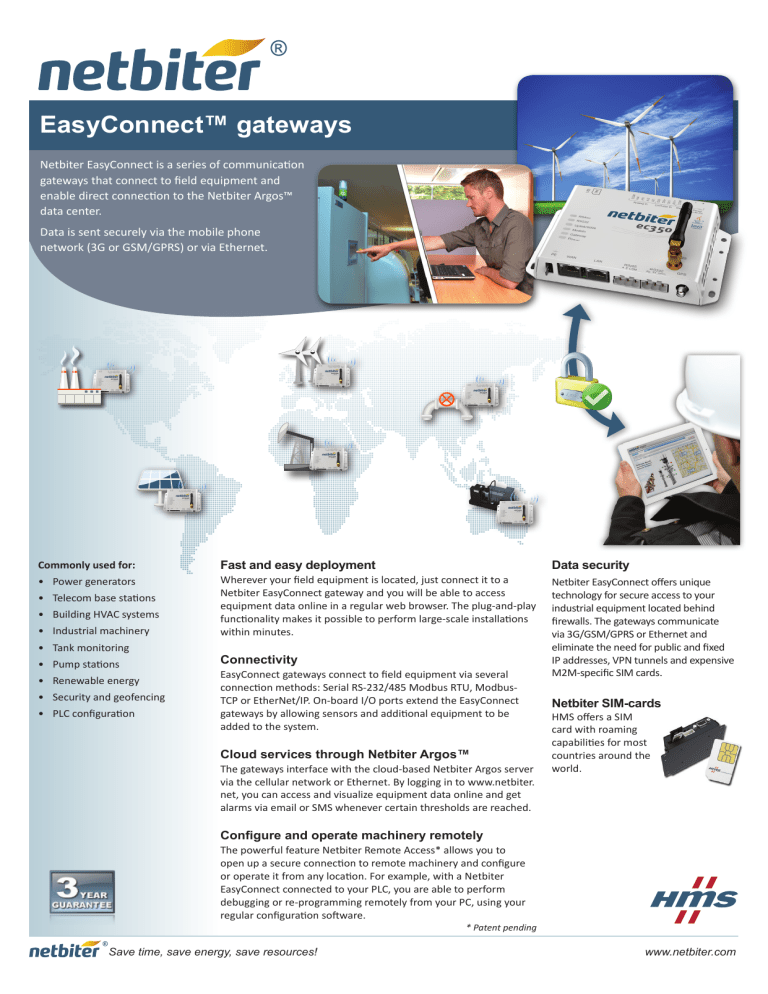

EasyConnect™ gateways

EasyConnect™ gateways
EasyConnect™ gateways
Netbiter EasyConnect is a series of communication
gateways that connect to field equipment and
enable direct connection to the Netbiter Argos™
data center.
Data is sent securely via the mobile phone
network (3G or GSM/GPRS) or via Ethernet.
Commonly used for:
• Power generators
• Telecom base stations
• Building HVAC systems
• Industrial machinery
• Tank monitoring
• Pump stations
• Renewable energy
• Security and geofencing
• PLC configuration
Fast and easy deployment
Wherever your field equipment is located, just connect it to a
Netbiter EasyConnect gateway and you will be able to access
equipment data online in a regular web browser. The plug-and-play
functionality makes it possible to perform large-scale installations
within minutes.
Connectivity
EasyConnect gateways connect to field equipment via several
connection methods: Serial RS-232/485 Modbus RTU, ModbusTCP or EtherNet/IP. On-board I/O ports extend the EasyConnect
gateways by allowing sensors and additional equipment to be
added to the system.
Cloud services through Netbiter Argos™
The gateways interface with the cloud-based Netbiter Argos server
via the cellular network or Ethernet. By logging in to www.netbiter.
net, you can access and visualize equipment data online and get
alarms via email or SMS whenever certain thresholds are reached.
Data security
Netbiter EasyConnect offers unique
technology for secure access to your
industrial equipment located behind
firewalls. The gateways communicate
via 3G/GSM/GPRS or Ethernet and
eliminate the need for public and fixed
IP addresses, VPN tunnels and expensive
M2M-specific SIM cards.
Netbiter SIM-cards
HMS offers a SIM
card with roaming
capabilities for most
countries around the
world.
Configure and operate machinery remotely
The powerful feature Netbiter Remote Access* allows you to
open up a secure connection to remote machinery and configure
or operate it from any location. For example, with a Netbiter
EasyConnect connected to your PLC, you are able to perform
debugging or re-programming remotely from your PC, using your
regular configuration software.
* Patent pending
Save time, save energy, save resources!
www.netbiter.com
TECHNICAL
SPECIFICATIONS
Description
EC350
EC310
EC220
Order code
NB1005
NB1007
NB1000
Ethernet
10/100 Mbit/s
10/100 Mbit/s
-
3G: Five Band UMTS/HSPA+
(WCDMA/FDD)
(850/800, 900, 1900 and 2100 MHz)
GPRS: Quad-Band GPRS Class 12
(850/900/1800/1900 MHz)
-
Quad band GPRS Class 12
850/900/1800/1900 MHz
SMA female
-
SMA female
1
1
1
2 (Dry contact)
2 (Dry contact)
2 (Isolated, max 24 V DC)
4, all supporting 0-10 V or 0-20 mA and 2
supporting PT100
4, all supporting 0-10 V or 0-20 mA and 2
supporting PT100
2
-
-
1
Serial port #1
RS-232, 1,2 kbit/s to 115,2 kbit/s
RS-232, 1,2 kbit/s to 115,2 kbit/s
RS-232 up to 115,2 kbit/s
Serial port #2
RS-485, 1,2 kbit/s to 115,2 kbit/s
RS-485, 1,2 kbit/s to 115,2 kbit/s
RS-485 up to 115,2 kbit/s (isolated)
Built-in (antenna** via SMA female)
-
External GPS via RS 232
Modbus-RTU, Modbus TCP, EtherNet/IP
Modbus-RTU, Modbus TCP, EtherNet/IP
Modbus-RTU
YES
YES
-
SOCKS/WEB
SOCKS/WEB
-
YES/YES
YES/YES
YES / YES
92 x 135 x 27 mm
92 x 135 x 27 mm
92 x 115 x 25mm
-40 to +65 °C
-40 to +65 °C
-30 to +65 °C
12-48 VDC
12-48 VDC
9-24 V DC
4.5 W
2.5 W
2W
CE, CULUS, JATE, Telec, RCM, FCC, IC, PTCRB
CE, CULUS, RCM, FCC, IC, PTCRB
CE, CULUS, FCC/IC, PTCRB
Housing
Metal
Metal
Metal
Remote access functionality
YES
YES
-
3G/GSM/GPRS
Antenna connector
Relay output (max 24 V, AC/DC, 1A)
Digital inputs
Analog inputs
(PT100, 0-10 V or 0-20 mA)
Analog output (0-10 V)
GPS
Protocols
Modbus RTU to TCP conversion
Proxy support
Wall mounting / DIN rail*
Mechanical dimensions (L•W•H)
Operating temperature
Power supply
Power consumption (max at 24 Vdc)
Certifications
*with DIN rail mounting kit
**not included
