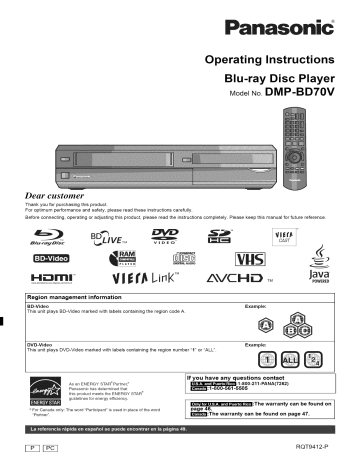

Operating Instructions

Blu-ray Disc Player

Dear customer

Thank you for purchasing this product.

For optimum performance and safety, please read these instructions carefully.

Before connecting, operating or adjusting this product, please read the instructions completely.

Please keep this manual for future reference.

Region management

information

BD-Video

This unit plays BD-Video marked with labels containing the region code A.

DVD-Video

This unit plays DVD-Video marked with labels containing the region number "1" or "ALL".

ZXVCH D

TM

Example:

,&

Example:

Java

POWERED

As an ENERGY STAR®Partnerl _

Panasonic has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency.

÷ For Canada only: The word "Participant" is used in place of the word

"Partner".

If you have any questions contact

[l_FIf3!l_lFJ1_'t_:

Ira_f!_J_l:1-800-561-5505

1-800-211 -PANA(7262) page 46.

r_:The

warranty can be found

on page 47.

RQT9412-P

iiiiii!

[_ [_

RQT9412

IMPORTANT SAFETY INSTRUCTIONS

CAUTION

Follow the safety instructions on the unit and the applicable safety instructions listed below.

Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings.

Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong.

The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories manufacturer.

specified by the

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.

When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

rWARNING:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PRODUCT DAMAGE, eDO NOT EXPOSE THIS APPARATUS TO RAIN,

MOISTURE, DRIPPING OR SPLASHING AND THAT NO

OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,

SHALL BE PLACED ON THE APPARATUS.

eUSE ONLY THE RECOMMENDED ACCESSORIES.

eDO NOT REMOVE THE COVER (OR BACK); THERE

ARE NO USER SERVICEABLE PARTS INSIDE.

REFER

SERVICING TO QUALIFIED SERVICE PERSONNEL.

rCAUTION!

DO NOT INSTALL OR PLACE THIS UNIT IN A

BOOKCASE,

CONFINED

VENTILATED.

BUILT-IN

SPACE.

CABINET

ENSURE

TO PREVENT

THE

OR IN ANOTHER

UNIT IS WELL

RISK OF ELECTRIC SHOCK

OR FIRE HAZARD DUE TO OVERHEATING, ENSURE

THAT CURTAINS AND ANY OTHER MATERIALS DO

NOT OBSTRUCT THE VENTILATION VENTS.

rCAUTION!

THIS PRODUCT UTILIZES A LASER.

USE OF CONTROLS

PERFORMANCE

OR ADJUSTMENTS

OF PROCEDURES

OR

OTHER THAN

THOSE SPECIFIED

HAZARDOUS

HEREIN

RADIATION

MAY RESULT

EXPOSURE.

IN

DO NOT OPEN COVERS AND DO NOT REPAIR

YOURSELF.

REFER SERVICING TO QUALIFIED

PERSONNEL.

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent by the manufacturer.

type

Dispose of used batteries according to the manufacturer's instructions.

1 rThe socket outlet shall be installed near the equipment and_ easily accessible.

The mains plug of the power supply cord I shall remain readily operable.

|

To completely disconnect this apparatus from the AC Mains, I

,disconnect the power supply cord plug from AC receptacle.,,)

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE SCREWS.

NO USER-SERVICEABLE PARTS

INSIDE.

REFER SERVICING TO QUALIFIED

SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions ppliance.

in the literature accompanying the rTHE

FOLLOWING APPLIES

ONLY IN THE U.S.A.

FCC Note:

"

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help

FCC Caution: To assure continued compliance,

follow

the attached installation instructions and use only shielded interface cables when connecting to peripheral devices.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Declaration of Conformity

Trade Name: Panasonic

Model No.: DMP-BD70V

Responsible Party:

Panasonic Corporation of North America

One Panasonic Way

Secaucus, NJ 07094

Support Contact:

Panasonic Consumer Electronics Company

Telephone No.: 1-800-211-PANA (7262)

VISIBLE AND INVISIBLE

CAUTION

DO NOT STARE INTO BEAM,

LASER RADIATION

FDA

WHEN OPEN.

21 CFR/Classl] (_a)

CAUT ON CLASS I_;VISIBLE RADIATIO_

-- DONOTVI WblRECTIYWITHO_TICA IFfSTRUMNTS. IEC60825-1+A2'OLASS_,_

1U

EN CAS D'OUVERTURE.

NE PASREGARDER DIRECIE aEN3 _,L'AID E D'INSI RUMEhTS D'OPTIQUE,

FORSIGTIG

SYNLIG OG USYNLIG LASERSTRALING

PAMED

KLASSE 1 M, NAR LAGET ER

O_>TISKE

VARO

= AVA_AESSA OLET ALT[IINA LUOKAN fM NAKYVAA JA N_KYMAT(_NTA

LASERSATEILYA,

ALA KATSO OPTISEL A LAITTEELLA SUORAAN SATEESEEN,

K_ASS 1 M SYNLIG OCH OSYNLIG IASERSTR_LNING NAR DENNA DEL _R

VARNING

= OPPNAD, 8ETRAKTA EJ STRALEN DIREKT GENOM OPTISKT INSTRUMEN'_

VnR_Ir, HT_

SiCHTBARE UND UNSICHTBARE ASERSTRAH_ UNG KLASSE fN

....

WENN ABDECKUNG GEOFFNE %

NIGHT DIREKT MIT OPTISCH N INSTRUMENTEN BETRACHTEN.

(Inside of product)

Unit and media care

Clean discs

DO DO NOT

Wipe with a damp cloth and then wipe dry.

Media handling precautions

Disc

• Handle discs by the edges to avoid inadvertent scratches or fingerprints on the disc.

• Do not attach labels or stickers to discs (This may cause disc warping, rendering it unusable).

• Do not write on the label side with a ball-point pen or other writing instrument.

• Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids or any other solvent.

• Do not use scratch-proof protectors or covers.

• Do not use the following discs:

-Discs with exposed adhesive from removed stickers or labels (rented discs etc).

-Discs that are badly warped or cracked.

-Irregularly shaped discs, such as heart shapes.

Card

• Clean any dust, water, or foreign matter from the terminals on the rear side of the card.

Video cassette

• Poor quality or damaged video cassettes can cause the heads to become dirty and malfunction.

• Never use video cassettes on which juice has been spilled or those that are extremely damaged since this will not only cause the heads to become dirty, but will also make the unit malfunction.

Clean this unit with a soft, dry cloth

• Never use alcohol, paint thinner or benzine to clean this unit.

• Before using chemically treated cloth, carefully read the instructions that came with the cloth.

Observe the following

points to ensure continued

listening

and viewing pleasure.

Disc lens

Dust and dirt may adhere to the unit's lens over time, making it impossible to play discs.

Use the lens cleaner (not included) about once every year, depending on frequency of use and the operating environment.

Carefully read the lens cleaner's instructions before use.

Lens cleaner: RP-CL720PP

• This lens cleaner is sold as specific for DIGA, but can be used without problem on this unit as well.

Video heads

Dirt on the video heads can cause poor play.

If the picture does not improve, use a head-cleaning cassette.

If the problem persists, seek advice from a qualified service person.

[Head-cleaning cassette: NV-TOL30PT (Only for U.S.A.) ]

This unit may record information of your operating procedures.

If you discard this unit either by disposal or transfer, then follow the procedures to return all the settings to the factory presets to delete the recorded information.

(_ 40, "To return to the factory preset")

• When BD-Video is played back, the operation history may be recorded in the memory of this unit. The recorded contents differ depending on the disc.

RQT9412

Table of contents

IMPORTANT SAFETY

INSTRUCTIONS

................................

2

Unit and media care ............................

3

Accessory information

........................

5

Media (Disc/Card/USB device/

Video cassette) information

............ 6

Audio and video information

.............. 8

Connections

.......................................

10

Remote control and unit reference

guide ...............................

14

Setting ................................................

15

Broadband network connection

....... 16

Firmware

updates ..............................

16

Network

settings ................................

17

Inserting or removing

media ............ 19

Basic play

(Playing video contents)

................ 20

Playing

HD Video or SD Video ......... 22

Chapter

playback ...............................

22

Enjoying BD-Live or BONUSVIEW in

BD-Video

.........................................

23

Playing still pictures ..........................

24

Playing a video cassette ...................

26

Playing

music ....................................

27

Enjoying VIERA CAST

TM

...................

27

Linked operations with the TV (VIERA

Link

TM

"HDAVI Control TM'')................. 28

Changing on-screen

Changing settings with the

menu .............................

30

the unit's settings ............ 32

About MP3/JPEG

files .......................

37

Messages

...........................................

38

Troubleshooting

guide .....................

40

Specifications

....................................

44

Product

Service .................................

45

Limited Warranty

(Only for U.S.A.

and Puerto Rico) ............................

46

Limited Warranty

(Only for CANADA) ........................

47

Licenses .............................................

48

Referencia rapida en espahol

(Spanish Quick Reference)

........... 49

Glossary .............................................

50

Index ....................................

Back cover

RQT9412

Accessory information

Please check and identify the supplied accessories.

Use numbers indicated in parentheses when asking for replacement parts.

(Product numbers correct as of March 2009. These may be subject to change.)

Only for

U.S.A.

and Puerto Rico: To order accessories, on page 46.

Only for

Canada: To order accessories, call the dealer

refer to "Accessory from

whom you have

Purchases made your

(United

States purchase.

and Puerto Rico)"

[] [] [] []

1 Remote control

(N2QAYB000382)

1 AudioNideo cable

(K2KA6BA00004)

2 Batteries

for remote control

AC power supply cord

(K2CB2CB00022)

eFor use with this unit only.

Do not use it with other equipment.

Also, do not use cords from other equipment with this unit.

(Only for U.S.A. and Puerto Rico)

Product Registration Card

Please complete and return the included product registration card, or register via the Internet at: k..

http://www.prodreg.com/panasonic/

(ONLY FOR CANADA) he enclosed Canadian French label sheet corresponds to the English display on the front and back side of the unit.

Batteries

Insert so the poles (+ and ) match those in the remote control.

When closing the lid, insert it from the (minus) side.

Use

Remote control signal sensor

R6/LR6, AA

Use alkaline or manganese batteries.

• Do not mix old and new batteries.

• Do not use different types at the same time.

• Do not heat or expose to flame.

• Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long period of time with doors and windows closed.

• Do not take apart or short circuit.

• Do not attempt to recharge alkaline or manganese batteries.

• Do not use batteries if the covering has been peeled off.

Mishandling of batteries can cause electrolyte leakage which can damage items the fluid contacts and may cause a fire.

Remove batteries if the remote control is not going to be used for a long period of time. Store in a cool, dark place.

of the unit

If you cannot operate the unit or other equipment using the remote control after changing the batteries, please re-enter the codes

(_ 15, 36).

CAUTION

Do not place objects in front of the unit. The disc tray may collide with objects when it is opened, and this may cause injury.

RQT9412

Media (Disc/Card/USB device/Video cassette) information

RQT9412

This chart shows the different type of retail/commercial discs you can use, and also includes the industry-standard Iogos that should appear on the discs and!or packaging.

BD-Video

This format supports High Definition video and audio content including:

eBD-Live (BD-ROM Profile 2). This format provides interactive features when this player is connected to the Internet via a broadband connection.

DVD-Video

V|DEO

eBONUSVIEW

allows picture-in-picture functions to be viewed.

BONUS

VIEW

TM

This format supports high quality video and audio playback.

Compact Discs (CD's) that contain audio and music

eOperation and sound quality of CDs that do not conform to

CD-DA specifications (copy control CDs, etc.) cannot be guaranteed.

The digital audio content side of a DualDisc does not meet the technical specifications of the Compact Disc Digital Audio (CD-DA) format so play may not be possible.

|DIVJD_VJ

r4_

This chart shows the different type of discs recorded with other devices that you can use.

This mark means you must finalize the disc with the DVD recorder, etc. before playback. For details about finalizing, refer to the operating instructions for your equipment.

Version 3 of the BD-RE Recording Format

eJPEG format

•Version 2 of the BD-R Recording Format

DVD'RAM

_-_ eVersion 1.1 of the DVD Video Recording Format

eJPEG format

eAVCHD format R A M

RAM4.7

DVD'R/RW

.........

+R/+RW/+R

DL

R

R4.7

.

R DL

R W

DVD-Video Format

.Version

1.1 of the DVD Video Recording Format

eMP3 format (DVD-RW is not supported)

eJPEG format (DVD-RW is not supported)

DVD-Video Format

eVersion 1.2 of the DVD Video

eAVCHD

format

eMP3 format

eJPEG format

Recording

Format

•+VR (+R/+RW Video Recording) Format

•AVCHD

format --

CDIP, JRW

--

•CD-DA format

M P3 format

• It may not be possible to play the above discs in some cases due to the type of discs, the condition of the recording, the recording method and how the files were created.

• When a disc recorded in the AVCHD format is being played, the video may be paused for a few seconds at portions spliced, due to deletion or editing.

ir_t_

_J'.,l=[e

* Includes miniSD Card and microSD Card

The card types mentioned above will be referred to as "SD card" in these operating instructions.

e MiniSD Cards and microSD Cards can be used, but must be used with an adaptor card. These are usually supplied with such cards, or otherwise customer provided.

eWe recommend using a Panasonic SD card. Please confirm the latest information on the following website: http:flpanasonic.co,jplpavclgloballcs

(This site is in English only.)

eThis unit is compatible with SD Memory Cards that meet SD Card Specifications FAT12 and FAT16 formats, as well as SDHC

Memory Cards in FAT32 format.

eWhen using cards from 4 GB to 32 GB, only SD cards using the SDHC logo can be used.

Useable memory is slightly less than the card capacity.

• If the SD card you are attempting to use was formatted on a PC, it is possible that the card may not work properly.

• Keep the Memory Card out of reach of children to prevent swallowing.

• When a card recorded in the AVCHD format is being played, the video may momentarily pause, especially where one recording ends and the next one begins. This is normal and does not indicate a problem.

• To protect the card's contents, move the record prevention tab (on the SD card) to "LOCK".

This unit can playback pictures by connecting the USB memory recorded with a PC or similar in following formats, and Panasonic digital cameras connected via USB cable.

• MP3 format

• JPEG format

Compatible USB devices

• USB devices which are defined as USB mass storage class,

-USB devices that support USB 1,0/1,1 and USB 2,0 Full Speed/High Speed,

• USB devices of up to 128 GB can be used,

• USB devices that support bulk only transfer,

CBI (Control/Bulk/Interrupt) is not supported,

• Digital Cameras which require additional program installation when connected to a PC are not supported,

• MTP (Media Transport Protocol) device is not supported,

• A multi-port USB card reader is not supported,

File system

• FAT12, FAT16 and FAT32 file systems are supported,

• UDF/NTFS/exFAT file system is not supported,

• Depending on the sector size, some files may not work,

• Only the first partition on USB devices with multi-partition is supported,

Despite meeting the conditions mentioned above, there may be USB devices that cannot be used with this unit,

This unit does not support USB device charging.

_J'.,l=[e

• You can use video cassettes with the VHS and SVlIS, but the unit is unable to make full use of the characteristics of S-VHS video cassettes.

The explanations concerning video cassettes are indicated by I_J_l.

• BD-RE discs (with cartridge)

• 2.6 GB and 5.2 GB DVD-RAM

• DVD-RAM that cannot be removed from cartridge

• 3.95 GB and 4.7 GB DVD-R (Authoring)

• Version 1.0 DVD-RW

• DVD-ROM, CD-ROM, CDV, SACD, Photo CD, MY-Disc and PD

• DVD-Audio

• Video CD and SVCD

• WMA discs

• DivX discs

• PAL Discs

• HD DVD

• BD-Video discs recorded at a rate of 50 fields/sec

• Any other disc that is not specifically supported

RQT9412

Audio and video information

Before connecting, read the table below, and confirm the desired audio type and necessary settings CBD-Video Secondary Audio", "Dolby D/Dolby

D +/Dolby TrueHD" or "DTS/DTS-HD").

(=> 9) oThe number of channels listed is the maximum possible number of output channels.

HDMI AV OUT/DIGITAL AUDIO OUT

[=-]aii)_

Dolby Digital/

Dolby Digital

EX, 6

Dolby Digital

DTS Digital

Surround/

DTS-ES .6

DTS Digital

Surround

Down-mixed

5.1ch PCM

Dolby Digital/

Dolby Digital EX

5.1ch PCM

D0lby Digital

Plus

Dolby TrueHD

DTS Digital

Surround/

DTS-ES

DTS-HD High

Resolution

Audio

DTS-HD Master

Audio

I

5.1ch PCM .2

7:1ch PCM

I_'_: 5.1ch PCM

7:1ch PCM,4

7:1ch PCM Down-mixed

5.1ch PCM .2

7.i0h

PCM

Dolby Digital/

Dolby Digital

EX, 6

Dolby Digital

DTS Digital

Surround/

DTS-ES .6

DTS Digital

Surround

Down-mixed

2ch PCM

Down-mixed

2ch PCM oAIso, depending on the specifications or the settings of the amplifier/receiver, the results of the output may vary.

"1 When the connected equipment is not supported with these audio formats, the audio is output as Dolby Digital bitstream, DTS Digital Surround bitstream or down-mixed 2ch PCM (e.g., TV).

*2 I'_r_'_: When playing BD-Video without secondary audio or button click sound, the audio is output as the same format as if "BD-Video

Secondary Audio" was set to "Off".

*3 When the connected equipment is not supported with multi channel surround, the audio is output as down-mixed 2ch PCM.

*4 I'_r_'_: When the connected equipment is supported with 7.1 channel surround, the audio output is amplified from 5.1ch or 6.1ch to 7.1ch

depending on the DTS, Inc. specifications.

*5 With PCM output, Dolby Digital EX becomes PCM audio decoded as Dolby Digital, DTS-ES recorded to DVD-Video becomes PCM audio decoded as DTS Digital Surround, and DTS-ES recorded to BD-Video becomes PCM audio decoded as DTS-ES.

*6 I'_r_'_: When "BD-Video Secondary Audio" is set to "On", Dolby Digital EX is output as Dolby Digital and DTS-ES is output as DTS Digital

Surround, however if playing BD-Video without secondary audio or button click sound, the audio is output as the original format.

This unit supports high bit rate audio (Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio) adopted in BD-Video.

In order to enjoy these audio formats, the following conditions are necessary.

(Part shown in the shaded area of table given above)

NECESSARY CONNECTIONS

oHDMI AV OUT terminal: (_ 12)

NECESSARY SETTINGS (_ 9)

• Set "BD-Video Secondary Audio" to "Off".

• HDMI AV OUT terminal: Set "Dolby D/Dolby D +/Dolby TrueHD" or "DTS/DTS-HD" to "Bitstream" or "PCM".

• The button click sound on the menu and audio with secondary video in picture-in-picture mode (_ 23) is not output.

RQT9412

BD-Video

60frames/second

These inaccordance canbeoutput

NECESSARY CONNECTIONS

eConnectto a TV supporting 1080/24p input via an HDMI cable.

NECESSARY SETTINGS

e"24p Output": "On" (_, 34)

After connecting to the terminals, perform necessary settings.

1) While stopped

Press [SETUP].

2) Press [A, V] to select "Audio" and press [OK].

3) Press [A, V] to select "Digital Audio Output" and press [OK].

4) Press [A, V] to select"Dolby D/Dolby D +/Dolby TrueHD", "DTS/DTS-HD", or "BD-Video Secondary Audio" and press [<, I_] to select the option.

For more information about settings, refer to page 33, 34.

• When using the different terminal at the same time, the sound may not be output with the desired audio if the setting is incorrect.

In the following case, set "HDMI Audio Output" to "Off". (_ 34)

-When connecting a compatible amplifier/receiver using DIGITAL AUDIO OUT terminals, and connecting a compatible television using HDMI AV

OUT terminal

To return to the previous screen

Press [RETURN].

To exit the screen

Press [SETUP].

Below is a table of recommended settings to output high quality audio to the connected equipment. When connecting to equipment not listed below, change to your preferred settings as necessary.

"PCM"

"PCM"

"Off"

"Bitstream"

"Bitstream"

"Off"

"PCM"

"PCM"

"Off"

"PCM"

"PCM"

"Off"

"Stereo" "Surround encoded" "Surround encoded" "Surround

*2

encoded"

"1 HD audio: Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio and DTS-HD Master Audio

*2 "PCM Down Conversion" is in effect only when connected to an OPTICAL terminal.

If the receiver supports 96 kHz sampling frequency, set to

"Off"; if it does not support it, set to "On".

RQT9412

Connections

This unit offers several different types of audio and video connections.

eYour TV/receiver/amplifier may or may not support all the connections shown.

Highest

Quality

HDMI AV OUT

480p, 720p, 1080i,

1080p

COMPONENT VIDEO OUT

BD-Video: 480i, 480p, 720p,

1080i

DVD-Video, VHS: 480i, 480p

VIDEO OUT

480i

Standard

Quality

Highest

Quality

Standard

Quality

HDMI AV OUT

DIGITAL AUDIO OUT AUDIO OUT

Do not place the unit on amplifiers/receivers or equipment that may become hot. The heat can damage the unit.

• Before making any connections we strongly suggest that all units be temporarily disconnected from AC power.

• Do not connect video signals through a video recorder. Due to copy guard protection the picture may not be displayed properly

eNon-HDMI-compliant cables cannot be utilized.

ePlease use High Speed HDMI Cables that have the HDMI logo (as shown on the cover). It is recommended that you use Panasonic's HDMI cable. When outputting

1080p signal, please use HDMI cables 5.0 meters (16.4 ft) or less.

Recommended part number:

RP-CDHG10 (1.0 m/3.3 ft), RP-CDHG15 (1.5 m/4.9 ft.), RP-CDHG20 (2.0 m/6.6 ft), RP-CDHG30 (3.0 m/9.8 ft.), RP-CDHG50

(5.0 m/16.4 ft.), etc.

oThis unit incorporates HDMI (Deep Color, x.v.Color

TM,

High Bit rate Audio) technology. (_ 50, 51 )

RQT9412

For audio output, refer to pages 12 and 13.

O

Connecting to your TV, via HDMI AV OUT

HDMI cable

HDMI IN

_Ff--_

Television

o"HDMI Video Mode" and "HDMI Audio

Output" should be set to "On". (_ 34) oThe HDMI connection supports VIERA

Link "HDAVI Control" (_ 28) when used with a compatible Panasonic TV.

oThis cable provides both Video and Audio connections.

_iiiiiiiliiiiii:i!liii!iiiiiiii}_iiii

.......

i i!

HDMI AV OUT

Back of the unit

O

Connecting to your TV, via COMPONENT VIDEO OUT

Television unit

h

Component Video cable

oConnect terminals of the same color.

oSet the "Black Level Control" to "Darker".

(_ 32) oUsing the COMPONENT VIDEO OUT terminal, while playing DVD-Video or

VHS, the video output resolution is limited to "480p'.

oBe sure your TV supports at least 480p.

Set "Component Video Resolution" to

"480p', "720p" or "1080i'.

(_ 34)

• If this unit is connected to an amplifier/ receiver, etc. via an HDMI cable with

"HDMI Video Mode" set to "On" (_ 34), the video will be fixed to 480i.

• Connect terminals of the same color.

O

Connecting to your TV, via VIDEO OUT

cable

VIDEO OUT

Back of the unit

RQT9412

Connections

O

Connecting to HDMI AV OUT terminal

HDMI IN

Multi channel speakers

_IL

HDMI OUT lifier/receiver

HDMI cable

HDMI IN

i_¸:::¸ : : i

="HDMI Video Mode" and "HDMI Audio Output" should be set to "On". (_ 34)

"Digital Audio Output" : Depending on the connected amplifier/receiver.

(_ 33)

• The HDMI connection supports VIERA Link

"HDAVI Control" (=> 28) when used with a compatible Panasonic TV.

• Enjoying High Bit rate Audio of BD-Video

(<_8)

O

Connecting

Back of the unit

to Digital Audio Output terminal

f

Amplifier/receiver

J

Optical digital audio cable

Back of the unit

• Please set "Digital Audio Output" to the connection you will use for optical digital.

(_ 33)

• When connecting a TV (_ 11, O) with HDMI

AV OUT terminal, set "HDMI Audio Output" to

"Off". (_ 34)

(Otherwise, the sound may not be output with the desired audio.)

RQT9412

Connecting to AUDIO OUT terminal

OR

Television

1

AUDIO IN

Amplifier/receiver

Audio/Video cable

(included)

• Using the two analog audio channels this connection provides, you will not be able to use any surround sound audio modes.

i_i!!;:i:!!i!!:i_i_i'i!:i:!iii_i!:ii!i!!!ii!i!!ii!!;Y

Back of the unit

Cooling fan

ACp

ower supply cord (included)

AC outlet

....

Back of the unit

• For best results this unit should be connected directly to an AC outlet.

• This unit consumes a small amount of AC power ("Quick Start": "Off", less than 0.5 W) even when turned off. In the interest of power conservation, if you will not be using this unit for an extended period of time, it can be disconnected.

RQT9412

Remote control and unit reference guide

m-

POWER F_-TV _

TRACKING/V-LOCK

!_

_ mIRE-MASTER

,,_ k_j _---m

L-SKIP/INDEXJ JL-REW FFJ

STATUS

d_

I

FUNCTIONS

0 .........

"_£fq¢'"RV"_T#V"D'_'fi£"

@

I

I

®

I

[] TV operation buttons (q> 15)

You can operate the TV through the unit's remote control.

[_ TV POWER] : Turn the television on and off

[INPUT] : Input select

[+ - VOL] : Adjust the volume

[^ v CH]: Channel select

[] Open or close the disc tray (q> 19)

[] Select title numbers, etc./Enter numbers or characters (q> 18, 20)

(The character buttons may be used when operating VlERA CAST contents. _ 27)

[CANCEL] : Cancel/Reset the tape counter

(q> 17, 26)

[] Basic playback control buttons (q> 20, 21, 26)

[] Show status messages (q> 21, 26)

[] Show Pop-up menu (q> 20)

[] Show Top menu/Direct Navigator (q> 20)

[] Show sub menu (q> 24)

[] These buttons are used when:

• Operating a BD-Video disc that includes Java TM applications (BD-J). For more information about operating this kind of disc, please read the instructions that came with the disc.

• Displaying "TitleView" and "Album View" screens.

(Only the [R] and [G] buttons, _ 24)

• Operating contents of VlERA CAST. (q> 27)

[] Show Setup menu (q> 32)

[] Switch on/off Secondary Video (Picture-in-picture)

(q> 23)

[] Transmit the remote control signal

[] TRACKING/V-LOCK (q> 26)

[] Select audio (q> 21, 26)

[] Reproduce more natural audio (q> 21)

[] Show FUNCTIONS menu (q> 21)

[] Selection/OK, Frame-by-frame (q> 21)

[] Show on-screen menu (q> 30)

[] Return to previous screen

[] Select drive (BD/DVD/CD, SD card, USB device,

VHS) (q>20)

[] Displaysthe Home screenof theVIERA CAST

(q> 27)

® ®

RQT9412

® ® ®

(_) Cassette eject button (=> 19)

@ Cassette compartment (_ 19)

_) Open or close the disc tray (_ 19)

@ Disc tray (=> 19)

SD Card LED

• It is possible to set the LED to turn on/off. (_ 33, SD Card LED

Control)

(_) POWER button (POWER (b/I) (=> 15)

Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.

Remote control signal sensor (_ 5)

®@@@

_) Display

@

Pull to flip down the front panel.

Disc indicator SD card indicator

Tape indicator USB access lamp

The indicator and access lamp blink when reading data from a card, or USB device, or writing data to a card.

@ Stop (_ 20, 26)

@) Pause (_ 20, 26)

@ Start play (_ 20)

@ USB port (_ 19)

@ SD card slot (_ 19)

Rear panel terminals (_ 10-13, 16)

Setting

After connecting your new player and pressing the power button, a screen for the basic settings will appear.

Preparation

Turn on the television

and select the appropriate

video input on the television.

elf this unit is connected to a Panasonic TV (VIERA) supporting HDAV! Control 2 or later via an HDMI cable, then the "On-screen Language!' and !!TV Aspect!, setting information on the TVare captured from the TV.

_

Follow the on,screen instructions and

oYou can perform this setup anytime by selecting "Easy Setting" in the Setup menu. (_ 36) oYou can also change these settings individually.

(_ 33, 34, 36)

make

the settings with [ J,i T] and [OK]'

!!On-screen Languageil, IITV Aspect'i and !!Quick Start"are set. (@ 33, 34, 36)

You can operate the TV using the unit's remote control.

Point the remote control at the television.

0

Input the 4,digit

code with the numbered buttons

While °'f your television brand has more than

pressi n g [ _ TV POWER],

• If your television brand is not listed or if

I_ Test by turning on the television: the code listed for your television does not allow control of your television, this remote control is not compatible your television.

remote control.

with

Use your television's

Panas0nic

ADVENT

AUDIOVOX

AXION

0051/0055/0250/0650

0761/0783/0815/0817/0842

AKAI 0030/0098/0672/0702/0812

AMERICA ACTION 0180

AOC

APEX DIGITAL

0003/0019/0030/0052/0137/0185

0748/0765/0767/0879/0890

0003/0092/0180/0451/0623/0802/0875/

1937

1937

BANG & OLUFSEN0620/1620

BROKSONIC

CASIO

0003/0236/0463

0611/1205

DAEW0n

EMERSON

ENVISION

EPSON

FISHER

FUJITSU

GE

GOLDSTAR

GO VIDEO

HALER

HANNSPREE

HEWLETT

PACKARD

HISENSE

0019/0039/0066/0067/009!/0092/045!/

0623/0661/0672/1661

0019/0038/0039/0154/0158/0171/0177/

0178/0179/0180/0181/0182/0183/0185/

0236/0270/0280/0282/0463/0623

0030/0813

0833/0840

0154/0159

0179/0186/0683/0809/0853

0021/0027/0029/0047/0051/0055/0135/

0138/0174/0178/0251/0279/0282/0451/

0747/1347/1447

0019/0030/0032/0106/0178/0317/0409/

0442/0457/0700/0856/1178/1265

0886

0768/1034

1348/1351/1352

1088/1089/1101/1494/1502

0748

HITACHI

INFOCUS

JVC

KLH

LG

LOEWE

MAGNAVOX

MARANTZ

MEMOREX

M TSUB SH

NORCENT

OPTOMA

ORION

PHILIPS

PHILIPS

MAGNAVOX

PIONEER

POLAROID

PROSCAN

PROVIEW

RCA

RUNCO

0016/0032/0038/0056/0095/0097/0145/

0151/0173/0227/0279/0409/0413/1145

0736/0738/0741/0752/0781/1164/1516

0036/0053/0069/0160/0169/0182/0731/

1253

0765/0767

0019/0030/0032/0106/0178/0317/0409/

0442/0457/0700/0856/1178/1265

0136

0020/0024/0028/0030/0036/0054/0096/

0179/0186/0187/0230/0386/0706/0802/

1254/1454

0030/0054/0444/0704/0854/0855/1154

0016/0106/0150/0154/0178/0179/0463

0014/0019/0093/0098/0150/0155/0178/

0331/0358/0836/0868/1250

0748/0824/1089

0887

0179/0236/0463/1463

0054/0690/1154/1454

0020/0024/0028/0030/0036/0054/0096/

0179/0186/0187/0230/0386/0690/0706/

0802/1154/1254/1454

0038/0166/0172/0679/0866

0765/0865/1262/1276/1314/1316/1326/

1327/1328/1341/1498/1523

0047/0747/1347/1447

0835/1401/1498

0018/0019/0029/0038/0047/0090/0135/

0174/0278/0679/0747/1047/1147/1247/

1347/1447/1547

0017/0030/0251/0497/0603

SAMPO

SAMSUNG

SANSUI

S . : , ..

AI_YU

SHARP soNY

0030/0032/0039/0052/0100/0110/1755

0019/0030/0032/0056/0060/0178/0329/

0408/0427/0587/0702/0766/0812/0814/

1060

0463

0088/0107/0146/0154/0159/0232/0484/

0799/0893

0039/0093/0153/0157/0165/0220/0281/

0386/0398/0491/0688/0818/0851

°°°°/°011/°°8°/0!!!/°273/0353/°810/

0834/0867/1100

0587/0748/0768/0865/0870/0871/0872 SVA

SYLVANIA

TOSHIBA

ULTRA

°°2°/0°28/003°/°054!0065/0096/0! 7!_

0381

SYMPHONIC 0171/0180

SYNTAXZBRILEIAN1007/1144/1240/1255/1257/1258/1331

TATUNG

THOMSON

0003/0049/0055/0396/1101/1756

0209/0210/0047

0036/0060/0149/0154/0156/0650/0832/

0845/1156/1164/1256/1265/1356/1656/

1704

0391

VlEWSONIC 0857/0864/0885/1755

WESTINGHOUSE 0885/0889/0890/1282/1577

YAMAHA

ZENITH

0019/0030/0769/0633/0839

0016/0017/0092/0178/0463/1265

RQT9412

/

Broadband network connection

Firmware updates

The following services can be used when this unit is connected to the _X,,

Internet via a broadband connection.

Firmware can be updated (=> right)

• You can enjoy the BD-Live (_ 23)

• You can enjoy the VIERA CAST (_ 27)

Internet

Back of the unit

Player. Firmware is embedded software that controls this unit's microprocessor.

These updates may add or improve a feature of this unit. Firmware updates may also be released to correct operating irregularities that are discovered with certain movies. These updates are available at no charge.

i

• C:) ....

This unit is capable of auto firmware check if it is connected to the

Internet via a broadband connection.

When latest firmware version is available, the following screen is displayed.

Select "Yes" or "No".

Straight LAN cable (not included) t

I !_

[email protected]:[email protected][@ [@'J [

RQT9412

Telecommunications equipment (modem, etc.)

• Use shielded LAN cables when connecting to peripheral devices.

• With installation where your broadband modem is connected directly to your PC, a router must be installed.

• Use a router that supports 10BASE-T/100BASE-TX.

• In case all available connection on your router is being used, a hub or switch can be installed to provide additional connections.

• When operating the VIERA CAST, use high-speed Internet service no less than 1.5 Mbps for SD (Standard Definition) and 6 Mbps for

HD (High Definition) picture quality by your local broadband company.

-If using slow Internet connection, the video may not be displayed correctly.

• After physically connecting this unit to your broadband connection, some configuration is required. (_, 17)

• Inserting any cable other than a LAN cable in the LAN terminal can damage the unit.

• If "Yes" is selected, then follow the on-screen instructions.

• If "No" is selected, then manually update the firmware later.

(=> below)

After the latest firmware is downloaded, the system will be restarted and the firmware will be updated.

When the system is restarted, the screen display disappears and "START" is displayed on the unit's display.

After the firmware is updated and the system is restarted, the following screen indicates that the firmware update has been completed.

• During the update process, no other operations can be performed.

Serious damage may occur if you turn the power off and/or press any buttons.

• Downloading will require several minutes. It may take longer or the

Internet may not be connected depending on the connection environment.

It is required that you use a broadband connection.

• When the unit is connected to the Internet, communication charges may be generated.

• If you do not want to check for the latest firmware version when the unit is turned on, set "Automatic Update Check" to "Off". (_, 36)

If the firmware update is not carried out when the unit is turned on, a message is displayed when displaying the FUNCTIONS menu.

1) Press [SETUP].

2) Press [A, T] to select "Others" and press [OK].

3) Press [A, T] to select "Firmware Update" and press [OK].

4) Press [A, T] to select "Update Now" and press [OK].

5) Press ['4, I_] to select "Yes" and press [OK].

If downloading on this unit fails or this unit is not connected

to the

Internet, then you can download the latest firmware from

http:!lpanasonic.netlsupportl

(This site is in English only.)

Network settings

//

/F ......

These settings are used if you will connect this unit to the Internet.

oThe connection to the Internet may take time or the Internet may not be connected depending on the connection environment. (_ 35)

It is required that you use a broadband connection.

Preparation

• Connect to a broadband network. (_, 16)

Always test the connection when a LAN cable is connected.

_) Press [A,

O Press [A,V]

Y] to select ,IP Address/

to select !!Connection

IP Address

Auto Configuration

(DHCP)

In most cases, default settings can normally be used without making any changes.

Set the IP address only when the router has no DHCP server

functions or when the router's DHCP server function

is disabled,

After performing steps O-O (_ left)

O Press [A, T] to select "IP Address

Auto Configuration (DHCP)" and press [<,

I_] to select "Off".

Q Press [A, Y] to select "IP Address",

"Subnet

Mask"

or "Default

Gateway" and press [OK].

O Enter numbers with the numbered buttons and press [OK].

O Press [<,

I_] to select "Yes"

and press [OK].

• After checking the specifications for your broadband router, enter each number. If the number is unknown, then check the number of other devices such as personal computers connected via a LAN cable. Assign a different number from those of other devices for the

"IP Address" and the same number for others.

• If a wrong number is entered, then press [CANCEL].

• The numeric input range is between 0 and 255.

Auto Detect Connection

Speed

"Testing":

The test is in progress.

"Pass":

The connection is completed.

Press [RETURN] to exit.

"Fail":

Please check the connection and settings. (=>38)

• Please perform the "Connection Test"when any changes are made to the "IP Address/DNS Settings".

In most cases, default settings can normally be used without making any changes.

When setting an assigned DNS server from your Internet service provider, perform the following settings.

After performing steps O-O

(_ left)

O Press [A, V] to select "DNS Auto

Configuration (DHCP)" and press

[<,

I_] to select "Off".

€) Press [A, T] to select "Primary

DNS" or "Secondary

DNS"and press [OK].

O Enter numbers

with the numbered buttons and press [OK].

• If the connection test fails, it may be necessary to set the MAC address of this unit at the router side. The MAC address can be displayed by pressing [SETUP] and selecting "Network".

IP Address/DNS

Proxy Server

Settings

Settings

Network Service

0 Press [<1, I_] to select "Yes" and

press [OK].

• Follow the instructions given by your Internet service provider and enter the numbers. If the number is unknown, then check the number of other devices such as personal computers connected via a LAN cable and assign the same number.

• If a wrong number is entered, then press [CANCEL].

• The numeric input range is between 0 and 255.

RQT9412

RQT9412

Network settings

When the connection test results in "Fail" after the IP and DNS-IP addresses are assigned, perform the following settings.

After performing steps O-O (_ 17)

Q Press [A, V,

<1, I_] to select a character and press [OK].

Text field: shows the text you have entered

[][][][][]%[][]%[]_

[][][][]D%[]DDDC

Press[A ] to select

,,Connection

Speed Setting', and press [<li_] to select a connection speed:

• Select a connection speed in accordance with the environment of the network connected.

• When the settings are changed, the network connection may be disabled depending on the device.

S_ace ]

Using the numbered buttons to enter characters

e.g., enteringthe letter"F"

Alwaystestthe been made.

connection when new"Proxy Server Settings'have

Server Settings,, and press [OK],

ii_i!

................

to the 3rd row.

2) Press [3] twice to highlight

"F".

3) Press [OK].

Repeat this step to enter other characters.

ePress

[11II] to delete.

O Press [11] when you complete the entry.

O Press [A, T] to select "Proxy Port

Number" and press [OK].

Q Enter numbers with the numbered buttons and press [OK].

"Testing":

The test is in progress.

"Pass":

The connection is completed.

"Fail":

Press [RETURN] to exit.

Please check the connection and settings.

In most cases, default settings can normally be used without making any changes.

Please use this setting when instructed to by your Internet service provider.

After performing steps O-O

(_ above)

(_) Press [<1, I_] to select "Yes" and

press [OK].

• The specified ports may be blocked and not be able to be used depending on the network environment.

In order to restore the default settings

After performing steps O-_)

1) Press [A, T] to select "Reset to factory preset" and press [OK].

2) Press ['_, I_] to select "Yes" and press [OK].

//f ....

Inserting or removing media

Inserting a USB device

Q

O Press [_ OPEN/CLOSE] to open the disc tray.

O Insert or remove the disc

Press [_ OPEN/CLOSE] again to close the disc tray.

DVD-RAM: Remove discs from their cartridges before use.

• Insert double-sided discs so the label for the side you want to play is facing up.

Inserting an SD card

Q

Insert the card's label up, positioning the cut off corner to the right.

O Pull to flip down the front panel.

O Insert the SD card into the SD card slot.

• Press on the center of the card until it clicks into place.

Removing the SD card

Press on the center of the card and pull it straight out.

• When the card indicator ("SD") on the unit's display is flashing, the card is being read from or written to. Do not turn off the unit or remove the card. Such action may result in malfunction or loss of the card's contents.

• Before inserting any USB device into this unit, ensure that the data stored therein has been backed up.

• Check the orientation of the USB connector and insert it straight in.

• Some USB devices inserted into this unit may cause this unit to stop operating.

Such USB devices cannot be used on this unit.

O Pull to flip down the front panel,

O Insert the USB device into the USB port,

Removing the USB device

Complete all USB device-related operations and pull the USB device straight out,

• When the USB access lamp is flashing, the USB device is being read from. Do not turn off the unit or remove the USB device. Such action may result in malfunction or loss of the USB device's contents.

Since the physical size of USB devices can vary, please consider its width when connecting any USB device to this unit.

It is possible that some devices may accidentally activate the playback button and cause this unit to not operate properly.

- In such cases we recommend using a USB extension cable (not included).

lnserting or ejecting a video cassette

Inserting a video cassette

-The unit turns on automatically.

Ejecting the video cassette

From the main unit

• Press [A EJECT] on the main unit.

-The unit turns on automatically.

From the remote control

• Press [DRIVE SELECT] to select "VHS" and press and hold [11] for

3 or more seconds.

RQT9412

Basic play (Playing video contents)

Instructions for operations are generally described using the remote control in these operating instructions.

Preparation

Turn on the television and select the appropriate video input on the television.

About the Video cassette => 26, "Playing a video cassette I_J_l"

RQT9412

F-T_

ii_: _i_ ¸ R_E_

STATUS

[!Aa!!]

_UNC'IONS

_i F_

,

f

R G B Y

DRIV_

0

The stopped position is memorized.

Resume play function

Press [1_] (PLAY) to restart from this position.

• The position is cleared if the tray is opened or you press [i] several times to display "STOP" on unit's display.

* I'_r_'_: On BD-Video

discs including

BD-J (_ 50), the resume

play function

does not work.

I'_vJ-=l"_l:The position is cleared if the unit is turned off.

Play starts,

If play does not start, press [1_] (PLAY).

• If a media with data in different file formats is e.g., inserted, the file selection menu is displayed.

Press [A, T] to select the desired file format and press [OK].

• If the menu is displayed, press [A, T, <, 1_] to select the item and press [OK].

• If the screen prompting you to use the color buttons appears, continue to operate with the color buttons on the remote control.

• DISCS CONTINUE TO ROTATE WHILE MENUS ARE

DISPLAYED.

Press [i] when you finish to preserve the unit's motor and your television screen.

• The producers of the disc can control how discs are played. So you may not always be able to control play as described in these operating instructions.

Read the disc's instructions carefully.

• When playing a set of two or more BD-Video discs, the menu screen may continue to display even if the disc has been ejected.

To switch drives

Press [DRIVE SELECT] to select "BD/DVD/CD", "SD card", "USB device" or "VHS".

• If a media is inserted while the unit is stopped, the drive switches automatically depending on the inserted media.

-To d spla

menus

Press [TOP MENU/DIRECT NAVIGATOR].

The Pop-up menu is a special feature available with some BD-Video discs. This menu may vary with discs. For the operating method, refer to the instructions for the disc.

1) Press [POP-UP MENU].

2) Press [A, T, <, I_] to select the item and press [OK].

• Pop-up menu also appears by pressing [SUB MENU] and selecting

"Pop-up Menu".

• Press [POP-UP MENU] to exit the screen.

• Press [I I] again or [1_] (PLAY) to restart play.

SLOW/SEARCH

[_

Search/Slow-motion

The speed increases up to 5 steps.

• Press [1_] (PLAY) to revert to normal playback speed.

• For some discs, the speed may not change.

Search

While playing, press [<<]

or [IH_].

Audio is heard during first level of forward search.

• I'_1_!"_1: Audio is not heard during all levels of search.

r'4_l I'_1_1: The speed is fixed to a single step.

Slow-motion

While paused, press [<<] or [IH_].

• ==]_,J _: Forward direction [IH_] only.

• 17_11_'€11: play pauses automatically.

Skip to the title, chapter or track you want to play.

• Each press increases the number of skips.

During playback, you can access specific recordings or scenes through direct entry of the numbered buttons.

Play starts from the selected title or chapter.

e.g., 5: [01 => [0] => [51

15:[01 => [11 => [51 e.g.,

• While stopped (the image on the right is

5: [0] => [51

15:[11 => [51 displayed on the screen), the title is designated.

While playing, the chapter is designated.

I

1__o__j

Frame-by-frame

_' \_v

While paused, press [4] (411) or [1_] (liP.-).

Each press shows the next frame.

Press and hold to change in succession forward or backward.

• Press [1_] (PLAY) to revert to normal playback speed.

• n=l_vl _: Forward direction [1_] (! I1_)only.

"L

_screen

Aspec

When black bars are shown at the top, bottom, left, and right sides of the screen, you can enlarge the image to fill the screen.

(_ Press [SUB MENU].

@ Press [A, y] to select "Screen Aspect" and press [OK].

Press [4, I_] to select "Side cut" or "Zoom".

Normal: Normal output

Side cut: The black bars on the right and left sides of the 16:9

Zoom: image disappear and the image is enlarged.

Please note that the right and left sides of the image are cut off when the black bar is not displayed.

The black bars on the top and bottom sides of the 4:3 image disappear and the image is enlarged.

Please note that the top and bottom sides of the image are cut off

• n=l_vl _: when the black bar is not displayed.

"Side cut" does not have any effect.

• When "TV Aspect" (_ 34) is set to "4:3 Pan & Scan" or "4:3

Letterbox", the "Zoom" effect is disabled.

The status messages give you information about what is currently being played. Each time you press [STATUS], the information displayed will change.

e.g. _ Type of disc Play status

e.g.m

English is selected.

You can change the audio channel number each time you press the button. This allows you to change the soundtrack language (_ 30,

Soundtrack), etc.

AudioLR-->AudioL-->Audio

¢ I

R

"AudioLR" is selected

This feature gives you a more natural sound by adding higher frequency signals not recorded on the track.

Press [RE-MASTER] to select "Re-master 1", "Re-master 2" or

"Re-master 3".

Select the one that you like best.

Setting

When playing

LPCM sound

.

Type 0f music

Other types of sound

Effect level

Re-master

1 High tempo (e.g., pop and rock) Light

Re-master

2 Various tempos (e.g., jazz)

Re-master 3 Low tempo (e.g., classical)

Off Off

Medium

Strong

Off

• This function is effective for audio from the HDMI terminal or the

DIGITAL AUDIO OUT terminal only when "Dolby D/Dolby D +/Dolby

TrueHD" or "DTS/DTS-HD" is set to "PCM". (However, in this case, audio is output as 2ch from the DIGITAL AUDIO OUT terminal.)

!

No display

T: Title

C: Chapter

PL: Playlist

Items change depending on the disc played.

in the title

L

Current position Total time

Depending on the kind of disc or the playback status, this display may not appear.

Some functions of this unit can be operated from the FUNCTIONS menu.

O Press [FUNCTIONS].

Items to be displayed may vary with the media.

Press [A, Y] to select the item and

press

[OK].

e.g.,

Playback

=Top Menu

•Menu

=Viewing Picture

Other Functions "Playlists":

You can play playlists created on DVD-VR. Press

[&, Y, 4, I_] to select the playlist and press [OK].

• Network

BD/DVD/CD

SD Card

• USB device

VHS

"Setup" (_ 32)

"Card Management" (_ 23)

Displaysthe Homescreen of the VIERA CAST (_ 27)

Switches to the disc drive.

Switches to the SD drive.

Switches to the USB drive.

Switches to the VHS drive.

RQT9412

//

HDVideo m

It is possible to playback the HD (High Definition) video recorded on _'X_.

the Panasonic High definition Video Camera on the DVD-RAM/R/

RW/R DL/+R/+RW/+R DL or SD card, and SD (Standard Definition)

Video recorded on the Panasonic SD Video Camera on the SD card.

Chapter playback

0 Insert a disc (_ 19).

"Title View" screen is displayed, e.g.,

_._....................

e.g.,

_

Press [A,

an

<, _] to select the title

To return to the previous screen

Press [RETURN].

To exit the screen

Press [DIRECT NAVIGATOR].

To switch from other menus to AVCHD or MPEG2 menu

(if the media contains data in different file formats)

1) Press [FUNCTIONS].

2) Press [A, V] to select "Menu" and press [OK].

3) Press [A, T] to select "Play Video (AVCHD)" or "Play Video

(MPEG-2)" and press [OK].

• It may pause for a few seconds on the break of images when editing such as partial deletion is performed.

• High definition video (transfer rate of 18 Mbps or faster) cannot be played back correctly if it was recorded on a DVD compatible to double speed or slower.

Press [A, V] to select the title and

press [SUB MENU].

I_) Press [A. Y] to select "View

Chapters" and press [OK].

To display the title properties (recording

Properties

mdate, etc.)

View CllaPters To select the chapter

To Picture Playing still p_ctures (_ 24)

O Press [<, I_] to select the chapter

and press [OK].

e.g

I)_CT_AV_eP.TORch_o,erw_v,

N

N

\

RQT9412

Enjoying BD-Live or BONUSVIEW in BD-Video

BONUSVIEW allows you to enjoy functions such as picture-in-picture or secondary audio etc., with BD-Video supporting BD-ROM Profile 1 version

1.1/ Final Standard Profile.

What is BD-Live?

In addition to the BONUSVIEW function, BD-Video supporting BD-ROM Profile 2 that has a network extension function allows you to enjoy more functions such as subtitles, exclusive images and online games by connecting this unit to the Internet. In order to use the Internet feature, you must have this unit connected to a broadband network (_, 16).

eThese discs may not be on sale in certain regionsl

oThe usab e funct ons and the operating method may vary with each d sc, p ease refer to the nstruct ons on the d sc and!or v s t the r webs te

Set ,Soundtrack!, in !,Secondary

Video,,to !'On,, or "Off"

30,

• During search/slow-motion or frame-by-frame, only the primary video is displayed.

• When "BD-Video Secondary Audio" in "Digital Audio

Output" is set to "Off", secondary audio will not be played even if you set "Soundtrack" in "Secondary

Video" to "On". Please check that "BD-Video

Secondary Audio" is set to "On" (_ 33).

Many BD-Live compatible

discs require content to be downloaded

onto an SD card (_ 50, Local storage) in order to access the available

BD-Live features.

• An SD card with 1 GB or more of free space (SD Speed Class Rating 2 or higher) needs to be inserted prior to inserting the BD-Live compatible disc.

Some BD-Live content available on the Blu-ray discs may require an Internet account to be created in order to access the BD-Live content.

Follow the screen display or instruction manual of the disc for information on acquiring an account.

Preparation

• Connect to the network. (_, 16)

O Insert an SD card

_

19):

• !f the SD card menu screen is displayed, Press [DR!V E SELECT] on the remote control select ,BD!DVD/CD,.

_nse_ oF0r operation method, refer to the instructions onthe disc.

To use the above functions,

Formatting

2)

SD cards/Deleting data

• If the SD card you use is formatted, all data on the card will be erased.

It cannot be recovered,

Press [FUNCTIONS]I it is recommended

Format the card using the following t1 !nsert an SD card (_ 19)i procedures.

3) Press [A, Y] to select !'Other Functions' that you format the card on this unit.

and

• If you experience any problems, first, try formatting the SD card in this unit.

•A message may be displayed

Please make space available on the current SD card, or insert another SD card.

•While using this feature, do not remove the SD card.

Doing so will cause playback to stop.

• The unit must be connected to the Internet and set up (_ 17) to use the BD-Live functions.

"BD-Live

Internet Access" may need to be changed for certain discs (_ 32).

•When discs supporting BD-Live are played back, the player or disc IDs may be sent to the content provider via the Internet. You can restrict Internet access (_ 32).

• The unit is connected to the Internet when BD-Live functions are used, generating communication charges.

p tess [0 K].

5) Press [A; T] to Select i_BD'Vide0 Data Erase" or

4) Press [,&i T]to select !!Card Management" and

6) Press [411,I_] to se!ect IYes'! and press [OK]:

7) Press [_1, I_]to select !'Startll and press [OK]. i i_;_,o_.................

i

i

RQT9412

Playing still pictures

pictures recorded. This unit can also play still pictures recorded on the SD card or USB memory. In addition, you can also connect

Panasonic digital camera by USB connection.

(About structure of folders ,=>37, "Structure of folders that can be played in this unit")

Connecting a USB device

Panasonic digital camera, etc.

Connect to USB terminal

USB connection cable

Specified cable such as

• Setup screen may be displayed on equipment connected with the

USB. Set it to the mode for connecting to a PC.

• Also read the operating instructions of the connected equipment for details of connection and setup.

• Do not disconnect the USB connection cable while the device is being identified

O Insert a disc, SD card or USB device. (=_ 19)

BD-RE, DVD-RAM

-'Album View" screen is displayed.

• When the "Title View" screen is displayed, press the [G] button to switch to the "Album View" screen.

• If the DVD-RAM containing both JPEG and AVCHD format is inserted, the file selection menu may be displayed

DVD-R/R DL, CD-R/RW,

SD card, USB device

• If the media contain ng data in different file formats is inserted, the file selection menu may be displayed.

e.g.,

Press [A, V] to select "Play Picture (JPEG)" and press [OK].

e,g,

Press [RETURN].

To exit the screen

Press [DIRECT NAVIGATOR].

DVD-RAM/R/R

To switch

DL, CD-R/RW, from other menus

SD card, USB to JPEG device menu

(if the media contains data in different file formats)

1) Press [FUNCTIONS].

2) Press [A, T] to select "Menu" and press [OK].

3) Press [A, T] to select "Play Picture (JPEG)" and press [OK].

You can display still pictures one by one at a constant interval.

BD-RE, DVD-RAM album and press [SUB MENU],

• You can also start slideshow by pressing [1_] (PLAY) after selecting the album.

DVD-R/R DL, CD-R/RW, SD card, USB device

O Press [A V]to

select ,Start

Slideshow" and press [OK].

To stop slideshow

Press [ll].

"Picture View" screen is displayed.

=> Go to step _)

Press [A, Y, <1, I_] to select the album and press [OK].

e,g,+

_) Press [A,

I', <1, I_] to select the still picture and press [OK].

e.g

• Press [<, I_] to display the previous or next still picture.

• Press [ 1<141,IH_ ] to show other pages.

RQT9412

O Press [A,

V] to select "Slideshow

Settings" and press [OK].

To change the display interval

Press [&, T] to select "Display Interval" and press [<1, I_] to select the interval ("Long", "Normal" or "Short").

eWhen a still picture with a large number of pixels is played, the display interval may become longer. Even if the setting s changed, the display interval may not become shorter.

To set display method

Press [&, V] to select "Transition Effect" and press [_1, I_] to select "Fade". "Motion" and "Random".

'Fade": Pictures are changed by fading out and fading in

"Motion": Pictures are changed by fading out and fading in while it is enlarged, reduced, or moved up or down.

-'Random": In addition to the "Motion", pictures are changed by various methods.

To repeat slideshow

Press [&, T] to select "Repeat Play" and press [<, I_] to select "On" or "Off'.

To listen to Background Music

The MP3 that is recorded on the USB device or the music CD can be played back as Background Music during the slideshow

Press [A, y] to select "Soundtrack" and press [<, I_] to select "On" or "Off'.

eYou cannot search or skip the music.

eWhen the slideshow stops, the playback of the music also stops.

oWhen both the music CD and the USB device with MP3 recorded is inserted to this unit. the music CD has a priority to be played back as Background Music.

To select a folder

A folder to playback can be selected when a USB device with

MP3 recorded is connected to this unit.

Press [&, Y] to select "Soundtrack Folder" and press [OK], and press [<, I_] to select folder.

_) Press [A, T, <1, I_] to select "Set"

and press

[OK],

_Rotate

O While playing

(except for slideshow)

Press [SUB MENU].

Press [A,

T] to select "Rotate

Right" or "Rotate

Left" and press

[OK].

eThe rotation information will be stored until the unit is turned off or the media is removed

Zoom out

This function is only available for small-sized still pictures.

O

While

playing (except

for slideshow)

Press [SUB MENU].

Press [A,

Y] to select "Zoom

out"

and press [OK].

eTo cancel "Zoom out", press [A, T] to select "Zoom in" in step O and press [OK].

eThe zoom-out information will not be stored.

BD-RE, DVD-RAM

To switch to another higher folder

(Only if there is a multiple number of recognizable higher folders)

P re ss [S U B M E N U]'

_

Press!!

Y] to select ,!Select

Root

folder and press [OK],

_) Press[ ]to selectthe

folder

and press [OK]!

igher

i change theNbum folder 10be accessed, i i Press [OK] to c0nfirrn

" _iJ

RETURN

i

,,

w ,creen

is displayed

0

While

the Picturevie

Press [SUB MENU]!

,

Press [A;

Y]to

select Select

eg,

Shooting date

To exit, press [STATUS].

i i i iii iii iii ii

RQT9412

Playing a video cassette m

About basic play ,=>20, "Basic play (Playing video contents)"

You can change the audio type each time you press the button.

Hi-Fi stereo audio Normal audio

AudioL R-->AudioL-->Audio R-->Audio

When black bars are shown at the top, bottom, left, and right sides of the screen, you can enlarge the image to fill the screen. (_, 21 )

Pause

Press [I I] again or [1_] (PLAY) to restart play.

Pause is automatically canceled after 5 minutes,

Slow playback

Press [! I] and hold for about 2 seconds.

• Press [1_] (PLAY) to revert to normal playback speed.

• There will be no audio output.

• Slow playback is automatically canceled after 10 minutes.

Fast-forward/Rewind

While stopped, press ['_]

CuelReview

or [1_1_].

While playing, press ['_] or [1_1_] (or press and hold).

• Each press changes the speed.

Normal mode : Approx. 9 times +---> Approx.

13 times

3 times, 5 times mode: Approx. 27 times +---> Approx. 43 times

• Press [1_] (PLAY) to revert to normal playback speed.

• Hold ['_] or [1_1_] to start cue/review and release the button to restart normal playback.

• Cue and review are automatically canceled after 10 minutes,

The status messages give you information about what is currently being played. Each time you press [STATUS], the information displayed will change.

e.g., VHS drive indicator Play status

No display

L

$

Elapsed time in the title

Recording mode

SP:Standard play mode

LP:2 times the length of SP mode

EP:3 times the length of SP mode

VP:5 times the length of SP mode

• Press [CANCEL] to reset the tape counter (elapsed time) to

"0:00.00". The tape counter is automatically reset when inserting a video cassette.

_6"_

RQT9412

The index search function makes use of the index signals recorded on the cassette to help you find the beginning of a desired program quickly and easily.

While stopped or during normal play, press [1_141]or [l_l_l ].

• Each press increases the number of skips.

• Press [ll] to cancel the search.

• Up to 20 index signals can be searched in either direction.

While paused, press [1_] (! I1_).

Each press shows the next frame.

• Press and hold to change in forward succession.

• Press [1_] (PLAY) to revert to normal playback speed.

• It cannot go in reverse direction.

This unit can play tapes recorded in S-VHS.

• Some picture noise may occur depending on the type of tape used.

• It is not possible to fully obtain the high resolution S-VHS is capable of.

Manual Tracking

The unit usually makes tracking adjustments automatically, but you may need to do it manually if noise appears.

However, automatic adjustment may take longer, or adjustment may not be possible depending on the cassette.

In such cases, adjust it manually.

While playing, press [TRACKING/V-LOCK 4-] or [TRACKING/

V-LOCK ].

Repeat until the picture noise disappears.

Press [TRACKING/V-LOCK +, ] at the same time to return to auto tracking.

• Audio may change to normal audio if it is adjusted too much.

• This function may not work with some tapes.

• To eliminate noise for paused images or during slow playback, adjust the tracking while playing back in slow playback.

Vertical

Locking Adjustment

Adjust the vertical synchronization to stop the picture from shaking while paused.

While paused, press [TRACKING/V-LOCK +] or [TRACKING/

V-LOCK ].

Repeat until the shaking stops.

• Press [TRACKING/V-LOCK 4-, ] at the same time to return to the standard position.

• This function may not work with some tapes.

• The playback picture may be unstable during special playback

(Pause, Slow playback, Cue/Review).

When you play back a tape recorded in other than the SP mode, the picture and the sound may be unstable.

However, these are not a malfunction.

•Tapes are automatically rewound once they reach the end (except during fast forwarding, etc.).

..,,i

Playing music

y

J

You can generally play any available music CD or MP3 flies recorded ' onto a DVD-R/R DL, CD-R/RW and USB device.

(About structure of folders => 37, "Structure of folders that can be played in this unit")

O Insert a disc or USB device.

19)

elf the media containing data in different file formats is inserted, the file selection menu may be displayed.

Press [A y] to select "Play Music (MP3)" and press

[OK].

e.g..

Enjoying VIERA CAST TM

You can access a selection of Internet services from the Home screen with VIERA CAST, for example YouTube, Picasa Web

Albums.

(Current as of March 2009) oVIERA CAST requires a broadband Internet connection, Dial-up

Internet connections cannot be used,

Preparation

eNetwork connection (_ 16) oNetwork setting (_ 17)

• Message is displayed.

Please read these instructions carefully and then press[OK] to start VIERA CAS-I- functi0nl

Images are for illustration purposes, message may change without notice.

Press [A.

V] to select the track and

press [OK].

Play starts on the selected

track.

e gr_

MRECT NAVIGATOR

#_CD

Music list _ O.09

_'acR_

4.3_,

_Play

_ RETURN

" ,,_ " indicates the track currently playing.

To switch from other menus to MP3 menu

If the media contains data in different file formats)

1) Press [FUNCTIONS].

2) Press [A, V] to select "Menu" and press [OK].

3) Press [A, V] to select "Play Music (MP3Y' and press [OK].

oYou can use search and skip functions.

(_ 20) oThe screen switches to Screen Saver mode if there is no operation for 2 minutes after starting playback. (Playback continues.)

Press [A, Y] to select ,,Select

Press [A, Y] to select a folder and

i

]er No. /

Total

folders

If the folder haS no track, !!-,ii is displayed as folder number.

oYou cannot select folders that contain no compatible tracks.

To return to the previous screen

Press [RETURN].

oY0u can operate VIERA CAST using the following buttons on the unit's remote control.

[A, Yl <, I_]i [OK]; [RETURN]i [SUB MENU]i colored buttons and numbered buttons.

• To access more features on YouTube or Picasa Web Albums sitel enter y0ur user ID and password that you have previously set up with these sites through the !nternet on your PC. However, not all features may be accessible through V!ERA CAST.

VIERA CAST Home screen;

After you access YouTube or

Picasa Web Albums from the

VIERA CAST H0me screen and add your favorite videos or albums to VIERA CAST, you can choose them easily from the Home screen.

Images are for illustrati0n purpose, contents may change without notice.

Regarding "Settings"

Set VIERA CAST Home screen.

My Account:

• Lock:

You can remove your account from the unit.

Password can be used to lock YouTube and

Picasa Web Albums.

• Notices

• Depending on the usage conditions, it may take a while to load the page.

• The connection to the Internet may take time or the Internet may not be connected depending on the connection environment.

• The unit is connected to the Internet when VIERA CAST is used, generating communication charges where applicable.

To return to VIERA CAST Home screen

Press [VIERA CAST].

To exit from VIERA CAST

Press [FUNCTIONS] or [TOP MENU/DIRECT NAVIGATOR], then press [RETURN] to cancel the menu.

• Set the "Network Lock" to "On" to restrict using VIERA CAST. (_ 35)

• If the audio is distorted while using the VIERA CAST feature set the

"Audio Auto Gain Control" to "Off" (_ 35)

• When the entire picture cannot be displayed on the screen set the

"Reduce to Screen Size" to "On" (_ 35)

• Set the "On-screen Language", to switch the language for Home screen. (_ 33)

• Set the "Time Zone" or "DST" when wrong time is displayed on the screen. (_ 35)

• VIERA CAST

TM home screen is subject to change without notice.

• The services through VIERA CAST

TM are operated by their respective service providers, and service may be discontinued either temporarily or permanently without notice. Therefore, Panasonic will make no warranty for the content or the continuity of the services.

• All features of websites or content of the service may not be available.

• Some content may be inappropriate for some viewers.

• Some content may only be available for specific countries and may be presented in specific languages.

RQT9412

Linked operations with the TV

(VIERA

Link

A What is VIERA Link "HDAVI Control"?

VIERA Link

TM is a new name for EZ Sync

TM.

VIERA Link "HDAVI Control"

is a convenient

function

that offers linked operations of this unit, and a Panasonic TV (VIERA) or amplifier/receiver

under "HDAVI Control".

You can use this function

by connecting the equipment with an HDMI cable. See the operating instructions

for connected

equipment

for operational

details.

eVIERA Link "HDAVI Control", based on the control functions provided by HDMI which is an industry standard known as HDMI CEC (Consumer

Electronics Control), is a unique function that we have developed and added. As such, its operation with other manufacturers' equipment that supports HDMI CEC cannot be guaranteed.

eThis unit supports

"HDAVI Control 4" function.

"H DAVI Control 4" is the newest standard (current as of December, 2008) for Panasonic's HDAVI Control compatible equipment.

This standard is compatible with Panasonic's conventional HDAVI equipment.

ePlease refer to individual manuals for other manufacturers' equipment supporting VIERA Link function.

J f

'_

Preparation

1) Connect this unit to your TV or amplifier/receiver with an HDMI cable

(_ 11-12).

2) Set "VIERA kink" to **On"(o 34). (The default setting is **On".)

3) Set the L'HDAVI Control" operations on the connected equipment (e.g., TV).

4) Turn on all "HDAVI Control" compatible equipment and select this unit's input channel on the connected TV so that the "HDAVI Control" function works properly.

Also when the connection or settings are changed, repeat this procedure.

When the following operations are performed, the television will automatically switch the input channel and display the corresponding action.

-When play starts on the unit

-When an action that uses the display screen is performed

(e.g., Direct Navigator screen)

When the television is off and the following operations are performed, the television will automatically turn on and display the corresponding action.

-When play starts on the unit

-When an action that uses the display screen is performed (e.g., Direct Navigator screen)

All connected equipment compatible with "HDAVI Control", including this unit, automatically turns off when you switch the television off.

eThis unit automatically turns off even during playback or any other operation.

Stand-by power save and Auto power stand-by responsibly manage your systems power consumption

These functions are available with the TV that supports "HDAVI Control 4".

About the Stand-by power save function

It is possible to minimize the stand-by power of this unit by the Power off link, even if the "Quick Start" of this unit is set to "On" (_ 36).

"Stand-by power save" setting is required to be activated on the TV.

• When turning this unit on or off without using Power off link function, it is impossible to minimize the stand-by power of this unit.

About the Auto power stand-by function

If connected with a TV (VIERA) with the "Auto power stand-by" setting activated on the TV, when switching the TV input, the unit will be automatically turned to standby. For details please read the operating instructions of the TV.

• When [1_] (PLAY) is pressed on this unit for "Automatic input switching" or "Power on link", the playback image is not immediately displayed on the screen and it may not be possible to watch the contents from where playback started.

In this case, press [ 1.441]or ['_] to go back to where playback started.

Playing music continuously

even after turning off power to the television

When the unit is connected to a Panasonic TV (VIERA) that supports HDAVl Control 2 or later and an amplifier/receiver supports VIERA Link, the unit is turned off if the power to the television is turned off, since "Power off link" (=> above) operates.

The following operations make it possible to keep the power of the unit on and to play music continuously.

(_While playing music

Press [SUB MENU].

@Press [A, T] to select "TV Power" and press [OK].

• Sound may be discontinued for several seconds when the power to the television is turned off.

• If the operation mentioned above is executed while audio is output from the television, the sound may not be output from the amplifier/receiver.

It is recommended to set the amplifier/receiver beforehand so that audio will be output from the amplifier/receiver.

RQT9412

thisunittotheTVthatsupports

Youcanoperate

Thebuttons

Usetheremote oThe control operation buttons thatyoucanuseforthisunitvarydepending

O Press the button for VlERA Link on the remote control.

_) Select the player. e.g.,

...........................

i _U_=C(J0NS

eThe

FUNCTIONS menu is displayed,

By using the TV remote control, you can play discs using the "Control Panel" and display the Top Menu (for BD-Video and DVD-Video) or Pop-up Menu (for BD-Video).

O Press [SUB MENU].

• This can also be displayed by using the VIERA menu screen.

eYou cannot use the sub menu while the Top Menu for BD-Video or

DVD-Video is displayed.

_) Select an item, then press [OK]. e.g.,

Control Panel

Control Panel

Screen Aspect

Top Menu 17J'_'_I_I'j'_T_ l'_1'j'_

Menu _

Pop'up Menu _

Rotate Right _

Rotate Left

Zoom in _

Zoom out

Control Panel is displayed. Follow the indications on the screen.

(o21)

Top menu is displayed.

Menu is displayed.

Pop-up menu is displayed.

Rotate the still picture.

Enlarge or reduce the still picture.

When you want to leave the TV on and set only this unit to standby mode

Press [_ POWER] on this unit's remote control and set to standby mode.

When not using "HDAVI Control"

Set "VIERA Link" in the Setup menu to "Off". (_ 34)

RQT9412

RQT9412

Changing settings with the on-screen menu

(exceptl_3"ml)

0

Press [DISPLAY]:

Press [A, T] to select the menu and press [I_]

'

[

elg, BD_Videe

the item and press [_],

Press [&i Y] to select

the setting.

!tems

j ,

Depending on the condition of the unit contents, there may be some items

, that you cannot select or change.

•Some

items can be changed by pressing[OK].

To exitthe

on-screen menu

[DISPLAY].

Disc

ii111r

Signal Type

_:]D]LvJ

• Primary Video

Video:

Soundtrack:

The original video recording method appears. (_ below, Video attribute)

Select the type of audio or language. (=> below, Language, Audio attribute)

• Secondary

Video

Video:

Soundtrack:

Select on!off of images.

The original video recording method appears.

(=> below, Video attribute)

Select on!off of audio and the language. (=> below, Language, Audio attribute)

Video

Soundtrack

The original video recording method appears. (=> below, Video attribute)

_

Select the type of audio or language.

(=> below, Language, Audio attribute)

Subtitle

=The audio attributes appear. (=> below, Audio attribute)

_ _

Turn the subtitle on/off and select the language. (=> below, Language)

(Only discs that contain subtitle on!off information)

=Turn the subtitle on!off.

Subtitle Style

_:]D]LvJ

Select the subtitle style.

Audio channel _

(=> 21, Changing audio during play)

Angle

_

Select the number of the angle.

Some items may be changed only on the disc s )ecific menu. (_ 20)

Language

ENG: English

FRA: --rench

DEU: German

ITA:

ESP:

Italian

Spanish

NLD:

SVE:

::)utch

Swedish

NOR: Norwegian

Video attribute

MPEG-2

DAN: Danish

POR: Portuguese

RUS: Russian

JPN:

CHI:

Japanese

Chinese

KOR: Korean

MAL: Malay

VIE: Vietnamese

THA: Thai

POL: Polish

CES: Czech

SLK: Slovak

HUN: Hungarian

FIN:

-_:

Finnish

Others

Audio attribute

LPCM/E_[]Digitalt[_]Digital+t[]_]TrueHD/

DTS/DTS 96/DTS-HD HI RES/DTS-HD

MSTR/MPEG ch (channel/ k (kHz_ b (bit_ i I

MPEG-4 AVC

VC-'

_i I

Signal type

Number of channels

Sampling frequency

Number of bits

This is a standard for corn pressing and decorr pressing color motion pictures efficiently. This compression method is used for DVDs. etc.

These are standards for corn pressing and decompressing color motion pictures more efficiently than MPEG-2 and used for Blu-ray Discs. etc.

Play

Video

Audio

..............

Repeat Play

Random


Progressive

24p _

Sound Effects *_,

2

Dialog Enhancer *_

(Only when the elapsed time is being displayed on the unit's display.)

Selects the item which you want to repeat. The items displayed differ depending on the type of media.

eAII tracks All tracks

eChapter

Playlists

• Title

• One track

•Off

Chapter

Playlist

Title

Track

Select "Off" to cancel.

rd_

While playing, press [i, T] to select "On".

Random playback starts from the next track.

• On •Off

_ _ _ _

Select the picture quality mode during play.

• Normal:

• Soft:

• Fine:

• Cinema:

• User:

Default setting

Soft picture with smoother video

Details are sharper

Mellows movies, enhances detail in dark scenes.

You can make further adjustments.

(_ below)

(_ Press [1_] to select "Picture Adjustment" and press [OK].

O Select the item using [i, T] and adjust it with ['4, I_].

Contrast:

Brightness:

Sharpness:

Color:

Gamma:

3D NR:

Integrated NR:

Increases the contrast between light and dark parts of the picture ( 7 to +7).

Brightens the picture (0 to + 15).

Adjusts the sharpness of the edges of the horizontal lines ( 6 to +6).

Adjusts the saturation of the picture's color ( 7 to +7).

Adjusts the brightness of dark portions of the screen (0 to +5).

Reduces the rough noise in the background to give a greater feeling of depth (0 to +4).

When "24p Output" is set to "On", this function may not operate. (_ 34)

Smooths block noise and reduces the smudging that appears around contrasting sections of the picture (0 to +3).

Select the method of conversion for progressive output to suit the type of material being played

(_ 50, Film and video).

• Auto:

• Video:

Automatically detects the film and video content, and appropriately

Select when using "Auto", and the content is distorted.

converts it.

•On •Off

Only when you have selected "On" in "24p Output" (_ 34)

• Off

Re-master (_ 21)

• Re-master 1 • Re-master 2 • Re-master 3

V. Surround

_ _ _ _ (2 channels or more only)

Enjoy a surround-like effect if you are using two front speakers only.

-Turn V. Surround off if it causes distortion.

-Do not use in combination with surround effects on other equipment.

-V.

Surround does not work for bilingual recordings.

• V. Surround 1 •V. Surround 2

Night Surround

To enjoy a movie with powerful sound even when the volume is kept low at night, the audio is set in such a way that it can be heard easily.

• Night Surround

r_

It_

I_ I_

I_ (3 channels or more only, including a center channel)

The volume of the center channel is raised to make dialog easier to hear.

• On •Off

"I Thisfunctioniseffective OUT terminalonlywhen "Dolby DIDolby D +IDolbyTrueHD" or "DTSlDTS-HD" issetto "PCM". (However,inthiscase,audio isoutputas 2ch from the DIGITAL AUDIO OUT terminal.)

*2 Not everyfunctioncan be setindividually.

I

RQT9412

Changing the unit's settings

Change the unit's settings if necessary.

The settings remain intact even if you switch the unit to standby.

O While stopped

Press [SETUP].

l_ Press [A,

Y] to select the menu and press [OK].

_) Press [A,

T] to select the item and press [OK].

If there are any other items, repeat these steps.

O Press [A,

Y, 4, I_] to select the option and press [OK].

eThere may be differences in operation methods. If this happens, follow the on-screen instructions for the operation.

To return to the previous

screen

Press [RETURN].

To exit the screen

Press [SETUP].

Underlined

items are the factory

presets.

"Disc"

DVD-Video Ratings

Set a ratings level to limit DVD-Video play.

BD-Video Ratings

Set an age limit of

BD-Video play.

Follow the on-screen instructions.

Enter a

4-digit password with the numbered buttons when the password screen is shown.

It will be the common password for "DVD-Video

Ratings", "BD-Video Ratings" and "Network

Lock".

• Do not forget your password.

e8 No Limit:

1 to 7:

All DVD-Video can be played.

Prohibits play of DVD-Video with corresponding ratings recorded on them.

Prohibits play of all DVD-Video.

• 0 Lock All:

Changing settings (When level 0 to 7 is selected)

• Unlock Player

• Change Level

•Change

Password

•Temporary Unlock

• No Limit: All BD-Video can be played.

• 0 to 254 year(s): Prohibits play of BD-Video with corresponding ratings recorded on them.

Audio

Language

Choose the language for audio, subtitle and disc menus.

Changing settings (When 0 to 254 year(s) is selected)

• Unlock Player

• Change Level

•Change

Password

•Temporary Unlock

• Enalish •French •Spanish

• Original: The original language of each disc will be selected.

• Other

Subtitle

Language

Menu Language

• Some discs start in a certain language despite any changes you make here.

• When the selected language is not available on the disc, the default language is played.

•Automatic:

If the language selected for "Audio Language" subtitles of that language will automatically disc.

There are discs where you can only switch the • English language from the menu screen. (=> 20)

• Enter a code (_ 36) with the numbered buttons when you select "Other ".

• Enalish

• French

•French

•Spanish

•Spanish is not available, appear if available on that

•Other

•Other

BD-Live Internet Access _ (_ 23)

You can restrict Internet access when BD-Live functions are used.

Allow (ALL):

• Allow (Limited):

Internet access is permitted for all BD-Live contents.

Internet access is permitted only for BD-Live contents which have content owner certificates.

• Prohibit:

Internet access is prohibited for all BD-Live contents without a certificate.

Internet access is prohibited for all BD-Live contents.

"Video"

Still Mode (paused video)

_ _

17FR_

Select the type of picture shown when you pause playback

(_ 50, Frames and fields).

Seamless Play

Select the play mode between playlist chapter segments and partially deleted titles.

Black Level Control

Select lighter or darker for adjusting the black level control to the desired setting for picture enhancement.

•Auto

•Field:

•Frame:

• O.__n:

• Off:

Select if jittering occurs when "Auto" is selected. (The picture is coarser.)

Select if small text or fine patterns cannot be seen clearly when "Auto" is selected. (The picture is clearer and finer.)

The chapters in playlists are played seamlessly. This does not work while searching or when there are several audio types included on the playlist. Additionally, the positioning of chapter segments may change slightly.

The points where chapters in playlists change are played accurately, but the picture may freeze for a moment.

•_Lighter: When video is output from VIDEO OUT terminal.

• Darker:

When video is output from COMPONENT terminal.

VIDEO OUT

RQT9412

To select these options, perform steps O-O

(_ 32)

"Audio"

Dynamic Range Compression

_ _

(Dolby Digital, Dolby Digital Plus and Dolby TrueHD only)

Change the dynamic range (_ 50) for late night viewing.

Digital Audio Output (_ 8) oPress [OK] to show the following settings.

Dolby D/Dolby

Dolby TrueH D

DTS/DTS-HD

D +/ Select whether Dolby Digital, Dolby

Digital Plus, Dolby TrueHD, DTS Digital

Surround, DTS-HD High Resolution

Audio or DTS-HD Master Audio is output in "Bitstream" or "PCM" format.

oNot making the proper settings may result in noise.

• If the unit is connected with the

HDMI AV OUT terminal, the specifications of the connected equipment take preference over this unit and audio selected in these items may not be output (e.g., when a television is connected, the HDMI audio output of this unit is limited to down-mixed 2ch.)

BD-Video Secondary Audio

Turn on/off the button click sound on the menu and audio with secondary video in picture-in-picture mode. (_ 23)

PCM Down

Conversion

Select how to output audio with a sampling frequency of 96 kHz.

• Signals are converted to 48 kHz despite the settings across in the following cases:

-when the signals have a sampling frequency of 192 kHz

-when the disc has copy protection

-when "BD-Video Secondary Audio" is set to "On"

Downmix

Switch the downmix system for playing back multi-channel surround sound.

• When "Dolby D/Dolby D +/Dolby TrueHD" or "DTS/DTS-HD" is set to "Bitstream', there are no downmix effects for the outputted audio.

• The audio will be outputted in "Stereo" in the following cases:

-AVCHD playback

-Playback of button click sound on the menu and audio with secondary video in picture-in-picture mode

• On

• Auto:

• Bitstream:

Select "Bitstream" when the connected equipment can decode the respective audio format.

-Connect equipment supporting HDMI (High Bit rate Audio) and use a

High Speed HDMI Cable in order to output high bit rate audio such as

Dolby Digital Plus, Dolby TrueHD, DTS-HD High Resolution Audio or

DTS-HD Master Audio.

•PCM:

Select "PCM" when the connected equipment cannot decode the respective audio format.

Refer to the operating instructions for connected devices to verify whether or not they can decode each of the audio formats.

• O._En: The primary audio and secondary audio are mixed and output. The sampling frequency is converted to 48 kHz.

• Off: The button click sound on the menu and secondary output.

audio are not

• On:

• Off:

Signals are converted to 48 kHz. (Choose when the connected equipment cannot process signals with sampling frequency of

96 kHz.)

Signals are output as 96 kHz. (Choose when the connected equipment can process signals with sampling frequency of

96 kHz.)

• Stereo:

Effective onlywhen

• Surround encoded:

•Off

Dolby TrueHD is played.

When connected to equipment (e.g., TV) that does not support the virtual surround function.

When connected to equipment that supports the conversion from 2 channels to multi channel surround.

"Display"

Status Messages

Choose whether to show status messages automatically.

On-screen Language

Choose the language for these menus and on-screen messages.

Screen Saver Function

This is to prevent burn-in on the screen.

• Regardless of the setting, the screen switches to Screen Saver mode if there is no operation for 2 minutes after starting the playback of CD or MP3. (Playback continues.).

• Automatic

• Enalish

•Off

•Frangais •EspaSol

• On: (Screen Saver Function is enabled after 10 minutes of no activity)

-When the movie title being played was created in 4:3 display mode the masked-off area on the screen becomes gray to prevent screen burning.

(The screen saver will not be activated if the movie was created in 16:9 display mode.)

[When connecting with an HDMI cable, "TV Aspect" (=> 34) is set to "16:9" and "HDMI Resolution" (_ 34) is set to any mode other than "480p", or when connecting with a component video cable, "TV Aspect" (_ 34) is set to "16:9" and "Component Video Resolution" (_ 34) is set to "720p" or

"108Oi".]

-When the Direct Navigator or FUNCTIONS menu is displayed, the display returns to the screen saver mode.

-When still pictures are shown (except for slideshow), the display returns to the Direct Navigator screen.

•off

FL Display

Changes the brightness of the unit's display.

SD Card LED Control

Set the lighting method for the lamp on the SD card slot.

License

•Dim:

• Auto: oO.__n

•SD inserted:

The display is dimmed.

The display is dimmed during playback and is bright except during playback.

oOff

When this unit is turned on and SD card is inserted, the lamp is lighted.

Information about the software used by this unit is displayed.

RQT9412

Changing the unit's settings

Underlined

items are the factory

presets.

"TV / Device

Connection"

TV Aspect

Set to match the type of television connected.

When connected to a 4:3 aspect television:

• 4:3 Pan & Scan: Video recorded for a widescreen is played as Pan & Scan

(unless prohibited by the producer of the disc). When playing

• 4:3 Letterbox:

BD-Video, video is output as "4:3 Letterbox".

Video recorded for a widescreen style.

When connected to a 16:9 widescreen television: is played in the letterbox

• 16:9:

• 16:9 Full:

Video recorded for 4:3 aspect screen is displayed as a 4:3 ratio image in the center of the screen.

Video recorded for 4:3 aspect screen is displayed as a horizontally stretched 16:9 image.

HDMI Connection

oPress [OK] to show the following settings.

HDMI Video Mode

Select "On" when video is output from HDMI AV OUT terminal.

• O.__n: Images are output from the HDMI terminal in the resolution set in "HDMI

Resolution".

Video from COMPONENT VIDEO OUT terminal is output as

"480i".

• Off Images are output in the resolution set in "Component Video Resolution".

HDMI Resolution*

The items supported by the connected devices are indicated on the screen as" ". When any item without

" " is selected, the images may be distorted.

24p Output

_

17FRK_

When this unit is connected to a TV supporting 1080/24p output via an HDMI cable, this unit displays each frame at

1!24 second intervals - the same interval originally shot with the film camera.

• When playing DVD-Video, set to "On" and then set "24p" in "Video" (_ 31) to "On"

HDMI RGB Output Range

Effective when connected to a device that only supports

RGB output.

• Auto: Automatically selects the output resolution best suited to the connected television (1080p, 1080i, 720p or 480p).

•720p • 480p

• 1080i • 1080p

-When outputting 1080p signal, we recommend using High Speed HDMI Cables that have the HDMI logo (as shown on the cover) and are less than 5.0 meters to prevent video distortion etc.

-When the unit is connected to an amplifier/receiver that does not support the resolution set on the unit, the video cannot be output properly. In this case, use the HDMI cable to connect the unit to the TV and then connect the unit to the amplifier/receiver using a cable other than HDMI.

-To enjoy high definition video up-converted to 1080p, you need to connect the unit directly to 1080p compatible HDTV (High Definition Television).

If this unit is connected to an HDTV through other equipment, it must also be 1080p compatible.

• On: Images in 24p are output in 24p as they are.

However,

-when video is being output at 24 frames, images from any other terminal than the HDMI terminal may not be output properly.

-r_t_'_: when images other than 24p are played, images are output at

60p.

•off

• Standard:

• Enhanced:

The video is output as it is.

When the black and white contrast of a video is low, the signal is enhanced to reproduce clear video.

HDMI Audio Output

This setting selects whether or not to output audio from

HDMI.

• O.__n:

• Off: When the TV is connected to this unit using an HDMI cable, and this unit is also connected to other devices, such as an amplifier/receiver using an optical digital audio cable.

VIERA Link

Set to use "HDAVI Control" function when connected with an HDMI cable to a device that supports "HDAVl Control".

• O._nn:

• Off: Select when you do not want to use "HDAVl Control".

Component

component

Video Resolution*

This sets the video output resolution video terminal.

when using the

• 480i •480p •720p •lO8Oi

Even if you select "720p" or "1080i", the video output resolution is restricted to

"480p" when images of DVD-Video discs or VHS are output from the

COMPONENT VIDEO OUT terminals.

In this unit, a P4HD (_ 51) video processor is used to provide video of optimal resolution to the connected TV.

RQT9412

To select these options, perform steps O-O

(_ 32)

"Network"

IP Address/DNS

Settings (_ 17)

• Press [OK] to show the following settings.

Connection Test

IP Address Auto Configuration (DHCP)

IP Address

Subnet Mask

Default Gateway

DNS Auto Configuration (DHCP)

Primary DNS

Secondary DNS

Auto Detect Connection Speed

Connection Speed Setting

This is enabled only when "Auto Detect Connection Speed" is turned "Off".

Proxy Server Settings (_ 18)

• Press [OK] to show the following settings.

Reset to factory preset

Proxy Address

Proxy Port Number

Connection Test

Network Service

(_ 27) (VIERA CAST)

• Press [OK] to show the following settings.

Network Lock

You can restrict using VlERA CAST.

• Follow the on-screen instructions.

Enter a 4-digit password with the numbered buttons when the password screen is shown.

It will be the common password for "DVD-Video Ratings",

"BD-Video Ratings" and "Network Lock".

Do not forget your password.

Audio Auto Gain Control

Volume that is different depending on the contents is adjusted automatically to the standard volume while using the VIERA

CAST.

• Depending on contents, this function effect will not work.

• Select "Off" when the audio is warped.

Reduce to Screen Size

The screen is displayed reduced so the displayed screen of the content does not get truncated.

Time Zone

By selecting the time zone, it is possible to set the unit's time to match your location.

• Some VlERA CAST contents require the time zone to be set.

Set the time zone if necessary.

DST

Select "On" when using Daylight Saving time.

MAC Address (_

17)

Displays the "MAC Address" of this unit.

oOn oOn oOff oOff oOn oOff

• 10BASE Half Duplex

• 100BASE Half Duplex

• Yes • N._o.o

(The initial setting is blank.)

(The initial setting is "0".)

• 10BASE Full Duplex

• 100BASE Full Duplex

• On •Off

Changing settings (When "On" is selected)

• Change Password

• On

• On

•Off

•Off

• GMT -12to -I-12

(The initial setting is "-5".)

GMT-5

GMT -6

GMT-7

GMT -8

GMT-9

GMT -10

•On

EST (Eastern Standard Time),

CST (Central Standard Time)

MST (Mountain Standard Time),

PST (Pacific Standard Time)

AKST (Alaska Standard Time),

HST (Hawaii Standard Time)

•Off

RQT9412

RQT9412

Changing the unit's settings

Underlined

items are the factory

presets.

"Others"

Off Timer

Selecthowlongthe unitremainson whenit is not beingused.

Remote Control Code

Quick Start

Speed of startup from power off is increased.

eWhen the setting of "Stand-by power save" is enabled on the TV that supports HDAVl Control 4, it will take longer to startup this unit when the power supply of the TV is on standby mode even if the "Quick Start" is set to "On".

Easy Setting

You can execute basic settings ("On-screen Language", "TV

Aspect", "Quick Start").

Restore Default Settings

This returns all values in the Setup menu and the on-screen menu, except for "Remote Control Code", "On-screen

Language", "IP Address/DNS Settings", "Proxy Server

Settings", "Network Service", "DVD-Video Ratings" and

"BD-Video Ratings" to the default settings.

Firmware Update

(_

16)

ePress [OK] to show the following settings.

Automatic Update Check

When this equipment remains connected to the Internet, it will check for the latest firmware version when it is turned on and you can update it if necessary.

Update Now

You can update the firmware manually.

e2 Hours

eYes eYes

• On

eYes

• N__o.o

N__o_o e6 Hours

N__o_o

• Off eOff

• Set Code 1 eSet Code 2 eSet Code 3

.On:

eOff:

Internal control unit will be powered when it is set to "On", so contents of the following will be different from the time it is set to "Off".

• Idle power consumption will increase.

(about the power consumption =_ 44) eThe cooling fan may turn slowly to prevent overheating of internal parts.

When other Panasonic products respond to this remote control

Change the remote control code on the main unit and the remote control (the two must match) if you place other Panasonic products close together.

0 Press [SETUP].

Press [A, T] to select "Others"

and press [OK].

When the following indicator

appears on the unit's display

and you are unable to operate the unit

_) Press [A, T] to select "Remote

Control

Code" and press [OK].

O Press [A, T] to select the code (1, 2, or 3) and

press [OK].

To change the code on the remote control

While pressing [OK], press and hold the numbered

button ([1], [2] or [3]) for more than 5 seconds.

O Press [OK].

The unit's remote control code

Press and hold [OK] and the indicated number button at the same time for more than 5 seconds.

Language

code list

Abkhazian:

Afar:

Afrikaans:

Albanian:

Am haric:

Arabic:

Armenian:

Assamese:

Aymara:

Azerbaijani:

Bashkir:

6589

6590

6665

Basque:

Bengali; Bangla:

6985

Bhutani:

Bihari:

6678

6890

6672

Breton:

Bulgarian:

Burmese:

Byelorussian:

Cambodian:

6682

6671

7789

6669

7577

6566

6565

6570

8381

6577

6582

7289

6583

Enter the code with the numbered buttons.

Catalan:

Chinese:

Corsican:

Croatian:

Czech:

Danish:

Dutch:

English:

Esperanto:

Estonian:

Faroese:

Fiji:

Finnish:

French:

Frisian:

Galician:

Georgian:

German:

Greek:

Greenlandic:

Guarani:

6765

9072

6779

7282

6783

6865

7876

6978

6979

6984

7079

7074

7073

7082

7089

7176

7565

6869

6976

7576

7178

Gujarati:

Hausa:

Hebrew:

Hindi:

Hungarian:

Icelandic:

Indonesian:

Interlingua:

Irish:

Italian:

Japanese:

Javanese:

Kan nada:

Kashmiri:

Kazakh:

Kirghiz:

Korean:

Kurdish:

7185

7265

7387

7273

7285

7383

7378

7365

7165

7384

7465

7487

7578

7583

7575

7589

7579

7585

Laotian:

Latin:

7679

7665

Latvian, Lettish: 7686

Lingala:

Lithuanian:

Macedonian:

Malagasy:

Malay:

Malayalam:

Maltese:

Maori:

Marathi:

Moldavian:

Mongolian:

Nauru:

7778

7865

Nepali:

Norwegian:

7869

7879

Oriya: 7982

Pashto, Pushto: 8083

Persian:

Polish:

7065

8076

Portuguese:

Punjabi:

Quechua:

8084

8065

8185

7678

7684

7775

7771

7783

7776

7784

7773

7782

7779

Rhaeto-Romance:

Romanian:

Russian:

Samoan:

Sanskrit:

Scots Gaelic:

Serbian:

8277

8279

8285

8377

8365

7168

8382

Serbo-Croatian: 8372

Shona: 8378

Sindhi: 8368

Singhalese:

Slovak:

Slovenian:

Somali:

8373

8375

8376

8379

Spanish:

Sundanese:

Swahili:

Swedish:

Tagalog:

Tajik:

6983

8385

8387

8386

8476

8471

Tamil:

Tatar:

Telugu:

Thai:

Tibetan:

Tigrinya:

Tonga:

Turkish:

Turkmen:

Twi:

Ukrainian:

Urdu:

Uzbek:

Vietnamese:

Volap0k:

Welsh:

Wolof:

Xhosa:

Yiddish:

Yoruba:

Zulu:

8465

8484

8469

8472

6679

8473

8479

8482

8475

8487

8575

8582

8590

8673

8679

6789

8779

8872

7473

8979

9085

About MP3/JPEG files

File format

Playable

media

Extension

Compression rate

Sampling rate

Reference

MP3

CD_R,1, CD_RW,_, DVD_R,_.,5, DVD-R DL *_,,s

USB device

Files must have the extension ".mp3" or ".MP3".

32 kbps to 320 kbps

44.1 kHz/48 kHz

ID3 tags: version 1, 2.2, 2.3, 2.4

ID3 is a tag embedded in MP3 track to provide information about the track.

This unit supports the versions listed above but only titles and the names of artists can be displayed.

• If there is a large amount of still picture data etc.

within a MP3 file, play may not be possible.

File format

Playable media

Extension

Picture resolution

Reference

JPEG

CD_R,_, CD_RW,1, DVD_RAM,2, DVD_R,_.,2,

DVD-R DL *_,.5, BD-RE .3, SD card, USB device

Files must have the extension ".jpg" or ".JPG'.

between 34x 34 and 8192x 8192 pixels

(sub sampling is 4:2:2 or 4:2:0)

JPEG conforming DCF .4 is supported.

Thawing Time: approx. 2 sec. (7 M pixels)

• MOTION JPEG and Progressive JPEG is not supported

• English alphabet and Arabic numerals are displayed correctly.

Other characters may not be displayed correctly.

• The display order on this unit may differ from how the order is displayed on a computer.

• Depending on how you create the media (writing software), files and folders may not play in the order you numbered them.

• This unit is not compatible with packet-write format.

• Depending on the recording conditions, the media may not play.

• Operation may take time to complete when there are many files and!or folders and some files may not display or be playable.

"1 ISO9660 level 1 or 2 (except for extended formats), Joliet

This unit is compatible with multi-session.

This unit is not compatible with packet writing.

*2 Discs must conform to UDF 2.0.

*3 Discs must conform to UDF 2.5.

*4 Design rule for Camera File system: unified standard established by Japan Electronics and Information Technology Industries

Association (JEITA).

*5 Discs must conform to UDF bridge (UDF 1.02!1SO9660).

This unit is not compatible with multi-session.

The default session only is played.

You can play files on this unit by structure of folders

as shown

below.

However depending on the method of writing data

(writing software), play may not be in the order you numbered the folders.

Folder which can be displayed with this unit

: Numbers

XXX: Letters

"1 >_>_>_:from 001 to 999

*2 >_>_>_:from 100 to 999 XXX: up to 5 figures

in DVD-R/DVD-R DL/CD-R/CD-RW

Files inside a folder are displayed in the order they were updated or taken,

Root e.g.,

ip0000001

--

,jpg

P0000002,jpg

--_older A

_.-.-- P0000003,jpg

_-Poooooo4jp0

Jp0

--

_--.-

}--ip0000007,jpg

Lii older B


_-P0000008,jpg

P0000009,jpg

Folder C

P0000010jpg

P0000011 .jpg

P0000012 jpg

in BD-RE/DVD-RAM

• Folder structure is not displayed.

Root

--P0000001

--P0000002

.jpg

jpg

JPEG

M_ .1

_ "_XXXXX *2

---_

I

XXXX _ _ _ _.JPG

*3

DCIM

_ _XXXXX *2

_i XXXX_ _ _ _.JPG

*3 e.g., in SD card/USB device

Displays JPEG files in all folders.

• Folder structure is not displayed.

Root

--

--

P0000001,jpg

P0000002,jpg e.g., li

--_

_ _ XXXXX*2

XXXX __ _ _.JPG .3

Folder A

P0000003

P0000004 jpg jpg

in DVD-R/DVD-R DL/CD-R/CD-RW/USB device

Prefix the file names with 3-digit numbers in the order you want to play them,

Root e.g.,

i001

XXXX

1002XXXX,mp3

rap3

Folder A

003XXXX,mp3

004XXXX,mp3

XX,mp3

Folder B

006XXXX.rnp3

007XXXX rnp3

008XXXX

009XXXX rnp3 rnp3 _r_-_.

--_ Folder C

I---010XXXX,mp3

rap3

RQT9412

/

/

Messages

The following messages or service numbers appear on the television or unit's display when something unusual is detected during startup and use.

On the television

Page

Cannot play.

eYou inserted an incompatible disc (Discs recorded in PAL video, etc.).

6, 7

7, 37 Cannot display on this unit.

No disc is inserted.

Q This operation is not

available.

eYou tried to play a non-compatible image.

eConfirm "SD" on the unit's display is not blinking and re-insert the card.

eThe disc may be upside down.

....

eSome operations are unsupported by the unit. For example;

-Ii!1!_: During playback, reverse slow-motion or reverse frame-by-frame is not possible.

prohibited by this disc,

Please check the connection of the LAN cable.

eDepending on the disc, you may not be able to perform search or skip when film previews and warning screens are being played back.

eWhen a hub is used but its Link lamp does not light up, check the cable connection, LAN terminal connection, cable itself (a cross over cable may be used by mistake), etc.

20

20

16

17

Cannot obtain IP address

Please check the connection or router settings.

eThe "IP Address" in "IP Address/DNS Settings" is ....

. Set the "IP

Address", "Subnet Mask", and "Default Gateway". (Select the automatic address acquisition if necessary.) elf you use a hub, then check the connection between the hub and the router.

-Use the UPLINK port of the hub to connect to a router.

-Check whether or not the hub's Link tamp lights up. If it does not light up, then check the cable connection, LAN terminal connection, cable itself (a cross over cable may be used by mistake), etc.

elf the above conditions are OK, then the router may not operate in DHCP mode.

Check the router settings and operation.

You may reset the router to restore it to normal.

16

16

This IP address is already in use.

Please check the IP address setting.

Unable to perform

Connection Test.

Please try again.

IP address not set correctly.

Connection Test was

eThis unit's IP address is used by another device. Check the IP addresses of this unit, personal computers, and routers, etc. If necessary, reconfigure them to avoid IP addresses from being duplicated.

• Turn the unit off. Remove the power cord and reconnect it and try again. If the same symptom persists, then consult your dealer.

m

16 connection or router settings.

Network connection refused.

Please confirm Setup

"BD-Live

Internet Access."

Unable to check for latest firmware version.

Please try again later.

elf you use a hub, then check the connection between the hub and the router.

-Use the UPLINK port of the hub to connect to a router.

-If the hub's Link tamp does not light up, then check the cable connection, LAN terminal connection, cable itself (a cross over cable may have been used by mistake), etc.

eCheck the "IP Address", "Subnet Mask", and "Default Gateway" in the "IP

Address/DNS Settings".

elf the MAC address information is required, then press [SETUP] to display the

"Network" menu.

eWhen you set "BD-Live Internet Access" to "Allow (Limited)" and play BD-Live contents which do not have a content owner certificate, the Internet access of the content is not allowed. If you allow the content to connect to Internet, set "BD-Live

Internet Access" to "Allow (ALL)".

eThe firmware download server is currently unavailable.

Please try again later.

17

17, 35

32

RQT9412

Onthe unit'sdisplay

F99

HDMI ONLY

NET

No PLAY

No READ

REM OVE

UNFORMAT

UNSUPPORT

Ull

U72

U73

START

UPDFI/FI

FINISH eThe unit fails to operate properly. Press [POWER V/I] on the main unit to switch the unit to standby for 3 seconds. Now press [POWER V/I] on the main unit again to turn the unit on.

eSome BD-Video discs can only be output with HDMI.

eDisplays while VIERA CAST is starting up.

eThere is a viewing restriction on a BD-Video or DVD-Video.

eThe media is dirty or badly scratched. The unit cannot play.

eThe unit is carrying out internal process. This is not a malfunction. You cannot operate the unit while "PLEASE WAIT" is displayed.

eWhen connected to TV(VIERA) with "HDAVI Control 4", and power supply is turned off by the "Auto power stand-by" function on the TV side.

eThe USB device is drawing too much power. Remove the USB device.

eThe remote control and main unit are using different codes. Change the code on the remote control.

Press and hold [OK] and the indicated number button at the same time for more than 5 seconds.

eYou inserted an unformatted DVD-RAM, DVD-RW, +RW, an unused +R, +R DL or DVD-RW (DVD-Video format).

eYou have inserted a media the unit cannot play.

eYou tried to operate with a non-compatible USB device.

eThe video head is dirty. Perform the cleaning.

• The unit is hot.

The unit switches to standby for safety reasons. Wait for about 30 minutes until the message disappears.

Select a position with good ventilation when installing the unit. Do not block the cooling fan on the rear of the unit.

eThe HDMI connection acts unusually.

-The connected equipment is not HDMI compatible.

-Please use HDMI cables that have the HDMI logo (as shown on the cover).

-The HDMI cable is damaged.

eThere is something unusual. (The service number displayed after H and F depends on the unit's condition.) eCheck the unit using the troubleshooting guide. If the service number does not disappear, do the following.

1 Disconnect the plug from the AC outlet, wait a few seconds, then reconnect it.

2 Press [POWER V/I] to turn the power on. (The unit may be fixed.)

If the service number does not disappear despite doing the above, request service from the dealer. Inform the dealer of the service number when requesting service.

eThe system is being restarted during the firmware update. Please do not turn off power.

eThe firmware is being updated.

eThe firmware update is complete.

Page

m

32

19

36

6, 7

7

16

16

16

RQT9412

Troubleshooting guide

40

Before requesting service, make the following checks If you are in doubt about some of the check points, or if the solutions indicated in the chart do not solve the problem, refer to "Customer Services Directory (United States and Puerto Rico)" on page 46 if you reside in the U S A and Puerto

Rico, or refer to "Product information" on page 45 if you reside in Canada

The following do not indicate

a problem

with this unit:

Regular disc rotating sounds

• Image disturbance during search

To reset this unit

To restore the unit if it freezes due to one of the safety devices being activated

To return all settings to the factory preset

Press and hold [POWER _/I] on the main unit for 3 seconds (The settings remain unchanged )

Page

36

To return to the factory preset

(No setting)

Select "Yes" in "Restore Default Settings" in the Setup menu

This returns all values in the Setup menu and the on-screen menu, except for

"Remote Control Code", "On-screen Language", "IP Address/DNS Settings",

"Proxy Server Settings", "DVD-Video Ratings", "BD-Vldeo Ratings" and "Network

Service" to the default settings

Reset the unit as follows:

1 Press [POWER (.b/I] on the unit to turn off the unit

2 Press and hold [| |], [POWER _/I] and [__ OPEN/CLOSE] on the unit at the same time for more than 5 seconds until "HELLO" is displayed on the unit

3 The power will turn on and then turn off

Power

Power of this unit is turned

off when the input for the TV

is changed,

If connected with an "HDAVI Control 4" compatible TV (VIERA) with the "Auto power stand-by" setting activated on the TV, when switching the TV input, the umt will be automahcally turned to standby For details please read the operating

_nstruct=ons of the TV m

Operation

Cannot operate the television or amplifier/ receiver.

The remote control doesn't work properly.

The unit is on but cannot be operated.

Change the manufacturer code of the remote control In some cases, even if you change the code, the remote control may not be operated depending on the type of the telewslons or amphfiers/recelvers

It may be necessary to set the manufacturer code or the remote control code again after changing the batteries for remote control

*The remote control and main unit are using different codes Change the code on the remote control

*The batteries are depleted Replace them with new ones

Confirm the correct drive is selected

*One of the unit's safety devices may have been achvated

Reset the unit as follows

1 Press [POWER _/I] on the main unit to switch the unit to standby

If the unit doesn't switch to standby, press and hold [POWER _/I] on the main unit for about 3 seconds The unit is forcibly switched to standby

Alternatively, disconnect the AC power supply cord, wait one minute, then reconnect it

2 Press [POWER _/I] on the main unit to switch it on If the unit still cannot be operated, consult the dealer

Condensation has formed Walt 1 to 2 hours for it to evaporate

Insert the media correctly with the label facing up

• The media is dirty

• You tried to play a blank media or unplayable media on this unit

Play fails to start even when

[ll_] (PLAY) is pressed,

Play starts but then stops immediately,

Cannot eject disc.

Start up is slow.

It takes time before play

starts,

• The unit may have a problem While the unit is off, press and hold [| |] and

[__ OPEN/CLOSE] on the main umt at the same time for about 5 seconds to force the tray to eject Remove the disc and consult the dealer

• Make sure that "Quick Start" is set to "On" If connected with an "HDAVl Control 4" compahble TV (VlERA) with the "Stand-by power save" sethng actwated on the

TV, even with "Quick Start" set to "On", when the TV is in standby mode, the umt may take some hme to startup

• Start up takes hme in the following situahons

-Immediately after a power failure or the AC power supply cord is connected

-When the unit is connected with an HDMI cable

Played back image is distorted or does not playback correctly. (IAq'aTral)

• High definition video (transfer rate of 18 Mbps or faster) cannot be played back correctly ff it was recorded on a DVD compatible to double speed or slower

Cannot set "On" in "24p

Output".

• Only when the unit is connected to the HDMI terminal of a TV supporting 24p you can select "On" In some cases where the unit is connected to a TV wa an amphfier/recewer through the HDMI terminals, you may not be able to select "On"

In this case, connect the unit to a TV through the HDMI terminal and connect it to the amphfier/recewer through any terminal other than HDMI

15

5, 15, 36

36

5

20

m

19

3

6, 7

36

34

ROT9412

Displays

The tape counter is not

changing,

*The secondsdisplay will display as shown on the right for unrecordedparts of the tape. It will also display like this when the dirty or damagedtape is usedor when this unit is malfunctioning.In such cases, contact yourdealer.

Page

m

TV screen and video

The images from this unit do not appear on the television.

Picture is distorted.

Jittering occurs.

The screen changes automatically.

Video is not output in high

definition.

The 4:3 aspect ratio picture

expands left and right.

Screen size is wrong.

There is a lot of after-image when playing video.

When playing DVD-Video using progressive output, one part of the picture momentarily appears to be doubled up.

Still pictures (JPEG) do not play back normally.

Sound

No sound.

Low volume.

Distorted sound.

Cannot hear the desired audio type.

Cannot switch audio.

Stereo audio is sounding muffled while playing back the VHS

*Make sure that the television is connected to either the VIDEO OUT terminal,

COMPONENT VIDEO OUT terminals or HDMI AV OUT terminal on this unit

*Make sure that the television's input setting (e g, VIDEO 1) is correct

*An incorrect resolution is selected in "Component Video Resolution", when the television is connected to COMPONENT VIDEO OUT terminals While stopped, press and hold [11] and [1_] (PLAY) on the main unit at the same time for more than 5 seconds to cancel this setting Set the item again

*If "24p Output" is set to "On" when the unit is connected to a TV through any terminal other than HDMI, imagesmay not display properly. In this case, set "24p Output" to "Off".

*When "24p Output" is set to "On", HDMI authentication takes place where 24p images switch to other images, and a black screen is displayed

*When "24p Output" is set to "On", jittering may occur while playing DVD-Vldeo other than 24p _mages In this case, turn "24p Output" to "Off'

*An incorrect resolution is selected in "HDMI Resolution", when the television is connected to HDMI AV OUT terminals While stopped, press and hold [11]and

[1_] (PLAY) on the main unit at the same hme for more than 5 seconds to cancel this setting Set the item again However, Dolby Digital Plus, Dolby TrueHD, and

DTS-HD audio are not output in bltstream To output the bltstream, select "Restore

Default Settings" to restore the factory presets and make proper settings

*Picture may not be seen when more than 4 devices are connected with HDMI cables Reduce the number of connected devices

*When the "Screen Saver Function" in the Setup menu is set to "On", the d_splaymay return to the screen saver mode automatically if there is no operation for 10 minutes or more

*When CD or MP3 is played, the screen switches to Screen Saver mode if there is no operation for 2 minutes after starting playback (Playback continues )

*High definition video cannot be output through the VIDEO OUT terminals

*Confirm that the "HDMI Video Mode", "HDMI Resolution", and "Component Video

Resoluhon" in the Setup menu are set properly

*Use the television to change the aspect Refer to your television's operating instructions

*When using a component video cable, set "Progresswe" to "Video" If the situation is not restored after that, set "TV Aspect" to "4 3 Pan & Scan"

*When using an HDMI cable, change "TV Aspect" type to "16 9"

*Turn "3D NR" or "Integrated NR" off if it is on

*When you use the HDMI AV OUT terminal for wdeo output, follow the steps below for setting

1 Connect this unit to the TV with any cable except the HDMI cable

2 When you connect with the Component Video cable, set "HDMI Video Mode" to

"Off" and "Component Wdeo Resolution" to "480¢' in the Setup menu

*The images that were edited on the PC, such as Progressive JPEG, etc, may not play back

11

34

34

34

34

36

33 m

34

m

31, 34

34

31

34

37

*Check the connections and the "Digital Audio Output" settings Check the input mode on the amplifier/receiver if you have connected one

*Press [AUDIO] to select the audio

*The sound effects (Re-master, V. Surround, etc.) will not work when the bltstream signal is output from the HDMI AV OUT terminal or the DIGITAL AUDIO OUT term=nal.

*Audio may not be heard when more than 4 devices are connected with HDMI cables Reduce the number of connected devices

*To output audio from a device connected with an HDMI cable, set "HDMI Audio

Output" to "On" in the Setup menu

*There are discs for which audio cannot be changed because of how the disc was created

*When connecting an amphfier/recewer using an optical digital audio cable or an

HDMI cable, you cannot switch the audio if "Dolby D/Dolby D +/Dolby TrueHD" or

"DTS/DTS-HD" is set to "Bltstream" Set "Dolby D/Dolby D +/Dolby TrueHD" or

"DTS/DTS-HD" to "PCM" or connect using AUDIO OUT terminal

*Tracking is off

*The tape being played back is damaged

11-13, 33

21, 26

m

34

26

41

"

ROT9412

42

ROT9412

Troubleshooting guide

Card

The capacity of the SD card decreased.

Music on an SD card cannot be played.

The contents of the card cannot be read.

USB

The contents of the USB device cannot be read.

*When a BD-Vldeo that supports BD-Lwe is used, and an SD card is in the slot, data may be written to the SD card

*Data that can be played from an SD card are AVCHD, MPEG2 and JPEG data

*The card is not compatible or the contents on the card may be damaged

*Turn off and then turn on the unit again

Remove the USB device from the USB port and then insert again If this does not solve the problem, turn off and turn on the un=t again

*Check that the USB device is inserted correctly

*The format of the USB device or its contents are not compatible with the unit (The contents on the USB device may be damaged )

*The USB device contains a folder structure and/or file extensions that are not compatible w_th this unit

*Turn off and then turn on the unit again

*USB devices connected using a USB extension cable or a USB hub may not be recogn=zed by th=sunit

*Some USB devices cannot be used with this unit

elf inserted during playback the USB device may not be recognized by this unit

*Turn the power of this unit off once, and turn it back on

USB device cannot be operated.

VHS

On-screen display

indicators for video

cassette playback do not appear.

Cannot play.

Select "Automatic" in "Status Messages" in the Setup menu

-Press [STATUS] to show the on-screen display indicators for wdeo cassette playback

The playback screen

flickers.

There is noise when playing a video tape.

*Tapes recorded under a TV system other than NTSC (PAL, SECAM, etc ) cannot be played

*Beginning and end of SIVlIS or[Y_ cassettes may not playback

The video head is dirty

*The tape is old or damaged

*Adjust the tracking

*The video head is dirty

*The tape is old or damaged

*There may be some noise on the screen for cassettes that were recorded in other than normal mode

*You may see a noise around the image when the TV is connected using a HDMI cable Adjust the screen size on the TV

If you cannot adjust the screen size on the TV, the noise will disappear by setting the "HDMI Resolution" in the Setup menu to "480p" However, please restore the setting to the original when playing back in high definition images other than VHS

Network

I can't connect to the network.

VIERA CAST does not operate or connect.

Have you subscribed to high speed mternet connection?

Check that the LAN cable is properly connected

*Have

you plugged a telephone cord into the LAN terminal on this unit? Connect with a straight LAN cable

*Confirm the power for the modem or broadband router is turned on

*Confirm the network sethngs Follow any instructions you may have received from your ISP (Internet Service Provider) and make changes to the settings

*Are the broadband router settings correct? Read the operating instructions for the broadband router

* Is the broadband router and/or modem connected correctly? Check the operating

instructions for each dewce and connect accordingly

*Check the "Network" and "BD-LIve Internet Access" settings

Is the network connection correct?

• Image of the video contents may be incomplete or may not display depending

on

how busy the environment or the connected line is

Page

23

7

7

7

7

33

m

3

26

3

34

16

16

32,35

16

m

19

7

37

Other difficulties

Audio and video momentarily pause, with

Picture-in-picture is not played with BD-Video.

BD-Live is not played with

BD-Video.

playback

eThls occurs between playhst chapters or scenes (Ip_rJ"_Ptr'ill).

eWhen playing a title recorded on both layers, the unit automatically switches between layers and plays the title in the same way as a normal program However, video and audio may momentanly cut out when the un=t=ssw_tch=nglayers.

oConflrm whether the disc supports picture-in-picture

Alternative

soundtrack

and subtitles cannot be selected.

No subtitles.

Confirm whether the disc supports BD-LIve

eThe inserted SD card does not have sufficient available capacity

eThe SD card is write-protected

eSub contents copied to an SD card are provided by the disc producer as a part of the BD-Vldeo content Even =fyou record =mages and audio onto an SD card, it cannot be played as a BD-Live

oThe languages are not recorded on the media

oYou may not be able to use the on-screen menu to change the soundtrack and subtitles on some discs Use the disc's menus to make changes

Subtitles are not recorded on the media

eTurn the subtitles on Set "Subtitle" on the on-screen menu to "On"

eWhen progressive output is on, closed captions cannot be displayed

Turn off the subtitles or turn off the closed caption setting on the TV

The subtitles overlap closed

captions recorded

on discs.

The resume play function

does not work.

oMemonzed positions are canceled when

-pressing [i] several times

-opening the disc tray

eThe resume play function may not work depending on the media

er;r_'_l: on BD-Vldeo discs including BD-J, the resume play function does not work

Page

m

23

23

7

23

m m m

2O m

3O

3O

RQT9412

Specifications

Signal system:

NTSC

Operating temperature range:

+5 °C to +35 °C (+41 °F to +95 °F)

Operating humidity range:

10 % to 80 % RH (no condensation)

Playable disc:

BD-Video

BD-ROM:

BD-RE:

Version 2

Version 3 (Single Layer, Dual Layer),

JPEG*G

Version 2 (Single Layer, Dual Layer) BD-R:

DVD-RAM: DVD Video Recording format,

AVCHD format .7, JPEG .4

DVD-R/DVD-R DL:

DVD-Video format .1, DVD Video Recording format .t, AVCHD format .1,

7,

JPEG*4, MP3

DVD-RW: DVD-Video format *_, DVD Video Recording format .t, AVCH D format *_,7

+R/+RW/+R DL:

Video *_, AVCHD format *_,7

DVD-VIDEO: DVD-Video format

CD-Audio: CD-DA

CD-R/CD-RW: CD-DA, JPEG .5, MP3

SD card:

SD Memory Card .2 formatted FAT12, FAT16, FAT32*3:

JPEG .4, AVCHD format .7, MPEG-2

USB device:

USB Standard:USB 2.0 High Speed

Format:

MP3, JPEG .4

FAT12, FAT16, FAT32

VHS:

Playable format:

VHS Video Cassette System Standard NTSC signal recorded

Playable type:

VHS

S-VHS(SQPB)

Video output:

Output level:

Output connector:

Audio output:

Output level:

Output connector:

Number of connectors :

1.0 Vp-p (75 D)

Pin jack (1 system)

Component

video

output:

Y output level:

PBoutput level:

PR output level:

Output connector:

(1080i/720p/480p/480i)

1.0 Vp-p (75 D)

0.7 Vp-p (75 £Q)

0.7 Vp-p (75 £Q)

Pin jack (Y: green, PB: blue, PR:red)

(1 system)

2 Vrms (1 kHz, 0 dB)

2 channel:l

Pin jack system

Audio

performance:

Frequency response: eDVD (linear audio): eCD-Audio:

S/N ratio:

Dynamic range:

Total harmonic distortion:

4 Hz to 22 kHz (48 kHz sampling)

4 Hz to 44 kHz (96 kHz sampling)

4 Hz to 20 kHz

115 dB

100 dB

0.003 %

Digital audio output:

Optical digital output: Optical terminal

HDMI AV output

Output format:

480p (525p)/1080i (1125i)/720p (750p)/1080p

(1125p)

Output Connector:

HDMI

TM

(Deep Color, x.v.Color

Type A (19 pin)

High Bit rate Audio)

TM, eThis unit supports "HDAVl Control 4" function.

SD card slot:

Connector: 1 system

USB slot:

Connector:

Ethernet:

1 system

10BASE-T/100BASE-TX:

VHS:

1 system

Playable Signal format:

VHS Video Cassette System Standard NTSC

Heads: signal recorded

4 Helical Scan Heads for Video

2 Helical Scan Heads for FM audio

1 Fixed Heads for Normal audio

Tape Speed: SP:33.35 mm/s

EP:11.12 mm/s

FF/REW Time:FF/REW: Approx. 60 s(with T-120 cassette)

Optical pick-up:

Wave length:

System with 2 lenses

790 nm (CDs)/650 nm (DVDs)/405 nm (BDs)

LASER Specification

Class [ LASER Product:

Wave length:

790 nm (CDs)/650 nm (DVDs)/405 nm (BDs)

Laser power:

No hazardous radiation is emitted with the safety protection

Power supply: AC 120 V, 60 Hz

Power consumption: Approx. 28 W

Power consumption in standby mode: less than 0.5 W

Power consumption in auick start standby mode: 6 W

Dimensions (Wx D× H)

Excluding the projecting parts:

430 mm×335 mm×94 mm

(Approx. 16 15/16"x 13 3/16"x 3 11/16")

Including the projecting parts:

430 mm×345 mm×94 mm

(Approx. 16 15/16"x 13 9/16"x 3 11/16")

Mass (Weight): Approx. 5.5 kg (12.1 lbs)

Specifications are subject to change without notice.

"1 Finalizing is necessary.

*2 Includes SDHC card

Includes miniSD Cards (need a miniSD Adaptor)

Includes microSD Cards (need a microSD Adaptor)

*3 Does not support long file name.

*4 The total combined maximum number of recognizable picture contents and folders: 3000 picture contents and 300 folders.

*5 The total combined maximum number of recognizable picture contents and folders: 999 picture contents and 99 folders.

*6 The total combined maximum number of recognizable picture contents and folders: 9999 picture contents and 300 folders.

*7 AVCHD format V1.0

• Useable capacity will be less. (SD Card)

Product Service

2,

3.

4.

(a) The AC power supply cord or AC adaptor has been damaged; or

(b) Objects or liquids have gotten into the unit; or

(c) The unit has been exposed to rain; or

(d) The unit does not operate normally or exhibits a marked change in performance; or

(e) The unit has been dropped or the cabinet damaged.

Servicing--Do not attempt to service the unit beyond that described in these operating instructions.

Refer all other servicing to authorized servicing personnel.

Replacement parts--When parts need replacing ensure the servicer uses parts specified by the manufacturer or parts that have the same characteristics as the original parts. Unauthorized substitutes may result in fire, electric shock, or other hazards.

Safety check--After repairs or service, ask the servicer to perform safety checks to confirm that the unit is in proper working condition.

For product information or assistance with product operation:

In the U.S.A. and Puerto Rico, refer to "Customer Services Directory (United States and Puerto Rico)" on page 46.

In Canada, contact the Panasonic Canada Inc. Customer Care Centre at 1-800-561-5505, or visit the website (www.panasonic.ca), or an authorized Servicentre closest to you.

The model number and serial number of this product can be found on either the back or the bottom of the unit.

Please note them in the space provided below and keep for future reference.

MODEL NUMBER

SERIAL NUMBER

DMP-BD70V

User memo:

DATE OF PURCHASE

DEALER NAME

DEALER ADDRESS

TELEPHONE

NUMBER

RQT9412

RQT9412

Limited Warranty (Only for U.S.A. and Puerto Rico)

Division of Panasonic Corporation of North America

One Panasonic Way, Secaucus, New Jersey 07094

Panasonic Blu-ray Disc Player Limited Warranty

Limited Warranty

Coverage (For U.S.A. and Puerto Rico Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Consumer Electronics

Company (referred to as "the warrantor") will, for the length of the period indicated on the chart below, which starts with the date of original purchase ("Limited Warranty period"), at its option either (a) repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The decision to repair or replace will be made by the warrantor.

tor artNa o t art

Disc Player One (1) Year I One (1) Year

During the "Labor" Limited Warranty period there will be no charge for labor. During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product during the warranty period. If non-rechargeable batteries are included, they are not warranted.

This

Limited Warranty only applies to products purchased and serviced in the United States or Puerto Rico. This Limited Warranty is extended only to the original purchaser and only covers product purchased as new. A purchase receipt or other proof of original purchase date is required for Limited Warranty service.

t

Carry-In or Mail-In Service

For Carry-in or Mail-in Service in the United States and Puerto Rico call 1-800-211-PANA (7262) or visit

Panasonic Web Site: http://www.panasonic.com

When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the original carton. Include a letter detailing the complaint and provide a day time phone and/or email address where you can be reached.

IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY

PERIOD THE PURCHASER WILL BE REQUIRED TO FURNISH A

SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF

PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.

CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY

UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

Limited Warranty

Limits And Exclusions

This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT

COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, or commercial use (such as hotel, office, restaurant, or other business), rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of

God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED

UNDER "LIMITED

WARRANTY COVERAGE".

THE WARRANTOR

IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR

ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As

examples, this excludes damages for lost time, cost of having someone remove or re-install an installed unit if applicable, travel to and from the servicer, loss of or damage to media or images, data or other recorded content. The items listed are not exclusive, but are for illustration only.)

ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE

WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE

PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied Limited

Warranty lasts, so the exclusions may not apply to you.

This Limited Warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the Limited Warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor's Consumer

Affairs Department at the addresses listed for the warrantor.

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS

LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

,

• •

_

,

[i[/m/Rf__!;_j

Obtain Product Information and Operating Assistance; purchase Parts, Accessories, or obtain Literature by visiting our Web Site at:

htt#://www.#anasonic.com/hel#

or, _:ontact us v_a the web at:

htto://www.oanasonic.corn/contactinfo

Yotl may also contact us directly at:

1-800-211-PANA (7262),

Monday-Friday 9 am-9 pro; Saturday-Sunday 10 am-7 pro, EST.

For hearing

or speech

impaired

TTY users, TTY: 1-877-833-8855

Purchase Parts, Accessories and Instruction Books online for all Panasonic Products by visiting our Web Site at:

httm//www.ostc.oanasonic.corn

or, send your request'by E-mail to:

noc#[email protected]

You may also contact us directly at:

1-800-332-5368 (Phone) 1-800-237-9080 (Fax Only) (Monday - Friday 9 am to 9 pro, EST.)

Panasonic Service and Technology Company

20421 84th Avenue South, Kent, WA 98032

(We Accept Visa, MasterCard, Discover Card, American Express,and Personal Checks)

For hearing

or speech

impaired

TTY users, TTY : 1-866-605-1277

Centralized Factory Service Center

MAI

L TO:

Panasonic Service and Technology Company

410B Airport Road

Elgin, IL 60123-9333

Attention: BD/DVD Repair

Please carefully pack and ship, prepaid and insured, to the Elgin Centralized Factory Service Center.

Limited Warranty (Only for CANADA)

PANASONIC PRODUCTmLIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect for a period as stated below from the date of original purchase.

Technics Audio Product

Panasonic Portable/Clock Radio (without Tape, CD, MD)

Panasonic Audio/SD Audio Product

Panasonic BD/DVD Product

Panasonic Combination DVD Player/VCR

Panasonic Combination DVD Recorder/VCR

Accessories including rechargeable batteries

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

One (1) year, parts and labour

Ninety (90) days

LIMITATIONS AND EXCLUSIONS

This warranty does not apply to products purchased outside Canada or to any product which has been improperly installed, subjected to usage for which the product was not designed, misused or abused, damaged during shipping, or which has been altered or repaired in any way that affects the reliability or detracts from the performance, nor does it cover any product which is used commercially.

Dry cell batteries are also excluded from coverage under this warranty.

This warranty is extended to the original end user purchaser only. A purchase receipt or other proof of date of original purchase is required before warranty service is performed.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES.

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

WARRANTY SERVICE

FOR PRODUCT OPERATION ASSISTANCE,

please contact:

Our Customer Care Centre:

Telephone #:

1-800 #:

Fax #:

Email link:

(905) 624-5505

1-800-561-5505

(905) 238-2360

"Customer support" on www.panasonic.ca

FOR PRODUCT

REPAIRS, please locate your nearest Authorized Servicentre at www.panasonic.ca

:

Link : "Servicentres

TM

Iocator" under "Customer support"

IF YOU SHIP THE PRODUCT TO A SERVICENTRE

Carefully pack and send prepaid, adequately insured and preferably in the original carton.

Include details of the defect claimed, and proof of date of original purchase.

RQT9412

RQT9412

Licenses

Java and all Java-based trademarks and Iogos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #'s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535; 7,392,195; 7,272,567;

7,333,929; 7,212,872 & other U.S. and worldwide patents issued & pending.

DTS is a registered trademark and the DTS Iogos, Symbol, DTS-HD and DTS-HD Master Audio I Essential are trademarks of DTS, Inc.

© 1996-2008 DTS, Inc. All Rights Reserved.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision.

Reverse engineering or disassembly is prohibited.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

This product is licensed under the AVC patent portfolio license and VC-1 patent portfolio license for the personal and non-commercial use of a consumer to (i) encode video in compliance with the AVC Standard and VC-1 Standard CAVC/VC-1 Video") and/or (ii) decode AVC/VC-1 Video that was encoded by a consumer engaged in a personal and non-commercial activity and/or was obtained from a video provider licensed to provide AVC/VC-1 Video. No license is granted or shall be implied for any other use. Additional information may be obtained from MPEG LA,

LLC. See http://www.mpeqla.com.

HDAVI Control

TM is a trademark of Panasonic Corporation.

"x.v.Color

TM" is a trademark.

VIERA Link

TM is a trademark of Panasonic Corporation.

VIERA CAST

TM is a trademark of Panasonic Corporation.

EZ Sync

TM is a trademark of Panasonic Corporation.

"AVCHD" and the "AVCHD" logo are trademarks of Panasonic Corporation and Sony Corporation.

SDHC Logo is a trademark.

Portions of this product are protected under copyright law and are provided under license by ARIS/SOLANA/4C.

"Blu-ray Disc" is trademark.

"BD-LIVE" logo is trademark of Blu-ray Disc Association.

"BONUSVIEW" is trademark of Blu-ray Disc Association.

YouTube and Picasa are trademarks of Google, Inc.

//f ....

Referencia rapida en espa ol (Spanish Quick Reference)

HDMI AV OUT

Cable HDMI

Parte posterior de la unidad

HDMI IN

Televisor

_,.___

_

AUDIO IN

Cable de audio/

video (incluido)

R L VIDEOIN

Parte posterior de la unidad

Esta conexi6n no permite la salida de video de alta definici6n.

Utilice la conexi6n O o • para obtener video de alta definici6n.

Parte posterior de la unidad

HDMI AV OUT

_-_ CableHDMI

HDMI IN

_--_

Altavoces multicanal HDMI OUT

CableHDMI

HDMI IN

A_m_plificador/Rece plJo_'r 1___

L--_

A una toma de corriente

dom_stica

_-" i _

(CA 120V 60 Hz)

Cable ae a imentaci6n ae CA (inc uiao}

Conectelocuando haya realizadoel resto de conexiones.

Ahorro de energia

Esta unidad consume una peque_a cantidad de energia aunque este

ajustada en el modo de espera (Accionamiento rapido : Desactivado,

aprox. 0,5 W). Para ahorrar energia cuando no vaya a utilizar la

unidad durante mucho tiempo, desenchQfela de la toma de corriente.

Preparaci6n

Encienda el televisor y selecci0ne la entrada de video adecuada en el televisor.

li)

ulse[(.D POWER] para encender la unidad.

Despues de conectar su nuevo reprodutor y pulsar el bot6n de

encendido, aparecera la pantalla de la configuraci6n basica.

!_ Inserte el medio,

Funci6n de reanudaci6n de la reproducci6n

(excepto

: i11_1)

Pulse [1_] (PLAY) para reiniciar la reproducci6n desde esta posici6n.

• La posici6n se borra si se abre la bandeja o se pulsa [I] varias veces para visualizar "STOP" en el visor de la unidad.

r_r_'_: En los discos BD-Video incluidos los BD-J, la funci6n de reanudaci6n de la reproducci6n no funciona.

• rd_ _ I'_FJ-=r_l: La posici6n se borra si apaga la unidad.

Bt_squeda

Durante la reproducci6n, pulse [<<] o [IH_].

• 1"_ It_ I'_ I'_: El audio se oye durante la bQsqueda en avance de primer nivel.

• 1'_: El sonid no se oye durante todos los niveles de bQsqueda.

• r4t_l I'_: La velocidad esta fija en un paso.

C_mara lenta

Durante la pausa, pulse [<<] o [IH_].

l'_r_'_ It_'_P_I_I:S61odirecci6n en avance [IH_].

li_'_'_ll:Si continua durante aprox. 5 minutos, la reproducci6n en camara lenta se para automaticamente.

Avance r&pido / Rebobinado

Cuando la unidad este parada, pulse [<<] o [IH_].

• La funci6n de direcci6n en avance/retroceso rapido se cancela automaticamente al cabo de 10 minutos.

Localizaci6n progresiva / Rebobinado

Durante la reproducci6n, pulse [<4] o [IH_] (o pulse y mantenga pulsado).

• Cada vez que se pulsa el bot6n, la velocidad cambia.

• Pulse [1_] (PLAY) para devolver la reproducci6n a su velocidad normal.

• Mantenga pulsado [<<] o [IH_] para empezar la bQsquedarapidade la imagen y suelte el boton para reiniciarla reproducci6na su velocidad normal.

• Pulse [! 1] otra vez o [1_] (PLAY) para reiniciar la reproducci6n.

Salto (excepto : i113"_)

• Salta hasta el titulo, capitulo o pista que desee reproducir.

• Cada pulsaci6n aumenta el nQmero de saltos.

Sistema de B_squeda de Indice VHS (VlSS)

Cuandola unidadeste paradao durantela reproducci6nnormal,pulse[_<] o [!>_1].

• Cada vez que se pulsa el bot6n aumenta el nQmero de saltos.

• Pulse [11] para cancelar la bQsqueda.

• Se pueden buscar hasta 20 seSales de indice en ambas direcciones.

=Pulse [1_] (PLAY) para recuperar la velocidad de reproducci6n normal.

• Para algunos discos, la velocidad podria no cambiar.

RQT9412

Glossary

AVCHD

AVCHD is a new format (standard) for high definition video cameras that can be used to record and play high-resolution HD images.

BD-J

Some BD-Video discs contain Java applications, and these applications are called BD-J. You can enjoy various interactive features in addition to playing normal video.

BD-Live

This is a BD-Video (BD-ROM Profile 2) that supports the new functions such as Internet connection, etc. in addition to the

BONUSVIEW function.

Bitstream

This is the digital form of multi-channel audio data (e.g., 5.1 channel) before it is decoded into its various channels.

BONUSVIEW (Final Standard Profile)

This is a BD-Video (BD-ROM Profile 1 version 1.1) that supports the new functions such as Picture-in-picture, Secondary Audio, etc.

Deep Color

Deep Color is a name for a device that can reproduce greater color gradation (4096 steps) when connected to a TV that supports the

Deep Color with HDMI cable. You can enjoy exceptionally rich, natural-looking colors, with smooth, detailed gradation and minimal color banding. [A lower color gradation (256 steps), without Deep

Color, will be reproduced if connected to a TV which does not support

Deep Color. The unit will automatically set appropriate output to suit the connected TV.]

DNS Server

A server which acts like a telephone directory and translates Internet domain names into IP addresses.

Dolby Digital

This is a method of coding digital signals developed by Dolby

Laboratories.

Apart from stereo (2-channel) audio, these signals can also be multi-channel audio.

Dolby Digital Plus

Multi-channel audio and higher audio quality is made possible using

Dolby Digital Plus. BD-Video supports up to 7.1 channel output.

Dolby TrueHD

Dolby TrueHD is a very high quality audio format that reproduces the studio master audio. BD-Video supports up to 7.1 channel output.

Down-mixing

This is the process of remixing the multi-channel audio found on some discs into fewer channels.

DTS (Digital Theater Systems)

This surround system is used in many movie theaters.

There is good separation between the channels, so realistic sound effects are possible.

DTS-HD

DTS-HD is a high-quality, sophisticated audio format used in movie theaters. Previous DTS Digital Surround-compatible equipment can play DTS-HD as DTS Digital Surround audio. BD-Video supports up to 7.1 channel output.

DTS-HD High Resolution Audio

This is a signal format achieved by improving the previous DTS,

DTS-ES and DTS96/24 formats.

It is compatible with sampling frequency 96 kHz/48 kHz. BD-Video supports up to 7.1 channel output.

DTS-HD Master Audio

This is a Iossless audio format and compatible with 96 kHz/7.1ch

or less. In addition, faithful reproduction of the master audio is enabled using Iossless audio encoding technology.

BD-Video supports up to

7.1 channel output.

Dynamic

range

Dynamic range is the difference between the lowest level of sound that can be heard above the noise of the equipment and the highest level of sound before distortion occurs.

Dynamic range compression means reducing the gap between the loudest and softest sounds. This means you can listen at low volumes but still hear dialog clearly.

Film and video

DVD-Video are recorded using either film or video. This unit can determine which type has been used, then uses the most suitable method of progressive output.

Film: Recorded at 24 frames per second. (Recorded at 30

Video: frames per second as well). Generally appropriate for motion picture films.

Recorded at 30 frames/60 fields per second. Generally appropriate for TV drama programs or animation.

Frames and fields

Frames refer to the single images that constitute the video you see on your television.

Each frame consists of two fields.

+

Frame Field Field

oA frame still shows two fields, so there may be some blurring, but picture quality is generally better.

oA field still shows less picture information so it may be rougher, but there is no blurring.

Gateway

IP address of the electronic device providing Internet access.

Usually called a router IP address. (e.g., 192.168.0.1 )

HDMI (High-Definition

Multimedia Interface)

HDMI is a digital interface for consumer electronic products. Unlike conventional connections, it transmits uncompressed digital video and audio signals on a single cable.

Hub

Used for connecting more than one device to the network.

IP address

A set of numbers which distinguish each device on the network when, for example, connected to the Internet. When using a PC in a LAN to access a PC or device that is not included in the LAN, the IP address is called the local IP address. (e.g., 192.168.0.10)

JPEG (Joint Photographic Experts Group)

This is a system used for compressing/decoding color still pictures.

If you select JPEG as the storage system on digital cameras, etc., the data will be compressed to 1/10-1/100 of its original size. The benefit of JPEG is less deterioration in picture quality considering the degree of compression.

LAN (Local Area Network)

A group of linked devices in a company, school or home.

Indicates the boundaries of a particular network.

Local storage

This storage area is used as a destination for sub contents for playing

BD-Live on BD-Video.

LPCM (Linear PCM)

These are a kind of PCM format.

These are uncompressed digital signals, similar to those found on

CDs.

MPEG2 (Moving Picture Experts

Group)

A standard for efficiently compressing and expanding color video,

MPEG2 is a compression standard used for DVD and satellite based digital broadcasting,

MP3 (MPEG Audio Layer 3)

An audio compression method that compresses audio to approximately one tenth of its size without any significant loss of audio quality.

RQT9412

P4HD (Pixel Precision Progressive Processing for HD)

This is a processor which makes use of an exclusive Panasonic algorithm. Various processing is supported, including a high-level conversion of the TV scanning format from interlace to progressive and a high-level conversion of standard resolution (480i or 576i) video signal to a 1080 High Definition video signal.

Consequently, this unit is able to provide video of optimal resolution to the connected TV.

Pan&Scan/Letterbox

In general, DVD-Video are produced with the intention that they be viewed on a widescreen television (16:9 aspect ratio), so images often don't fit regular (4:3 aspect ratio) televisions.

Two styles of picture, "Pan & Scan" and "Letterbox", deal with this problem.

Pan&Scan:The sides are cut off so the picture fills the screen.

Letterbox: Black bands appear at the top and bottom of the picture so the picture itself appears in an aspect ratio of 16:9.

PCM (Pulse Code Modulation)

This is one format for converting analog audio into digital audio, enabling you to enjoy digital audio with no hassle.

Progressive/Interlace

The video signal standard of NTSC has 480 interlaced (i) scan lines, whereas progressive (p) scanning uses twice the number of scan lines, and this is referred to as 480p. Using progressive output, you can enjoy watching high resolution video.

Router

Distinguishes the IP address assigned to each device, such as the

PC, and relays the flow of data within the network.

Sampling frequency

Sampling is the process of converting the heights of sound wave

(analog signal) samples taken at set periods into digits (digital encoding). Sampling frequency is the number of samples taken per second, so larger numbers mean more faithful reproduction of the original sound.

SQPB (S-VHS Quasi Playback)

This is a function to playback SVlIS cassettes recorded in S-VHS format in a simplified way. It will not reproduce the high definition of the S-VHS format.

Subnet

mask

Enables efficient network use. A set of numbers which identify which part of the IP address allocated to every device connected to the router is the network portion.

USB (Universal Serial Bus)

An interface specification to connect peripherals.

Playback of MP3 or

JPEG recorded to a USB device by PC or other equipment, or JPEG in the Panasonic digital camera or similar connected via USB connection cable is possible with this unit.

VlERA CAST

An information service unique to Panasonic where specific Web sites can be viewed on this unit by connecting to the Internet without using a PC.

x.v.Color

TM x.v.Color

TM is a name for devices that are compatible with the xvYCC format, an international standard for expanded color in motion pictures, and that follow the rules for signal transmission.

You can enjoy vivid colors of wider color ranges for a more realistic picture when connected to a TV that supports the x.v.Color

HDMI cable.

TM with

1080i (1125i)

In one high definition image, 1080 (1125) alternating scan lines pass to create an interlaced image. Because 1080i (1125i) more than doubles current television broadcasts of 480i, the detail is much clearer and creates a more realistic and rich image.

1080p (1125p)

In one high definition image, 1080 (1125) scan lines pass at the same time to create a progressive image. Since progressive video does not alternate scan lines like interlace, there is a minimal amount of screen flicker.

24p

This is a progressive image recorded at a rate of 24 frames per second.

720p (750p)

In one high definition image, 720 (750) scan lines pass at the same time to create a progressive image. Since progressive video does not alternate scan lines like interlace, there is a minimal amount of screen flicker.

RQT9412

Index

Angle ..........................

Audio

Attribute ......................

Changing audio .............

Channel ......................

Language ..................

AVCHD .........................

30

30

21, 26

30

30, 32

50

O

BD-J ...........................

BD-Live

.....................

BD-Video

Ratings ................

50

23, 50

32

BONUSVIEW (Final Standard Profile)

............................

23, 50

• Chapter

........................

22

Cleaning

Disc ...........................

Lens ..........................

Main unit .......................

Video heads ....................

Connections

Amplifier/Receiver

HDMI .....................

...........

3

3

3

3

12, 13

11, 12

50

(D Deep Color .....................

Dialog Enhancer .................

Direct Navigator

.................

31

20

Discs that cannot be played ........

DNS Server ..................

7

17, 50

Dolby Digital ...............

Dolby Digital Plus ...........

Dolby TrueHD ..............

DTS ......................

DTS-HD ...................

8, 33, 50

8, 33, 50

8, 33, 50

8, 33, 50

8, 33, 50

• Finalize

.........................

Firmware .......................

Format .........................

Frame-by-frame

..............

HDMI ....................

6

16

23

21, 26

11, 12, 50

JPEG .....................

_) LAN .........................

Language

Audio ......................

Code list ......................

Menu .........................

On-screen .....................

Soundtrack ....................

Subtitle ....................

Local storage ....................

LPCM ..........................

_) Maintenance .....................

Menu

On-screen .....................

Pop-up ........................

Setup .........................

Media handling

...................

MPEG2 .........................

MP3 ......................

O Noise reduction (NR)

Integrated NR ..................

3D NR ........................

Off Timer

.......................

On-screen

Language .....................

Menu .........................

Status messages .............

PCM Down Conversion ............

Picture-in-picture

...............

Playlist .........................

Pop-up Menu ....................

Product Disposal ..................

Progressive

..................

Properties

Chapter .......................

Still picture ..................

Proxy Server ....................

P4HD ...........................

24, 37, 50

16, 50

30

20

32

3

50

27, 37, 50

22

24, 25

18

51

33

30

21,26

33

23

21

20

3

31, 51

30, 32

36

32

33

30

30, 32

50

50

3

31

31

36

Ratings level ....................

Re-master

...................

Remote control

Remote control code ............

Reprogramming the remote control .................

Using the remote control ..........

Repeat play .....................

Restore Default Settings ..........

Resume play function ............

O SD card ......................

Search .........................

Selected playback ...............

Setup menu .....................

Skip ...........................

Slideshow ......................

Slow-motion ....................

Soundtrack .....................

SQPB (S-VHS Quasi Playback)..

Status

Message

..............

Still pictures ....................

Subtitle ........................

Switch drives ...................

32

21, 31

36

O

Tracking .......................

USB device ......................

O V. Surround .....................

VHS .........................

VHS Index Search System (VlSS)...

VlERA CAST

TM

..................

26

7

31

7, 26

26

27

O

VlERA Link

TM

"HDAVI ControF M'' . .. 28 x.v.Color

TM

......................

51

26, 51

21, 26

24

30

20

20

32

20

24

20

30

15

5

31

36

20

7, 23

20

24p ...........................

31, 34

Panasonic Consumer Electronics

Company, Division of Panasonic

Corporation of North America

One Panasonic Way, Secaucus,

New Jersey 07094

http://www.panasonic.com

© Panasonic Corporation 2009

Printed in China

Panasonic Canada Inc.

5770 Ambler Drive

Mississauga, Ontario

L4W 2T3

www.panasonic.ca

-If you see this symbol-

Information

on Disposal in other Countries outside the

European Union

If you wish to discard this product, please contact

This symbol is only valid in the European Union.

method of disposal.

RQT9412-P

F0309SK0

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
