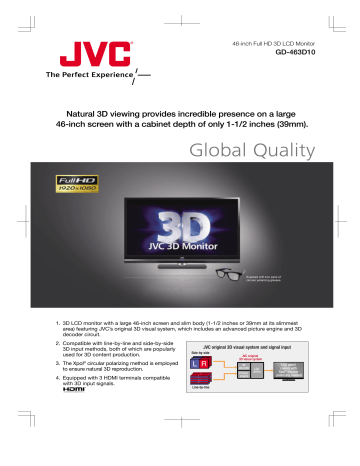

Natural 3D viewing provides incredible presence on a large

Natural 3D viewing provides incredible presence on a large
46-inch Full HD 3D LCD Monitor
GD-463D10
Natural 3D viewing provides incredible presence on a large
46-inch screen with a cabinet depth of only 1-1/2 inches (39mm).
Supplied with two pairs of
circular polarizing glasses.
1. 3D LCD monitor with a large 46-inch screen and slim body (1-1/2 inches or 39mm at its slimmest
area) featuring JVC’s original 3D visual system, which includes an advanced picture engine and 3D
decoder circuit.
2. Compatible with line-by-line and side-by-side
3D input methods, both of which are popularly
used for 3D content production.
3. The Xpol® circular polarizing method is employed
to ensure natural 3D reproduction.
4. Equipped with 3 HDMI terminals compatible
with 3D input signals.
JVC original 3D visual system and signal input
Side-by-side
LLL RRR
R
R
R
R
R
R
L
R
L
R
L
L
R
R
L
R
L
R
L
L
L
L
L
L
Line-by-line
JVC original
3D visual system
3D
decoder
engine
LCD
driver
LCD panel
coated with
Xpol® circular
polarizing method
Introducing a full HD 3D LCD monitor for professional use
that answers both the demands of 3D content production
and the newly developing needs of other industries.
3D movie content has gained significant momentum since 2008 and this year, many more 3D films
are expected to be released. In order to answer the demands for professional 3D monitors in
studios and post-production fields, as well as for other diverse areas such education, medical
fields, and science, JVC is proud to introduce the GD-463D10 — a new 46-inch full HD 3D LCD
monitor designed for professional use, capable of displaying natural-looking 3D images with
incredible presence.
Large screen, a slim cabinet depth, and VESA compliance
Technology tips
The GD-463D10 features an impressive 46-inch LCD screen that promotes easy,
natural viewing of 3D effects on a large screen and clearly displays how these images
will appear in an actual viewing environment. Additionally, the VESA compliant cabinet
has a depth of only 1-1/2 inches (39mm) at the monitor’s slimmest area to enhance
installation possibilities.
Differences between the two 3D video formats
● Line-by-line format: Left and right images are stored, respectively, in the even and
odd lines of the video signal. This format is the same as the one used to transmit a
regular TV signal and has been widely adopted by many 3D content producers.
Slim body yet packed with features
The GD-463D10 is packed with advanced features such as an exclusive 3D visual
system, which includes a unique picture engine and originally developed 3D decoder to
ensure natural image reproduction with incredible presence. 3D images can be viewed
by wearing a pair of lightweight circular polarizing glasses that do not require a power
source and of course, conventional 2D images can also be viewed without special
equipment.
Compatible with two 3D video input formats
Side-by-side format: Left and right images compressed to 1/2 scale in the
horizontal direction are stored in the left and right sides of the screen. This format is
also the same as the one used to transmit a standard TV signal and is commonly used
for TV broadcasting programs as well as by 3D content producers.
●
The originally developed 3D decoder is compatible with both side-by-side and line-byline 3D video input formats, both of which are popularly used for 3D content production.
Xpol® circular polarizing method for natural 3D reproduction
As one of several methods for 3D reproduction, the Xpol® circular polarizing method
displays images without flickering as both left- and right-eye images are displayed
simultaneously to make it especially suited for fast-moving images.
An LCD screen coated with circular polarizing filters for alternate scanning lines which
have different polarization characteristics that displays corresponding images for the left
and right eyes allows three-dimensional images to be viewed when a pair of circular
polarizing glasses are used.
Other Beneficial Features
Full HD Panel Dynamic Backlight Touch Sensor Panel with Key Lock Function
Swivel Stand ● Supplied Accessories: 2 Pairs of Circular Polarizing Glasses and
Infrared Remote Controller
●
●
3D LCD monitor using Xpol® circular polarizing method
●
●
■ Specifications
Screen Size
Aspect Ratio
Effective Screen Size (W) x (H)
Number of Pixels
Contrast Ratio
3D Compatible Terminals and Signals
Color Management
Y/C Separation
Noise Reduction
Color Temperature
Audio Power Output
Number of Speakers
Audio Effects/Surround Sound
Headphone Terminal
OSD Language
Power Consumption
Power Requirement
46” (116.8cm)
16:9
40-1/8 x 22-5/8inch (101.8 x 57.3cm)
Full HD 1920x1080
Native 2,000:1/ Dynamic 10,000:1
3 HDMI inputs supporting 1080/24p, 50p, 60p, 50i*, 60i*
A component input supporting 1080/50i*, 60i*
●
● (3D Y/C)
● (Digital NR/MPEG NR)
● (3 steps)
10W + 10W
2
MaxxBass®**/Cinema Surround
●
English
N. America: 210W @120V/Europe: 210W @230V
N. America: AC120V 60Hz/Europe: AC220-240V, 50/60Hz
Circular polarizing glasses.
■ Terminals
5
4
1
*3D picture enabled only for 50i and 60i side-by-side input.
**MaxxBass does not work with headphones.
■ External dimensions
3 (74.5)
1-5/8 (39.5)
42-1/4 (1,071)
15-3/4 (400)
26-7/8 (680)
11-1/8
(281)
7-7/8
(200)
28-5/8 (725)
10-7/8 (275)
! 2009, Victor Company of Japan, Limited (JVC). All Rights Reserved.
8
3
For 3D/2D
For 2D
1 HDMI-1 IN: HDMI Signal
5 VIDEO-1 IN: Composite Signal, Audio L/R
2 HDMI-2 IN: HDMI Signal
(HDMI-2 input doesn’t support analog sound)
3 HDMI-3 IN: HDMI Signal
(HDMI-3 input doesn’t support analog sound)
4 AUDIO IN: Audio L/R for HDMI-1 (DVI analog sound)
6 VIDEO-2 IN: Composite Signal/S-Video, Audio L/R
5 VIDEO-1 IN: Component Signal, Audio L/R
17-3/4 (450)
Copyright
Unit: inch (mm)
2
6
7
7 OUTPUT: Composite Signal, Audio L/R
8 PC IN: PC Audio, PC Signal (D-SUB)
640 x 480 VGA 60Hz, 1,024 x 768 XGA 60Hz
• Video signals for 2D: 1080p/24Hz, 1080p/60Hz,
1080p/50Hz, 1080i/60Hz, 1080i/50Hz, 720p/60Hz,
720p/50Hz, 576i/576p (625i/625p) 50Hz, 480i/480p
(525i/525p) 60Hz
• Color systems for 2D: PAL, SECAM, and NTSC
E. & O.E. Design and specifications subject to change without notice.
All TV screen pictures in this brochure are simulated.
Xpol® is a registered trademark of Arisawa Manufacturing Co., Ltd. HDMI, the HDMI logo and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing LLC. MaxxBass is a registered trademark of Waves Audio Ltd. in the USA,
Japan and other countries. All other brand or product names may be trademarks and or registered trademarks of their respective owners.
Any rights not expressly granted herein are reserved.
DISTRIBUTED BY
Printed in Japan
ICN0387
“JVC” is the trademark or registered trademark of Victor Company of Japan, Limited.
