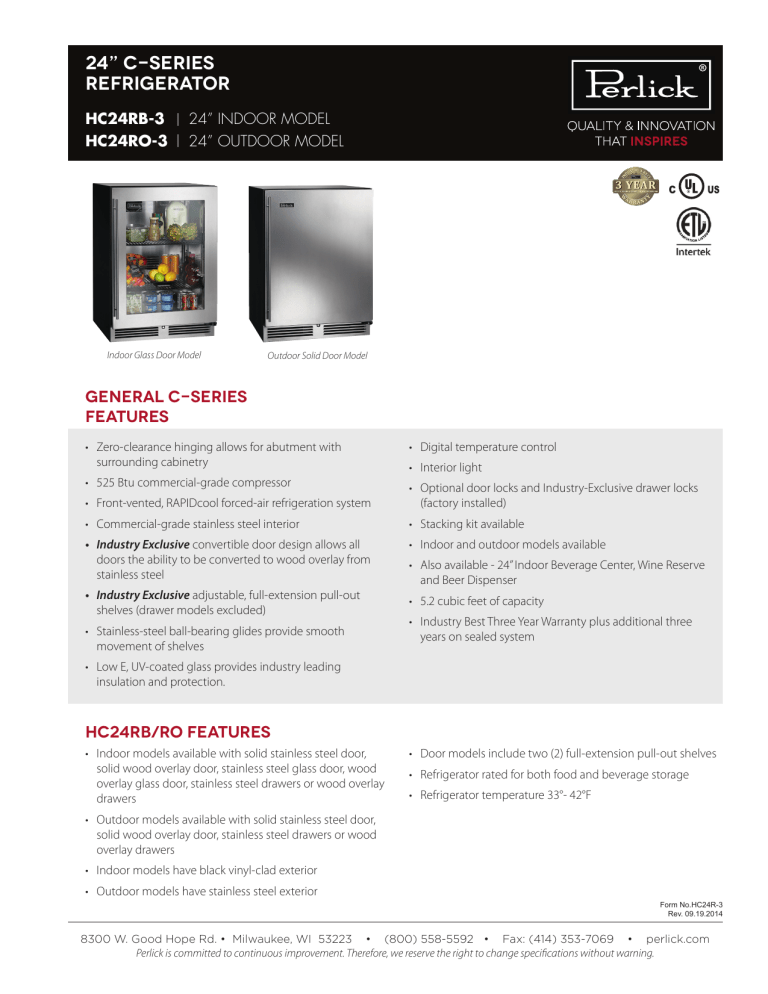

24” C-series REFRIGERATOR

24” C-series REFRIGERATOR
24” C-series
REFRIGERATOR
HC24RB-3
HC24RO-3
24” INDOOR MODEL
24” OUTDOOR MODEL
C
Indoor Glass Door Model
US
Outdoor Solid Door Model
general C-Series
features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Digital temperature control
• 525 Btu commercial-grade compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Commercial-grade stainless steel interior
• Stacking kit available
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Indoor and outdoor models available
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models excluded)
• 5.2 cubic feet of capacity
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
• Interior light
• Also available - 24” Indoor Beverage Center, Wine Reserve
and Beer Dispenser
• Industry Best Three Year Warranty plus additional three
years on sealed system
• Low E, UV-coated glass provides industry leading
insulation and protection.
HC24RB/RO features
• Indoor models available with solid stainless steel door,
solid wood overlay door, stainless steel glass door, wood
overlay glass door, stainless steel drawers or wood overlay
drawers
• Door models include two (2) full-extension pull-out shelves
• Refrigerator rated for both food and beverage storage
• Refrigerator temperature 33°- 42°F
• Outdoor models available with solid stainless steel door,
solid wood overlay door, stainless steel drawers or wood
overlay drawers
• Indoor models have black vinyl-clad exterior
• Outdoor models have stainless steel exterior
Form No.HC24R-3
Rev. 09.19.2014
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
product specifications
indoor models
Overall Width
23-7/8” (60.64 cm.)
HC24RB-3-1L*
Solid stainless steel door, hinge left
Overall Height
34-1/4” (86.96 cm.)
HC24RB-3-2L*
Solid wood overlay door, hinge left
Overall Depth
24” (60.96 cm.)
HC24RB-3-3L*
Stainless steel glass door, hinge left
Opening Width
24” (60.96 cm.)
HC24RB-3-4L*
Wood overlay glass door, hinge left
Opening Height
34-3/8” (87.31 cm.)
HC24RB-3-5
Stainless steel drawers
Opening Depth
24” (60.96 cm.)
HC24RB-3-6
Wood overlay drawers
Refrigerated Volume
5.2 cu. ft.
Door Swing Clearance
25” (63.5 cm.) minimum
Electrical
115V, 60Hz., 1 Phase, 2.3 amps
Plumbing
None Required
Shipping Weight
183 lbs (83.01 kg.)
Annual Energy
Consumption
274 kWh (solid door)
305 kWh (glass door and drawers)
OUTdoor models
HC24RO-3-1L*
Solid stainless steel door, hinge left
HC24RO-3-2L*
Solid wood overlay door, hinge left
HC24RO-3-5
Stainless steel drawers
HC24RO-3-6
Wood overlay drawers
* Also available hinge right
Form No.HC24R-3
Rev. 09.19.2014
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without warning.
