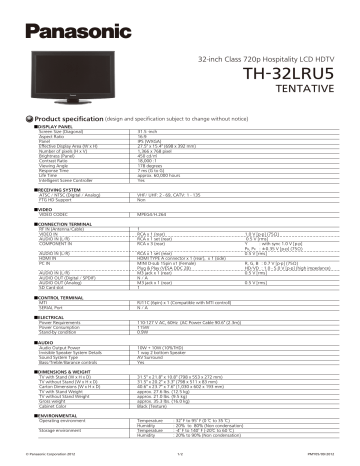

32-inch Class 720p Hospitality LCD HDTV
TH-32LRU5
TENTATIVE
Product specification (design and specification subject to change without notice)
■DISPLAY PANEL
Screen Size (Diagonal)
Aspect Ratio
Panel
Effective Display Area (W x H)
Number of pixels (H x V)
Brightness (Panel)
Contrast Ratio
Viewing Angle
Response Time
Life Time
Intelligent Scene Controller
31.5 -inch
16:9
IPS (WXGA)
27.5" x 15.4" (698 x 392 mm)
1,366 x 768 pixel
450 cd/㎡
18,000 :1
178 degrees
7 ms (G to G)
approx. 60,000 hours
Yes
■RECEIVING SYSTEM
ATSC / NTSC (Digital / Analog)
FTG HD Support
VHF/ UHF: 2 - 69, CATV: 1 - 135
Non
■VIDEO
VIDEO CODEC
MPEG4/H.264
■CONNECTION TERMINAL
RF IN (Antenna/Cable)
VIDEO IN
AUDIO IN (L/R)
COMPONENT IN
1
RCA x 1 (rear)
RCA x 1 set (rear)
RCA x 3 (rear)
AUDIO IN (L/R)
HDMI IN
PC IN
AUDIO IN (L/R)
AUDIO OUT (Digital / SPDIF)
AUDIO OUT (Analog)
SD Card slot
RCA x 1 set (rear)
HDMI TYPE A connector x 1 (rear), x 1 (side)
MINI D-sub 15pin x1 (Female)
Plug & Play (VESA DDC 2B)
M3 jack x 1 (rear)
N/A
M3 jack x 1 (rear)
1
■CONTROL TERMINAL
MTI
SERIAL Port
RJ11C (6pin) x 1 (Compatible with MTI controll)
N/A
■ELECTRICAL
Power Requirements
Power Consumption
Stand-by condition
110-127 V AC, 60Hz (AC Power Cable 90.6" (2.3m))
115W
0.9W
■AUDIO
Audio Output Power
Invisible Speaker System Details
Sound System Type
Bass/Treble/Barance controls
10W + 10W (10%THD)
1 way 2 bottom Speaker
AV Surround
Yes
■DIMENSIONS & WEIGHT
TV with Stand (W x H x D)
TV without Stand (W x H x D)
Carton Dimensions (W x H x D)
TV with Stand Weight
TV without Stand Weight
Gross weight
Cabinet Color
31.5" x 21.8" x 10.8" (798 x 553 x 272 mm)
31.5" x 20.2" x 3.3" (798 x 511 x 83 mm)
40.6" x 23.7" x 7.6" (1,030 x 602 x 193 mm)
approx. 27.6 lbs. (12.5 kg)
approx. 21.0 lbs. (9.5 kg)
approx. 35.3 lbs. (16.0 kg)
Black (Texture)
■ENVIRONMENTAL
Operating environment
Storage environment
© Panasonic Corporation 2012
Temperature
Humidity
Temperature
Humidity
:
:
:
:
1.0 V [p-p] (75Ω)
0.5 V [rms]
Y
: with sync 1.0 V [p-p]
PB, PR : ±0.35 V [p-p] (75Ω)
0.5 V [rms]
R, G, B : 0.7 V [p-p] (75Ω)
HD/VD : 1.0 - 5.0 V [p-p] (high impedance)
0.5 V [rms]
0.5 V [rms]
32°
F to 95°F (0 ℃ to 35 ℃)
20% to 80% (Non condensation)
-4°F to 140°F (-20℃ to 60 ℃)
20% to 90% (Non condensation)
1/2
PMY05/09/2012
TH-32LRU5
32-inch Class 720p Hospitality LCD HDTV
MAIN FEATURE
ACCESSORIES
Yes
Yes
Yes
Yes
Yes
Image Viewer (JPEG playback)
Cloning
15/30/60/90
Initial INPUT
INPUT Lock
Initial VOL level
Maximum VOL level
Button Lock
Remote Control User Level
CEC Control
Quick Boot
Integrated Pro:Idiom
Local Aucentication
Welcome message
SD Card Slot
OFF Timer
Hotel Mode
INCLUDED ACCESSORIES
Security Bit
Swivel Stand (degrees:30°
/60°
/90°
)
Remote control transmitter
Batteries for the Remote Control
Transmitter (AA Battery x 2)
Operating Instruction
Non
STANDARD (CERTIFICATIONS)
SAFETY REGULATIONS
RADIATION REGULATIONS
ENERGY STAR 5.3, CEC
UL6500 Ver.2, cUL, BETS-7
FCC Part 15 Class-B, ICES-003, ISTA
Yes
Wall hanging
VESA compliant
W 7.9" x H 7.9" (W 200 x H 200mm)
UPC Code
T.B.D
DIMENSIONS
Cautions: This drawing is not a scale
7.7 (194)
Units : inches (mm)
3.3 (83)
31.5 (798)
7.6
(193)
9.8
(248)
Rotation angle of 30°
2.8 (69)
4.8 (120)
2.6 (65)
Rotation angle of 90°
7.7 (195)
1.6 (42)
12.8
(323)
21.8 (553)
2 (49)
1.1 (28)
12.2 (308)
15.0
(381)
20.2(511)
Rotation angle of 60°
8.6 (217)
14.2 (359)
17.3
(438)
10.8 (272)
<rear>
<side>
14.2
(360)
CONNECTION TERMINAL
_______
(800) 709-8731
www.directvideotv.com
[email protected]
© Panasonic Corporation 2012
2/2
PMY05/09/2012
