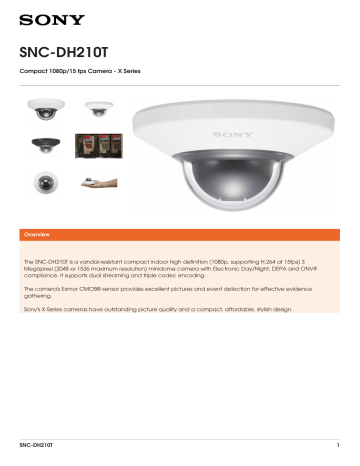

SNC-DH210T
Compact 1080p/15 fps Camera - X Series
Overview
The SNC-DH210T is a vandal-resistant compact indoor high definition (1080p, supporting H.264 at 15fps) 3
Megapixel (2048 xx 1536 maximum resolution) minidome camera with Electronic Day/Night, DEPA and ONVIF
compliance. It supports dual streaming and triple codec encoding.
The camera's Exmor CMOS® sensor provides excellent pictures and event detection for effective evidence
gathering.
Sony's X-Series cameras have outstanding picture quality and a compact, affordable, stylish design.
SNC-DH210T
1
Features
•
Compact and Stylish design
A compact, stylish and discreet design that compliments any surveillance environment.
•
HD (1080p) resolution
Detailed Full HD progressive images. Progressive acquisition (as opposed to interlace) means that images
are more stable to view, contain more information and compress more efficiently - without "interlace
artefacts".
•
EXMOR CMOS® Sensor
High resolution CMOS© sensor with low noise characteristics for improved image acquisition. Derived from
Sony's broadcast product range, EXMOR® is one of the highest quality image sensors available.
•
Stream Squared function
An incredibly useful function that allows simultaneous streaming of two 4:3 aspect ratio videos in userselectable SD resolutions. You can select the entire image or a portion of the image from the original view
and resize to SD resolution. With this feature the SNC-DH210T can replace two SD cameras installed in the
same line of view.
•
Triple Codec Network Operation
This multi-codec camera supports three compression formats: JPEG, the best choice of high-quality still
images
•
DEPA
The SNC-DH210T offers intelligent video analytics, based on the Sony DEPA platform. DEPA is a combined
function of the intelligence built in to the camera and rules/filters that determine which images should be
recorded or when an alarm should be triggered.
•
Power Over Ethernet (PoE) capability
Supporting Power over Ethernet (PoE), the camera can be powered using the same Ethernet cable it uses
for data transfer. This feature greatly reduces the physical infrastructure costs and speed of deployment.
•
ONVIF (Open Network Video Interface Forum) compliance
The ONVIF (Open Network Video Interface Forum) defines a common protocol for the exchange of
information between network video devices including automatic device discovery and video streaming.
Allows interoperability between network video devices.
•
Electronic Day/Night function
Ensures that the camera is operating with the optimum sensitivity for both day and night conditions.
•
Analogue monitor output
This allows an analogue video monitor to be connected directly to the camera.
SNC-DH210T
2
Technical Specifications
Camera
• Image Sensor
1/2.8 type progressive scan "Exmor" CMOS sensor
• Number of Effective Pixels
Approx. 3 Megapixels
• Signal System
• Sync System
• Minimum Illumination (50 IRE)
• Minimum Illumination (30 IRE)
• Gain
NTSC color system/PAL color system (switchable)
Internal synchronization
2.3 lx (AGC(38db) / 50 IRE)
1.7 lx (AGC(38db) / 30 IRE)
Auto
• Shutter Speed
1 s to 1/10000 s
• Exposure Control
Auto, EV Compensation, Auto Slow Shutter
• White Balance
• Lens
• Powered Zoom
• Easy Zoom
• Powered Focus
Auto(ATW, ATW-PRO) , Preset, One-push WB, Manual
Fixed
No
No
No
• Horizontal Viewing Angle
86°
• Focal Length
f = 3.3 mm
• F-Number
• Minimum Object Distance
F2.8
500 mm
• Pan/Tilt/Rotation Angle (manual)
Approx. 340°/60°
• IR Illuminator
No
Camera Features
• Day/Night
Electronic D/N
• Wide-D
No
• Tone Correction
• Noise Reduction
No
NR
• Image Stabilizer
No
• Vandal Resistant
IK10
• Ingress Protection
No
Video
• Resolution
2048x1536(JpegOnly), 1920x1080, 1600x1200, 1680x1056, 1440x912, 1280x1024, 1280x960, 1376x768, 1280x800, 1280x720, 1024x768, 1024x576, 768x576,
720x576, 704x576, 800x480, 720x480, 640x480, 640x368, 384x288, 352x288, 320x240, 320x192, 176x144
•
SNC-DH210T
3
Compression
Format
H.264, MPEG-4, JPEG
• Maximum
JPEG: 12 fps (2048x1536)/15 fps (1920x1080)/30 fps (1280x720)
MPEG-4: 15 fps (1920x1080)/30 fps (1280x720)
H.264: 15 fps (1920x1080)/30 fps (1280x720)
Frame Rate
• Multi
streaming
Capability
• Number of
Dual streaming*1
5
Clients
Intelligent Video/Audio Analytics
• Analytics Architecture
DEPA
• Intelligent Motion Detection
Yes
Audio
• Compression Format
No
System Requirements
• Operating System
Microsoft Windows XP
Windows Vista (32 bit)
Windows 7 (32 bit, 64 bit)
• Processor
Intel Core2 Duo 2 GHz or higher
• Memory
1 GB or more
•
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver. 3.5 (plug-in free viewer only)
Safari Ver. 4.0 (plug-in free viewer only)
Google Chrome Ver.4.0 (plug-in free viewer only)
Web Browser
Network
• Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
• Number of IP Address/Mac ADDRESS
1
• ONVIF Conformance
• Wireless Network
Profile S
No
• Authentication
IEEE802.1X
Interface
• Analog Monitor Output for Setup
AV MiniJack
• Network Port
10BASE-T/100BASE-TX (RJ-45)
• Alarm Input (Sensor Input)
x1
• Alarm Output
• USB Slots
No
No
General
• Power Requirements
IEEE 802.3af compliant (PoE) Class 1
• Power Consumption
2.4 W
• Operating Temperature
0 to +50℃
+32°F to +122°F
SNC-DH210T
4
• Storage Temperature
• Operating Humidity
• Storage Humidity
-20℃ to +60℃
-4°F to +140°F
• Dimensions (W x H x D)*2
φ 106 x 56.5 mm
φ 4 1/4 x 2 1/4 inches
• Mass
170 g (without cable)
• Safety Regulations
UL2044, FCC 15B Class A, IC Class A, IEC60950-1, EN55022(A)+EN55024+EN50130-4, VCCI Class A, C-Tick Class A
• Supplied Accessories
CD-ROM (User's Guide, SNC Toolbox,RSM-Lite) (1)
Installation Manual (1)
B&P warranty booklet (1)
Sensor input cable (1)
Template (1)
20% to 80%
20% to 95%
Notes
• *1
Dual streaming (Any combination with JPEG/MPEG-4/H.264, including multiple streams of the same format)
• *2
The values for dimensions are approximate.
SNC-DH210T
5
Compatible Products
Other Accessories
SNCA-POE12
UNI-LD110S
Replacement capsule for
the SNC-DH110, SNCDH110T, SNC-DH210 and
SNC-DH210T network HD
cameras
Compact 12-port Power
over Ethernet (PoE)
midspanpower supply for
fixed and minidome
cameras
SNCA-POE6
Compact 6-port Power over
Ethernet (PoE)
midspanpower supply for
fixed and minidome
cameras
Power Supplies
SNCA-POE1
Compact Power over
Ethernet power supply for
fixed and minidome
cameras
© 2016 Sony Corporation. All rights reserved. Reproduction in whole or in part without written permission is prohibited.
Features and specifications are subject to change without notice. The values for mass and dimension are approximate.
All trademarks are the property of their respective owners.
