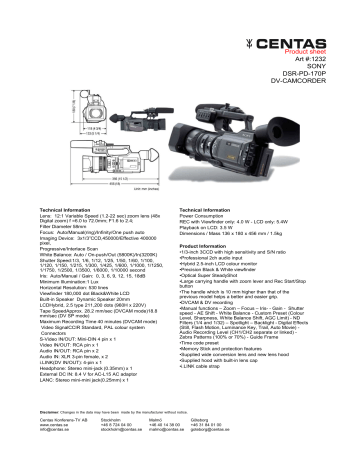

Product sheet
Art #:1232
SONY
DSR-PD-170P
DV-CAMCORDER
Technical Information
Lens: 12:1 Variable Speed (1.2-22 sec) zoom lens (48x
Digital zoom) f =6.0 to 72.0mm; F1.6 to 2.4;
Filter Diameter 58mm
Focus: Auto/Manual(ring)/Infinity/One push auto
Imaging Device: 3x1/3”CCD,450000/Effective 400000
pixel,
Progressive/Interlace Scan
White Balance: Auto / On-push/Out (5800K)/In(3200K)
Shutter Speed:1/3, 1/6, 1/12, 1/25, 1/50, 1/60, 1/100,
1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250,
1/1750, 1/2500, 1/3500, 1/6000, 1/10000 second
Iris: Auto/Manual / Gain: 0, 3, 6, 9, 12, 15, 18dB
Minimum Illumination:1 Lux
Horizontal Resolution: 530 lines
Viewfinder 180,000 dot Black&White LCD
Built-in Speaker Dynamic Speaker 20mm
LCDHybrid, 2.5 type 211,200 dots (960H x 220V)
Tape SpeedApprox. 28.2 mm/sec (DVCAM mode)18.8
mm/sec (DV SP mode)
Maximum Recording Time 40 minutes (DVCAM mode)
Video SignalCCIR Standard, PAL colour system
Connectors
S-Video IN/OUT: Mini-DIN 4 pin x 1
Video IN/OUT: RCA pin x 1
Audio IN/OUT: RCA pin x 2
Audio IN: XLR 3-pin female, x 2
i.LINK(DV IN/OUT): 4-pin x 1
Headphone: Stereo mini-jack (0.35mm) x 1
External DC IN: 8.4 V for AC-L15 AC adaptor
LANC: Stereo mini-mini jack(0.25mm) x 1
Technical Information
Power Consumption
REC with Viewfinder only: 4.0 W - LCD only: 5.4W
Playback on LCD: 3.5 W
Dimensions / Mass 136 x 180 x 456 mm / 1.5kg
Product Information
•1/3-inch 3CCD with high sensitivity and S/N ratio
•Professional 2ch audio input
•Hybrid 2.5-inch LCD colour monitor
•Precision Black & White viewfinder
•Optical Super SteadyShot
•Large carrying handle with zoom lever and Rec Start/Stop
button
•The handle which is 10 mm higher than that of the
previous model helps a better and easier grip.
•DVCAM & DV recording
•Manual functions – Zoom – Focus – Iris- - Gain - Shutter
speed - AE Shift - White Balance - Custom Preset (Colour
Level, Sharpness, White Balance Shift, AGC Limit) - ND
Filters (1/4 and 1/32) – Spotlight – Backlight - Digital Effects
(Still, Flash Motion, Luminance Key, Trail, Auto Movie) Audio Recording Level (CH1/CH2 separate or linked) Zebra Patterns (100% or 70%) - Guide Frame
•Time code preset
•Memory Stick and protection features
•Supplied wide conversion lens and new lens hood
•Supplied hood with built-in lens cap
•i.LINK cable strap
Disclaimer: Changes in the data may have been made by the manufacturer without notice.
