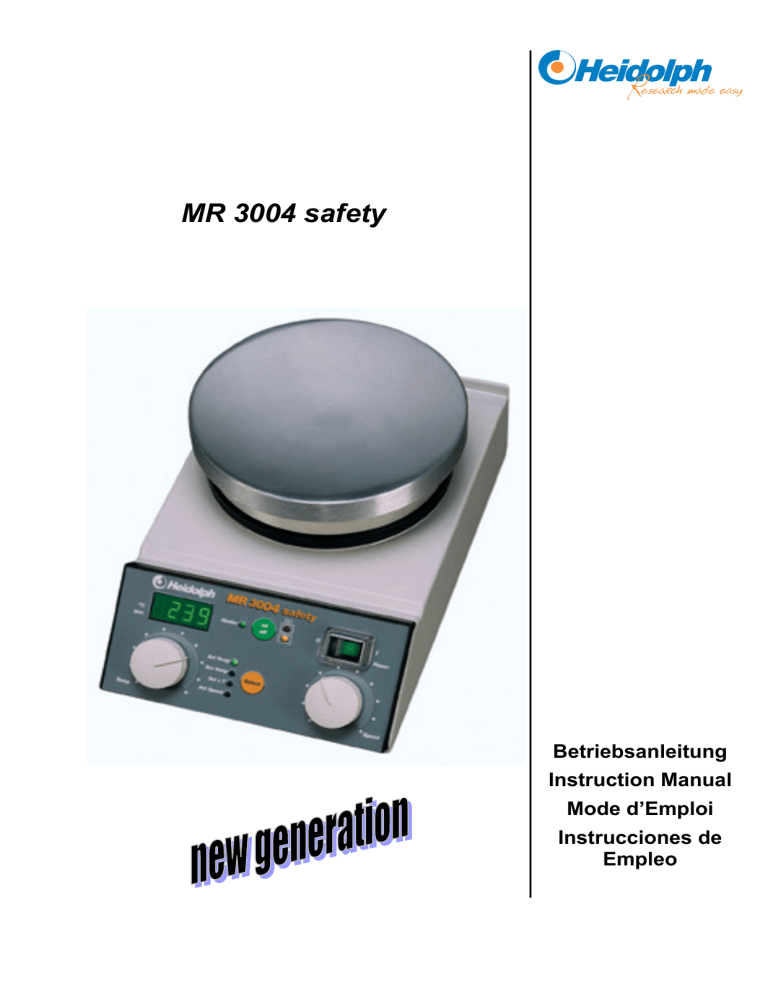

MR 3004 safety
MR 3004 safety
Betriebsanleitung
Instruction Manual
Mode d’Emploi
Instrucciones de
Empleo
DEUTSCH
D
ENGLISH
E
FRANCAISE
F
ESPAGNOL
ES
3
E
Thank you for purchasing a Heidolph Instruments product. This item has been designed, manufactured
and inspected in compliance with DIN EN ISO 61010 for continuous operation and long life performance.
SUMMARY
SUMMARY ............................................................................................................................................... 20
STANDARD EQUIPMENT & ACCESSORIES ......................................................................................... 21
GENERAL INFORMATION ...................................................................................................................... 22
SAFETY INFORMATION ......................................................................................................................... 22
SET-UP .................................................................................................................................................... 23
1. machine set-up ................................................................................................................................... 23
2. electric hook-up .................................................................................................................................. 23
3. connect external temperature sensor Pt 1000 (in chromium-steel or glass sheath)........................... 23
4. connect external 2-station temperature sensor Pt 1000 (in chromium steel- or glass sheath)........... 24
5. set-up using tank adapter ................................................................................................................... 24
OPERATION AND CONTROLS ............................................................................................................... 24
1. turn item ON ....................................................................................................................................... 24
2. set stirring speed ................................................................................................................................ 25
3. heater control using temperature sensor (Set1 mode) ....................................................................... 25
4. heater control using temperature sensor for 2 different stations (Set2 mode).................................... 27
5. heater control in absence of temperature sensor (Set3 mode) .......................................................... 28
6. residual heat indicator......................................................................................................................... 28
7. interface installation ............................................................................................................................ 29
8. error messages and corrective action................................................................................................. 30
INFORMATION ABOUT USING TEMPERATURE SENSORS ................................................................ 31
CLEANING & SERVICING ....................................................................................................................... 33
UNINSTALL, FORWARD & STORE ........................................................................................................ 33
DISPOSAL................................................................................................................................................ 33
MALFUNCTION........................................................................................................................................ 33
SPECIFICATIONS.................................................................................................................................... 34
WARRANTY, LIABILITY AND COPYRIGHT............................................................................................ 35
QUESTIONS / REPAIR WORK ................................................................................................................ 35
CE-DECLARATION OF CONFORMITY................................................................................................... 35
20
E
STANDARD HARDWARE & OPTIONS
Standard Equipment
PRODUCT
QUANTITY
P/N
P/N
230 V / 50/60 Hz
115 V / 60 Hz
MR 3004 safety S or
1
504-33200-00
504-33200-01
MR 3004 safety C or
1
504-33210-00
504-33210-01
MR 3004 safety G
1
504-33220-00
504-33220-01
Instruction Manual
1
01-005-004-39
01-005-004-39
Power cord
1
14-007-003-81
14-007-003-89
Accessories
PRODUCT
P/N
Temperature sensor Pt 1000, chromium steel sheath
509-67910-00
Temperature sensor Pt 1000, glass sheath
509-67920-00
Temperature sensor Pt 1000, includes 2 measuring stations, chromium steel sheath
509-67930-00
Temperature sensor Pt 1000, includes 2 measuring stations, glass sheath
509-67940-00
1 liter heating bath, for oil, 250º C max.
504-93000-00
1 liter heating bath, PTFE coated for water, 100º C max.
504-93100-00
2 liter heating bath, for oil, 250º C max.
504-92000-00
2 liter heating bath, PTFE coated for water, 100º C max.
504-92100-00
4 liter heating bath, for oil, 250º C max.
504-91000-00
4 liter heating bath, PTFE coated for water, 100º C max.
504-91100-00
concave block adaptor for 1 liter round-bottom flasks
504-94000-00
Stand, 1.4305 (V2A) stainless steel
509-81000-00
Stand, 1.4305 (V2A) stainless steel (for 4 litre heating bath)
509-98000-00
Clamp for temperature sensor
509-67000-00
magnetic stir bars (3 ea), cylindrical, PTFE-coated
509-56000-00
Bath liquid RT up to 240°C
515-31000-00
Important information
Advise about power cord / mains supply
Caution: mandatory action
Caution: fire- and explosion hazard
Caution: hazard of burns, hot surface
Advise about maintenance / repair
21
E
GENERAL INFORMATION
Unpack your item carefully.
Inspect for damage and report such damage or missing parts to your supplier right away.
Read your instruction manual carefully. Take time to save time while working with your item.
Make sure that every user has read and understood the instruction manual.
Please store the instruction manual in a place easily accessible to every user.
IF ALL ELSE FAILS, READ THESE INSTRUCTIONS !
A so called EURO- plug (DIN 49441 CEE 7/VII 10/ 16 A 250 V) is standard on all of the items.
For the Continental US they feature a US-standard plug (NEMA pub.no.WDI.1961 ASA C
73.1.1961 page 8 15A 125V).
When using the item in a country with deviating outlet / plug systems, we recommend to use
approved adapters or to have an electrician replace the standard plug with one suiting your
needs.
As shipped, the item features a protective ground wire. When replacing the original plug, make
sure to re-connect this protective ground wire in the new plug !
SAFETY INFORMATION
Please comply with all safety and accident-prevention regulations as in force for laboratory work !
Use extra care when working with flammable substances; refer to safety data sheets.
When connecting your item with your local power supply, please make sure your item is
designed for your local supply voltage; go by data plate on the item.
Turn your power switch OFF whenever the item is not used, or before disconnecting the
plug.
Repair work is restricted to technicians approved by Heidolph Instruments.
Use extra care when working in the vicinity of flammable and explosive substances. Motors are of non-sparking type, however, the item itself is not explosion proof
Please connect your magnetic stirrer with a protective-ground outlet only.
Caution! Hazard of serious burns when running the hot plate over 50 °C.
Avoid contact with hot plate, heating bath and fluid.
Caution! When heating flammable substances, adjust hot plate nominal temperature to a
lower level than the substance’s flashpoint.
Your item requires a solid stand.
22
E
SET-UP
1.
•
•
2.
Set-up
Please locate the item on a sturdy, horizontal surface.
For reasons of safety, keep the area around the stirrer module clear of other items.
Electric hook-up
15
16
1
3
2
front panel, MR 3004 safety
rear panel, MR 3004 safety
Do the following checks before connecting:
• Power switch (1) OFF (position “0”). (When ON, the toggle switch lights GREEN)
• Connect item with mains by plugging the power cord in the plug connector (15) located in the
item’s rear panel and your outlet.
3.
•
•
Connect external temperature sensor Pt 1000 (chromium steel- or glass sheath)
Turn item OFF attempting to connect the temperature sensor.
Connect sensor’s bayonet-type plug with flanged connector (16) in the
item’s rear panel
Please keep in mind that sensor needs an immersion depth of
not less than 20 mm (mark) to avoid false reading.
For Pt 1000 wiring, please refer to diagram below.
Item does accept a Pt 1000 temperature sensor only
(P/N 509-67910-00 or 509-67920-00); a Pt 100 won’t work.
set-up includes stand and
temperature sensor holder
3.1 Pt 1000 wiring
23
E
4.
•
5.
Connect external 2-station temperature sensor Pt 1000 (chromium steel- or glass sheath)
For set-up and controls refer to page 27.
Set-up using bath
If you are going to use a heating bath (refer to “Accessory“ section) make
sure bottom rim of your bath properly fits over the hot plate.
When using the item with a 4 liter bath accessory, you may attach the temperature sensor to a special stand (18) (P/N 509-98000-00) designed for the
4 liter heating bath.
18
Set-up features 4 liter heating bath,
clamp for temperature sensor and special stand
OPERATION AND CONTROLS
1.
Turn item ON
• Place your container or heating bath with the magnetic stir bar and fluid on the active surface of
your magnetic stirrer. Magnetic stir bars are available from Heidolph Instruments as an optional
accessory.
7
1
3
2
11
•
•
•
24
8
Turning the power switch (1) ON (range I), a self-test is done; all LEDs (8, 11) light for a moment,
and all bars in the digital display (7) appear, display shows Set1, Set2 or Set3, followed by 3
beeps.
When power switch is ON, stirrer motor is ready to run.
Act Speed (11) LED lighting, display (7) will show actual speed.
E
2.
Set stirring speed
7
2
5
14
•
•
3.
•
Set required speed with the rotary speed control (2). Act Speed LED (14) lights. Speed appears
in display (7).
To display actual speed, hit Select key (5) several times, until Act Speed LED (14) lights. Speed
appears in display (7).
Heat medium using temperature sensor (Set1 mode)
Connect temperature sensor as described in para. 3 “Set-up“.
3.1 Set nominal temperature
7
3
12
•
•
•
5
Hit Select key (5) several times until Set Temp LED (12) lights.
Display (7) shows temperature selected with rotary temperature control (3); at this point, you may
alter temperature setting with rotary control (3).
Temperature setting will be accepted immediately, confirmed by a beep and “Act Temp“ appears
in the display.
Attempting to lower nominal temperature by an amount exceeding ∆T set will be
reported as error code F6.
Remedy: rise ∆T –value until system temperature has dropped to an acceptable
level.
25
E
3.2 Set safe temperature using ∆T (temperature difference)
Safe temperature is the total of temperature set plus ∆T (temperature cushion). Exceeding this safe
temperature will disconnect your magnetic stirrer for reasons of safety.
4
8
10
9
7
3
13
•
•
•
5
For adjusting ∆T hit Select key (5) several times until Set ∆T (13) LED lights.
Display (7) shows temperature set with rotary temperature control (3). At this point, you may alter
temperature setting with rotary control (3).
Temperature setting will be accepted immediately confirmed by a beep and “Act Temp“ appears
in the display.
3.3 Heating circuit ON / OFF
After having set speed, nominal temperature and ∆T, you may turn the heating circuit ON. At this point
you may double-check set values by hitting the Select key (5) several times. This way, Act Temp; Set
Temp; Set ∆T and Act Speed will appear in the display (7) one after the other.
• We recommend to select Act Temp display all the time.
• Hit the ON/OFF key (4) to turn the heating circuit ON.
• Heater LED (8) is going to light, i.e. system is heating.
• A yellow LED (9) confirms heating current ON.
• A soon as hot plate temperature exceeds 50°C with power switch or heating circuit at OFF, a
RED LED (10) will start to flash.
(also refer to para. 6, residual heat warning)
• Hit the ON/OFF key (4) to turn the heating circuit OFF.
All of the parameters previously set are saved by the built-in memory circuit and
are available at re-start.
26
E
4. Heat medium using 2-station temperature sensor (Set2 mode)
Connect 2-station temperature sensor as described in para. 3 “Set-up“.
For special applications, we recommend a 2-station temperature sensor (refer to picture). This sensor
allows to limit max. temperature of the medium to a certain ∆T from nominal and avoids temperature
overshoot in the medium close to the bath wall. For working with this temperature sensor, please refer to
the following details:
Safety cut-off feature (refer to para. 3.2 “set safe temperature“) is not active.
Heating time may rise at low ∆T.
Medium temperature overshoot might occur at high ∆T due to the inherent
thermal capacity of the heat carrier. If this happens, decrease ∆T.
•
•
Immerse a temperature sensor with white handle (A) (= marked medium) in the medium bath.
Immerse the second temperature sensor with black handle (B) (= marked heat transfer medium
or carrier) in the heat transfer medium.
Use one more holder for this temperature sensor (P/N 509-67000-00).
set-up
including 2-station temperature sensor and heating bath
A
B
Pt 1000 m edium
wiring
2-station temperature sensor
Pt 1000 heat carrier
27
E
4.1 Select two-station temperature sensor control mode
Switch control mode from Set1 to Set2.
1
7
5
11
•
•
•
•
•
•
6
To this end turn power switch (1) OFF
Depress and hold both Select key (5) and on / off key (6), turn power switch (1) ON.
Release both keys
Hit Select key (5) once, Set2 appears in display (7).
Control mode setting will be accepted immediately
Set2 mode ready is confirmed by 3 beeps.
4.2 Setting 2-station temperature sensors
Set nominal temperature ∆T and turn the heating circuit ON as described under para. 3.1, 3.2 and 3.3.
Whenever you replace the 2-station temperature sensor with a “normal“ Pt 1000
sensor (chromium steel or glass sheath), change control mode to Set1 (refer to
para. 4.1 “select 2-station temperature sensor control mode“)
5. Heating in absence of temperature sensor (Set3 mode)
No temperature sensor connected will make the item control hot plate temperature only.
MR 3004 safety is designed as to auto-detect this operational mode (Set3 mode).
1
7
11
•
•
•
5
When turning the power switch (1) ON, Set3 mode detected appears in the display (7).
After 3 beeps and hitting Set key (6), display (7) shows the hot plate temperature with a prefix H;
Act Temp LED(11) lights.
For setting hot plate nominal temperature please refer to para. 3.1 “set nominal temperature“.
Also refer to para. 3.3 “turn heating circuit ON/OFF“.
6. Residual heat indicator
To avoid burns when touching the hot plate, the MR 3004 safety features a residual heat indicator. A
flashing red LED (10) warns you that hot plate temperature still is above 50°C; this safety feature is
available only with the power switch or heater switch in OFF position.
28
E
7.
•
•
Interface connection
Turn the item OFF before connecting an interface cable.
We recommend to use an interface cable with SUB-D 9 connectors (male), use the female
connector (17) located in the item’s rear panel.
17
rear view, MR 3004 safety
Use only the wires shown to avoid malfunction of your interface.
7.1 RS 232 interface
• This interface allows to define nominal temperature
of your samples and nominal speed.
• This interface allows to send OUT actual temperature of your samples and actual speed.
• For wiring details of the SUB-D connector refer to
drawing.
• A dot in the display is going to flash as long as the
interface is active.
RS 232
SUB-D connector
SUB-D
connector
Caution:
Use only the wires shown to avoid malfunction of your interface.
7.1.1 RS 232 interface commands:
trigger
command
REM!
LOC!
H1!
H0!
M1!
M2!
D=xxxx!
TP=xxx!
DP=xxx!
TH=xxx!
action
activate interface
deactivate interface
heating circuit ON
heating circuit OFF
select Set1 mode
select Set2 mode
Set speed
Set temp probe (Set1 & Set2 only)
Set ∆T (Set1 & Set2 only)
Set hot plate temp (Set3 only)
query
command
TP1?
TP2?
TH1?
D?
action
act temp Pt 1000 probe1
act temp Pt 1000 probe2
act temp Pt 100 hot plate1
act speed
7.1.2 Interface parameters
• 19200 baud, no parity, 8 bit, 1 stop bit, no protocol
29
E
7.2 Analog interface 0 – 10V
• The analog interface allows to send OUT actual sample temperature.
• For wiring details of the SUB-D connector refer to
drawing.
• Data sent OUT: 0 °C = 1 V; every 100 °C = 1 V
connector
SUB-D
connector
Caution:
Use only the wires shown to avoid malfunction of your interface.
8. Error messages and remedy
If one of the errors stipulated below is found, the microprocessor turns the MR 3004 safety to OFF.
TRIAC and relay are disconnected by the relay, the heating circuit enters stand-by mode, the error message appears in the display and is confirmed by a beep.
Possible error messages:
F2
Hot plate temperature more than 360 °C
F3
Pt 100 in the hot plate are found beyond logical readings
F4
Difference between Pt100 and hot plate exceeds 30 K
F5
Set1 mode: difference between both of the Pt 1000 exceeds 10 K
F6
Set1 mode: sample temperature overshoot by more than ∆T
F7
Triac broken
F8
Set1; Set2 or Set3 mode once detected has been changed during operation
Set1 mode, Set2 mode: Pt 1000 disconnected or poor contact
Set3 mode: Pt 1000 connected
F10
Processor failure
Turning the power switch ON/OFF will delete all error messages
If error messages F2 to F7 and F10 appear repeatedly, we recommend to have
a skilled technician inspect your item.
30
E
INFORMATION ABOUT USING TEMPERATURE SENSORS
For more information about the function principle of temperature sensors, please refer to items 3 & 4,
para. “operation and controls“
1. How to work with a temperature sensor (Set1 mode)
The temperature covers several mission types.
1.1 Temperature sensor located in reactive substance, no heat transfer substance used
Temperature sensor located in reactive substance,
no heat transfer medium used
120
110
Temperature [°C]
100
90
safety temperature
80
set temperature
70
60
50
medium
40
30
20
Time [min]
Benefits:
Rapidly reaches an exact nominal temperature
Adjustable safety margin
1.2 Temperature sensor in reactive substance, uses heat transfer substance
Temperature sensor in reactive substance,
uses heat transfer medium
120
110
Temperature [°C]
100
90
safety temperature
80
set temperature
70
60
50
heating bath
medium
40
30
20
Time [min]
Benefits:
Exact nominal temperature reached at ease
Adjustable safety margin
-
Limitation:
Allows a heat transfer substance temperature significantly above nominal temperature.
-
31
E
1.3 Temperature sensor in heat transfer substance
Temperature sensor in heat transfer medium
120
110
Temperature [°C]
100
90
safety temperature
80
set temperature
70
60
50
heating bath
medium
40
30
20
Time [min]
Benefits:
Rapidly reaches nominal temperature
Adjustable safety margin
Limitation:
Substance temperature will stabilize on a random level below nominal as a function of temperature
in the heat transfer substance.
-
2.
Use a 2-station temperature sensor (Set2 mode)
2.1 Temperature sensor “substance medium” in the reactive substance, temperature sensor
“heat transfer medium” in the heat transfer substance
Use a 2-station temperature sensor
120
110
Temperature [°C]
100
90
limit max. temperature
80
set temperature
70
60
heating bath
50
medium
40
30
20
Time [min]
Benefits:
Exact nominal temperature reached at ease
No thermal load on thermolabile substances
-
Limitation:
Reaches nominal value slowly
-
32
E
CLEANING & SERVICING
Cleaning: wipe housing clean with a damp cloth (add some sort of mild liquid soap).
Note
To avoid damage to the surface finish, avoid using chlorine bleach, chlorinebased detergents, abrasive substances, ammonia, rags or cleaning agents containing metal particles.
The item is maintenance-free. Repair work is limited to technicians authorized or appointed by Heidolph
Instruments. Please call your local Heidolph Instruments dealer or a Heidolph Instruments field representative (also refer to page 35).
UNINSTALL, FORWARD & STORE
Uninstall
Turn the item OFF and disconnect mains plug.
Forward & Store
1. We recommend to store the item and its components in its original box, or a similar container that
offers adequate protection against damage in transit. Tape the box securely.
2. Store the item in a dry place.
Caution
Do not jolt or shake the item during transport.
DISPOSAL
For disposal, please comply with your local or national regulations.
Split by metal, plastic, etc.
Packing material to be treated as described above (material split).
MALFUNCTION
power switch dim:
• check power supply and power cord
won’t stir:
• no magnetic stir bar in container
• speed control knob in extreme left position (CCW)
• interface not connected as specified (refer to para. 7 “interface connection“)
won’t heat:
• check error messages displayed (refer to para. 8 “error messages and remedy“)
• interface not connected as specified (refer to para. 7 “interface connection“)
F2 - F10 error displayed:
• refer to para. 8 “error messages and remedy“ under “operation & controls“
In case of a malfunction and you cannot repair as described above, contact your authorized Heidolph
Instruments dealer.
33
E
SPECIFICATIONS
stirrer drive
capacitor motor, electronic speed control, thermal circuit breaker
speed range
0 – 1300 rpm
speed control
digital, 4-digit LED display, green
temperature control
electronic temperature control for hot plate and substance temperature, features microprocessor
heating power
600 watts
temperature range, hot plate max 300 °C
hot plate made from
standard: Silumin (aluminum alloy), marked S
chromium steel, marked C
vitrified ceramics, marked G
temperature sensor in hot
plate
2 x Pt 100
temperature range, substance
room temperature ⇒ approx. 250 °C
temperature sensor
temperature sensor Pt 1000 (optional): 2 x Pt 1000, single-station
temperature sensor Pt 1000 (optional): 2 x Pt 1000, 2 separate stations
control hysteresis, substance
< +/- 0.2 K
safety circuits, hot plate
temperature
2 separate safety circuits featuring 2 contactors (triac and relays)
RS 232 serial interface
IN: nominal sample temperature and nominal speed;
OUT: actual sample temperature and actual speed
analog interface (0 – 10 V)
OUT: actual sample temperature
supply voltage
230 volts / 50/60 Hz; others available on request
power dissipation
630 watts
weight
3.0 kg
dimensions (w x d x h)
240 mm x 155 mm x 120 mm
protection class
IP 30
ambient specifications
0 – 40 °C at 80 % rel. humidity
chemical resistance
housing: encapsulating, polyamide coated;
front panel: polyester
34
E
WARRANTY, LIABILITY &
COPYRIGHT
Warranty
Heidolph Instruments warrants that the present
product shall be free from defects in material (except wear parts) and workmanship for 3 years
from the date shipped off the manufacturer’s
warehouse.
Transit damage is excluded from this warranty.
To obtain such warranty service, contact Heidolph
Instruments (phone: +49 – 9122 - 9920-68) or
your local Heidolph Instruments Dealer. If defects
in material or workmanship are found, your item
will be repaired or replaced at no charge.
Misuse, abuse, neglect or improper installation are
not covered by this warranty promise.
Alterations to the present warranty promise need
Heidolph Instruments’ consent in writing.
Exclusion Clause
Heidolph Instruments cannot be held liable for
damage from improper use or misuse. Remedy for
consequential damage is excluded.
Note
You will receive clearance for sending
your defective item to the following address:
Heidolph Instruments GmbH & Co. KG
Lab Equipment Sales
Walpersdorfer Str. 12
D-91126 Schwabach / Germany
Tel.: +49 – 9122 - 9920-68
Fax: +49 – 9122 - 9920-65
E-Mail: [email protected]
Safety Information
When shipping items for repair that may
have been contaminated by hazardous
substances, please:
advise exact substance
take adequate protective action not
to harm our parts receiving and service personnel
mark the pack IAW Hazardous Materials Act
-
Copyright
Copyright in pictures and wording of the present
instruction manual is held by Heidolph Instruments.
QUESTIONS / REPAIR WORK
If any aspect of installation, operation or maintenance remains unanswered in the present manual, please contact us at the following address:
For equipment repairs jobs please call Heidolph
Instruments (phone: +49 – 9122 - 9920-68) or
your local authorized Heidolph Instruments dealer.
CE-DECLARATION OF
CONFORMITY
We herewith declare that the present product
complies with the following standards and harmonized documents:
EMC-guideline:
EN 61326: 1997 + A1:1998 + A2:2001
EN 61000-3-2:2000
EN 61000-3-3:1995
EN 61326: 1997 + A1:1998 + A2:2001
EN 61000-4-2:1995 +A1:1998+A2:2001
EN 61000-4-3:1996 +A1:1998+A2:2001
EN 61000-4-4:1995 +A1:2001
EN 61000-4-5:1995 +A1:2001
EN 61000-4-6:1996 +A1:2001
Low-voltage guideline (73/23/EWG):
EN 61 010-1
EN 61 010-1/A2: 1995
35
01-005-004-39-0
02/04
 Heidolph Instruments GmbH & Co. KG
Technische Änderungen sind ohne vorherige Ankündigung vorbehalten.
Technical changes reserved. Publication not mandatory.
Sous réserve de modifications techniques sans
notification préalable.
Nos reservamos el derecho de introducir modificaciones técnicas sin previo aviso.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
