PCS-G50P

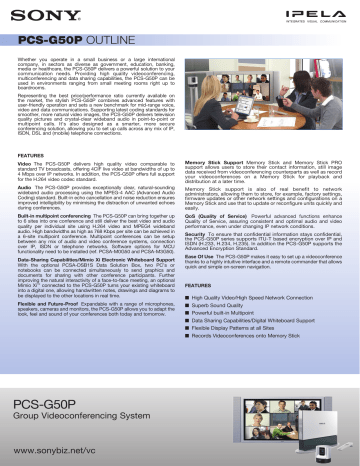

PCS-G50P OUTLINE
Whether you operate in a small business or a large international
company, in sectors as diverse as government, education, banking,
media or healthcare, the PCS-G50P delivers a powerful solution to your
communication needs. Providing high quality videoconferencing,
multiconferencing and data sharing capabilities, the PCS-G50P can be
used in environments ranging from small meeting rooms right up to
boardrooms.
Representing the best price/performance ratio currently available on
the market, the stylish PCS-G50P combines advanced features with
user-friendly operation and sets a new benchmark for mid-range voice,
video and data communications. Supporting latest coding standards for
smoother, more natural video images, the PCS-G50P delivers television
quality pictures and crystal-clear wideband audio in point-to-point or
multipoint calls. It’s also designed as a smarter, more secure
conferencing solution, allowing you to set up calls across any mix of IP,
ISDN, DSL and (mobile) telephone connections.
FEATURES
Video The PCS-G50P delivers high quality video comparable to
standard TV broadcasts, offering 4CIF live video at bandwidths of up to
4 Mbps over IP networks. In addition, the PCS-G50P offers full support
for the H.264 video codec standard.
Memory Stick Support Memory Stick and Memory Stick PRO
support allows users to store their contact information, still image
data received from videoconferencing counterparts as well as record
your videoconferences on a Memory Stick for playback and
distribution at a later time.
Audio The PCS-G50P provides exceptionally clear, natural-sounding
wideband audio processing using the MPEG-4 AAC (Advanced Audio
Coding) standard. Built-in echo cancellation and noise reduction ensures
improved intelligibility by minimising the distraction of unwanted echoes
during conferences.
Memory Stick support is also of real benefit to network
administrators, allowing them to store, for example, factory settings,
firmware updates or other network settings and configurations on a
Memory Stick and use that to update or reconfigure units quickly and
easily.
Built-in multipoint conferencing The PCS-G50P can bring together up
to 6 sites into one conference and still deliver the best video and audio
quality per individual site using H.264 video and MPEG4 wideband
audio. High bandwidths as high as 768 Kbps per site can be achieved in
a 6-site multipoint conference. Multipoint conferences can be setup
between any mix of audio and video conference systems, connection
over IP, ISDN or telephone networks. Software options for MCU
functionality need to be installed (ref. PCSA-M0G50 and PCSA-M3G50).
QoS (Quality of Service) Powerful advanced functions enhance
Quality of Service, assuring consistent and optimal audio and video
performance, even under changing IP network conditions.
Data-Sharing Capabilities/Mimio Xi Electronic Whiteboard Support
With the optional PCSA-DSB1S Data Solution Box, two PC’s or
notebooks can be connected simultaneously to send graphics and
documents for sharing with other conference participants. Further
improving the natural interactivity of a face-to-face meeting, an optional
Mimio Xi™ connected to the PCS-G50P turns your existing whiteboard
into a digital one, allowing handwritten notes, drawings and diagrams to
be displayed to the other locations in real time.
Flexible and Future-Proof Expandable with a range of microphones,
speakers, cameras and monitors, the PCS-G50P allows you to adapt the
look, feel and sound of your conferences both today and tomorrow.
Security To ensure that confidential information stays confidential,
the PCS-G50P series supports ITU-T based encryption over IP and
ISDN (H.233, H.234, H.235). In addition the PCS-G50P supports the
Advanced Encryption Standard.
Ease Of Use The PCS-G50P makes it easy to set up a videoconference
thanks to a highly intuitive interface and a remote commander that allows
quick and simple on-screen navigation.
FEATURES
■ High Quality Video/High Speed Network Connection
■ Superb Sound Quality
■ Powerful built-in Multipoint
■ Data Sharing Capabilities/Digital Whiteboard Support
■ Flexible Display Patterns at all Sites
■ Records Videoconferences onto Memory Stick
PCS-G50P
Group Videoconferencing System
www.sonybiz.net/vc
PCS-G50P SPECIFICATIONS
VIDEO
Signal system
Standards
Resolution
Frame rate
Bit rate
PCS-G50P INTERFACES
PAL
H.261 (Annex D), H.263 (Annex D,F), H.263+
(Annex J), H.263++ (Annex U,W), H.264, MPEG-4
[email protected]
SQCIF (128 x 96, reception only), QCIF (176 x 144),
CIF (352 x 288), 4CIF (704 x 576, H.263 only),
Interlaced SIF (H.263, H.264 only)
Max. 30 frames/s (H.261, H.263, H.263+,
H.263++, H.264, and MPEG-4 [email protected])
Interlaced SIF Mode 50 fields/s)
Up to 384 Kb/s in H.320 (Incl. audio) when
configured with the PCSA-B384S
Up to 768 Kb/s in H.320 (Incl. audio) when
configured with the PCSA-B768S
Up to 2 Mb/s in H.320 (Incl. audio) when
configured with the PCSA-PRI
AUDIO
Bandwidth
and coding
G.711: 3.4 kHz at 56/64 Kb/s
G.722: 7.0 kHz at 48/56/64 Kb/s
G.722.1: 7.0 kHz at 24/32 Kb/s (H.323)
G.728: 3.4 kHz at 16 Kb/s
G.723.1: 3.4 kHz at 5.3/6.3 Kb/s (H.323)
G.729: 3.4 kHz at 8 Kb/s (H.323)
MPEG-4 AAC (mono) 14 kHz at 64/96 Kb/s (H.323)
at 48 Kb/s (H.320)
Echo cancellation Noise Suppressor included
Automatic Gain Control included
Memory Stick
Record audio and video in MPEG4 format onto a
recording
Memory Stick
Audio at 64kbp/s
Video at 64, 128, 256, 384 and 512 kbp/s selectable
GRAPHICS
XGA
4CIF
1024 pixels x 768 lines (H.263), with PCSA-DSB1S
704 pixels x 576 lines (H.261 Annex D and H.263)
PICTURE IN PICTURE
Sub screen size
4.3" (256 x 192), One of four corners
ITU-T STANDARDS (EXCLUDES AUDIO/VIDEO STANDARDS)
H.320, H.323, H.221, Bonding, H.281 FECC, H.225.0, H.233, H.234,
H.235, H.239, H.242, H.243, H.245, T.120
NETWORK PROTOCOLS
TELNET (Server), HTTP (Server), FTP (Server), SNMP (Agent)
DNS (Client), DHCP (Client), RTP/RTCP, TCP/UDP, ARP, SIP
MULTIPOINT CAPABILITIES
Up to 6 sites (H.320/H.323)*
Up to 10 sites (H.320/H.323)**
* Requires optional MCU software. IP/ISDN Bridging is possible.
** Requires optional MCU software. Connections between base units must
be IP (H.323). IP/ISDN Bridging is possible.
LIP SYNCHRONISATION
Manual On/Off
CAMERA UNIT
Image device
Horizontal
resolution
Focal length
Focus
IRIS
Zoom ratio
Pan angle
Tilt angle
Preset
S/N
Others
1/4 type CCD
460 TV lines
3.1 to 31 mm (F1.8 to 2.9)
Auto/Manual
Auto
x10 Optical zoom (x40 with digital zoom)
-100° to +100° (Max. 100°/sec)
-25° to +25° (Max. 125°/sec)
Up to 6 positions
More than 50 dB
Back light compensation
Auto white balance
IR REMOTE COMMANDER
Format
Video
D-Sub 15-pin Dedicated Camera I/F x1
S-video or Composite input x1
(switchable with conversion connector)
S-video output x2 (for main/sub monitor)
Composite output (AUX)
RGB output
Audio
Line input RCA
AUX input RCA (bypassess echo cancellor)
External analog microphone input,
Mini-jack (Plug in power) x2
External digital microphone input x2
Line output RCA x2 (one mixed output)
Network
10Base-T/100Base-TX
External ISDN Unit I/F
Control
SIRCS IR Out x2
Wired SIRCS In (Control-S)
RS-232C
DSB I/F
Dedicated D-Sub 15
RGB I/F
RGB output
Memory Stick
Memory Stick slot
Digital whiteboard Dedicated connector
Dimensions
Unit: mm (inches)
Communication Terminal
254 (10)
66 (2 19⁄32)
420 (16 1⁄2)
Camera Unit
PCSA-CG70P INTERFACES
Video
Terminal
AUX camera
IR for DS150
Dedicated 23-pin
8-pin Mini-DIN
141 (5 5⁄8)
GENERAL
Operating
temperature
Operating humidity
Storage
temperature
Storage humidity
Power
Requirements
Power Consumption
Communication
Terminal Mass
Camera Unit Mass
5 °C to 35 °C
130 (5 1⁄8)
131 (5 1⁄4)
30% to 70%
-20 °C to +55 °C
25% to 75%
AC 220 V to 240 V, 50/60 Hz
Rear Panel
DC 19.5 V, 5 A
5.3 kg (11 lbs 11 oz)
1.0 kg (2 lbs 3 oz)
SYSTEM COMPONENTS
PCS-G50P Communication Terminal
PCSA-CG70P Camera Unit (includes dedicated 3 m camera cable)
PCSA-B768S ISDN Unit (6 BRI)
PCSA-B384S ISDN Unit (3 BRI)
PCSA-DSB1S Data Solution Box
SUPPLIED ACCESSORIES
Remote Commander, AC Adaptor/Power Cord, Omnidirectional
Microphone, IR Repeater x2, Manganese Battery for Remote
Commander x2, Operation Manual CD-ROM (Japanese, English,
French, Spanish, Italian, German, Portugese, Simplified Chinese),
Operation Guide, Quick Connection Guide, Cable Connection Guide,
Worldwide Warranty Booklet, Audio Cable (1.0 m), S-Video Cable
(1.5 m), Mini DIN 7-pin to RCA Conversion Connector
LAN
OPTIONAL ACCESSORIES
Microphones
PCSA-DSB1S
PCSA-B384S
PCSA-B768S
PCSA-PRI
PCSA-M0G50
PCSA-M3G50
PCSA-SP1
PCS-A1
PCSA-A3
PCSA-A7P4
PCSA-CG70P
PCSA-CTG70P
EVI-D70P
EVI-D70P
EVI-D100P
EVI-D100P
PCSA-STMG70
PCSA-STCG70
PCSA-GSTAND1
PCSA-GSTAND2
Monitor Sub
Data Solution Box
ISDN Unit (3 BRI)
ISDN Unit (6 BRI)
Primary Interface Unit
H.320 MCU Software
H.323 MCU Software
SIP Software
Omnidirectional Microphone
Unidirectional Microphone
Echo-cancelling Microphone (4 mics per package)
Communication Secondary Video Camera
Tracking Camera Unit
Communication Video Camera (white)
Communication Video Camera (black)
Communication Video Camera (white)
Communication Video Camera (black)
Codec Stand
Camera Stand
Single screen stand
Dual screen stand
Mimio Xi Electronic Whiteboard
Main Camera
Plasma Display Panel/Projector
Monitor Main
Speaker
IR Reception Unit
External Control
Wireless SIRCS
© 2006 Sony Corporation. All rights reserved. Reproduction in whole or in part without written
permission is prohibited. Features and specifications are subject to change without notice.
All non-metric weights and measures are approximate. Sony and all Sony product names are
trademarks of Sony Corporation. Memory Stick and IPELA are trademarks of Sony Corporation.
All other trademarks are the property of their respective owners. Some images in this brochure
are simulated.
CA PCS-G50P_DataSheet/GB- / /2006
www.sonybiz.net/vc
