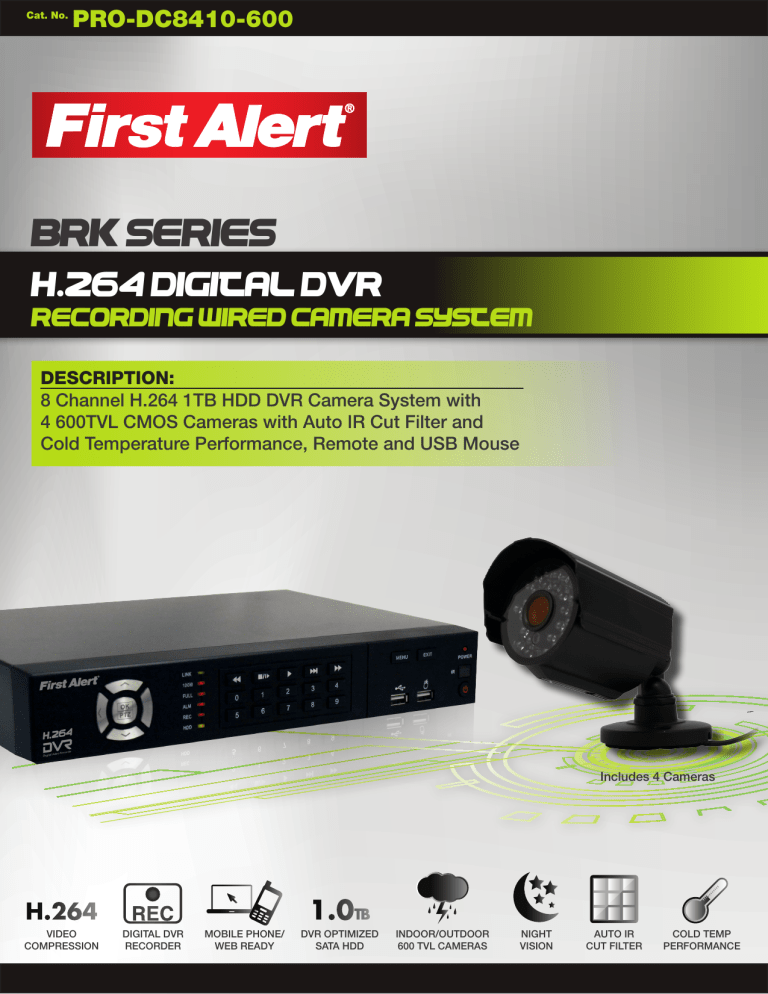

Cat. No.
PRO-DC8410-600
BRK Series
H.264 Digital DVR
Recording Wired Camera System
DESCRIPTION:
8 Channel H.264 1TB HDD DVR Camera System with
4 600TVL CMOS Cameras with Auto IR Cut Filter and
Cold Temperature Performance, Remote and USB Mouse
Includes 4 Cameras
1.0TB
H.264
VIDEO
COMPRESSION
DIGITAL DVR
RECORDER
MOBILE PHONE/
WEB READY
DVR OPTIMIZED
SATA HDD
INDOOR/OUTDOOR
600 TVL CAMERAS
NIGHT
VISION
AUTO IR
CUT FILTER
COLD TEMP
PERFORMANCE
Cat. No.
PRO-DC8410-600
BRK Series
H.264 Digital DVR
Recording Wired Camera System
CONTENTS:
1 1TB H.264 Web-Ready DVR System
4 Wired Indoor/Outdoor 600TVL Cameras
1 Power Supply (Cameras and DVR)
4 Camera Stands with Mounting Kits
4 60ft. AV BNC/DC Power Cables
1 Remote Control
1 USB 2.0 Mouse
1
1
2
1
1
1
Splitter Cable
6’ Ethernet Cable
Window Warning Decals
Quick Install Guide
Manual (pdf only)
Installation CD
Front Panel
Back Panel
Product Specifications
General
Operating Power
Power Consumption
Operating Temp
Dimensions (DVR)
Dimensions (Camera & Stand)
Cable Length
Cable Type
Remote Control
Mouse
Backup
Multi-view Mode
Simultaneous Operations
DC 12V
6W without HDD/Average HDD during Read/Write 6W, 2A max on startup typical
14 °F to 122 °F (-10 °C to 50°C)
2.4”H x 11.8”W x 9.6”D
3.25”H x 2.88”W x 6.25”D
60ft. per camera
AV BNC/DC Power
Included
USB 2.0 Included
USB Port
8 Channel: 1/4/8
Real hexaplex operation - record, playback, mobile phone live view, backup, control, & remote access
Camera
Power Supply/Consumption
DC 12V/ 225mA (IR ON)
Operating Temp
-22°F to +122°F ( -30°C to +50°C)
Image Sensor
1/4” CMOS (NTSC)
IR Cut Filter
Automatic
Lens6mm
Horizontal Resolution
600 TV Lines
View Angle
62 degrees
Number of Effective Pixels
NTSC - 656 x 492
Indoor/OutdoorBoth
Weather Resistant Rating
IP66
White Balance
Auto
Signal/Noise Ratio
> 48dB (AGC Off)
Gain Control
Auto
Backlight Compensation
Auto
Minimum Illuminance
0 Lux (IR on)
Gamma Characteristics
0.45
Shutter Speed
1/60 - 1/100,000 second
Infrared Wave length
850nm
AudioNo
ColorYes
Night Vision
Number of infrared LED’s
Distance
DVR
Compression Format
Video Format
Video In
Video Out
Audio Input
Audio Output
VGA Output Supported
Recording Resolution
Recording Frame Rate
Recording Modes
DVR Storage Capacity
HDD Interface/Memory Type
USB Port
LAN Port
Alarm/Sensor Connection
PTZ Camera Connection
Remote Access
BNC 8-Channel, impedance 75Ω
1 BNC & 1 VGA
8 RCA inputs, impedance 600Ω
1 RCA
800 x 600, 1024 x 768, 1280 x 1024, 1366 x 768, 1440 x 900
D1/HD1/CIF
NTSC 480 chipset: up to 420 fps
Manual/Schedule/Motion
1TB included
DVR Optimized SATA, up to 2TB
Yes
Yes, 6’ Ethernet Cable included
8 Inputs/1 output
RS485, Supports PELCO-P & D
Internet Explorer/MacOS X
Shipping Specifications
Individual Carton
Dimensions Weight Cube UPC
Master Carton
Dimensions Master Pack
Weight Cube I2of5
14.25”L x 7.25”W x 15.75”H
15.5 lbs.
0.94 ft3
0 29054 01101 5
16.00”L x 15.00”W x 17.00”H
2
32.9 lbs.
2.36 ft3
200 29054 01101 9
Pallet Information
Cases per layer Number of Layers Cases per Pallet Units per Pallet
Cube
Weight
6
3
18
36
46.7 ft3
658 lbs.
36
80 to 98 ft. (25m to 30m)
©2012 BRK Brands, Inc.
H.264 Video/ADPCM Audio
NTSC & PAL
First Alert is a registered trademark of the First Alert Trust
BRK is a registered trademark of BRK Brands, Inc.
CM3146
a Jarden Corporation Company (NYSE:JAH)
3901 Liberty Street Road, Aurora, IL 60504-8122
Phone: 630-851-7330 Tech Services: 800-323-9005
