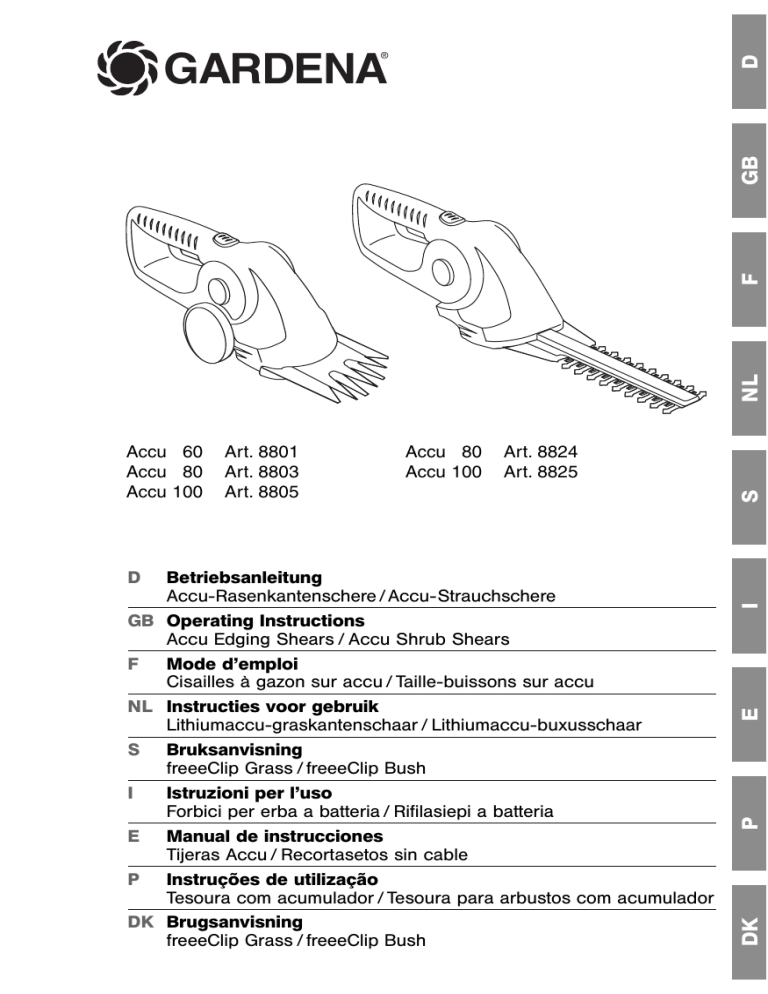

GARDENA
Art. 8801
Art. 8803
Art. 8805
Accu 80
Accu 100
Art. 8824
Art. 8825
P
E
I
D
DK
Betriebsanleitung
Accu-Rasenkantenschere / Accu-Strauchschere
GB Operating Instructions
Accu Edging Shears / Accu Shrub Shears
F
Mode d’emploi
Cisailles à gazon sur accu / Taille-buissons sur accu
NL Instructies voor gebruik
Lithiumaccu-graskantenschaar / Lithiumaccu-buxusschaar
S Bruksanvisning
freeeClip Grass / freeeClip Bush
I
Istruzioni per l’uso
Forbici per erba a batteria / Rifilasiepi a batteria
E Manual de instrucciones
Tijeras Accu / Recortasetos sin cable
P Instruções de utilização
Tesoura com acumulador / Tesoura para arbustos com acumulador
DK Brugsanvisning
freeeClip Grass / freeeClip Bush
S
Accu 60
Accu 80
Accu 100
GARDENA Edging Accu Shears /
Accu Shrub Shears
Translation of the original instructions from German.
Please read these operating instructions carefully and observe
the information they contain. Use these operating instructions to
familiarise yourself with the GARDENA Accu Shears, their proper
use and the notes on safety.
For safety reasons, children under the age of 16 as well as
people, who are not familiar with the operating instructions,
should not use these Accu Shears.
v Please keep these instructions in a safe place.
Contents
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Where to use Your GARDENA Accu Shears . . . . . . . . . . . . . . . . . 11
Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Initial Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Operating Your Accu Shears . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Putting into Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Technical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Service / Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
1. Where to use Your GARDENA Accu Shears
Intended Use
Edging Accu Shears :
The GARDENA Edging Accu Shears have been designed for
cutting the edges of lawns and small areas of grass in private
ardens / hobby areas.
Intended Use
Accu Shrub Shears :
The GARDENA Accu Shrub Shears are intended for cutting
individual bushes, shrubs and climbing plants in private domestic
and hobby gardens.
DANGER !
Risk of injury !
Due to the risk of injury, the Accu Shears with Shrub
Shears Cutting Blade Art. 5378 must not be used for
cutting grass / grass edges.
2. Safety instructions
v Please read the notes on safety for your Accu Shears.
WARNING !
Please read the operating
instructions before using
this tool.
DANGER !
Cutting tool continues to
run after switching off !
WARNING !
Do not use in rain or wet
conditions.
WARNING !
Keep bystanders
away.
11
GB
Welcome to the Garden of GARDENA...
GB
Initial Operation
v Inspect these Accu Shears before every use.
v Never disable the safety devices.
Do not use these Shears if the safety devices
and / or the blades have been damaged or are
worn out.
Proper Use
v Only use the Accu Shears for the purposes
specified in these instructions.
WARNING !
Personal Injury and Damage
to Property !
v The Accu Shears are not
intended for cutting hedges
or chopping material up for
composting.
Work Clothes
v Do not wear loosely hanging clothes or
jewellery etc. They could become caught
in the machine.
v Wear gloves, sturdy shoes and long trousers
to protect your legs.
Working Area
You are responsible for the safety of the
working area.
v Make sure that there are no other people
(especially children) or animals anywhere
near the working area.
Area to be Cut
v Inspect the area to be cut before beginning.
Remove any objects from the area.
v Look for objects while you are working.
v If you should come across any obstacles
when cutting, turn off the shears by
releasing the start button.
Operating Your Accu Shears
WARNING !
Personal Injury and Damage !
v Keep your hands and feet away
from the cutting tool, especially
when the Accu Shears are
switched on !
V Never switch on the Accu
Shears while you are adjusting
the cutting head.
v If the cutting blades become blocked,
switch off the shears immediately (release
12
the switch on button and remove the object
(thick branch or another object) using a
blunt device.
Charging the Accu
FIRE RISK !
V Never charge the Accu
Shears near acids or easily
inflammable materials.
Only use the original GARDENA Battery
Charger for charging. The use of other
battery chargers may damage the batteries
irreparably and even cause a fire.
The charging cable should be checked
regularly for signs of damage or ageing
(brittleness) and should only be used if
it is in perfect condition.
Non-rechargeable batteries must not be
charged with this battery charger (danger
of fire).
The Accu Shears must not be operated while
the battery is charging.
Only charge battery between 10 – 45 °C.
After prolonged use allow battery to cool
down first.
Working Conditions
RISK OF EXPLOSION !
V Protect Accu Shears from
heat and fire.
Do not leave on radiators or expose to
strong sunshine for long periods.
Only use Accu Shears in an ambient
temperature between −10 °C and + 45 °C.
Only work when visibility is good.
Be particularly careful when walking backwards. You might stumble !
v When working ensure you adopt a sturdy
stance.
Interrupting Your Work
v Never leave the Accu Shears un-attended
at the working area. If you should interrupt
your work, store the Shears in a safe place.
v If you interrupt your work to move to another
working area, you must switch off the Accu
Shears until you reach the new working area
(release the start button.
v Never use your Accu Shears when it is
raining or in a damp, wet area.
v When transporting the Accu Shears always
cover the blade with the blade guard.
Storage :
The Accu Shears must not be stored over
35 °C or under direct exposure to sunlight.
Do not store the Accu Shears in places with
static electricity.
Fitting / Removing
the Wheels :
GB
3. Assembly
The wheels are only included with the lawn edging shears.
(These can be ordered subsequently via GARDENA Service).
Fitting the Wheels :
v Push the wheels A into the Accu Shears from below until both
catches B click into place.
B
Removing the Wheels :
v Press both wheels A together on the underside of the Accu
Shears and remove.
A
Fitting / Removing the
Telescopic Swivel Handle :
The GARDENA Telescopic Swivel Handle Art. No. 8817 (available
as an accessory) can be mounted in 45° steps from 90° to -90°.
Fitting the Telescopic Swivel Handle :
v Guide the swivel handle 1 at the desired angle into the handle
holder of the Accu Shears until the lock engages.
Removing the Telescopic Swivel Handle :
v Press the release button 2 and pull out the swivel handle.
1
2
The starting lockout and ON button on the Accu Shears no
longer function when the swivel handle is mounted.
For assembly of blades see 8. Troubleshooting “Replacing the
Cutting Blades”.
4. Initial Operation
Charging the Accu :
The battery should be fully charged before using for the first time.
Charging time (with flat battery) : Accu 60 approx. 5 hrs, Accu 80
approx. 6 hrs, Accu 100 approx.7 hrs.
The lithium-ion battery can be re-charged in any state of charge,
and the charging process can be interrupted at any time without
damaging the battery (no memory effect).
A
4
3
WARNING !
Incorrect mains voltage damages batteries and the
battery charger.
V Ensure the correct mains voltage.
1. Insert charging cable
Shears.
3 into charging socket 4 of Accu
2. Plug battery charger into a mains socket.
During charging socket 4 lights up red.
The battery is being charged.
When the charging socket
is fully charged.
4 no longer lights up red, the battery
13
3. First remove the charging cable 3 from the charging socket
and then unplug the battery charger from the mains socket.
4
GB
3
4
When there is a sharp fall in the power of the Accu Shears, the
battery needs to be charged. Do not wait until the blade comes
to an absolute stop.
If the charging socket flashes red during charging, a fault has
occurred (see 8. Troubleshooting).
5. Operating Your Accu Shears
WARNING !
Risk of Injury !
There is a risk of injury if the switching devices installed
on the Shears are removed or bridged (e.g. by fastening the
on switch to the handle). This prevents the Accu Shears
switching off automatically.
V Never remove or bridge the switching devices.
The starting lockout prevents your GARDENA Accu Shears from
being switched on unintentionally.
Cutting Grass / Bushes
and Shrubs :
1. Edging Accu Shears : Clear the area to be cut of stones and
other solid objects and remove the blade guard 6 from the
cutting blade.
Accu Shrub Shears : Remove the blade guard 6 from the
cutting blade.
2. Ergonomic design :
Press the cutting head
7 and adjust the handle
to the desired angle.
9 8
9 8
3. Cutting :
Disengage the starting
lockout 8 by pushing
it forwards and press the
ON button 9. Release
the starting lockout 8 again.
7
6
Cutting with the Telescopic
Swivel Handle :
8
The GARDENA Telescopic Swivel Handle Art. No. 8817 for the
Accu Shears can be mounted in 45° steps (see 3. Assembly). The
swivel handle is fully height adjustable (85 – 120 cm) and can be
adapted to suit your height.
1. Attach the Telescopic Swivel Handle (see 3. Assembly).
9
0
14
2. Loosen the adjusting bolt
0.
3. Set the handle to the correct length and tighten the adjusting
bolt 0.
4. Disengage the starting lockout
press the ON button 9.
5. Release the starting lockout
8 by pushing it forwards and
8 again.
6. Putting into Storage
Storage / Overwintering :
Store your Accu Shears out of the reach of children.
GB
1. Clean the Accu Shears and oil the blades
(See 7. Maintenance).
2. Cover the blades with sheath for storage.
3. Charging the battery (see 4. Initial Operation).
4. Store Shears in a cool, dry place where they are protected
from frost.
Disposal :
The product must not be added to normal household waste. It
must be disposed of in line with local environmental regulations.
(in accordance with
RL2002 / 96 / EC)
Disposal of
batteries :
The GARDENA Accu Shears contains lithium-ion cells that should
not be discarded with normal household waste at the end of their
life.
Li-ion
Please return the lithium-ion cells to your GARDENA dealer or
dispose of them properly at a public recycling centre.
1. Discharge lithium-ion cells completely.
2. Dispose of lithium-ion cells properly.
7. Maintenance
DANGER !
Risk of Injury !
Blades can cause injury.
v Do not push the safety lock of the Accu Shears forwards
during maintenance work.
WARNING !
Personal Injury and
Damage to Property !
There is a risk of personal injury and damage to the Shears
if you clean them under running water (especially under
high pressure).
v Never clean your Shears under running water.
Sharpening the Blades :
To obtain good cutting results, the blades should be cleaned
thoroughly from time to time and should always be sharp.
Always remove notches and burrs caused by stones etc.
immediately.
1. Remove the blades (see 8. Troubleshooting, “Replacing
Cutting Blades” ).
2. Separate the upper blade
C and lower blade D.
3. Remove any grass and dirt between the upper and lower
blades.
4. Sharpen the blades using a sharpening stone.
C
D
5. Fit the blades (see 8. Troubleshooting, “Replacing Cutting
Blades” ).
15
Cleaning the Accu Shears
and Oiling the Blades :
To increase the cutting performance and operating life of your
Accu Shears, you should clean and oil them both before and
after every use.
1. Clean your Accu Shears with a damp cloth.
GB
2. Oil the cutting blades with GARDENA Cleaning Spray
Art. No. 2366 or sewing machine oil, for example.
8. Troubleshooting
Blades can cause serious injury.
v Do not push the safety lock of the Accu Shears
forwards when rectifying faults.
DANGER !
Risk of Injury !
Replacing the Cutting
Blades :
If the Accu Shears do not cut cleanly even after thorough cleaning,
the cutting blades are defective and must be replaced with new
ones.
E
Please only use original GARDENA Accu Shears Cutting
Blades .
Edging Shears blade set
Shrub Shears blade set
Accu 60 / 80
Accu 100
Accu 80 / 100
Art.-No. 2345
Art.-No. 2346
Art.-No. 5378
1. Remove the wheels (see 3. Assembly).
E F
D
2. Press both catches E simultaneously and push the runner
all the way forwards.
3. Open the runner
F and remove the blade set G.
4. Clean the area around the gears and coat the gear wheels
with acid-free grease (Vaseline).
F
G
D
5. Insert the blade set
6. Push the runner
engage again.
Changing the Accus :
A
I
H
F
G and close the runner F.
all the way back until both catches
Risk of short circuit, Risk of fire.
V The contacts of the accu must not touch metallic
parts.
1. Loosen screw
2. Remove cover
H.
I.
3. Remove accus.
4. Pull cable receptacles
J off accu pack.
5. Install new accus in reverse order.
J
16
E
F
During charging socket
flashes red :
A fault has occurred during charging.
v Unplug and reinsert charging cable.
The fault will be reset.
If this does not eliminate the fault, please contact GARDENA
Service.
A
GB
The batteries are replaceable. Should you require a new battery,
please contact GARDENA Service.
In the event of other faults please also get in touch with GARDENA Service. Repairs
should only be carried out by GARDENA service centres or dealers authorised by
GARDENA.
9. Accessories
Telescopic Swivel Handle
Suitable for all GARDENA Accu Shears
Art. No. 8817
Blades for Edging Shears
Accu 60 / Accu 80 (Cutting width 8 cm)
Art.-No. 2345
Blades for Edging Shears
Accu 100 (Cutting width 10 cm)
Art.-No. 2346
Blades for Shrub Shears
Accu 80 / Accu 100
Art.-No. 5378
Wheels
Suitable for all GARDENA Accu Shears
obtainable via
GARDENA Service
Spare battery
For Accu 60 / Accu 80 / Accu 100
obtainable via
GARDENA Service
10. Technical Data
Accu Edging Shears
Accu Shrub Shears
Accu 60
Art. 8801
Accu 80
Art. 8803
Accu 100
Art. 8805
Accu 80
Art. 8824
Accu 100
Art. 8825
Battery
à 3,6 V= 3.6 V
à 3.6 V= 7.2 V
à 3.6 V= 10.8 V à 3.6 V= 7.2 V à 3.6 V= 10.8 V
Battery capacity
1 Li-ion 1,1Ah
2 Li-ion 1,1Ah
3 Li-ion 1,1Ah
2 Li-ion 1,1Ah 3 Li-ion 1,1Ah
Battery charging time
approx. 5 hrs
approx. 6 hrs
approx. 7 hrs
approx. 6 hrs approx. 7 hrs
Mains voltage
230 V / 50 Hz
230 V / 50 Hz
230 V / 50 Hz
230 V / 50 Hz 230 V / 50 Hz
Rated output current
130 mA
130 mA
130 mA
130 mA
130 mA
Max. output voltage
20 V (DC)
20 V (DC)
20 V (DC)
20 V (DC)
20 V (DC)
Running time (with fully
charged accu)
approx.
60 min
approx.
80 min
approx.
100 min
approx.
80 min
approx.
100 min
Cutting performance
approx.1100 m approx.1400 m approx.1500 m
Lawn blade
8 cm cutting
width
8 cm cutting
width
10 cm cutting
width
20 cm cutting
length
20 cm cutting
length
Weight
approx. 850 g
approx. 900 g
approx. 950 g
approx. 1000 g approx. 1050 g
Working area related emission
characteristic value L pA 1)
78 dB (A)
78 dB (A)
82 dB (A)
Battery charger
17
Accu Edging Shears
Accu 60
Art. 8801
Accu 80
Art. 8803
Noise level L WA 2)
GB
Hand / Arm vibrations a vhw 1)
< 2,5 m / s 2
< 2,5 m / s 2
Accu Shrub Shears
Accu 100
Art. 8805
Accu 80
Art. 8824
Accu 100
Art. 8825
measured:
guaranteed :
77 dB (A)
79 dB (A)
73 dB (A)
75 dB (A)
< 2,5 m / s 2
< 2,5 m / s 2
< 2,5 m / s 2
Measuring method according to 1) prEN 50260 -1 2) RL 2000 / 14 / EG
11. Service / Warranty
GARDENA guarantees this product for 2 years (from date of
purchase). This guarantee covers all serious defects of the unit
that can be proved to be material or manufacturing faults. Under
warranty we will either replace the unit or repair it free of charge if
the following conditions apply :
• The unit must have been handled properly and in keeping
with the requirements of the operating instructions.
• Neither the purchaser nor a non-authorised third party have
attempted to repair the unit.
The Trimmer Blades are wearing parts and are not covered by the
guarantee.
This manufacturer’s guarantee does not affect the user’s existing
warranty claims against the dealer / seller.
If a fault occurs with your Edging Accu Shears, please return the
faulty unit together with the receipt and a description of the fault,
with postage paid to the address of the Service Centre on the
back of these operating instructions.
18
D
Produkthaftung
Wir weisen ausdrücklich darauf hin, dass wir nach dem Produkthaftungsgesetz nicht für durch unsere Geräte hervorgerufene Schäden einzustehen haben, sofern diese durch unsachgemäße Reparatur verursacht
oder bei einem Teileaustausch nicht unsere Original GARDENA Teile oder
von uns freigegebene Teile verwendet werden und die Reparatur nicht
vom GARDENA Service oder dem autorisierten Fachmann durchgeführt
wird. Entsprechendes gilt für Ergänzungsteile und Zubehör.
G
Product Liability
We expressly point out that, in accordance with the product liability law,
we are not liable for any damage caused by our units if it is due to improper repair or if parts exchanged are not original GARDENA parts
or parts approved by us, and, if the repairs were not carried out by a
GARDENA Service Centre or an authorised specialist. The same applies
to spare parts and accessories.
F
Responsabilité
Nous vous signalons expressément que GARDENA n’est pas responsable des dommages causés par ses appareils, dans la mesure où ces
dommages seraient causés suite à une réparation non conforme, dans la
mesure où, lors d’un échange de pièces, les pièces d’origine GARDENA
n’auraient pas été utilisées, ou si la réparation n’a pas été effectuée par
le Service Après-Vente GARDENA ou l’un des Centres SAV agréés
GARDENA. Ceci est également valable pour tout ajout de pièces et d’accessoires autres que ceux préconisés par GARDENA.
N
Productaansprakelijkheid
Wij wijzen er nadrukkelijk op, dat wij op grond van de wet aansprakelijkheid voor producten niet aansprakelijk zijn voor schade ontstaan door onze
apparaten, indien deze door onvakkundige reparatie veroorzaakt zijn, of er
bij het uitwisselen van onderdelen geen gebruik gemaakt werd van onze
originele GARDENA onderdelen of door ons vrijgegeven onderdelen en de
reparatie niet door de GARDENA technische dienst of de bevoegde vakman uitgevoerd werd. Ditzelfde geldt voor extra-onderdelen en accessoires.
S
Produktansvar
Tillverkaren är inte ansvarig för skada som orsakats av produkten om
skadan beror på att produkten har reparerats felaktigt eller om, vid reparation eller utbyte, andra än Original GARDENA reservdelar har använts.
Samma sak gäller för kompletteringsdelar och tillbehör.
I
Responsabilità
del prodotto
Si rende espressamente noto che, conformemente alla legislazione sulla
responsabilità del prodotto, non si risponde di danni causati da nostri articoli se originati da riparazioni eseguite non correttamente o da sostituzioni
di parti effettuate con materiale non originale GARDENA o comunque da
noi non approvato e, in ogni caso, qualora l’intervento non venga eseguito
da un centro assistenza GARDENA o da personale specializzato autorizzato. Lo stesso vale per le parti complementari e gli accessori.
E
Responsabilidad
de productos
Advertimos que conforme a la ley de responsabilidad de productos no nos
responsabilizamos de daños causados por nuestros aparatos, siempre
y cuando dichos daños hayan sido originados por arreglos o reparaciones
indebidas, por recambios con piezas que no sean piezas originales
GARDENA o bien piezas autorizadas por nosotros, así como en aquellos
casos en que la reparación no haya sido efectuada por un Servicio Técnico GARDENA o por un técnico autorizado. Lo mismo es aplicable para
las piezas complementarias y accesorios.
P
Responsabilidade
sobre o produto
Queremos salientar que segundo a lei da responsabilidade do fabricante,
nós não nos responsabilizaremos por danos causados pelo nosso equipamento, quando estes ocorram em decorrência de reparações inadequadas
ou da substituição de peças por peças não originais da GARDENA, ou peças não autorizadas. A responsabilidade tornar-se-à nula também depois
de reparações realizadas por oficinas não autorizadas pela GARDENA.
Esta restrição valerá também para peças adicionais e acessórios.
K
Produktansvar
Vi gør udtrykkeligt opmærksom på at i henhold til produktansvarsloven
er vi ikke ansvarlige for skader forårsaget af vores udstyr, hvis det skyldes
uautoriserede reparationer eller hvis dele er skiftet ud og der ikke er anvendt originale GARDENA dele eller dele godkendt af os, eller hvis reparationerne ikke er udført af GARDENA-service eller en autoriseret fagmand.
Det samme gælder for ekstra udstyr og tilbehør.
75
D
EU-Konformitätserklärung
MaschinenVerordnung (9. GSGVO) / EMVG / Niedersp. RL
Der Unterzeichnete GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm, bestätigt, dass das nachfolgend bezeichnete Gerät in der von
uns in Verkehr gebrachten Ausführung die Anforderungen der harmonisierten
EU-Richtlinien, EU-Sicherheitsstandards und produktspezifischen Standards
erfüllt. Bei einer nicht mit uns abgestimmten Änderung des Gerätes verliert
diese Erklärung ihre Gültigkeit.
G
EU Certificate of Conformity
F
Certificat de conformité aux directives européennes
The undersigned GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm, hereby certifies that, when leaving our factory, the unit indicated
below is in accordance with the harmonised EU guidelines, EU standards of
safety and product specific standards. This certificate becomes void if the unit
is modified without our approval.
Le constructeur, soussigné :
GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40, D-89079 Ulm,
déclare qu’à la sortie de ses usines le matériel neuf désigné ci-dessous était
conforme aux prescriptions des directives européennes énoncées ci-après et
conforme aux règles de sécurité et autres règles qui lui sont applicables dans
le cadre de l’Union européenne. Toute modification portée sur ce produit sans
l’accord express de GARDENA supprime la validité de ce certificat.
N
EU-overeenstemmingsverklaring
Ondergetekende GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm, bevestigt, dat het volgende genoemde apparaat in de door ons
in de handel gebrachte uitvoering voldoet aan de eis van, en in overeenstemming is met de EU-richtlijnen, de EU-veiligheidsstandaard en de voor het product specifieke standaard. Bij een niet met ons afgestemde verandering aan
het apparaat verliest deze verklaring haar geldigheid.
S
EU Tillverkarintyg
Undertecknad firma GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm, intygar härmed att nedan nämnda produkter överensstämmer
med EU:s direktiv, EU:s säkerhetsstandard och produktspecifikation. Detta
intyg upphör att gälla om produkten ändras utan vårt tillstånd.
I
Dichiarazione di conformità alle norme UE
La sottoscritta GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm, certifica che il prodotto qui di seguito indicato, nei modelli da
noi commercializzati, è conforme alle direttive armonizzate UE nonché agli
standard di sicurezza e agli standard specifici di prodotto. Qualunque modifica
apportata al prodotto senza nostra specifica autorizzazione invalida la presente
dichiarazione.
E
Declaración de conformidad de la UE
El que subscribe GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm, declara que la presente mercancía, objeto de la presente declaración, cumple con todas las normas de la UE, en lo que a normas técnicas, de homologación y de seguridad se refiere. En caso de realizar cualquier
modificación en la presente mercancía sin nuestra previa autorización, esta
declaración pierde su validez.
P
Certificado de conformidade da UE
Os abaixo mencionados GARDENA Manufacturing GmbH, Hans-LorenserStr. 40, D-89079 Ulm, por este meio certificam que ao sair da fábrica o aparelho abaixo mencionado está de acordo com as directrizes harmonizadas da
UE, padrões de segurança e de produtos específicos. Este certificado ficará
nulo se a unidade for modificada sem a nossa aprovação.
K
EU Overensstemmelse certificat
Undertegnede GARDENA Manufacturing GmbH, Hans-Lorenser-Str. 40,
D-89079 Ulm bekræfter hermed, at enheder listet herunder, ved afsendelse
fra fabrikken, er i overensstemmelse med harmoniserede EU retningslinier,
EU sikkerhedsstandarder og produktspecifikationsstandarder. Dette certifikat
træder ud af kraft hvis enhederne er ændret uden vor godkendelse.
76
Bezeichnung des Gerätes :
Accu-Rasenkantenscheren /
Accu-Strauchschere
Edging Accu Shears /
Accu Shrub Shears
Désignation du matériel :
Cisailles à gazon sur accu /
Taille-buissons sur accu
Omschrijving van het apparaat : Lithiumaccu-graskantenschaar /
Lithiumaccu-buxusschaar
Produktbeskrivning :
freeeClip Grass /
freeeClip Bush
Descrizione del prodotto :
Forbici a batteria Accu /
Cesoie a batteria
Descripción de la mercancía :
Tijeras Accu /
Recortasetos sin cable
Descrição do aparelho :
Tesoura com Acumulator /
Tesoura para arbustos com
acumulador
Beskrivelse af enhederne :
freeeClip Grass /
freeeClip Bush
Description of the unit :
Typ :
Type :
Type :
Typ :
Typ :
Modello :
Tipo :
Tipo :
Type :
Accu 60
Accu 80
Accu 100
Art.-Nr.:
Art. No.:
Référence : 8801
Art. nr.:
8803
Art.nr. :
8805
Art. :
8824
Art. Nº:
8825
Art. Nº:
Varenr. :
EU-Richtlinien :
EU directives :
Directives européennes :
EU-richtlijnen :
EU direktiv :
Direttive UE :
Normativa UE :
Directrizes da UE :
EU Retningslinier :
98 / 37 / EC :1998
2006 / 42 / EC : 2006
2004 / 108 / EC
2006 / 95 / EC*
93 / 68 / EC
Art. 8824 / 8825
2000 /14 / EG
Schall-Leistungspegel :
Noise level :
Puissance acoustique :
Geluidsniveau :
Ljudnivå :
Livello rumorosità :
Nivel sonoro :
Nível de ruido :
Lydtryksniveau :
gemessen / garantiert
measured / guaranteed
mesurée / garantie
gemeten / gegarandeerd
uppmätt / garanterad
testato / garantito
medido / garantizado
medido / garantido
afmålt / garanti
Art. 8824
Art. 8825
77 dB (A) / 79 dB (A)
73 dB (A) / 79 dB (A)
Ladegerät*, Charging Unit*
Chargeur*, Netstroomadapter*
Laddare*, Unità di ricarica
Terminal de recarga* Carregador*
Anbringungsjahr der CE-Kennzeichnung :
Year of CE marking :
Date d’apposition du marquage CE :
Installatiejaar van de CE-aanduiding :
CE-Märkningsår :
Anno di rilascio della certificazione CE :
Colocación del distintivo CE :
Ano de marcação pela CE :
CE-Mærkningsår :
Ulm, den 01.07.2006
Ulm, 01.07.2006
Fait à Ulm, le 01.07.2006
Ulm, 01-07-2006
Ulm, 2006.07.01.
Ulm, 01.07.2006
Ulm, 01.07.2006
Ulm, 01.07.2006
Ulm, 01.07.2006
2006
Peter Lameli
Technische Leitung
Technical Dept. Manager
Direction technique
Hoofd technische dienst
Technical Director
Direzione Tecnica
Dirección Técnica
Director Técnico
Teknisk direktør
Deutschland / Germany
GARDENA
Manufacturing GmbH
Central Service
Hans-Lorenser-Straße 40
D-89079 Ulm
Produktfragen:
(+ 49) 731 490 - 123
Reparaturen:
(+ 49) 731 490 - 290
[email protected]
Argentina
Husqvarna Argentina S.A.
Vera 745
(C1414AOO) Buenos Aires
Phone: (+ 54) 11 4858-5000
[email protected]
Australia
Husqvarna Australia Pty. Ltd.
Locked Bag 18
Gosford NSW 2250
Phone: (+ 61) (0) 2 4372 1500
[email protected]
husqvarna.com.au
Austria / Österreich
Husqvarna Austria GmbH
Consumer Products
Industriezeile 36
4010 Linz
Tel. : (+ 43) 732 77 01 01 - 90
[email protected]
husqvarna.at
Belgium
GARDENA Belgium NV/ SA
Sterrebeekstraat 163
1930 Zaventem
Phone: (+ 32) 2 7 20 92 12
Mail: [email protected]
Brazil
Palash Comércio e
Importação Ltda.
Rua São João do Araguaia, 338
– Jardim Califórnia –
Barueri – SP - Brasil –
CEP 06409 - 060
Phone: (+ 55) 11 4198 - 9777
[email protected]
Bulgaria
Хускварна България ЕООД
1799 София
Бул. „Андрей Ляпчев” Nº 72
Тел.: (+ 359) 2 80 99 424
www.husqvarna.bg
Canada
GARDENA Canada Ltd.
100 Summerlea Road
Brampton, Ontario L6T 4X3
Phone: (+1) 905 792 93 30
[email protected]
Chile
Antonio Martinic y Cia Ltda.
Cassillas 272
Centro de Cassillas
Santiago de Chile
Phone: (+ 56) 2 20 10 708
[email protected]
Costa Rica
Compania Exim
Euroiberoamericana S.A.
Los Colegios, Moravia,
200 metros al Sur del Colegio
Saint Francis - San José
Phone: (+ 506) 297 68 83
[email protected]
Croatia
KLIS d.o.o.
Stanciceva 79
10419 Vukovina
Phone: (+ 385) 1 622 777 0
[email protected]
80
Cyprus
FARMOKIPIKI LTD
P.O. Box 7098
74, Digeni Akrita Ave.
1641 Nicosia
Phone: (+ 357) 22 75 47 62
[email protected]
Czech Republic
GARDENA spol. s r.o.
Tuшanka 115
627 00 Brno
Phone: (+ 420) 548 217 777
[email protected]
Denmark
GARDENA
Husqvarna Consumer Outdoor
Products
Salgsafdelning Danmark
Box 9003
S-200 39 Malmö
[email protected]
Estonia
Husqvarna Eesti OÜ
Consumer Outdoor Products
Kesk tee 10, Aaviku küla
Rae vald, Harju maakond
75305
[email protected]
Finland
Oy Husqvarna Ab
Consumer Outdoor Products
Lautatarhankatu 8 B / PL 3
00581 HELSINKI
[email protected]
France
GARDENA France
Immeuble Exposial
9 - 11 allée des Pierres Mayettes
ZAC des Barbanniers, B.P. 99
-F- 92232 GENNEVILLIERS
cedex
Tél. (+ 33) 01 40 85 30 40
[email protected]
gardena.fr
Great Britain
Husqvarna UK Ltd
Preston Road
Aycliffe Industrial Park
Newton Aycliffe
County Durham
DL5 6UP
[email protected]
husqvarna.co.uk
Greece
HUSQVARNA GREECE S.A.
Branch of Koropi
Ifestou 33A
Industrial Area Koropi
194 00 Athens – Greece
V.A.T. EL094094640
Phone: (+ 30) 210 66 20 225
[email protected]
Hungary
Husqvarna
Magyarország Kft.
Ezred u. 1- 3
1044 Budapest
Phone: (+ 36) 80 20 40 33
[email protected]
Iceland
Ó. Johnson & Kaaber
Tunguhalsi 1
110 Reykjavik
[email protected]
Ireland
Michael McLoughlin & Sons
Hardware Limited
Long Mile Road
Dublin 12
Italy
GARDENA Italia S.p.A.
Via Donizetti 22
20020 Lainate (Mi)
Phone: (+ 39) 02.93.94.79.1
[email protected]
Russia
ООО ГАРДЕНА РУС
123007, г. Москва
Хорошевское шоссе, д. 32А
Тел.: (+ 7) 495 380 31 92
[email protected]
Japan
KAKUICHI Co. Ltd.
Sumitomo Realty &
Development Kojimachi
BLDG., 8F, 5 -1 Nibanncyo,
Chiyoda-ku, Tokyo 102-0084
Phone: (+ 81) 33 264 4721
[email protected]
Singapore
Hy- Ray PRIVATE LIMITED
40 Jalan Pemimpin
# 02-08 Tat Ann Building
Singapore 577185
Phone: (+ 65) 6253 2277
[email protected]
Latvia
SIA „Husqvarna Latvija”
Consumer Outdoor Products
Bakužu iela 6, Riga, LV-1024
[email protected]
Slovak Republic
GARDENA spol. s r.o.
Tuшanka 115
627 00 Brno
Phone: (+ 420) 548 217 777
[email protected]
Lithuania
UAB Husqvarna Lietuva
Consumer Outdoor Products
Ateities pl. 77C
LT-52104 Kaunas
[email protected]
Slovenia
GARDENA d.o.o.
Brodiљиe 15
1236 Trzin
Phone: (+ 386) 1 580 93 32
[email protected]
Luxembourg
Magasins Jules Neuberg
39, rue Jacques Stas
Luxembourg-Gasperich 2549
Case Postale No. 12
Luxembourg 2010
Phone: (+ 352) 40 14 01
[email protected]
South Africa
GARDENA
South Africa (Pty.) Ltd.
P.O. Box 11534
Vorna Valley 1686
Phone: (+ 27) 11 315 02 23
[email protected]
Netherlands
GARDENA Nederland B.V.
Postbus 50176
1305 AD ALMERE
Phone: (+ 31) 36 521 00 00
[email protected]
Spain
GARDENA IBÉRICA S.L.U.
C / Basauri, nº 6
La Florida
28023 Madrid
Phone: (+ 34) 91 708 05 00
[email protected]
Neth. Antilles
Jonka Enterprises N.V.
Sta. Rosa Weg 196
P.O. Box 8200, Curaçao
Phone: (+ 599) 9 767 66 55
[email protected]
New Zealand
Husqvarna New Zealand Ltd.
PO Box 76437
Manukau City 2241
Phone: (+ 64) (09) 9 202410
Norway
GARDENA
Husqvarna Consumer Outdoor
Products
Salgskontor Norge
Kleverveien 6
1540 Vestby
[email protected]
Sweden
GARDENA
Husqvarna Consumer Outdoor
Products
Försäljningskontor Sverige
Box 9003
200 39 Malmö
[email protected]
Switzerland / Schweiz
Husqvarna Schweiz AG
Consumer Products
Industriestrasse 10
5506 Mägenwil
Phone: (+ 41) (0) 848 800 464
[email protected]
Turkey
GARDENA / Dost Diþ Ticaret
Mümessillik A.Þ. Sanayi
Çad. Adil Sokak No. 1
Poland
Kartal - Ýstanbul
Husqvarna Poland Spółka z o.o. Phone: (+ 90) 216 38 93 939
Oddział w Szymanowie
[email protected]
Szymanów 9 d
Ukraine / Україна
05-532 Baniocha
ТОВ «ГАРДЕНА УКРАЇНА»
Phone: (+ 48) 22 727 56 90
Васильківська, 34, 204-Г
[email protected]
03022, Київ
Portugal
Тел. (+38 044) 498 39 02
GARDENA Portugal Lda.
[email protected]
Sintra Business Park
Edifício 1, Fracção 0-G
2710-089 Sintra
Phone: (+ 351) 21 922 85 30
[email protected]
Romania
MADEX INTERNATIONAL SRL
Soseaua Odaii 117-123,
Sector 1,
Bucureєti, RO 013603
Phone: (+ 40) 21 352 76 03
[email protected]
8801- 20.960.05 / 0908
© GARDENA
Manufacturing GmbH
D - 89070 Ulm
http: //www.gardena.com
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
