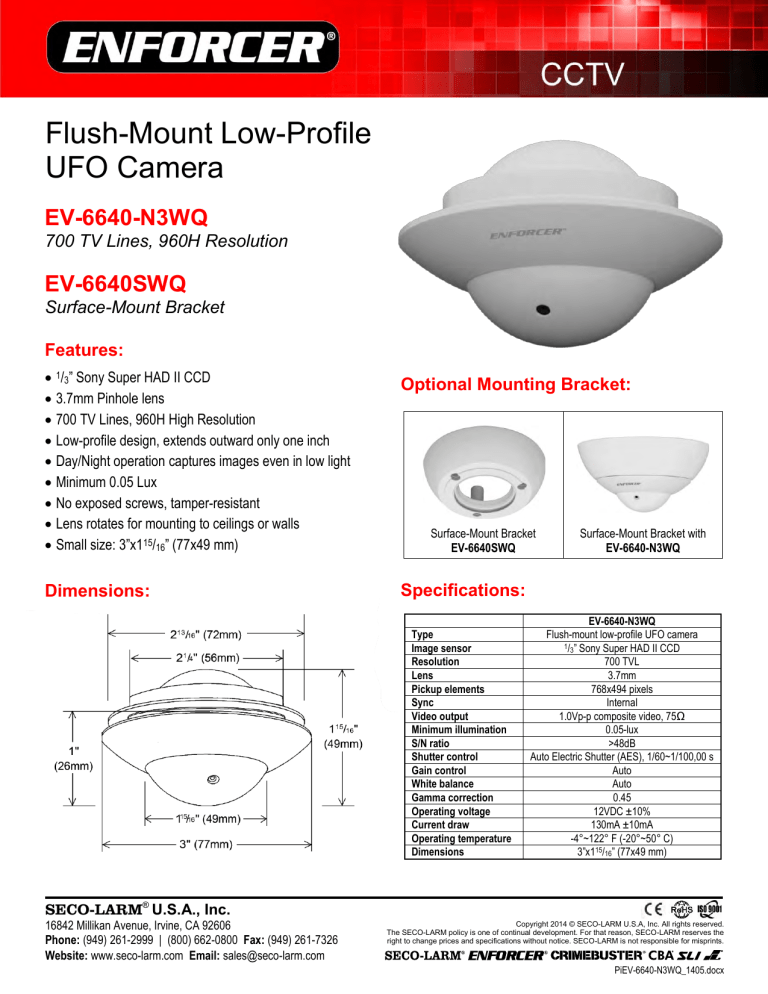

Flush-Mount Low-Profile
UFO Camera
EV-6640-N3WQ
700 TV Lines, 960H Resolution
EV-6640SWQ
Surface-Mount Bracket
Features:
 1/3” Sony Super HAD II CCD
The ENFORCER Flush-Mount UFO Camera has a low-profile
appearance,
3.7mm Pinhole
lens
allowing
it to blend into the décor of nearly any room.
 700 TV Lines, 960H High Resolution
 Low-profile design, extends outward only one inch
 Day/Night operation captures images even in low light
 Minimum 0.05 Lux
 No exposed screws, tamper-resistant
 Lens rotates for mounting to ceilings or walls
 Small size: 3”x115/16” (77x49 mm)
Dimensions:
Optional Mounting Bracket:
Surface-Mount Bracket
EV-6640SWQ
Surface-Mount Bracket with
EV-6640-N3WQ
Specifications:
Type
Image sensor
Resolution
Lens
Pickup elements
Sync
Video output
Minimum illumination
S/N ratio
Shutter control
Gain control
White balance
Gamma correction
Operating voltage
Current draw
Operating temperature
Dimensions
EV-6640-N3WQ
Flush-mount low-profile UFO camera
1/3” Sony Super HAD II CCD
700 TVL
3.7mm
768x494 pixels
Internal
1.0Vp-p composite video, 75Ω
0.05-lux
>48dB
Auto Electric Shutter (AES), 1/60~1/100,00 s
Auto
Auto
0.45
12VDC ±10%
130mA ±10mA
-4°~122° F (-20°~50° C)
3”x115/16” (77x49 mm)
SECO-LARM® U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Phone: (949) 261-2999 | (800) 662-0800 Fax: (949) 261-7326
Website: www.seco-larm.com Email: [email protected]
Copyright 2014 © SECO-LARM U.S.A, Inc. All rights reserved.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the
right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
PiEV-6640-N3WQ_1405.docx
