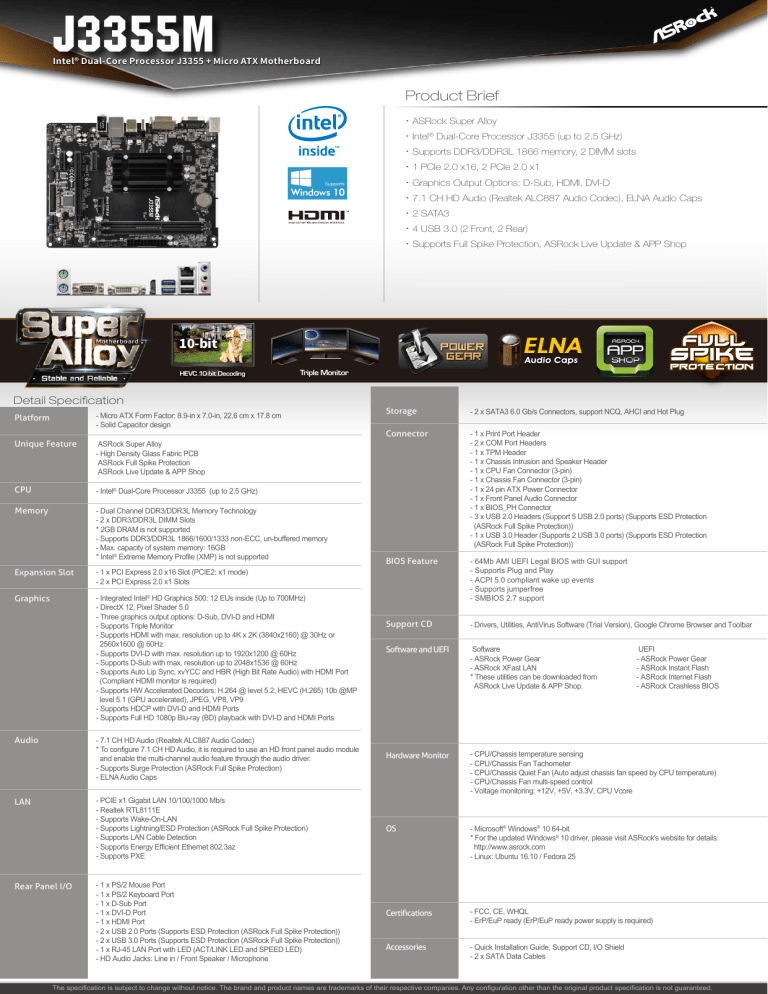

J3355M
Intel® Dual-Core Processor J3355 + Micro ATX Motherboard
Product Brief
•ASRock Super Alloy
•Intel® Dual-Core Processor J3355 (up to 2.5 GHz)
•Supports DDR3/DDR3L 1866 memory, 2 DIMM slots
•1 PCIe 2.0 x16, 2 PCIe 2.0 x1
•Graphics Output Options: D-Sub, HDMI, DVI-D
Supports
Windows 10
•7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
•2 SATA3
•4 USB 3.0 (2 Front, 2 Rear)
•Supports Full Spike Protection, ASRock Live Update & APP Shop
10-bit
HEVC 10-bit Decoding
Triple Monitor
Detail Specification
Storage
- 2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector
- 1 x Print Port Header
- 2 x COM Port Headers
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (3-pin)
- 1 x Chassis Fan Connector (3-pin)
- 1 x 24 pin ATX Power Connector
- 1 x Front Panel Audio Connector
- 1 x BIOS_PH Connector
- 3 x USB 2.0 Headers (Support 5 USB 2.0 ports) (Supports ESD Protection
(ASRock Full Spike Protection))
- 1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection
(ASRock Full Spike Protection))
BIOS Feature
- 64Mb AMI UEFI Legal BIOS with GUI support
- Supports Plug and Play
- ACPI 5.0 compliant wake up events
- Supports jumperfree
- SMBIOS 2.7 support
Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Software and UEFI
Software
- ASRock Power Gear
- ASRock XFast LAN
* These utilities can be downloaded from
ASRock Live Update & APP Shop.
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
* To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module
and enable the multi-channel audio feature through the audio driver.
- Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps
Hardware Monitor
- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111E
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
- CPU/Chassis temperature sensing
- CPU/Chassis Fan Tachometer
- CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature)
- CPU/Chassis Fan multi-speed control
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
OS
- Microsoft® Windows® 10 64-bit
* For the updated Windows® 10 driver, please visit ASRock's website for details:
http://www.asrock.com
- Linux: Ubuntu 16.10 / Fedora 25
Certifications
- FCC, CE, WHQL
- ErP/EuP ready (ErP/EuP ready power supply is required)
Accessories
- Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
Platform
- Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm
- Solid Capacitor design
Unique Feature
ASRock Super Alloy
- High Density Glass Fabric PCB
ASRock Full Spike Protection
ASRock Live Update & APP Shop
CPU
- Intel® Dual-Core Processor J3355 (up to 2.5 GHz)
Memory
- Dual Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L DIMM Slots
* 2GB DRAM is not supported
- Supports DDR3/DDR3L 1866/1600/1333 non-ECC, un-buffered memory
- Max. capacity of system memory: 16GB
* Intel® Extreme Memory Profile (XMP) is not supported
Expansion Slot
- 1 x PCI Express 2.0 x16 Slot (PCIE2: x1 mode)
- 2 x PCI Express 2.0 x1 Slots
Graphics
- Integrated Intel® HD Graphics 500: 12 EUs inside (Up to 700MHz)
- DirectX 12, Pixel Shader 5.0
- Three graphics output options: D-Sub, DVI-D and HDMI
- Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or
2560x1600 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz
- Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port
(Compliant HDMI monitor is required)
- Supports HW Accelerated Decoders: H.264 @ level 5.2, HEVC (H.265) 10b @MP
level 5.1 (GPU accelerated), JPEG, VP8, VP9
- Supports HDCP with DVI-D and HDMI Ports
- Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports
Audio
LAN
Rear Panel I/O
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
UEFI
- ASRock Power Gear
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
The specification is subject to change without notice. The brand and product names are trademarks of their respective companies. Any configuration other than the original product specification is not guaranteed.
J3355M
Intel® Dual-Core Processor J3355 + Micro ATX Motherboard
HEVC 10-bit Decoding
Supports HEVC 10-bit
decoding to provide
substantially improved video
quality and higher bit depth
video experience.
10-bit
High Density
Glass Fabric PCB
Triple Monitor
Choose up to three display interfaces to connect monitors and use them
simultaneously.
Protects the motherboard against electrical shorts
caused by humidity.
Intel® Dual-Core Processor
J3355 (Up to 2.5 GHz)
Improved performance, lower power consumption,
and new multimedia capabilities.
Supports Standard & Low
Voltage Long DIMMs
Power Gear
Toggle between three operational modes to
maximize performance or conserve energy.
Capable of supporting both standard and low voltage
long DIMMs.
16GB Memory Support
Each slot supports 8GB memory modules, thus
delivering a maximum capacity up to 16GB.
Solid Capacitor Design
ELNA Audio Caps
Brings more stable performance and
ensures a longer lifespan.
The 3uA leakage current reduces noise
levels.
Live Update & APP Shop
Full Spike Protection
Various apps and support software for
entertainment or optimizing the system.
Prevents your motherboard’s components (USB,
LAN, audio) from being damaged by voltage spikes.
The specification is subject to change without notice. The brand and product names are trademarks of their respective companies. Any configuration other than the original product specification is not guaranteed.
