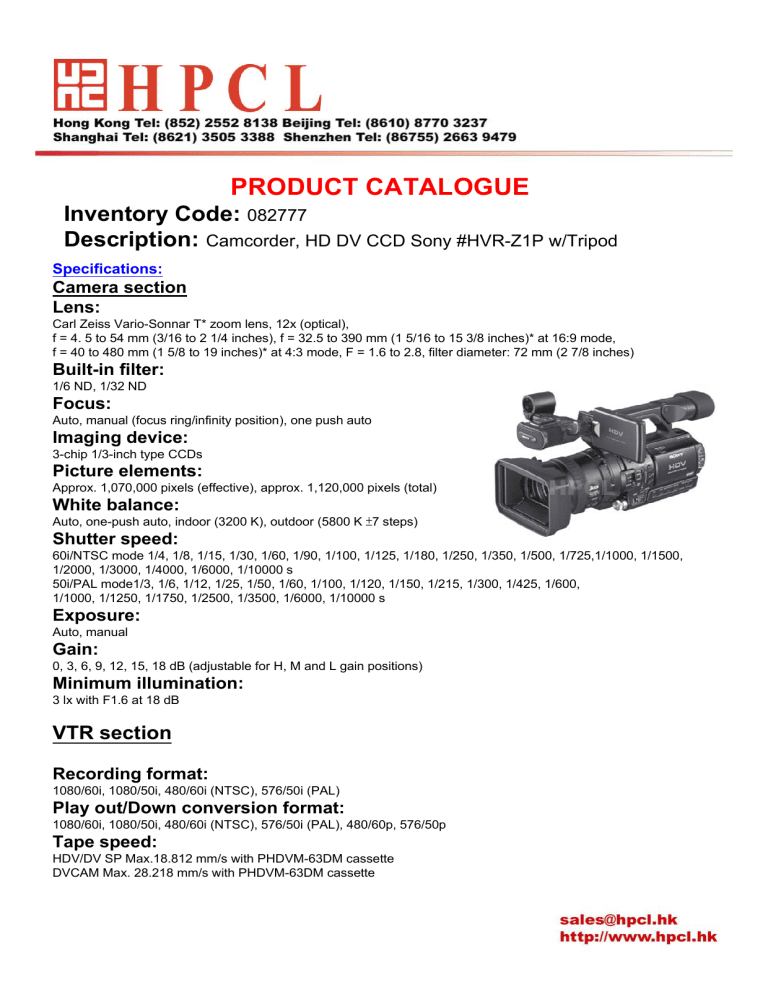

PRODUCT CATALOGUE
PRODUCT CATALOGUE
Inventory Code: 082777
Description: Camcorder, HD DV CCD Sony #HVR-Z1P w/Tripod
Specifications:
Camera section
Lens:
Carl Zeiss Vario-Sonnar T* zoom lens, 12x (optical),
f = 4. 5 to 54 mm (3/16 to 2 1/4 inches), f = 32.5 to 390 mm (1 5/16 to 15 3/8 inches)* at 16:9 mode,
f = 40 to 480 mm (1 5/8 to 19 inches)* at 4:3 mode, F = 1.6 to 2.8, filter diameter: 72 mm (2 7/8 inches)
Built-in filter:
1/6 ND, 1/32 ND
Focus:
Auto, manual (focus ring/infinity position), one push auto
Imaging device:
3-chip 1/3-inch type CCDs
Picture elements:
Approx. 1,070,000 pixels (effective), approx. 1,120,000 pixels (total)
White balance:
Auto, one-push auto, indoor (3200 K), outdoor (5800 K ±7 steps)
Shutter speed:
60i/NTSC mode 1/4, 1/8, 1/15, 1/30, 1/60, 1/90, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/725,1/1000, 1/1500,
1/2000, 1/3000, 1/4000, 1/6000, 1/10000 s
50i/PAL mode1/3, 1/6, 1/12, 1/25, 1/50, 1/60, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600,
1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000 s
Exposure:
Auto, manual
Gain:
0, 3, 6, 9, 12, 15, 18 dB (adjustable for H, M and L gain positions)
Minimum illumination:
3 lx with F1.6 at 18 dB
VTR section
Recording format:
1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL)
Play out/Down conversion format:
1080/60i, 1080/50i, 480/60i (NTSC), 576/50i (PAL), 480/60p, 576/50p
Tape speed:
HDV/DV SP Max.18.812 mm/s with PHDVM-63DM cassette
DVCAM Max. 28.218 mm/s with PHDVM-63DM cassette
Playback/Recording time:
HDV/DV SP: Max. 63 min with PHDVM-63DM cassette
DVCAM: Max. 41 min with PHDVM-63DM cassette
Fast forward/Rewind time:
Approx. 2 min 40 s with PHDVM-63DM cassette
INPUT/Output connectors
Audio/Video input/output:
AUDIO/VIDEO jack x1
Video signal: 1 Vp-p, 75 . unbalanced, sync negative
Audio signal: 327 mV (at load impedance 47 k.), input impedance more than 47 k., output impedance less than 2.2 k.
S-video input/output:
Mini-DIN 4-pin x 1:
Y: 1 Vp-p, 75 . unbalanced, sync negative
C: 0.286 Vp-p (NTSC), 0.3 Vp-p (PAL), 75 . unbalanced.
i.LINK:
4-pin
XLR audio input:
XLR 3-pin
General
Weight:
2.1 kg
Power:
DC 7.2 V
352mm
99mm
201mm
246.7mm
194.5mm
155.4mm
137.3mm
362mm
