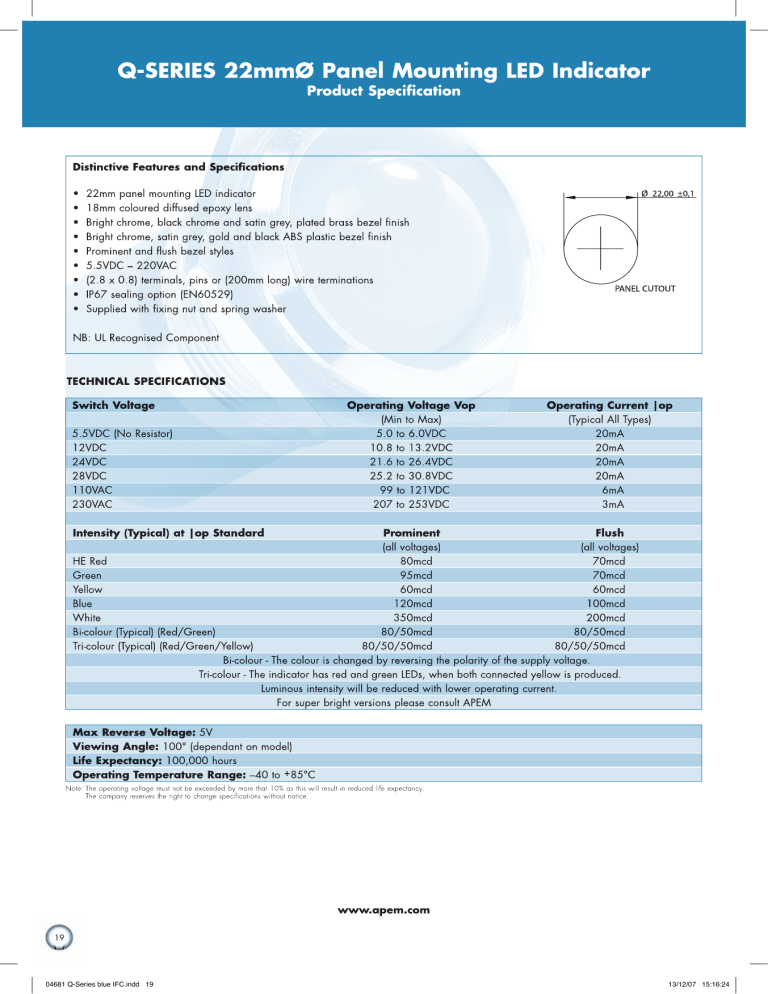

04681 Q-Series blue IFC.indd 19
13/12/07 15:16:24
04681 Q-Series blue IFC.indd 20
13/12/07 15:16:41
04681 Q-Series blue IFC.indd 21
13/12/07 15:16:44
Ceiling Mount Detectors with 360° View
LuNAR
The LuNAR Series offers the ideal solution for areas in which wall and corner mounting is
unsuitable. LuNAR detectors are particularly useful in rooms where wall placement would
cause detectors to be blocked by shelves, closets, or storage areas.
Combining sophisticated detection capabilities with a slim, attractive design, these advanced
detectors employ a special 110˚ wide-angle spherical Fresnel lens that provides full 360˚
coverage. LuNAR DT and PR detectors suit every interior and are ideal for ceiling mount
applications in commercial and residential environments.
LuNAR DT
LuNAR PR
●
●
●
●
●
●
●
Microprocessor-controlled dual technology (PIR+MW)
Patented true temperature compensation
Proprietary detection algorithm
Microwave range adjustment
Superior fluorescent interference rejection
Low profile design
●
●
●
●
Dual element PIR technology
Adjustable sensitivity, variable pulse count
Superior fluorescent interference rejection
Low profile design
Cost effective ceiling mount
Intelligence in the Service of Security
7LF490A4
Technical Information
Specifications
Detection technologies
Operating voltage: 9 to 16VDC
Current consumption
Alarm contacts: 100mA, 24V, N.C.
LuNAR DT
LuNAR PR
Dual element PIR + Microwave
Dual element PIR
✓
✓
15mA at 12V
25mA at 12V
✓
✓
Tamper contacts: 100mA, 24V, N.C.
✓
✓
PIR lens coverage: 110º angle, 360º overview
✓
✓
Detection zones 60: 30 Fresnel facets arranged in 3
optical levels; 12 external, 12 middle and 6 internal facets
✓
✓
✓
✓
1,2 (alternate polarity)
1,2,3
Microprocessor controlled
(Patented True Temperature Compensation)
Automatic thermistor-controlled
✓
✓
3 LEDs
1 LED
Optical filtering: White light protection
Selectable pulse count
Temperature compensation
RF immunity: 30V/m from 10MHz to 1GHz
Walk Test Display
Operating temperature: 0ºC to 55ºC (32ºF to 131ºF)
✓
✓
Storage temperature: -20ºC to 60ºC (-4ºF to 140ºF)
✓
✓
Dimensions (Diameter x Height): ø135 x 27mm (ø5.3” x 1.1”)
✓
✓
Installation Height: Up to 4m (13’4”)
✓
✓
LuNAR DT/PR Lens Coverage Patterns
Microwave
9'
2.8m
110˚
13’4”
4m
Microwave
Infrared
26'
8m
40'
13m
Infrared
Microwave
Infrared + Microwave
Side View
Top View
Complies with EN 50131-1, Grade 2, Class II
FCC Part 15 applies for RK150T
VdS applies for RK2000S
VdS
Part Numbers
Description
RK150T
RK150DTI
LuNAR DT
LuNAR DT for UK
RK2000DPC
LuNAR PR
RK2000S
LuNAR PR with VdS approval
© 8/2004 ROKONET Electronics Ltd.
w w w . r o k o n e t . c o m
U.S.A - Rokonet Industries U.S.A Inc.
Toll Free:1-800-344-2025, Tel:+305-592-3820, Fax:+305-592-3825, E-mail:[email protected]
UNITED KINGDOM - Rokonet UK Ltd.
Free Phone: 0800-269-881, Tel:+44-1527-576765, Fax:+44-1527-576816, E-mail: [email protected]
ITALY - Rokonet Electronics S.R.L .
Tel:+39 02 392 5354, Fax:+39 02 392 5131, E-mail: [email protected]
BRASIL - Rokonet Brasil Ltda.
Tel:+55-11-3661-8767, Fax:+55-11-3661-7783, E-mail: [email protected]
ISRAEL - Rokonet Electronics Ltd.
Tel: +972(0)3-963-7777, Fax: +972(0)3-961-6584, E-mail: [email protected]
7LF490Q
Ordering Information
ENGLISH
PYROELECTRIC
ELEMENT
PULSE COUNT
LED ON/OFF
SELECTOR
CABLE
KNOCKOUT
FIG. 1
INSTALLATION PROCEDURE
STEP 1
MOUNTING
KNOCKOUT
MOUNTING
KNOCKOUT
ANTI-TAMPER
DEVICE
TERMINALS
PRELIMINARY DECISIONS
Before installation you should study the space to be protected
in order to decide on the location of the LUNAR PR for best
coverage. This unit is usually designed to be installed above the
center of the protected area.
The lens in LUNAR PR provides detection sectors (beams)
arranged in three all-round optical levels, the external including
12 sectors, the middle 12 sectors and the internal 6 sectors. This
arrangement assures you the best coverage of the area. See
plan view, fig. 4.
The unit should not be mounted in direct sunlight or any other
direct light or any heat source (i.e. above a stove, radiator etc.).
Detection sectors should be pointing towards the floor, not
curtains, windows etc.
STEP 3
FRONTAL COVER REMOVAL
FIG. 2
OPENING, MOUNTING AND CABLE HOLE
The unit includes knockouts for mounting and wiring. Open the
appropriate knockouts required the installation.
STEP 4
MOUNTING
Insert the cable through the hole
you opened and mount the
bottom part in its final location.
Seal the cable hole and any other
opening with a sealant (RTV or
alike).
STEP 5
STEP 2
CABLE
KNOCKOUT
Marks for
mounting
To drill holes for
mounting use the 4
marks on the back side
of the package.
STEP 6
WALK TEST
The DIP switch on the left side of PC board is divided into two
sections:
"PULSES" and "LED". Set the "PULSES" to "1" and switch the
"LED" to "ON".
With the LUNAR PR closed and powered in the setting, the LAD
will light each time detection occurs, so operation can be checked.
After walk testing, the LED setting may be switched to "OFF". Now
the detector will work normally, but the LED will not light when
detection occurs and the intruder will notice being detected.
STEP 7
OPTICAL FEATURES
The following is a description of features of RISCO GROUP'S
Fresnel lens fitted in LUNAR PR
FIG. 3
9'
2.75m
13.4
4.06m
SETTING THE PULSE COUNT
As described in step 6, the DIP-switch is divided into two sections,
"PULSES" and "LED". The number of pulses needed to activate
the alarm can be set to "1", "2" or "3".
NOTE: Only one switch should be set at ON position.
TERMINAL WIRING
110û
27'
8.23m
40'
12.2m
FIG. 4
ISOMETRIC VIEW
SPECIFICATIONS
ELECTRICAL:
Detection technology:
Current consumption:
Supply voltage:
Alarm contact:
Anti-tamper:
Pulse count:
Temperature compensation:
RF immunity:
Walk test:
OPTICAL:
Lens:
Coverage:
Detection Zones:
PHYSICAL:
Weight:
Size:
ENVIROMMENTAL:
Operating temperature:
Storage temperature:
The following wire connection should be made to the terminal strip
located at the right lower part of the PC board.
TERMINAL
(-) (+) 12 VDC
N.C.
TAMPER
DESCRIPTION
DC Voltage (9 to 16 VDC).
Normally closed alarm contacts.
Anti-tamper circuit.
Dual element PIR
15 mA at 12 VDC
9-16 VDC regulated
24 VDC, 50 mA
Normaly closed, 24 VDC,0.5 A
Selectable 1-3
Thermistor
30V/m up to 1 GHz
1 LED
Wide angle spherical Fresnet
110o angle, 360o overview
3 optical levels, 12 external sectors,
12 middle sectors, 6 internal sectors
112 G (4Oz)
¯ 135x27 mm
0o C to 55o C (32o F to 131o F)
-20o C to 60o C (-4o F to 140o F)
Specifications are subject to change without prior notice.
SHOULD ANY QUESTIONS ARISE PLEASE CONTACT YOUR
SUPPLIER.
WARRANTY
RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to be free from defects in materials
and workmanship under normal use for 24 months from the date of sale.
Because Seller does not install or connect the product and because the product may be used in conjunction with
products not manufactured by Seller. Seller cannot guarantee the performance of the security system which uses
the product. Seller's obligation and liability under this warranty is expressly limited to repairing or replacing, at Seller's
option, within a reasonable time after the date of delivery, any product not meeting the specifications.
Seller makes no other warranty, expressed or implied, and makes no warranty of merchantability or of fitness for any
particular purpose.
In no case shall seller be liable for any consequential or incidental damages for breach of this or any other warranty,
expressed or implied, or upon any other basis of liability whatsoever.
Seller's obligation under this warranty shall not include any transportation charges or costs of installation or any liability
for direct, indirect or consequential damages or delay.
Seller does not represent that its products may not be compromised or circumvented by burglary, robbery, fire or
otherwise; or that the product will in all cases provide adequate only reduce the risk of burglary, robbery, fire without
warning, but it is not insurance or a guarantee that such will not occur or that will be no personal injury or property
loss as a result.
Consequently, seller shall have no liability for any personal injury, property damage or other loss based on a claim that
the product fails to give warning.
However, if seller is held liable whether directly or indirectly, for any loss or damage arising under this limited warranty
or otherwise, regardless of cause of origin, seller's maximum liability shall not in any case exceed the purchase price
of the product, which shall be the complete and exclusive remedy against seller.
No employee or representative of Seller is authorized to change this warranty in any way or grant any other warranty.
WARNING: This product should be tested at least once a week.
