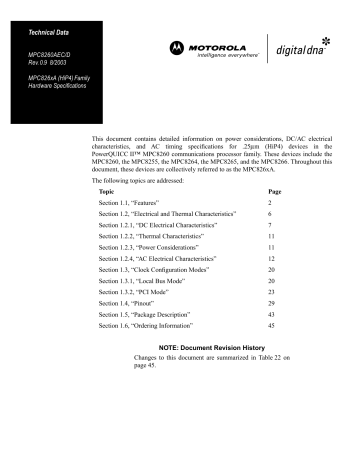

Technical Data
MPC8260AEC/D
Rev. 0.9 8/2003
MPC826xA (HiP4) Family
Hardware Specifications
This document contains detailed information on power considerations, DC/AC electrical
characteristics, and AC timing specifications for .25µm (HiP4) devices in the
PowerQUICC II™ MPC8260 communications processor family. These devices include the
MPC8260, the MPC8255, the MPC8264, the MPC8265, and the MPC8266. Throughout this
document, these devices are collectively referred to as the MPC826xA.
The following topics are addressed:
Topic
Page
Section 1.1, “Features”
2
Section 1.2, “Electrical and Thermal Characteristics”
6
Section 1.2.1, “DC Electrical Characteristics”
7
Section 1.2.2, “Thermal Characteristics”
11
Section 1.2.3, “Power Considerations”
11
Section 1.2.4, “AC Electrical Characteristics”
12
Section 1.3, “Clock Configuration Modes”
20
Section 1.3.1, “Local Bus Mode”
20
Section 1.3.2, “PCI Mode”
23
Section 1.4, “Pinout”
29
Section 1.5, “Package Description”
43
Section 1.6, “Ordering Information”
45
NOTE: Document Revision History
Changes to this document are summarized in Table 22 on
page 45.
Features
Figure 1 shows the block diagram for the MPC826, the HiP4 superset device. Shaded portions indicate
functionality that is not available on all devices; refer to the notes.
16 Kbytes
I-Cache
I-MMU
System Interface Unit
(SIU)
G2 Core
16 Kbytes
D-Cache
Bus Interface Unit
Communication Processor Module (CPM)
PCI Bus2,3
32 bits, up to 66 MHz
60x-to-PCI
Bridge2,3
60x-to-Local
Bridge
D-MMU
60x Bus
or
Local Bus
32 bits, up to 83 MHz
Memory Controller
Timers
Serial
DMAs
32 Kbytes
Dual-Port RAM
Interrupt
Controller
Clock Counter
Parallel I/O
32-bit RISC Microcontroller
and Program ROM
Baud Rate
Generators
4
MCC1
4 Virtual
IDMAs
IMA1,3
Microcode
System Functions
4
MCC2
FCC1
FCC2
FCC3
TC Layer Hardware1,3
SCC1
SCC2
SCC3
SCC4
SMC1
SMC2
SPI
I2C
Time Slot Assigner
Serial Interface
8 TDM Ports5
Notes:
1 MPC8264
2 MPC8265
3 MPC8266
3 MII
Ports6
2 UTOPIA
Ports
Non-Multiplexed
I/O
4
Not on MPC8255
4 TDM ports on the MPC8255
6 2 MII ports on the MPC8255
5
Figure 1. MPC8266 Block Diagram
1.1
Features
The major features of the MPC826xA family are as follows:
•
2
Dual-issue integer core
— A core version of the EC603e microprocessor
— System core microprocessor supporting frequencies of 150–300 MHz
— Separate 16-Kbyte data and instruction caches:
– Four-way set associative
– Physically addressed
– LRU replacement algorithm
— PowerPC architecture-compliant memory management unit (MMU)
— Common on-chip processor (COP) test interface
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Features
•
•
•
•
•
— High-performance (6.6–7.65 SPEC95 benchmark at 300 MHz; 1.68 MIPs/MHz without
inlining and 1.90 Dhrystones MIPS/MHz with
— Supports bus snooping for data cache coherency
— Floating-point unit (FPU)
Separate power supply for internal logic and for I/O
Separate PLLs for G2 core and for the CPM
— G2 core and CPM can run at different frequencies for power/performance optimization
— Internal core/bus clock multiplier that provides 1.5:1, 2:1, 2.5:1, 3:1, 3.5:1, 4:1, 5:1, 6:1 ratios
— Internal CPM/bus clock multiplier that provides 2:1, 2.5:1, 3:1, 3.5:1, 4:1, 5:1, 6:1 ratios
64-bit data and 32-bit address 60x bus
— Bus supports multiple master designs
— Supports single- and four-beat burst transfers
— 64-, 32-, 16-, and 8-bit port sizes controlled by on-chip memory controller
— Supports data parity or ECC and address parity
32-bit data and 18-bit address local bus
— Single-master bus, supports external slaves
— Eight-beat burst transfers
— 32-, 16-, and 8-bit port sizes controlled by on-chip memory controller
60x-to-PCI bridge (MPC8265 and MPC8266 only)
— Programmable host bridge and agent
— 32-bit data bus, 66 MHz, 3.3 V
— Synchronous and asynchronous 60x and PCI clock modes
— All internal address space available to external PCI host
— DMA for memory block transfers
— PCI-to-60x address remapping
•
System interface unit (SIU)
— Clock synthesizer
— Reset controller
— Real-time clock (RTC) register
— Periodic interrupt timer
— Hardware bus monitor and software watchdog timer
— IEEE 1149.1 JTAG test access port
•
Twelve-bank memory controller
— Glueless interface to SRAM, page mode SDRAM, DRAM, EPROM, Flash and other userdefinable peripherals
— Byte write enables and selectable parity generation
— 32-bit address decodes with programmable bank size
— Three user programmable machines, general-purpose chip-select machine, and page-mode
pipeline SDRAM machine
— Byte selects for 64 bus width (60x) and byte selects for 32 bus width (local)
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
3
Features
— Dedicated interface logic for SDRAM
•
•
CPU core can be disabled and the device can be used in slave mode to an external core
Communications processor module (CPM)
— Embedded 32-bit communications processor (CP) uses a RISC architecture for flexible
support for communications protocols
— Interfaces to G2 core through on-chip 32-Kbyte dual-port RAM and DMA controller
— Serial DMA channels for receive and transmit on all serial channels
— Parallel I/O registers with open-drain and interrupt capability
— Virtual DMA functionality executing memory-to-memory and memory-to-I/O transfers
— Three fast communications controllers supporting the following protocols (only FCC1 and
FCC2 on the MPC8255):
– 10/100-Mbit Ethernet/IEEE 802.3 CDMA/CS interface through media independent
interface (MII)
– ATM—Full-duplex SAR protocols at 155 Mbps, through UTOPIA interface, AAL5,
AAL1, AAL0 protocols, TM 4.0 CBR, VBR, UBR, ABR traffic types, up to 16 K external
connections
– Transparent
– HDLC—Up to T3 rates (clear channel)
— Two multichannel controllers (MCCs) (only MCC2 on the MPC8255)
– Each MCC handles 128 serial, full-duplex, 64-Kbps data channels.Each MCC can be split
into four subgroups of 32 channels each.
– Almost any combination of subgroups can be multiplexed to single or multiple TDM
interfaces up to four TDM interfaces per MCC
— Four serial communications controllers (SCCs) identical to those on the MPC860, supporting
the digital portions of the following protocols:
– Ethernet/IEEE 802.3 CDMA/CS
– HDLC/SDLC and HDLC bus
– Universal asynchronous receiver transmitter (UART)
– Synchronous UART
– Binary synchronous (BISYNC) communications
– Transparent
— Two serial management controllers (SMCs), identical to those of the MPC860
– Provide management for BRI devices as general circuit interface (GCI) controllers in timedivision-multiplexed (TDM) channels
– Transparent
– UART (low-speed operation)
— One serial peripheral interface identical to the MPC860 SPI
— One inter-integrated circuit (I2C) controller (identical to the MPC860 I2C controller)
– Microwire compatible
– Multiple-master, single-master, and slave modes
— Up to eight TDM interfaces (four on the MPC8255)
4
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Features
–
–
–
–
–
Supports two groups of four TDM channels for a total of eight TDMs
2,048 bytes of SI RAM
Bit or byte resolution
Independent transmit and receive routing, frame synchronization
Supports T1, CEPT, T1/E1, T3/E3, pulse code modulation highway, ISDN basic rate, ISDN
primary rate, Motorola interchip digital link (IDL), general circuit interface (GCI), and
user-defined TDM serial interfaces
— Eight independent baud rate generators and 20 input clock pins for supplying clocks to FCCs,
SCCs, SMCs, and serial channels
— Four independent 16-bit timers that can be interconnected as two 32-bit timers
Additional features of the MPC826xA family are as follows:
•
CPM
— 32-Kbyte dual-port RAM
— Additional MCC host commands
— Eight transfer transmission convergence (TC) layers between the TDMs and FCC2 to support
inverse multiplexing for ATM capabilities (IMA) (MPC8264 and MPC8266 only)
•
CPM multiplexing
— FCC2 can also be connected to the TC layer.
•
TC layer (MPC8264 and MPC8266 only)
— Each of the 8 TDM channels is routed in hardware to a TC layer block
– Protocol-specific overhead bits may be discarded or routed to other controllers by the SI
– Performing ATM TC layer functions (according to ITU-T I.432)
– Transmit (Tx) updates
– Cell HEC generation
– Payload scrambling using self synchronizing scrambler (programmable by the user)
– Coset generation (programmable by the user)
– Cell rate by inserting idle/unassigned cells
– Receive (Rx) updates
– Cell delineation using bit by bit HEC checking and programmable ALPHA and DELTA
parameters for the delineation state machine
– Payload descrambling using self synchronizing scrambler (programmable by the user)
– Coset removing (programmable by the user)
– Filtering idle/unassigned cells (programmable by the user)
– Performing HEC error detection and single bit error correction (programmable by user)
– Generating loss of cell delineation status/interrupt (LOC/LCD)
— Operates with FCC2 (UTOPIA 8)
— Provides serial loop back mode
— Cell echo mode is provided
— Supports both FCC transmit modes
– External rate mode—Idle cells are generated by the FCC (microcode) to control data rate.
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
5
Electrical and Thermal Characteristics
– Internal rate mode (sub-rate)—FCC transfers only the data cells using the required data rate.
The TC layer generates idle/unassigned cells to maintain the line bit rate.
— Supports TC-layer and PMD-WIRE interface (according to the ATM-Forum af-phy-0063.000)
— Cell counters for performance monitoring
– 16-bit counters count
– HEC error cells
– HEC single bit error and corrected cells
– Idle/unassigned cells filtered
– Idle/unassigned cells transmitted
– Transmitted ATM cells
– Received ATM cells
– Maskable interrupt is sent to the host when a counter expires
— Overrun (Rx cell FIFO) and underrun (Tx cell FIFO) condition produces maskable interrupt
— May be operated at E1 and DS-1 rates. In addition, xDSL applications at bit rates up to 10 Mbps
are supported
•
PCI bridge (MPC8265 and MPC8266 only)
— PCI Specification Revision 2.2 compliant and supports frequencies up to 66 MHz
— On-chip arbitration
— Support for PCI to 60x memory and 60x memory to PCI streaming
— PCI Host Bridge or Peripheral capabilities
— Includes 4 DMA channels for the following transfers:
– PCI-to-60x to 60x-to-PCI
– 60x-to-PCI to PCI-to-60x
– PCI-to-60x to PCI-to-60x
– 60x-to-PCI to 60x-to-PCI
— Includes all of the configuration registers (which are automatically loaded from the EPROM
and used to configure the MPC8265) required by the PCI standard as well as message and
doorbell registers
— Supports the I2O standard
— Hot-Swap friendly (supports the Hot Swap Specification as defined by PICMG 2.1 R1.0
August 3, 1998)
— Support for 66 MHz, 3.3 V specification
— 60x-PCI bus core logic which uses a buffer pool to allocate buffers for each port
— Makes use of the local bus signals, so there is no need for additional pins
1.2
Electrical and Thermal Characteristics
This section provides AC and DC electrical specifications and thermal characteristics for the MPC826xA.
6
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
1.2.1
DC Electrical Characteristics
This section describes the DC electrical characteristics for the MPC826xA. Table 1 shows the maximum
electrical ratings.
Table 1. Absolute Maximum Ratings1
Rating
Core supply voltage2
PLL supply
I/O supply
Input
voltage2
voltage3
voltage4
Junction temperature
Storage temperature range
Symbol
Value
Unit
VDD
-0.3 – 2.5
V
VCCSYN
-0.3 – 2.5
V
VDDH
-0.3 – 4.0
V
VIN
GND(-0.3) – 3.6
V
Tj
120
˚C
TSTG
(-55) – (+150)
˚C
1
Absolute maximum ratings are stress ratings only; functional operation (see Table 2) at the maximums is not
guaranteed. Stress beyond those listed may affect device reliability or cause permanent damage.
2 Caution: VDD/VCCSYN must not exceed VDDH by more than 0.4 V at any time, including during power-on
reset.
3 Caution: VDDH can exceed VDD/VCCSYN by 3.3 V during power on reset by no more than 100 mSec. VDDH
should not exceed VDD/VCCSYN by more than 2.5 V during normal operation.
4 Caution: VIN must not exceed VDDH by more than 2.5 V at any time, including during power-on reset.
Table 2 lists recommended operational voltage conditions.
Table 2. Recommended Operating Conditions1
Rating
Symbol
2
3
4
5
Unit
Core supply voltage
VDD
1.7 – 1.92
1.7–2.13
1.9 –2.24
V
PLL supply voltage
VCCSYN
1.7 – 1.92
1.7–2.13
1.9–2.24
V
I/O supply voltage
VDDH
3.135 – 3.465
V
VIN
GND (-0.3) – 3.465
V
Junction temperature (maximum)
Tj
1055
˚C
Ambient temperature
TA
0–705
˚C
Input voltage
1
Value
Caution: These are the recommended and tested operating conditions. Proper device operating outside of these
conditions is not guaranteed.
CPU frequency less than or equal to 200 MHz.
CPU frequency greater than 200 MHz but less than 233 MHz.
CPU frequency greater than or equal to 233 MHz.
Note that for extended temperature parts the range is (-40)T – 105Tj.
A
NOTE: Core, PLL, and I/O Supply Voltages
VDDH, VCCSYN, and VDD must track each other and both must vary in
the same direction—in the positive direction (+5% and +0.1 Vdc) or in the
negative direction (-5% and -0.1 Vdc).
This device contains circuitry protecting against damage due to high static voltage or electrical fields;
however, it is advised that normal precautions be taken to avoid application of any voltages higher than
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
7
Electrical and Thermal Characteristics
maximum-rated voltages to this high-impedance circuit. Reliability of operation is enhanced if unused
inputs are tied to an appropriate logic voltage level (either GND or VCC).
Figure 2 shows the undershoot and overshoot voltage of the 60x and local bus memory interface of the
MPC8280. Note that in PCI mode the I/O interface is different.
4V
GVDD + 5%
GVDD
VIH
GND
GND – 0.3 V
VIL
GND – 1.0 V
Not to exceed 10%
of tSDRAM_CLK
Figure 2. Overshoot/Undershoot Voltage
Table 3 shows DC electrical characteristics.
Table 3. DC Electrical Characteristics1
Characteristic
Symbol
Min
Max
Unit
Input high voltage, all inputs except CLKIN
VIH
2.0
3.465
V
Input low voltage
VIL
GND
0.8
V
VIHC
2.4
3.465
V
VILC
GND
0.4
V
IIN
—
10
µA
IOZ
—
10
µA
Signal low input current, VIL = 0.8 V
IL
—
1
µA
Signal high input current, VIH = 2.0 V
IH
—
1
µA
VOH
2.4
—
V
VOL
—
0.5
V
CLKIN input high voltage
CLKIN input low voltage
Input leakage current, VIN
= VDDH2
Hi-Z (off state) leakage current, VIN = VDDH2
Output high voltage, IOH = –2 mA
except XFC, UTOPIA mode, and open drain pins
In UTOPIA mode: IOH = -8.0mA
PA[0-31]
PB[4-31]
PC[0-31]
PD[4-31]
In UTOPIA mode: IOL = 8.0mA
PA[0-31]
PB[4-31]
PC[0-31]
PD[4-31]
8
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
Table 3. DC Electrical Characteristics1 (Continued)
Characteristic
IOL = 7.0mA
BR
BG
ABB/IRQ2
TS
A[0-31]
TT[0-4]
TBST
TSIZE[0–3]
AACK
ARTRY
DBG
DBB/IRQ3
D[0-63]
DP(0)/RSRV/EXT_BR2
DP(1)/IRQ1/EXT_BG2
DP(2)/TLBISYNC/IRQ2/EXT_DBG2
DP(3)/IRQ3/EXT_BR3/CKSTP_OUT
DP(4)/IRQ4/EXT_BG3/CORE_SREST
DP(5)/TBEN/IRQ5/EXT_DBG3
DP(6)/CSE(0)/IRQ6
DP(7)/CSE(1)/IRQ7
PSDVAL
TA
TEA
GBL/IRQ1
CI/BADDR29/IRQ2
WT/BADDR30/IRQ3
L2_HIT/IRQ4
CPU_BG/BADDR31/IRQ5
CPU_DBG
CPU_BR
IRQ0/NMI_OUT
IRQ7/INT_OUT/APE
PORESET
HRESET
SRESET
RSTCONF
QREQ
MOTOROLA
Symbol
Min
Max
Unit
VOL
—
0.4
V
MPC826xA (HiP4) Family Hardware Specifications
9
Electrical and Thermal Characteristics
Table 3. DC Electrical Characteristics1 (Continued)
Characteristic
IOL = 5.3mA
CS[0-9]
CS(10)/BCTL1
CS(11)/AP(0)
BADDR[27–28]
ALE
BCTL0
PWE(0:7)/PSDDQM(0:7)/PBS(0:7)
PSDA10/PGPL0
PSDWE/PGPL1
POE/PSDRAS/PGPL2
PSDCAS/PGPL3
PGTA/PUPMWAIT/PGPL4/PPBS
PSDAMUX/PGPL5
LWE[0–3]LSDDQM[0–3]/LBS[0–3]/PCI_CFG[0–33
LSDA10/LGPL0/PCI_MODCKH03
LSDWE/LGPL1/PCI_MODCKH13
LOE/LSDRAS/LGPL2/PCI_MODCKH23
LSDCAS/LGPL3/PCI_MODCKH33
LGTA/LUPMWAIT/LGPL4/LPBS
LSDAMUX/LGPL5/PCI_MODCK3
LWR
MODCK1/AP(1)/TC(0)/BNKSEL(0)
MODCK2/AP(2)/TC(1)/BNKSEL(1)
MODCK3/AP(3)/TC(2)/BNKSEL(2)
IOL = 3.2mA
L_A14/PAR3
L_A15/FRAME3/SMI
L_A16/TRDY3
L_A17/IRDY3/CKSTP_OUT
L_A18/STOP3
L_A19/DEVSEL3
L_A20/IDSEL3
L_A21/PERR3
L_A22/SERR3
L_A23/REQ03
L_A24/REQ13/HSEJSW3
L_A25/GNT03
L_A26/GNT13/HSLED3
L_A27/GNT23/HSENUM3
L_A28/RST3/CORE_SRESET
L_A29/INTA3
L_A30/REQ23
L_A31
LCL_D(0-31)/AD(0-31)3
LCL_DP(0-3)/C/BE(0-3)3
PA[0–31]
PB[4–31]
PC[0–31]
PD[4–31]
TDO
Symbol
Min
Max
Unit
VOL
—
0.4
V
1
The default configuration of the CPM pins (PA[0–31], PB[4–31], PC[0–31], PD[4–31]) is input. To prevent excessive
DC current, it is recommended to either pull unused pins to GND or VDDH, or to configure them as outputs.
2 The leakage current is measured for nominal VDD, VCCSYN, and VDD.
3 MPC8265 and MPC8266 only.
10
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
1.2.2
Thermal Characteristics
Table 4 describes thermal characteristics.
Table 4. Thermal Characteristics for 480 TBGA Package
Characteristics
Symbol
Unit
131
Junction to ambient
θJA
Junction to
Value
board4
Junction to case5
101
Air Flow
NC2
°C/W
1 m/s
113
NC
83
1 m/s
θJB
4
°C/W
—
θJC
1.1
°C/W
—
1
Assumes a single layer board with no thermal vias
Natural convection
3 Assumes a four layer board
4 Thermal resistance between the die and the printed circuit board per JEDEC JESD51-8. Board temperature
is measured on the top surface of the board near the package.
5 Thermal resistance between the die and the case top surface as measured by the cold plate method (MIL
SPEC-883 Method 1012.1).
2
1.2.3
Power Considerations
The average chip-junction temperature, TJ, in °C can be obtained from the following:
TJ = TA + (PD x θJA)
(1)
where
TA = ambient temperature °C
θJA = package thermal resistance, junction to ambient, °C/W
PD = PINT + PI/O
PINT = IDD x VDD Watts (chip internal power)
PI/O = power dissipation on input and output pins (determined by user)
For most applications PI/O < 0.3 x PINT. If PI/O is neglected, an approximate relationship between PD and TJ
is the following:
PD = K/(TJ + 273° C)
(2)
Solving equations (1) and (2) for K gives:
K = PD x (TA + 273° C) + θJA x PD2
(3)
where K is a constant pertaining to the particular part. K can be determined from equation (3) by measuring
PD (at equilibrium) for a known TA. Using this value of K, the values of PD and TJ can be obtained by solving
equations (1) and (2) iteratively for any value of TA.
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
11
Electrical and Thermal Characteristics
1.2.3.1
Layout Practices
Each VCC pin should be provided with a low-impedance path to the board’s power supply. Each ground pin
should likewise be provided with a low-impedance path to ground. The power supply pins drive distinct
groups of logic on chip. The VCC power supply should be bypassed to ground using at least four 0.1 µF
by-pass capacitors located as close as possible to the four sides of the package. The capacitor leads and
associated printed circuit traces connecting to chip VCC and ground should be kept to less than half an inch
per capacitor lead. A four-layer board is recommended, employing two inner layers as VCC and GND planes.
All output pins on the MPC826xA have fast rise and fall times. Printed circuit (PC) trace interconnection
length should be minimized in order to minimize overdamped conditions and reflections caused by these
fast output switching times. This recommendation particularly applies to the address and data buses.
Maximum PC trace lengths of six inches are recommended. Capacitance calculations should consider all
device loads as well as parasitic capacitances due to the PC traces. Attention to proper PCB layout and
bypassing becomes especially critical in systems with higher capacitive loads because these loads create
higher transient currents in the VCC and GND circuits. Pull up all unused inputs or signals that will be inputs
during reset. Special care should be taken to minimize the noise levels on the PLL supply pins.
Table 5 provides preliminary, estimated power dissipation for various configurations. Note that suitable
thermal management is required for conditions above PD = 3W (when the ambient temperature is 70˚ C or
greater) to ensure the junction temperature does not exceed the maximum specified value. Also note that the
I/O power should be included when determining whether to use a heat sink.
Table 5. Estimated Power Dissipation for Various Configurations1
PINT(W)2
Bus
(MHz)
1
2
CPM
Core CPU
Multiplier Multiplier
CPM
(MHz)
CPU
(MHz)
Vddl 1.8 Volts
Vddl 2.0 Volts
Nominal
Maximum
Nominal
Maximum
66.66
2
3
133
200
1.2
2
1.8
2.3
66.66
2.5
3
166
200
1.3
2.1
1.9
2.3
66.66
3
4
200
266
—
—
2.3
2.9
66.66
3
4.5
200
300
—
—
2.4
3.1
83.33
2
3
166
250
—
—
2.2
2.8
83.33
2
3
166
250
—
—
2.2
2.8
83.33
2.5
3.5
208
291
—
—
2.4
3.1
Test temperature = room temperature (25˚ C)
PINT = IDD x VDD Watts
1.2.4
AC Electrical Characteristics
The following sections include illustrations and tables of clock diagrams, signals, and CPM outputs and
inputs for the 66 MHz MPC826xA device. Note that AC timings are based on a 50-pf load. Typical output
buffer impedances are shown in Table 6.
12
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
Table 6. Output Buffer Impedances1
Output Buffers
Typical Impedance (Ω)
60x bus
40
Local bus
40
Memory controller
40
Parallel I/O
46
PCI
25
1
These are typical values at 65˚ C. The impedance may vary
by ±25% with process and temperature.
Table 7 lists CPM output characteristics.
Table 7. AC Characteristics for CPM Outputs1
Spec Number
Max Delay (ns)
Min Delay (ns)
Characteristic
1
Max
Min
66 MHz 83 MHz 66 MHz 83 MHz
sp36a
sp37a
FCC outputs—internal clock (NMSI)
6
5.5
1
1
sp36b
sp37b
FCC outputs—external clock (NMSI)
14
12
2
1
sp40
sp41
TDM outputs/SI
25
16
5
4
sp38a
sp39a
SCC/SMC/SPI/I2C outputs—internal clock (NMSI)
19
16
1
0.5
sp38b
sp39b
Ex_SCC/SMC/SPI/I2C outputs—external clock (NMSI)
19
16
2
1
sp42
sp43
TIMER/IDMA outputs
14
11
1
0.5
sp42a
sp43a
PIO outputs
14
11
0.5
0.5
Output specifications are measured from the 50% level of the rising edge of CLKIN to the 50% level of the signal.
Timings are measured at the pin.
Table 8 lists CPM input characteristics.
Table 8. AC Characteristics for CPM Inputs1
Spec Number
Setup (ns)
Hold (ns)
Characteristic
1
Max
Min
66 MHz 83 MHz 66 MHz 83 MHz
sp16a
sp17a
FCC inputs—internal clock (NMSI)
10
8
0
0
sp16b
sp17b
FCC inputs—external clock (NMSI)
3
2.5
3
2
sp20
sp21
TDM inputs/SI
15
12
12
10
sp18a
sp19a
SCC/SMC/SPI/I2C inputs—internal clock (NMSI)
20
16
0
0
sp18b
sp19b
SCC/SMC/SPI/I2C inputs—external clock (NMSI)
5
4
5
4
sp22
sp23
PIO/TIMER/IDMA inputs
10
8
3
3
Input specifications are measured from the 50% level of the signal to the 50% level of the rising edge of CLKIN.
Timings are measured at the pin.
Note that although the specifications generally reference the rising edge of the clock, the following AC
timing diagrams also apply when the falling edge is the active edge.
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
13
Electrical and Thermal Characteristics
Figure 3 shows the FCC external clock.
Serial ClKin
sp17b
sp16b
FCC input signals
sp36b/sp37b
FCC output signals
Note: When GFMR[TCI] = 0
sp36b/sp37b
FCC output signals
Note: When GFMR[TCI] = 1
Figure 3. FCC External Clock Diagram
Figure 4 shows the FCC internal clock.
BRG_OUT
sp17a
sp16a
FCC input signals
sp36a/sp37a
FCC output signals
Note: When GFMR[TCI] = 0
sp36a/sp37a
FCC output signals
Note: When GFMR[TCI] = 1
Figure 4. FCC Internal Clock Diagram
14
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
Figure 5 shows the SCC/SMC/SPI/I2C external clock.
Serial CLKin
sp18b
sp19b
SCC/SMC/SPI/I2C input signals
(See note.)
sp38b/sp39b
SCC/SMC/SPI/I2C output signals
(See note.)
Note: There are four possible timing conditions for SCC and SPI:
1. Input sampled on the rising edge and output driven on the rising edge (shown).
2. Input sampled on the rising edge and output driven on the falling edge.
3. Input sampled on the falling edge and output driven on the falling edge.
4. Input sampled on the falling edge and output driven on the rising edge.
Figure 5. SCC/SMC/SPI/I2C External Clock Diagram
Figure 6 shows the SCC/SMC/SPI/I2C internal clock.
BRG_OUT
sp18a
sp19a
SCC/SMC/SPI/I2C input signals
(See note.)
sp38a/sp39a
SCC/SMC/SPI/I2C output signals
(See note.)
Note: There are four possible timing conditions for SCC and SPI:
1. Input sampled on the rising edge and output driven on the rising edge (shown).
2. Input sampled on the rising edge and output driven on the falling edge.
3. Input sampled on the falling edge and output driven on the falling edge.
4. Input sampled on the falling edge and output driven on the rising edge.
Figure 6. SCC/SMC/SPI/I2C Internal Clock Diagram
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
15
Electrical and Thermal Characteristics
Figure 7 shows TDM input and output signals.
Serial CLKin
sp20
sp21
TDM input signals
sp40/sp41
TDM output signals
Note: There are four possible TDM timing conditions:
1. Input sampled on the rising edge and output driven on the rising edge (shown).
2. Input sampled on the rising edge and output driven on the falling edge.
3. Input sampled on the falling edge and output driven on the falling edge.
4. Input sampled on the falling edge and output driven on the rising edge.
Figure 7. TDM Signal Diagram
Figure 8 shows PIO, timer, and DMA signals.
Sys clk
sp23
sp22
PIO/IDMA/TIMER[TGATE assertion] input signals
(See note)
sp23
sp22
TIMER input signal [TGATE deassertion]
(See note)
sp42/sp43
IDMA output signals
sp42/sp43
sp42a/sp43a
TIMER(sp42/43)/ PIO(sp42a/sp43a)
output signals
Note: TGATE is asserted on the rising edge of the clock; it is deasserted on the falling edge.
Figure 8. PIO, Timer, and DMA Signal Diagram
16
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
Table 10 lists SIU input characteristics.
Table 9. AC Characteristics for SIU Inputs1
Spec Number
Setup (ns)
Hold (ns)
Characteristic
1
Max
Min
66 MHz 83 MHz 66 MHz 83 MHz
sp11
sp10
AACK/ARTRY/TA/TS/TEA/DBG/BG/BR
6
5
0.5
0.5
sp12
sp10
Data bus in normal mode
5
4
0.5
0.5
sp13
sp10
Data bus in ECC and PARITY modes
8
6
0.5
0.5
sp14
sp10
DP pins
7
6
0.5
0.5
sp15
sp10
All other pins
5
4
0.5
0.5
Input specifications are measured from the 50% level of the signal to the 50% level of the rising edge of CLKIN.
Timings are measured at the pin.
Table 10 lists SIU output characteristics.
Table 10. AC Characteristics for SIU Outputs1
Spec Number
Max Delay (ns)
Min Delay (ns)
Characteristic
1
Max
Min
66 MHz 83 MHz 66 MHz 83 MHz
sp31
sp30
PSDVAL/TEA/TA
7
6
0.5
0.5
sp32
sp30
ADD/ADD_atr./BADDR/CI/GBL/WT
8
6.5
0.5
0.5
sp33a
sp30
Data bus
6.5
6.5
0.5
0.5
sp33b
sp30
DP
8
7
0.5
0.5
sp34
sp30
Memory controller signals/ALE
6
5
0.5
0.5
sp35
sp30
All other signals
6
5.5
0.5
0.5
Output specifications are measured from the 50% level of the rising edge of CLKIN to the 50% level of the
signal. Timings are measured at the pin.
NOTE
Activating data pipelining (setting BRx[DR] in the memory controller)
improves the AC timing. When data pipelining is activated, sp12 can be
used for data bus setup even when ECC or PARITY are used. Also, sp33a
can be used as the AC specification for DP signals.
Figure 9 shows the interaction of several bus signals.
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
17
Electrical and Thermal Characteristics
CLKin
sp11
sp10
AACK/ARTRY/TA/TS/TEA/
DBG/BG/BR input signals
sp12
sp10
sp15
sp10
DATA bus normal mode
input signal
All other input signals
sp31
sp30
sp32
sp30
sp33a
sp30
sp35
sp30
PSDVAL/TEA/TA output signals
ADD/ADD_atr/BADDR/CI/
GBL/WT output signals
DATA bus output signals
All other output signals
Figure 9. Bus Signals
Figure 10 shows signal behavior for all parity modes (including ECC, RMW parity, and standard parity).
CLKin
sp10
sp13
DATA bus, ECC, and PARITY mode input signals
sp10
sp14
DP mode input signal
sp33b/sp30
DP mode output signal
Figure 10. Parity Mode Diagram
18
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Electrical and Thermal Characteristics
Figure 11 shows signal behavior in MEMC mode.
CLKin
V_CLK
sp34/sp30
Memory controller signals
Figure 11. MEMC Mode Diagram
NOTE
Generally, all MPC826xA bus and system output signals are driven from
the rising edge of the input clock (CLKin). Memory controller signals,
however, trigger on four points within a CLKin cycle. Each cycle is
divided by four internal ticks: T1, T2, T3, and T4. T1 always occurs at the
rising edge, and T3 at the falling edge, of CLKin. However, the spacing of
T2 and T4 depends on the PLL clock ratio selected, as shown in Table 11.
Table 11. Tick Spacing for Memory Controller Signals
Tick Spacing (T1 Occurs at the Rising Edge of CLKin)
PLL Clock Ratio
T2
T3
T4
1:2, 1:3, 1:4, 1:5, 1:6
1/4 CLKin
1/2 CLKin
3/4 CLKin
1:2.5
3/10 CLKin
1/2 CLKin
8/10 CLKin
1:3.5
4/14 CLKin
1/2 CLKin
11/14 CLKin
Figure 12 is a graphical representation of Table 11.
CLKin
for 1:2, 1:3, 1:4, 1:5, 1:6
T1
T2
T3
T4
CLKin
for 1:2.5
T1
T2
T3
T4
CLKin
for 1:3.5
T1
T2
T3
T4
Figure 12. Internal Tick Spacing for Memory Controller Signals
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
19
Clock Configuration Modes
NOTE
The UPM machine outputs change on the internal tick determined by the
memory controller programming; the AC specifications are relative to the
internal tick. Note that SDRAM and GPCM machine outputs change on
CLKin’s rising edge.
1.3
Clock Configuration Modes
To configure the main PLL multiplication factor and the core, CPM, and 60x bus frequencies, the
MODCK[1–3] pins are sampled while HRESET is asserted. Table 12 lists the eight basic configuration
modes. Table 13 lists the other modes that are available by using the configuration pin (RSTCONF) and
driving four bits from hardware configuration word on the data bus.
Note that the MPC8265 and the MPC8266 have two additional clocking modes—PCI agent and PCI host.
Refer to Section 1.3.2, “PCI Mode” on page 23 for information.
NOTE
Clock configurations change only after POR is asserted.
1.3.1
Local Bus Mode
Table 12 describes default clock modes for the MPC826xA.
Table 12. Clock Default Modes
MODCK[1–3]
Input Clock
Frequency
CPM Multiplication
Factor
CPM
Frequency
Core Multiplication
Factor
Core
Frequency
000
33 MHz
3
100 MHz
4
133 MHz
001
33 MHz
3
100 MHz
5
166 MHz
010
33 MHz
4
133 MHz
4
133 MHz
011
33 MHz
4
133 MHz
5
166 MHz
100
66 MHz
2
133 MHz
2.5
166 MHz
101
66 MHz
2
133 MHz
3
200 MHz
110
66 MHz
2.5
166 MHz
2.5
166 MHz
111
66 MHz
2.5
166 MHz
3
200 MHz
Table 13 describes all possible clock configurations when using the hard reset configuration sequence.
Note that basic modes are shown in boldface type. The frequencies listed are for the purpose of illustration
only. Users must select a mode and input bus frequency so that the resulting configuration does not exceed
the frequency rating of the user’s device.
20
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Clock Configuration Modes
Table 13. Clock Configuration Modes1
MODCK_H–MODCK[1–3]
Core Multiplication
Input Clock CPM Multiplication
CPM
Core
Factor2
Factor2
Frequency2,3
Frequency2
Frequency2
0001_000
33 MHz
2
66 MHz
4
133 MHz
0001_001
33 MHz
2
66 MHz
5
166 MHz
0001_010
33 MHz
2
66 MHz
6
200 MHz
0001_011
33 MHz
2
66 MHz
7
233 MHz
0001_100
33 MHz
2
66 MHz
8
266 MHz
0001_101
33 MHz
3
100 MHz
4
133 MHz
0001_110
33 MHz
3
100 MHz
5
166 MHz
0001_111
33 MHz
3
100 MHz
6
200 MHz
0010_000
33 MHz
3
100 MHz
7
233 MHz
0010_001
33 MHz
3
100 MHz
8
266 MHz
0010_010
33 MHz
4
133 MHz
4
133 MHz
0010_011
33 MHz
4
133 MHz
5
166 MHz
0010_100
33 MHz
4
133 MHz
6
200 MHz
0010_101
33 MHz
4
133 MHz
7
233 MHz
0010_110
33 MHz
4
133 MHz
8
266 MHz
0010_111
33 MHz
5
166 MHz
4
133 MHz
0011_000
33 MHz
5
166 MHz
5
166 MHz
0011_001
33 MHz
5
166 MHz
6
200 MHz
0011_010
33 MHz
5
166 MHz
7
233 MHz
0011_011
33 MHz
5
166 MHz
8
266 MHz
0011_100
33 MHz
6
200 MHz
4
133 MHz
0011_101
33 MHz
6
200 MHz
5
166 MHz
0011_110
33 MHz
6
200 MHz
6
200 MHz
0011_111
33 MHz
6
200 MHz
7
233 MHz
0100_000
33 MHz
6
200 MHz
8
266 MHz
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
21
Clock Configuration Modes
Table 13. Clock Configuration Modes1 (Continued)
MODCK_H–MODCK[1–3]
Core Multiplication
Input Clock CPM Multiplication
CPM
Core
Factor2
Factor2
Frequency2,3
Frequency2
Frequency2
0100_001
Reserved
0100_010
0100_011
0100_100
0100_101
0100_110
0100_111
Reserved
0101_000
0101_001
0101_010
0101_011
0101_100
22
0101_101
66 MHz
2
133 MHz
2
133 MHz
0101_110
66 MHz
2
133 MHz
2.5
166 MHz
0101_111
66 MHz
2
133 MHz
3
200 MHz
0110_000
66 MHz
2
133 MHz
3.5
233 MHz
0110_001
66 MHz
2
133 MHz
4
266 MHz
0110_010
66 MHz
2
133 MHz
4.5
300 MHz
0110_011
66 MHz
2.5
166 MHz
2
133 MHz
0110_100
66 MHz
2.5
166 MHz
2.5
166 MHz
0110_101
66 MHz
2.5
166 MHz
3
200 MHz
0110_110
66 MHz
2.5
166 MHz
3.5
233 MHz
0110_111
66 MHz
2.5
166 MHz
4
266 MHz
0111_000
66 MHz
2.5
166 MHz
4.5
300 MHz
0111_001
66 MHz
3
200 MHz
2
133 MHz
0111_010
66 MHz
3
200 MHz
2.5
166 MHz
0111_011
66 MHz
3
200 MHz
3
200 MHz
0111_100
66 MHz
3
200 MHz
3.5
233 MHz
0111_101
66 MHz
3
200 MHz
4
266 MHz
0111_110
66 MHz
3
200 MHz
4.5
300 MHz
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Clock Configuration Modes
Table 13. Clock Configuration Modes1 (Continued)
MODCK_H–MODCK[1–3]
Core Multiplication
Input Clock CPM Multiplication
CPM
Core
Factor2
Factor2
Frequency2,3
Frequency2
Frequency2
0111_111
66 MHz
3.5
233 MHz
2
133 MHz
1000_000
66 MHz
3.5
233 MHz
2.5
166 MHz
1000_001
66 MHz
3.5
233 MHz
3
200 MHz
1000_010
66 MHz
3.5
233 MHz
3.5
233 MHz
1000_011
66 MHz
3.5
233 MHz
4
266 MHz
1000_100
66 MHz
3.5
233 MHz
4.5
300 MHz
1
Because of speed dependencies, not all of the possible configurations in Table 13 are applicable.
The user should choose the input clock frequency and the multiplication factors such that the frequency of the
CPU is equal to or greater than150 MHz and the CPM ranges between 66–233 MHz.
3 Input clock frequency is given only for the purpose of reference. User should set MODCK_H–MODCK_L so that
the resulting configuration does not exceed the frequency rating of the user’s part.
2
1.3.2
PCI Mode
The MPC8265 and the MPC8266 have three clocking modes: local, PCI host, and PCI agent. The clocking
mode is set according to three input pins—PCI_MODE, PCI_CFG[0], PCI_MODCK—as shown in
Table 14.
Table 14. MPC8265 and MPC8266 Clocking Modes
Pins
Clocking Mode
PCI Clock
Frequency Range
(MHZ)
PCI_MODE
PCI_CFG[0]
PCI_MODCK
1
—
—
Local bus
—
0
0
0
PCI host
50–66
0
0
1
0
1
0
0
1
1
25–50
PCI agent
50–66
25–50
In addition, note the following:
NOTE: PCI_MODCK
In PCI mode only, PCI_MODCK comes from the LGPL5 pin and
MODCK_H[0–3] comes from {LGPL0, LGPL1, LGPL2, LGPL3}.
NOTE: Tval (Output Hold)
The minimum Tval = 2 when PCI_MODCK = 1, and the minimum
Tval = 1 when PCI_MODCK = 0. Therefore, designers should use clock
configurations that fit this condition to achieve PCI-compliant AC timing.
NOTE
Clock configurations change only after POR is asserted.
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
23
Clock Configuration Modes
1.3.2.1
PCI Host Mode
The frequencies listed in Table 15 and Table 16 are for the purpose of illustration only. Users must select a
mode and input bus frequency so that the resulting configuration does not exceed the frequency rating of the
user’s device.
I
Table 15. Clock Default Configurations in PCI Host Mode (MODCK_HI = 0000)
Input Clock
CPM
Core
CPM
Core
PCI Division
PCI
Multiplication
MODCK[1–3]1 Frequency Multiplication
Frequency
Frequency
Factor2
Frequency2
(Bus)
Factor
Factor
1
000
66 MHz
2
133 MHz
2.5
166 MHz
2/4
66/33 MHz
001
66 MHz
2
133 MHz
3
200 MHz
2/4
66/33 MHz
010
66 MHz
2.5
166 MHz
3
200 MHz
3/6
55/28 MHz
011
66 MHz
2.5
166 MHz
3.5
233 MHz
3/6
55/28 MHz
100
66 MHz
2.5
166 MHz
4
266 MHz
3/6
55/28 MHz
101
66 MHz
3
200 MHz
3
200 MHz
3/6
66/33 MHz
110
66 MHz
3
200 MHz
3.5
233 MHz
3/6
66/33 MHz
111
66 MHz
3
200 MHz
4
266 MHz
3/6
66/33 MHz
Assumes MODCK_HI = 0000.
The frequency depends on the value of PCI_MODCK. If PCI_MODCK is high (logic ‘1’), the PCI frequency is
divided by 2 (33 instead of 66 MHz, etc.) Refer to Table 14.
2
Table 16 describes all possible clock configurations when using the MPC8265 or the MPC8266’s internal
PCI bridge in host mode.
Table 16. Clock Configuration Modes in PCI Host Mode
MODCK_H –
MODCK[1–3]
Input Clock
Frequency1
(Bus)
0001_000
33 MHz
3
100 MHz
5
166 MHz
3/6
33/16 MHz
0001_001
33 MHz
3
100 MHz
6
200 MHz
3/6
33/16 MHz
0001_010
33 MHz
3
100 MHz
7
233 MHz
3/6
33/16 MHz
0001_011
33 MHz
3
100 MHz
8
266 MHz
3/6
33/16 MHz
0010_000
33 MHz
4
133 MHz
5
166 MHz
4/8
33/16 MHz
0010_001
33 MHz
4
133 MHz
6
200 MHz
4/8
33/16 MHz
0010_010
33 MHz
4
133 MHz
7
233 MHz
4/8
33/16 MHz
0010_011
33 MHz
4
133 MHz
8
266 MHz
4/8
33/16 MHz
0011_0003
33 MHz
5
166 MHz
5
166 MHz
5
33 MHz
0011_0013
33 MHz
5
166 MHz
6
200 MHz
5
33 MHz
0011_0103
33 MHz
5
166 MHz
7
233 MHz
5
33 MHz
0011_0113
33 MHz
5
166 MHz
8
266 MHz
5
33 MHz
24
CPM
Core
PCI
CPM
Core
PCI Division
Multiplication
Multiplication
Frequency2
Frequency
Frequency
Factor2
Factor
Factor
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Clock Configuration Modes
Table 16. Clock Configuration Modes in PCI Host Mode (Continued)
CPM
Core
CPM
Core
PCI Division
PCI
Multiplication
Multiplication
Frequency
Frequency
Factor2
Frequency2
Factor
Factor
MODCK_H –
MODCK[1–3]
Input Clock
Frequency1
(Bus)
0100_0003
33 MHz
6
200 MHz
5
166 MHz
6
33 MHz
0100_0013
33 MHz
6
200 MHz
6
200 MHz
6
33 MHz
0100_0103
33 MHz
6
200 MHz
7
233 MHz
6
33 MHz
0100_0113
33 MHz
6
200 MHz
8
266 MHz
6
33 MHz
0101_000
66 MHz
2
133 MHz
2.5
166 MHz
2/4
66/33 MHz
0101_001
66 MHz
2
133 MHz
3
200 MHz
2/4
66/33 MHz
0101_010
66 MHz
2
133 MHz
3.5
233 MHz
2/4
66/33 MHz
0101_011
66 MHz
2
133 MHz
4
266 MHz
2/4
66/33 MHz
0101_100
66 MHz
2
133 MHz
4.5
300 MHz
2/4
66/33 MHz
0110_000
66 MHz
2.5
166 MHz
2.5
166 MHz
3/6
55/28 MHz
0110_001
66 MHz
2.5
166 MHz
3
200 MHz
3/6
55/28 MHz
0110_010
66 MHz
2.5
166 MHz
3.5
233 MHz
3/6
55/28 MHz
0110_011
66 MHz
2.5
166 MHz
4
266 MHz
3/6
55/28 MHz
0110_100
66 MHz
2.5
166 MHz
4.5
300 MHz
3/6
55/28 MHz
0111_000
66 MHz
3
200 MHz
2.5
166 MHz
3/6
66/33 MHz
0111_001
66 MHz
3
200 MHz
3
200 MHz
3/6
66/33 MHz
0111_010
66 MHz
3
200 MHz
3.5
233 MHz
3/6
66/33 MHz
0111_011
66 MHz
3
200 MHz
4
266 MHz
3/6
66/33 MHz
0111_100
66 MHz
3
200 MHz
4.5
300 MHz
3/6
66/33 MHz
1000_000
66 MHz
3
200 MHz
2.5
166 MHz
4/8
50/25 MHz
1000_001
66 MHz
3
200 MHz
3
200 MHz
4/8
50/25 MHz
1000_010
66 MHz
3
200 MHz
3.5
233 MHz
4/8
50/25 MHz
1000_011
66 MHz
3
200 MHz
4
266 MHz
4/8
50/25 MHz
1000_100
66 MHz
3
200 MHz
4.5
300 MHz
4/8
50/25 MHz
1001_000
66 MHz
3.5
233 MHz
2.5
166 MHz
4/8
58/29 MHz
1001_001
66 MHz
3.5
233 MHz
3
200 MHz
4/8
58/29 MHz
1001_010
66 MHz
3.5
233 MHz
3.5
233 MHz
4/8
58/29 MHz
1001_011
66 MHz
3.5
233 MHz
4
266 MHz
4/8
58/29 MHz
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
25
Clock Configuration Modes
Table 16. Clock Configuration Modes in PCI Host Mode (Continued)
CPM
Core
CPM
Core
PCI Division
PCI
Multiplication
Multiplication
Frequency
Frequency
Factor2
Frequency2
Factor
Factor
MODCK_H –
MODCK[1–3]
Input Clock
Frequency1
(Bus)
1001_100
66 MHz
3.5
233 MHz
4.5
300 MHz
4/8
58/29 MHz
1010_000
100 MHz
2
200 MHz
2
200 MHz
3/6
66/33 MHz
1010_001
100 MHz
2
200 MHz
2.5
250 MHz
3/6
66/33 MHz
1010_010
100 MHz
2
200 MHz
3
300 MHz
3/6
66/33 MHz
1010_011
100 MHz
2
200 MHz
3.5
350 MHz
3/6
66/33 MHz
1010_100
100 MHz
2
200 MHz
4
400 MHz
3/6
66/33 MHz
1011_000
100 MHz
2.5
250 MHz
2
200 MHz
4/8
62/31 MHz
1011_001
100 MHz
2.5
250 MHz
2.5
250 MHz
4/8
62/31MHz
1011_010
100 MHz
2.5
250 MHz
3
300 MHz
4/8
62/31 MHz
1011_011
100 MHz
2.5
250 MHz
3.5
350 MHz
4/8
62/31 MHz
1011_100
100 MHz
2.5
250 MHz
4
400 MHz
4/8
62/31 MHz
1
Input clock frequency is given only for the purpose of reference. User should set MODCK_H–MODCK_L so that
the resulting configuration does not exceed the frequency rating of the user’s part.
2 The frequency depends on the value of PCI_MODCK. If PCI_MODCK is high (logic ‘1’), the PCI frequency is
divided by 2 (33 instead of 66 MHz, etc.). Refer to Table 14.
3 In this mode, PCI_MODCK must be “0”.
26
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Clock Configuration Modes
1.3.2.2
PCI Agent Mode
The frequencies listed in Table 17 and Table 18 are for the purpose of illustration only. Users must select a
mode and input bus frequency so that the resulting configuration does not exceed the frequency rating of the
user’s device.
Table 17. Clock Default Configurations in PCI Agent Mode (MODCK_HI = 0000)
Input Clock
Core
CPM
CPM
Core
Bus Division 60x Bus
Multiplication
MODCK[1–3]1 Frequency Multiplication
3
Frequency
Frequency
Factor
Frequency4
2
2
(PCI)
Factor
Factor
000
66/33 MHz
2/4
133 MHz
2.5
166 MHz
2
66 MHz
001
66/33 MHz
2/4
133 MHz
3
200 MHz
2
66 MHz
010
66/33 MHz
3/6
200 MHz
3
200 MHz
3
66 MHz
011
66/33 MHz
3/6
200 MHz
4
266 MHz
3
66 MHz
100
66/33 MHz
3/6
200 MHz
3
240 MHz
2.5
80 MHz
101
66/33 MHz
3/6
200 MHz
3.5
280 MHz
2.5
80 MHz
110
66/33 MHz
4/8
266 MHz
3.5
300 MHz
3
88 MHz
111
66/33 MHz
4/8
266 MHz
3
300 MHz
2.5
100 MHz
1
Assumes MODCK_HI = 0000.
The frequency depends on the value of PCI_MODCK. If PCI_MODCK is high (logic ‘1’), the PCI frequency is
divided by 2 (33 instead of 66 MHz, etc.) and the CPM multiplication factor is multiplied by 2. Refer to
Table 14.
3 Core frequency = (60x bus frequency)(core multiplication factor)
4 Bus frequency = CPM frequency / bus division factor
2
Table 18 describes all possible clock configurations when using the MPC8265 or the MPC8266’s internal
PCI bridge in agent mode.
Table 18. Clock Configuration Modes in PCI Agent Mode
Input Clock
CPM
Core
Factor
Factor
CPM
Core
Bus Division 60x Bus
MODCK_H –
Frequency Multiplication
Multiplication
MODCK[1–3]
Frequency
Frequency3
Factor
Frequency4
1,2
1
(PCI)
0001_001
66/33 MHz
2/4
133 MHz
5
166 MHz
4
33 MHz
0001_010
66/33 MHz
2/4
133 MHz
6
200 MHz
4
33 MHz
0001_011
66/33 MHz
2/4
133 MHz
7
233 MHz
4
33 MHz
0001_100
66/33 MHz
2/4
133 MHz
8
266 MHz
4
33 MHz
0010_001
50/25 MHz
3/6
150 MHz
3
180 MHz
2.5
60 MHz
0010_010
50/25 MHz
3/6
150 MHz
3.5
210 MHz
2.5
60 MHz
0010_011
50/25 MHz
3/6
150 MHz
4
240 MHz
2.5
60 MHz
0010_100
50/25 MHz
3/6
150 MHz
4.5
270 MHz
2.5
60 MHz
0011_000
66/33 MHz
2/4
133 MHz
2.5
110MHz
3
44 MHz
0011_001
66/33 MHz
2/4
133 MHz
3
132 MHz
3
44 MHz
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
27
Clock Configuration Modes
Table 18. Clock Configuration Modes in PCI Agent Mode (Continued)
Input Clock
CPM
Core
Factor
Factor
CPM
Core
Bus Division 60x Bus
MODCK_H –
Frequency Multiplication
Multiplication
MODCK[1–3]
Frequency
Frequency3
Factor
Frequency4
1,2
1
(PCI)
28
0011_010
66/33 MHz
2/4
133 MHz
3.5
154 MHz
3
44 MHz
0011_011
66/33 MHz
2/4
133 MHz
4
176MHz
3
44 MHz
0011_100
66/33 MHz
2/4
133 MHz
4.5
198 MHz
3
44 MHz
0100_000
66/33 MHz
3/6
200 MHz
2.5
166 MHz
3
66 MHz
0100_001
66/33 MHz
3/6
200 MHz
3
200 MHz
3
66 MHz
0100_010
66/33 MHz
3/6
200 MHz
3.5
233 MHz
3
66 MHz
0100_011
66/33 MHz
3/6
200 MHz
4
266 MHz
3
66 MHz
0100_100
66/33 MHz
3/6
200 MHz
4.5
300 MHz
3
66 MHz
0101_0005
33 MHz
5
166 MHz
2.5
166 MHz
2.5
66 MHz
0101_0015
33 MHz
5
166 MHz
3
200 MHz
2.5
66 MHz
0101_0105
33 MHz
5
166 MHz
3.5
233 MHz
2.5
66 MHz
0101_0115
33 MHz
5
166 MHz
4
266 MHz
2.5
66 MHz
0101_1005
33 MHz
5
166 MHz
4.5
300 MHz
2.5
66 MHz
0110_000
50/25 MHz
4/8
200 MHz
2.5
166 MHz
3
66 MHz
0110_001
50/25 MHz
4/8
200 MHz
3
200 MHz
3
66 MHz
0110_010
50/25 MHz
4/8
200 MHz
3.5
233 MHz
3
66 MHz
0110_011
50/25 MHz
4/8
200 MHz
4
266 MHz
3
66 MHz
0110_100
50/25 MHz
4/8
200 MHz
4.5
300 MHz
3
66 MHz
0111_000
66/33 MHz
3/6
200 MHz
2
200 MHz
2
100 MHz
0111_001
66/33 MHz
3/6
200 MHz
2.5
250 MHz
2
100 MHz
0111_010
66/33 MHz
3/6
200 MHz
3
300 MHz
2
100 MHz
0111_011
66/33 MHz
3/6
200 MHz
3.5
350 MHz
2
100 MHz
1000_000
66/33 MHz
3/6
200 MHz
2
160 MHz
2.5
80 MHz
1000_001
66/33 MHz
3/6
200 MHz
2.5
200 MHz
2.5
80 MHz
1000_010
66/33 MHz
3/6
200 MHz
3
240 MHz
2.5
80 MHz
1000_011
66/33 MHz
3/6
200 MHz
3.5
280 MHz
2.5
80 MHz
1000_100
66/33 MHz
3/6
200 MHz
4
320 MHz
2.5
80 MHz
1000_101
66/33 MHz
3/6
200 MHz
4.5
360 MHz
2.5
80 MHz
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 18. Clock Configuration Modes in PCI Agent Mode (Continued)
Input Clock
CPM
Core
Factor
Factor
CPM
Core
Bus Division 60x Bus
MODCK_H –
Frequency Multiplication
Multiplication
MODCK[1–3]
Frequency
Frequency3
Factor
Frequency4
1,2
1
(PCI)
1
2
3
4
5
1001_000
66/33 MHz
4/8
266 MHz
2.5
166 MHz
4
66 MHz
1001_001
66/33 MHz
4/8
266 MHz
3
200 MHz
4
66 MHz
1001_010
66/33 MHz
4/8
266 MHz
3.5
233 MHz
4
66 MHz
1001_011
66/33 MHz
4/8
266 MHz
4
266 MHz
4
66 MHz
1001_100
66/33 MHz
4/8
266 MHz
4.5
300 MHz
4
66 MHz
1010_000
66/33 MHz
4/8
266 MHz
2.5
222 MHz
3
88 MHz
1010_001
66/33 MHz
4/8
266 MHz
3
266 MHz
3
88 MHz
1010_010
66/33 MHz
4/8
266 MHz
3.5
300 MHz
3
88 MHz
1010_011
66/33 MHz
4/8
266 MHz
4
350 MHz
3
88 MHz
1010_100
66/33 MHz
4/8
266 MHz
4.5
400 MHz
3
88 MHz
1011_000
66/33 MHz
4/8
266 MHz
2
212MHz
2.5
106 MHz
1011_001
66/33 MHz
4/8
266 MHz
2.5
265 MHz
2.5
106 MHz
1011_010
66/33 MHz
4/8
266 MHz
3
318 MHz
2.5
106 MHz
1011_011
66/33 MHz
4/8
266 MHz
3.5
371 MHz
2.5
106 MHz
1011_100
66/33 MHz
4/8
266 MHz
4
424 MHz
2.5
106 MHz
The frequency depends on the value of PCI_MODCK. If PCI_MODCK is high (logic ‘1’), the PCI frequency
is divided by 2 (33 instead of 66 MHz, etc.) and the CPM multiplication factor is multiplied by 2. Refer to
Table 14.
Input clock frequency is given only for the purpose of reference. User should set MODCK_H–MODCK_L so
that the resulting configuration does not exceed the frequency rating of the user’s part.
Core frequency = (60x bus frequency)(core multiplication factor)
Bus frequency = CPM frequency / bus division factor
In this mode, PCI_MODCK must be “1”.
1.4
Pinout
This section provides the pin assignments and pinout list for the MPC826xA.
1.4.1
Pin Assignments
Figure 13 shows the pinout of the MPC826xA’s 480 TBGA package as viewed from the top surface.
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
29
Pinout
1
2
3
4 5 6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
AJ
A
B
C
D
E
F
G
H
J
K
L
M
N
P
R
T
U
V
W
Y
AA
AB
AC
AD
AE
AF
AG
AH
AJ
1
2
3
4 5 6
7
8
9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29
Not to Scale
Figure 13. Pinout of the 480 TBGA Package as Viewed from the Top Surface
Figure 14 shows the side profile of the TBGA package to indicate the direction of the top surface view.
View
Copper Heat Spreader
(Oxidized for Insulation)
Die
Attach
Polymide Tape
Etched
Cavity
Pressure Sensitive
Adhesive
Die
Soldermask
Glob-Top Filled Area
Glob-Top Dam
1.27 mm Pitch
Copper Traces
Figure 14. Side View of the TBGA Package
30
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 19 shows the pinout list of the MPC826xA. Table 20 defines conventions and acronyms used in
Table 19.
Table 19. Pinout List
Pin Name
Ball
BR
W5
BG
F4
ABB/IRQ2
E2
TS
E3
A0
G1
A1
H5
A2
H2
A3
H1
A4
J5
A5
J4
A6
J3
A7
J2
A8
J1
A9
K4
A10
K3
A11
K2
A12
K1
A13
L5
A14
L4
A15
L3
A16
L2
A17
L1
A18
M5
A19
N5
A20
N4
A21
N3
A22
N2
A23
N1
A24
P4
A25
P3
A26
P2
A27
P1
A28
R1
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
31
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
A29
R3
A30
R5
A31
R4
TT0
F1
TT1
G4
TT2
G3
TT3
G2
TT4
F2
TBST
D3
TSIZ0
C1
TSIZ1
E4
TSIZ2
D2
TSIZ3
F5
AACK
F3
ARTRY
E1
DBG
V1
DBB/IRQ3
V2
D0
B20
D1
A18
D2
A16
D3
A13
D4
E12
D5
D9
D6
A6
D7
B5
D8
A20
D9
E17
D10
B15
D11
B13
D12
A11
D13
E9
D14
B7
D15
B4
D16
D19
D17
D17
32
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
D18
D15
D19
C13
D20
B11
D21
A8
D22
A5
D23
C5
D24
C19
D25
C17
D26
C15
D27
D13
D28
C11
D29
B8
D30
A4
D31
E6
D32
E18
D33
B17
D34
A15
D35
A12
D36
D11
D37
C8
D38
E7
D39
A3
D40
D18
D41
A17
D42
A14
D43
B12
D44
A10
D45
D8
D46
B6
D47
C4
D48
C18
D49
E16
D50
B14
D51
C12
D52
B10
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
33
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
D53
A7
D54
C6
D55
D5
D56
B18
D57
B16
D58
E14
D59
D12
D60
C10
D61
E8
D62
D6
D63
C2
DP0/RSRV/EXT_BR2
B22
IRQ1/DP1/EXT_BG2
A22
IRQ2/DP2/TLBISYNC/EXT_DBG2
E21
IRQ3/DP3/CKSTP_OUT/EXT_BR3
D21
IRQ4/DP4/CORE_SRESET/EXT_BG3
C21
IRQ5/DP5/TBEN/EXT_DBG3
B21
IRQ6/DP6/CSE0
A21
IRQ7/DP7/CSE1
E20
PSDVAL
V3
TA
C22
TEA
V5
GBL/IRQ1
W1
CI/BADDR29/IRQ2
U2
WT/BADDR30/IRQ3
U3
L2_HIT/IRQ4
Y4
CPU_BG/BADDR31/IRQ5
U4
CPU_DBG
R2
CPU_BR
Y3
CS0
F25
CS1
C29
CS2
E27
CS3
E28
CS4
F26
CS5
F27
34
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
CS6
F28
CS7
G25
CS8
D29
CS9
E29
CS10/BCTL1
F29
CS11/AP0
G28
BADDR27
T5
BADDR28
U1
ALE
T2
BCTL0
A27
PWE0/PSDDQM0/PBS0
C25
PWE1/PSDDQM1/PBS1
E24
PWE2/PSDDQM2/PBS2
D24
PWE3/PSDDQM3/PBS3
C24
PWE4/PSDDQM4/PBS4
B26
PWE5/PSDDQM5/PBS5
A26
PWE6/PSDDQM6/PBS6
B25
PWE7/PSDDQM7/PBS7
A25
PSDA10/PGPL0
E23
PSDWE/PGPL1
B24
POE/PSDRAS/PGPL2
A24
PSDCAS/PGPL3
B23
PGTA/PUPMWAIT/PGPL4/PPBS
A23
PSDAMUX/PGPL5
D22
LWE0/LSDDQM0/LBS0/PCI_CFG01
H28
LWE1/LSDDQM1/LBS1/PCI_CFG11
H27
LWE2/LSDDQM2/LBS2/PCI_CFG21
H26
LWE3/LSDDQM3/LBS3/PCI_CFG31
G29
LSDA10/LGPL0/PCI_MODCKH01
D27
LSDWE/LGPL1/PCI_MODCKH11
C28
LOE/LSDRAS/LGPL2/PCI_MODCKH21
E26
LSDCAS/LGPL3/PCI_MODCKH31
D25
LGTA/LUPMWAIT/LGPL4/LPBS
C26
LGPL5/LSDAMUX/PCI_MODCK1
B27
LWR
D28
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
35
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
L_A14/PAR1
N27
L_A15/FRAME1/SMI
T29
L_A16/TRDY1
R27
L_A17/IRDY1/CKSTP_OUT
R26
L_A18/STOP1
R29
L_A19/DEVSEL1
R28
L_A20/IDSEL1
W29
L_A21/PERR1
P28
L_A22/SERR1
N26
L_A23/REQ01
AA27
L_A24/REQ11/HSEJSW1
P29
L_A25/GNT01
AA26
L_A26/GNT11/HSLED1
N25
L_A27/GNT21/HSENUM1
AA25
L_A28/RST1/CORE_SRESET
AB29
L_A29/INTA1
AB28
L_A30/REQ21
P25
L_A31/DLLOUT1
AB27
LCL_D0/AD01
H29
LCL_D1/AD11
J29
LCL_D2/AD21
J28
LCL_D3/AD31
J27
LCL_D4/AD41
J26
LCL_D5/AD51
J25
LCL_D6/AD61
K25
LCL_D7/AD71
L29
LCL_D8/AD81
L27
LCL_D9/AD91
L26
LCL_D10/AD101
L25
LCL_D11/AD111
M29
LCL_D12/AD121
M28
LCL_D13/AD131
M27
LCL_D14/AD141
M26
LCL_D15/AD151
N29
LCL_D16/AD161
T25
36
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
LCL_D17/AD171
U27
LCL_D18/AD181
U26
LCL_D19/AD191
U25
LCL_D20/AD201
V29
LCL_D21/AD211
V28
LCL_D22/AD221
V27
LCL_D23/AD231
V26
LCL_D24/AD241
W27
LCL_D25/AD251
W26
LCL_D26/AD261
W25
LCL_D27/AD271
Y29
LCL_D28/AD281
Y28
LCL_D29/AD291
Y25
LCL_D30/AD301
AA29
LCL_D31/AD311
AA28
LCL_DP0/C01/BE01
L28
LCL_DP1/C11/BE11
N28
LCL_DP2/C21/BE21
T28
LCL_DP3/C31/BE31
W28
IRQ0/NMI_OUT
T1
IRQ7/INT_OUT/APE
D1
TRST
AH3
TCK
AG5
TMS
AJ3
TDI
AE6
TDO
AF5
TRIS
AB4
PORESET
AG6
HRESET
AH5
SRESET
AF6
QREQ
AA3
RSTCONF
AJ4
MODCK1/AP1/TC0/BNKSEL0
W2
MODCK2/AP2/TC1/BNKSEL1
W3
MODCK3/AP3/TC2/BNKSEL2
W4
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
37
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
XFC
AB2
CLKIN1
AH4
PA0/RESTART1/DREQ3/FCC2_UTM_TXADDR2
AC292
PA1/REJECT1/FCC2_UTM_TXADDR1/DONE3
AC252
PA2/CLK20/FCC2_UTM_TXADDR0/DACK3
AE282
PA3/CLK19/FCC2_UTM_RXADDR0/DACK4/L1RXD1A2
AG292
PA4/REJECT2/FCC2_UTM_RXADDR1/DONE4
AG282
PA5/RESTART2/DREQ4/FCC2_UTM_RXADDR2
AG262
PA6/L1RSYNCA1
AE242
PA7/SMSYN2/L1TSYNCA1/L1GNTA1
AH252
PA8/SMRXD2/L1RXD0A1/L1RXDA1
AF232
PA9/SMTXD2/L1TXD0A1
AH232
PA10/FCC1_UT8_RXD0/FCC1_UT16_RXD8/MSNUM5
AE222
PA11/FCC1_UT8_RXD1/FCC1_UT16_RXD9/MSNUM4
AH222
PA12/FCC1_UT8_RXD2/FCC1_UT16_RXD10/MSNUM3
AJ212
PA13/FCC1_UT8_RXD3/FCC1_UT16_RXD11/MSNUM2
AH202
PA14/FCC1_UT8_RXD4/FCC1_UT16_RXD12/FCC1_RXD3
AG192
PA15/FCC1_UT8_RXD5/FCC1_UT16_RXD13/FCC1_RXD2
AF182
PA16/FCC1_UT8_RXD6/FCC1_UT16_RXD14/FCC1_RXD1
AF172
PA17/FCC1_UT8_RXD7/FCC1_UT16_RXD15/FCC1_RXD0/FCC1_RXD
AE162
PA18/FCC1_UT8_TXD7/FCC1_UT16_TXD15/FCC1_TXD0/FCC1_TXD
AJ162
PA19/FCC1_UT8_TXD6/FCC1_UT16_TXD14/FCC1_TXD1
AG152
PA20/FCC1_UT8_TXD5/FCC1_UT16_TXD13/FCC1_TXD2
AJ132
PA21/FCC1_UT8_TXD4/FCC1_UT16_TXD12/FCC1_TXD3
AE132
PA22/FCC1_UT8_TXD3/FCC1_UT16_TXD11
AF122
PA23/FCC1_UT8_TXD2/FCC1_UT16_TXD10
AG112
PA24/FCC1_UT8_TXD1/FCC1_UT16_TXD9/MSNUM1
AH92
PA25/FCC1_UT8_TXD0/FCC1_UT16_TXD8/MSNUM0
AJ82
PA26/FCC1_UTM_RXCLAV/FCC1_UTS_RXCLAV/FCC1_MII_RX_ER
AH72
PA27/FCC1_UT_RXSOC/FCC1_MII_RX_DV
AF72
PA28/FCC1_UTM_RXENB/FCC1_UTS_RXENB/FCC1_MII_TX_EN
AD52
PA29/FCC1_UT_TXSOC/FCC1_MII_TX_ER
AF12
PA30/FCC1_UTM_TXCLAV/FCC1_UTS_TXCLAV/FCC1_MII_CRS/
FCC1_RTS
AD32
PA31/FCC1_UTM_TXENB/FCC1_UTS_TXENB/FCC1_MII_COL
AB52
PB4/FCC3_TXD3/FCC2_UT8_RXD0/L1RSYNCA2/FCC3_RTS
AD282
38
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
PB5/FCC3_TXD2/FCC2_UT8_RXD1/L1TSYNCA2/L1GNTA2
AD262
PB6/FCC3_TXD1/FCC2_UT8_RXD2/L1RXDA2/L1RXD0A2
AD252
PB7/FCC3_TXD0/FCC3_TXD/FCC2_UT8_RXD3/L1TXDA2/L1TXD0A2
AE262
PB8/FCC2_UT8_TXD3/FCC3_RXD0/FCC3_RXD/TXD3/L1RSYNCD1
AH272
PB9/FCC2_UT8_TXD2/FCC3_RXD1/L1TXD2A2/L1TSYNCD1/L1GNTD1
AG242
PB10/FCC2_UT8_TXD1/FCC3_RXD2/L1RXDD1
AH242
PB11/FCC3_RXD3/FCC2_UT8_TXD0/L1TXDD1
AJ242
PB12/FCC3_MII_CRS/L1CLKOB1/L1RSYNCC1/TXD2
AG222
PB13/FCC3_MII_COL/L1RQB1/L1TSYNCC1/L1GNTC1/L1TXD1A2
AH212
PB14/FCC3_MII_TX_EN/RXD3/L1RXDC1
AG202
PB15/FCC3_MII_TX_ER/RXD2/L1TXDC1
AF192
PB16/FCC3_MII_RX_ER/L1CLKOA1/CLK18
AJ182
PB17/FCC3_MII_RX_DV/L1RQA1/CLK17
AJ172
PB18/FCC2_UT8_RXD4/FCC2_RXD3/L1CLKOD2/L1RXD2A2
AE142
PB19/FCC2_UT8_RXD5/FCC2_RXD2/L1RQD2/L1RXD3A2
AF132
PB20/FCC2_UT8_RXD6/FCC2_RXD1/L1RSYNCD2/L1TXD1A1
AG122
PB21/FCC2_UT8_RXD7/FCC2_RXD0/FCC2_RXD/L1TSYNCD2/L1GNTD2/ AH112
L1TXD2A1
PB22/FCC2_UT8_TXD7/FCC2_TXD0/FCC2_TXD/L1RXD1A1/L1RXDD2
AH162
PB23/FCC2_UT8_TXD6/FCC2_TXD1/L1RXD2A1/L1TXDD2
AE152
PB24/FCC2_UT8_TXD5/FCC2_TXD2/L1RXD3A1/L1RSYNCC2
AJ92
PB25/FCC2_UT8_TXD4/FCC2_TXD3/L1TSYNCC2/L1GNTC2/L1TXD3A1
AE92
PB26/FCC2_MII_CRS/FCC2_UT8_TXD1/L1RXDC2
AJ72
PB27/FCC2_MII_COL/FCC2_UT8_TXD0/L1TXDC2
AH62
PB28/FCC2_MII_RX_ER/FCC2_RTS/L1TSYNCB2/L1GNTB2/TXD1
AE32
PB29/FCC2_UTM_RXCLAV/FCC2_UTS_RXCLAV/L1RSYNCB2/
FCC2_MII_TX_EN
AE22
PB30/FCC2_MII_RX_DV/FCC2_UT_TXSOC/L1RXDB2
AC52
PB31/FCC2_MII_TX_ER/FCC2_UT_RXSOC/L1TXDB2
AC42
PC0/DREQ1/BRGO7/SMSYN2/L1CLKOA2
AB262
PC1/DREQ2/BRGO6/L1RQA2
AD292
PC2/FCC3_CD/FCC2_UT8_TXD3/DONE2
AE292
PC3/FCC3_CTS/FCC2_UT8_TXD2/DACK2/CTS4
AE272
PC4/FCC2_UTM_RXENB/FCC2_UTS_RXENB/SI2_L1ST4/FCC2_CD
AF272
PC5/FCC2_UTM_TXCLAV/FCC2_UTS_TXCLAV/SI2_L1ST3/FCC2_CTS
AF242
PC6/FCC1_CD/L1CLKOC1/FCC1_UTM_RXADDR2/FCC1_UTS_RXADDR/ AJ262
FCC1_UTM_RXCLAV1
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
39
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
PC7/FCC1_CTS/L1RQC1/FCC1_UTM_TXADDR2/FCC1_UTS_TXADDR2/
FCC1_UTM_TXCLAV1
AJ252
PC8/CD4/RENA4/FCC1_UT16_TXD0/SI2_L1ST2/CTS3
AF222
PC9/CTS4/CLSN4/FCC1_UT16_TXD1/SI2_L1ST1/L1TSYNCA2/L1GNTA2
AE212
PC10/CD3/RENA3/FCC1_UT16_TXD2/SI1_L1ST4/FCC2_UT8_RXD3
AF202
PC11/CTS3/CLSN3/L1CLKOD1/L1TXD3A2/FCC2_UT8_RXD2
AE192
PC12/CD2/RENA2/SI1_L1ST3/FCC1_UTM_RXADDR1/
FCC1_UTS_RXADDR1
AE182
PC13/CTS2/CLSN2/L1RQD1/FCC1_UTM_TXADDR1/
FCC1_UTS_TXADDR1
AH182
PC14/CD1/RENA1/FCC1_UTM_RXADDR0/FCC1_UTS_RXADDR0
AH172
PC15/CTS1/CLSN1/SMTXD2/FCC1_UTM_TXADDR0/
FCC1_UTS_TXADDR0
AG162
PC16/CLK16/TIN4
AF152
PC17/CLK15/TIN3/BRGO8
AJ152
PC18/CLK14/TGATE2
AH142
PC19/CLK13/BRGO7/SPICLK
AG132
PC20/CLK12/TGATE1
AH122
PC21/CLK11/BRGO6
AJ112
PC22/CLK10/DONE1
AG102
PC23/CLK9/BRGO5/DACK1
AE102
PC24/FCC2_UT8_TXD3/CLK8/TOUT4
AF92
PC25/FCC2_UT8_TXD2/CLK7/BRGO4
AE82
PC26/CLK6/TOUT3/TMCLK
AJ62
PC27/FCC3_TXD/FCC3_TXD0/CLK5/BRGO3
AG22
PC28/CLK4/TIN1/TOUT2/CTS2/CLSN2
AF32
PC29/CLK3/TIN2/BRGO2/CTS1/CLSN1
AF22
PC30/FCC2_UT8_TXD3/CLK2/TOUT1
AE12
PC31/CLK1/BRGO1
AD12
PD4/BRGO8/L1TSYNCD1/L1GNTD1/FCC3_RTS/SMRXD2
AC282
PD5/FCC1_UT16_TXD3/DONE1
AD272
PD6/FCC1_UT16_TXD4/DACK1
AF292
PD7/SMSYN1/FCC1_UTM_TXADDR3/FCC1_UTS_TXADDR3/
FCC2_UTM_TXADDR4/FCC1_TXCLAV2
AF282
PD8/SMRXD1/FCC2_UT_TXPRTY/BRGO5
AG252
PD9/SMTXD1/FCC2_UT_RXPRTY/BRGO3
AH262
PD10/L1CLKOB2/FCC2_UT8_RXD1/L1RSYNCB1/BRGO4
AJ272
40
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
PD11/L1RQB2/FCC2_UT8_RXD0/L1TSYNCB1/L1GNTB1
AJ232
PD12/SI1_L1ST2/L1RXDB1
AG232
PD13/SI1_L1ST1/L1TXDB1
AJ222
PD14/FCC1_UT16_RXD0/L1CLKOC2/I2CSCL
AE202
PD15/FCC1_UT16_RXD1/L1RQC2/I2CSDA
AJ202
PD16/FCC1_UT_TXPRTY/L1TSYNCC1/L1GNTC1/SPIMISO
AG182
PD17/FCC1_UT_RXPRTY/BRGO2/SPIMOSI
AG172
PD18/FCC1_UTM_RXADDR4/FCC1_UTS_RXADDR4/
FCC1_UTM_RXCLAV3/FCC2_UTM_RXADDR3/SPICLK
AF162
PD19/FCC1_UTM_TXADDR4/FCC1_UTS_TXADDR4/
FCC1_UTM_TXCLAV3/FCC2_UTM_TXADDR3/SPISEL/BRGO1
AH152
PD20/RTS4/TENA4/FCC1_UT16_RXD2/L1RSYNCA2
AJ142
PD21/TXD4/FCC1_UT16_RXD3/L1RXD0A2/L1RXDA2
AH132
PD22/RXD4/FCC1_UT16_TXD5/L1TXD0A2/L1TXDA2
AJ122
PD23/RTS3/TENA3/FCC1_UT16_RXD4/L1RSYNCD1
AE122
PD24/TXD3/FCC1_UT16_RXD5/L1RXDD1
AF102
PD25/RXD3/FCC1_UT16_TXD6/L1TXDD1
AG92
PD26/RTS2/TENA2/FCC1_UT16_RXD6/L1RSYNCC1
AH82
PD27/TXD2/FCC1_UT16_RXD7/L1RXDC1
AG72
PD28/RXD2/FCC1_UT16_TXD7/L1TXDC1
AE42
PD29/RTS1/TENA1/FCC1_UTM_RXADDR3/FCC1_UTS_RXADDR3/
FCC1_UTM_RXCLAV2/FCC2_UTM_RXADDR4
AG12
PD30/FCC2_UTM_TXENB/FCC2_UTS_TXENB/TXD1
AD42
PD31/RXD1
AD22
VCCSYN
AB3
VCCSYN1
B9
GNDSYN
AB1
CLKIN21,3
AE11
SPARE44
U5
PCI_MODE1,5
AF25
SPARE64
V4
THERMAL06
AA1
THERMAL16
AG4
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
41
Pinout
Table 19. Pinout List (Continued)
Pin Name
Ball
I/O power
AG21, AG14, AG8, AJ1, AJ2, AH1, AH2,
AG3, AF4, AE5, AC27, Y27, T27, P27,
K26, G27, AE25, AF26, AG27, AH28,
AH29, AJ28, AJ29, C7, C14, C16, C20,
C23, E10, A28, A29, B28, B29, C27,
D26, E25, H3, M4, T3, AA4, A1, A2, B1,
B2, C3, D4, E5
Core Power
U28, U29, K28, K29, A9, A19, B19, M1,
M2, Y1, Y2, AC1, AC2, AH19, AJ19,
AH10, AJ10, AJ5
Ground
AA5, AF21, AF14, AF8, AE7, AF11,
AE17, AE23, AC26, AB25, Y26, V25,
T26, R25, P26, M25, K27, H25, G26,
D7, D10, D14, D16, D20, D23, C9, E11,
E13, E15, E19, E22, B3, G5, H4, K5,
M3, P5, T4, Y5, AA2, AC3
1
2
3
4
5
6
MPC8265 and MPC8266 only.
The default configuration of the CPM pins (PA[0–31], PB[4–31], PC[0–31], PD[4–31]) is input. To prevent excessive
DC current, it is recommended to either pull unused pins to GND or VDDH, or to configure them as outputs.
On PCI devices (MPC8265 and MPC8266) this pin should be used as CLKIN2. On non-PCI devices (MPC8260A
and MPC8264) this is a spare pin that must be pulled down or left floating.
Must be pulled down or left floating.
On PCI devices (MPC8265 and MPC8266) this pin should be asserted if the PCI function is desired or pulled up
or left floating if PCI is not desired. On non-PCI devices (MPC8260A and MPC8264) this is a spare pin that must
be pulled up or left floating.
For information on how to use this pin, refer to MPC8260 PowerQUICC II Thermal Resistor Guide available at
www.motorola.com/semiconductors.
Symbols used in Table 19 are described in Table 20.
Table 20. Symbol Legend
Symbol
Meaning
OVERBAR
Signals with overbars, such as TA, are active low.
UTM
Indicates that a signal is part of the UTOPIA master interface.
UTS
Indicates that a signal is part of the UTOPIA slave interface.
UT8
Indicates that a signal is part of the 8-bit UTOPIA interface.
UT16
Indicates that a signal is part of the 16-bit UTOPIA interface.
MII
Indicates that a signal is part of the media independent interface.
42
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Package Description
1.5
Package Description
The following sections provide the package parameters and mechanical dimensions for the MPC826xA.
1.5.1
Package Parameters
Package parameters are provided in Table 21. The package type is a 37.5 x 37.5 mm, 480-lead TBGA.
Table 21. Package Parameters
Parameter
Value
Package Outline
37.5 x 37.5 mm
Interconnects
480 (29 x 29 ball array)
Pitch
1.27 mm
Nominal unmounted package height 1.55 mm
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
43
Package Description
1.5.2
Mechanical Dimensions
Figure 15 provides the mechanical dimensions and bottom surface nomenclature of the 480 TBGA package.
Notes:
1. Dimensions and Tolerancing per
ASME Y14.5M-1994.
2. Dimensions in millimeters.
3. Dimension b is measured at the
maximum solder ball diameter,
parallel to primary data A.
4. Primary data A and the seating
plane are defined by the spherical
crowns of the solder balls.
Millimeters
Dim
Min
Max
A
1.45
1.65
A1
0.60
0.70
A2
0.85
0.95
A3
0.25
—
b
0.65
0.85
D
37.50 BSC
D1
35.56 REF
e
1.27 BSC
E
37.50 BSC
E1
35.56 REF
Figure 15. Mechanical Dimensions and Bottom Surface Nomenclature
44
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Ordering Information
1.6
Ordering Information
Figure 16 provides an example of the Motorola part numbering nomenclature for the MPC826xA. In
addition to the processor frequency, the part numbering scheme also consists of a part modifier that indicates
any enhancement(s) in the part from the original production design. Each part number also contains a
revision code that refers to the die mask revision number and is specified in the part numbering scheme for
identification purposes only. For more information, contact your local Motorola sales office.
MPC 826X A C ZU XXX X
Product Code
Die Revision Level
Device Number
Process Technology
(None = 0.29 micron
A = 0.25 micron)
Processor Frequency
(CPU/CPM/Bus)
Temperature Range
(Blank = 0 to 105 ˚C
C = -40 to 105 ˚C
Package
ZU = 480 TBGA
VR = 516 PBGA
Figure 16. Motorola Part Number Key
1.7
Document Revision History
Table 22 lists significant changes in each revision of this document.
Table 22. Document Revision History
Revision
Date
0
—
0.1
8/2001
• Table 8: Change to sp20/sp21.
0.2
11/2001
•
•
•
•
0.3
11/2001
• Table 1: note 3
• Section 1.2.1: Removal of “Warning” recommending use of bootstrap diodes. They are not
needed.
• Table 9: Change to sp12.
• Table 10: Change to sp32.
• Note 2 for Table 15 and Table 16
• Addition of note at beginning of Section 1.3.2
• Note 1 for Table 17 and Table 18
• Table 19: Additions to B27, C28, D25, D27, E26, G29, H26–28, N25, P29, AF25, AA25, AB27
0.4
2/2002
• Note 2 for Table 2 (changes in italics): “...greater than or equal to 266 MHz, 200 MHz CPM...”
• Table 18: Core and bus frequency values for the following ranges of MODCK_HMODCK:
0011_000 to 0011_100 and 1011_000 to 1011_1000
• Table 19: Notes added to pins at AE11, AF25, U5, and V4.
MOTOROLA
Substantive Changes
Initial version
Revision of Table 5, “Power Dissipation”
Modifications to Figure 9, Table 2,Table 10, Table 11, and Table 17
Modification to pinout diagram, Figure 13
Additional revisions to text and figures throughout
MPC826xA (HiP4) Family Hardware Specifications
45
Document Revision History
Table 22. Document Revision History (Continued)
Revision
Date
0.5
3/2002
• Table 19: Modified notes to pins AE11 and AF25.
• Table 19: Addition of note to pins AA1 and AG4 (Therm0 and Therm1).
0.6
3/2002
• Table 19: Modified notes to pins AE11 and AF25.
0.7
5/2002
•
•
•
•
Section 1.1, “Features”: minimum supported core frequency of 150 MHz
Section 1.1, “Features”: updated performance values (under “Dual-issue integer core”)
Table 2: Note 2 (changes in italics): “...less than or equal to 233 MHz, 166 MHz CPM...”
Table 2: Addition of note 3.
0.8
1/2003
•
•
•
•
•
•
Table 2: Modification to supply voltage ranges reflected in notes 2, 3, and 4.
Table 4: Addition of θJB and θJC.
Table 7, Figure 8: Addition of sp42a/sp43a.
Figure 3, Figure 4: Addition of note for FCC output.
Figure 5, Figure 6, Figure 7: Addition of notes.
Table 13, Table 16, and Table 18: Removal of PLL bypass mode from clock tables.
0.9
8/2003
• Note: In revision 0.3, sp30 (Table 10) was changed. This change was not previously recorded
in this “Document Revision History” Table.
• Removal of “HiP4 PowerQUICC II Documentation” table. These supplemental specifications
have been replaced by revision 1 of the MPC8260 PowerQUICC II™ Family Reference
Manual.
• Figure 1 and Section 1.1, “Features”: Addition of MPC8255 notes
• Addition of Figure 2
• Addition of VCCSYN to “Note: Core, PLL, and I/O Supply Voltages” following Table 2
• Addition of note 1 to Table 3
• Table 4: Changes to θJA and θJB and θJC.
• Addition of notes or modifications to Figure 6, Figure 7, and Figure 8
• Table 9: Change of sp10.
• Addition of Table 14.
• Addition of note 2 to Table 19
• Table 19: Addition of FCC2 Rx and Tx [3,4] to CPM pins PD7, PD18, PD19, and PD29. Also,
the addition of SPICLK to PC19. They are documented correctly in the parallel I/O ports
chapter in the MPC8260 PowerQUICC II™ Family Reference Manual but had previously
been omitted from Table 19.
46
Substantive Changes
MPC826xA (HiP4) Family Hardware Specifications
MOTOROLA
Document Revision History
THIS PAGE INTENTIONALLY LEFT BLANK
MOTOROLA
MPC826xA (HiP4) Family Hardware Specifications
47
HOW TO REACH US:
USA/EUROPE/LOCATIONS NOT LISTED:
Motorola Literature Distribution;
P.O. Box 5405, Denver, Colorado 80217
1-303-675-2140 or 1-800-441-2447
JAPAN:
Motorola Japan Ltd.; SPS, Technical Information Center,
3-20-1, Minami-Azabu Minato-ku, Tokyo 106-8573 Japan
81-3-3440-3569
ASIA/PACIFIC:
Information in this document is provided solely to enable system and software
Motorola Semiconductors H.K. Ltd.; Silicon Harbour
Centre, 2 Dai King Street, Tai Po Industrial Estate,
Tai Po, N.T., Hong Kong
852-26668334
TECHNICAL INFORMATION CENTER:
1-800-521-6274
implementers to use Motorola products. There are no express or implied copyright
licenses granted hereunder to design or fabricate any integrated circuits or
integrated circuits based on the information in this document.
Motorola reserves the right to make changes without further notice to any products
herein. Motorola makes no warranty, representation or guarantee regarding the
suitability of its products for any particular purpose, nor does Motorola assume any
HOME PAGE:
liability arising out of the application or use of any product or circuit, and specifically
http://www.motorola.com/semiconductors
disclaims any and all liability, including without limitation consequential or incidental
DOCUMENT COMMENTS:
FAX (512) 933-2625,
Attn: RISC Applications Engineering
damages. “Typical” parameters which may be provided in Motorola data sheets
and/or specifications can and do vary in different applications and actual
performance may vary over time. All operating parameters, including “Typicals”
must be validated for each customer application by customer’s technical experts.
Motorola does not convey any license under its patent rights nor the rights of
others. Motorola products are not designed, intended, or authorized for use as
components in systems intended for surgical implant into the body, or other
applications intended to support or sustain life, or for any other application in which
the failure of the Motorola product could create a situation where personal injury or
death may occur. Should Buyer purchase or use Motorola products for any such
unintended or unauthorized application, Buyer shall indemnify and hold Motorola
and its officers, employees, subsidiaries, affiliates, and distributors harmless
against all claims, costs, damages, and expenses, and reasonable attorney fees
arising out of, directly or indirectly, any claim of personal injury or death associated
with such unintended or unauthorized use, even if such claim alleges that Motorola
was negligent regarding the design or manufacture of the part.
Motorola and the Stylized M Logo are registered in the U.S. Patent and Trademark
Office. digital dna is a trademark of Motorola, Inc. All other product or service
names are the property of their respective owners. Motorola, Inc. is an Equal
Opportunity/Affirmative Action Employer.
© Motorola, Inc. 2003
MPC8260AEC/D
MPC8264 Product Summary Page
Part Number
Contains
Register
Keyword
Login
Basket
Search
Advanced | Parametrics
Home |
Products Applications Technologies Support Where to Buy
Contact Us
About Freescale
Freescale > PowerPC Processors > MPC82XX PowerQUICC II Processors > MPC8264
SUBSCRIBE
MPC8264 : PowerQUICC II" Integrated Communications Processor
The PowerQUICC II" integrated communications processor family delivers excellent
integration of processing power for networking and communications peripherals,
providing customers with an innovative, total system solution for building high-end
communications systems. Freescale Semiconductor's PowerQUICC II processor family is
the next generation of the leading PowerQUICC" line of integrated communications
processors, providing higher performance in all areas of device operation, including
greater flexibility, extended capabilities, and higher integration.
Rate this Page
--
-
0
+
++
Submit
Care to Comment?
Freescale's leading PowerQUICC architecture integrates two processing blocks. One
block is a high-performance embedded G2 core and the second block is the
Communications Processor Module (CPM). The CPM of the PowerQUICC II processor
can support up to three fast serial communications controllers (FCCs), two multichannel
controllers (MCCs), four serial communications controllers (SCCs), two serial
management controllers (SMCs), one serial peripheral interface (SPI) and one I2C
interface. The combination of the G2 core and the CPM, along with the versatility and
performance of the PowerQUICC II processor family, provides customers with enormous
potential in developing networking and communications products while significantly
reducing time-to-market development stages.
Product Picture
Block Diagram
MPC8264 Features
Product Highlights
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (1 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
●
●
●
●
●
●
●
●
●
300 MHz high-speed embedded G2 core
Powerful memory controller and system functions
Enhanced 32-bit RISC communications processor module
Up to three multiport 10/100 Mbps ethernet MAC
Up to two UTOPIA ports (155 Mbps ATM)
Up to 256 HDLC channels (each channel 64 Kbps, full duplex)
Up to four 10 Mbps ethernet MAC
Transmission convergence sub-layer and inverse multiplexing for ATM
capabilities
Strong 3rd-party tools support from Freescale's Smart Networks alliance members
Typical Applications
● Remote Access Concentrators
● Regional Office Routers
● Cellular Infrastructure equipment
● Telecom Switching Equipment
● Ethernet Switches
● T1/E1-to-T3/E3 Bridges
● xDSL Systems
Technical Specifications
● Embedded G2 core available from 133 - 300 MHz
❍ 190 MIPS at 100 MHz (Dhrystone 2.1)
❍ 505 MIPS at 266 MHz (Dhrystone 2.1)
❍ 570 MIPS at 300 MHz (Dhrystone 2.1)
❍ High-performance, superscalar microprocessor
❍ Disable CPU mode
❍ Supports the Freescale external L2 cache chip (MPC2605)
❍ Improved low-power core
❍ 16 Kbyte data and 16 Kbyte instruction cache
❍ Memory Management Unit
❍ Floating Point Unit
❍ Common On-chip Processor (COP)
● System Interface Unit (SIU)
❍ Memory controller, including two dedicated SDRAM machines
❍ Hardware bus monitor and software watchdog timer
❍ IEEE 1149.1 JTAG test access port
● High-Performance CPM with operating frequency up to 133, 166, or 200 MHz
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (2 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
G2 core and CPM may run at different frequencies
❍ Parallel I/0 registers
❍ On-board 32 KBytes of dual-port RAM
❍ Two multi-channel controllers (MCCs), each supporting 128 full-duplex, 64
Kbps, HDLC lines
❍ Virtual DMA functionality
❍ Three FCCs supporting:
❍ Up to 155 Mbps ATM SAR (maximum of two) (AAL0, AAL1,
AAL2,AAL5)
❍ 10/100 Mbps Ethernet (up to three) (IEEE 802.3X with Flow Control)
❍ 45 Mbps HDLC / Transparent (up to three)
❍ Two UTOPIA Level II master/slave ports with multi-PHY support.
❍ Three MII interfaces
❍ Eight TDM interfaces (T1/E1), two TDM ports can be interfaced with T3/E3
❍ Transmission Convergence Layer capabilities
❍ Integrated Inverse Multiplexing for ATM (IMA) functionality
1.8V or 2.0V internal and 3.3V I/O
300 MHz power consumption: 2.5 W
480 TBGA package (37.5 x 37.5 mm)
IMA/TC layer functionality
❍
●
●
●
●
MPC8260 Derivatives
Serial Communications
Controllers (SCCs)
Fast Communication
Controllers (FCCs)
I-Cache (Kbyte)
8250
8255
8260
8264
8265
8266
4
4
4
4
4
4
3
2
3
3
3
3
16
16
16
16
16
16
D-Cache (Kbyte)
Ethernet (10T)
16
16
16
16
16
16
Up to 4 Up to 4 Up to 4 Up to 4 Up to 4 Up to 4
Ethernet (10/100)
Up to 3 Up to 2 Up to 3 Up to 3 Up to 3 Up to 3
UTOPIA II Ports
0
Up to
128
Yes
--
Multi-Channel HDLC
PCI Interface
IMA Functionality
2
Up to
128
---
2
Up to
256
---
2
Up to
256
-Yes
2
Up to
256
Yes
--
2
Up to
256
Yes
Yes
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (3 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
PowerQUICC II Masks and Versions
IMMR_
Rev_Num2
[16-31]1
0K26N 0x00810101 0x0011 0x0001
Process Family Revision Qualification Mask
0.29
µm
(HiP3)
PVR
A.1
XC
B.3
XC
MPC8260 C.2
XC
A.0
B.1
XC
MC
3K23A
6K23A,
7K23A
2K25A
4K25A
C.0
MC
5K25A 0x80811014 0x0064 0x002D
0.0
MPC8280 0.1
—
MC
0K49M 0x80822011 0x0A00 0x0070
1K49M 0x80822013 0x0A01 0x0070
A.0
MC
2K49M 0x80822014 0x0A10 0x0071
0x0C00
0.0
PC
0K50M 0x80822013
0.25
µm
(HiP4)
0.13
µm
(HiP7)
0x00810101 0x0023 0x003B
0x00810101 0x0024 0x007B
0x80811014 0x0060 0x000D
0x80811014 0x0062 0x002D
3
0x0D00
0x00E0
4
MPC8272
0x0C10
A.0
MC
1K50M 0x80822014
3
0x0D10
0x00E1
4
Notes:
1. The IMMR[16-31] indicates the mask number.
2. The Rev_Num located at offset 0x8AF0 in DPRAM indicates the CPM microcode revision number.
3 . Encryption Enabled.
4 . Encryption Disabled.
Masks and versions table last updated on 14OCT2004.
Return to Top
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (4 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
CPM
Core
I/O
CPU
Operating
Power
Power
Operation
Operating Operating
Sample
Performance Frequency
Dissipation Dissipation
Frequency
Voltage
Voltage
Availability
(Max)
(Max)
(Typ)
(Max)
(Max)
(Spec)
(Max)
(MIPS)
(MHz)
(W)
(W)
(MHz)
(V)
(V)
2,
166,
2.8,
505.4,
266,
2.2,
Y
200,
2.9,
2
3.3
570
300
2.3,
208
3.2
2.5
Ambient
Operating
Temperature
(Min)
(oC)
-40,
0
Junction
Operating
Temperature
(Max)
(oC)
Integrated
Memory
Controller
L1 Cache
Instructional
(Max)
(Byte)
105
EDO,
EPROM,
FLASH,
SDRAM,
SRAM
16000
L1
Internal
Cache
Dual-Port
Data
RAM
(Max)
(Byte)
(Byte)
16000
32000
DMA
Bus
Controller
Interface
Channels
30
60x,
Local
Serial Interface Timers
Other Peripherals Network Application Function
Package Description
Type
Channels
I2C,
MII,
SPI,
4
DMA Controller Integrated Control/Data Plane TBGA 480 37*37*1.7P1.27
TDM,
UTOPIA
Return to Top
MPC8264 Parametrics
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (5 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
MPC8264 Documentation
Documentation
Application Note
ID
Name
AN2754
CPM Architecture and Downloading RAM Microcodes
on the PowerQUICC II Family
AN2059
CPM Hints
AN2070
MPC8260 PowerQUICC II Data Error Protection
Implementation
AN2271
MPC8260 PowerQUICC II Thermal Resistor Guide
AN2290
MPC8260 PowerQUICC II Design Checklist
AN2291
Differences among PowerQUICC II Devices and
Revisions
MPC8260 Dual-Bus Architecture and Performance
Considerations
Using an MPC8260 and an MPC7410 with Shared
Memory
AN2335
AN2347
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
zip
pdf
pdf
pdf
pdf
pdf
pdf
pdf
AN2349
MPC8260 Reset and Configuration Word
AN2491
Simplified Mnemonics for PowerPC Instructions
AN2547
Detecting a CPM Overload on the PowerQUICC II
AN2547SW
AN2569SW
Software Detecting CPM Overload (accompanies
FREESCALE
zip
AN2547)
Example Software for PowerQUICC II: IMA
FREESCALE
Initialization Using Internal or External TC Layer
pdf
Implementation
Example software to accompany application note AN2569 FREESCALE
zip
AN2579
Porting Linux® to the MPC8260ADS
AN2585
MPC82xx PowerQUICC II Reset: Sources, Effects, and
Comments
AN2569
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (6 of 27) [1/18/2005 10:58:26 AM]
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
210
1 1/06/2005
206
195
225
447
366
235
677
263
743
254
288
724
461
323
258
0.1
0
12/05/2003
6/15/2000
-
0.0 3/19/2002
1.1 1/27/2004
1.4 9/30/2003
0
0
1
10/15/2002
10/01/2002
11/15/2004
0
9/30/2003
0
6/30/2003
0
6/30/2003
-
0.1 2/13/2004
0.1 2/13/2004
0.1 1/06/2004
0.1 2/26/2004
-
MPC8264 Product Summary Page
AN2586
AN2587
MPC8260 PowerQUICC II Family Power Distribution
Trends
Software Migration from the NPe495H/L to
PowerQUICC II
FREESCALE
FREESCALE
AN2638
Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4)
AN2810
PowerQUICC UPM Configuration Application Note
524
pdf
644
pdf
FREESCALE
474
pdf
FREESCALE
597
zip
0
1/13/2004
0.1 1/28/2004
0
0
12/12/2003
11/22/2004
Data Sheets
ID
Name
Vendor ID
MPC8260AEC
MPC8260A HiP4 Family Hardware Specifications
Format
FREESCALE
pdf
Size Rev Date Last
Order
K # Modified Availability
662
8/15/2003
0.9
Errata - Click here for important errata information
ID
Name
Vendor ID
MPC8260CE
MPC8260 PowerQUICC II Family Device Errata
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
# Modified Availability
691
11/16/2004
4.6
Fact Sheets
ID
MPC8260FACT
Name
Vendor ID Format
MPC8260 PowerQUICC II Integrated Comm Proc Fam FREESCALE
MPC8260MFACT MPC8260 PowerQUICC II Microcode
FREESCALE
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
11/05/2004
94 10
212
1
3/27/2002
Packaging Information
ID
Name
TBGAPRESPKG
TBGA Packaging Customer Tutorial
Vendor ID
Format
FREESCALE
pdf
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (7 of 27) [1/18/2005 10:58:26 AM]
Size Rev Date Last
K
#
Modified
1784
0
8/05/2003
Order
Availability
-
MPC8264 Product Summary Page
Product Brief
ID
Name
Vendor ID
MPC8260TS
MPC8260 PowerQUICC II Technical Summary
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
254
11/12/2001
2.2
Product Change Notices
ID
Name
Vendor ID
PCN8499
POWERQUICC (.25UM) HIP4 SPEC CHANGES
PCN8663
NEW TRAY FOR 37.5 X 37.5 TBGA PACKAGE
PCN9081
37.5 X 37.5 MM TBGA TRAY
htm
Size Rev Date Last
Order
K # Modified Availability
1/30/2003
11 0
-
htm
38
0
htm
12
0
Format
FREESCALE
FREESCALE
FREESCALE
3/28/2003
8/06/2003
-
Product Numbering Scheme
ID
Name
82XXPNS
MPC82xx HiP3/HiP4 Part Numbering Scheme
Vendor ID
Format
FREESCALE
jpg
Size Rev Date Last
Order
K
# Modified Availability
134
2 9/30/2003
-
Reference Manual
ID
Name
G2CORERM
G2 Core Reference Manual
Vendor ID Format
FREESCALE
pdf
The Bus Interface for 32-Bit Microprocessors FREESCALE
pdf
that Implement the PowerPC Architecture
FREESCALE
MPC8260ESS7UMAD_D Enhanced SS7 Microcode Specification
pdf
MPC60XBUSRM
MPC8260UM
MPC8260UMAD
MPCFPE32B
MPC8260 PowerQUICC II Family Reference FREESCALE
pdf
Manual
MPC8260 PowerQUICC II Users Manual
FREESCALE
pdf
Errata
Programming Environments Manual for 32-Bit
FREESCALE
Implementations of the PowerPC Architecture
pdf
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (8 of 27) [1/18/2005 10:58:26 AM]
Size Rev Date Last
Order
K
# Modified Availability
6720
1
6/27/2003
3203 0.1 1/14/2004
325 0.1
16672
1
12/05/2002
5/29/2003
313 1.2 4/30/2004
7549
2
12/21/2001
-
MPC8264 Product Summary Page
Errata to MPCFPE32B, Programming
Environments Manual for 32-Bit
Implementations of the Power PC
Architecture, Rev. 2
MPCFPE32BAD
FREESCALE
pdf
40
0
10/11/2002
Selector Guide
ID
Name
Vendor ID Format
SG1007
Network and Communications Processors Selector Guide
SG2000CR
Application Selector Guide Index and Cross-Reference.
SG2112
LAN to WAN Bridge Router
SG2113
OSI Layer 2 and Layer 3 Router
SG2127
Multiservice Digital Subscriber Line Access Multiplexer
(DSLAM)
SG2128
ATM Internetworking Multiplexer
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
pdf
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
189
1/01/2005
0
139
128
125
117
124
5
1
1
3
1
7/01/2004
1/01/2004
1/01/2005
6/17/2003
1/01/2005
White Paper
ID
Name
MPC826XSDRAMWP Timing Considerations when Interfacing the
PowerQUICC II to SDRAM
Vendor ID Format
FREESCALE
Return to Top
MPC8264 Design Tools
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (9 of 27) [1/18/2005 10:58:26 AM]
pdf
Size Rev Date Last
Order
K # Modified Availability
288
3/09/2004
0.1
MPC8264 Product Summary Page
Hardware Tools
Analyzers
Logic
ID
Name
Vendor ID
TLA700 Logic Analyzers
The TLA700 Logic Analyzers have the performance to
TLA715/TLA721 capture and display the fastest signals and gives you instant TEKTRONIX
insight into the digital and analog behavior of your system
so you can quickly find those elusive signal integrity
problems
Format
-
Size Rev
Order
K # Availability
-
-
-
Board Testers
ID
Name
Vendor ID Format
SCANPLUS
ScanPlus
µMaster 4031
Functional Test and Debug Solutions for boards carrying Motorola™
4000-994020-001 and IBM® PowerPC™ processors with COP debug port (740, 750,
750DD2, 750DD3, 755, 603e, 8240, 8250A, 8255A, 8260A, 8264A,
8265A, 8266A, 7400, 7410, etc.)
CORELIS
-
INTLTEST
-
Size Rev
Order
K # Availability
-
-
-
-
Emulators/Probes/Wigglers
ID
Size Rev
Order
K # Availability
Vendor ID
Format
CWH-PTP-JTAG-HX PowerTAP Pro JTAG Hardware Only
METROWERKS
-
-
-
CWH-WTP-JTAG-YX WireTAP JTAG Hardware Only
METROWERKS
-
-
-
-
ABATRON
-
-
-
-
CORELIS
-
-
-
-
BDI1000/BDI2000
10200A
Name
BDI1000/BDI2000
Abatron develops and produces high-quality, high-speed
BDM and JTAG Debug Tools (BDI Family) for software
development environments from leading vendors.
NetICE-R option 2/2M
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (10 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
4000-994020--001
IC30000
WBDM8XX
WNPJ-COP
GUARDIAN-SE
VISIONICE
VISIONPROBE
WPICE
µMaster 4031
Functional Test and Debug Solutions for boards carrying
Motorola™ and IBM® PowerPC™ processors with COP
INTLTEST
debug port (740, 750, 750DD2, 750DD3, 755, 603e, 8240,
8250A, 8255A, 8260A, 8264A, 8265A, 8266A, 7400, 7410,
etc.)
iC3000 ActiveEmulator
The compact iC3000 with its "iCARD" slot can be used as
either an affordable hardware debugger, or the interface
ISYS
module for full in-circuit emulators or high-end on-chip
trace modules. USB, serial and Ethernet interfaces are
supported.
Wiggler for 5xx/8xx BDM
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the BDM port of the target system.
Wiggler for COP
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the COP port of the target system.
Guardian-SE
TOOLSMITHS
JTAG debug tools for PowerPC development
WINDRIV
visionICE II
WINDRIV
visionPROBE II
WINDRIV
WIND®POWER ICE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Evaluation/Development Boards and Systems
ID
Name
MPC8260ADS_ECOM MPC8260ADS Daughter Card for Telephony Applications
(E1)
MPC8260ADS_TCOM MPC8260ADS Daughter Card for Telephony Applications
(T1)
PQ2FADS_ZU
MPC82xx Family Application Development System
Size Rev
Order
K # Availability
Vendor ID
Format
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (11 of 27) [1/18/2005 10:58:26 AM]
MPC8264 Product Summary Page
STK8260
STK8265
SBCPQII
STK8260
Starterkit STK82xx with TQ Minimodule, MPC8260 / 300
MHz, 32 MB Flash, 64 MB SDRAM (local Bus), 128 MB TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 32 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
STK8265
Starterkit STK82xx with TQ Minimodule, MPC8265 / 300
MHz, 32 MB Flash, 0 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 16 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
WINDRIV
SBCPowerQUICCII
-
-
-
-
-
-
-
-
-
-
-
-
Models
BSDL
ID
Name
MPC8260BSDL3
PowerQUICC II BSDL (HiP3)
(05/06/2002)
PowerQUICC II BSDL (HiP4)
(03/15/2004)
MPC8260BSDL4
Size
Rev #
K
Order
Availability
Vendor ID
Format
FREESCALE
zip
9
1
-
FREESCALE
zip
10
1.1
-
Bus Functional Models
ID
Name
MPC8264 SWIFT Model - Solaris: HiP4A, Bus Function
MPC8264BFM01 Model
(03/27/2002)
Vendor ID Format
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (12 of 27) [1/18/2005 10:58:26 AM]
tar
Size Rev
Order
K
# Availability
46760
1
-
MPC8264 Product Summary Page
Full Functional Models
ID
Name
Vendor ID Format
MPC8264 SWIFT Model - Solaris: HiP4A, Full Function
MPC8264FFM01 Model
(03/27/2002)
EP100
PowerPC Bus Slave
EP201
PowerPC Bus Master
EP300
PowerPC Bus Arbiter
EP433
ES100
FREESCALE
PowerPC-PCI Bridge
PowerPC System Controller
tar
Size Rev
Order
K
# Availability
50388
1
-
EUREKA
-
-
-
-
EUREKA
EUREKA
-
-
-
-
EUREKA
EUREKA
-
-
-
-
IBIS
ID
Name
Vendor ID Format
PowerQUICC II Family IBIS Models
This package contains the IBIS models for the PowerQUICC
FREESCALE
MPC82XXIBIS II family of communications processors. HiP3 and HiP4
zip
processes. Local and PCI bus configurations. 480 TBGA and
516 PBGA packages. (10/30/2003)
Size Rev
Order
K # Availability
81 2.7
-
Timing Models
ID
Name
PQIIGPCMTIME
GPCM Timing Generator
(05/29/2003)
Vendor ID
Format
FREESCALE
exe
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (13 of 27) [1/18/2005 10:58:26 AM]
Size
Rev #
K
176
1
Order
Availability
-
MPC8264 Product Summary Page
Software
Application Software
Calculators
ID
Name
Power Consumption Calculator for all PowerQUICC II
MPC8260CALC1 Processors
(04/28/2004)
CPM Performance Calculator for all PowerQUICC II and
MPC8260CALC2 PowerQUICC III Processors
(09/07/2004)
Vendor ID Format
FREESCALE
FREESCALE
zip
zip
Size Rev
Order
K # Availability
491
2.1
664 3.1.3
-
-
Code Examples
ID
Name
MPC8260COD08 Fast Ethernet on the FCC of the PowerQUICC II
(10/13/2003)
Multichannel Communication Controller of the
MPC8260COD09 PowerQUICC II
(09/04/2002)
Example Software for the PowerQUICC II Family: FEC
MPC8260COD11 Frames Using PHYless MII
(08/02/2002)
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
zip
zip
zip
Size Rev
Order
K # Availability
140
2
176
614
0
-
0
-
Microcode
ID
Name
Vendor ID Format
RAM Microcode Patches for PowerQUICC II Family Device
FREESCALE
MPC8260MC05 Errata
zip
(09/28/2004)
FREESCALE
MPC8260MC11 PowerQUICC II AAL2 Microcode (for all revs)
zip
(11/19/2004)
Inverse-Multiplexing for ATM (IMA) Microcode (for all
FREESCALE
MPC8264MC01 revs)
zip
(02/03/2004)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (14 of 27) [1/18/2005 10:58:27 AM]
Size Rev
Order
K # Availability
330 4.2.3
616
283
-
4.0
-
1.2
-
MPC8264 Product Summary Page
DG02010101
MultiRing
MultiRing is a utility that separates frames of different
protocols into different buffer descriptor rings (rather than a
single ring). The utility supports predefined protocols such as
TCP, ICMP. The user can specify additional protocols.
DOGAV
-
-
-
-
Board Support Packages
ID
Name
Vendor ID
Metrowerks BSPs for Freescale
Metrowerks BSPs are tested, certified and frozen,
ensuring a fully operational tool chain, kernel and board METROWERKS
FREE
specific modules that are ready to use together within a
fixed configuration for specific hardware reference
platforms.
Arabella MPC82XX Free Reference Design
This free Linux BSP provides a complete Linux
ARA-MOT-82XX-FREE distribution and application ready to be used on the
ARABELLA
PQ2FADS-ZU/VR and MPC8260/8266ADS Boards.
Source code and Linux tools are provided to immediately
get started working with a Linux syste
MQX Board Support Packages
BSPs for Freescale ColdFire, PowerPC, and 68K
ARC-MOT-MQXBSP
ARC
embedded processors including support for emerging
USB and CAN technologies as well as drivers for
Ethernet, PCI, HDLC, SPI, I2C, and serial devices.
EP BSP
Embedded Planet Board Support Packages provide
complete software drivers for MPC 8xx and 82xx
EP BSP
EMDPLAN
processors for Linux, VxWorks and INTEGRITY.
Embedded Planet can also develop customer specific
software for many operating systems.
EP82xxM VxWorks BSP
VxWorks Board Support Packages contain prebuilt RAM
EP8280M VDK 10
EMDPLAN
and ROM kernel images and documentation that
describes installing and running the BSP. See online
matrix for supported peripherals.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (15 of 27) [1/18/2005 10:58:27 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8264 Product Summary Page
Device Drivers
ID
Name
Vendor ID Format
MPC8264 PowerQUICC II API (drivers, examples, and
documentation)
FREESCALE
MPC8264DRV01 Includes support for IMA, AAL5, Internal TC layer and the
zip
external TCOM board for Multiple T1s
(03/07/2003)
PlanetCore
PlanetCore provides a complete set of firmware device drivers for
PCS
EMDPLAN
8xx and 82xx Motorola processors. These drivers include an
application / RTOS boot loader, flash burner and diagnostics.
customer specific drivers can also be developed.
Size Rev
Order
K
# Availability
14125
-
1.3
-
-
-
Operating Systems
ID
Name
Vendor ID
Arabella Linux for Motorola 82xx Processors
Arabella Linux for Motorola 82xx processors is a full,
commercial Linux distribution for the 82xx family of
ARA-MOT-82XX
ARABELLA
processors. It includes support for many of the on chip
peripherals including Security, ATM, PCI, USB,
PCMCIA, I2C and others.
MFS
ARC-MOT-MFS
ARC
MS-DOS File System is a portable, compatible
implementation of the Microsoft MS-DOS file system
MQX Real Time Operating System
A robust, high performance, royalty-free kernel designed
ARC-MOT-MQX
ARC
for deeply embedded applications requiring a small
footprint and fast response.
ARC-OS Changer
ARC-MOT-OSCHANGER Provides developers the freedom to migrate from either
ARC
pSOSystem or VxWorks to MQX RTOS while reusing
an existing code base
CMX-RTX
CMX
CMX-RTX
CMX TCP/IP
CMX TCP/IP is a full-featured and fast TCP/IP stack that
allows designers to offer networking connectivity for
CMX00300
CMX
their embedded applications. CMX TCP/IP offers a low
licensing fee, full source code, no royalties, and free
technical support.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (16 of 27) [1/18/2005 10:58:27 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8264 Product Summary Page
CMX00300A
CMX00300B
CMX00300C
CMX00300D
CMX00300E
CMX00300F
CMX00300G
TCP/IP DHCP Client
The CMX TCP/IP DHCP Client Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
TCP/IP DHCP Server
The CMX TCP/IP DHCP Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
TCP/IP FTP C/S
The CMX TCP/IP FTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the File
Transfer Protocol standard. A source code example is
provided for fast design start up.
TCP/IP IMAP4
The CMX TCP/IP IMAP4 Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality for the Internet Message
Access Protocol Version 4 standard. A source code
example is provided for fast design start up.
TCP/IP NAT
The CMX TCP/IP NAT Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to add Network Address Translation
function to a network application. Source code example
provided for fast design start up.
TCP/IP POP3
The CMX TCP/IP POP3 Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Post Office
Protocol Client standard. A source code example is
provided for fast design start up.
TCP/IP PPP
The CMX TCP/IP PPP Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
serial or modem connectivity standard. Source code
example provided for fast start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (17 of 27) [1/18/2005 10:58:27 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8264 Product Summary Page
CMX00300H
CMX00300I
CMX00300J
CMX00300K
CMX00300L
CMX00300M
CMX00300N
TCP/IP PPPoE
The CMX TCP/IP PPPoE Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Point to
Point Protocol over Ethernet standard. A source code
example is provided for fast design start up.
TCP/IP SMTP
The CMX TCP/IP SMTP Client Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple
Mail Transfer Protocol standard. A source code example
is provided for fast design start up.
TCP/IP SNMP
The CMX TCP/IP SNMP V1 and V2c Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple
Network Management Protocol standard. Source code
example provided for fast design start up.
TCP/IP Telnet
The CMX TCP/IP Telnet Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Telnet
Server standard. A source code example is provided for
fast design start up.
TCP/IP TFTP
The CMX TCP/IP TFTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Trivial File
Transfer Protocol Client/Server standard. Source code
example for fast start up.
TCP/IP Web Client
The CMX TCP/IP Web Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Client/Server standard.
Source code example provided.
TCP/IP Web Server
The CMX TCP/IP Web Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Server standard. Source
code example provided for fast start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (18 of 27) [1/18/2005 10:58:27 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8264 Product Summary Page
CMX00630
CMX00631
CMX00632
CMX00633
DPP.82XXX.KRN
THREADX
PX382-1
CMX-FFS
CMX-FFS is a very small, standard Flash File System
that allows designers to offer file system functionality for
CMX
their embedded applications. CMX-FFS offers a low
licensing fee, full source code, no royalties, and free
technical support.
CMX-FFS-NAND
CMX-FFS-NAND is an Add-On Option for CMX- FFS
that allows designers to include a NAND driver for their
CMX
embedded FFS applications. CMX-FFS-NAND offers a
low licensing fee, full source code, no royalties, and free
technical support.
CMX-FFS-FAT
CMX-FFS-FAT is a fast file system for embedded
developers who wish to add devices to their products that
CMX
require FAT12/16/32 compliant media. CMX-FFS-FAT
offers a low license fee, full source code, no royalties,
and free tech support.
CMX-FFS-THIN
CMX-FFS-THIN is a file system for embedded device
developers with limited resource products that require a
CMX
FAT12/16/32 compliant media. CMX-FFS-THIN offers
a low licensing fee, full source code, no royalties, and
free technical support.
ENEA
OSE Real-Time Operating System
ThreadX
RTOS. Royalty-free real-time operating system (RTOS)
for embedded applications. ThreadX is small, fast, and EXPRESSLOG
royalty-free making it ideal for high-volume electronic
products.
AMX PPC32
AMX is a full featured RTOS for the PowerPC family.
AMX has been tested on the EST SBC8260, Embedded
KADAK
Planet RPX Lite MPC823 and Motorola Ultra 603,
MBX860, MPC860 ADS, MPC860 FADS,
Lite5200EVB and MPC8560 ADS.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (19 of 27) [1/18/2005 10:58:27 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8264 Product Summary Page
Protocol Stacks
ID
Name
Vendor ID Format
HTTP Web Server
The HTTP (Hyper text Transfer Protocol)
consists of source code and development tools
ARC-MOT-HTTP
for building an embedded HTTP server. This is
a HTTP 1.0/1.1 compliant Web server with
CGI-style user exit support and optional file
system support.
HTTP PRO
HTTP 1.0/1.1 compliant Web server w/ CGIstyle user exit sppt, opt'al file system sppt,
ARC-MOT-HTTPPRO
PageBuilder Web-to-C compiler addit'al
compression features, Internat'al language sppt,
server-side mapping, HTTP streaming & digest
authentication.
IPShield
Security product support for IPSec, IKE, SSL
and SSH. Also supports hardware accelerated
ARC-MOT-IPSHIELD
encryption on processors with an Integrated
Security Engine such as MCF5485/5483,
MPC870/875, MPC8272/8248, MCF5271, and
MCF5275/5275L.
Network Protocols
TCP/IP networking stack (ARP, BootP, CCP,
CHAP, DHCP, DNS, Echo, EDS, FTP, ICMP,
ARC-MOT-NETWORKPROTOCOLS IGMP, IP, IP-E, IPCP, LCP, PAP, PPP, RIPv2,
RPC, SNMPv1/v2, SNTP, TCP, TFTP, Telnet,
UDP & XDR)& opt'al prototocols, SMTP,
SNMPv3, PPPoE, XML, SSL/H
POP3
ARC-MOT-POP3
Enables client embedded devices to receive
e-mail from any POP3 server
RTCS
A real-time, high performance TCP/IP stack
designed specifically for embedded networking
ARC-MOT-RTCS
applications such as IP phones, bridges,
routers, pagers, PDAs, cellular phones, and
set-top boxes
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (20 of 27) [1/18/2005 10:58:27 AM]
Size Rev
Order
K # Availability
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
MPC8264 Product Summary Page
ARC-MOT-SMTP
RSTP
TARGETTCP
CMX TCP/IP
IPLITE
IPNET
PN713-1
INFOLINK-STACKNAME
SMTP
Royalty free source code SMTP enables
ARC
embedded devices to send e-mail to any SMTP
server. This allows any embedded device to
send asynchronous status reports using email.
AvniRSTP
Avnisoft's AvniRSTP is a completely portable
ANSI C compliant implementation of the IEEE
AVNISOFT
802.1w RSTP Algorithm and Protocol. It
includes the AvniPORT platform abstraction
layer to simplify integration with target
platforms.
TCP/IP Stack
TargetTCP, is a fast, reliable, re-entrant,
full-featured TCP/IP protocol stack designed
BLUNK
specifically for high-performance embedded
networking. The code has a small footprint and
is well suited to memory constrained
environments.
CMX
CMX TCP/IP
IPLITE
IPLITE is a dual-mode IPv4/v6 host stack,
optimized for minimum footprint and
INTERPEAK
maximum performance, with a number of
PowerQUICC II/III optimizations. Available
for leading RTOSs like INTEGRITY, Linux,
OSE, VxWorks, etc.
IPNET
IPNET is a full-featured dual-mode IPv4/v6
router stack with built-in IPSec, Virtual
INTERPEAK
Routing, QoS, VLAN Tagging, as well as
PowerQUICC II/III optimizations. Available
for leading RTOSs like INTEGRITY, Linux,
OSE, VxWorks, etc.
KwikNet
The KwikNet TCP/IP Stack enables you to add
networking features to your products with a
KADAK
minimum of time and expense. KwikNet is a
compact, high performance stack built with
KADAK's characteristic simplicity, flexibility
and reliability.
LINK
INFOLink Protocol Software Family
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (21 of 27) [1/18/2005 10:58:27 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8264 Product Summary Page
Mocana Embedded SSL/TLS Client
MOCANA SSL/TLS CLIENT: Supports
Freescale chipsets out of the box. Small
(50KB), fast (2-3x faster than OpenSSL),
trusted. Supports all major cryptos. Royalty
free, source code license. FREE EVAL:
http://www.mocana.com/evaluate.html
RTXC Quadnet Networking Protocols
Full protocol suite: TCP, UDP, SLIP, ICMP,
and ARP with Berkeley Sockets API. Plus
DHCP, BOOTP, DNS, IGMP v2, RIP v2,
NAT, HTTP, SMTP, POP3, TFTP, FTP,
Telnet, SNMP v1,2,3, PPP and more. New
security protocols: SSL, IPsec, IKE.
MOC_SSL_CLIENT
PSQ40XXXX
MOCANA
-
-
-
-
QUADROS
-
-
-
-
Software Tools
Code Translation
ID
Name
PA68K-PPC
PA86-PPC
PortAsm/68K for PowerPC
PortAsm/86 for PowerPC
Vendor ID
Format
MICROAPL
MICROAPL
-
Size
Rev #
K
-
Order
Availability
-
Compilers
ID
Name
Vendor ID
ARC-MOT-COMPILER MetaWare C/C++ Compiler Tool Suite
ARC
Optimized compiler for Motorola processors
C/C++ Compiler
Optimizing C, C++, EC++ compilers for Freescale
COMPILER
GREENHILLS
PowerPC, ColdFire, StarCore, 68K, MCore and ARM-based
MAC architectures.
DIAB
WINDRIV
Diab C/C++ Compiler
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (22 of 27) [1/18/2005 10:58:27 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
MPC8264 Product Summary Page
Debuggers
ID
ARC-MOT-DEBUGGER
LA-7729
Name
Vendor ID Format
MetaWare SeeCode Debugger
C/C++ Debugger
TRACE32-ICD
TRACE32-ICD for PowerQUICC II is a high performance
JTAG debugger for C ,C++ and JAVA. A USB 2.x, LPT or
ethernet interface is available for connection to any PC or
workstation. A flash programming utility is included.
Size Rev
Order
K # Availability
ARC
-
-
-
-
LAUBACH
-
-
-
-
IDE (Integrated Development Environment)
ID
Name
Vendor ID
Format
Size Rev
Order
K # Availability
CodeWarrior Development Studio for PPC ISA Comms
Edition
CWS-PPC-CMWFL-CX Metrowerks CodeWarrior Development Studio, PowerPC METROWERKS
ISA Edition for Communication Processors is a complete
integrated development environment for PowerPC ISA
hardware bring-up through embedded applications.
-
-
-
CodeWarrior™ Development Studio, Embedded Linux
CWS-PPC-LINWH-CX Edition for PowerPC Architectures
METROWERKS
-
-
-
CWS-PPC-LLAPP-CX
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Application Edition
METROWERKS
-
-
-
CWS-PPC-LLPLT-CX
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Platform Edition
METROWERKS
-
-
-
ISYS
-
-
-
-
WINDRIV
-
-
-
-
WINDRIV
-
-
-
-
IC-SW-OPR
WIND RIVER
WORKBENCH
WPIDE
winIDEA
winIDEA integrates a Project Manager, Source Code
Editor, High and Low Level Debugger, and Flash
Programmer, all into one easy-to- use Windows
application. It is the one user interface for all of our
emulators and debuggers.
Wind River Workbench
Wind River Workbench is an open, standards-based
device software development environment for Linux
applications providing a deep tools capability in each
phase of the development process.
WIND®POWER IDE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (23 of 27) [1/18/2005 10:58:27 AM]
-
MPC8264 Product Summary Page
Initialization/Boot Code Generation
ID
Name
MPC82XXCPMMUXIBCG
Parallel Ports Configuration Tool (Pin Mux Tool)
(03/18/2004)
Vendor ID
Format
FREESCALE
zip
Size Rev
Order
K
# Availability
895 4.0.1
-
Performance and Testing
ID
Name
CodeTEST Software Analysis Tools, HWIC License
MWCTESTHWICPKG package
MWCTESTHWICVX
CodeTEST RTOS Support CD for Vx Works
Size Rev
Order
K # Availability
Vendor ID
Format
METROWERKS
-
-
-
-
METROWERKS
-
-
-
-
Return to Top
Applications
Networking
SOHO
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
Access
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
Edge
ATM Switch Line Card
Core
SONET Multiplexer
Applications
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (24 of 27) [1/18/2005 10:58:27 AM]
MPC8264 Product Summary Page
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
ATM Switch Line Card
SONET Multiplexer
Wireless
Wireless Infrastructure Applications
Wireless Basestation Transceiver
Wireless Basestation Transceiver
Return to Top
Orderable Parts Information
Part Number
Package
Description
Application/
Tape
Pb-Free
Qualification
and
Terminations
Reel
Tier
Status
Budgetary
Price
QTY
Info
1000+
($US)
KMPC8264ACZUMIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8264AZUPIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8264AZUPJDB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8264ACZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
MPC8264ACZUMIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8264AZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (25 of 27) [1/18/2005 10:58:27 AM]
Order
MPC8264 Product Summary Page
MPC8264AZUPIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8264AZUPJDB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
NOTE:
● Not all orderable parts are offered through our online sampling program. For further assistance in selecting a similar part from within
the program, please submit a Request for a sample order advice.
●
Refer to Samples FAQ for more information.
●
Looking for an obsolete part? Check our distributors' inventory
Return to Top
Related Products
MC33702 : MICROPROCESSOR POWER SUPPLY (3.0 A)
The 34702 is a monolithic IC providing an efficient means of obtaining power for the Freescale Semiconductor PowerQUICC TM I
and II ...
MPC9850 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9850 is a PLL based clock generator specifically designed for Freescale Microprocessor And Microcontroller applications
including the PowerQUICC III. ...
MPC9855 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9855 is a PLL based clock generator specifically designed for Freescale Microprocessor and Microcontroller applications
including the PowerPC and ...
Return to Top
Related Links
Industrial Control
Networking
Wireless
Return to Top
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (26 of 27) [1/18/2005 10:58:27 AM]
MPC8264 Product Summary Page
www.freescale.com | Site Map | Terms of Use | Privacy Practices |
© Freescale Semiconductor, Inc. 2004. All Rights Reserved
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8264&nodeId=018rH3bTdG2977 (27 of 27) [1/18/2005 10:58:27 AM]
MPC8255 Product Summary Page
Part Number
Contains
Register
Keyword
Login
Basket
Search
Advanced | Parametrics
Home |
Products Applications Technologies Support Where to Buy
Contact Us
About Freescale
Freescale > PowerPC Processors > MPC82XX PowerQUICC II Processors > MPC8255
SUBSCRIBE
MPC8255 : PowerQUICC II" Integrated Communications Processor
The PowerQUICC II" integrated communications processor family delivers excellent
integration of processing power for networking and communications peripherals,
providing customers with an innovative, total system solution for building high-end
communications systems. Freescale Semiconductor's PowerQUICC II processor family is
the next generation of the leading PowerQUICC" line of integrated communications
processors, providing higher performance in all areas of device operation, including
greater flexibility, extended capabilities, and higher integration.
Rate this Page
--
-
0
+
++
Submit
Care to Comment?
Freescale's leading PowerQUICC architecture integrates two processing blocks. One
block is a high-performance embedded G2 core and the second block is the
Communications Processor Module (CPM). The CPM of the MPC8255 processor can
support up to two fast serial communications controllers (FCCs), one multichannel
controller (MCC), four serial communications controllers (SCCs), two serial management
controllers (SMCs), one serial peripheral interface (SPI) and one I2C interface. The
combination of the G2 core and the CPM, along with the versatility and performance of
the PowerQUICC II processor family, provides customers with enormous potential in
developing networking and communications products while significantly reducing
time-to-market development stages.
Block Diagram
MPC8255 Features
Product Highlights
● 300 MHz high-speed embedded G2 core
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (1 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
●
●
●
●
●
●
●
Powerful memory controller and system functions
Enhanced 32-bit RISC communications processor module
Up to two multiport 10/100 Mbps ethernet MAC
Up to two UTOPIA II ATM interfaces
Up to 128 HDLC channels (each channel 64 Kbps, full duplex)
Up to four 10 Mbps ethernet MAC
Strong 3rd-party tools support from Freescale's Smart Networks alliance members
Typical Applications
● Remote Access Concentrators
● Regional Office Routers
● Cellular Infrastructure equipment
● Telecom Switching Equipment
● Ethernet Switches
● T1/E1-to-T3/E3 Bridges
● xDSL Systems
Technical Specifications
● Embedded G2 core at 300 MHz
❍ 570 MIPS at 300 MHz (Dhrystone 2.1)
❍ High-performance, superscalar microprocessor
❍ Disable CPU mode
❍ Supports the Freescale external L2 cache chip (MPC2605)
❍ Improved low-power core
❍ 16 Kbyte data and 16 Kbyte instruction cache
❍ Memory Management Unit
❍ Floating Point Unit
❍ Common On-chip Processor (COP)
● System Interface Unit (SIU)
❍ Memory controller, including two dedicated SDRAM machines
❍ PCI up to 66 MHz
❍ Hardware bus monitor and software watchdog timer
❍ IEEE 1149.1 JTAG test access port
● High-Performance CPM with operating frequency of 133 MHz
❍ Parallel I/0 registers
❍ On-board 32 Kbytes of dual-port RAM
❍ One multichannel controller (MCC), each supporting 128 full-duplex, 64
Kbps, HDLC lines
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (2 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
Virtual DMA functionality
❍ Two FCCs supporting 10/100 Mbps Ethernet (up to two) (IEEE 802.3X with
Flow Control)
❍ Three MII interfaces
❍ Four TDM interfaces (T1/E1) supporting four T1 lines or one T3 line
Two bus architectures: one 64-bit 60x bus and one 32-bit PCI or local bus
❍ Integrated PCI interface
1.8V or 2.0V internal and 3.3V I/O
300 MHz power consumption: ~3 W
480 TBGA package (37.5 x 37.5 mm)
❍
●
●
●
●
MPC8260 Derivatives
Serial Communications
Controllers (SCCs)
Fast Communication
Controllers (FCCs)
I-Cache (Kbyte)
D-Cache (Kbyte)
Ethernet (10T)
Ethernet (10/100)
UTOPIA II Ports
Multi-Channel HDLC
PCI Interface
IMA Functionality
8250
8255
8260
8264
8265
8266
4
4
4
4
4
4
3
2
3
3
3
3
16
16
Up to 4
Up to 3
0
Up to
128
Yes
--
16
16
Up to 4
Up to 2
2
Up to
128
---
16
16
Up to 4
Up to 3
2
Up to
256
---
16
16
Up to 4
Up to 3
2
Up to
256
-Yes
16
16
Up to 4
Up to 3
2
Up to
256
Yes
--
16
16
Up to 4
Up to 3
2
Up to
256
Yes
Yes
PowerQUICC II Masks and Versions
IMMR_
Rev_Num2
[16-31]1
0K26N 0x00810101 0x0011 0x0001
3K23A 0x00810101 0x0023 0x003B
6K23A,
0x00810101 0x0024 0x007B
7K23A
2K25A 0x80811014 0x0060 0x000D
Process Family Revision Qualification Mask
0.29
µm
(HiP3)
0.25
A.1
B.3
XC
XC
MPC8260 C.2
XC
A.0
XC
PVR
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (3 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
µm
(HiP4)
B.1
C.0
0.0
MPC8280 0.1
A.0
0.13
µm
(HiP7)
0.0
MC
MC
—
MC
MC
4K25A
5K25A
0K49M
1K49M
2K49M
0x80811014
0x80811014
0x80822011
0x80822013
0x80822014
PC
0K50M 0x80822013
0x0062
0x0064
0x0A00
0x0A01
0x0A10
0x0C00
3
0x0D00
0x002D
0x002D
0x0070
0x0070
0x0071
0x00E0
4
MPC8272
0xC010
A.0
MC
1K50M 0x80822014
3
0xD010
0x00E1
4
Notes:
1. The IMMR[16-31] indicates the mask number.
2. The Rev_Num located at offset 0x8AF0 in DPRAM indicates the CPM microcode revision number.
3 . Encryption Enabled.
4 . Encryption Disabled.
Masks and versions table last updated on 14OCT2004.
Return to Top
CPM
Core
I/O
CPU
Operating
Power
Power
Operation
Operating Operating
Sample
Performance Frequency
Dissipation Dissipation
Frequency
Voltage
Voltage
Availability
(Max)
(Max)
(Typ)
(Max)
(Max)
(Spec)
(Max)
(MIPS)
(MHz)
(W)
(W)
(MHz)
(V)
(V)
1.5,
1.9,
380,
200,
133,
2,
2.8,
1.8,
Y
505.4,
266,
166,
2.2,
3.3
3.2,
2
570
300
200
2.5,
3.6
3.3
Ambient
Operating
Temperature
(Min)
Junction
Operating
Temperature
(Max)
Integrated
Memory
Controller
L1 Cache
Instructional
(Max)
L1
Internal
Cache
Dual-Port
Data
RAM
(Max)
DMA
Bus
Controller
Interface
Channels
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (4 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
(oC)
-40,
0
(oC)
105
EDO,
EPROM,
FLASH,
SDRAM,
SRAM
(Byte)
(Byte)
(Byte)
16000
16000
32000
26
60x,
Local
Serial Interface Timers
Other Peripherals Network Application Function
Package Description
Type
Channels
I2C,
MII,
SPI,
4
DMA Controller Integrated Control/Data Plane TBGA 480 37*37*1.7P1.27
TDM,
UTOPIA
Return to Top
MPC8255 Parametrics
MPC8255 Documentation
Documentation
Application Note
ID
Name
AN2754
CPM Architecture and Downloading RAM Microcodes on FREESCALE
zip
the PowerQUICC II Family
FREESCALE
CPM Hints
pdf
AN2059
AN2070
AN2075
MPC8260 PowerQUICC II Data Error Protection
Implementation
Using the MPC8260ADS Board with the MPC8255
Processor
Vendor ID Format
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (5 of 27) [1/18/2005 10:58:46 AM]
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
210
1 1/06/2005
206
195
252
0.1
0
0.1
12/05/2003
6/15/2000
11/12/2001
-
MPC8255 Product Summary Page
FREESCALE
AN2271
MPC8260 PowerQUICC II Thermal Resistor Guide
AN2290
MPC8260 PowerQUICC II Design Checklist
AN2291
Differences among PowerQUICC II Devices and Revisions FREESCALE
AN2335
AN2347
MPC8260 Dual-Bus Architecture and Performance
FREESCALE
pdf
Considerations
Using an MPC8260 and an MPC7410 with Shared Memory FREESCALE
pdf
AN2349
MPC8260 Reset and Configuration Word
AN2491
Simplified Mnemonics for PowerPC Instructions
AN2547
Detecting a CPM Overload on the PowerQUICC II
AN2547SW
Software Detecting CPM Overload (accompanies AN2547) FREESCALE
AN2585
AN2638
MPC82xx PowerQUICC II Reset: Sources, Effects, and
FREESCALE
pdf
Comments
MPC8260 PowerQUICC II Family Power Distribution
FREESCALE
pdf
Trends
Software Migration from the NPe495H/L to PowerQUICC FREESCALE
pdf
II
FREESCALE
Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4)
pdf
AN2810
PowerQUICC UPM Configuration Application Note
AN2586
AN2587
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
pdf
pdf
pdf
pdf
pdf
pdf
zip
zip
225
447
366
235
677
263
743
254
288
258
524
644
474
597
0.0 3/19/2002
1.1 1/27/2004
1.4 9/30/2003
0
0
1
10/15/2002
10/01/2002
11/15/2004
0
9/30/2003
0
6/30/2003
0
6/30/2003
-
0.1 2/26/2004
0
1/13/2004
0.1 1/28/2004
0
0
12/12/2003
11/22/2004
Data Sheets
ID
Name
MPC8260AEC
MPC8260A HiP4 Family Hardware Specifications
MPC8260EC
MPC8260 HiP3 Hardware Specifications
Vendor ID
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (6 of 27) [1/18/2005 10:58:46 AM]
Format
pdf
pdf
Size Rev Date Last
Order
K
# Modified Availability
662
0.9 8/15/2003
741
1.2 8/15/2003
MPC8255 Product Summary Page
Errata - Click here for important errata information
ID
Name
MPC8260CE
MPC8260 PowerQUICC II Family Device Errata
Vendor ID
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
691
11/16/2004
4.6
Fact Sheets
ID
Name
Vendor ID Format
MPC8260FACT MPC8260 PowerQUICC II Integrated Comm Proc Fam
FREESCALE
pdf
Size Rev Date Last
Order
K # Modified Availability
11/05/2004
94 10
Packaging Information
ID
Name
TBGAPRESPKG
TBGA Packaging Customer Tutorial
Vendor ID
Format
FREESCALE
pdf
Size Rev Date Last
K
#
Modified
1784
0
8/05/2003
Order
Availability
-
Product Brief
ID
Name
MPC8255TS
MPC8255 PowerQUICC II Technical Summary
Vendor ID
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
250
11/12/2001
2.2
Product Change Notices
ID
Name
PCN8499
POWERQUICC (.25UM) HIP4 SPEC CHANGES
PCN8663
NEW TRAY FOR 37.5 X 37.5 TBGA PACKAGE
PCN9081
37.5 X 37.5 MM TBGA TRAY
PCN9321
POWERQUICC II HIP 4 TRANSITION
Vendor ID
Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (7 of 27) [1/18/2005 10:58:46 AM]
Size Rev Date Last
Order
K
# Modified Availability
htm
11
0
1/30/2003
-
htm
38
0
3/28/2003
-
htm
12
0
8/06/2003
-
htm
8
0
10/29/2003
-
MPC8255 Product Summary Page
Product Numbering Scheme
ID
Name
82XXPNS
MPC82xx HiP3/HiP4 Part Numbering Scheme
Vendor ID
Format
FREESCALE
jpg
Size Rev Date Last
Order
K
# Modified Availability
134
2 9/30/2003
-
Reference Manual
ID
Name
G2CORERM
G2 Core Reference Manual
MPC60XBUSRM
The Bus Interface for 32-Bit Microprocessors
that Implement the PowerPC Architecture
MPC8260ESS7UMAD_D Enhanced SS7 Microcode Specification
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
pdf
6720
pdf
3203 0.1 1/14/2004
pdf
325 0.1
MPC8260 PowerQUICC II Family Reference
FREESCALE
pdf
Manual
MPC8260 PowerQUICC II Users Manual Errata FREESCALE
pdf
MPC8260UM
MPC8260UMAD
Programming Environments Manual for 32-Bit FREESCALE
pdf
Implementations of the PowerPC Architecture
Errata to MPCFPE32B, Programming
Environments Manual for 32-Bit
FREESCALE
pdf
Implementations of the Power PC Architecture,
Rev. 2
MPCFPE32B
MPCFPE32BAD
Size Rev Date Last
Order
K
# Modified Availability
16672
1
1
6/27/2003
12/05/2002
-
5/29/2003
313 1.2 4/30/2004
7549
2
40
0
12/21/2001
10/11/2002
Selector Guide
ID
Name
SG2000CR
Application Selector Guide Index and Cross-Reference.
SG2112
LAN to WAN Bridge Router
SG2113
OSI Layer 2 and Layer 3 Router
SG2127
Multiservice Digital Subscriber Line Access Multiplexer
(DSLAM)
SG2128
ATM Internetworking Multiplexer
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (8 of 27) [1/18/2005 10:58:46 AM]
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
139
7/01/2004
5
128
125
117
124
1
1
3
1
1/01/2004
1/01/2005
6/17/2003
1/01/2005
MPC8255 Product Summary Page
White Paper
ID
Name
MPC826XSDRAMWP Timing Considerations when Interfacing the
PowerQUICC II to SDRAM
Vendor ID Format
FREESCALE
pdf
Size Rev Date Last
Order
K # Modified Availability
288
3/09/2004
0.1
Return to Top
MPC8255 Design Tools
Hardware Tools
Analyzers
Logic
ID
Name
Vendor ID
TLA700 Logic Analyzers
The TLA700 Logic Analyzers have the performance to
TLA715/TLA721 capture and display the fastest signals and gives you instant TEKTRONIX
insight into the digital and analog behavior of your system so
you can quickly find those elusive signal integrity problems
Format
-
Size Rev
Order
K # Availability
-
-
-
Board Testers
ID
Name
SCANPLUS
ScanPlus
µMaster 4031
Functional Test and Debug Solutions for boards carrying Motorola™
4000-994020-001 and IBM® PowerPC™ processors with COP debug port (740, 750,
750DD2, 750DD3, 755, 603e, 8240, 8250A, 8255A, 8260A, 8264A,
8265A, 8266A, 7400, 7410, etc.)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (9 of 27) [1/18/2005 10:58:46 AM]
Vendor ID Format
CORELIS
-
INTLTEST
-
Size Rev
Order
K # Availability
-
-
-
-
MPC8255 Product Summary Page
Emulators/Probes/Wigglers
ID
Size Rev
Order
K # Availability
Vendor ID
Format
CWH-PTP-JTAG-HX PowerTAP Pro JTAG Hardware Only
METROWERKS
-
-
-
CWH-WTP-JTAG-YX WireTAP JTAG Hardware Only
METROWERKS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
BDI1000/BDI2000
10200A
4000-994020--001
IC30000
IC40000
WBDM8XX
WNPJ-COP
GUARDIAN-SE
Name
BDI1000/BDI2000
Abatron develops and produces high-quality, high-speed
ABATRON
BDM and JTAG Debug Tools (BDI Family) for software
development environments from leading vendors.
CORELIS
NetICE-R option 2/2M
µMaster 4031
Functional Test and Debug Solutions for boards carrying
Motorola™ and IBM® PowerPC™ processors with COP
INTLTEST
debug port (740, 750, 750DD2, 750DD3, 755, 603e, 8240,
8250A, 8255A, 8260A, 8264A, 8265A, 8266A, 7400, 7410,
etc.)
iC3000 ActiveEmulator
The compact iC3000 with its "iCARD" slot can be used as
ISYS
either an affordable hardware debugger, or the interface
module for full in-circuit emulators or high-end on-chip trace
modules. USB, serial and Ethernet interfaces are supported.
iC4000 ActiveEmulator
The iC4000 Base unit provides an "iCARD" interface slot so it
ISYS
supports all the same devices as the iC3000, plus can be set up
as the Base Unit for the iC2000 emulator modules so it
supports all the same devices as the iC2000.
Wiggler for 5xx/8xx BDM
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the BDM port of the target system.
Wiggler for COP
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the COP port of the target system.
Guardian-SE
TOOLSMITHS
JTAG debug tools for PowerPC development
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (10 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
VISIONICE
VISIONPROBE
WPICE
visionICE II
visionPROBE II
WIND®POWER ICE
WINDRIV
WINDRIV
WINDRIV
-
Vendor ID
Format
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Evaluation/Development Boards and Systems
ID
Name
MPC8260ADS_ECOM MPC8260ADS Daughter Card for Telephony Applications
(E1)
MPC8260ADS_TCOM MPC8260ADS Daughter Card for Telephony Applications
(T1)
PQ2FADS_ZU
EP8260-H2-13
STK8260
STK8265
SBCPQII
MPC82xx Family Application Development System
EP8260
EP8260 is small form factor single board computer using the
8255, 8260, 8264. Processor and Local SDRAM provided.
EMDPLAN
Direct access to the 82xx processor allows OEMs to create
solutions quickly. Linux, VxWorks and INTEGRITY are
available.
STK8260
Starterkit STK82xx with TQ Minimodule, MPC8260 / 300
MHz, 32 MB Flash, 64 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 32 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
STK8265
Starterkit STK82xx with TQ Minimodule, MPC8265 / 300
MHz, 32 MB Flash, 0 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 16 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
WINDRIV
SBCPowerQUICCII
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (11 of 27) [1/18/2005 10:58:46 AM]
Size Rev
Order
K # Availability
MPC8255 Product Summary Page
Models
Full Functional Models
ID
Name
Vendor ID
Format
EP100
EP201
EP300
EP433
ES100
PowerPC Bus Slave
PowerPC Bus Master
PowerPC Bus Arbiter
PowerPC-PCI Bridge
PowerPC System Controller
EUREKA
EUREKA
EUREKA
EUREKA
EUREKA
-
Size
Rev #
K
-
Order
Availability
-
IBIS
ID
Name
Vendor ID Format
PowerQUICC II Family IBIS Models
This package contains the IBIS models for the PowerQUICC II
FREESCALE
MPC82XXIBIS family of communications processors. HiP3 and HiP4
zip
processes. Local and PCI bus configurations. 480 TBGA and
516 PBGA packages. (10/30/2003)
Size Rev
Order
K # Availability
81 2.7
-
Timing Models
ID
Name
PQIIGPCMTIME
GPCM Timing Generator
(05/29/2003)
Vendor ID
Format
FREESCALE
exe
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (12 of 27) [1/18/2005 10:58:46 AM]
Size
Rev #
K
176
1
Order
Availability
-
MPC8255 Product Summary Page
Software
Application Software
Calculators
ID
Name
Power Consumption Calculator for all PowerQUICC II
MPC8260CALC1 Processors
(04/28/2004)
CPM Performance Calculator for all PowerQUICC II and
MPC8260CALC2 PowerQUICC III Processors
(09/07/2004)
Vendor ID Format
FREESCALE
FREESCALE
zip
zip
Size Rev
Order
K # Availability
491
2.1
664 3.1.3
-
-
Code Examples
ID
Name
Vendor ID Format
FREESCALE
MPC8260COD08 Fast Ethernet on the FCC of the PowerQUICC II
zip
(10/13/2003)
Multichannel Communication Controller of the PowerQUICC
FREESCALE
MPC8260COD09 II
zip
(09/04/2002)
Example Software for the PowerQUICC II Family: FEC
FREESCALE
MPC8260COD11 Frames Using PHYless MII
zip
(08/02/2002)
Size Rev
Order
K # Availability
140
2
176
614
0
-
0
-
Microcode
ID
Name
RAM Microcode Patches for PowerQUICC II Family Device
MPC8260MC05 Errata
(09/28/2004)
MPC8260MC11 PowerQUICC II AAL2 Microcode (for all revs)
(11/19/2004)
MultiRing
MultiRing is a utility that separates frames of different
DG02010101
protocols into different buffer descriptor rings (rather than a
single ring). The utility supports predefined protocols such as
TCP, ICMP. The user can specify additional protocols.
Vendor ID Format
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (13 of 27) [1/18/2005 10:58:46 AM]
DOGAV
zip
zip
-
Size Rev
Order
K # Availability
330 4.2.3
616
-
-
4.0
-
-
-
MPC8255 Product Summary Page
Board Support Packages
ID
Name
Vendor ID
Metrowerks BSPs for Freescale
Metrowerks BSPs are tested, certified and frozen, ensuring
FREE
METROWERKS
a fully operational tool chain, kernel and board specific
modules that are ready to use together within a fixed
configuration for specific hardware reference platforms.
Arabella MPC82XX Free Reference Design
This free Linux BSP provides a complete Linux
ARA-MOT-82XX-FREE distribution and application ready to be used on the
ARABELLA
PQ2FADS-ZU/VR and MPC8260/8266ADS Boards.
Source code and Linux tools are provided to immediately
get started working with a Linux syste
MQX Board Support Packages
BSPs for Freescale ColdFire, PowerPC, and 68K embedded
ARC-MOT-MQXBSP
ARC
processors including support for emerging USB and CAN
technologies as well as drivers for Ethernet, PCI, HDLC,
SPI, I2C, and serial devices.
EP BSP
Embedded Planet Board Support Packages provide
complete software drivers for MPC 8xx and 82xx
EP BSP
EMDPLAN
processors for Linux, VxWorks and INTEGRITY.
Embedded Planet can also develop customer specific
software for many operating systems.
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Device Drivers
ID
Name
PCS
PlanetCore
PlanetCore provides a complete set of firmware device drivers for 8xx
and 82xx Motorola processors. These drivers include an application /
RTOS boot loader, flash burner and diagnostics. customer specific
drivers can also be developed.
Vendor ID Format
EMDPLAN
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (14 of 27) [1/18/2005 10:58:46 AM]
-
Size Rev
Order
K # Availability
-
-
-
MPC8255 Product Summary Page
Operating Systems
ID
Name
Arabella Linux for Motorola 82xx Processors
Arabella Linux for Motorola 82xx processors is a full,
commercial Linux distribution for the 82xx family of
ARA-MOT-82XX
processors. It includes support for many of the on chip
peripherals including Security, ATM, PCI, USB,
PCMCIA, I2C and others.
MFS
ARC-MOT-MFS
MS-DOS File System is a portable, compatible
implementation of the Microsoft MS-DOS file system
MQX Real Time Operating System
A robust, high performance, royalty-free kernel designed
ARC-MOT-MQX
for deeply embedded applications requiring a small
footprint and fast response.
ARC-OS Changer
ARC-MOT-OSCHANGER Provides developers the freedom to migrate from either
pSOSystem or VxWorks to MQX RTOS while reusing an
existing code base
CMX-RTX
CMX-RTX
CMX TCP/IP
CMX TCP/IP is a full-featured and fast TCP/IP stack that
allows designers to offer networking connectivity for their
CMX00300
embedded applications. CMX TCP/IP offers a low
licensing fee, full source code, no royalties, and free
technical support.
TCP/IP DHCP Client
The CMX TCP/IP DHCP Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00300A
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
TCP/IP DHCP Server
The CMX TCP/IP DHCP Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00300B
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
Size Rev
Order
K # Availability
Vendor ID
Format
ARABELLA
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (15 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
CMX00300C
CMX00300D
CMX00300E
CMX00300F
CMX00300G
CMX00300H
CMX00300I
TCP/IP FTP C/S
The CMX TCP/IP FTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the File Transfer
Protocol standard. A source code example is provided for
fast design start up.
TCP/IP IMAP4
The CMX TCP/IP IMAP4 Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality for the Internet Message Access Protocol
Version 4 standard. A source code example is provided for
fast design start up.
TCP/IP NAT
The CMX TCP/IP NAT Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to add Network Address Translation
function to a network application. Source code example
provided for fast design start up.
TCP/IP POP3
The CMX TCP/IP POP3 Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Post Office
Protocol Client standard. A source code example is
provided for fast design start up.
TCP/IP PPP
The CMX TCP/IP PPP Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
serial or modem connectivity standard. Source code
example provided for fast start up.
TCP/IP PPPoE
The CMX TCP/IP PPPoE Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
over Ethernet standard. A source code example is provided
for fast design start up.
TCP/IP SMTP
The CMX TCP/IP SMTP Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple Mail
Transfer Protocol standard. A source code example is
provided for fast design start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (16 of 27) [1/18/2005 10:58:46 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8255 Product Summary Page
CMX00300J
CMX00300K
CMX00300L
CMX00300M
CMX00300N
CMX00630
CMX00631
TCP/IP SNMP
The CMX TCP/IP SNMP V1 and V2c Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple
Network Management Protocol standard. Source code
example provided for fast design start up.
TCP/IP Telnet
The CMX TCP/IP Telnet Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Telnet
Server standard. A source code example is provided for
fast design start up.
TCP/IP TFTP
The CMX TCP/IP TFTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Trivial File
Transfer Protocol Client/Server standard. Source code
example for fast start up.
TCP/IP Web Client
The CMX TCP/IP Web Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Client/Server standard.
Source code example provided.
TCP/IP Web Server
The CMX TCP/IP Web Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Server standard. Source
code example provided for fast start up.
CMX-FFS
CMX-FFS is a very small, standard Flash File System that
allows designers to offer file system functionality for their
embedded applications. CMX-FFS offers a low licensing
fee, full source code, no royalties, and free technical
support.
CMX-FFS-NAND
CMX-FFS-NAND is an Add-On Option for CMX- FFS
that allows designers to include a NAND driver for their
embedded FFS applications. CMX-FFS-NAND offers a
low licensing fee, full source code, no royalties, and free
technical support.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (17 of 27) [1/18/2005 10:58:46 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8255 Product Summary Page
CMX00632
CMX00633
DPP.82XXX.KRN
THREADX
PX382-1
TDK1
TDK2
TDK3
CMX-FFS-FAT
CMX-FFS-FAT is a fast file system for embedded
developers who wish to add devices to their products that
CMX
require FAT12/16/32 compliant media. CMX-FFS-FAT
offers a low license fee, full source code, no royalties, and
free tech support.
CMX-FFS-THIN
CMX-FFS-THIN is a file system for embedded device
developers with limited resource products that require a
CMX
FAT12/16/32 compliant media. CMX-FFS-THIN offers a
low licensing fee, full source code, no royalties, and free
technical support.
ENEA
OSE Real-Time Operating System
ThreadX
RTOS. Royalty-free real-time operating system (RTOS)
EXPRESSLOG
for embedded applications. ThreadX is small, fast, and
royalty-free making it ideal for high-volume electronic
products.
AMX PPC32
AMX is a full featured RTOS for the PowerPC family.
AMX has been tested on the EST SBC8260, Embedded
KADAK
Planet RPX Lite MPC823 and Motorola Ultra 603,
MBX860, MPC860 ADS, MPC860 FADS, Lite5200EVB
and MPC8560 ADS.
Critical Process Monitoring Technology Development Kit
Based on CPM functionality provided with the QNX
Momentics development suite, the kit lets you quickly
QNX
construct custom failure recovery scenarios and design
your system to reconnect instantly and transparently to
minimize downtime.
Extended Networking Technology Development Kit
Reduce development time with a suite of advanced
networking protocols, pre- integrated and tested with the
QNX
QNX Neutrino RTOS. This TDK provides a royalty-free
solution to get you up and running quickly with the newest
networking protocols.
Flash File System and Embedding Technology
Development Kit
Deploy resilient flash file systems using your choice of
QNX
NOR, NAND and ETFS. The TDK provides access to
these formats and offers a suite of BSPs, drivers and other
components to accelerate the integration of flash into your
embedded system
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (18 of 27) [1/18/2005 10:58:46 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8255 Product Summary Page
TDK4
TDK5
TDK6
TDK7
TDK8
V6.3
MOST (Media-Oriented Systems Transport) Technology
Development Kit
Enhance the performance and reliability of your in-vehicle
multimedia applications using this TDK. With the kit, you
can quickly develop customized NetServices, audio, and IP
networking features for deployment over the high-speed
MOST bus.
Multimedia Technology Development Kit
Add high-performance multimedia features to embedded
devices using a convenient multimedia framework, with
reusable media handling components to build customized
media playback and recording applications using standard
components.
Symmetric Multiprocessing Technology Development Kit
Leverage greater scalability, system density and
performance using symmetric multiprocessing (SMP) in
compute-intensive systems, such as network elements,
encryption/decryption, transportation, high- end medical
imaging, and storage.
3D Graphics Technology Development Kit
Create sophisticated 3D displays with minimal impact on
CPU performance. The TDK lets you implement rich
visual content presentation for small screen formats and
optimize the available screen real estate with advanced
features.
WEB BROWSER TECHNOLOGY DEVELOPMENT
KIT
Design advanced web browsing and mobile internet
applications for small footprint devices. Ideal for high
performance embedded devices in environments with
limited memory and CPU resources.
QNX Neutrino Realtime Operating System
A true microkernel OS, the QNX Neutrino RTOS offers
advanced memory protection, distributed processing,
symmetric multiprocessing, POSIX APIs, a dynamically
upgradable architecture, and industry- leading realtime
performance.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (19 of 27) [1/18/2005 10:58:46 AM]
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
MPC8255 Product Summary Page
Protocol Stacks
ID
Name
Vendor ID Format
Nucleus NET
Nucleus NET, Accelerated Technology's TCP/IP
protocol stack, is the foundation for the rest of
NUCLEUS NET
ACCTECH
our networking products. Nucleus NET includes
all of the essential protocols necessary to connect
your product to the Internet.
Nucleus WebServ
An embedded web (HTTP) server that enables
your device to be remotely monitored, configured
NUCLEUS WEBSERV
ACCTECH
and more using the ubiquitous web browser
interface. Serve up static web pages or
dynamically create them in response to web
browsers requests.
HTTP Web Server
The HTTP (Hyper text Transfer Protocol)
consists of source code and development tools
ARC-MOT-HTTP
ARC
for building an embedded HTTP server. This is a
HTTP 1.0/1.1 compliant Web server with
CGI-style user exit support and optional file
system support.
HTTP PRO
HTTP 1.0/1.1 compliant Web server w/ CGIstyle user exit sppt, opt'al file system sppt,
ARC-MOT-HTTPPRO
ARC
PageBuilder Web-to-C compiler addit'al
compression features, Internat'al language sppt,
server-side mapping, HTTP streaming & digest
authentication.
IPShield
Security product support for IPSec, IKE, SSL
and SSH. Also supports hardware accelerated
ARC-MOT-IPSHIELD
ARC
encryption on processors with an Integrated
Security Engine such as MCF5485/5483,
MPC870/875, MPC8272/8248, MCF5271, and
MCF5275/5275L.
Network Protocols
TCP/IP networking stack (ARP, BootP, CCP,
CHAP, DHCP, DNS, Echo, EDS, FTP, ICMP,
ARC-MOT-NETWORKPROTOCOLS IGMP, IP, IP-E, IPCP, LCP, PAP, PPP, RIPv2,
ARC
RPC, SNMPv1/v2, SNTP, TCP, TFTP, Telnet,
UDP & XDR)& opt'al prototocols, SMTP,
SNMPv3, PPPoE, XML, SSL/H
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (20 of 27) [1/18/2005 10:58:46 AM]
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8255 Product Summary Page
ARC-MOT-POP3
ARC-MOT-RTCS
ARC-MOT-SMTP
RSTP
TARGETTCP
CMX TCP/IP
IPLITE
IPNET
POP3
Enables client embedded devices to receive
e-mail from any POP3 server
RTCS
A real-time, high performance TCP/IP stack
designed specifically for embedded networking
applications such as IP phones, bridges, routers,
pagers, PDAs, cellular phones, and set-top boxes
ARC
-
-
-
-
ARC
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
SMTP
Royalty free source code SMTP enables
ARC
embedded devices to send e-mail to any SMTP
server. This allows any embedded device to send
asynchronous status reports using email.
AvniRSTP
Avnisoft's AvniRSTP is a completely portable
ANSI C compliant implementation of the IEEE
AVNISOFT
802.1w RSTP Algorithm and Protocol. It
includes the AvniPORT platform abstraction
layer to simplify integration with target
platforms.
TCP/IP Stack
TargetTCP, is a fast, reliable, re-entrant,
full-featured TCP/IP protocol stack designed
BLUNK
specifically for high-performance embedded
networking. The code has a small footprint and is
well suited to memory constrained environments.
CMX
CMX TCP/IP
IPLITE
IPLITE is a dual-mode IPv4/v6 host stack,
optimized for minimum footprint and maximum INTERPEAK
performance, with a number of PowerQUICC
II/III optimizations. Available for leading RTOSs
like INTEGRITY, Linux, OSE, VxWorks, etc.
IPNET
IPNET is a full-featured dual-mode IPv4/v6
router stack with built-in IPSec, Virtual Routing, INTERPEAK
QoS, VLAN Tagging, as well as PowerQUICC
II/III optimizations. Available for leading RTOSs
like INTEGRITY, Linux, OSE, VxWorks, etc.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (21 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
PN713-1
INFOLINK-STACKNAME
MOC_SSL_CLIENT
PSQ40XXXX
KwikNet
The KwikNet TCP/IP Stack enables you to add
networking features to your products with a
KADAK
minimum of time and expense. KwikNet is a
compact, high performance stack built with
KADAK's characteristic simplicity, flexibility
and reliability.
LINK
INFOLink Protocol Software Family
Mocana Embedded SSL/TLS Client
MOCANA SSL/TLS CLIENT: Supports
Freescale chipsets out of the box. Small (50KB),
MOCANA
fast (2-3x faster than OpenSSL), trusted.
Supports all major cryptos. Royalty free, source
code license. FREE EVAL:
http://www.mocana.com/evaluate.html
RTXC Quadnet Networking Protocols
Full protocol suite: TCP, UDP, SLIP, ICMP, and
ARP with Berkeley Sockets API. Plus DHCP,
BOOTP, DNS, IGMP v2, RIP v2, NAT, HTTP, QUADROS
SMTP, POP3, TFTP, FTP, Telnet, SNMP v1,2,3,
PPP and more. New security protocols: SSL,
IPsec, IKE.
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Software Tools
Code Translation
ID
Name
PA68K-PPC
PA86-PPC
PortAsm/68K for PowerPC
PortAsm/86 for PowerPC
Vendor ID
Format
MICROAPL
MICROAPL
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (22 of 27) [1/18/2005 10:58:46 AM]
Size
Rev #
K
-
Order
Availability
-
MPC8255 Product Summary Page
Compilers
ID
Name
Vendor ID
GNUTOOL
ANAMIC
Gnu Tool set
ARC-MOT-COMPILER MetaWare C/C++ Compiler Tool Suite
ARC
Optimized compiler for Motorola processors
C/C++ Compiler
Optimizing C, C++, EC++ compilers for Freescale PowerPC, GREENHILLS
COMPILER
ColdFire, StarCore, 68K, MCore and ARM-based MAC
architectures.
DIAB
WINDRIV
Diab C/C++ Compiler
Format
-
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
Debuggers
ID
Name
ARC-MOT-DEBUGGER MetaWare SeeCode Debugger
C/C++ Debugger
TRACE32-ICD
TRACE32-ICD for PowerQUICC II is a high performance
LA-7729
JTAG debugger for C ,C++ and JAVA. A USB 2.x, LPT or
ethernet interface is available for connection to any PC or
workstation. A flash programming utility is included.
Vendor ID Format
Size Rev
Order
K # Availability
ARC
-
-
-
-
LAUBACH
-
-
-
-
IDE (Integrated Development Environment)
ID
Name
Size Rev
Order
K # Availability
Vendor ID
Format
CodeWarrior Development Studio for PPC ISA Comms
Edition
CWS-PPC-CMWFL-CX Metrowerks CodeWarrior Development Studio, PowerPC
ISA Edition for Communication Processors is a complete
integrated development environment for PowerPC ISA
hardware bring-up through embedded applications.
METROWERKS
-
-
-
CodeWarrior™ Development Studio, Embedded Linux
CWS-PPC-LINWH-CX Edition for PowerPC Architectures
METROWERKS
-
-
-
CWS-PPC-LLAPP-CX
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Application Edition
METROWERKS
-
-
-
CWS-PPC-LLPLT-CX
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Platform Edition
METROWERKS
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (23 of 27) [1/18/2005 10:58:46 AM]
-
MPC8255 Product Summary Page
IC-SW-OPR
V6.3
WIND RIVER
WORKBENCH
WPIDE
winIDEA
winIDEA integrates a Project Manager, Source Code Editor,
High and Low Level Debugger, and Flash Programmer, all
into one easy-to- use Windows application. It is the one user
interface for all of our emulators and debuggers.
QNX Momentics Development Suite
Accelerate your entire development cycle, from board
bring-up to remote diagnostics. Comprehensive, yet tightly
integrated, QNX Momentics provides all the tools you need
to build and optimize applications for the QNX Neutrino
RTOS.
Wind River Workbench
Wind River Workbench is an open, standards-based device
software development environment for Linux applications
providing a deep tools capability in each phase of the
development process.
WIND®POWER IDE
ISYS
-
-
-
-
QNX
-
-
-
-
WINDRIV
-
-
-
-
WINDRIV
-
-
-
-
Vendor ID
Format
METROWERKS
-
Performance and Testing
ID
MWCTESTHWICPKG
Name
CodeTEST Software Analysis Tools, HWIC License package
Return to Top
Applications
Networking
SOHO
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
Access
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (24 of 27) [1/18/2005 10:58:46 AM]
Size Rev
Order
K # Availability
-
-
-
MPC8255 Product Summary Page
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
Edge
ATM Switch Line Card
Core
SONET Multiplexer
Applications
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
ATM Switch Line Card
SONET Multiplexer
Wireless
Wireless Infrastructure Applications
Wireless Basestation Transceiver
Wireless Basestation Transceiver
Return to Top
Orderable Parts Information
Part Number
Package
Description
Application/
Tape
Pb-Free
Qualification
and
Terminations
Reel
Tier
Status
Budgetary
Price
QTY
Info
1000+
($US)
KMPC8255ACZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8255AZUPIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (25 of 27) [1/18/2005 10:58:46 AM]
Order
MPC8255 Product Summary Page
KXPC8255CZUIFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KXPC8255ZUIFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8255ACZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8255AZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8255AZUPIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8255ACZUIFBA
TBGA 480
No
37*37*1.7P1.27
No
-
Not
Recommended
for New
Design
-
more
-
XPC8255ACZUMHBA
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
-
XPC8255AZUIFBA
TBGA 480
No
37*37*1.7P1.27
-
Not
Recommended
for New
Design
-
more
-
XPC8255AZUMHBA
TBGA 480
No
37*37*1.7P1.27
No
-
Not
Recommended
for New
Design
-
more
-
XPC8255CZUIFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8255ZUIFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
No
NOTE:
● Not all orderable parts are offered through our online sampling program. For further assistance in selecting a similar part from within the
program, please submit a Request for a sample order advice.
●
Refer to Samples FAQ for more information.
●
Looking for an obsolete part? Check our distributors' inventory
Return to Top
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (26 of 27) [1/18/2005 10:58:46 AM]
MPC8255 Product Summary Page
Related Products
MC33702 : MICROPROCESSOR POWER SUPPLY (3.0 A)
The 34702 is a monolithic IC providing an efficient means of obtaining power for the Freescale Semiconductor PowerQUICC TM I
and II ...
Return to Top
Related Links
Industrial Control
Networking
Wireless
Return to Top
www.freescale.com | Site Map | Terms of Use | Privacy Practices |
© Freescale Semiconductor, Inc. 2004. All Rights Reserved
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8255&nodeId=018rH3bTdG2977 (27 of 27) [1/18/2005 10:58:46 AM]
MPC8265 Product Summary Page
Part Number
Contains
Register
Keyword
Login
Basket
Search
Advanced | Parametrics
Home |
Products Applications Technologies Support Where to Buy
Contact Us
About Freescale
Freescale > PowerPC Processors > MPC82XX PowerQUICC II Processors > MPC8265
SUBSCRIBE
MPC8265 : PowerQUICC II" Integrated Communications Processor
The PowerQUICC II" integrated communications processor family delivers excellent
integration of processing power for networking and communications peripherals,
providing customers with an innovative, total system solution for building high-end
communications systems. Freescale Semiconductor's PowerQUICC II processor family is
the next generation of the leading PowerQUICC" line of integrated communications
processors, providing higher performance in all areas of device operation, including
greater flexibility, extended capabilities, and higher integration.
Rate this Page
--
-
0
+
++
Submit
Care to Comment?
Freescale's leading PowerQUICC architecture integrates two processing blocks. One
block is a high-performance embedded G2 core and the second block is the
Communications Processor Module (CPM). The CPM of the PowerQUICC II processor
can support up to three fast serial communications controllers (FCCs), two multichannel
controllers (MCCs), four serial communications controllers (SCCs), two serial
management controllers (SMCs), one serial peripheral interface (SPI) and one I2C
interface. The combination of the G2 core and the CPM, along with the versatility and
performance of the PowerQUICC II processor family, provides customers with enormous
potential in developing networking and communications products while significantly
reducing time-to-market development stages.
Product Picture
Block Diagram
MPC8265 Features
Product Highlights
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (1 of 27) [1/18/2005 10:57:53 AM]
MPC8265 Product Summary Page
●
●
●
●
●
●
●
●
●
●
300 MHz high-speed embedded G2 core
Powerful memory controller and system functions
Enhanced 32-bit RISC communications processor module
Up to three multiport 10/100 Mbps ethernet MAC
Up to two UTOPIA ports (155 Mbps ATM)
Up to 256 HDLC channels (each channel 64 Kbps, full duplex)
Up to four 10 Mbps ethernet MAC
Transmission convergence sub-layer and inverse multiplexing for ATM
capabilities
Integrated PCI interface
Strong 3rd-party tools support from Freescale's Smart Networks alliance members
Typical Applications
● Remote Access Concentrators
● Regional Office Routers
● Cellular Infrastructure equipment
● Telecom Switching Equipment
● Ethernet Switches
● T1/E1-to-T3/E3 Bridges
● xDSL Systems
Technical Specifications
● Embedded G2 core available from 133 - 300 MHz
❍ 190 MIPS at 100 MHz (Dhrystone 2.1)
❍ 505 MIPS at 266 MHz (Dhrystone 2.1)
❍ 570 MIPS at 300 MHz (Dhrystone 2.1)
❍ High-performance, superscalar microprocessor
❍ Disable CPU mode
❍ Supports the Freescale external L2 cache chip (MPC2605)
❍ Improved low-power core
❍ 16 Kbyte data and 16 Kbyte instruction cache
❍ Memory Management Unit
❍ Floating Point Unit
❍ Common On-chip Processor (COP)
● System Interface Unit (SIU)
❍ Memory controller, including two dedicated SDRAM machines
❍ PCI up to 66 MHz
❍ Hardware bus monitor and software watchdog timer
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (2 of 27) [1/18/2005 10:57:53 AM]
MPC8265 Product Summary Page
IEEE 1149.1 JTAG test access port
High-Performance CPM with operating frequency up to 133, 166, or 200 MHz
❍ G2 core and CPM may run at different frequencies
❍ Parallel I/0 registers
❍ On-board 32 KBytes of dual-port RAM
❍ Two multi-channel controllers (MCCs), each supporting 128 full-duplex, 64
Kbps, HDLC lines
❍ Virtual DMA functionality
❍ Three FCCs supporting:
❍ Up to 155 Mbps ATM SAR (maximum of two) (AAL0, AAL1,
AAL2,AAL5)
❍ 10/100 Mbps Ethernet (up to three) (IEEE 802.3X with Flow Control)
❍ 45 Mbps HDLC / Transparent (up to three)
❍ Two UTOPIA Level II master/slave ports with multi-PHY support.
❍ Three MII interfaces
❍ Eight TDM interfaces (T1/E1), two TDM ports can be interfaced with T3/E3
❍ Transmission Convergence Layer capabilities
❍ Integrated Inverse Multiplexing for ATM (IMA) functionality
Two bus architectures: one 64-bit 60x bus and one 32-bit PCI or local bus
❍ Integrated PCI interface
1.8V or 2.0V internal and 3.3V I/O
300 MHz power consumption: 2.5 W
480 TBGA package (37.5 x 37.5 mm)
Integrated PCI capability
❍
●
●
●
●
●
●
MPC8260 Derivatives
Serial Communications
Controllers (SCCs)
Fast Communication
Controllers (FCCs)
I-Cache (Kbyte)
D-Cache (Kbyte)
Ethernet (10T)
Ethernet (10/100)
UTOPIA II Ports
8250
8255
8260
8264
8265
8266
4
4
4
4
4
4
3
2
3
3
3
3
16
16
Up to 4
Up to 3
0
16
16
Up to 4
Up to 2
2
16
16
Up to 4
Up to 3
2
16
16
Up to 4
Up to 3
2
16
16
Up to 4
Up to 3
2
16
16
Up to 4
Up to 3
2
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (3 of 27) [1/18/2005 10:57:53 AM]
MPC8265 Product Summary Page
Multi-Channel HDLC
PCI Interface
IMA Functionality
Up to
128
Yes
--
Up to
128
---
Up to
256
---
Up to
256
-Yes
Up to
256
Yes
--
Up to
256
Yes
Yes
PowerQUICC II Masks and Versions
IMMR_
Rev_Num2
[16-31]1
0K26N 0x00810101 0x0011 0x0001
3K23A 0x00810101 0x0023 0x003B
6K23A,
0x00810101 0x0024 0x007B
7K23A
2K25A 0x80811014 0x0060 0x000D
4K25A 0x80811014 0x0062 0x002D
5K25A 0x80811014 0x0064 0x002D
0K49M 0x80822011 0x0A00 0x0070
1K49M 0x80822013 0x0A01 0x0070
2K49M 0x80822014 0x0A10 0x0071
0x0C00
Process Family Revision Qualification Mask
0.29
µm
(HiP3)
0.25
µm
(HiP4)
A.1
B.3
XC
XC
MPC8260 C.2
XC
A.0
B.1
C.0
0.0
MPC8280 0.1
A.0
XC
MC
MC
—
MC
MC
0.13
µm
(HiP7)
0.0
PC
PVR
0K50M 0x80822013
3
0x0D00
0x00E0
4
MPC8272
0x0C10
A.0
MC
1K50M 0x80822014
3
0x0D10
0x00E1
4
Notes:
1. The IMMR[16-31] indicates the mask number.
2. The Rev_Num located at offset 0x8AF0 in DPRAM indicates the CPM microcode revision number.
3 . Encryption Enabled.
4 . Encryption Disabled.
Masks and versions table last updated on 14OCT2004.
Return to Top
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (4 of 27) [1/18/2005 10:57:53 AM]
MPC8265 Product Summary Page
CPM
Core
I/O
CPU
Operating
Power
Power
Operation
Operating Operating
Sample
Performance Frequency
Dissipation Dissipation
Frequency
Voltage
Voltage
Availability
(Max)
(Max)
(Typ)
(Max)
(Max)
(Spec)
(Max)
(MIPS)
(MHz)
(W)
(W)
(MHz)
(V)
(V)
166,
2.3,
2.9,
505.4,
266,
Y
200,
2.5,
3,
2
3.3
570
300
208
3
3.2
Ambient
Operating
Temperature
(Min)
(oC)
-40,
0
Junction
Operating
Temperature
(Max)
(oC)
Integrated
Memory
Controller
L1 Cache
Instructional
(Max)
(Byte)
105
EDO,
EPROM,
FLASH,
SDRAM,
SRAM
16000
L1
Internal
Cache
Dual-Port
Data
RAM
(Max)
(Byte)
(Byte)
16000
32000
DMA
Bus
Controller
Interface
Channels
30
60x,
Local,
PCI 2.2
Serial Interface Timers
Other Peripherals Network Application Function
Package Description
Type
Channels
I2C,
MII,
SPI,
4
DMA Controller Integrated Control/Data Plane TBGA 480 37*37*1.7P1.27
TDM,
UTOPIA
Return to Top
MPC8265 Parametrics
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (5 of 27) [1/18/2005 10:57:54 AM]
MPC8265 Product Summary Page
MPC8265 Documentation
Documentation
Application Note
ID
Name
AN2754
CPM Architecture and Downloading RAM Microcodes on FREESCALE
zip
the PowerQUICC II Family
FREESCALE
CPM Hints
pdf
AN2059
AN2070
MPC8260 PowerQUICC II Data Error Protection
Implementation
AN2271
MPC8260 PowerQUICC II Thermal Resistor Guide
AN2285
Data Movement between Big and Little Endian Devices
AN2290
MPC8260 PowerQUICC II Design Checklist
AN2291
AN2335
AN2347
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
Differences among PowerQUICC II Devices and Revisions FREESCALE
MPC8260 Dual-Bus Architecture and Performance
Considerations
Using an MPC8260 and an MPC7410 with Shared
Memory
AN2349
MPC8260 Reset and Configuration Word
AN2431
PowerQUICC II PCI Example Software
AN2431SW
PowerQUICC II PCI Example Software
AN2491
Simplified Mnemonics for PowerPC Instructions
AN2547
Detecting a CPM Overload on the PowerQUICC II
AN2547SW
Software Detecting CPM Overload (accompanies
AN2547)
AN2579
Porting Linux® to the MPC8260ADS
AN2585
MPC82xx PowerQUICC II Reset: Sources, Effects, and
Comments
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (6 of 27) [1/18/2005 10:57:54 AM]
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
zip
pdf
pdf
zip
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
210
1 1/06/2005
206
195
225
269
447
366
235
677
263
375
726
743
254
288
323
258
0.1
0
12/05/2003
6/15/2000
-
0.0 3/19/2002
0
5/21/2002
1.1 1/27/2004
1.4 9/30/2003
0
0
1
0
0
10/15/2002
10/01/2002
11/15/2004
12/20/2002
12/20/2002
0
9/30/2003
0
6/30/2003
0
6/30/2003
0.1 1/06/2004
0.1 2/26/2004
-
MPC8265 Product Summary Page
AN2638
MPC8260 PowerQUICC II Family Power Distribution
FREESCALE
pdf
Trends
Software Migration from the NPe495H/L to PowerQUICC FREESCALE
pdf
II
FREESCALE
Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4)
pdf
AN2810
PowerQUICC UPM Configuration Application Note
AN2586
AN2587
FREESCALE
524
644
474
597
zip
0
1/13/2004
0.1 1/28/2004
0
0
12/12/2003
11/22/2004
Data Sheets
ID
Name
Vendor ID
MPC8260AEC
MPC8260A HiP4 Family Hardware Specifications
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
# Modified Availability
662
0.9 8/15/2003
Errata - Click here for important errata information
ID
Name
Vendor ID
MPC8260CE
MPC8260 PowerQUICC II Family Device Errata
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
691
11/16/2004
4.6
Fact Sheets
ID
Name
MPC8260FACT
MPC8260 PowerQUICC II Integrated Comm Proc Fam
MPC8260MFACT MPC8260 PowerQUICC II Microcode
Vendor ID Format
FREESCALE
FREESCALE
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
11/05/2004
94 10
212
1
3/27/2002
Packaging Information
ID
Name
TBGAPRESPKG
TBGA Packaging Customer Tutorial
Vendor ID
Format
FREESCALE
pdf
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (7 of 27) [1/18/2005 10:57:54 AM]
Size Rev Date Last
K
#
Modified
1784
0
8/05/2003
Order
Availability
-
MPC8265 Product Summary Page
Product Brief
ID
Name
Vendor ID
MPC8260TS
MPC8260 PowerQUICC II Technical Summary
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
254
11/12/2001
2.2
Product Change Notices
ID
Name
Vendor ID
PCN8499
POWERQUICC (.25UM) HIP4 SPEC CHANGES
PCN8663
NEW TRAY FOR 37.5 X 37.5 TBGA PACKAGE
PCN9081
37.5 X 37.5 MM TBGA TRAY
PCN9322
PQII HIP4 TRANSITION PCI DEVICE
Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
Size Rev Date Last
Order
K # Modified Availability
htm
11
0
1/30/2003
-
htm
38
0
3/28/2003
-
htm
12
0
8/06/2003
-
htm
9
0
10/29/2003
-
Product Numbering Scheme
ID
Name
82XXPNS
MPC82xx HiP3/HiP4 Part Numbering Scheme
Vendor ID
Format
FREESCALE
jpg
Size Rev Date Last
Order
K
# Modified Availability
134
2 9/30/2003
-
Reference Manual
ID
Name
G2CORERM
G2 Core Reference Manual
MPC60XBUSRM
The Bus Interface for 32-Bit Microprocessors
that Implement the PowerPC Architecture
MPC8260ESS7UMAD_D Enhanced SS7 Microcode Specification
MPC8260UM
MPC8260UMAD
MPCFPE32B
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
pdf
6720
pdf
3203 0.1 1/14/2004
pdf
325 0.1
MPC8260 PowerQUICC II Family Reference FREESCALE
pdf
Manual
MPC8260 PowerQUICC II Users Manual
FREESCALE
pdf
Errata
Programming Environments Manual for 32-Bit FREESCALE
pdf
Implementations of the PowerPC Architecture
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (8 of 27) [1/18/2005 10:57:54 AM]
Size Rev Date Last
Order
K
# Modified Availability
16672
1
1
6/27/2003
12/05/2002
5/29/2003
313 1.2 4/30/2004
7549
2
12/21/2001
-
MPC8265 Product Summary Page
Errata to MPCFPE32B, Programming
Environments Manual for 32-Bit
FREESCALE
pdf
Implementations of the Power PC Architecture,
Rev. 2
MPCFPE32BAD
40
0
10/11/2002
Selector Guide
ID
Name
Vendor ID Format
SG1007
Network and Communications Processors Selector Guide
SG2000CR
Application Selector Guide Index and Cross-Reference.
SG2112
LAN to WAN Bridge Router
SG2113
OSI Layer 2 and Layer 3 Router
SG2127
Multiservice Digital Subscriber Line Access Multiplexer
(DSLAM)
SG2128
ATM Internetworking Multiplexer
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
pdf
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
189
1/01/2005
0
139
128
125
117
124
5
1
1
3
1
7/01/2004
1/01/2004
1/01/2005
6/17/2003
1/01/2005
White Paper
ID
Name
MPC826XSDRAMWP Timing Considerations when Interfacing the
PowerQUICC II to SDRAM
Vendor ID Format
FREESCALE
Return to Top
MPC8265 Design Tools
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (9 of 27) [1/18/2005 10:57:54 AM]
pdf
Size Rev Date Last
Order
K # Modified Availability
288
3/09/2004
0.1
MPC8265 Product Summary Page
Hardware Tools
Analyzers
Logic
ID
Name
Vendor ID
TLA700 Logic Analyzers
The TLA700 Logic Analyzers have the performance to
TLA715/TLA721 capture and display the fastest signals and gives you instant TEKTRONIX
insight into the digital and analog behavior of your system so
you can quickly find those elusive signal integrity problems
Format
-
Size Rev
Order
K # Availability
-
-
-
Board Testers
ID
Name
Vendor ID Format
SCANPLUS
ScanPlus
µMaster 4031
Functional Test and Debug Solutions for boards carrying Motorola™
4000-994020-001 and IBM® PowerPC™ processors with COP debug port (740, 750,
750DD2, 750DD3, 755, 603e, 8240, 8250A, 8255A, 8260A, 8264A,
8265A, 8266A, 7400, 7410, etc.)
CORELIS
-
INTLTEST
-
Size Rev
Order
K # Availability
-
-
-
-
Emulators/Probes/Wigglers
ID
Size Rev
Order
K # Availability
Vendor ID
Format
CWH-PTP-JTAG-HX PowerTAP Pro JTAG Hardware Only
METROWERKS
-
-
-
CWH-WTP-JTAG-YX WireTAP JTAG Hardware Only
METROWERKS
-
-
-
-
ABATRON
-
-
-
-
CORELIS
-
-
-
-
BDI1000/BDI2000
10200A
Name
BDI1000/BDI2000
Abatron develops and produces high-quality, high-speed
BDM and JTAG Debug Tools (BDI Family) for software
development environments from leading vendors.
NetICE-R option 2/2M
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (10 of 27) [1/18/2005 10:57:54 AM]
MPC8265 Product Summary Page
4000-994020--001
IC30000
WBDM8XX
WNPJ-COP
GUARDIAN-SE
VISIONICE
VISIONPROBE
WPICE
µMaster 4031
Functional Test and Debug Solutions for boards carrying
Motorola™ and IBM® PowerPC™ processors with COP
INTLTEST
debug port (740, 750, 750DD2, 750DD3, 755, 603e, 8240,
8250A, 8255A, 8260A, 8264A, 8265A, 8266A, 7400, 7410,
etc.)
iC3000 ActiveEmulator
The compact iC3000 with its "iCARD" slot can be used as
ISYS
either an affordable hardware debugger, or the interface
module for full in-circuit emulators or high-end on-chip trace
modules. USB, serial and Ethernet interfaces are supported.
Wiggler for 5xx/8xx BDM
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the BDM port of the target system.
Wiggler for COP
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the COP port of the target system.
Guardian-SE
TOOLSMITHS
JTAG debug tools for PowerPC development
WINDRIV
visionICE II
WINDRIV
visionPROBE II
WINDRIV
WIND®POWER ICE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Evaluation/Development Boards and Systems
ID
Name
MPC8260ADS_ECOM MPC8260ADS Daughter Card for Telephony Applications
(E1)
MPC8260ADS_TCOM MPC8260ADS Daughter Card for Telephony Applications
(T1)
MPC8266ADS_PCIAI
MPC8266 Application Development System (Add-In Card)
PQ2FADS_ZU
MPC82xx Family Application Development System
Size Rev
Order
K # Availability
Vendor ID
Format
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (11 of 27) [1/18/2005 10:57:54 AM]
MPC8265 Product Summary Page
EP8280M-H-10
STK8260
STK8265
SBCPQII
EP82xxM
EP82xxM is a PMC/stand alone single board computer using
the 8280/70/66/65/50. PMC PCI, two 10/100 Ethernet,
EMDPLAN
RS232 provided. Direct access to the 82xx IO allows OEMs
to create solutions quickly. Linux, VxWorks and
INTEGRITY are available.
STK8260
Starterkit STK82xx with TQ Minimodule, MPC8260 / 300
MHz, 32 MB Flash, 64 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 32 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
STK8265
Starterkit STK82xx with TQ Minimodule, MPC8265 / 300
MHz, 32 MB Flash, 0 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 16 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
WINDRIV
SBCPowerQUICCII
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Models
BSDL
ID
Name
MPC8260BSDL3
PowerQUICC II BSDL (HiP3)
(05/06/2002)
PowerQUICC II BSDL (HiP4)
(03/15/2004)
MPC8260BSDL4
Size
Rev #
K
Order
Availability
Vendor ID
Format
FREESCALE
zip
9
1
-
FREESCALE
zip
10
1.1
-
Bus Functional Models
ID
Name
MPC8265 SWIFT Model - Solaris: HiP4A, Bus Function
MPC8265BFM01 Model
(03/27/2002)
Vendor ID Format
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (12 of 27) [1/18/2005 10:57:54 AM]
tar
Size Rev
Order
K
# Availability
46760
1
-
MPC8265 Product Summary Page
Full Functional Models
ID
Name
Vendor ID Format
MPC8265 SWIFT Model - Solaris: HiP4A, Full Function
MPC8265FFM01 Model
(03/27/2002)
EP100
PowerPC Bus Slave
EP201
PowerPC Bus Master
EP300
PowerPC Bus Arbiter
EP433
PowerPC-PCI Bridge
ES100
PowerPC System Controller
FREESCALE
EUREKA
EUREKA
EUREKA
EUREKA
EUREKA
tar
Size Rev
Order
K
# Availability
50388
-
-
1
-
-
-
IBIS
ID
Name
Vendor ID Format
PowerQUICC II Family IBIS Models
This package contains the IBIS models for the PowerQUICC II
FREESCALE
MPC82XXIBIS family of communications processors. HiP3 and HiP4
zip
processes. Local and PCI bus configurations. 480 TBGA and
516 PBGA packages. (10/30/2003)
Size Rev
Order
K # Availability
81 2.7
-
Timing Models
ID
Name
PQIIGPCMTIME
GPCM Timing Generator
(05/29/2003)
Vendor ID
Format
FREESCALE
exe
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (13 of 27) [1/18/2005 10:57:54 AM]
Size
Rev #
K
176
1
Order
Availability
-
MPC8265 Product Summary Page
Software
Application Software
Calculators
ID
Name
Power Consumption Calculator for all PowerQUICC II
MPC8260CALC1 Processors
(04/28/2004)
CPM Performance Calculator for all PowerQUICC II and
MPC8260CALC2 PowerQUICC III Processors
(09/07/2004)
Vendor ID Format
FREESCALE
FREESCALE
zip
zip
Size Rev
Order
K # Availability
491
2.1
664 3.1.3
-
-
Code Examples
ID
Name
Vendor ID Format
FREESCALE
MPC8260COD08 Fast Ethernet on the FCC of the PowerQUICC II
zip
(10/13/2003)
Multichannel Communication Controller of the PowerQUICC
FREESCALE
MPC8260COD09 II
zip
(09/04/2002)
Example Software for the PowerQUICC II Family: FEC
FREESCALE
MPC8260COD11 Frames Using PHYless MII
zip
(08/02/2002)
Size Rev
Order
K # Availability
140
2
176
614
0
-
0
-
Microcode
ID
Name
Vendor ID Format
RAM Microcode Patches for PowerQUICC II Family Device
FREESCALE
MPC8260MC05 Errata
zip
(09/28/2004)
FREESCALE
MPC8260MC11 PowerQUICC II AAL2 Microcode (for all revs)
zip
(11/19/2004)
MultiRing
MultiRing is a utility that separates frames of different
DG02010101
DOGAV
protocols into different buffer descriptor rings (rather than a
single ring). The utility supports predefined protocols such as
TCP, ICMP. The user can specify additional protocols.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (14 of 27) [1/18/2005 10:57:54 AM]
Size Rev
Order
K # Availability
330 4.2.3
616
-
-
4.0
-
-
-
MPC8265 Product Summary Page
Board Support Packages
ID
Name
Vendor ID
Metrowerks BSPs for Freescale
Metrowerks BSPs are tested, certified and frozen, ensuring
FREE
METROWERKS
a fully operational tool chain, kernel and board specific
modules that are ready to use together within a fixed
configuration for specific hardware reference platforms.
Arabella MPC82XX Free Reference Design
This free Linux BSP provides a complete Linux
ARA-MOT-82XX-FREE distribution and application ready to be used on the
ARABELLA
PQ2FADS-ZU/VR and MPC8260/8266ADS Boards.
Source code and Linux tools are provided to immediately
get started working with a Linux syste
MQX Board Support Packages
BSPs for Freescale ColdFire, PowerPC, and 68K
ARC-MOT-MQXBSP
ARC
embedded processors including support for emerging USB
and CAN technologies as well as drivers for Ethernet, PCI,
HDLC, SPI, I2C, and serial devices.
EP BSP
Embedded Planet Board Support Packages provide
complete software drivers for MPC 8xx and 82xx
EP BSP
EMDPLAN
processors for Linux, VxWorks and INTEGRITY.
Embedded Planet can also develop customer specific
software for many operating systems.
EP82xxM VxWorks BSP
VxWorks Board Support Packages contain prebuilt RAM
EP8280M VDK 10
EMDPLAN
and ROM kernel images and documentation that describes
installing and running the BSP. See online matrix for
supported peripherals.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (15 of 27) [1/18/2005 10:57:54 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8265 Product Summary Page
Device Drivers
ID
Name
Size Rev
Order
K # Availability
Vendor ID Format
PowerQUICC II PCI Driver
MPC8266DRV01 For use with the MPC8266 Application Development System and
Metrowerks CodeWarrior
PlanetCore
PlanetCore provides a complete set of firmware device drivers for
PCS
8xx and 82xx Motorola processors. These drivers include an
application / RTOS boot loader, flash burner and diagnostics.
customer specific drivers can also be developed.
FREESCALE
EMDPLAN
zip
3492
-
-
0
-
-
-
Operating Systems
ID
Name
Vendor ID
Arabella Linux for Motorola 82xx Processors
Arabella Linux for Motorola 82xx processors is a full,
commercial Linux distribution for the 82xx family of
ARA-MOT-82XX
ARABELLA
processors. It includes support for many of the on chip
peripherals including Security, ATM, PCI, USB,
PCMCIA, I2C and others.
MFS
ARC-MOT-MFS
ARC
MS-DOS File System is a portable, compatible
implementation of the Microsoft MS-DOS file system
MQX Real Time Operating System
A robust, high performance, royalty-free kernel designed
ARC-MOT-MQX
ARC
for deeply embedded applications requiring a small
footprint and fast response.
ARC-OS Changer
ARC-MOT-OSCHANGER Provides developers the freedom to migrate from either
ARC
pSOSystem or VxWorks to MQX RTOS while reusing an
existing code base
CMX-RTX
CMX
CMX-RTX
CMX TCP/IP
CMX TCP/IP is a full-featured and fast TCP/IP stack that
allows designers to offer networking connectivity for their
CMX00300
CMX
embedded applications. CMX TCP/IP offers a low
licensing fee, full source code, no royalties, and free
technical support.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (16 of 27) [1/18/2005 10:57:54 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8265 Product Summary Page
CMX00300A
CMX00300B
CMX00300C
CMX00300D
CMX00300E
CMX00300F
CMX00300G
TCP/IP DHCP Client
The CMX TCP/IP DHCP Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
TCP/IP DHCP Server
The CMX TCP/IP DHCP Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
TCP/IP FTP C/S
The CMX TCP/IP FTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the File
Transfer Protocol standard. A source code example is
provided for fast design start up.
TCP/IP IMAP4
The CMX TCP/IP IMAP4 Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality for the Internet Message Access
Protocol Version 4 standard. A source code example is
provided for fast design start up.
TCP/IP NAT
The CMX TCP/IP NAT Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to add Network Address Translation
function to a network application. Source code example
provided for fast design start up.
TCP/IP POP3
The CMX TCP/IP POP3 Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Post Office
Protocol Client standard. A source code example is
provided for fast design start up.
TCP/IP PPP
The CMX TCP/IP PPP Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
serial or modem connectivity standard. Source code
example provided for fast start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (17 of 27) [1/18/2005 10:57:54 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8265 Product Summary Page
CMX00300H
CMX00300I
CMX00300J
CMX00300K
CMX00300L
CMX00300M
CMX00300N
TCP/IP PPPoE
The CMX TCP/IP PPPoE Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
over Ethernet standard. A source code example is
provided for fast design start up.
TCP/IP SMTP
The CMX TCP/IP SMTP Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple Mail
Transfer Protocol standard. A source code example is
provided for fast design start up.
TCP/IP SNMP
The CMX TCP/IP SNMP V1 and V2c Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple
Network Management Protocol standard. Source code
example provided for fast design start up.
TCP/IP Telnet
The CMX TCP/IP Telnet Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Telnet
Server standard. A source code example is provided for
fast design start up.
TCP/IP TFTP
The CMX TCP/IP TFTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Trivial File
Transfer Protocol Client/Server standard. Source code
example for fast start up.
TCP/IP Web Client
The CMX TCP/IP Web Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Client/Server standard.
Source code example provided.
TCP/IP Web Server
The CMX TCP/IP Web Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Server standard. Source
code example provided for fast start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (18 of 27) [1/18/2005 10:57:54 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8265 Product Summary Page
CMX00630
CMX00631
CMX00632
CMX00633
DPP.82XXX.KRN
THREADX
PX382-1
CMX-FFS
CMX-FFS is a very small, standard Flash File System that
allows designers to offer file system functionality for their
CMX
embedded applications. CMX-FFS offers a low licensing
fee, full source code, no royalties, and free technical
support.
CMX-FFS-NAND
CMX-FFS-NAND is an Add-On Option for CMX- FFS
that allows designers to include a NAND driver for their
CMX
embedded FFS applications. CMX-FFS-NAND offers a
low licensing fee, full source code, no royalties, and free
technical support.
CMX-FFS-FAT
CMX-FFS-FAT is a fast file system for embedded
developers who wish to add devices to their products that
CMX
require FAT12/16/32 compliant media. CMX-FFS-FAT
offers a low license fee, full source code, no royalties, and
free tech support.
CMX-FFS-THIN
CMX-FFS-THIN is a file system for embedded device
developers with limited resource products that require a
CMX
FAT12/16/32 compliant media. CMX-FFS-THIN offers a
low licensing fee, full source code, no royalties, and free
technical support.
ENEA
OSE Real-Time Operating System
ThreadX
RTOS. Royalty-free real-time operating system (RTOS)
EXPRESSLOG
for embedded applications. ThreadX is small, fast, and
royalty-free making it ideal for high-volume electronic
products.
AMX PPC32
AMX is a full featured RTOS for the PowerPC family.
AMX has been tested on the EST SBC8260, Embedded
KADAK
Planet RPX Lite MPC823 and Motorola Ultra 603,
MBX860, MPC860 ADS, MPC860 FADS, Lite5200EVB
and MPC8560 ADS.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (19 of 27) [1/18/2005 10:57:54 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8265 Product Summary Page
Protocol Stacks
ID
Name
Vendor ID Format
HTTP Web Server
The HTTP (Hyper text Transfer Protocol)
consists of source code and development tools
ARC-MOT-HTTP
for building an embedded HTTP server. This is
a HTTP 1.0/1.1 compliant Web server with
CGI-style user exit support and optional file
system support.
HTTP PRO
HTTP 1.0/1.1 compliant Web server w/ CGIstyle user exit sppt, opt'al file system sppt,
ARC-MOT-HTTPPRO
PageBuilder Web-to-C compiler addit'al
compression features, Internat'al language sppt,
server-side mapping, HTTP streaming & digest
authentication.
IPShield
Security product support for IPSec, IKE, SSL
and SSH. Also supports hardware accelerated
ARC-MOT-IPSHIELD
encryption on processors with an Integrated
Security Engine such as MCF5485/5483,
MPC870/875, MPC8272/8248, MCF5271, and
MCF5275/5275L.
Network Protocols
TCP/IP networking stack (ARP, BootP, CCP,
CHAP, DHCP, DNS, Echo, EDS, FTP, ICMP,
ARC-MOT-NETWORKPROTOCOLS IGMP, IP, IP-E, IPCP, LCP, PAP, PPP, RIPv2,
RPC, SNMPv1/v2, SNTP, TCP, TFTP, Telnet,
UDP & XDR)& opt'al prototocols, SMTP,
SNMPv3, PPPoE, XML, SSL/H
POP3
ARC-MOT-POP3
Enables client embedded devices to receive
e-mail from any POP3 server
RTCS
A real-time, high performance TCP/IP stack
designed specifically for embedded networking
ARC-MOT-RTCS
applications such as IP phones, bridges, routers,
pagers, PDAs, cellular phones, and set-top
boxes
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (20 of 27) [1/18/2005 10:57:54 AM]
Size Rev
Order
K # Availability
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
MPC8265 Product Summary Page
ARC-MOT-SMTP
RSTP
TARGETTCP
CMX TCP/IP
IPLITE
IPNET
PN713-1
INFOLINK-STACKNAME
SMTP
Royalty free source code SMTP enables
ARC
embedded devices to send e-mail to any SMTP
server. This allows any embedded device to
send asynchronous status reports using email.
AvniRSTP
Avnisoft's AvniRSTP is a completely portable
ANSI C compliant implementation of the IEEE
AVNISOFT
802.1w RSTP Algorithm and Protocol. It
includes the AvniPORT platform abstraction
layer to simplify integration with target
platforms.
TCP/IP Stack
TargetTCP, is a fast, reliable, re-entrant,
full-featured TCP/IP protocol stack designed
BLUNK
specifically for high-performance embedded
networking. The code has a small footprint and
is well suited to memory constrained
environments.
CMX
CMX TCP/IP
IPLITE
IPLITE is a dual-mode IPv4/v6 host stack,
optimized for minimum footprint and maximum
performance, with a number of PowerQUICC INTERPEAK
II/III optimizations. Available for leading
RTOSs like INTEGRITY, Linux, OSE,
VxWorks, etc.
IPNET
IPNET is a full-featured dual-mode IPv4/v6
router stack with built-in IPSec, Virtual
INTERPEAK
Routing, QoS, VLAN Tagging, as well as
PowerQUICC II/III optimizations. Available for
leading RTOSs like INTEGRITY, Linux, OSE,
VxWorks, etc.
KwikNet
The KwikNet TCP/IP Stack enables you to add
networking features to your products with a
KADAK
minimum of time and expense. KwikNet is a
compact, high performance stack built with
KADAK's characteristic simplicity, flexibility
and reliability.
LINK
INFOLink Protocol Software Family
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (21 of 27) [1/18/2005 10:57:54 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8265 Product Summary Page
Mocana Embedded SSL/TLS Client
MOCANA SSL/TLS CLIENT: Supports
Freescale chipsets out of the box. Small (50KB),
MOCANA
fast (2-3x faster than OpenSSL), trusted.
Supports all major cryptos. Royalty free, source
code license. FREE EVAL:
http://www.mocana.com/evaluate.html
RTXC Quadnet Networking Protocols
Full protocol suite: TCP, UDP, SLIP, ICMP,
and ARP with Berkeley Sockets API. Plus
DHCP, BOOTP, DNS, IGMP v2, RIP v2, NAT, QUADROS
HTTP, SMTP, POP3, TFTP, FTP, Telnet,
SNMP v1,2,3, PPP and more. New security
protocols: SSL, IPsec, IKE.
MOC_SSL_CLIENT
PSQ40XXXX
-
-
-
-
-
-
-
-
Software Tools
Code Translation
ID
Name
PA68K-PPC
PA86-PPC
PortAsm/68K for PowerPC
PortAsm/86 for PowerPC
Vendor ID
Format
MICROAPL
MICROAPL
-
Size
Rev #
K
-
Order
Availability
-
Compilers
ID
Name
Vendor ID
ARC-MOT-COMPILER MetaWare C/C++ Compiler Tool Suite
ARC
Optimized compiler for Motorola processors
C/C++ Compiler
Optimizing C, C++, EC++ compilers for Freescale PowerPC, GREENHILLS
COMPILER
ColdFire, StarCore, 68K, MCore and ARM-based MAC
architectures.
DIAB
WINDRIV
Diab C/C++ Compiler
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (22 of 27) [1/18/2005 10:57:54 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
MPC8265 Product Summary Page
Debuggers
ID
ARC-MOT-DEBUGGER
LA-7729
Name
Vendor ID Format
MetaWare SeeCode Debugger
C/C++ Debugger
TRACE32-ICD
TRACE32-ICD for PowerQUICC II is a high performance
JTAG debugger for C ,C++ and JAVA. A USB 2.x, LPT or
ethernet interface is available for connection to any PC or
workstation. A flash programming utility is included.
Size Rev
Order
K # Availability
ARC
-
-
-
-
LAUBACH
-
-
-
-
IDE (Integrated Development Environment)
ID
Name
Vendor ID
Format
Size Rev
Order
K # Availability
CodeWarrior Development Studio for PPC ISA Comms
Edition
CWS-PPC-CMWFL-CX Metrowerks CodeWarrior Development Studio, PowerPC METROWERKS
ISA Edition for Communication Processors is a complete
integrated development environment for PowerPC ISA
hardware bring-up through embedded applications.
-
-
-
CodeWarrior™ Development Studio, Embedded Linux
CWS-PPC-LINWH-CX Edition for PowerPC Architectures
METROWERKS
-
-
-
CWS-PPC-LLAPP-CX
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Application Edition
METROWERKS
-
-
-
CWS-PPC-LLPLT-CX
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Platform Edition
METROWERKS
-
-
-
ISYS
-
-
-
-
WINDRIV
-
-
-
-
WINDRIV
-
-
-
-
IC-SW-OPR
WIND RIVER
WORKBENCH
WPIDE
winIDEA
winIDEA integrates a Project Manager, Source Code
Editor, High and Low Level Debugger, and Flash
Programmer, all into one easy-to- use Windows
application. It is the one user interface for all of our
emulators and debuggers.
Wind River Workbench
Wind River Workbench is an open, standards-based device
software development environment for Linux applications
providing a deep tools capability in each phase of the
development process.
WIND®POWER IDE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (23 of 27) [1/18/2005 10:57:54 AM]
-
MPC8265 Product Summary Page
Initialization/Boot Code Generation
ID
Name
MPC82XXCPMMUXIBCG
Parallel Ports Configuration Tool (Pin Mux Tool)
(03/18/2004)
Vendor ID
Format
FREESCALE
zip
Size Rev
Order
K
# Availability
895 4.0.1
-
Performance and Testing
ID
Name
CodeTEST Software Analysis Tools, HWIC License
MWCTESTHWICPKG package
Vendor ID
Format
METROWERKS
-
Return to Top
Applications
Networking
SOHO
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
Access
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
Edge
ATM Switch Line Card
Core
SONET Multiplexer
Applications
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (24 of 27) [1/18/2005 10:57:54 AM]
Size Rev
Order
K # Availability
-
-
-
MPC8265 Product Summary Page
Regional Office Router
Wireless Gateway
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
ATM Switch Line Card
SONET Multiplexer
Wireless
Wireless Infrastructure Applications
Wireless Basestation Transceiver
Wireless Basestation Transceiver
Return to Top
Orderable Parts Information
Part Number
Package
Description
Application/
Tape
Pb-Free
Qualification
and
Terminations
Reel
Tier
Status
Budgetary
Price
QTY
Info
1000+
($US)
KMPC8265ACZUMIBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8265AZUPIBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8265AZUPJDC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
-
more
TBGA 480
MPC8265ACZUMHBB
No
37*37*1.7P1.27
No
-
Not
Recommended
for New
Design
MPC8265ACZUMHBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8265ACZUMIBB
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (25 of 27) [1/18/2005 10:57:54 AM]
Order
MPC8265 Product Summary Page
MPC8265ACZUMIBC
TBGA 480
No
37*37*1.7P1.27
MPC8265AZUMHBB
TBGA 480
No
37*37*1.7P1.27
MPC8265AZUMHBC
TBGA 480
No
37*37*1.7P1.27
MPC8265AZUPIBB
TBGA 480
No
37*37*1.7P1.27
MPC8265AZUPIBC
TBGA 480
No
37*37*1.7P1.27
MPC8265AZUPJDB
TBGA 480
No
37*37*1.7P1.27
MPC8265AZUPJDC
-
Available
-
more
No
-
Not
Recommended
for New
Design
-
more
No
-
Available
-
more
No
-
Not
Recommended
for New
Design
-
more
No
-
Available
-
more
No
-
Not
Recommended
for New
Design
-
more
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8265ACZUMIBA
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
-
XPC8265AZUMHBA
TBGA 480
No
37*37*1.7P1.27
No
-
Not
Recommended
for New
Design
-
more
-
XPC8265AZUMIBA
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
-
No
NOTE:
● Not all orderable parts are offered through our online sampling program. For further assistance in selecting a similar part from within
the program, please submit a Request for a sample order advice.
●
Refer to Samples FAQ for more information.
●
Looking for an obsolete part? Check our distributors' inventory
Return to Top
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (26 of 27) [1/18/2005 10:57:54 AM]
MPC8265 Product Summary Page
Related Products
MC33702 : MICROPROCESSOR POWER SUPPLY (3.0 A)
The 34702 is a monolithic IC providing an efficient means of obtaining power for the Freescale Semiconductor PowerQUICC TM I
and II ...
MPC9850 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9850 is a PLL based clock generator specifically designed for Freescale Microprocessor And Microcontroller applications
including the PowerQUICC III. ...
MPC9855 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9855 is a PLL based clock generator specifically designed for Freescale Microprocessor and Microcontroller applications
including the PowerPC and ...
Return to Top
Related Links
Industrial Control
Networking
Wireless
Return to Top
www.freescale.com | Site Map | Terms of Use | Privacy Practices |
© Freescale Semiconductor, Inc. 2004. All Rights Reserved
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8265&nodeId=018rH3bTdG2977 (27 of 27) [1/18/2005 10:57:54 AM]
MPC8266 Product Summary Page
Part Number
Contains
Register
Keyword
Login
Basket
Search
Advanced | Parametrics
Home |
Products Applications Technologies Support Where to Buy
Contact Us
About Freescale
Freescale > PowerPC Processors > MPC82XX PowerQUICC II Processors > MPC8266
SUBSCRIBE
MPC8266 : PowerQUICC II" Integrated Communications Processor
The PowerQUICC II" integrated communications processor family delivers excellent
integration of processing power for networking and communications peripherals,
providing customers with an innovative, total system solution for building high-end
communications systems. Freescale Semiconductor's PowerQUICC II processor family is
the next generation of the leading PowerQUICC" line of integrated communications
processors, providing higher performance in all areas of device operation, including
greater flexibility, extended capabilities, and higher integration.
Freescale's leading PowerQUICC architecture integrates two processing blocks. One
block is a high-performance embedded G2 core and the second block is the
Communications Processor Module (CPM). The CPM of the PowerQUICC II processor
can support up to three fast serial communications controllers (FCCs), two multichannel
controllers (MCCs), four serial communications controllers (SCCs), two serial
management controllers (SMCs), one serial peripheral interface (SPI) and one I2C
interface. The combination of the G2 core and the CPM, along with the versatility and
performance of the PowerQUICC II processor family, provides customers with enormous
potential in developing networking and communications products while significantly
reducing time-to-market development stages.
Product Picture
Block Diagram
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (1 of 33) [1/18/2005 10:58:59 AM]
Rate this Page
--
-
0
+
++
Submit
Care to Comment?
MPC8266 Product Summary Page
MPC8266 Features
Product Highlights
● 300 MHz high-speed embedded G2 core
● Powerful memory controller and system functions
● Enhanced 32-bit RISC communications processor module
● Up to three multiport 10/100 Mbps ethernet MAC
● Up to two UTOPIA ports (155 Mbps ATM)
● Up to 256 HDLC channels (each channel 64 Kbps, full duplex)
● Up to four 10 Mbps ethernet MAC
● Transmission convergence sub-layer and inverse multiplexing for ATM
capabilities
● Integrated PCI interface
● Strong 3rd-party tools support from Freescale's Smart Networks alliance members
Typical Applications
● Remote Access Concentrators
● Regional Office Routers
● Cellular Infrastructure equipment
● Telecom Switching Equipment
● Ethernet Switches
● T1/E1-to-T3/E3 Bridges
● xDSL Systems
Technical Specifications
● Embedded G2 core available from 133 - 300 MHz
❍ 190 MIPS at 100 MHz (Dhrystone 2.1)
❍ 505 MIPS at 266 MHz (Dhrystone 2.1)
❍ 570 MIPS at 300 MHz (Dhrystone 2.1)
❍ High-performance, superscalar microprocessor
❍ Disable CPU mode
❍ Supports the Freescale external L2 cache chip (MPC2605)
❍ Improved low-power core
❍ 16 Kbyte data and 16 Kbyte instruction cache
❍ Memory Management Unit
❍ Floating Point Unit
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (2 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
Common On-chip Processor (COP)
System Interface Unit (SIU)
❍ Memory controller, including two dedicated SDRAM machines
❍ PCI up to 66 MHz
❍ Hardware bus monitor and software watchdog timer
❍ IEEE 1149.1 JTAG test access port
High-Performance CPM with operating frequency up to 133, 166, or 200 MHz
❍ G2 core and CPM may run at different frequencies
❍ Parallel I/0 registers
❍ On-board 32 KBytes of dual-port RAM
❍ Two multi-channel controllers (MCCs), each supporting 128 full-duplex, 64
Kbps, HDLC lines
❍ Virtual DMA functionality
❍ Three FCCs supporting:
❍ Up to 155 Mbps ATM SAR (maximum of two) (AAL0, AAL1,
AAL2,AAL5)
❍ 10/100 Mbps Ethernet (up to three) (IEEE 802.3X with Flow Control)
❍ 45 Mbps HDLC / Transparent (up to three)
❍ Two UTOPIA Level II master/slave ports with multi-PHY support.
❍ Three MII interfaces
❍ Eight TDM interfaces (T1/E1), two TDM ports can be interfaced with T3/E3
❍ Transmission Convergence Layer capabilities
❍ Integrated Inverse Multiplexing for ATM (IMA) functionality
Two bus architectures: one 64-bit 60x bus and one 32-bit PCI or local bus
❍ Integrated PCI interface
1.8V or 2.0V internal and 3.3V I/O
300 MHz power consumption: 2.5 W
480 TBGA package (37.5 x 37.5 mm)
IMA/TC layer functionality
Integrated PCI capability
❍
●
●
●
●
●
●
●
●
MPC8260 Derivatives
8250
8255
8260
8264
8265
8266
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (3 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
Serial Communications
Controllers (SCCs)
Fast Communication
Controllers (FCCs)
I-Cache (Kbyte)
D-Cache (Kbyte)
Ethernet (10T)
Ethernet (10/100)
UTOPIA II Ports
Multi-Channel HDLC
PCI Interface
IMA Functionality
4
4
4
4
4
4
3
2
3
3
3
3
16
16
Up to 4
Up to 3
16
16
Up to 4
Up to 2
16
16
Up to 4
Up to 3
16
16
Up to 4
Up to 3
16
16
Up to 4
Up to 3
16
16
Up to 4
Up to 3
0
Up to
128
Yes
--
2
Up to
128
---
2
Up to
256
---
2
Up to
256
-Yes
2
Up to
256
Yes
--
2
Up to
256
Yes
Yes
PowerQUICC II Masks and Versions
IMMR_
Rev_Num2
[16-31]1
0K26N 0x00810101 0x0011 0x0001
3K23A 0x00810101 0x0023 0x003B
6K23A,
0x00810101 0x0024 0x007B
7K23A
2K25A 0x80811014 0x0060 0x000D
4K25A 0x80811014 0x0062 0x002D
5K25A 0x80811014 0x0064 0x002D
Process Family Revision Qualification Mask
0.29
µm
(HiP3)
PVR
A.1
B.3
XC
XC
MPC8260 C.2
XC
A.0
B.1
C.0
XC
MC
MC
0.0
MPC8280 0.1
A.0
—
MC
MC
0K49M 0x80822011 0x0A00 0x0070
1K49M 0x80822013 0x0A01 0x0070
2K49M 0x80822014 0x0A10 0x0071
0x0C00
PC
0K50M 0x80822013
0.25
µm
(HiP4)
0.13
µm
(HiP7)
0.0
MPC8272
3
0x0D00
0x00E0
4
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (4 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
0x0C10
A.0
MC
1K50M 0x80822014
3
0x0D10
0x00E1
4
Notes:
1. The IMMR[16-31] indicates the mask number.
2. The Rev_Num located at offset 0x8AF0 in DPRAM indicates the CPM microcode revision number.
3 . Encryption Enabled.
4 . Encryption Disabled.
Masks and versions table last updated on 14OCT2004.
Return to Top
CPM
Core
I/O
Ambient
CPU
Operating
Power
Power
Operation
Operating Operating Operating
Performance Frequency
Dissipation Dissipation
Frequency
Voltage
Voltage Temperature
(Max)
(Max)
(Typ)
(Max)
(Max)
(Spec)
(Max)
(Min)
(MIPS)
(MHz)
(W)
(W)
(MHz)
(V)
(V)
(oC)
1.9,
570
300
208
2.3
2.9
3.3
0
2
Junction
Operating
Temperature
(Max)
(oC)
Integrated
Memory
Controller
85,
105
EDO,
EPROM,
FLASH,
SDRAM,
SRAM
L1 Cache
Instructional
(Max)
(Byte)
16000
L1
Cache
Data
(Max)
(Byte)
16000
Internal
Dual-Port
RAM
(Byte)
32000
DMA
Controller
Channels
Bus
Interface
30
60x,
Local,
PCI 2.2
Serial
Interface
Type
Timers
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (5 of 33) [1/18/2005 10:58:59 AM]
I2C,
MII,
SPI,
TDM,
UTOPIA
MPC8266 Product Summary Page
Channels
4
Other Peripherals
Network Application Function
Package Description
DMA Controller
Integrated Control/Data Plane
TBGA 480 37*37*1.7P1.27
Return to Top
MPC8266 Parametrics
MPC8266 Documentation
Documentation
Application Note
Name
AN2754
CPM Architecture and Downloading RAM
Microcodes on the PowerQUICC II Family
AN2059
CPM Hints
AN2070
MPC8260 PowerQUICC II Data Error
FREESCALE
pdf
Protection Implementation
MPC8260 PowerQUICC II Thermal Resistor FREESCALE
pdf
Guide
Data Movement between Big and Little
FREESCALE
pdf
Endian Devices
FREESCALE
MPC8260 PowerQUICC II Design Checklist
pdf
195
Differences among PowerQUICC II Devices
and Revisions
MPC8260 Dual-Bus Architecture and
Performance Considerations
Using an MPC8260 and an MPC7410 with
Shared Memory
366
AN2271
AN2285
AN2290
AN2291
AN2335
AN2347
AN2349
MPC8260 Reset and Configuration Word
Vendor ID Format
Size Rev Date Last
Order
K # Modified Availability
210
1 1/06/2005
-
ID
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
zip
pdf
pdf
pdf
pdf
pdf
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (6 of 33) [1/18/2005 10:58:59 AM]
206
225
269
447
235
677
263
0.1
0
12/05/2003
6/15/2000
0.0 3/19/2002
0
5/21/2002
1.1 1/27/2004
1.4 9/30/2003
0
0
1
10/15/2002
10/01/2002
11/15/2004
-
MPC8266 Product Summary Page
AN2431
PowerQUICC II PCI Example Software
AN2431SW
PowerQUICC II PCI Example Software
AN2491
Simplified Mnemonics for PowerPC
Instructions
Detecting a CPM Overload on the
PowerQUICC II
Software Detecting CPM Overload
(accompanies AN2547)
Example Software for PowerQUICC II: IMA
Initialization Using Internal or External TC
Layer Implementation
Example software to accompany application
note AN2569
AN2547
AN2547SW
AN2569
AN2569SW
AN2579
Porting Linux® to the MPC8260ADS
AN2585
MPC82xx PowerQUICC II Reset: Sources,
Effects, and Comments
MPC8260 PowerQUICC II Family Power
Distribution Trends
Software Migration from the NPe495H/L to
PowerQUICC II
Effects of Clock Jitter on the MPC8260 (HiP3
and HiP4)
PowerQUICC UPM Configuration
Application Note
AN2586
AN2587
AN2638
AN2810
FREESCALE
pdf
FREESCALE
FREESCALE
FREESCALE
zip
pdf
pdf
FREESCALE
FREESCALE
zip
pdf
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
zip
pdf
pdf
pdf
pdf
pdf
FREESCALE
zip
375
726
743
254
288
724
461
323
258
524
644
474
597
0
0
12/20/2002
12/20/2002
0
9/30/2003
0
6/30/2003
0
6/30/2003
-
0.1 2/13/2004
0.1 2/13/2004
-
0.1 1/06/2004
0.1 2/26/2004
0
1/13/2004
0.1 1/28/2004
0
0
12/12/2003
11/22/2004
Data Sheets
ID
Name
MPC8260AEC
MPC8260A HiP4 Family Hardware
Specifications
Vendor ID Format
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (7 of 33) [1/18/2005 10:58:59 AM]
pdf
Size Rev Date Last
Order
K # Modified Availability
662
8/15/2003
0.9
MPC8266 Product Summary Page
Errata - Click here for important errata information
ID
Name
MPC8260CE
MPC8260 PowerQUICC II Family Device
Errata
Vendor ID Format
FREESCALE
pdf
Size Rev Date Last
Order
K # Modified Availability
691
11/16/2004
4.6
Fact Sheets
ID
Name
Vendor ID Format
MPC8260FACT
MPC8260 PowerQUICC II Integrated
Comm Proc Fam
FREESCALE
MPC8260MFACT MPC8260 PowerQUICC II Microcode
FREESCALE
pdf
Size Rev Date Last
Order
K # Modified Availability
11/05/2004
94 10
212
pdf
1
3/27/2002
Packaging Information
ID
Name
TBGAPRESPKG
TBGA Packaging Customer Tutorial
Vendor ID
FREESCALE
Format
pdf
Size Rev Date Last
Order
K
# Modified Availability
1784
0 8/05/2003
-
Product Brief
ID
Name
MPC8260TS
MPC8260 PowerQUICC II Technical
Summary
Vendor ID Format
FREESCALE
pdf
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (8 of 33) [1/18/2005 10:58:59 AM]
Size Rev Date Last
Order
K # Modified Availability
254
11/12/2001
2.2
MPC8266 Product Summary Page
Product Change Notices
ID
Name
PCN8499
POWERQUICC (.25UM) HIP4 SPEC
CHANGES
NEW TRAY FOR 37.5 X 37.5 TBGA
PACKAGE
PCN8663
Vendor ID Format
PCN9081
37.5 X 37.5 MM TBGA TRAY
PCN9322
PQII HIP4 TRANSITION PCI DEVICE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
Size Rev Date Last
Order
K # Modified Availability
htm
11
0
1/30/2003
-
htm
38
0
3/28/2003
-
htm
12
0
8/06/2003
-
htm
9
0
10/29/2003
-
Product Numbering Scheme
ID
Name
Vendor ID Format
82XXPNS
MPC82xx HiP3/HiP4 Part Numbering Scheme FREESCALE
jpg
Size Rev Date Last
Order
K # Modified Availability
134
9/30/2003
2
-
Reference Manual
ID
Name
G2CORERM
G2 Core Reference Manual
The Bus Interface for 32-Bit
Microprocessors that Implement
the PowerPC Architecture
MPC8260ESS7UMAD_D Enhanced SS7 Microcode
Specification
MPC8260 PowerQUICC II Family
MPC8260UM
Reference Manual
MPC8260 PowerQUICC II Users
MPC8260UMAD
Manual Errata
Programming Environments
MPCFPE32B
Manual for 32-Bit Implementations
of the PowerPC Architecture
MPC60XBUSRM
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
Size Rev Date Last
Order
K
# Modified Availability
pdf
6720
pdf
3203 0.1 1/14/2004
pdf
325 0.1
pdf
16672
1
1
6/27/2003
12/05/2002
5/29/2003
pdf
313 1.2 4/30/2004
pdf
7549
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (9 of 33) [1/18/2005 10:58:59 AM]
2
12/21/2001
-
MPC8266 Product Summary Page
Errata to MPCFPE32B,
Programming Environments
FREESCALE
Manual for 32-Bit Implementations
pdf
of the Power PC Architecture, Rev.
2
MPCFPE32BAD
40
0
10/11/2002
Selector Guide
ID
Name
SG1007
Network and Communications Processors
Selector Guide
Application Selector Guide Index and
Cross-Reference.
SG2000CR
Vendor ID Format
SG2112
LAN to WAN Bridge Router
SG2113
OSI Layer 2 and Layer 3 Router
SG2127
Multiservice Digital Subscriber Line Access
Multiplexer (DSLAM)
SG2128
ATM Internetworking Multiplexer
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
pdf
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
189
1/01/2005
0
139
128
125
117
124
5
1
1
3
1
7/01/2004
1/01/2004
1/01/2005
6/17/2003
1/01/2005
White Paper
ID
Name
Vendor ID Format
MPC826XSDRAMWP Timing Considerations when Interfacing FREESCALE pdf
the PowerQUICC II to SDRAM
Return to Top
MPC8266 Design Tools
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (10 of 33) [1/18/2005 10:58:59 AM]
Size Rev Date Last
Order
K # Modified Availability
288
3/09/2004
0.1
MPC8266 Product Summary Page
Hardware Tools
Analyzers
Logic
ID
Name
Vendor ID
TLA700 Logic Analyzers
The TLA700 Logic Analyzers have the
performance to capture and display the fastest
TLA715/TLA721 signals and gives you instant insight into the
TEKTRONIX
digital and analog behavior of your system so you
can quickly find those elusive signal integrity
problems
Format
-
Size Rev
Order
K # Availability
-
-
-
Board Testers
ID
Name
Vendor ID Format
SCANPLUS
CORELIS
ScanPlus
µMaster 4031
Functional Test and Debug Solutions for boards carrying
4000-994020-001 Motorola™ and IBM® PowerPC™ processors with COP INTLTEST
debug port (740, 750, 750DD2, 750DD3, 755, 603e, 8240,
8250A, 8255A, 8260A, 8264A, 8265A, 8266A, 7400,
7410, etc.)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (11 of 33) [1/18/2005 10:58:59 AM]
-
-
Size Rev
Order
K # Availability
-
-
-
-
MPC8266 Product Summary Page
Emulators/Probes/Wigglers
ID
Size Rev
Order
K # Availability
Vendor ID
Format
CWH-PTP-JTAG-HX PowerTAP Pro JTAG Hardware Only
METROWERKS
-
-
-
CWH-WTP-JTAG-YX WireTAP JTAG Hardware Only
METROWERKS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
BDI1000/BDI2000
10200A
4000-994020--001
IC30000
WBDM8XX
Name
BDI1000/BDI2000
Abatron develops and produces high-quality,
ABATRON
high-speed BDM and JTAG Debug Tools (BDI
Family) for software development environments
from leading vendors.
CORELIS
NetICE-R option 2/2M
µMaster 4031
Functional Test and Debug Solutions for boards
carrying Motorola™ and IBM® PowerPC™
INTLTEST
processors with COP debug port (740, 750,
750DD2, 750DD3, 755, 603e, 8240, 8250A,
8255A, 8260A, 8264A, 8265A, 8266A, 7400,
7410, etc.)
iC3000 ActiveEmulator
The compact iC3000 with its "iCARD" slot can
be used as either an affordable hardware
ISYS
debugger, or the interface module for full
in-circuit emulators or high-end on-chip trace
modules. USB, serial and Ethernet interfaces are
supported.
Wiggler for 5xx/8xx BDM
The Wiggler is a low-cost, parallel port interface
used for debugging embedded systems. One side MACRAIGOR
of the Wiggler interfaces to the parallel port of a
Windows host PC and the other side connects to
the BDM port of the target system.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (12 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
WNPJ-COP
GUARDIAN-SE
VISIONICE
VISIONPROBE
WPICE
Wiggler for COP
The Wiggler is a low-cost, parallel port interface
used for debugging embedded systems. One side MACRAIGOR
of the Wiggler interfaces to the parallel port of a
Windows host PC and the other side connects to
the COP port of the target system.
Guardian-SE
TOOLSMITHS
JTAG debug tools for PowerPC development
WINDRIV
visionICE II
WINDRIV
visionPROBE II
WINDRIV
WIND®POWER ICE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
Evaluation/Development Boards and Systems
ID
Name
MPC8260ADS_ECOM MPC8260ADS Daughter Card for Telephony
Applications (E1)
MPC8260ADS_TCOM MPC8260ADS Daughter Card for Telephony
Applications (T1)
MPC8266ADS_PCIAI MPC8266 Application Development System
(Add-In Card)
MPC82xx Family Application Development
PQ2FADS_ZU
System
EP82xxM
EP82xxM is a PMC/stand alone single board
computer using the 8280/70/66/65/50. PMC
EP8280M-H-10
PCI, two 10/100 Ethernet, RS232 provided.
Direct access to the 82xx IO allows OEMs to
create solutions quickly. Linux, VxWorks and
INTEGRITY are available.
STK8260
Starterkit STK82xx with TQ Minimodule,
MPC8260 / 300 MHz, 32 MB Flash, 64 MB
STK8260
SDRAM (local Bus), 128 MB SDRAM (60x
Bus), no L2-Cache, 32 kB EEPROM, 2* RS232
Interface, DC/DC Converter, 60x bus mode, 240
Pin Board to Board Connector
Size Rev
Order
K # Availability
Vendor ID
Format
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
EMDPLAN
-
-
-
-
TQCOMPONEN
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (13 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
STK8265
SBCPQII
STK8265
Starterkit STK82xx with TQ Minimodule,
MPC8265 / 300 MHz, 32 MB Flash, 0 MB
TQCOMPONEN
SDRAM (local Bus), 128 MB SDRAM (60x
Bus), no L2-Cache, 16 kB EEPROM, 2* RS232
Interface, DC/DC Converter, 60x bus mode, 240
Pin Board to Board Connector
WINDRIV
SBCPowerQUICCII
-
-
-
-
-
-
-
-
Models
BSDL
ID
Name
MPC8260BSDL3
PowerQUICC II BSDL (HiP3)
(05/06/2002)
PowerQUICC II BSDL (HiP4)
(03/15/2004)
MPC8260BSDL4
Size Rev
K
#
Order
Availability
Vendor ID
Format
FREESCALE
zip
9
1
-
FREESCALE
zip
10
1.1
-
Bus Functional Models
ID
Name
Vendor ID Format
MPC8266 SWIFT Model - Solaris: HiP4A, Bus
FREESCALE
MPC8266BFM01 Function Model
tar
(02/28/2002)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (14 of 33) [1/18/2005 10:58:59 AM]
Size Rev
Order
K
# Availability
46760
1
-
MPC8266 Product Summary Page
Full Functional Models
ID
Name
Vendor ID Format
MPC8266 SWIFT Model - Solaris: HiP4A, Full
FREESCALE
MPC8266FFM01 Function Model
tar
(02/28/2002)
EP100
EUREKA
PowerPC Bus Slave
EP201
EUREKA
PowerPC Bus Master
EP300
EUREKA
PowerPC Bus Arbiter
EP433
EUREKA
PowerPC-PCI Bridge
ES100
EUREKA
PowerPC System Controller
-
Size Rev
Order
K
# Availability
50388
1
-
-
-
-
-
-
-
IBIS
ID
Name
Vendor ID Format
PowerQUICC II Family IBIS Models
This package contains the IBIS models for the
FREESCALE
MPC82XXIBIS PowerQUICC II family of communications
zip
processors. HiP3 and HiP4 processes. Local and
PCI bus configurations. 480 TBGA and 516 PBGA
packages. (10/30/2003)
Size Rev
Order
K # Availability
81 2.7
-
Timing Models
ID
Name
PQIIGPCMTIME
GPCM Timing Generator
(05/29/2003)
Vendor ID
Format
FREESCALE
exe
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (15 of 33) [1/18/2005 10:58:59 AM]
Size Rev
K
#
176
1
Order
Availability
-
MPC8266 Product Summary Page
Software
Application Software
Calculators
ID
Name
Vendor ID Format
Power Consumption Calculator for all
FREESCALE
MPC8260CALC1 PowerQUICC II Processors
zip
(04/28/2004)
CPM Performance Calculator for all
MPC8260CALC2 PowerQUICC II and PowerQUICC III Processors FREESCALE zip
(09/07/2004)
Size Rev
Order
K # Availability
491
2.1
664 3.1.3
-
-
Code Examples
ID
Name
Vendor ID Format
MPC8260COD08 Fast Ethernet on the FCC of the PowerQUICC II FREESCALE zip
(10/13/2003)
Multichannel Communication Controller of the
FREESCALE
MPC8260COD09 PowerQUICC II
zip
(09/04/2002)
Example Software for the PowerQUICC II
FREESCALE
MPC8260COD11 Family: FEC Frames Using PHYless MII
zip
(08/02/2002)
Size Rev
Order
K # Availability
140
2
176
614
0
-
0
-
Microcode
ID
Name
Vendor ID Format
RAM Microcode Patches for PowerQUICC II
FREESCALE
MPC8260MC05 Family Device Errata
zip
(09/28/2004)
MPC8260MC11 PowerQUICC II AAL2 Microcode (for all revs) FREESCALE zip
(11/19/2004)
Inverse-Multiplexing for ATM (IMA) Microcode
FREESCALE
MPC8264MC01 (for all revs)
zip
(02/03/2004)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (16 of 33) [1/18/2005 10:58:59 AM]
Size Rev
Order
K # Availability
330 4.2.3
616
283
-
4.0
-
1.2
-
MPC8266 Product Summary Page
DG02010101
MultiRing
MultiRing is a utility that separates frames of
different protocols into different buffer descriptor
rings (rather than a single ring). The utility
supports predefined protocols such as TCP, ICMP.
The user can specify additional protocols.
DOGAV
-
-
-
-
Board Support Packages
ID
Name
Vendor ID
Metrowerks BSPs for Freescale
Metrowerks BSPs are tested, certified and
frozen, ensuring a fully operational tool chain,
FREE
METROWERKS
kernel and board specific modules that are
ready to use together within a fixed
configuration for specific hardware reference
platforms.
Arabella MPC82XX Free Reference Design
This free Linux BSP provides a complete
Linux distribution and application ready to be
ARA-MOT-82XX-FREE used on the PQ2FADS-ZU/VR and
ARABELLA
MPC8260/8266ADS Boards. Source code and
Linux tools are provided to immediately get
started working with a Linux syste
MQX Board Support Packages
BSPs for Freescale ColdFire, PowerPC, and
68K embedded processors including support
ARC-MOT-MQXBSP
ARC
for emerging USB and CAN technologies as
well as drivers for Ethernet, PCI, HDLC, SPI,
I2C, and serial devices.
EP BSP
Embedded Planet Board Support Packages
provide complete software drivers for MPC
EP BSP
EMDPLAN
8xx and 82xx processors for Linux, VxWorks
and INTEGRITY. Embedded Planet can also
develop customer specific software for many
operating systems.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (17 of 33) [1/18/2005 10:58:59 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8266 Product Summary Page
EP8280M VDK 10
EP82xxM VxWorks BSP
VxWorks Board Support Packages contain
prebuilt RAM and ROM kernel images and
documentation that describes installing and
running the BSP. See online matrix for
supported peripherals.
EMDPLAN
-
-
-
-
Device Drivers
ID
Name
Vendor ID Format
MPC8264 PowerQUICC II API (drivers, examples, and
documentation)
MPC8264DRV01 Includes support for IMA, AAL5, Internal TC layer and FREESCALE zip
the external TCOM board for Multiple T1s
(03/07/2003)
PowerQUICC II PCI Driver
MPC8266DRV01 For use with the MPC8266 Application Development FREESCALE zip
System and Metrowerks CodeWarrior
PlanetCore
PlanetCore provides a complete set of firmware device
drivers for 8xx and 82xx Motorola processors. These
PCS
EMDPLAN
drivers include an application / RTOS boot loader, flash
burner and diagnostics. customer specific drivers can
also be developed.
Size Rev
Order
K
# Availability
14125
1.3
-
3492
0
-
-
-
-
Libraries
ID
Name
PN311-1
KwikPeg GUI
KADAK's KwikPeg Graphical User Interface (GUI) is
derived from PEG, a professional, high-quality graphic
system created by Swell Software, Inc. to enable you, the
embedded system developer, to easily add graphics to your
products.
Vendor
Size Rev
Order
Format
ID
K # Availability
KADAK
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (18 of 33) [1/18/2005 10:58:59 AM]
-
-
-
-
MPC8266 Product Summary Page
Operating Systems
ID
Name
Vendor ID
Arabella Linux for Motorola 82xx Processors
Arabella Linux for Motorola 82xx processors
is a full, commercial Linux distribution for
ARA-MOT-82XX
ARABELLA
the 82xx family of processors. It includes
support for many of the on chip peripherals
including Security, ATM, PCI, USB,
PCMCIA, I2C and others.
MFS
MS-DOS File System is a portable,
ARC-MOT-MFS
ARC
compatible implementation of the Microsoft
MS-DOS file system
MQX Real Time Operating System
A robust, high performance, royalty-free
ARC-MOT-MQX
ARC
kernel designed for deeply embedded
applications requiring a small footprint and
fast response.
ARC-OS Changer
ARC-MOT-OSCHANGER Provides developers the freedom to migrate
ARC
from either pSOSystem or VxWorks to MQX
RTOS while reusing an existing code base
CMX-RTX
CMX
CMX-RTX
CMX TCP/IP
CMX TCP/IP is a full-featured and fast
TCP/IP stack that allows designers to offer
CMX00300
CMX
networking connectivity for their embedded
applications. CMX TCP/IP offers a low
licensing fee, full source code, no royalties,
and free technical support.
TCP/IP DHCP Client
The CMX TCP/IP DHCP Client Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
CMX00300A
CMX
with functionality to support the Dynamic
Host Configuration Protocol standard. A
source code example is provided for fast
design start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (19 of 33) [1/18/2005 10:58:59 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8266 Product Summary Page
CMX00300B
CMX00300C
CMX00300D
CMX00300E
CMX00300F
TCP/IP DHCP Server
The CMX TCP/IP DHCP Server Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Dynamic
Host Configuration Protocol standard. A
source code example is provided for fast
design start up.
TCP/IP FTP C/S
The CMX TCP/IP FTP Client/Server Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the File Transfer
Protocol standard. A source code example is
provided for fast design start up.
TCP/IP IMAP4
The CMX TCP/IP IMAP4 Add-On Option
provides CMX TCP/IP (see CMX00300,
CMX00305, or CMX00310) with
functionality for the Internet Message Access
Protocol Version 4 standard. A source code
example is provided for fast design start up.
TCP/IP NAT
The CMX TCP/IP NAT Add-On Option
provides CMX TCP/IP (see CMX00300,
CMX00305, or CMX00310) with
functionality to add Network Address
Translation function to a network application.
Source code example provided for fast design
start up.
TCP/IP POP3
The CMX TCP/IP POP3 Client Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Post Office
Protocol Client standard. A source code
example is provided for fast design start up.
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (20 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
CMX00300G
CMX00300H
CMX00300I
CMX00300J
CMX00300K
TCP/IP PPP
The CMX TCP/IP PPP Add-On Option
provides CMX TCP/IP (see CMX00300,
CMX00305, or CMX00310) with
functionality to support the Point to Point
Protocol serial or modem connectivity
standard. Source code example provided for
fast start up.
TCP/IP PPPoE
The CMX TCP/IP PPPoE Add-On Option
provides CMX TCP/IP (see CMX00300,
CMX00305, or CMX00310) with
functionality to support the Point to Point
Protocol over Ethernet standard. A source
code example is provided for fast design start
up.
TCP/IP SMTP
The CMX TCP/IP SMTP Client Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Simple Mail
Transfer Protocol standard. A source code
example is provided for fast design start up.
TCP/IP SNMP
The CMX TCP/IP SNMP V1 and V2c
Add-On Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Simple
Network Management Protocol standard.
Source code example provided for fast design
start up.
TCP/IP Telnet
The CMX TCP/IP Telnet Server Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Telnet
Server standard. A source code example is
provided for fast design start up.
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (21 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
CMX00300L
CMX00300M
CMX00300N
CMX00630
CMX00631
TCP/IP TFTP
The CMX TCP/IP TFTP Client/Server
Add-On Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Trivial File
Transfer Protocol Client/Server standard.
Source code example for fast start up.
TCP/IP Web Client
The CMX TCP/IP Web Client/Server
Add-On Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Client/Server
standard. Source code example provided.
TCP/IP Web Server
The CMX TCP/IP Web Server Add-On
Option provides CMX TCP/IP (see
CMX00300, CMX00305, or CMX00310)
with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Server
standard. Source code example provided for
fast start up.
CMX-FFS
CMX-FFS is a very small, standard Flash File
System that allows designers to offer file
system functionality for their embedded
applications. CMX-FFS offers a low
licensing fee, full source code, no royalties,
and free technical support.
CMX-FFS-NAND
CMX-FFS-NAND is an Add-On Option for
CMX- FFS that allows designers to include a
NAND driver for their embedded FFS
applications. CMX-FFS-NAND offers a low
licensing fee, full source code, no royalties,
and free technical support.
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (22 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
CMX00632
CMX00633
DPP.82XXX.KRN
THREADX
PX382-1
TDK1
CMX-FFS-FAT
CMX-FFS-FAT is a fast file system for
embedded developers who wish to add
devices to their products that require
CMX
FAT12/16/32 compliant media.
CMX-FFS-FAT offers a low license fee, full
source code, no royalties, and free tech
support.
CMX-FFS-THIN
CMX-FFS-THIN is a file system for
embedded device developers with limited
CMX
resource products that require a FAT12/16/32
compliant media. CMX-FFS-THIN offers a
low licensing fee, full source code, no
royalties, and free technical support.
ENEA
OSE Real-Time Operating System
ThreadX
RTOS. Royalty-free real-time operating
system (RTOS) for embedded applications. EXPRESSLOG
ThreadX is small, fast, and royalty-free
making it ideal for high-volume electronic
products.
AMX PPC32
AMX is a full featured RTOS for the
PowerPC family. AMX has been tested on
KADAK
the EST SBC8260, Embedded Planet RPX
Lite MPC823 and Motorola Ultra 603,
MBX860, MPC860 ADS, MPC860 FADS,
Lite5200EVB and MPC8560 ADS.
Critical Process Monitoring Technology
Development Kit
Based on CPM functionality provided with
the QNX Momentics development suite, the
QNX
kit lets you quickly construct custom failure
recovery scenarios and design your system to
reconnect instantly and transparently to
minimize downtime.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (23 of 33) [1/18/2005 10:58:59 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8266 Product Summary Page
TDK2
TDK3
TDK4
TDK5
TDK6
Extended Networking Technology
Development Kit
Reduce development time with a suite of
advanced networking protocols, preintegrated and tested with the QNX Neutrino
RTOS. This TDK provides a royalty-free
solution to get you up and running quickly
with the newest networking protocols.
Flash File System and Embedding
Technology Development Kit
Deploy resilient flash file systems using your
choice of NOR, NAND and ETFS. The TDK
provides access to these formats and offers a
suite of BSPs, drivers and other components
to accelerate the integration of flash into your
embedded system
MOST (Media-Oriented Systems Transport)
Technology Development Kit
Enhance the performance and reliability of
your in-vehicle multimedia applications using
this TDK. With the kit, you can quickly
develop customized NetServices, audio, and
IP networking features for deployment over
the high-speed MOST bus.
Multimedia Technology Development Kit
Add high-performance multimedia features to
embedded devices using a convenient
multimedia framework, with reusable media
handling components to build customized
media playback and recording applications
using standard components.
Symmetric Multiprocessing Technology
Development Kit
Leverage greater scalability, system density
and performance using symmetric
multiprocessing (SMP) in compute-intensive
systems, such as network elements,
encryption/decryption, transportation, highend medical imaging, and storage.
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (24 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
TDK7
TDK8
V6.3
3D Graphics Technology Development Kit
Create sophisticated 3D displays with
minimal impact on CPU performance. The
TDK lets you implement rich visual content
presentation for small screen formats and
optimize the available screen real estate with
advanced features.
WEB BROWSER TECHNOLOGY
DEVELOPMENT KIT
Design advanced web browsing and mobile
internet applications for small footprint
devices. Ideal for high performance
embedded devices in environments with
limited memory and CPU resources.
QNX Neutrino Realtime Operating System
A true microkernel OS, the QNX Neutrino
RTOS offers advanced memory protection,
distributed processing, symmetric
multiprocessing, POSIX APIs, a dynamically
upgradable architecture, and industry- leading
realtime performance.
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
Protocol Stacks
ID
Name
ARC-MOT-HTTP
HTTP Web Server
The HTTP (Hyper text Transfer
Protocol) consists of source code and
development tools for building an
embedded HTTP server. This is a
HTTP 1.0/1.1 compliant Web server
with CGI-style user exit support and
optional file system support.
Vendor ID Format
ARC
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (25 of 33) [1/18/2005 10:58:59 AM]
-
Size Rev Order
K # Availability
-
-
-
MPC8266 Product Summary Page
HTTP PRO
HTTP 1.0/1.1 compliant Web server
w/ CGI- style user exit sppt, opt'al file
system sppt, PageBuilder Web-to-C
ARC-MOT-HTTPPRO
compiler addit'al compression
features, Internat'al language sppt,
server-side mapping, HTTP streaming
& digest authentication.
IPShield
Security product support for IPSec,
IKE, SSL and SSH. Also supports
hardware accelerated encryption on
ARC-MOT-IPSHIELD
processors with an Integrated Security
Engine such as MCF5485/5483,
MPC870/875, MPC8272/8248,
MCF5271, and MCF5275/5275L.
Network Protocols
TCP/IP networking stack (ARP,
BootP, CCP, CHAP, DHCP, DNS,
Echo, EDS, FTP, ICMP, IGMP, IP,
ARC-MOT-NETWORKPROTOCOLS IP-E, IPCP, LCP, PAP, PPP, RIPv2,
RPC, SNMPv1/v2, SNTP, TCP,
TFTP, Telnet, UDP & XDR)& opt'al
prototocols, SMTP, SNMPv3, PPPoE,
XML, SSL/H
POP3
ARC-MOT-POP3
Enables client embedded devices to
receive e-mail from any POP3 server
RTCS
A real-time, high performance TCP/IP
stack designed specifically for
ARC-MOT-RTCS
embedded networking applications
such as IP phones, bridges, routers,
pagers, PDAs, cellular phones, and
set-top boxes
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (26 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
ARC-MOT-SMTP
RSTP
TARGETTCP
CMX TCP/IP
IPLITE
IPNET
SMTP
Royalty free source code SMTP
enables embedded devices to send
ARC
e-mail to any SMTP server. This
allows any embedded device to send
asynchronous status reports using
email.
AvniRSTP
Avnisoft's AvniRSTP is a completely
portable ANSI C compliant
implementation of the IEEE 802.1w
AVNISOFT
RSTP Algorithm and Protocol. It
includes the AvniPORT platform
abstraction layer to simplify
integration with target platforms.
TCP/IP Stack
TargetTCP, is a fast, reliable,
re-entrant, full-featured TCP/IP
protocol stack designed specifically
BLUNK
for high-performance embedded
networking. The code has a small
footprint and is well suited to memory
constrained environments.
CMX
CMX TCP/IP
IPLITE
IPLITE is a dual-mode IPv4/v6 host
stack, optimized for minimum
footprint and maximum performance, INTERPEAK
with a number of PowerQUICC II/III
optimizations. Available for leading
RTOSs like INTEGRITY, Linux,
OSE, VxWorks, etc.
IPNET
IPNET is a full-featured dual-mode
IPv4/v6 router stack with built-in
IPSec, Virtual Routing, QoS, VLAN INTERPEAK
Tagging, as well as PowerQUICC
II/III optimizations. Available for
leading RTOSs like INTEGRITY,
Linux, OSE, VxWorks, etc.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (27 of 33) [1/18/2005 10:58:59 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8266 Product Summary Page
PN713-1
INFOLINK-STACKNAME
MOC_SSL_CLIENT
PSQ40XXXX
KwikNet
The KwikNet TCP/IP Stack enables
you to add networking features to your
products with a minimum of time and
KADAK
expense. KwikNet is a compact, high
performance stack built with
KADAK's characteristic simplicity,
flexibility and reliability.
LINK
INFOLink Protocol Software Family
Mocana Embedded SSL/TLS Client
MOCANA SSL/TLS CLIENT:
Supports Freescale chipsets out of the
box. Small (50KB), fast (2-3x faster
MOCANA
than OpenSSL), trusted. Supports all
major cryptos. Royalty free, source
code license. FREE EVAL:
http://www.mocana.com/evaluate.html
-
-
-
-
-
-
-
-
-
-
-
-
RTXC Quadnet Networking Protocols
Full protocol suite: TCP, UDP, SLIP,
ICMP, and ARP with Berkeley
Sockets API. Plus DHCP, BOOTP,
QUADROS
DNS, IGMP v2, RIP v2, NAT, HTTP,
SMTP, POP3, TFTP, FTP, Telnet,
SNMP v1,2,3, PPP and more. New
security protocols: SSL, IPsec, IKE.
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (28 of 33) [1/18/2005 10:58:59 AM]
MPC8266 Product Summary Page
Software Tools
Code Translation
ID
Name
PA68K-PPC
PA86-PPC
PortAsm/68K for PowerPC
PortAsm/86 for PowerPC
Vendor ID
Format
MICROAPL
MICROAPL
-
Size
Rev #
K
-
Order
Availability
-
Compilers
ID
Name
ARC-MOT-COMPILER MetaWare C/C++ Compiler Tool Suite
Optimized compiler for Motorola processors
C/C++ Compiler
Optimizing C, C++, EC++ compilers for
COMPILER
Freescale PowerPC, ColdFire, StarCore, 68K,
MCore and ARM-based MAC architectures.
DIAB
Diab C/C++ Compiler
Size Rev
Order
K # Availability
Vendor ID
Format
ARC
-
-
-
-
GREENHILLS
-
-
-
-
WINDRIV
-
-
-
-
Debuggers
ID
Name
Vendor ID Format
ARC-MOT-DEBUGGER MetaWare SeeCode Debugger
ARC
C/C++ Debugger
TRACE32-ICD
TRACE32-ICD for PowerQUICC II is a high
performance JTAG debugger for C ,C++ and
LA-7729
LAUBACH
JAVA. A USB 2.x, LPT or ethernet interface is
available for connection to any PC or workstation.
A flash programming utility is included.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (29 of 33) [1/18/2005 10:58:59 AM]
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
MPC8266 Product Summary Page
IDE (Integrated Development Environment)
ID
Name
CodeWarrior Development Studio for PPC
ISA Comms Edition
Metrowerks CodeWarrior Development
CWS-PPC-CMWFL-CX Studio, PowerPC ISA Edition for
Communication Processors is a complete
integrated development environment for
PowerPC ISA hardware bring-up through
embedded applications.
CodeWarrior™ Development Studio,
Embedded Linux Edition for PowerPC
CWS-PPC-LINWH-CX Architectures
CWS-PPC-LLAPP-CX
IC-SW-OPR
V6.3
WIND RIVER
WORKBENCH
WPIDE
CodeWarrior™ Development Studio for
PowerPC ISA, Linux Application Edition
winIDEA
winIDEA integrates a Project Manager,
Source Code Editor, High and Low Level
Debugger, and Flash Programmer, all into one
easy-to- use Windows application. It is the one
user interface for all of our emulators and
debuggers.
QNX Momentics Development Suite
Accelerate your entire development cycle,
from board bring-up to remote diagnostics.
Comprehensive, yet tightly integrated, QNX
Momentics provides all the tools you need to
build and optimize applications for the QNX
Neutrino RTOS.
Wind River Workbench
Wind River Workbench is an open,
standards-based device software development
environment for Linux applications providing
a deep tools capability in each phase of the
development process.
WIND®POWER IDE
Size Rev
Order
K # Availability
Vendor ID
Format
METROWERKS
-
-
-
METROWERKS
-
-
-
METROWERKS
-
-
-
ISYS
-
-
-
-
QNX
-
-
-
-
WINDRIV
-
-
-
-
WINDRIV
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (30 of 33) [1/18/2005 10:58:59 AM]
-
MPC8266 Product Summary Page
Initialization/Boot Code Generation
ID
Name
Parallel Ports Configuration Tool (Pin Mux
MPC82XXCPMMUXIBCG Tool)
(03/18/2004)
Vendor ID Format
FREESCALE
zip
Size Rev
Order
K # Availability
895 4.0.1
-
Performance and Testing
ID
Name
CodeTEST Software Analysis Tools, HWIC
MWCTESTHWICPKG License package
Vendor ID
Format
METROWERKS
-
Return to Top
Applications
Networking
SOHO
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
Access
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
Edge
ATM Switch Line Card
Core
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (31 of 33) [1/18/2005 10:58:59 AM]
Size Rev
Order
K # Availability
-
-
-
MPC8266 Product Summary Page
SONET Multiplexer
Applications
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
ATM Switch Line Card
SONET Multiplexer
Wireless
Wireless Infrastructure Applications
Wireless Basestation Transceiver
Wireless Basestation Transceiver
Return to Top
Orderable Parts Information
Part Number
Package
Description
Application/
Tape
Pb-Free
Qualification
and
Terminations
Reel
Tier
Status
Budgetary
Price
QTY
Info
1000+
($US)
KMPC8266AZUPJDB
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
KMPC8266AZUPJDC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8266AZUPJDB
TBGA 480
No
37*37*1.7P1.27
-
Not
Recommended
for New
Design
-
more
No
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (32 of 33) [1/18/2005 10:58:59 AM]
Order
MPC8266 Product Summary Page
NOTE:
● Not all orderable parts are offered through our online sampling program. For further assistance in selecting a similar part
from within the program, please submit a Request for a sample order advice.
●
Refer to Samples FAQ for more information.
●
Looking for an obsolete part? Check our distributors' inventory
Return to Top
Related Products
MC33702 : MICROPROCESSOR POWER SUPPLY (3.0 A)
The 34702 is a monolithic IC providing an efficient means of obtaining power for the Freescale Semiconductor
PowerQUICC TM I and II ...
MPC9850 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9850 is a PLL based clock generator specifically designed for Freescale Microprocessor And Microcontroller
applications including the PowerQUICC III. ...
MPC9855 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9855 is a PLL based clock generator specifically designed for Freescale Microprocessor and Microcontroller
applications including the PowerPC and ...
Return to Top
Related Links
Industrial Control
Networking
Wireless
Return to Top
www.freescale.com | Site Map | Terms of Use | Privacy Practices |
© Freescale Semiconductor, Inc. 2004. All Rights Reserved
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8266&nodeId=018rH3bTdG2977 (33 of 33) [1/18/2005 10:58:59 AM]
MPC8260 Product Summary Page
Part Number
Contains
Register
Keyword
Login
Basket
Search
Advanced | Parametrics
Home |
Products Applications Technologies Support Where to Buy
Contact Us
About Freescale
Freescale > PowerPC Processors > MPC82XX PowerQUICC II Processors > MPC8260
SUBSCRIBE
MPC8260 : PowerQUICC II" Integrated Communications Processor
The MPC8260 PowerQUICC II™ is an advanced integrated communications processor
designed for the telecommunications and networking markets.
Rate this Page
The MPC8260 now offers floating point support.
The MPC8260 PowerQUICC II can best be described as the next generation MPC860
PowerQUICC, providing higher performance in all areas of device operation, including
greater flexibility, extended capabilities, and higher integration.
--
-
0
+
++
Submit
Care to Comment?
Like the MPC860, the MPC8260 integrates two main components, the embedded G2 core
and the Communications Processor Module (CPM). This dual-processor architecture
consumes less power than traditional architectures because the CPM offloads peripheral
tasks from the embedded G2 core. The CPM simultaneously supports three fast serial
communications controllers (FCCs), two multichannel controllers (MCCs), four serial
communications controllers (SCCs), two serial management controllers (SMCs), one
serial peripheral interface (SPI) and one I2C interface. The combination of the G2 core
and the CPM, along with the versatility and performance of the MPC8260, provides
customers with enormous potential in developing networking and communications
products while significantly reducing time-to-market development stages.
Product Picture
Block Diagram
MPC8260 Features
System core microprocessor supporting frequencies of 133-300 MHz
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (1 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
●
190 MIPS at 100 MHz (Dhrystone 2.1)
505 MIPS at 266 MHz (Dhrystone 2.1)
570 MIPS at 300 MHz (Dhrystone 2.1)
High-performance, superscalar microprocessor
Disable CPU mode
Supports the Freescale external L2 cache chip (MPC2605)
Improved low-power core
16 Kbyte data and 16 Kbyte instruction cache, four-way set associative
Memory Management Unit
Floating point unit enabled
Common on-chip processor (COP)
System Integration Unit (SIU)
❍ Memory Controller, including two dedicated SDRAM machines
❍ PCI up to 66 MHz (available in subsequent versions)
❍ Hardware bus monitor and software watchdog timer
❍ IEEE 1149.1 JTAG test access port
High-Performance Communications Processor Module (CPM) with operating
frequency up to 133, 166, or 200 MHz
❍ G2 core and CPM may run at different frequencies
❍ Parallel I/0 Registers
❍ On-board 32 KBytes of dual-port RAM
❍ Two multi-channel controllers (MCCs) each supporting 128 full-duplex, 64
Kbps, HDLC lines
❍ Virtual DMA Functionality
Three FCCs supporting:
❍ Up to 155 Mbps ATM SAR (maximum of two) (AAL0, AAL1, AAL2,
AAL5)
❍ 10/100 Mbps Ethernet (up to three) (IEEE 802.3X with Flow Control)
❍ 45 Mbps HDLC/Transparent (up to three)
Two bus architectures: one 64-bit 60x bus and one 32-bit PCI or local bus
Two UTOPIA level-2 master/slave ports, both with multi-PHY support.
Three MII Interfaces
Eight TDM interfaces (T1/E1), two TDM ports can be glueless to T3/E3
1.8V or 2.0V internal and 3.3V I/O
300 MHz power consumption: 2.5 W
480 TBGA package (37.5 mm x 37.5 mm)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (2 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
MPC8260 Derivatives
Serial Communications
Controllers (SCCs)
Fast Communication
Controllers (FCCs)
I-Cache (Kbyte)
D-Cache (Kbyte)
Ethernet (10T)
Ethernet (10/100)
UTOPIA II Ports
Multi-Channel HDLC
PCI Interface
IMA Functionality
8250
8255
8260
8264
8265
8266
4
4
4
4
4
4
3
2
3
3
3
3
16
16
Up to 4
Up to 3
0
Up to
128
Yes
--
16
16
Up to 4
Up to 2
2
Up to
128
---
16
16
Up to 4
Up to 3
2
Up to
256
---
16
16
Up to 4
Up to 3
2
Up to
256
-Yes
16
16
Up to 4
Up to 3
2
Up to
256
Yes
--
16
16
Up to 4
Up to 3
2
Up to
256
Yes
Yes
PowerQUICC II Masks and Versions
IMMR_
Rev_Num2
[16-31]1
0K26N 0x00810101 0x0011 0x0001
3K23A 0x00810101 0x0023 0x003B
6K23A,
0x00810101 0x0024 0x007B
7K23A
2K25A 0x80811014 0x0060 0x000D
4K25A 0x80811014 0x0062 0x002D
5K25A 0x80811014 0x0064 0x002D
0K49M 0x80822011 0x0A00 0x0070
1K49M 0x80822013 0x0A01 0x0070
2K49M 0x80822014 0x0A10 0x0071
0x0C00
Process Family Revision Qualification Mask
0.29
µm
(HiP3)
0.25
µm
(HiP4)
A.1
B.3
XC
XC
MPC8260 C.2
XC
A.0
B.1
C.0
0.0
MPC8280 0.1
A.0
XC
MC
MC
—
MC
MC
0.13
µm
(HiP7)
0.0
MPC8272
PC
PVR
0K50M 0x80822013
3
0x0D00
0x00E0
4
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (3 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
0x0C10
A.0
MC
1K50M 0x80822014
3
0x0D10
0x00E1
4
Notes:
1. The IMMR[16-31] indicates the mask number.
2. The Rev_Num located at offset 0x8AF0 in DPRAM indicates the CPM microcode revision number.
3 . Encryption Enabled.
4 . Encryption Disabled.
Masks and versions table last updated on 14OCT2004.
Return to Top
CPM
Core
I/O
CPU
Operating
Power
Power
Operation
Operating Operating
Sample
Performance Frequency
Dissipation Dissipation
Frequency
Voltage
Voltage
Availability
(Max)
(Max)
(Typ)
(Max)
(Max)
(Spec)
(Max)
(MIPS)
(MHz)
(W)
(W)
(MHz)
(V)
(V)
1.7,
2.2,
294.5,
155,
2.2,
2.8,
315.4,
166,
133,
2.3,
3,
1.8,
380,
200,
166,
2.5,
3.2,
Y
1.9,
3.3
442.7,
233,
200,
3,
3.3,
2
505.4,
266,
208
3.3,
3.6,
570
300
3.48,
3.8,
3.5
3.83
Ambient
Operating
Temperature
(Min)
(oC)
-40,
0
Junction
Operating
Temperature
(Max)
(oC)
Integrated
Memory
Controller
L1 Cache
Instructional
(Max)
(Byte)
105
EDO,
EPROM,
FLASH,
SDRAM,
SRAM
16000
L1
Internal
Cache
Dual-Port
Data
RAM
(Max)
(Byte)
(Byte)
16000
32000
DMA
Bus
Controller
Interface
Channels
30
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (4 of 34) [1/18/2005 10:57:34 AM]
60x,
Local
MPC8260 Product Summary Page
Serial Interface Timers
Other Peripherals Network Application Function
Package Description
Type
Channels
I2C,
MII,
SPI,
4
DMA Controller Integrated Control/Data Plane TBGA 480 37*37*1.7P1.27
TDM,
UTOPIA
Return to Top
MPC8260 Parametrics
MPC8260 Documentation
Documentation
Application Note
ID
Name
AN2754
CPM Architecture and Downloading RAM Microcodes on FREESCALE
zip
the PowerQUICC II Family
FREESCALE
CPM Hints
pdf
AN2059
AN2070
AN2129
AN2130
AN2131
MPC8260 PowerQUICC II Data Error Protection
Implementation
Instruction and Data Cache Locking on the G2 Processor
Core
MPC8260 ADS Revision Changes From ENG Board To
PILOT Revision Board
MPC8260 ADS - Revising Code Designed for the ENG
Board to Also Run on the PILOT Board
AN2162
Comparing the MSC8101 and MPC8260
AN2165
MPC8260 SDRAM Support
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (5 of 34) [1/18/2005 10:57:34 AM]
pdf
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
210
1 1/06/2005
206
195
323
181
215
680
310
0.1
12/05/2003
0
6/15/2000
0
4/26/1999
0
1
0
10/19/1999
12/08/1999
12/19/2001
0.2 9/18/2003
-
-
MPC8260 Product Summary Page
AN2176
MPC8260 GPCM Timing Diagram
AN2177
MPC8260 IDMA Timing Diagram
AN2178
MPC8260 SDRAM Timing Diagram
AN2179
MPC8260 UPM Timing Diagram
AN2246
MPC8260 60x Bus Timing Diagram
AN2271
MPC8260 PowerQUICC II Thermal Resistor Guide
AN2290
MPC8260 PowerQUICC II Design Checklist
AN2291
AN2335
AN2347
MPC8260 Dual-Bus Architecture and Performance
Considerations
Using an MPC8260 and an MPC7410 with Shared
Memory
MPC8260 Reset and Configuration Word
AN2430
MPC8260 PowerQUICC II IDMA Functionality
AN2430SW
MPC8260 PowerQUICC II IDMA Functionality Software
AN2450
Initializing Flash Memory for the MPC8260ADS
AN2491
Simplified Mnemonics for PowerPC Instructions
AN2547
Detecting a CPM Overload on the PowerQUICC II
AN2547SW
Software Detecting CPM Overload (accompanies
AN2547)
AN2579
Porting Linux® to the MPC8260ADS
AN2586
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
Differences among PowerQUICC II Devices and Revisions FREESCALE
AN2349
AN2585
FREESCALE
MPC82xx PowerQUICC II Reset: Sources, Effects, and
Comments
MPC8260 PowerQUICC II Family Power Distribution
Trends
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (6 of 34) [1/18/2005 10:57:34 AM]
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
pdf
zip
pdf
pdf
pdf
zip
pdf
pdf
pdf
406
341
346
283
288
225
447
366
235
677
263
353
183
306
743
254
288
323
258
524
1
8/01/2001
1
8/01/2001
1
8/01/2001
1
8/01/2001
1
8/01/2001
-
-
0.0 3/19/2002
1.1 1/27/2004
1.4 9/30/2003
0
0
1
2
10/15/2002
10/01/2002
11/15/2004
12/20/2002
2
1/09/2003
0
2/14/2003
0
9/30/2003
0
6/30/2003
0
6/30/2003
0.1 1/06/2004
0.1 2/26/2004
0
1/13/2004
-
MPC8260 Product Summary Page
AN2638
Software Migration from the NPe495H/L to PowerQUICC FREESCALE
pdf
II
FREESCALE
Effects of Clock Jitter on the MPC8260 (HiP3 and HiP4)
pdf
AN2810
PowerQUICC UPM Configuration Application Note
AN2587
FREESCALE
644
474
597
zip
0.1 1/28/2004
0
0
12/12/2003
11/22/2004
Data Sheets
ID
Name
MPC8260AEC
MPC8260A HiP4 Family Hardware Specifications
MPC8260EC
MPC8260 HiP3 Hardware Specifications
Vendor ID
Format
FREESCALE
pdf
FREESCALE
pdf
Size Rev Date Last
Order
K
# Modified Availability
662
0.9 8/15/2003
741
1.2 8/15/2003
Errata - Click here for important errata information
ID
Name
MPC8260CE
MPC8260 PowerQUICC II Family Device Errata
Vendor ID
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
691
11/16/2004
4.6
Fact Sheets
ID
Name
MPC8260FACT
MPC8260 PowerQUICC II Integrated Comm Proc Fam
MPC8260MFACT MPC8260 PowerQUICC II Microcode
Vendor ID Format
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (7 of 34) [1/18/2005 10:57:34 AM]
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
11/05/2004
94 10
212
1
3/27/2002
MPC8260 Product Summary Page
Packaging Information
ID
Name
MPC8260MECH1 MPC8260 Package Mechanical Specifications-Part 1
MPC8260MECH2 MPC8260 Package Mechanical Specifications-Part II
MPC8260PINOUT MPC8260 Pinout
MPC8260THERM
MPC8260 Thermal Management of Motorola's
PowerQUICC II
PBGAPRES
PBGA Packaging Customer Tutorial
TBGAPRESPKG
TBGA Packaging Customer Tutorial
pdf
Size Rev Date Last
Order
K # Modified Availability
8/06/2001
138 0
-
pdf
95
0
txt
9
0.8
pdf
124
0
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
pdf
pdf
1923
1784
1
0
8/06/2001
9/02/2002
7/31/1998
8/05/2003
8/05/2003
-
Product Brief
ID
Name
MPC8260TS
MPC8260 PowerQUICC II Technical Summary
Vendor ID
Format
FREESCALE
pdf
Size Rev Date Last
Order
K
#
Modified Availability
254
11/12/2001
2.2
Product Change Notices
ID
Name
PCN8499
POWERQUICC (.25UM) HIP4 SPEC CHANGES
PCN8663
NEW TRAY FOR 37.5 X 37.5 TBGA PACKAGE
PCN9081
37.5 X 37.5 MM TBGA TRAY
PCN9321
POWERQUICC II HIP 4 TRANSITION
Vendor ID
Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (8 of 34) [1/18/2005 10:57:34 AM]
Size Rev Date Last
Order
K # Modified Availability
htm
11
0
1/30/2003
-
htm
38
0
3/28/2003
-
htm
12
0
8/06/2003
-
htm
8
0
10/29/2003
-
MPC8260 Product Summary Page
Product Numbering Scheme
ID
Name
82XXPNS
MPC82xx HiP3/HiP4 Part Numbering Scheme
Vendor ID
Format
FREESCALE
jpg
Size Rev Date Last
Order
K
# Modified Availability
134
2 9/30/2003
-
Reference Manual
ID
Name
G2CORERM
G2 Core Reference Manual
MPC60XBUSRM
The Bus Interface for 32-Bit Microprocessors
that Implement the PowerPC Architecture
MPC8260ESS7UMAD_D Enhanced SS7 Microcode Specification
MPC8260 PowerQUICC II Family Reference
Manual
MPC8260 PowerQUICC II Users Manual
Errata
Programming Environments Manual for 32-Bit
Implementations of the PowerPC Architecture
Errata to MPCFPE32B, Programming
Environments Manual for 32-Bit
Implementations of the Power PC Architecture,
Rev. 2
MPC8260UM
MPC8260UMAD
MPCFPE32B
MPCFPE32BAD
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
Size Rev Date Last
Order
K
# Modified Availability
pdf
6720
pdf
3203 0.1 1/14/2004
pdf
325 0.1
pdf
16672
1
1
6/27/2003
12/05/2002
-
5/29/2003
pdf
313 1.2 4/30/2004
pdf
7549
2
pdf
40
0
12/21/2001
10/11/2002
Selector Guide
ID
Name
SG1007
Network and Communications Processors Selector Guide
SG2000CR
Application Selector Guide Index and Cross-Reference.
SG2101
Regional Office Router
SG2112
LAN to WAN Bridge Router
SG2113
OSI Layer 2 and Layer 3 Router
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (9 of 34) [1/18/2005 10:57:34 AM]
pdf
pdf
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
189
1/01/2005
0
139
123
128
125
5
4
1
1
7/01/2004
1/01/2005
1/01/2004
1/01/2005
MPC8260 Product Summary Page
FREESCALE
SG2118
Remote Access Server
SG2120
Universal Access Gateway
SG2121
Wireless Base Transceiver Station: Baseband Processing
SG2126_D
SG2127
SG2128
FREESCALE
MEDIA GATEWAY WITH IP AND ATM
INTERWORKING
Multiservice Digital Subscriber Line Access Multiplexer
(DSLAM)
ATM Internetworking Multiplexer
FREESCALE
FREESCALE
FREESCALE
FREESCALE
135
pdf
126
pdf
147
pdf
221
pdf
117
pdf
124
pdf
1
2
1
2
3
1
1/01/2005
1/01/2005
1/01/2005
1/01/2005
6/17/2003
1/01/2005
Training Reference Material
ID
Name
PQII_TRAIN
MPC8260 PowerQUICC II" Training Materials
Vendor ID
Format
FREESCALE
html
Size Rev Date Last
Order
K
# Modified Availability
4
1 4/01/1999
-
White Paper
ID
Name
MPC8260 PowerQUICC II to CAM Interfacing MCM69C233
MPC8260 PowerQUICC II to CAM Interfacing MCM69C433WP
MCM69C433
MPC826XSDRAMWP Timing Considerations when Interfacing the
PowerQUICC II to SDRAM
MCM69C233WP
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
Return to Top
MPC8260 Reference Designs
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (10 of 34) [1/18/2005 10:57:34 AM]
pdf
pdf
pdf
Size Rev Date Last
Order
K # Modified Availability
303
1/16/2003
2
303
288
2
0.1
1/16/2003
3/09/2004
-
MPC8260 Product Summary Page
ID
Name
RDMPC8260RTR
RDSPT8101
MPC8260 SOHO/ROBO Router Reference Design
Smart Packet Telephony Reference Design
Vendor ID
Format
FREESCALE
FREESCALE
-
Size Rev
Order
K
#
Availability
-
Return to Top
MPC8260 Design Tools
Hardware Tools
Analyzers
Logic
ID
Name
Vendor ID
TLA700 Logic Analyzers
The TLA700 Logic Analyzers have the performance to
TLA715/TLA721 capture and display the fastest signals and gives you instant TEKTRONIX
insight into the digital and analog behavior of your system so
you can quickly find those elusive signal integrity problems
Format
-
Size Rev
Order
K # Availability
-
-
-
Board Testers
ID
Name
SCANPLUS
ScanPlus
µMaster 4031
Functional Test and Debug Solutions for boards carrying Motorola™
4000-994020-001 and IBM® PowerPC™ processors with COP debug port (740, 750,
750DD2, 750DD3, 755, 603e, 8240, 8250A, 8255A, 8260A, 8264A,
8265A, 8266A, 7400, 7410, etc.)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (11 of 34) [1/18/2005 10:57:34 AM]
Vendor ID Format
CORELIS
-
INTLTEST
-
Size Rev
Order
K # Availability
-
-
-
-
MPC8260 Product Summary Page
Emulators/Probes/Wigglers
ID
Size Rev
Order
K # Availability
Vendor ID
Format
CWH-PTP-JTAG-HX PowerTAP Pro JTAG Hardware Only
METROWERKS
-
-
-
CWH-WTP-JTAG-YX WireTAP JTAG Hardware Only
METROWERKS
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
BDI1000/BDI2000
10200A
4000-994020--001
IC30000
WBDM8XX
WNPJ-COP
GUARDIAN-SE
VISIONICE
VISIONPROBE
WPICE
Name
BDI1000/BDI2000
Abatron develops and produces high-quality, high-speed
ABATRON
BDM and JTAG Debug Tools (BDI Family) for software
development environments from leading vendors.
CORELIS
NetICE-R option 2/2M
µMaster 4031
Functional Test and Debug Solutions for boards carrying
Motorola™ and IBM® PowerPC™ processors with COP
INTLTEST
debug port (740, 750, 750DD2, 750DD3, 755, 603e, 8240,
8250A, 8255A, 8260A, 8264A, 8265A, 8266A, 7400, 7410,
etc.)
iC3000 ActiveEmulator
The compact iC3000 with its "iCARD" slot can be used as
ISYS
either an affordable hardware debugger, or the interface
module for full in-circuit emulators or high-end on-chip trace
modules. USB, serial and Ethernet interfaces are supported.
Wiggler for 5xx/8xx BDM
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the BDM port of the target system.
Wiggler for COP
The Wiggler is a low-cost, parallel port interface used for
MACRAIGOR
debugging embedded systems. One side of the Wiggler
interfaces to the parallel port of a Windows host PC and the
other side connects to the COP port of the target system.
Guardian-SE
TOOLSMITHS
JTAG debug tools for PowerPC development
WINDRIV
visionICE II
WINDRIV
visionPROBE II
WINDRIV
WIND®POWER ICE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (12 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
Evaluation/Development Boards and Systems
ID
Name
MPC8260ADS_ECOM MPC8260ADS Daughter Card for Telephony Applications
(E1)
MPC8260ADS_TCOM MPC8260ADS Daughter Card for Telephony Applications
(T1)
PQ2FADS_ZU
EP8260-H2-13
STK8260
STK8265
SBCPQII
MPC82xx Family Application Development System
Size Rev
Order
K # Availability
Vendor ID
Format
FREESCALE
-
-
-
FREESCALE
-
-
-
FREESCALE
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
EP8260
EP8260 is small form factor single board computer using the
8255, 8260, 8264. Processor and Local SDRAM provided.
EMDPLAN
Direct access to the 82xx processor allows OEMs to create
solutions quickly. Linux, VxWorks and INTEGRITY are
available.
STK8260
Starterkit STK82xx with TQ Minimodule, MPC8260 / 300
MHz, 32 MB Flash, 64 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 32 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
STK8265
Starterkit STK82xx with TQ Minimodule, MPC8265 / 300
MHz, 32 MB Flash, 0 MB SDRAM (local Bus), 128 MB
TQCOMPONEN
SDRAM (60x Bus), no L2-Cache, 16 kB EEPROM, 2*
RS232 Interface, DC/DC Converter, 60x bus mode, 240 Pin
Board to Board Connector
WINDRIV
SBCPowerQUICCII
Models
BSDL
ID
MPC8260BSDL3
MPC8260BSDL4
Name
PowerQUICC II BSDL (HiP3)
(05/06/2002)
PowerQUICC II BSDL (HiP4)
(03/15/2004)
Size
Rev #
K
Order
Availability
Vendor ID
Format
FREESCALE
zip
9
1
-
FREESCALE
zip
10
1.1
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (13 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
Bus Functional Models
ID
MPC8260BFM00
MPC8260BFM01
MPC8260BFM02
MPC8260BFM03
MPC8260BFM04
MPC8260BFM05
MPC8260BFM06
Name
Vendor ID Format
MPC8260 SWIFT Models Read Me
Please use with all MPC8260 SWIFT models for both FREESCALE
Solaris and NT.
(10/26/2001)
MPC8260 SWIFT Model - Solaris: Rev. B.0 Bus
FREESCALE
Function Model
(10/26/2001)
MPC8260 SWIFT Model - Solaris: Rev. C.2 Bus
FREESCALE
Function Model
(06/19/2002)
MPC8260 SWIFT Model - Solaris: HiP4 A.0 Bus
FREESCALE
Function Model
(05/28/2002)
MPC8260 SWIFT Model - Windows NT: Rev. B.0 Bus
FREESCALE
Function Model
(10/26/2001)
MPC8260 SWIFT Model - Windows NT: Rev. C.2 Bus
FREESCALE
Function Model
(10/26/2001)
MPC8260 SWIFT Model - Windows NT: HiP4 A.0 Bus
FREESCALE
Function Model
(10/26/2001)
pdf
tar
tar
tar
tar
tar
tar
Size
K
Rev #
Order
Availability
12
0
-
0
-
43977
43675 V01.001
46768 V01.001
25020
-
-
0
-
0
-
0
-
Size
K
Rev #
Order
Availability
12
0
-
0
-
25060
27050
Full Functional Models
ID
MPC8260FFM00
MPC8260FFM01
MPC8260FFM02
MPC8260FFM03
Name
MPC8260 SWIFT Models Read Me
Please use with all MPC8260 SWIFT models for both
Solaris and NT.
(10/26/2001)
MPC8260 SWIFT Model - Solaris: Rev. B.0 Full
Function Model
(10/26/2001)
MPC8260 SWIFT Model - Solaris: Rev. C.2 Full
Function Model
(06/19/2002)
MPC8260 SWIFT Model - Solaris: HiP4 A.0 Full
Function Model
(05/28/2002)
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (14 of 34) [1/18/2005 10:57:34 AM]
pdf
tar
tar
tar
47650
47384 V01.001
50387 V01.001
-
-
MPC8260 Product Summary Page
MPC8260 SWIFT Model - Windows NT: Rev. B.0 Full
MPC8260FFM04 Function Model
(10/26/2001)
MPC8260 SWIFT Model - Windows NT: Rev. C.2 Full
MPC8260FFM05 Function Model
(10/26/2001)
MPC8260 SWIFT Model - Windows NT: HiP4 A.0 Full
MPC8260FFM06 Function Model
(10/26/2001)
EP100
PowerPC Bus Slave
EP201
PowerPC Bus Master
EP300
PowerPC Bus Arbiter
EP433
PowerPC-PCI Bridge
ES100
PowerPC System Controller
FREESCALE
FREESCALE
FREESCALE
EUREKA
EUREKA
EUREKA
EUREKA
EUREKA
tar
tar
tar
27560
27480
29490
-
-
0
-
0
-
0
-
-
-
IBIS
ID
Name
Vendor ID Format
PowerQUICC II Family IBIS Models
This package contains the IBIS models for the PowerQUICC II
FREESCALE
MPC82XXIBIS family of communications processors. HiP3 and HiP4
zip
processes. Local and PCI bus configurations. 480 TBGA and
516 PBGA packages. (10/30/2003)
Size Rev
Order
K # Availability
81 2.7
-
Timing Models
ID
Name
TimingDesigner File Set for MPC8260 (HiP3 & HiP4)
(06/27/2002)
PQIIGPCMTIME GPCM Timing Generator
(05/29/2003)
MPC8260TIME1
Vendor ID
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (15 of 34) [1/18/2005 10:57:34 AM]
Format
zip
exe
Size Rev
Order
K
# Availability
679
1.0
176
1
-
MPC8260 Product Summary Page
Schematics
ID
Name
MPC8260MSVADSSCH1
MPC8260-MSVADS Reference Design Schematics
OrCAD Capture 7.1+
(05/16/2001)
Vendor ID
Format
FREESCALE
zip
Size Rev
Order
K
# Availability
620
-
-
Software
Application Software
Calculators
ID
Name
Power Consumption Calculator for all PowerQUICC II
MPC8260CALC1 Processors
(04/28/2004)
CPM Performance Calculator for all PowerQUICC II and
MPC8260CALC2 PowerQUICC III Processors
(09/07/2004)
Vendor ID Format
FREESCALE
FREESCALE
zip
zip
Size Rev
Order
K # Availability
491
2.1
664 3.1.3
-
-
Code Examples
ID
Name
FCC ATM Example (Works with ENG and PILOT revs
MPC8260ADSCOD01 of MPC8260ADS)
(11/22/99)
INIT Example (works with ENG and PILOT revs of
MPC8260ADSCOD03 MPC8260ADS)
(01/25/00)
Example HDLC for FCC1 (for both ENG and PILOT
MPC8260ADSCOD04 revs of MPC8260ADS)
(11/24/99)
Ethernet Example (Runs on both ENG and PILOT revs
MPC8260ADSCOD05 of MPC8260ADS)
(11/22/1999)
Example HDLC for SCC1 (Runs on both ENG and
MPC8260ADSCOD06 PILOT revs of MPC8260ADS)
(11/24/1999)
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (16 of 34) [1/18/2005 10:57:34 AM]
zip
zip
Size Rev
Order
K # Availability
1004
1062
-
-
-
-
zip
147
-
-
zip
274
-
-
zip
178
-
-
MPC8260 Product Summary Page
Example Transparent for SCC1 (Runs on both ENG and
FREESCALE
MPC8260ADSCOD07 PILOT revs of MPC8260ADS)
(11/24/1999)
IDMA Functionality - Description and Software
FREESCALE
MPC8260COD01
Example
(09/15/00)
MPC8260 I2C Software Example
FREESCALE
MPC8260COD02
(11/16/99)
MPC8260 Example Transparent Mode Software for
FREESCALE
MPC8260COD04
FCC1
(11/24/1999)
Software Example Inter-Operating Multiple TDMs and
FREESCALE
MPC8260COD05
SCCs
(12/01/1999)
Memory Controller Init. Script for 8260-TCOM DS3
FREESCALE
MPC8260COD06
Interfaces
(04/05/1999)
Memory Controller Init. Script for MPC8260-TCOM
FREESCALE
MPC8260COD07
T1 Interfaces
(04/05/1999)
Fast Ethernet on the FCC of the PowerQUICC II
FREESCALE
MPC8260COD08
(10/13/2003)
Multichannel Communication Controller of the
FREESCALE
MPC8260COD09
PowerQUICC II
(09/04/2002)
Benchmarking MPC826X Programs
FREESCALE
MPC8260COD10
Includes Dhrystone MIPS test (11/16/99)
Example Software for the PowerQUICC II Family: FEC
FREESCALE
MPC8260COD11
Frames Using PHYless MII
(08/02/2002)
Example Software (Modular) for the MPC8260:
FREESCALE
MPC8260VADSCOD1 Available Bit Rate
(12/07/2001)
Example Software (Modular) for the MPC8260:
FREESCALE
MPC8260VADSCOD2 Unspecified Bit Rate
(12/07/2001)
Example Software (Modular) for the MPC8260:
FREESCALE
MPC8260VADSCOD3 Variable Bit Rate
(12/07/2001)
Example Software for the MPC8260: Performance
FREESCALE
MPC8260VADSCOD4 Monitoring of ATM VP/VC
(12/07/2001)
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (17 of 34) [1/18/2005 10:57:34 AM]
zip
310
-
-
zip
167
-
-
zip
132
-
-
zip
163
-
-
zip
130
-
-
ini
2
-
-
ini
1
-
-
zip
140
2
-
zip
176
0
-
zip
50
-
-
zip
614
0
-
zip
442
-
-
zip
690
-
-
zip
371
-
-
zip
568
-
-
MPC8260 Product Summary Page
Microcode
ID
Name
Vendor ID Format
RAM Microcode Patches for PowerQUICC II Family Device
FREESCALE
MPC8260MC05 Errata
zip
(09/28/2004)
PowerQUICC II SS7 Microcode (for all revs)
FREESCALE
MPC8260MC10
zip
(07/20/2004)
PowerQUICC II AAL2 Microcode (for all revs)
FREESCALE
MPC8260MC11
zip
(11/19/2004)
MultiRing
MultiRing is a utility that separates frames of different
DG02010101
DOGAV
protocols into different buffer descriptor rings (rather than a
single ring). The utility supports predefined protocols such as
TCP, ICMP. The user can specify additional protocols.
Size Rev
Order
K # Availability
330 4.2.3
604
616
-
-
0.4
-
4.0
-
-
-
Board Support Packages
ID
Name
Vendor ID
Metrowerks BSPs for Freescale
Metrowerks BSPs are tested, certified and frozen, ensuring a
FREE
METROWERKS
fully operational tool chain, kernel and board specific
modules that are ready to use together within a fixed
configuration for specific hardware reference platforms.
MQX Board Support Packages
BSPs for Freescale ColdFire, PowerPC, and 68K embedded
ARC-MOT-MQXBSP processors including support for emerging USB and CAN
ARC
technologies as well as drivers for Ethernet, PCI, HDLC, SPI,
I2C, and serial devices.
EP 8260 VxWorks BSP
VxWorks Board Support Packages contain prebuilt RAM and
EP 8260 VDK 1.3
EMDPLAN
ROM kernel images and documentation that describes
installing and running the BSP. See online matrix for
supported peripherals.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (18 of 34) [1/18/2005 10:57:34 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
MPC8260 Product Summary Page
EP BSP
EP BSP
Embedded Planet Board Support Packages provide complete
software drivers for MPC 8xx and 82xx processors for Linux,
VxWorks and INTEGRITY. Embedded Planet can also
develop customer specific software for many operating
systems.
EMDPLAN
-
-
-
-
Device Drivers
ID
Name
PowerQUICC II API (Drivers and Examples)
Includes support for PCI, AAL2, AAL5, MSP, and more
(10/03/2002)
Parallel I/O Port Drivers
MPC8260DRV1
API written in C (10/08/99)
MPC8260 SS7 Driver Code Example Using the SS7 Microcode
MPC8260DRV3 Release, Rev. A.1
(06/01/2001)
MPC8260 SS7 Driver Code Example Using the SS7 Microcode
MPC8260DRV4 Release, Rev. B.3
(06/01/2001)
PlanetCore
PlanetCore provides a complete set of firmware device drivers for
PCS
8xx and 82xx Motorola processors. These drivers include an
application / RTOS boot loader, flash burner and diagnostics.
customer specific drivers can also be developed.
MPC8260API
Vendor ID Format
FREESCALE
FREESCALE
FREESCALE
FREESCALE
EMDPLAN
Size Rev
Order
K
# Availability
15785 4.0.2
zip
-
zip
47
-
-
zip
135
-
-
zip
133
-
-
-
-
-
-
Libraries
Vendor
Size Rev
Order
Format
ID
K # Availability
ID
Name
PN311-1
KwikPeg GUI
KADAK's KwikPeg Graphical User Interface (GUI) is derived from PEG,
KADAK
a professional, high-quality graphic system created by Swell Software,
Inc. to enable you, the embedded system developer, to easily add graphics
to your products.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (19 of 34) [1/18/2005 10:57:34 AM]
-
-
-
-
MPC8260 Product Summary Page
Operating Systems
ID
Name
Vendor ID
Arabella Linux for Motorola 82xx Processors
Arabella Linux for Motorola 82xx processors is a full,
commercial Linux distribution for the 82xx family of
ARA-MOT-82XX
ARABELLA
processors. It includes support for many of the on chip
peripherals including Security, ATM, PCI, USB,
PCMCIA, I2C and others.
MFS
ARC-MOT-MFS
ARC
MS-DOS File System is a portable, compatible
implementation of the Microsoft MS-DOS file system
MQX Real Time Operating System
A robust, high performance, royalty-free kernel designed
ARC-MOT-MQX
ARC
for deeply embedded applications requiring a small
footprint and fast response.
ARC-OS Changer
Provides developers the freedom to migrate from either
ARC-MOT-OSCHANGER
ARC
pSOSystem or VxWorks to MQX RTOS while reusing an
existing code base
CMX TCP/IP
CMX TCP/IP is a full-featured and fast TCP/IP stack that
allows designers to offer networking connectivity for their
CMX00300
CMX
embedded applications. CMX TCP/IP offers a low
licensing fee, full source code, no royalties, and free
technical support.
TCP/IP DHCP Client
The CMX TCP/IP DHCP Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00300A
CMX
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
TCP/IP DHCP Server
The CMX TCP/IP DHCP Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00300B
CMX
CMX00310) with functionality to support the Dynamic
Host Configuration Protocol standard. A source code
example is provided for fast design start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (20 of 34) [1/18/2005 10:57:34 AM]
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8260 Product Summary Page
CMX00300C
CMX00300D
CMX00300E
CMX00300F
CMX00300G
CMX00300H
CMX00300I
TCP/IP FTP C/S
The CMX TCP/IP FTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the File
Transfer Protocol standard. A source code example is
provided for fast design start up.
TCP/IP IMAP4
The CMX TCP/IP IMAP4 Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality for the Internet Message Access
Protocol Version 4 standard. A source code example is
provided for fast design start up.
TCP/IP NAT
The CMX TCP/IP NAT Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to add Network Address Translation
function to a network application. Source code example
provided for fast design start up.
TCP/IP POP3
The CMX TCP/IP POP3 Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Post Office
Protocol Client standard. A source code example is
provided for fast design start up.
TCP/IP PPP
The CMX TCP/IP PPP Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
serial or modem connectivity standard. Source code
example provided for fast start up.
TCP/IP PPPoE
The CMX TCP/IP PPPoE Add-On Option provides CMX
TCP/IP (see CMX00300, CMX00305, or CMX00310)
with functionality to support the Point to Point Protocol
over Ethernet standard. A source code example is
provided for fast design start up.
TCP/IP SMTP
The CMX TCP/IP SMTP Client Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple Mail
Transfer Protocol standard. A source code example is
provided for fast design start up.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (21 of 34) [1/18/2005 10:57:34 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8260 Product Summary Page
CMX00300J
CMX00300K
CMX00300L
CMX00300M
CMX00300N
CMX00630
CMX00631
TCP/IP SNMP
The CMX TCP/IP SNMP V1 and V2c Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Simple
Network Management Protocol standard. Source code
example provided for fast design start up.
TCP/IP Telnet
The CMX TCP/IP Telnet Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Telnet
Server standard. A source code example is provided for
fast design start up.
TCP/IP TFTP
The CMX TCP/IP TFTP Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Trivial File
Transfer Protocol Client/Server standard. Source code
example for fast start up.
TCP/IP Web Client
The CMX TCP/IP Web Client/Server Add-On Option
provides CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Client/Server standard.
Source code example provided.
TCP/IP Web Server
The CMX TCP/IP Web Server Add-On Option provides
CMX TCP/IP (see CMX00300, CMX00305, or
CMX00310) with functionality to support the Hyper Text
Transfer Protocol (HTTP) Web Server standard. Source
code example provided for fast start up.
CMX-FFS
CMX-FFS is a very small, standard Flash File System that
allows designers to offer file system functionality for their
embedded applications. CMX-FFS offers a low licensing
fee, full source code, no royalties, and free technical
support.
CMX-FFS-NAND
CMX-FFS-NAND is an Add-On Option for CMX- FFS
that allows designers to include a NAND driver for their
embedded FFS applications. CMX-FFS-NAND offers a
low licensing fee, full source code, no royalties, and free
technical support.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (22 of 34) [1/18/2005 10:57:34 AM]
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
CMX
-
-
-
-
MPC8260 Product Summary Page
CMX00632
CMX00633
DPP.82XXX.KRN
THREADX
CHRONOS
JAL100
JAL200
PX382-1
TDK1
TDK2
CMX-FFS-FAT
CMX-FFS-FAT is a fast file system for embedded
developers who wish to add devices to their products that
CMX
require FAT12/16/32 compliant media. CMX-FFS-FAT
offers a low license fee, full source code, no royalties, and
free tech support.
CMX-FFS-THIN
CMX-FFS-THIN is a file system for embedded device
developers with limited resource products that require a
CMX
FAT12/16/32 compliant media. CMX-FFS-THIN offers a
low licensing fee, full source code, no royalties, and free
technical support.
ENEA
OSE Real-Time Operating System
ThreadX
RTOS. Royalty-free real-time operating system (RTOS)
EXPRESSLOG
for embedded applications. ThreadX is small, fast, and
royalty-free making it ideal for high-volume electronic
products.
INTNICHE
RTOS
JALUNA
Jaluna-1
JALUNA
Jaluna-2
AMX PPC32
AMX is a full featured RTOS for the PowerPC family.
AMX has been tested on the EST SBC8260, Embedded
KADAK
Planet RPX Lite MPC823 and Motorola Ultra 603,
MBX860, MPC860 ADS, MPC860 FADS, Lite5200EVB
and MPC8560 ADS.
Critical Process Monitoring Technology Development Kit
Based on CPM functionality provided with the QNX
Momentics development suite, the kit lets you quickly
QNX
construct custom failure recovery scenarios and design
your system to reconnect instantly and transparently to
minimize downtime.
Extended Networking Technology Development Kit
Reduce development time with a suite of advanced
networking protocols, pre- integrated and tested with the
QNX
QNX Neutrino RTOS. This TDK provides a royalty-free
solution to get you up and running quickly with the
newest networking protocols.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (23 of 34) [1/18/2005 10:57:34 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8260 Product Summary Page
TDK3
TDK4
TDK5
TDK6
TDK7
TDK8
V6.3
Flash File System and Embedding Technology
Development Kit
Deploy resilient flash file systems using your choice of
NOR, NAND and ETFS. The TDK provides access to
these formats and offers a suite of BSPs, drivers and other
components to accelerate the integration of flash into your
embedded system
MOST (Media-Oriented Systems Transport) Technology
Development Kit
Enhance the performance and reliability of your in-vehicle
multimedia applications using this TDK. With the kit, you
can quickly develop customized NetServices, audio, and
IP networking features for deployment over the
high-speed MOST bus.
Multimedia Technology Development Kit
Add high-performance multimedia features to embedded
devices using a convenient multimedia framework, with
reusable media handling components to build customized
media playback and recording applications using standard
components.
Symmetric Multiprocessing Technology Development Kit
Leverage greater scalability, system density and
performance using symmetric multiprocessing (SMP) in
compute-intensive systems, such as network elements,
encryption/decryption, transportation, high- end medical
imaging, and storage.
3D Graphics Technology Development Kit
Create sophisticated 3D displays with minimal impact on
CPU performance. The TDK lets you implement rich
visual content presentation for small screen formats and
optimize the available screen real estate with advanced
features.
WEB BROWSER TECHNOLOGY DEVELOPMENT
KIT
Design advanced web browsing and mobile internet
applications for small footprint devices. Ideal for high
performance embedded devices in environments with
limited memory and CPU resources.
QNX Neutrino Realtime Operating System
A true microkernel OS, the QNX Neutrino RTOS offers
advanced memory protection, distributed processing,
symmetric multiprocessing, POSIX APIs, a dynamically
upgradable architecture, and industry- leading realtime
performance.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (24 of 34) [1/18/2005 10:57:34 AM]
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
QNX
-
-
-
-
MPC8260 Product Summary Page
PSD10XXXX
VXWORKS 5.X
RTXC Quadros RTOS
Innovative RTXC Quadros RTOS has two major modules
(Single Stack kernel and Multi- Stack kernel) that are used QUADROS
in combination to uniquely support DSPs,
microcontrollers and multiprocessing environments with a
common API.
VxWorks
VxWorks, the run-time component of TORNADOII for
VxWorks, is the most widely adopted real-time operating
WINDRIV
system (RTOS) in the embedded industry, with a
reputation for performance, flexibility, compatibility and
scalability.
-
-
-
-
-
-
-
-
Protocol Stacks
ID
NUCLEUS NET
NUCLEUS WEBSERV
ARC-MOT-HTTP
ARC-MOT-HTTPPRO
Name
Nucleus NET
Nucleus NET, Accelerated Technology's
TCP/IP protocol stack, is the foundation for the
rest of our networking products. Nucleus NET
includes all of the essential protocols necessary
to connect your product to the Internet.
Nucleus WebServ
An embedded web (HTTP) server that enables
your device to be remotely monitored,
configured and more using the ubiquitous web
browser interface. Serve up static web pages or
dynamically create them in response to web
browsers requests.
HTTP Web Server
The HTTP (Hyper text Transfer Protocol)
consists of source code and development tools
for building an embedded HTTP server. This is
a HTTP 1.0/1.1 compliant Web server with
CGI-style user exit support and optional file
system support.
HTTP PRO
HTTP 1.0/1.1 compliant Web server w/ CGIstyle user exit sppt, opt'al file system sppt,
PageBuilder Web-to-C compiler addit'al
compression features, Internat'al language sppt,
server-side mapping, HTTP streaming & digest
authentication.
Vendor ID Format
Size Rev
Order
K # Availability
ACCTECH
-
-
-
-
ACCTECH
-
-
-
-
ARC
-
-
-
-
ARC
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (25 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
IPShield
Security product support for IPSec, IKE, SSL
and SSH. Also supports hardware accelerated
ARC-MOT-IPSHIELD
ARC
encryption on processors with an Integrated
Security Engine such as MCF5485/5483,
MPC870/875, MPC8272/8248, MCF5271, and
MCF5275/5275L.
Network Protocols
TCP/IP networking stack (ARP, BootP, CCP,
CHAP, DHCP, DNS, Echo, EDS, FTP, ICMP,
ARC-MOT-NETWORKPROTOCOLS IGMP, IP, IP-E, IPCP, LCP, PAP, PPP, RIPv2,
ARC
RPC, SNMPv1/v2, SNTP, TCP, TFTP, Telnet,
UDP & XDR)& opt'al prototocols, SMTP,
SNMPv3, PPPoE, XML, SSL/H
POP3
ARC-MOT-POP3
ARC
Enables client embedded devices to receive
e-mail from any POP3 server
RTCS
A real-time, high performance TCP/IP stack
designed specifically for embedded networking
ARC-MOT-RTCS
ARC
applications such as IP phones, bridges, routers,
pagers, PDAs, cellular phones, and set-top
boxes
SMTP
Royalty free source code SMTP enables
ARC-MOT-SMTP
ARC
embedded devices to send e-mail to any SMTP
server. This allows any embedded device to
send asynchronous status reports using email.
AvniRSTP
Avnisoft's AvniRSTP is a completely portable
ANSI C compliant implementation of the IEEE
RSTP
AVNISOFT
802.1w RSTP Algorithm and Protocol. It
includes the AvniPORT platform abstraction
layer to simplify integration with target
platforms.
TCP/IP Stack
TargetTCP, is a fast, reliable, re-entrant,
full-featured TCP/IP protocol stack designed
TARGETTCP
BLUNK
specifically for high-performance embedded
networking. The code has a small footprint and
is well suited to memory constrained
environments.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (26 of 34) [1/18/2005 10:57:34 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8260 Product Summary Page
IPLITE
IPNET
INTERNICHE NAT ROUTER
INTERNICHE PPP OPTIONS
NICHESTACK
NICHESTACK SSL LIBRARY
WEBPORT HTTP SERVER
PN713-1
INFOLINK-STACKNAME
MOC_SSL_CLIENT
PSQ40XXXX
IPLITE
IPLITE is a dual-mode IPv4/v6 host stack,
optimized for minimum footprint and maximum
performance, with a number of PowerQUICC INTERPEAK
II/III optimizations. Available for leading
RTOSs like INTEGRITY, Linux, OSE,
VxWorks, etc.
IPNET
IPNET is a full-featured dual-mode IPv4/v6
router stack with built-in IPSec, Virtual
INTERPEAK
Routing, QoS, VLAN Tagging, as well as
PowerQUICC II/III optimizations. Available for
leading RTOSs like INTEGRITY, Linux, OSE,
VxWorks, etc.
INTNICHE
NAT Firewall
INTNICHE
PPP, PPPoE, Multi-Link PPP
INTNICHE
TCP/IP v4
INTNICHE
Secure Sockets Layer
INTNICHE
Embedded web server
KwikNet
The KwikNet TCP/IP Stack enables you to add
networking features to your products with a
KADAK
minimum of time and expense. KwikNet is a
compact, high performance stack built with
KADAK's characteristic simplicity, flexibility
and reliability.
LINK
INFOLink Protocol Software Family
Mocana Embedded SSL/TLS Client
MOCANA SSL/TLS CLIENT: Supports
Freescale chipsets out of the box. Small (50KB),
MOCANA
fast (2-3x faster than OpenSSL), trusted.
Supports all major cryptos. Royalty free, source
code license. FREE EVAL:
http://www.mocana.com/evaluate.html
RTXC Quadnet Networking Protocols
Full protocol suite: TCP, UDP, SLIP, ICMP,
and ARP with Berkeley Sockets API. Plus
DHCP, BOOTP, DNS, IGMP v2, RIP v2, NAT, QUADROS
HTTP, SMTP, POP3, TFTP, FTP, Telnet,
SNMP v1,2,3, PPP and more. New security
protocols: SSL, IPsec, IKE.
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (27 of 34) [1/18/2005 10:57:34 AM]
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
MPC8260 Product Summary Page
Software Tools
Code Translation
ID
Name
PA68K-PPC
PA86-PPC
PortAsm/68K for PowerPC
PortAsm/86 for PowerPC
Vendor ID
Format
MICROAPL
MICROAPL
-
Size
Rev #
K
-
Order
Availability
-
Compilers
ID
ARC-MOT-COMPILER
COMPILER
DIAB
Name
Vendor ID
MetaWare C/C++ Compiler Tool Suite
ARC
Optimized compiler for Motorola processors
C/C++ Compiler
Optimizing C, C++, EC++ compilers for Freescale PowerPC, GREENHILLS
ColdFire, StarCore, 68K, MCore and ARM-based MAC
architectures.
WINDRIV
Diab C/C++ Compiler
Format
Size Rev
Order
K # Availability
-
-
-
-
-
-
-
-
-
-
-
-
Debuggers
ID
Name
ARC-MOT-DEBUGGER MetaWare SeeCode Debugger
C/C++ Debugger
TRACE32-ICD
TRACE32-ICD for PowerQUICC II is a high performance
LA-7729
JTAG debugger for C ,C++ and JAVA. A USB 2.x, LPT or
ethernet interface is available for connection to any PC or
workstation. A flash programming utility is included.
Vendor ID Format
Size Rev
Order
K # Availability
ARC
-
-
-
-
LAUBACH
-
-
-
-
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (28 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
IDE (Integrated Development Environment)
ID
Name
Vendor ID
Format
Size Rev
Order
K # Availability
CodeWarrior Development Studio for PPC ISA Comms
Edition
CWS-PPC-CMWFL-CX Metrowerks CodeWarrior Development Studio, PowerPC METROWERKS
ISA Edition for Communication Processors is a complete
integrated development environment for PowerPC ISA
hardware bring-up through embedded applications.
-
-
-
CodeWarrior™ Development Studio, Embedded Linux
CWS-PPC-LINWH-CX Edition for PowerPC Architectures
METROWERKS
-
-
-
CodeWarrior™ Development Studio for PowerPC ISA,
Linux Application Edition
METROWERKS
-
-
-
ISYS
-
-
-
-
QNX
-
-
-
-
WINDRIV
-
-
-
-
WINDRIV
-
-
-
-
CWS-PPC-LLAPP-CX
IC-SW-OPR
V6.3
WIND RIVER
WORKBENCH
WPIDE
winIDEA
winIDEA integrates a Project Manager, Source Code
Editor, High and Low Level Debugger, and Flash
Programmer, all into one easy-to- use Windows
application. It is the one user interface for all of our
emulators and debuggers.
QNX Momentics Development Suite
Accelerate your entire development cycle, from board
bring-up to remote diagnostics. Comprehensive, yet tightly
integrated, QNX Momentics provides all the tools you
need to build and optimize applications for the QNX
Neutrino RTOS.
Wind River Workbench
Wind River Workbench is an open, standards-based device
software development environment for Linux applications
providing a deep tools capability in each phase of the
development process.
WIND®POWER IDE
-
Initialization/Boot Code Generation
ID
MPC82XXCPMMUXIBCG
MPC82XXLBCUPMIBCG
Name
Parallel Ports Configuration Tool (Pin Mux Tool)
(03/18/2004)
UPM Tool for PowerQUICC II Processors
(12/11/2003)
Vendor ID
FREESCALE
FREESCALE
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (29 of 34) [1/18/2005 10:57:34 AM]
Format
zip
zip
Size Rev
Order
K
# Availability
895 4.0.1
137 2.2.1
-
MPC8260 Product Summary Page
Performance and Testing
ID
Name
CodeTEST Software Analysis Tools, HWIC License
MWCTESTHWICPKG package
MWCTESTHWICVX
CodeTEST RTOS Support CD for Vx Works
Size Rev
Order
K # Availability
Vendor ID
Format
METROWERKS
-
-
-
-
METROWERKS
-
-
-
-
Return to Top
Applications
Networking
SOHO
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
Access
2.5G/3G Wireless BSC Network Interface
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
Enterprise Media Gateway
Edge
ATM Switch Line Card
Core
SONET Multiplexer
Applications
LAN-to-WAN Bridge Router
OSI Layer 2 and Layer 3 Router
Regional Office Router
Wireless Gateway
2.5G/3G Wireless BSC Network Interface
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (30 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
ATM Interworking Multiplexer
Media Gateway with IP and ATM Interworking
Remote Access Server
Wireless Basestation Transceiver
Enterprise Media Gateway
ATM Switch Line Card
SONET Multiplexer
Wireless
Wireless Infrastructure Applications
Wireless Basestation Transceiver
Wireless Basestation Transceiver
Return to Top
Orderable Parts Information
Part Number
Package
Description
Application/
Tape
Pb-Free
Qualification
and
Terminations
Reel
Tier
Status
Budgetary
Price
QTY
Info
1000+
($US)
KMPC8260ACZUMIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8260AZUPIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KMPC8260AZUPJDB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KXPC8260CZUIHBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
KXPC8260ZUIHBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8260ACZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8260ACZUMIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (31 of 34) [1/18/2005 10:57:34 AM]
Order
MPC8260 Product Summary Page
MPC8260AZUMHBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8260AZUPIBB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8260AZUPJDB
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
MPC8260SW-EAAL2
-
No
No
-
Available
-
more
-
MPC8260SW-ESS7
-
No
No
-
Available
-
more
-
MPC8260SW-FDS
-
No
No
-
Available
-
more
-
MPC8260SW-MSP
-
No
No
-
Available
-
more
-
-
more
-
XPC8260ACZUKHBA
TBGA 480
No
37*37*1.7P1.27
No
-
Not
Recommended
for New
Design
XPC8260ACZUMHBA
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
-
XPC8260ACZUMIBA
TBGA 480
No
37*37*1.7P1.27
No
-
No Longer
Manufactured
-
more
-
XPC8260AZUKHBA
TBGA 480
No
37*37*1.7P1.27
-
Not
Recommended
for New
Design
-
more
-
XPC8260AZUMHBA
TBGA 480
No
37*37*1.7P1.27
-
Not
Recommended
for New
Design
-
more
-
XPC8260AZUMIBA
TBGA 480
No
37*37*1.7P1.27
-
Not
Recommended
for New
Design
-
more
-
XPC8260AZUPJDA
TBGA 480
No
37*37*1.7P1.27
No
-
Not
Recommended
for New
Design
-
more
-
XPC8260CZUHFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
No
No
No
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (32 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
XPC8260CZUIFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8260CZUIHBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8260ZUHFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8260ZUIFBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
XPC8260ZUIHBC
TBGA 480
No
37*37*1.7P1.27
No
-
Available
-
more
NOTE:
● Not all orderable parts are offered through our online sampling program. For further assistance in selecting a similar part from within
the program, please submit a Request for a sample order advice.
●
Refer to Samples FAQ for more information.
●
Looking for an obsolete part? Check our distributors' inventory
Return to Top
Related Products
MC33702 : MICROPROCESSOR POWER SUPPLY (3.0 A)
The 34702 is a monolithic IC providing an efficient means of obtaining power for the Freescale Semiconductor PowerQUICC TM I
and II ...
MC92460 : Multichannel HDLC Controller Peripheral
The MC92460 is a 40-channel, high-level data link controller (HDLC) with an aggregate throughput of up to 2 Gbps across ...
MPC9850 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9850 is a PLL based clock generator specifically designed for Freescale Microprocessor And Microcontroller applications
including the PowerQUICC III. ...
MPC9855 : Clock Generator for PowerPC and PowerQUICC Applications
The MPC9855 is a PLL based clock generator specifically designed for Freescale Microprocessor and Microcontroller applications
including the PowerPC and ...
Return to Top
Related Links
Industrial Control
Networking
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (33 of 34) [1/18/2005 10:57:34 AM]
MPC8260 Product Summary Page
Wireless
Return to Top
www.freescale.com | Site Map | Terms of Use | Privacy Practices |
© Freescale Semiconductor, Inc. 2004. All Rights Reserved
http://www.freescale.com/webapp/sps/site/prod_summary.jsp?code=MPC8260&nodeId=018rH3bTdG2977 (34 of 34) [1/18/2005 10:57:34 AM]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
