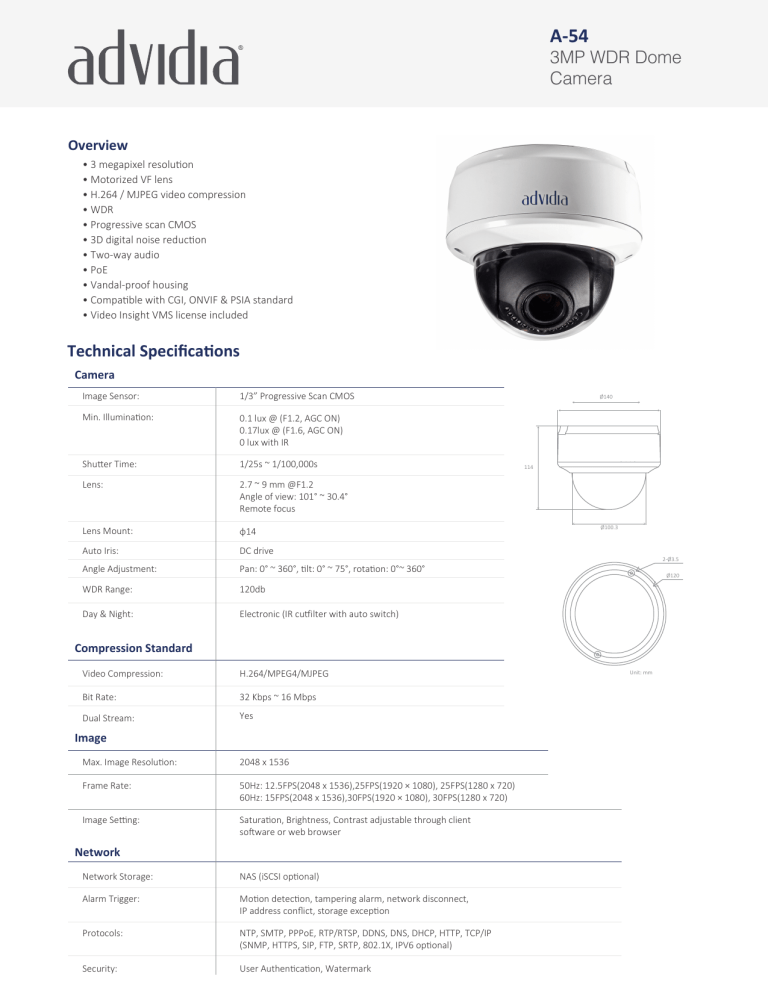

A-54
3MP WDR Dome
Camera
Overview
• 3 megapixel resolution
• Motorized VF lens
• H.264 / MJPEG video compression
• WDR
• Progressive scan CMOS
• 3D digital noise reduction
• Two-way audio
• PoE
• Vandal-proof housing
• Compatible with CGI, ONVIF & PSIA standard
• Video Insight VMS license included
Technical Specifications
Camera
Image Sensor:
1/3” Progressive Scan CMOS
Min. Illumination:
0.1 lux @ (F1.2, AGC ON)
0.17lux @ (F1.6, AGC ON)
0 lux with IR
Shutter Time:
1/25s ~ 1/100,000s
Lens:
2.7 ~ 9 mm @F1.2
Angle of view: 101° ~ 30.4°
Remote focus
Lens Mount:
φ14
Auto Iris:
DC drive
Angle Adjustment:
Pan: 0° ~ 360°, tilt: 0° ~ 75°, rotation: 0°~ 360°
WDR Range:
120db
Day & Night:
Electronic (IR cutfilter with auto switch)
Ø140
114
Ø100.3
2-Ø3.5
Ø120
Compression Standard
Video Compression:
H.264/MPEG4/MJPEG
Bit Rate:
32 Kbps ~ 16 Mbps
Dual Stream:
Yes
Max. Image Resolution:
2048 x 1536
Frame Rate:
50Hz: 12.5FPS(2048 x 1536),25FPS(1920 × 1080), 25FPS(1280 x 720)
60Hz: 15FPS(2048 x 1536),30FPS(1920 × 1080), 30FPS(1280 x 720)
Image Setting:
Saturation, Brightness, Contrast adjustable through client
software or web browser
Network
Network Storage:
NAS (iSCSI optional)
Alarm Trigger:
Motion detection, tampering alarm, network disconnect,
IP address conflict, storage exception
Protocols:
NTP, SMTP, PPPoE, RTP/RTSP, DDNS, DNS, DHCP, HTTP, TCP/IP
(SNMP, HTTPS, SIP, FTP, SRTP, 802.1X, IPV6 optional)
Security:
User Authentication, Watermark
Unit: mm
A-54
3MP WDR Dome
Camera
Technical Specifications
System Compatibility:
ONVIF, PSIA, CGI
Interface
Audio Input:
1-ch microphone input, 3.5mm mini-jack
Audio Output:
1-ch 3.5mm audio interface (line level, 600 Ω)
Communication Interface:
1 RJ45 10 / 100 ethernet interface and 1 RS-485 interface
Alarm Input:
2
Alarm Output:
2
Video Output:
1Vp-p Composite Output (750hm, RCA)
Local Storage:
Built-in SD / SDHC slot, up to 32 GB
Reset Button:
Yes
General
Operating Conditions:
-10° C ~ 60° C (14° F ~ 140° F)
Humidity 90% or less (non-condensing)
Power Supply:
12 VDC ± 10%, PoE (802.3af)
Power Consumption:
5.5W~10.5W
(IR: 2W,Motorized VF lens: 3W)
Impact Protection:
IEC60068-2-75Eh, 50J, EN50102, up to IK10
Weather Proof Rating
IP66
IR Range:
Approx 10 to 20 meters (32.8-65.6ft)
Dimensions:
Φ140mm×114mm (Φ5.51”×4.49”)
Weight:
3.09 lbs
