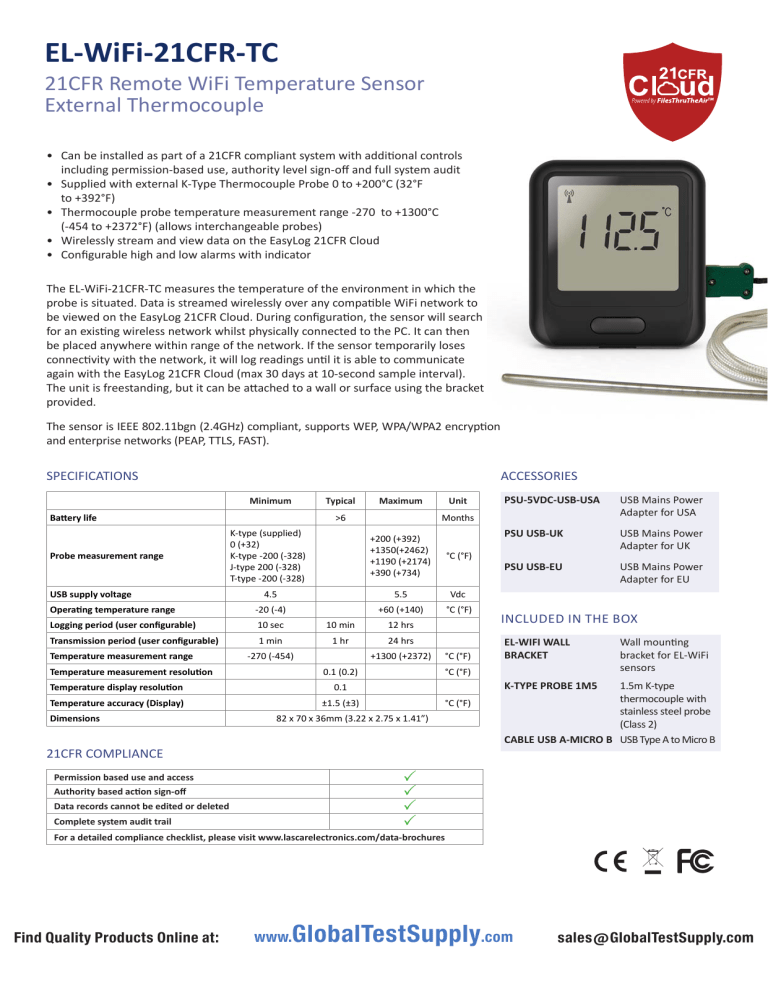

EL-WiFi-21CFR-TC
21CFR Remote WiFi Temperature Sensor
External Thermocouple
• Can be installed as part of a 21CFR compliant system with additional controls
including permission-based use, authority level sign-off and full system audit
• Supplied with external K-Type Thermocouple Probe 0 to +200°C (32°F
to +392°F)
• Thermocouple probe temperature measurement range -270 to +1300°C
(-454 to +2372°F) (allows interchangeable probes)
• Wirelessly stream and view data on the EasyLog 21CFR Cloud
• Configurable high and low alarms with indicator
The EL-WiFi-21CFR-TC measures the temperature of the environment in which the
probe is situated. Data is streamed wirelessly over any compatible WiFi network to
be viewed on the EasyLog 21CFR Cloud. During configuration, the sensor will search
for an existing wireless network whilst physically connected to the PC. It can then
be placed anywhere within range of the network. If the sensor temporarily loses
connectivity with the network, it will log readings until it is able to communicate
again with the EasyLog 21CFR Cloud (max 30 days at 10-second sample interval).
The unit is freestanding, but it can be attached to a wall or surface using the bracket
provided.
The sensor is IEEE 802.11bgn (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption
and enterprise networks (PEAP, TTLS, FAST).
SPECIFICATIONS
ACCESSORIES
Minimum
Typical
Battery life
Probe measurement range
USB supply voltage
Maximum
>6
K-type (supplied)
0 (+32)
K-type -200 (-328)
J-type 200 (-328)
T-type -200 (-328)
Unit
+200 (+392)
+1350(+2462)
+1190 (+2174)
+390 (+734)
°C (°F)
4.5
5.5
Vdc
-20 (-4)
+60 (+140)
°C (°F)
Logging period (user configurable)
10 sec
10 min
1 min
1 hr
Transmission period (user configurable)
-270 (-454)
Temperature measurement resolution
24 hrs
0.1 (0.2)
0.1
Temperature accuracy (Display)
±1.5 (±3)
Dimensions
12 hrs
+1300 (+2372)
Temperature display resolution
USB Mains Power
Adapter for USA
PSU USB-UK
USB Mains Power
Adapter for UK
PSU USB-EU
USB Mains Power
Adapter for EU
Months
Operating temperature range
Temperature measurement range
PSU-5VDC-USB-USA
°C (°F)
INCLUDED IN THE BOX
EL-WIFI WALL
BRACKET
°C (°F)
Wall mounting
bracket for EL-WiFi
sensors
K-TYPE PROBE 1M5
°C (°F)
82 x 70 x 36mm (3.22 x 2.75 x 1.41”)
21CFR COMPLIANCE
1.5m K-type
thermocouple with
stainless steel probe
(Class 2)
CABLE USB A-MICRO B USB Type A to Micro B




Permission based use and access
Authority based action sign-off
Data records cannot be edited or deleted
Complete system audit trail
For a detailed compliance checklist, please visit www.lascarelectronics.com/data-brochures
Find Quality Products Online at:
www.
GlobalTestSupply.com
[email protected]
EL-WiFi-21CFR-TC
21CFR Remote WiFi Temperature Sensor
External Thermocouple
21CFR WIFI SENSOR SOFTWARE
EasyLog 21CFR WiFi software* is available as a free download from www.easylogcloud.com.
Easy to install and use, EasyLog 21CFR WiFi Sensor Software allows easy sensor set-up and
connection of sensors to a WiFi network and the EasyLog 21CFR Cloud.
EASYLOG 21CFR CLOUD
21CFR Cloud subscription delivers all of the flexibility of a remote monitoring system:
Interact with sensors via any internet-enabled device; manage and monitor sensors;
access event logs and set up email alerts; assign authorisation levels to user accounts and
view comprehensive audit trail records. Unlike the standard EasyLog Cloud service, 21CFR Cloud includes other controls such as
permission-based use, authority sign-off and full system audit to ensure data monitored and collected is regulated to 21CFR Part
11 standard.
Detailed data reporting
Detailed system audit reporting
Authority sign-off on actions
A Cloud account subscription is created during the WiFi sensor set-up process using EasyLog 21CFR WiFi Sensor Software. 21CFR
WiFi Sensors are only compatible with the EasyLog 21CFR Cloud www.easylogcloud.com
BATTERY LIFE AND POWER SUPPLY
The battery can be recharged (unit must be between 0 - 40 °C) via a PC, a USB +5V wall adapter, or a portable USB battery
pack using the USB lead provided. It can also be permanently powered by a USB wall adapter or USB battery pack. Readings
may be affected while the internal battery is being charged. However, once charged, continued connection of the charger will
have no effect.
Battery life is dependent on: transmission period, WiFi encryption method, WiFi encryption key rotation frequency (determined
by the router/access point), signal strength between router/access point and WiFi device, presence volume and type of WiFi
traffic from other devices, sample rate and operating temperature.
Specifications liable to change without prior warning
*Requires Windows 7, 8.1, 10
