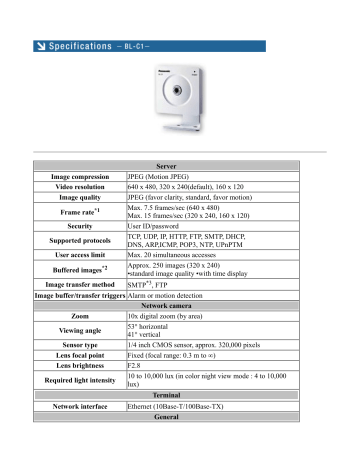

Video resolution 640 x 480, 320 x 240(default)

Video resolution 640 x 480, 320 x 240(default)
Image compression
Video resolution
Image quality
Frame rate*1
Security
Supported protocols
User access limit
Buffered images*2
Server
JPEG (Motion JPEG)
640 x 480, 320 x 240(default), 160 x 120
JPEG (favor clarity, standard, favor motion)
Max. 7.5 frames/sec (640 x 480)
Max. 15 frames/sec (320 x 240, 160 x 120)
User ID/password
TCP, UDP, IP, HTTP, FTP, SMTP, DHCP,
DNS, ARP,ICMP, POP3, NTP, UPnPTM
Max. 20 simultaneous accesses
Approx. 250 images (320 x 240)
•standard image quality •with time display
SMTP*3, FTP
Image buffer/transfer triggers Alarm or motion detection
Network camera
Zoom
10x digital zoom (by area)
53° horizontal
Viewing angle
41° vertical
Sensor type
1/4 inch CMOS sensor, approx. 320,000 pixels
Lens focal point
Fixed (focal range: 0.3 m to ∞)
Lens brightness
F2.8
10 to 10,000 lux (in color night view mode : 4 to 10,000
Required light intensity
lux)
Image transfer method
Terminal
Network interface
Ethernet (10Base-T/100Base-TX)
General
Operating temperature
+5°C to +40°C (+41°F to +104°F)
Operating humidity
20% to 80% (no condensation)
85 x85 x25 mm
Dimensions (H x W x D)
(3 3/8 x 3 3/8 x 1 inches)
Weight (only the unit)
100 g (0.22 lb)
Input: 220-240 V AC,
Power supply (E)
output: 9 V DC
Input: 100-240 V AC,
Power supply (CE)
output: 9 V DC
Input: 120 V AC,
Power supply (US)
output: 9 V DC
Consumption
1.7 W
*1 The frame rate may slow down depending on the network environment, PC
performance, image quality, SD memory recording, when color night view
mode is activated, etc.
*2 The maximum number of frames changes depending on the image quality
and what object you buffer.
*3 PDP before SMTP authentication and SMTP authentication (PLAIN and
LOGIN) are supported. SMTP authentication (CRAM-MD5) is not supported.
Your PC (Personal Computer) and network must meet the following technical
specifications for the camera to work properly.
Windows® 98/SE
Windows® 2000
Operating System
Windows® Me
Windows® XP
CPU
Pentium® III (500 MHz or greater is recommended.)
Protocol
TCP/IP protocol (HTTP, TCP, UDP, IP, DNS, ARP, ICMP)
Interface
10/100 Mbps network card installed
Internet Explorer 6.0 or later
Web browser
(Not included on the Setup CDROM)
