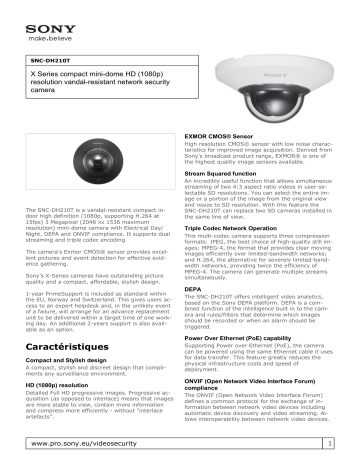

SNC-DH210T (SNCDH210T)

SNC-DH210T (SNCDH210T)
SNC-DH210T
X Series compact mini-dome HD (1080p)
resolution vandal-resistant network security
camera
EXMOR CMOS® Sensor
High resolution CMOS© sensor with low noise characteristics for improved image acquisition. Derived from
Sony’s broadcast product range, EXMOR® is one of
the highest quality image sensors available.
Stream Squared function
The SNC-DH210T is a vandal-resistant compact indoor high definition (1080p, supporting H.264 at
15fps) 3 Megapixel (2048 xx 1536 maximum
resolution) mini-dome camera with Electrical Day/
Night, DEPA and ONVIF compliance. It supports dual
streaming and triple codec encoding.
The camera’s Exmor CMOS® sensor provides excellent pictures and event detection for effective evidence gathering.
Sony’s X-Series cameras have outstanding picture
quality and a compact, affordable, stylish design.
1-year PrimeSupport is included as standard within
the EU, Norway and Switzerland. This gives users access to an expert helpdesk and, in the unlikely event
of a failure, will arrange for an advance replacement
unit to be delivered within a target time of one working day. An additional 2-years support is also available as an option.
An incredibly useful function that allows simultaneous
streaming of two 4:3 aspect ratio videos in user-selectable SD resolutions. You can select the entire image or a portion of the image from the original view
and resize to SD resolution. With this feature the
SNC-DH210T can replace two SD cameras installed in
the same line of view.
Triple Codec Network Operation
This multi-codec camera supports three compression
formats: JPEG, the best choice of high-quality still images; MPEG-4, the format that provides clear moving
images efficiently over limited-bandwidth networks;
and H.264, the alternative for severely limited-bandwidth networks, providing twice the efficiency of
MPEG-4. The camera can generate multiple streams
simultaneously.
DEPA
The SNC-DH210T offers intelligent video analytics,
based on the Sony DEPA platform. DEPA is a combined function of the intelligence built in to the camera and rules/filters that determine which images
should be recorded or when an alarm should be
triggered.
Power Over Ethernet (PoE) capability
Caractéristiques
Compact and Stylish design
A compact, stylish and discreet design that compliments any surveillance environment.
HD (1080p) resolution
Detailed Full HD progressive images. Progressive acquisition (as opposed to interlace) means that images
are more stable to view, contain more information
and compress more efficiently - without “interlace
artefacts”.
www.pro.sony.eu/videosecurity
Supporting Power over Ethernet (PoE), the camera
can be powered using the same Ethernet cable it uses
for data transfer. This feature greatly reduces the
physical infrastructure costs and speed of
deployment.
ONVIF (Open Network Video Interface Forum)
compliance
The ONVIF (Open Network Video Interface Forum)
defines a common protocol for the exchange of information between network video devices including
automatic device discovery and video streaming. Allows interoperability between network video devices.
1
SNC-DH210T
Electrical Day/Night function
Analogue monitor output
Ensures that the camera is operating with the optimum sensitivity for both day and night conditions.
This allows an analogue video monitor to be connected directly to the camera.
Spécifications techniques
Camera
Image device
Minimum illumination
Number of effective
pixels (H x V)
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum objects
distance
Pan angle
Tilt angle
Network
1/2.8 type progressive scan
"Exmor" CMOS sensor
2.3 lx / AGC(38db)/
50IRE(IP)
3Megapixel (2096×1561)
1s to 1/10000 s
Auto
Auto, EV Compensation,
Auto Slow Shutter
Auto(ATW, ATW-PRO),
Preset, One-push WB,
Manual
fixed
86 degrees
f=3.3
F2.8
500 mm
Approx. 340°
0°to 60°
Yes (electrical D/N)
Yes
Codec image size (H x
V)
Video compression
format
Codec streaming
capability
Maximum frame rate
2048×1536 (Jpeg Only),
1920x1080, 1600x1200,
1680x1056, 1440x912,
1280x1024, 1280x960,
1376x768, 1280x800,
1280x720, 1024x768,
1024x576, 768x576,
720x576, 704x576,
800x480, 720x480,
640x480, 640x368,
384x288, 352x288,
320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Dual streaming
JPEG:12fps (2048×1536)
/15fps(1920×1080) /30fps
(1280×720)
MPEG-4 / H.264: 15fps
(1920×1080) /30fps
(1280×720)
Scene Analytics
Intelligent motion
detection
Yes
www.pro.sony.eu/videosecurity
IPv4, IPv6, TCP, UDP, ARP,
ICMP, IGMP, HTTP, HTTPS,
FTP (client), SMTP, DHCP,
DNS,NTP, RTP/RTCP, RTSP,
SNMP (MIB-2)
Yes (Version 1.01)
5
IEEE802.1X
ONVIF conformance
Number of clients
Authentication
Analog Video Output
Signal system
NTSC / PAL
Interface
Ethernet
Analog monitor output
Sensor input
10BASE-T / 100BASE-TX
(RJ-45)
AV Mini Jack
x1
General
Mass
Dimensions
Camera Features
Day/Night
Noise reduction
Protocols
Power
requirements
Power
consumption
Working
temperature
Storage
temperature
Vandal resistant
Safety regulation
170 g (6 oz)
106 x 56.5 mm (4 1/4 x 2 1/4
inches)
PoE
2.4W
0 °C to 50 °C (32°F to 122°F)
-20 °C to +60 °C (-4°F to +140°F)
IK10
UL2044, FCC 15B Class A, IC Class
A, IEC60950-1,
EN55022(A)+EN55024+EN50130-4,
VCCI Class A, C-Tick Class A
System Requirements
Operating system
Processor
Memory
Web browser
WindowsXP, WindowsVista
(32bit), Windows7 (32bit)
Intel Core2 Duo 2 GHz or
higher
1 GB or more
Microsoft Internet Explorer
Ver6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free
viewer only)
Safari Ver.4.0 (Plug-in free
viewer only)
Google Chrome Ver.4.0
(Plug-in free viewer only)
2
SNC-DH210T
Supplied Accessories
Notes
Supplied Accessories
Notes
CD-ROM (User’s Guide, SNC
Toolbox, RSM-Lite), Installation manual, B&P Warranty
Booklet, Sensor input cable,
Template
www.pro.sony.eu/videosecurity
* The SNC-DH210T includes
software developed by the
OpenSSL Project for use in
the OpenSSL Toolkit
(http://www.openssl.org/).
