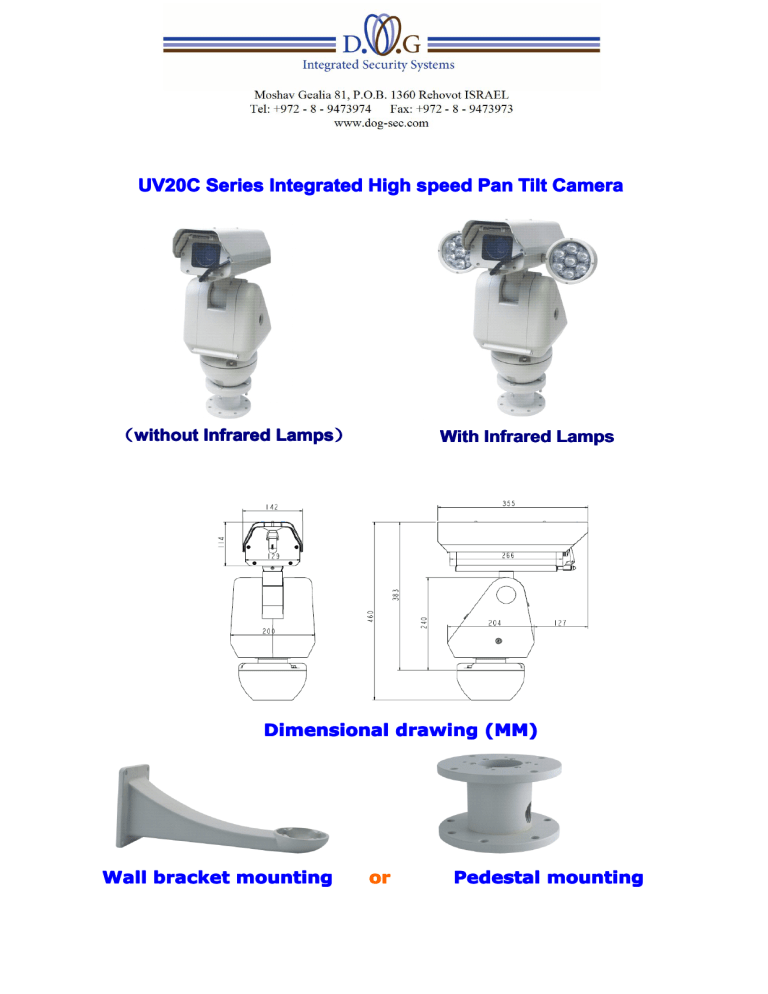

UV20C Series Integrated High speed Pan Tilt Camera

UV20C Series Integrated High speed Pan Tilt Camera
UV20C Series Integrated High speed Pan Tilt Camera
without Infrared Lamps
(without
Lamps)
With Infrared Lamps
Dimensional drawing (MM)
Wall bracket mounting
or
Pedestal mounting
Product Features
★compact structure, aggregated with pan& tilt, switch controller, shield and integrated
camera
★RS-485 feed back the pan& tilt
★Pan& tilt orientation display, camera zoom display, inside dome temperature display
★Built-in function menu, the camera, pan& tilt function can be set
★Inner temperature display, extra high temperature alarm function
★128 preset positions with precision error less than 0.10
★Alterable auto tour speed can be set to 10-400/sec
★Preset target speed: 800/sec for pan, 40 0 /sec for tilt
★Manual control speed:pan speed: 0.10 ~800 /sec, tilt speed: 0.10 ~400 /sec
★3600 continuous pan rotation,auto flip function for tilt rotation
★8 preset tour functions, dwell time can be set
★Privacy masking function
★Powering on self-restoring style—users can assign the movement after powering on
★Quick and convenient electric connection
★ Embed in surge and lightning protector
★Built-in wiper, heater, fan component
★2 alarm input
★washer-wiper linkage
★ IR lamps are available for better night vision effect
★Meeting IP66 、CE、FCC and ROHS standards
★Two mounting styles: Wall Mounting or Pedestal Mounting
Protocol and Baud Rate
★PELCO“P”
★PELCO“D”
★Baud Rate:1200b/2400b/4800b/9600b
Features of the Pan& Tilt
Manual control speed
Pan speed
0.1°-100°/sec
Tilt speed
0.1°-80°/sec
Preset speed
Pan speed
150°/sec
Tilt speed
80°/sec
auto scan speed
1°-40°/sec can be set
Pan running
3600 continuous pan rotation
Tilt running
+35°~-85° tilt rotation
Electrical index
Input voltage
220VAC; 110VAC; 24VAC
Input power
65VA (maximum)
Operation temperature
-40°C-60°C
IR Lens Parameter:
IR Lens Feature
Feature:
Integrated with 7 pieces of 1W (850nm)IR Lens and 6 pieces of Φ8(850nm) new
model visible LED Chip. Making the efficiency of light conversion higher by two kinds of
different IR Lens, and the effective distance of transmission is over 100 meters. The
element adopts high capacitance of cooling technology to enhance the efficiency of light
conversion more than 15%, and prolong the life-span at the same time.
The circuitry adopts constant flows to ensure the IR lens tube is working in constant
flows at any time. Effectively avoid elevated temperature, lighting tubes’ minus
temperature characteristic and vicious circle of electrical current.
These measures offer sufficient guarantee for IR lighting tube’s reliability and duration.
Technical Parameter
Distance
>100m
Angle
45º
IR Lens
two pairs of 7X 1W,6X Φ8
Voltage
DC12V
Power
2X6W
Measurement(LXWXH)
two units of Φ108X 85mm
Net Weight
2X 0.5kg
Integrated Camera/lens Parameter
18×
22×
Day/night
color low lux
SONY
23×
HITACHI
26×
35×
36×
Day/night
Day/night
Day/night
Day/night
HITACHI
SONY
HITACHI
SONY
Signal
PAL/NTSC
system
Scan system
2:1 interlacing scan
CCD
1/4 inch CCD
Effective
752X582
Pixel
Lens focus
Optical
4.1—73.8mm
18X12
4mm-88cm
22 X10
3.6—82.8mm
3.5mm—91mm
23X12
26X12
3.4mm—119m
3.4mm-
m
122.4mm
35X12
36 X12
>540TVL
>480TVL
0.5Lux,1/5sec
1.0Lux,1/60
Zoom
Horizontal
>480TVL
pixel
Iris Ctrl
Auto/ Manual first
Focus Ctrl
Auto/ Manual first
Minimum
illumination
1/50 sec
1/50 sec
1/50 sec
1.0lux,1/5 sec
Shutter
shutter
shutter
0.2lux,1/3 sec
(PAL)
sec
(Color)0.7Lu
(Color)1Lux
(Color)1Lux
ICR-ON mode
0.01Lux,1/3sec
0.1Lux,1/4 sec
x
1/13 sec
1/1.5 sec
0.15lux, 1/50
(PAL)
Night mode
1/3 sec
shutter
shutter
sec
Night mode
0.1Lux, 1/4 sec
Shutter
(Color)0.06Lux
(Color)0.1Lux
0.01 lux,1/3 sec
0 lux
IR
(B&W)0.1Lu
1/1.5 sec
1/4 sec
IR
IR
x ICR ON
Shutter (color)
Shutter (B&W)
shutter
0.03Lux
0.01Lux
(B&W)
IR
0.01Lux
IR
Sync system
AC linear lock
White
Manual/Auto
Balance
Shutter
Manual/Auto
Speed
Gain Ctrl
Manual/Auto
S/N Ratio
50dB
Video
1Vp-p
WDR
NO
NO
YES
NO
YES
NO
