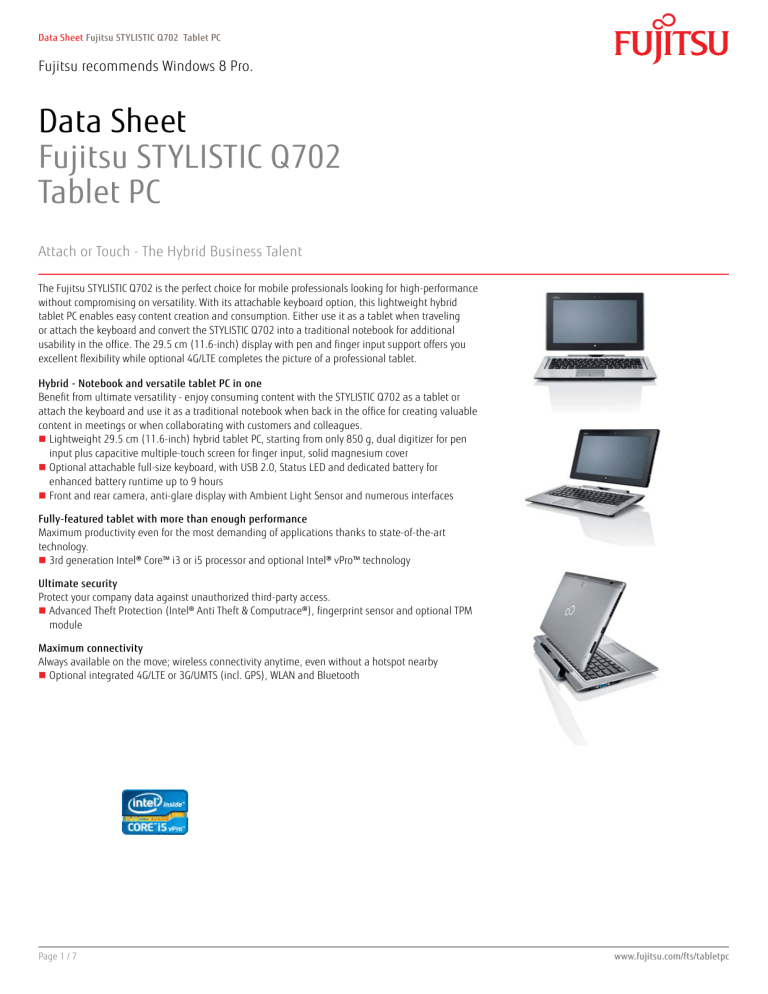

Data Sheet
Fujitsu STYLISTIC Q702
Tablet PC
Attach or Touch - The Hybrid Business Talent
The Fujitsu STYLISTIC Q702 is the perfect choice for mobile professionals looking for high-performance
without compromising on versatility. With its attachable keyboard option, this lightweight hybrid
tablet PC enables easy content creation and consumption. Either use it as a tablet when traveling
or attach the keyboard and convert the STYLISTIC Q702 into a traditional notebook for additional
usability in the office. The 29.5 cm (11.6-inch) display with pen and finger input support offers you
excellent flexibility while optional 4G/LTE completes the picture of a professional tablet.
Hybrid - Notebook and versatile tablet PC in one
Benefit from ultimate versatility - enjoy consuming content with the STYLISTIC Q702 as a tablet or
attach the keyboard and use it as a traditional notebook when back in the office for creating valuable
content in meetings or when collaborating with customers and colleagues.
„„ Lightweight 29.5 cm (11.6-inch) hybrid tablet PC, starting from only 850 g, dual digitizer for pen
input plus capacitive multiple-touch screen for finger input, solid magnesium cover
„„ Optional attachable full-size keyboard, with USB 2.0, Status LED and dedicated battery for
enhanced battery runtime up to 9 hours
„„ Front and rear camera, anti-glare display with Ambient Light Sensor and numerous interfaces
Fully-featured tablet with more than enough performance
Maximum productivity even for the most demanding of applications thanks to state-of-the-art
technology.
„„ 3rd generation Intel® Core™ i3 or i5 processor and optional Intel® vPro™ technology
Ultimate security
Protect your company data against unauthorized third-party access.
„„ Advanced Theft Protection (Intel® Anti Theft & Computrace®), fingerprint sensor and optional TPM
module
Maximum connectivity
Always available on the move; wireless connectivity anytime, even without a hotspot nearby
„„ Optional integrated 4G/LTE or 3G/UMTS (incl. GPS), WLAN and Bluetooth
Page 1 / 7
www.fujitsu.com/fts/tabletpc
Fujitsu recommends Windows 8 Pro.
Data Sheet Fujitsu STYLISTIC Q702 Tablet PC
Components
Processor
Operating systems
Operating system
Operating system compatible
Intel® Core™ i5-3337U processor (1.8 GHz, up to 2.7 GHz, 3 MB)
Intel® Core™ i5-3437U processor (1.9 GHz, up to 2.9 GHz, 3 MB)
Intel® Core™ i3-3227U processor (1.9 GHz, 3 MB)
Windows 8
Windows 8 Pro
Windows 8
Windows 8.1
Windows® 7
Base unit memory
Supported capacity RAM
Supported capacity RAM (max.)
Memory slot type
Memory notes
STYLISTIC Q702 dual digitizer
4 GB
Hard disk drives (internal)
SSD mSATA, 256 GB
SSD mSATA, 128 GB, Opal TCG
SSD mSATA, 128 GB, FDE
SSD mSATA, 128 GB
SSD mSATA, 64 GB, Opal TCG
SSD mSATA, 64 GB, FDE
SSD mSATA, 64 GB
Hard disk notes
One Gigabyte equals one billion bytes, when referring to hard disk drive capacity.
Accessible capacity may vary, also depending on used software.
Up to 20 GB of HDD space is reserved for system recovery
Internal HDD interface: S-ATA III (6GBit/s)
WLAN (optional)
Atheros Minicard 802.11 b/g/n
Intel® Centrino® 6205 802.11 a/b/g/n
Wireless technologies
Antennas
WLAN notes
UMTS/GPS notes
DIMM (DDR3)
DDR3 - 1600 MHz
2x dual band for WLAN, 2x for UMTS/LTE, 1x for Bluetooth (on Bluetooth module)
Import and usage according to country-specific regulations.
Including GPS functionality
3G/4G (optional)
Sierra Wireless Gobi 3000 (Downlink speed 14.4 Mbit/s, Uplink speed 5.76 Mbit/s)
LTE Sierra Wireless MC7710 (Downlink speed up to 100 Mbit/s, Uplink speed up to 50 Mbit/s)
Bluetooth (optional)
Bluetooth 4.0
Display
Base unit
General system information
Chipset
Chipset notes
BIOS features
Display
Display
Page 2 / 7
STYLISTIC Q702 dual digitizer
Intel® QM77
supports iAMT 8.0, Intel® vPro™ requires Core i5-34xx, Intel W-LAN 6205 & TPM module
BIOS Flash EPROM
BIOS based on Phoenix SecureCore
29.5 cm (11.6-inch), IPS dual digitizer, (HD), Anti-glare touchscreen, 1366 x 768 pixel (recommended), 500:1, 400
cd/m²
www.fujitsu.com/fts/tabletpc
Fujitsu recommends Windows 8 Pro.
Data Sheet Fujitsu STYLISTIC Q702 Tablet PC
Display
Display notes
Aspect ratio
Brightness - typical
Contrast - typical
Digitizer
Ambient light sensor
Ambient light sensor notes
Graphics
TFT resolution (HDMI)
TFT resolution (VGA)
Graphics brand name
Graphics features
Graphics notes
Wide-view high-bright LED display (for enhanced outdoor viewing). With magnesium display lid.
Integrated ambient light sensor for automatic backlight adjustment to the working environment.
16:9
400 cd/m²
500:1
Dual Digitizer for pen input plus capacitive 10-finger multi-touch screen
Integrated
While enabled, the ambient light sensor automatically adjusts the display backlight
up to 1920 x 1200
up to 1920 x 1200
Intel® HD Graphics 4000 with 3rd generation Core i processors
DirectX 11
Shared memory depending on main memory size and operating system
3D accelerator
Interfaces
Memory card slots
SIM card slot
USB 3.0 total
USB 2.0 total
HDMI
DC-in
Audio: line-in / microphone
Audio: line-out / headphone
Internal microphones
Docking connector for Port Replicator
1 (SD up to 2GB, SDHC up to 32GB, SDXC up to 64GB)
1 (usable only with 3G/UMTS, 4G/LTE)
1
1
1
1
1
1
2 (digital)
1
Wired communication
LAN
Built-in 10/100/1000 MBit/s Intel® 82579 LM
Multimedia
Audio type
Audio codec
Audio features
Camera
On board
Realtek ALC269
2x digital array microphones, 2x built-in speakers (stereo)
Built-in webcams, HD front camera plus 5.0 megapixel rear camera
Power supply
AC adapter
Rated voltage range
Rated frequency range
1st battery
Runtime 1st battery
Runtime 1st + 2nd battery
Battery charging time
Battery notes
Dimensions / Weight / Environmental
Dimensions (W x D x H)
Weight
Operating ambient temperature
Operating relative humidity
Page 3 / 7
19 V / 60 W (3.16 A)
100 V - 240 V (AC Input)
50 Hz - 60 Hz
Li-Ion battery 3-cell, 3.150 mAh, 34 Wh
up to 4h 12m
up to 9h 30m
~ 252min (3.150mAh)
Battery runtime information is based on worldwide acknowledged BAPCO Mobile Mark 2007 Benchmark (readers
mode e.g. surfing the internet, writing E-mails, viewing documents) which provides results that enable direct product
comparisons between manufacturers. It does not guarantee any specific battery runtime which actually can be lower
and may vary depending on product model, configuration, application and power management settings. The battery
capacity slightly decreases with every charging cycle and over the lifetime.
302 x 195 x 12.7 mm
0.850 kg
5 - 35 °C
20 - 85 % (running)
www.fujitsu.com/fts/tabletpc
Fujitsu recommends Windows 8 Pro.
Data Sheet Fujitsu STYLISTIC Q702 Tablet PC
Additional Software
Additional software (preinstalled)
Additional software (optional)
Manageability
Manageability technology
Manageability software
DeskView components
Supported standards
Manageability link
Security
System and BIOS Security
User Security
Compliance
Compliance link
Adobe® Reader® (pdf reader)
Microsoft® Touch Pack for Windows® 7
Nero Essentials (burning software)
Norton Internet Security (incl. Firewall) 60 days version
Fujitsu LIFEBOOK Application Panel
Fujitsu Auto Rotation Utility
Fujitsu Display Manager
Fujitsu Recovery (hard disk based recovery)
Fujitsu Plugfree Network (network management utility)
Power Saving Utility
Fujitsu Security Panel Application
ShockSensor Utility
Fujitsu System Manager (Tablet Button Utility)
Microsoft Office (buy license to activate the pre-installed Microsoft Office)
Drivers & Utilities DVD (DUDVD)
UMTS connection manager (optional with UMTS)
CyberLink YouCam (webcam software)
Recovery DVD (Windows® 7)
DeskUpdate Driver management
PXE 2.1 Boot code
Wake up from S5 (off mode)
WoL (Wake on LAN)
DeskView Client
DeskView Instant BIOS Management
DeskView Integration for Symantec Management Platform
Inventory Management
BIOS Management
Driver Management
Security Management
Alarm Management
WMI
PXE
BootP (made4you)
http://www.fujitsu.com/fts/manageability
Advanced Theft Protection (Intel® Anti Theft & Computrace®)
Norton Internet Security (incl. Firewall) 60 days version
Write protect option for the Flash EPROM
Control of all USB interfaces
User and supervisor BIOS password
Optional: Trusted platform module (TPM 1.2)
Integrated Fingerprint Sensor
User and supervisor BIOS password
Hard disk password
OmniPass security software
http://globalsp.ts.fujitsu.com/sites/certificates
Port Replicator interfaces (optional)
DC-in
USB 2.0 total
VGA
Ethernet (RJ-45)
Page 4 / 7
Docking Keyboard
1 (19V)
2
1
1 (10/100/1000)
www.fujitsu.com/fts/tabletpc
Fujitsu recommends Windows 8 Pro.
Data Sheet Fujitsu STYLISTIC Q702 Tablet PC
Warranty
Standard Warranty
Service level
2 years (depending on country)
Collect & Return Service / Bring-in Service (for countries within region FTS CEMEA&I, for all other countries depending
on local regulations)
Warranty Terms & Conditions
http://support.ts.fujitsu.com/warranty
Maintenance and Support Services - the perfect extension
Recommended Service
9x5, Response Time: Next Business Day
Service Weblink
http://www.fujitsu.com/fts/services/support
MikroPC
“Test Winner”, Fujitsu STYLISTIC
Q702, Finland - 01/2013
Recommended Accessories
Attachable Keyboard STYLISTIC
Q702
S26391-F1207-L2**,
The Attachable Keyboard exclusively for STYLISTIC Q702 is the ultimate
productivity accessory. The keyboard has a dedicated battery for enhanced S26391-F1207-E2** (**
country specific version)
runtime of up to nine hours and additional USB, VGA and LAN interfaces.
The full-sized keyboard transforms your tablet into a traditional notebook
for high-efficiency content creation without any compromise on mobility.
USB 3.0 Port Replicator PR08
The Fujitsu USB 3.0 Port Replicator PR08 is the solution for notebooks
without a dedicated docking connector or in hot-desk environments.
You can connect to the local area network, and to all of your peripherals
with a single USB 3.0 plug and boost your productivity by extending your
workspace over up to four displays.
Order Code:
S26391-F6007-L400
Second Battery STYLISTIC Q702
With an additional battery you can maximize the run-time of your tablet
and work however long it takes to get the job done.
People who are often on business or private trips want to power up
their handhelds, tablet PCs and notebooks anywhere and anytime. The
Fujitsu Car/Truck Power Adapter 90 will charge your Tablet PC or notebook
anywhere a 12 V or 24 V power supply is available.
Order Code:
S26391-F1206-L100
Order Code:
S26391-F2613-L610
Tablet Sleeve 11
The Fujitsu Tablet Sleeve 11 is a thin tailored sleeve for your Fujitsu Tablet.
It is the ideal match for tablets up to 29.5 cm (11.6-inch) and provides
thin and light protection for your tablet when you are on the go. Enjoy
sophisticated design with high quality PU leather and nylon accented by
tasteful red highlights.
Order Code:
S26391-F1191-L311
Bump Case STYLISTIC Q702
Order Code:
The Bump Case STYLISTIC Q702 provides durable protection for vertical
applications while providing you full access to your STYLISTIC Q702. It has a S26391-F119-L232
heavy-duty hand straps plus a detachable shoulder strap for a firm grip with
comfort and security on the go. There is even a recessed pen sleeve and see
through business card pocket.
Car/Truck Power Adapter 90
Page 5 / 7
www.fujitsu.com/fts/tabletpc
Data Sheet Fujitsu STYLISTIC Q702 Tablet PC
Fujitsu recommends Windows 8 Pro.
USB2.0-LAN-Adapter
The Fujitsu USB2.0-LAN-Adapter allows you to connect your computer to
a 10/100 Mbps network simply by a USB port. The USB 2.0 (480 Mbps)
ensures full network speed without any compromise.
Order Code:
S26391-F6055-L510
Bluetooth® Mouse V470
The latest Bluetooth technology makes cables a thing of the past. The
Bluetooth® Mouse V470 has a sensitive laser sensor with a resolution of
1.000 dpi. This delivers smoother cursor control on nearly any surface.
Scroll horizontally or vertically with the 4-way tilt scroll wheel and take it
wherever you go.
Order Code:
LTC:M-RCQ142
Mobile Bluetooth
Communication Speaker
The Fujitsu Mobile Bluetooth Communication Speaker is the perfect audio Order Code:
accessory for your connected mobile life. It is smaller than a tennis ball so S26391-F7128-L700
you can bring it everywhere and it can connect via Bluetooth so you don’t
have to worry about cords. An integrated microphone gives you on-the-fly
conference call capabilities for all your Bluetooth enabled mobile devices.
VGA Conversion Cable
The Fujitsu VGA Conversion Cable enables you to view content from your
HDMI capable device when the available projector or external display only
has a VGA connector. This adapter is perfect for salespeople and others
who often find themselves making presentations in a wide variety of
environments.
Page 6 / 7
Order Code:
S26391-F938-L900
www.fujitsu.com/fts/tabletpc
Fujitsu recommends Windows 8 Pro.
Data Sheet Fujitsu STYLISTIC Q702 Tablet PC
More information
Fujitsu OPTIMIZATION Services
More information
Copyrights
In addition to Fujitsu STYLISTIC Q702, Fujitsu
provides a range of platform solutions. They
combine reliable Fujitsu products with the
best in services, know-how and worldwide
partnerships.
Learn more about Fujitsu STYLISTIC
Q702, please contact your Fujitsu sales
representative or Fujitsu Business partner, or
visit our website.
www.fujitsu.com/fts/tabletpc
Fujitsu Portfolio
Build on industry standards, Fujitsu offers a full
portfolio of IT hardware and software products,
services, solutions and cloud offering, ranging
from clients to datacenter solutions and
includes the broad stack of Business Solutions,
as well as the full stack of Cloud offering. This
allows customers to leverage from alternative
sourcing and delivery models to increase
their business agility and to improve their IT
operation’s reliability.
Fujitsu green policy innovation
All rights reserved, including intellectual
property rights. Changes to technical data
reserved. Delivery subject to availability. Any
liability that the data and illustrations are
complete, actual or correct is excluded.
Designations may be trademarks and/or
copyrights of the respective manufacturer,
the use of which by third parties for their
own purposes may infringe the rights of such
owner.
For further information see www.fujitsu.com/
terms
Copyright © Fujitsu Technology Solutions
Computing Products
www.fujitsu.com/global/services/computing/
Software
www.fujitsu.com/software/
CONTACT
FUJITSU Technology Solutions
Website: www.fujitsu.com/fts
2013-09-27 CE-EN
Page 7 / 7
Fujitsu Green Policy Innovation is our
worldwide project for reducing burdens on the
environment.
Using our global know-how, we aim to
contribute to the creation of a sustainable
environment for future generations through IT.
Please find further information at http://www.
fujitsu.com/global/about/environment
Disclaimer
Technical data are subject to modification and
delivery subject to availability. Any liability
that the data and illustrations are complete,
actual or correct is excluded. Designations
may be trademarks and/or copyrights of the
respective manufacturer, the use of which
by third parties for their own purposes may
infringe the rights of such owner.
All rights reserved, including intellectual property rights. Changes to technical data reserved. Delivery subject to availability.
Any liability that the data and illustrations are complete, actual or correct is excluded.
Designations may be trademarks and/or copyrights of the respective manufacturer, the use of which by third parties for their
own purposes may infringe the rights of such owner.
For further information see www.fujitsu.com/terms
Copyright © Fujitsu Technology Solutions
www.fujitsu.com/fts/tabletpc
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
