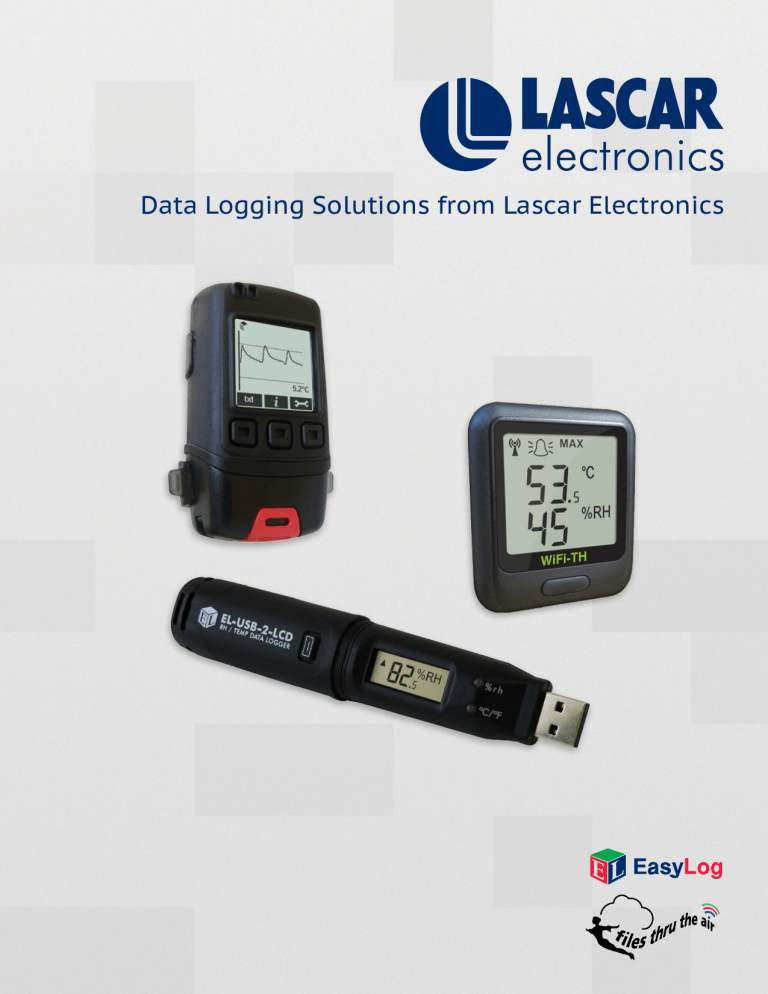

Data Logging Solutions from Lascar Electronics

Data Logging Solutions from Lascar Electronics
Data Logging Solutions from Lascar Electronics
EasyLog® USB
In this range:
Temperature
Temp/RH
Thermocouple
Thermistor
Voltage
Current
Event, State & Count
Carbon Monoxide
Simple, Low-Cost Data Logging
Lascar’s standalone USB data loggers measure a number of parameters including
temperature, humidity, voltage, current, 4-20mA, event/count/state and carbon
monoxide over a period of time.
EasyLog® USB data loggers connect directly into the USB port of a PC. The Windows
software for set-up and data download is both streamlined and easy to use. Choose
a logger name, sample rate, alarm levels and start mode before recording. After data
has been collected, it can be graphed or exported to Excel for further analysis.
Each data logger is supplied with a battery and features red/green LEDs to indicate
data logging status. Some models include an LCD and push-button to show the
most recent, maximum and minimum readings while logging. Most temperature
and temperature & humidity data loggers also provide waterproof protection for
outdoor use.
EL-DataPad
Handheld Data Collector
& Programmer
EL-DataPad
Designed to work with temperature,
humidity and thermocouple USB
data loggers, this touch-screen
device allows users to download
data and analyze the results in
the field as well as setting up and
restarting data loggers.
The EL-DataPad has capacity
for data from more than 500
full logging sessions and can be
connected to a PC via a micro-USB
cable to download data at a later
time. The EL-DataPad also gives
users with Mac or Linux operating
systems a means of employing
EasyLog® USB data loggers
without the need for PC set-up and
download.
EL-EnviroPad-TC
Thermometer with Inbuilt Data Logging & Graphing
The EL-EnviroPad-TC is a robust and easy to use handheld device which takes and records
temperature readings via the attached K-type probe. A large touch-screen, color display indicates
temperature, maximum and minimum readings and will produce a graph of the data. The unit has two
modes: Data Logging, when it can be set up and left to take temperature readings at predetermined intervals for a desired length of time and Spot Measurement, when it can be used as a
thermometer to capture one-off temperature readings displayed on screen. The unit is compatible
with any J, K, N andT-type thermocouple probe.
EL-EnviroPad-TC
In this range:
EasyLog® GFX
Temperature
Temp/RH
Thermocouple
Thermistor
Advanced Data Logging
The EasyLog® GFX range brings a more advanced feature set to the monitoring of
temperature and humidity.
The GFX products feature an increased memory capacity (250,000 readings per
channel), 0.1 digit resolution across all parameters, as well as a graphics display
which shows real-time trend graphs and data summaries. An on-screen menu
provides the capability for users to start, stop and restart the data logger in the
field.
Connecting to the PC via a micro-USB cable, the EasyLog® GFX range uses the
EL-WIN-USB software for set up and download with additional functions including
conditional start mode, delayed alarm function and probe calibration.
X1
X2
Glycol Probes
The range also includes dual-channel data loggers for reduced cost per channel.
These glycol-filled probes are
designed
to
provide
a
buffered response to changes
in temperature. This helps
to simulate the thermal lag
experienced by products stored
in the monitored environment.
Glycol probes are available for
use with all thermocouple and
thermistor probe temperature
data loggers.
Products shown:
EL-GFX-1, EL-GFX-2,
EL-GFX-DTC, EL-GFX-DTP
EL-WIN-USB
Intuitive, Powerful & Free Windows Control Software
Lascar’s free data logging control software, EL-WIN-USB, provides an intuitive and
easy-to-use interface for communicating with the EasyLog® USB and GFX data
logger ranges.
Compatible with all Windows 8, 7, Vista and XP PCs, the software employs a wizard
format to guide users through the set up and download processes.
A powerful graphing module for analyzing downloaded data, it also allows export of
the data to Microsoft Excel, PDF and jpeg formats.
Products shown:
EL-PROBEA-3.0M-TP-GLY,
EL-PROBE1-2.0M-TC-GLY
X1
X2
In this range:
WiFi Sensors
Temperature
Temp/RH
Thermocouple
Thermistor
Wireless Data Logging
The WiFi range of temperature and humidity data loggers provides the capability to
remotely monitor an environment. Data is uploaded periodically using a standard
WiFi network without the need to physically collect and connect the units to a PC.
Each sensor features a rechargeable battery or can be permanently powered using a
USB wall adapter. The large LCD on the face of the product provides an up-to-date
reading, while the button cycles through the maximum and minimum readings.
The range includes data loggers for monitoring temperature, humidity, thermocouple
temperature and external thermistor probe temperature.
WiFi Communication Software
Users can interface with their data loggers via a local
PC, using Lascar’s free WiFi software, or by subscribing
to the cloud-based data hosting service which allows
access to data from any internet enabled device such
as tablet, smartphone or computer.
Both interfaces provide access to the stored data
and real-time alerts of alarm conditions. Users can
also remotely change sample rates, scales and alert
settings. The cloud-based service adds email alerts
for both alarm conditions and power outages.
In this range:
Files Thru The Air
Files Thru The Air Cloud Service takes the WiFi sensors to a new level, unshackling them from the PC
and allowing them to be managed and monitored over the internet from any location in the world.
Users can interact with their sensors via a web based interface allowing them to monitor multiple
WiFi sensors in any number of locations. Not only does it provide the ability to manage and monitor
the sensors, but users can also access ‘Event Logs’ which will give a record of any past triggered
alarm events and have the ability to graph their sensor data on-line. Users also have the ability to
set up email alerts which will notify them as and when an Alarm Event happens.
Files Thru The Air is a safe, secure and protected location for data to be stored and can be used in
aiding the compliance of 21CFR Part II.
WiFi-ALERT
WiFi Sensor Monitoring System with
Audible & Visual Alarm
• Works with the WiFi range of sensors
• Uses existing WiFi infrastructure
• Configurable alert tones and volume
• Visual alarm from high brightness LEDs
WiFi-Alert
Audible and Visual Alarm
The WiFi-Alert is a standalone monitoring system for all
the sensors in the WiFi range, receiving alarm messages
from any WiFi sensor connected to the same wireless
network. An email, text or on-screen alarm may not be
enough. The WiFi-Alert indicates an alarm activation by
flashing a strong, red light under its translucent plastic
housing and emitting one of 9 alarm tones. Position by
your desk or the sensor in question and this module will
make sure there is no question when an alarm has been
breached.
Temperature
Temp/RH
Thermocouple
Thermistor
Applications
Storage & Logistics
A number of USB data loggers are small enough to be placed alongside or within goods as they move through a
supply chain. This provides a temperature record from manufacture, through storage, into transportation and finally
on to the end user.
Refrigeration
With both food and medicine, it is increasingly important for manufacturers, suppliers and end users to have
verifiable evidence that correct storage conditions have been provided from the moment of manufacture to the
time the goods are used. Lascar’s data loggers provide a permanent record to show that these conditions have been
correctly maintained.
Working Environment
Sub-optimal conditions in a working environment can significantly affect productivity levels. EasyLog® data loggers
provide an unobtrusive means of determining where problems in a building are likely to occur.
Museums & Preservation
Exposure to extremes of temperature or humidity can cause textiles, canvas and wood to quickly deteriorate. To
support the preservation of exhibits, EasyLog® data loggers provide a record of these environmental factors over a
period of time, helping to identify potential problems before damage occurs.
Industrial Processes
Many industrial sensors output an analog voltage, 4-20mA loop, or volt-free contact to provide information about a
particular process. Lascar’s voltage, current, 4-20mA and event/count/state loggers can be used to record this output
over a period of time to ensure correct operation has occurred.
Vaccination Monitoring (Exceeds CDC Guidelines on Data Loggers)
Lascar Electronics has paired its powerful thermocouple and thermistor data loggers with a glycol bottle probe for users who need a complete
vaccination temperature monitoring system. Available in single or dual channel format, these units use simple Windows-based software for
programming and data download.
Detachable Temperature Probe
● K-Type thermocouple or thermistor
probe in Glycol-filled bottle
● 6 ft thermocouple cable length
● 9 ft thermistor cable length
Continuous Temperature Monitoring
● User selectable logging rates between
2 sec and 1 hr
Memory Storage: Over 250,000 Readings
● Logger will not overwrite data once full
● Unit can store multiple logging sessions
Operating Range: Glycol Bottle Probe -34 to +40°C
● Stand-alone logger operation range -10
to +40°C
Uncertainty: In the Range of -1 to +15°C
● ±0.5° C (Thermocouple)
● ±0.1° C (Thermistor)
Resolution: ±0.1°C
Battery Life: 4 Months Typical or Option to Power from Wall Socket
Integrated Liquid Crystal Display (LCD)
● GFX has real-time temp, alarm status, graph of
recent temps
Alarm Capabilities
● User settable audible alarm
● Highly visible confidence/alarm LEDs
Download/Archival Software
● FREE software downloaded from Lascar’s software
website, www.easylogusb.com
● The micro USB cable allows connection to the PC for
programming or data download
● Logged data available for upload to PC at any time
● Can directly download, graph and export data to Excel
Calibration
Every data logger includes a warranty that it will perform to specification. However, some regulations
require accompanying test certificates confirming that the data loggers are within calibration. Lascar
can provide NIST traceable certificates with any temperature, humidity, thermocouple or thermistor
data logger.
EL-USB Range
Temperature
EL-USB-1
Temperature Data Logger
EL-USB-2
EL-USB-CO
Thermocouple
Current
EL-USB-ACT
-40 to +257ºF
Thermistor Probe Data Logger with LCD
Higher Accuracy Available: EL-USB-TP-LCD+
-328 to +1350ºF
(J, K & T-type)
Thermocouple Data Logger
with LCD
Thermistor
EL-USB-TP-LCD
0 to 300ppm &
0 to 1000ppm range
Thermocouple
EL-USB-TC-LCD
-328 to +1350ºF
(J, K & T-type)
Thermocouple Data Logger
Carbon Monoxide
Carbon Monoxide Data Logger
Higher Accuracy Available: EL-USB-CO300
Up to 100Hz
EL-USB-TC
4 - 20mA range
4 - 20mA Data Logger
Event, State & Count
Event, Count & State Data Logger
Current
EL-USB-4
0 to 30V d.c. range
EL-USB-5
-4° to +158°F &
0 to 100% RH range
Real-Time Temperature, Relative
Humidity and Dew-Point Data Logger
Voltage
Voltage Data Logger
Temp/RH
EL-USB-RT
-14 to +122ºF range
EL-USB-3
-31 to +176ºF &
0 to 100% RH range
Temperature & Relative Humidity
Data Logger with LCD
Higher Accuracy Available: EL-USB-2-LCD+
Temperature
Low Cost USB Temperature
Data Logger
Temp/RH
EL-USB-2-LCD
-31 to +176ºF &
0 to 100% RH range
EL-USB-LITE
-4 to +140ºF range
Temperature Data Logger
with Rechargeable Battery
Temp/RH
Temperature & Relative Humidity
Data Logger
Higher Accuracy Available: EL-USB-2+
Temperature
EL-USB-1-RCG
-40 to +257ºF range
Industrial Temperature Data Logger
-31 to +176ºF range
Temperature Data Logger
with LCD
Temperature
EL-USB-1-PRO
Temperature
EL-USB-1-LCD
-31 to +176ºF range
AC and DC Millivolt Data Logger
with Current Clamp Input
0-707mV a.c. &
±1000mV d.c.
Thermocouple
EL-Enviropad
Thermometer with Inbuilt Data Logging,
Graphing & Spot Measurement
-328 to +1350ºF
(J, K & T-type)
EL-GFX Range
EL-GFX-1
Temperature
Temperature Data Logger
with Graphic Screen
EL-GFX-2
Temp/RH
Temp & RH Data Logger
with Graphic Screen
Thermocouple
Thermocouple
EL-GFX-DTC
X2
Dual Channel Thermocouple
Data Logger with Graphic Screen
Thermocouple Data Logger
with Graphic Screen
-22 to +176ºF &
0 to 100% RH range
-22 to +176ºF range
EL-GFX-TC
-328 to +1350ºF
(J, K & T-type)
EL-GFX-TP
Thermistor
Thermistor Probe Data Logger with
Graphic Screen
-328 to +1350ºF
(J, K & T-type)
-40 to +257ºF
High Accuracy available: EL-GFX-2+
High Accuracy available: EL-GFX-TP+
EL-GFX-DTP
Thermistor
Dual Channel Thermistor Probe Data
Logger with Graphic Screen
-40 to +257ºF
High Accuracy available: EL-GFX-DTP+
GFX Vaccination Range
Thermocouple
EL-GFX-TC-PROBE-G
Single Channel Thermocouple Data
Logger with Graphic Screen
Thermistor
Thermocouple
X2
EL-GFX-DTC-PROBE-G
Single Channel Thermocouple Data
Logger with Graphic Screen
Supplied with K-type
glycol bottle
Supplied with x2
K-type glycol bottle
EL-GFX-TP-PROBE-G
Single Channel Thermistor Data
Logger with Graphic Screen
Supplied with
thermistor glycol bottle
Thermistor
X2
EL-GFX-DTP-PROBE-G
Single Channel Thermistor Data
Logger with Graphic Screen
Supplied with x2
thermistor glycol bottle
WiFi Range
WiFi-T
Temperature
WiFi Temperature
Data Logging Sensor
WiFi-TH
Temp/RH
WiFi Temperature & Humidity
Data Logging Sensor
-22 to +176ºF &
0 to 100% RH range
-22 to +176ºF range
High Accuracy available: WiFi-T+
WiFi-TC
Thermocouple
Thermocouple Data Logger
with Graphic Screen
-328 to +1350ºF
(J, K & T-type)
High Accuracy available: WiFi-TH+
Thermistor
WiFi-TP
Thermistor Probe Data Logger with
Graphic Screen
WiFi-Alert
WiFi Sensor Monitoring
System with Audible &
Visual Alarm
-40 to +257ºF
High Accuracy available: WiFi-TP+
Accessories
EL-DataPad
Handheld Programmer
and Data Collector for
EL-USB Data Loggers
TP Glycol Probe
NTC Thermistor Probe in
Glycol Solution
TC Glycol Probe
K-type Thermocouple
Probe in Glycol Solution
Calibration
Certificates
NIST-Traceable Test
Certificates for EasyLog®
Data Loggers
electronics
USA
4258 West 12th Street
Erie, PA 16505
UNITED STATES
T +1 (814) 835-0621
E [email protected]
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
