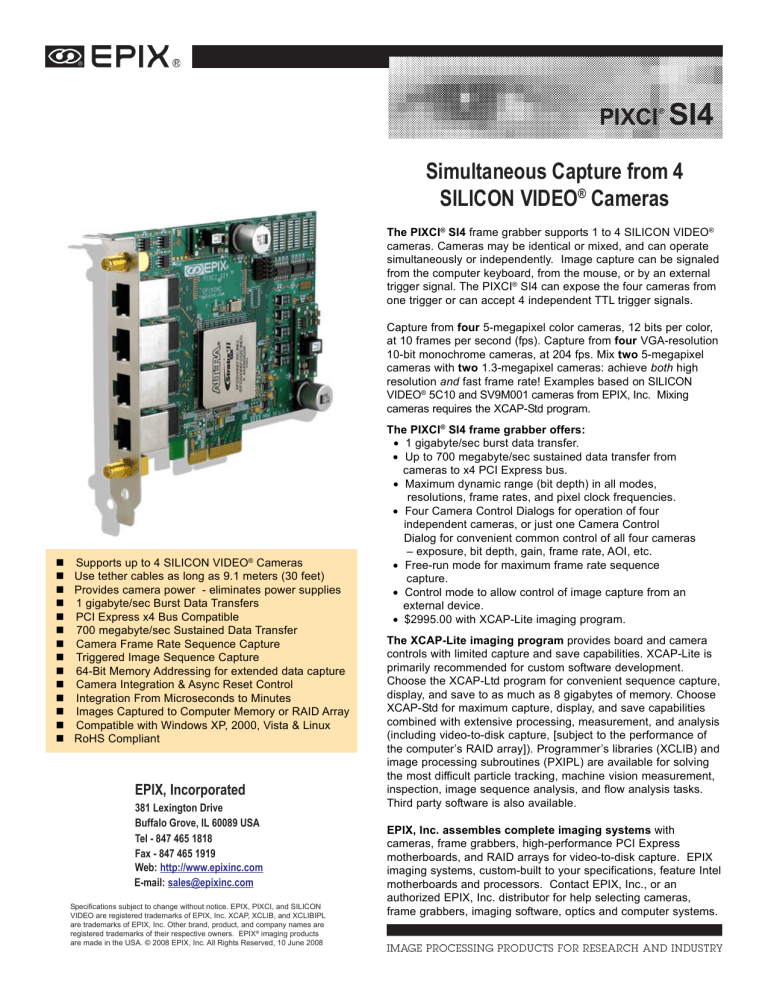

PIXCI SI4 Simultaneous Capture from 4 SILICON VIDEO

PIXCI SI4 Simultaneous Capture from 4 SILICON VIDEO
PIXCI
®
SI4
Simultaneous Capture from 4
SILICON VIDEO® Cameras
The PIXCI® SI4 frame grabber supports 1 to 4 SILICON VIDEO®
cameras. Cameras may be identical or mixed, and can operate
simultaneously or independently. Image capture can be signaled
from the computer keyboard, from the mouse, or by an external
trigger signal. The PIXCI® SI4 can expose the four cameras from
one trigger or can accept 4 independent TTL trigger signals.
Capture from four 5-megapixel color cameras, 12 bits per color,
at 10 frames per second (fps). Capture from four VGA-resolution
10-bit monochrome cameras, at 204 fps. Mix two 5-megapixel
cameras with two 1.3-megapixel cameras: achieve both high
resolution and fast frame rate! Examples based on SILICON
VIDEO® 5C10 and SV9M001 cameras from EPIX, Inc. Mixing
cameras requires the XCAP-Std program.
Supports up to 4 SILICON VIDEO® Cameras
Use tether cables as long as 9.1 meters (30 feet)
Provides camera power - eliminates power supplies
1 gigabyte/sec Burst Data Transfers
PCI Express x4 Bus Compatible
700 megabyte/sec Sustained Data Transfer
Camera Frame Rate Sequence Capture
Triggered Image Sequence Capture
64-Bit Memory Addressing for extended data capture
Camera Integration & Async Reset Control
Integration From Microseconds to Minutes
Images Captured to Computer Memory or RAID Array
Compatible with Windows XP, 2000, Vista & Linux
RoHS Compliant
EPIX, Incorporated
381 Lexington Drive
Buffalo Grove, IL 60089 USA
Tel - 847 465 1818
Fax - 847 465 1919
Web: http://www.epixinc.com
E-mail: [email protected]
Specifications subject to change without notice. EPIX, PIXCI, and SILICON
VIDEO are registered trademarks of EPIX, Inc. XCAP, XCLIB, and XCLIBIPL
are trademarks of EPIX, Inc. Other brand, product, and company names are
registered trademarks of their respective owners. EPIX® imaging products
are made in the USA. © 2008 EPIX, Inc. All Rights Reserved, 10 June 2008
The PIXCI® SI4 frame grabber offers:
• 1 gigabyte/sec burst data transfer.
• Up to 700 megabyte/sec sustained data transfer from
cameras to x4 PCI Express bus.
• Maximum dynamic range (bit depth) in all modes,
resolutions, frame rates, and pixel clock frequencies.
• Four Camera Control Dialogs for operation of four
independent cameras, or just one Camera Control
Dialog for convenient common control of all four cameras
– exposure, bit depth, gain, frame rate, AOI, etc.
• Free-run mode for maximum frame rate sequence
capture.
• Control mode to allow control of image capture from an
external device.
• $2995.00 with XCAP-Lite imaging program.
The XCAP-Lite imaging program provides board and camera
controls with limited capture and save capabilities. XCAP-Lite is
primarily recommended for custom software development.
Choose the XCAP-Ltd program for convenient sequence capture,
display, and save to as much as 8 gigabytes of memory. Choose
XCAP-Std for maximum capture, display, and save capabilities
combined with extensive processing, measurement, and analysis
(including video-to-disk capture, [subject to the performance of
the computer’s RAID array]). Programmer’s libraries (XCLIB) and
image processing subroutines (PXIPL) are available for solving
the most difficult particle tracking, machine vision measurement,
inspection, image sequence analysis, and flow analysis tasks.
Third party software is also available.
EPIX, Inc. assembles complete imaging systems with
cameras, frame grabbers, high-performance PCI Express
motherboards, and RAID arrays for video-to-disk capture. EPIX
imaging systems, custom-built to your specifications, feature Intel
motherboards and processors. Contact EPIX, Inc., or an
authorized EPIX, Inc. distributor for help selecting cameras,
frame grabbers, imaging software, optics and computer systems.
Simultaneous Capture from 4
SILICON VIDEO® Cameras
EPIX, Incorporated
381 Lexington Drive
Buffalo Grove, IL 60089 USA
Tel - 847 465 1818
Fax - 847 465 1919
Web: http://www.epixinc.com
E-mail: [email protected]
PIXCI
Supports up to 4 SILICON VIDEO® Cameras
1 gigabyte/sec Burst Data Transfers
PCI Express x4 Bus Compatible
700 megabyte/sec Sustained Data Transfer
Camera Frame Rate Sequence Capture
Triggered Image Sequence Capture
64-Bit Memory Addressing
Camera Integration & Async Reset Control
Integration From Microseconds to Minutes
Images Captured to Computer Memory or RAID Array
Compatible with Windows XP, 2000, Vista & Linux
RoHS Compliant
®
SI4
