Welltec System brings you better and
more efficient office mailing equipment

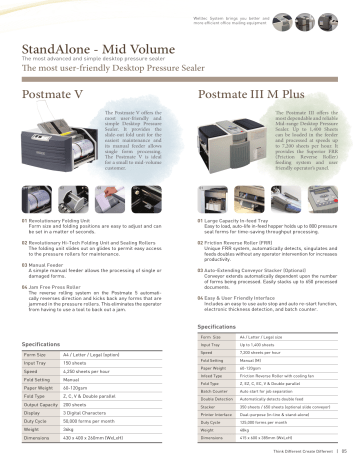

StandAlone - Mid Volume
The most advanced and simple desktop pressure sealer
The most user-friendly Desktop Pressure Sealer
Postmate V
Postmate III M Plus
The Postmate III offers the
most dependable and reliable
Mid-range Desktop Pressure
Sealer. Up to 1,400 Sheets
can be loaded in the feeder
and processed at speeds up
to 7,200 sheets per hour. It
provides the Superior FRR
(Friction Reverse Roller)
feeding system and user
friendly operator’s panel.
The Postmate V offers the
most user-friendly and
simple Desktop Pressure
Sealer. It provides the
slide-out fold unit for the
easiest maintenance and
its manual feeder allows
single form processing.
The Postmate V is ideal
for a small to mid-volume
customer.
01
02
03
04
01
02
03
04
01 Revolutionary Folding Unit
Form size and folding positions are easy to adjust and can
be set in a matter of seconds.
01 Large Capacity In-feed Tray
Easy to load, auto-life in-feed hopper holds up to 800 pressure
seal forms for time-saving throughput processing.
02 Revolutionary Hi-Tech Folding Unit and Sealing Rollers
The folding unit slides out on glides to permit easy access
to the pressure rollers for maintenance.
02 Friction Reverse Roller (FRR)
Unique FRR system, automatically detects, singulates and
feeds doubles without any operator intervention for increases
productivity.
03 Manual Feeder
A simple manual feeder allows the processing of single or
damaged forms.
04 Jam Free Press Roller
The reverse rolling system on the Postmate 5 automatically reverses direction and kicks back any forms that are
jammed in the pressure rollers. This eliminates the operator
from having to use a tool to back out a jam.
03 Auto-Extending Conveyor Stacker (Optional)
Conveyor extends automatically dependent upon the number
of forms being processed. Easily stacks up to 650 processed
documents.
04 Easy & User Friendly Interface
Includes an easy to use auto stop and auto re-start function,
electronic thickness detection, and batch counter.
Specifications
Specifications
Form Size A4 / Letter / Legal (option)
Input Tray 150 sheets
Speed 4,250 sheets per hour
Fold Setting Manual
Paper Weight 60-120gsm
Fold Type Z, C, V & Double parallel
Output Capacity 200 sheets
Form Size
A4 / Letter / Legal size
Input Tray
Up to 1,400 sheets
Speed 7,200 sheets per hour
Fold Setting Manual (M)
Paper Weight 60-120gsm
Infeed Type
Friction Reverse Roller with cooling fan
Fold Type Z, EZ, C, EC, V & Double parallel
Batch Counter
Auto start for job separation
Double Detection
Automatically detects double feed
Stacker
350 sheets / 650 sheets (optional slide conveyor)
Display
3 Digital Characters
Printer Interface
Dual-purpose (in-line & stand-alone)
Duty Cycle 50,000 forms per month
Duty Cycle 125,000 forms per month
Weight 36kg
Weight 48kg
Dimensions 430 x 400 x 260mm (WxLxH)
Dimensions
415 x 600 x 385mm (WxLxH)
Think Different Create Different | 05
